Choosing the Right Copper Pipe for Gas Lines: A Beginner’s Guide

When it comes to ensuring the safety and efficiency of your gas lines, choosing the right type of copper pipe is crucial. But with various types available, how do you know which one is the best fit for your needs? In this beginner-friendly guide, we will explore the different types of copper pipes suitable for gas lines, specifically focusing on Type K and Type L. You’ll learn about their unique characteristics, benefits, and potential drawbacks, helping you make an informed decision. Ready to dive in and discover the ideal copper pipe for your gas line project? Let’s get started!

Introduction to Copper Pipes

Understanding Copper Pipes

Copper pipes have been a staple in plumbing and gas line installations for many years, known for their reliability and performance. This section provides a beginner-friendly overview of copper pipes, their characteristics, and why they are commonly used in various applications.

Characteristics of Copper Pipes

Copper pipes are highly valued for several characteristics that make them ideal for gas lines and other plumbing needs:

• Durability: Copper is a strong and long-lasting material that can withstand high pressures and temperatures. This makes copper pipes ideal for both residential and commercial gas line installations.
• Corrosion Resistance: Copper pipes are highly resistant to corrosion, which helps prevent leaks and ensures the longevity of the piping system.
• Flexibility: While copper is a sturdy material, it also offers a degree of flexibility, allowing it to be shaped and bent to fit specific installation requirements without breaking.
• Thermal Conductivity: Copper has excellent thermal conductivity, which means it can efficiently transfer heat. This property is beneficial in various applications, including heating systems.

Common Uses of Copper Pipes

Copper pipes are used in a wide range of applications due to their versatile properties, such as durability and resistance to corrosion, making them ideal for gas lines.

• Gas Lines: Copper pipes are commonly used for gas lines because of their durability and resistance to corrosion. They are suitable for transporting natural gas and propane in residential and commercial settings.
• Water Supply Lines: Copper pipes are frequently used for water supply lines due to their ability to withstand high pressures and temperatures without degrading.
• HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, copper pipes are used for refrigerant lines and heat exchangers due to their thermal conductivity and durability.
• Fire Sprinkler Systems: The reliability and corrosion resistance of copper pipes make them a preferred choice for fire sprinkler systems, ensuring long-term performance and safety.

Types of Copper Pipes

There are several types of copper pipes, each designed for specific applications:

• Type K Copper Pipe: Type K copper pipes have the thickest walls and are typically used for underground installations, like water mains and gas lines, providing extra protection against damage and corrosion.
• Type L Copper Pipe: Type L copper pipes have medium-thickness walls and are commonly used for indoor plumbing and gas line installations. They are suitable for both residential and commercial applications and offer a good balance between durability and cost.
• Type M Copper Pipe: Type M copper pipes have the thinnest walls and are generally used for low-pressure applications, such as water supply lines in residential buildings.

Benefits of Using Copper Pipes

Copper pipes have several advantages that make them popular for various installations:

• Ease of Installation: Copper pipes are relatively easy to install, as plumbers are well-versed in working with this material, and various joining methods, such as soldering and brazing, ensure secure connections.
• Low Maintenance: Due to their corrosion resistance and durability, copper pipes require minimal maintenance once installed, reducing long-term upkeep costs.
• Safety: Copper is a non-toxic material, making it safe for transporting drinking water and natural gas. It also has antimicrobial properties that help prevent the growth of harmful bacteria in water supply lines.
• Environmental Impact: Copper is a recyclable material, which means that using copper pipes can contribute to sustainable construction practices and reduce environmental impact.

Understanding these fundamental aspects of copper pipes will help you appreciate their widespread use and importance in modern plumbing and gas line systems.

Types of Copper Pipes for Gas Lines

Overview of Different Types of Copper Pipes

Selecting the right copper pipes for gas lines requires understanding the different types and their specific applications. Each type of copper pipe has distinct characteristics that make it suitable for various uses.

Type K Copper Pipe

Type K copper pipes, known for their thick walls, offer extra durability and strength, making them ideal for high-pressure applications and underground installations where protection against damage is crucial.

Characteristics of Type K Copper Pipe

• Wall Thickness: The thickest among all copper pipe types, ensuring robustness and longevity.
• Durability: Highly resistant to mechanical damage, making it suitable for challenging environments.
• Corrosion Resistance: Excellent resistance to corrosion, essential for long-term reliability.

Common Uses in Gas Lines

Type K copper pipes are predominantly used in underground gas lines due to their ability to withstand high pressure and potential external stresses. Their durability ensures a long-lasting and safe gas distribution system.

Type L Copper Pipe

Type L copper pipes, with their medium-thick walls, balance strength and flexibility, making them a versatile and cost-effective solution for indoor gas distribution systems.

Characteristics of Type L Copper Pipe

• Wall Thickness: Thinner than Type K, but thicker than Type M, making it suitable for a range of applications.
• Flexibility: Easier to work with compared to Type K, allowing for more straightforward installation in complex layouts.
• Cost-Effectiveness: More affordable than Type K, while still offering good durability and performance.

Common Uses in Gas Lines

Type L copper pipes are ideal for indoor gas lines in residential and commercial settings, suited for moderate-pressure applications and easily adaptable to various installation needs.

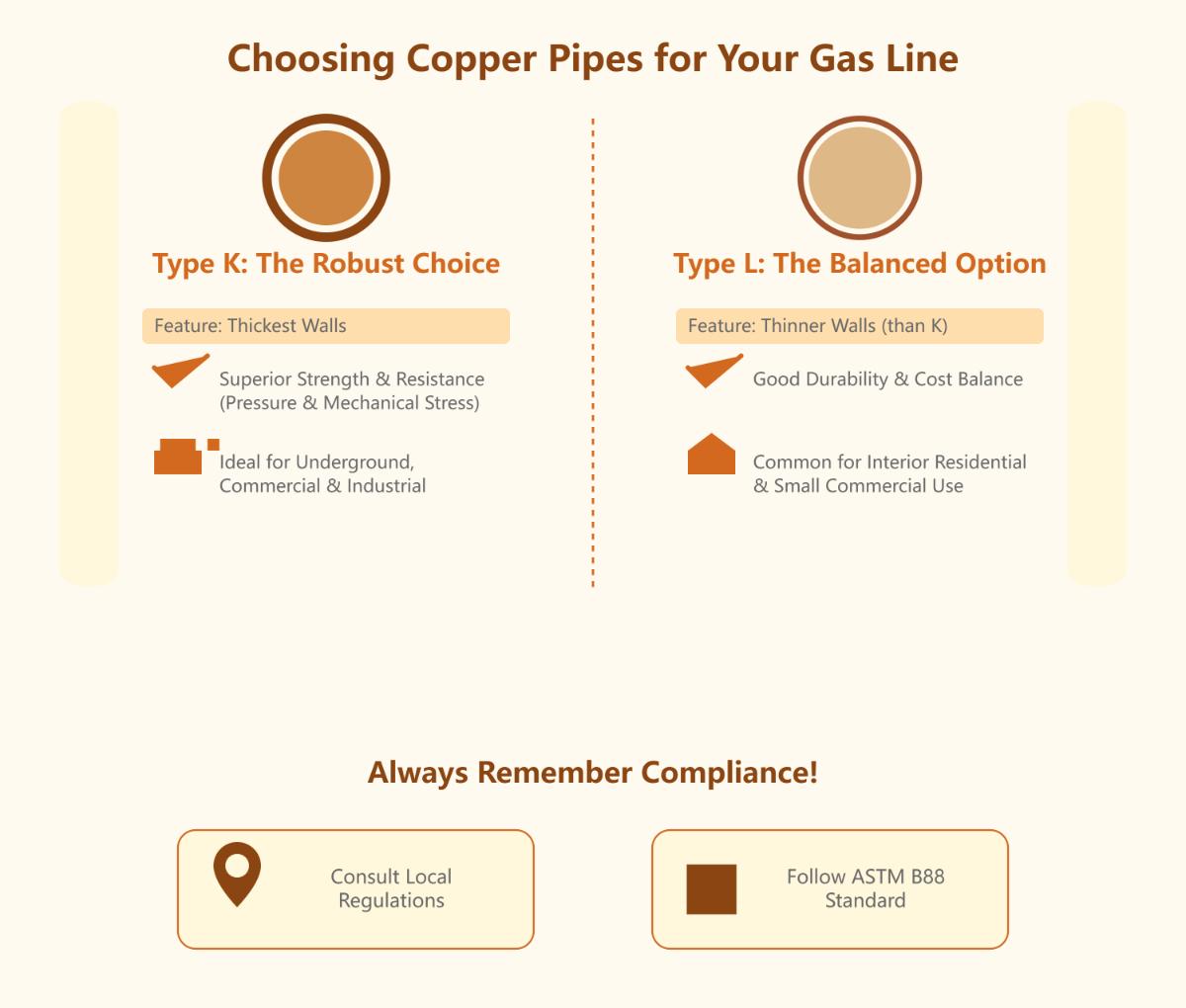

Comparison Between Type K and Type L Copper Pipes

Understanding the differences between Type K and Type L copper pipes can help you make an informed decision based on your specific needs.

• Wall Thickness: Type K has thicker walls than Type L, providing greater durability but at a higher cost.
• Applications: Type K is preferred for underground installations due to its robustness, while Type L is ideal for indoor use where flexibility and cost are important considerations.
• Cost: Type K is generally more expensive than Type L due to the additional material and durability.

ASTM B88 Standard and Its Relevance

The ASTM B88 standard sets requirements for seamless copper water tubes, ensuring they meet criteria for dimensions, materials, and mechanical properties, thus guaranteeing safety and reliability in gas line installations.

• Compliance: Ensuring your copper pipes meet ASTM B88 standards guarantees that they are suitable for gas line applications.
• Quality Assurance: Pipes adhering to ASTM B88 have been tested for durability, corrosion resistance, and


  Benefits and Limitations of Copper Pipes

Advantages of Using Copper Pipes for Gas Lines

Copper pipes are a popular choice for gas lines due to their numerous benefits. Understanding these advantages can help you appreciate why copper is often the material of choice for such applications.

Durability

One of the primary benefits of copper pipes is their durability. Copper is a strong material that can withstand high pressures and extreme temperatures, making it ideal for gas lines. This strength ensures gas lines stay intact and functional for many years, minimizing the need for frequent replacements.

Corrosion Resistance

Copper pipes are highly resistant to corrosion. This corrosion resistance is crucial for gas lines, as it prevents leaks, maintains system integrity over time, and reduces maintenance compared to other materials. This resistance also means copper pipes require less maintenance compared to other materials that may corrode and degrade more quickly.

Energy Efficiency

Copper efficiently transfers heat due to its excellent thermal conductivity. In gas line applications, this property can help in maintaining the temperature of the gas being transported, ensuring efficient energy use. This efficiency can lead to cost savings in the long run.

Ease of Installation

Copper pipes are relatively easy to install, especially in confined spaces. Their flexibility allows them to be shaped and bent to fit specific installation requirements without breaking. This ease of installation can result in significant labor savings, as the process is quicker and requires fewer fittings compared to more rigid materials.

Environmental and Health Benefits

Copper is a non-toxic material, making it safe for use in gas lines. It does not contaminate the gas being transported, ensuring that the gas remains clean and safe for use. Additionally, copper is recyclable, which makes it an environmentally friendly option. Using recyclable materials helps in reducing the environmental impact of construction projects.

Drawbacks of Using Copper Pipes for Gas Lines

While copper pipes offer numerous advantages, there are also some limitations to consider. Being aware of these drawbacks can help in making a more informed decision when choosing materials for gas lines.

Initial Cost

One major drawback is the initial cost, as copper is generally more expensive than materials like PVC or PEX. Although copper pipes can be cost-effective in the long run due to their durability and low maintenance requirements, the higher upfront cost can be a barrier for some installations.

Susceptibility to Theft

Copper pipes have a high scrap value, making them a target for theft. This is particularly a concern in unoccupied properties or during construction phases when the pipes are not yet in use. Security measures may need to be put in place to protect copper piping from theft, adding to the overall cost and complexity of construction projects. These measures can include installing security cameras, hiring security personnel, or using alternative materials that are less attractive to thieves.

Potential for Pinhole Leaks

Despite their durability, copper pipes can develop pinhole leaks over time due to pitting corrosion. These small leaks can be difficult to detect and may require regular inspections and maintenance to address. Pinhole leaks can compromise the efficiency and safety of the gas line system if not managed properly.

Not Suitable for Acidic Conditions

Copper pipes are not ideal for use with highly acidic water or gas. In such conditions, copper can corrode more rapidly, leading to potential failures in the gas line system. It’s crucial to consider the gas’s chemical composition to ensure it is compatible with copper piping.

Understanding both the benefits and limitations of copper pipes for gas lines will help in making an informed decision that balances performance, cost, and long-term reliability.

Installation Best Practices

Step-by-Step Guide to Installing Copper Pipes for Gas Lines

Installing copper pipes for gas lines requires careful planning and adherence to best practices to ensure safety and efficiency. This guide provides a step-by-step approach tailored for beginners.

Tools and Materials Needed

Before beginning the installation, gather the necessary tools and materials:

• Copper pipes (Type K or Type L, depending on application)
• Pipe cutter or hacksaw
• Pipe deburring tool
• Fittings and connectors
• Soldering kit (torch, flux, solder)
• Pipe wrenches
• Tape measure
• Steel sleeves or striker plates
• Approved tape and caulk for exterior wall penetration
• Safety gear (gloves, safety glasses)

Safety Precautions

Safety should be the top priority when working with copper gas lines. Follow these precautions:

• Ventilation: Ensure the work area is well-ventilated to avoid inhaling fumes from soldering.
• Protective Gear: Wear gloves and safety glasses to protect against burns and metal shards.
• Gas Supply: Shut off the gas supply before beginning any installation or repair work.
• Fire Safety: Keep a fire extinguisher nearby and avoid working near flammable materials.

Proper Techniques

Cutting and Preparing the Pipe

1. Measure and Mark: Measure the length of copper pipe needed and mark it clearly.
2. Cutting: Use a pipe cutter or hacksaw to cut the pipe to the desired length. Ensure the cut is clean and straight.
3. Deburring: Use a deburring tool to remove any sharp edges or burrs from the cut end of the pipe. This helps ensure a smooth connection.

Fastening the Pipe

1. Positioning: Secure copper pipes to the vertical face of joists using clips, spaced every 6 feet or less.
2. Drilling Holes: For pipes running at right angles or diagonally to joists, drill holes through the center of the joists to accommodate the pipe.
3. Protection: Use steel sleeves or striker plates to protect pipes from puncture when they pass through wall plates.

Soldering Connections

Clean the ends of the pipe and the fittings with a wire brush or sandpaper to remove any oxidation. Apply a thin layer of flux to the cleaned surfaces to help the solder flow evenly. Heat the joint with a torch and apply solder until it flows freely into the joint, ensuring a secure connection.

Real-World Examples and Case Studies

Understanding real-world applications can provide practical insights into copper pipe installations:

• Residential Installations: In a typical home, copper pipes are used for gas lines running from the main supply to various appliances. Proper installation techniques and adherence to local codes ensure safe and efficient gas distribution.
• Commercial Installations: Commercial installations often involve complex layouts and high-pressure conditions for copper gas lines. Using Type K copper pipes for underground lines and Type L for interior connections ensures durability and reliability.

Common Mistakes to Avoid

Avoiding common mistakes can help ensure a successful installation:

• Improper Cutting: Ensure cuts are clean and straight to avoid leaks and weak connections.
• Insufficient Fastening: Secure pipes adequately to prevent movement and potential damage.
• Skipping Deburring: Always deburr the pipe ends to ensure smooth and secure connections.
• Inadequate Ventilation: Work in well-ventilated areas to avoid inhaling harmful fumes during soldering.

Tips for Ensuring Compliance with ASTM B88 and Local Regulations

Compliance with standards and regulations is crucial:

• ASTM B88 Compliance: Verify that the copper pipes meet ASTM B88 standards for dimensions, materials, and mechanical properties.
• Local Codes: Check with local authorities for specific requirements regarding gas line installations. Follow all guidelines to ensure safety and legality.
• Documentation: Keep records of materials used and installation methods to provide proof of compliance if needed.

By following these best practices, beginners can confidently install copper pipes for gas lines, ensuring safety, efficiency, and compliance with standards and regulations.

Maintenance of Copper Gas Lines

Regular Inspection Routines

Regular inspections are crucial to ensure the integrity and functionality of copper gas lines. Regular checks help identify potential issues early, preventing costly repairs and ensuring safety.

Visual Inspections and Leak Detection

Perform visual inspections every few months to check for signs of corrosion, discoloration, or damage. Look for any green or white deposits around joints and fittings, which could indicate a leak or corrosion. To detect leaks, use a soap solution or a gas leak detector. Apply the soap solution to the joints and watch for bubbles, which indicate a leak. Gas leak detectors can provide a more precise and quicker identification of leaks.

Cleaning and Upkeep Methods

Proper cleaning and upkeep of copper gas lines are essential to maintain their efficiency and longevity.

Regular Cleaning

Dust the pipes regularly with a dry or slightly damp cloth to remove dirt and debris. Avoid using harsh chemicals, as they can damage the pipes and fittings.

Protecting from Moisture and Chemicals

Ensure that copper gas lines are kept away from chemicals and excessive moisture. Moisture can accelerate corrosion, while chemicals can react with the copper, leading to damage. Good ventilation in areas where copper pipes are installed can help reduce moisture levels.

Addressing Common Issues

Common issues with copper gas lines include leaks, corrosion, and pressure inconsistencies. Addressing these issues promptly can prevent more severe problems.

Corrosion Management

If you notice any signs of corrosion, scrub the affected area with a wire brush and apply a protective solution. If the corrosion is severe, replace the damaged part of the pipe.

Leak Repair

For minor leaks, tightening the fittings may solve the problem. However, for persistent or significant leaks, it’s best to replace the damaged section of the pipe. Always use approved materials and techniques to ensure a secure and safe repair.

Pressure Monitoring

Use a gas pressure regulator to keep pressure levels steady. Check the pressure regularly to make sure it stays within the recommended range. Fluctuating pressure may signal issues with the gas line or connected appliances.

Professional Inspections

Annual inspections by a certified professional are crucial for the long-term maintenance of copper gas lines. Professionals can conduct thorough checks, identify potential issues, and ensure that the gas lines comply with safety standards and regulations.

By following these maintenance practices, you can ensure the safety, efficiency, and longevity of your copper gas lines, preventing potential issues and costly repairs.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What type of copper pipe is best for gas lines?

For gas lines, Type K copper pipe is generally considered the best choice due to its thick walls, providing superior strength and resistance to high pressure and mechanical stress. This makes it suitable for underground installations and commercial or industrial applications. Type L copper pipe, while thinner, is also commonly used for interior gas distribution systems in residential and small-scale commercial settings due to its balance of durability and cost-effectiveness. Always ensure compliance with local regulations and the ASTM B88 standard when selecting and installing copper pipes for gas lines.

What are the benefits and drawbacks of using copper pipes for gas lines?

Copper pipes offer several benefits for gas lines, making them a popular choice:

Benefits:

• Durability and Corrosion Resistance: Copper pipes are highly durable and resistant to corrosion, ensuring long-term reliability, especially for indoor installations.
• Ease of Installation: Their semi-rigid nature allows copper pipes to be bent around corners, reducing the need for extra fittings and minimizing leak risks.
• Energy Efficiency: Copper’s thermal conductivity helps maintain gas temperature, enhancing energy efficiency.
• Longevity: Copper pipes have a long lifespan, which can offset higher initial costs over time.

Drawbacks:

• Expense: Copper is generally more expensive than alternative materials like polyethylene or PVC, increasing upfront costs.
• Outdoor Limitations: Copper pipes are less suitable for outdoor use due to potential damage from extreme weather conditions.
• Theft Risk: Due to their high scrap value, copper pipes can be targets for theft in unoccupied or under-construction areas.

When considering copper pipes for gas lines, it’s essential to weigh these benefits and drawbacks to make an informed decision that suits your specific needs.

How do I ensure my copper gas line installation is up to code?

To ensure your copper gas line installation is up to code, start by checking local building codes and regulations, which often outline specific requirements for gas line installations. Use the appropriate type of copper pipe, such as Type K or Type L, which comply with standards like ASTM B88. During installation, ensure copper tubes are securely mounted and supported, and use protective measures like steel sleeves when passing through walls to prevent damage.

Avoid galvanic corrosion by preventing contact between copper and dissimilar metals, and never use copper gas lines as a ground for electrical systems. After installation, perform leak tests to confirm that all connections are secure and leak-free. Regular maintenance, including inspections for corrosion or damage, should be conducted by qualified professionals to maintain safety and compliance.

What are the safety precautions when working with copper gas lines?

When working with copper gas lines, it’s crucial to follow specific safety precautions to ensure a safe and effective installation. Firstly, avoid contact between copper and other metals, especially in moist areas, to prevent galvanic corrosion. Use approved tape to wrap the copper where it meets other metals. Never use a copper gas line as an electrical ground to avoid shocks and potential fires. Securely fasten copper tubes to prevent movement, particularly when they pass through joists or studs, using clips or hangers spaced appropriately.

Protect copper tubes from penetration by using steel striker plates or sleeves when passing through building members like joists. Ensure proper ventilation in vertical pipe chases to prevent gas or moisture buildup. Clearly label copper gas lines, typically with yellow labels and black writing, to identify them as gas lines, which is essential during renovations or repairs.

For gas line safety, be aware of the sulfur-like odor added to natural gas for leak detection and regularly inspect for leaks. In case of a leak, evacuate immediately, avoid using electrical devices, and contact your gas provider or a professional. Regular maintenance and adherence to local and national building codes are essential for safety and compliance.

How do I maintain copper gas lines once installed?

To maintain copper gas lines once installed, start with regular visual inspections. Look for any signs of corrosion, dents, or physical damage, as these can compromise the safety and functionality of the lines. It’s important to ensure copper gas lines are not used as electrical grounding systems to prevent electrical hazards. If you find any damage, such as bends or corrosion, it’s crucial to replace the affected section rather than attempt repairs, as repairs can be risky.

Preventing corrosion is also essential. Ensure copper lines are not exposed to moisture or in contact with dissimilar metals, which can cause galvanic corrosion. Use approved protective tapes or sleeves where necessary to shield the lines.

Given the complexities and potential risks associated with copper gas lines, it’s advisable to have them inspected and maintained by professionals. They can ensure compliance with safety standards and local regulations and may recommend safer alternative materials like Corrugated Stainless Steel Tubing (CSST) or black iron for replacements if needed.

Can I install copper gas lines myself, or should I hire a professional?

Installing copper gas lines yourself is not recommended. While copper pipes are durable and corrosion-resistant, the installation of gas lines involves significant safety risks and legal considerations. Improper installation can lead to gas leaks, fires, explosions, and the release of carbon monoxide, a dangerous gas.

Additionally, most areas have strict regulations and building codes that require gas line installations to be performed by licensed professionals. These professionals have the necessary training, expertise, and tools to ensure that the installation is safe and compliant with local regulations. Hiring a professional minimizes risks and ensures a properly installed gas line, providing peace of mind and safety for your home.
