Comprehensive Guide to Copper Wire Properties

When it comes to the backbone of modern electrical systems, copper wire stands out as an indispensable component, prized for its exceptional properties. Ever wondered how the resistance of copper wire can influence the efficiency of your electrical applications? Or perhaps you’re curious about the role of current density in optimizing wire performance. This comprehensive guide delves deep into the electrical and thermal properties of copper wire, providing you with the technical insights needed to harness its full potential. From understanding specific heat capacity to mastering the calculations of resistance and current density, this article equips you with the knowledge to make informed decisions in electrical engineering. Ready to uncover the intricacies that make copper wire a cornerstone of electrical design? Let’s dive in.

Properties of Copper Wire

Overview of Copper Wire

Copper wire is crucial in electrical engineering due to its outstanding electrical and thermal properties. It is primarily used for power transmission, telecommunications, and various other applications requiring reliable and efficient electrical conduction.

Definition and General Properties

Copper wire is typically manufactured from high-purity copper, which provides superior electrical and thermal conductivity. The wire can be produced in solid or stranded forms, with each type offering distinct advantages depending on the application. Solid copper wire consists of a single, continuous strand, while stranded copper wire is made up of multiple, smaller strands twisted together.

Electrical Conductivity

One of the most critical properties of copper wire is its high electrical conductivity. Copper’s conductivity is rated at 100% on the International Annealed Copper Standard (IACS), ensuring efficient energy transfer and reducing energy loss. This high conductivity ensures efficient energy transfer and reduces energy loss, making copper wire an ideal choice for electrical systems.

Thermal Conductivity

Copper wire’s excellent thermal conductivity helps dissipate heat generated by electrical currents, preventing overheating and ensuring system stability. The thermal conductivity of copper is approximately 401 W/(m·K) at room temperature, which is significantly higher than many other metals.

Ductility and Malleability

Copper is highly ductile and malleable, allowing it to be easily drawn into thin wires or formed into complex shapes without breaking. This flexibility is crucial for manufacturing various wire gauges and configurations, meeting the specific needs of different electrical applications.

Tensile Strength

Copper wire has high tensile strength, which ranges from 200 to 250 N/mm². This strength allows it to withstand mechanical stress and resist deformation or breakage, ensuring durability and reliability in demanding environments.

Corrosion Resistance

Copper naturally forms a protective oxide layer that enhances its corrosion resistance. This property is essential for maintaining the integrity and longevity of copper wire, especially in harsh environments. Additional coatings, such as tin, nickel, or silver, can further enhance its resistance to corrosion and improve solderability.

Creep Resistance

Copper wire exhibits high creep resistance, meaning it can maintain its shape and performance under continuous mechanical stress. This property is particularly important in applications where the wire is subjected to repeated stress cycles, reducing the risk of failure over time.

Importance in Electrical Engineering

Copper wire’s combination of high electrical and thermal conductivity, strength, ductility, and corrosion resistance makes it indispensable in electrical engineering. It is used extensively in power distribution systems, telecommunications, renewable energy installations, and building wiring. Copper wire’s reliability and efficiency are key to the performance and safety of modern electrical systems.

Copper wire’s unique properties make it a critical component in a wide range of electrical applications, ensuring efficient energy transmission, durability, and safety.

Electrical Properties of Copper Wire

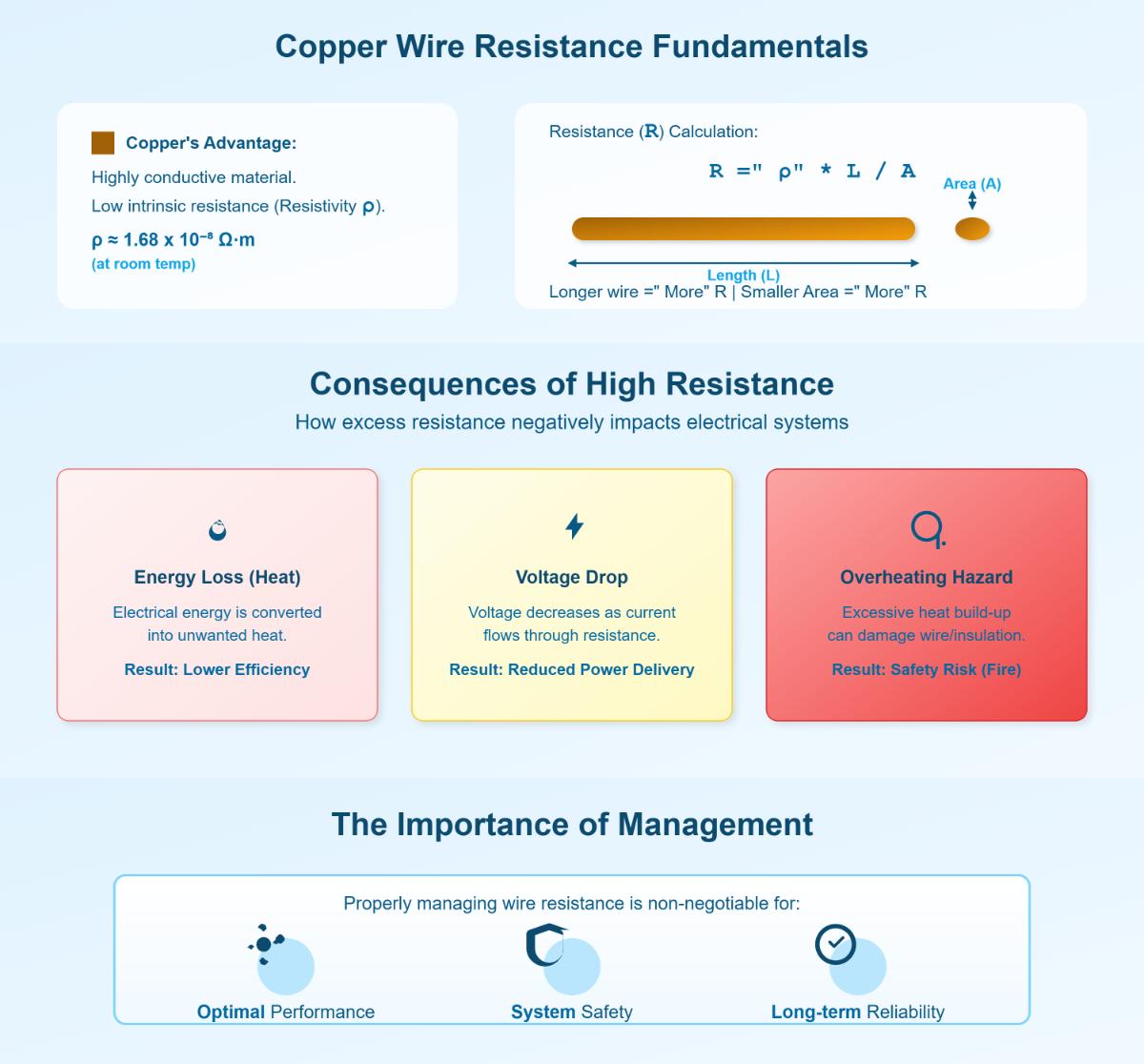

Electrical Resistance

Definition and Importance

Electrical resistance is a key property of copper wire that measures how much it opposes the flow of electric current. This property, quantified in ohms (Ω), directly influences the efficiency of electrical systems. Lower resistance in copper wire ensures minimal energy loss, making it an optimal choice for power transmission and distribution.

Factors Affecting Resistance in Copper Wire

Several factors influence the electrical resistance of copper wire:

• Temperature: As temperature increases, the resistance of copper wire typically rises due to increased atomic vibrations that slow down the flow of electricity.
• Wire Gauge: Thicker wires (lower gauge numbers) have lower resistance compared to thinner wires (higher gauge numbers), allowing more current to pass through with less opposition.
• Length of Wire: Longer wires exhibit higher resistance because electrons encounter more collisions over extended distances.
• Purity of Copper: High-purity copper wire has lower resistance, enhancing conductivity. Impurities can increase resistance and reduce performance.

Practical Implications in Electrical Applications

The resistance of copper wire has significant implications in various electrical applications:

• Energy Efficiency: Lower resistance reduces energy loss, making copper wire ideal for high-efficiency power distribution systems, while higher resistance generates more heat, potentially affecting system stability and requiring additional cooling.
• Heat Generation: Higher resistance leads to more heat generation, which can affect system stability and require additional cooling measures.
• Signal Integrity: In telecommunications, low resistance ensures clear signal transmission over long distances without significant attenuation.

Current Density

Definition and Significance

Current density is the amount of electric current flowing per unit area of the wire’s cross-section, typically measured in amperes per square millimeter (A/mm²). It is a crucial parameter in designing electrical systems to ensure safe and efficient current flow.

Calculation Methods

Current density can be calculated using the formula:

Where:

• ( J ) is the current density (A/mm²)
• ( I ) is the current (amperes)
• ( A ) is the cross-sectional area of the wire (mm²)

Impact on Copper Wire Performance

The current density significantly impacts the performance and longevity of copper wire:

• Heat Dissipation: Higher current densities produce more heat, but copper’s excellent thermal conductivity helps dissipate it, preventing damage and ensuring reliability.
• Electrical Load Capacity: Designing systems with appropriate current density ensures wires can handle the required load without overheating or degrading.
• Material Stress: Excessive current density can lead to material fatigue and eventual failure. Copper’s ductility and tensile strength mitigate these risks, but proper design considerations are essential.

Practical Considerations

When designing electrical systems with copper wire, several practical considerations must be taken into account:

• Wire Gauge Selection: Choosing the right wire gauge is crucial to balance resistance and current density, ensuring efficient and safe operation.
• Temperature Management: Implementing cooling systems or using thermal insulation can help manage heat generated by high current densities.
• Compliance with Standards: Adhering to industry standards (e.g., IACS, ASTM) ensures copper wire meets the necessary performance and safety criteria.

By understanding and optimizing the electrical properties of copper wire, engineers can design robust and efficient electrical systems that leverage copper’s exceptional conductivity, durability, and reliability.

Thermal Properties of Copper Wire

Specific Heat Capacity

The specific heat capacity of copper wire indicates how much heat is needed to raise the temperature of a unit mass of copper by one degree Celsius. Copper’s specific heat capacity is about 0.385 joules per gram per degree Celsius (J/g°C), which is crucial in applications with varying temperatures as it determines the energy required to change its temperature.

Implications for Electrical Systems

The specific heat capacity of copper wire is important for managing heat in electrical systems. When current flows through copper wire, it generates heat due to electrical resistance. Understanding the specific heat capacity helps engineers design systems that can effectively manage and dissipate this heat, preventing overheating and ensuring the reliability of electrical components.

Comparison with Other Materials

Copper’s specific heat capacity is lower than aluminum’s (0.897 J/g°C) but higher than silver’s (0.235 J/g°C). This means copper requires less energy to increase its temperature than aluminum but more than silver. This balance, combined with copper’s excellent thermal conductivity, makes it an ideal choice for many electrical and thermal applications.

Practical Implications of Thermal Properties

Effects of Temperature on Wire Performance

Copper wire’s performance is influenced by temperature changes. As temperature increases, copper’s electrical resistance also increases, which can lead to higher energy losses and reduced efficiency. This relationship necessitates careful consideration of operating temperatures in the design of electrical systems. For instance, in high-temperature environments, copper wire must be appropriately rated to ensure it can handle the increased resistance and associated heat.

Cooling Requirements in Electrical Systems

Effective cooling is essential in electrical systems utilizing copper wire. Due to its high thermal conductivity, copper wire can efficiently transfer heat away from critical components, reducing the risk of thermal damage. Cooling methods, such as forced air cooling, liquid cooling, or heat sinks, are often implemented to manage the heat generated in systems with high current densities. Proper thermal management ensures the longevity and reliability of electrical systems, particularly in high-power applications.

Thermal Conductivity of Copper Wire

Copper wire’s thermal conductivity is one of its most notable properties, with a value of approximately 401 watts per meter-kelvin (W/m·K) at room temperature. This high thermal conductivity allows copper wire to rapidly transfer heat, making it an excellent material for dissipating heat generated by electrical currents.

Factors Influencing Thermal Conductivity

Several factors can influence the thermal conductivity of copper wire:

• Temperature: The thermal conductivity of copper decreases as temperature increases. At 100°C, the thermal conductivity drops to about 377 W/m·K. This temperature dependency must be considered in high-temperature applications to ensure efficient heat management.
• Purity: High-purity copper exhibits superior thermal conductivity. Impurities can disrupt the lattice structure of copper, impeding electron flow and reducing thermal conductivity.
• Crystal Structure: Copper’s face-centered cubic (FCC) crystal structure allows dense packing of atoms, facilitating efficient heat transfer. This structure is integral to copper’s ability to conduct heat and electricity effectively.

Practical Applications of Copper Wire

Electrical Systems

Copper wire’s high thermal conductivity is essential for dissipating the heat generated in electrical systems. This property ensures that components remain within safe operating temperatures, preventing overheating and potential failure. Copper wire is widely used in power distribution, transformers, and motor windings due to its ability to manage heat effectively.

Cooling Systems

Copper wire is also employed in various cooling solutions, such as vapor chambers and liquid cooling systems. These systems leverage copper’s excellent heat transfer capabilities to maintain optimal temperatures in high-performance electronics and industrial machinery.

Industrial Machinery

In industrial settings, copper wire’s thermal properties are vital for maintaining the operating temperatures of machinery. Efficient heat dissipation ensures that equipment runs smoothly and safely, reducing the risk of thermal-related breakdowns.

Additional Properties of Copper Wire

Corrosion Resistance

Copper wire naturally forms an oxide layer that enhances its corrosion resistance. This property is particularly beneficial in environments where the wire is exposed to moisture or other corrosive elements. However, in harsh conditions like saltwater or high humidity, additional coatings such as tin, nickel, or silver may be applied to further protect the wire.

Mechanical Strength

Copper wire boasts high mechanical strength and tensile strength, making it suitable for demanding applications where durability is critical. This strength ensures that copper wire can withstand mechanical stresses and maintain its performance over extended periods.

Copper wire’s combination of high thermal conductivity, specific heat capacity, and mechanical strength makes it an indispensable material in various electrical and industrial applications. Understanding these thermal properties is essential for designing systems that leverage copper’s capabilities to ensure efficient and reliable operation.

Calculating Resistance and Current Density

The resistance of a copper wire is a crucial factor that affects its electrical performance. To calculate the resistance (( R )), use the formula:

where:

• ( R ) is the resistance in ohms (Ω),
• ( ρ ) is the resistivity of copper, generally ( 1.68 × 10^-8 Ω·m ),
• ( L ) is the length of the wire in meters (m),
• ( A ) is the cross-sectional area of the wire in square meters (m²).

Example Calculation

Consider a copper wire with a length of 2 meters and a diameter of 3 millimeters. To find the resistance:

1. Calculate the Cross-Sectional Area:

First, convert the diameter to radius by dividing by 2, then convert to meters:

Next, calculate the area using ( A=πr² ), which gives approximately ( 7.07 x 10^-6 m² ).

2. Apply the Resistance Formula:

Thus, the resistance of the copper wire is approximately 0.00475 ohms.

Current Density Calculation

Current density ( J ) measures the amount of electric current ( I ) flowing through a unit area ( A ) of the wire’s cross-section. Use the formula:

where:

• ( J ) is the current density in amperes per square meter (A/m²),
• ( I ) is the current in amperes (A),
• ( A ) is the cross-sectional area in square meters (m²).

Example Calculation

For a copper wire with a current of 10 amperes and a cross-sectional area of ( 7.07 x 10^-6 m² ):

Practical Considerations

Temperature Effects

Resistance and current density are affected by temperature. As temperature increases, copper’s resistivity rises, leading to higher resistance. This relationship can be described using the temperature coefficient of resistivity:

where:

• ( ρT ) is the resistivity at temperature ( T ),
• ( ρ0 ) is the resistivity at reference temperature ( T_0 ),
• ( α ) is the temperature coefficient of resistivity for copper, about ( 0.00393 °C^-1 ).

Wire Gauge Selection

Choosing the appropriate wire gauge is critical to ensure that the wire can handle the required current without excessive heating. Thicker wires (lower gauge numbers) have lower resistance and can carry higher currents, reducing the risk of overheating and material stress.

Standards Compliance

Adhering to standards such as the International Annealed Copper Standard (IACS) and ASTM ensures that copper wires meet the necessary performance and safety criteria. These standards define the acceptable limits for resistivity, mechanical strength, and other critical properties, guiding engineers in selecting the right materials for their applications.

Understanding and accurately calculating resistance and current density are essential for designing efficient and safe electrical systems. These calculations help ensure that copper wires operate within their optimal parameters, maximizing performance and longevity.

Standards and Compliance

ASTM Standards

ASTM B1-13(2018) and ASTM B3-13(2018)

ASTM B1-13(2018) specifies standards for hard-drawn round copper wire used in electrical applications. It outlines the requirements for tensile strength, elongation, and electrical resistivity, ensuring that no joints are made in the completed wire, thus maintaining its integrity and performance. Any joints in the wire or rod before drawing must adhere to best commercial practices to preserve the wire’s quality.

Similarly, ASTM B3-13(2018) covers soft or annealed copper wire, emphasizing the material’s quality and purity. This standard ensures that the copper wire meets prescribed properties such as tensile strength, elongation, and resistivity, guaranteeing reliable performance in electrical systems.

Labeling and Identification

Material Labels

Copper wires are labeled “CU” to distinguish them from other materials like aluminum, which is labeled “AL.” These labels are crucial for ensuring compatibility and safety in electrical installations.

Gauge and Insulation

Understanding wire gauge (e.g., American Wire Gauge, AWG) and insulation types (e.g., THHN, THWN) is vital for selecting the right wire for different applications. The gauge determines the wire’s current-carrying capacity, while the insulation type affects its temperature resistance, flexibility, and chemical resistance. These factors ensure the wire performs well under specified conditions and meets safety standards.

Safety and Performance Compliance

Electrical Codes

Compliance with electrical codes is essential for ensuring the safety and efficiency of electrical systems. Choosing the correct wire gauge is a key aspect of this compliance. Electrical codes specify the minimum requirements for wire gauge to handle certain current levels, preventing overheating and reducing the risk of electrical fires.

Insulation Types

Proper insulation is critical for both safety and performance. Common insulation types include THHN (thermoplastic-insulated) and THWN (thermoplastic-insulated, moisture-resistant). Each insulation type is suited to specific environmental conditions and applications, ensuring that the wire can withstand various operational stresses without degrading.

Testing and Verification Methods

Visual Inspection

Regular visual inspections are essential for maintaining wire integrity. Inspections should check for signs of wear, such as fraying or discoloration, which can indicate damage. This preventive measure helps identify potential issues before they lead to system failures.

Burning Test

The burning test helps differentiate between copper and aluminum wires by observing their burning behavior. Copper forms a bead when cooled, whereas aluminum burns easily. This test is useful for verifying the material composition of the wire.

Scratch Test

The scratch test involves scratching the wire surface to identify the material. Pure copper retains its characteristic color, while copper-clad aluminum reveals a different color underneath. This test helps ensure that the wire is made of the specified material.

Resistance and Conductivity Test

Measuring the wire’s resistivity ensures its purity and quality. Pure copper has a specific resistivity value at room temperature, and any deviation can indicate impurities or defects. Regular testing ensures the wire meets the required standards for conductivity and performance.

International Compliance and Standards

Compliance with international standards such as ISO and CSA certifications is essential for ensuring quality and safety in diverse applications. These standards provide guidelines for the manufacturing, testing, and performance of copper wires, ensuring they are suitable for various environments and equipment demands. Adhering to these standards helps in maintaining the reliability and efficiency of electrical systems globally.

Applications of Copper Wire in Electrical Systems

Power Distribution

Copper wire is essential in power distribution systems due to its high electrical conductivity and durability. It is used extensively in overhead and underground power lines, transformers, and substations. Copper’s low resistance ensures efficient transmission of electricity over long distances with minimal energy loss. This efficiency is critical in reducing operational costs and maintaining reliable power supply to residential, commercial, and industrial areas.

Building Wiring

Copper wire is the preferred material for electrical wiring in building construction. Its flexibility and strength make it suitable for installation in tight spaces and complex layouts. Copper wire provides stable and reliable connections for lighting, electrical outlets, and appliances, ensuring the safe and efficient operation of building electrical systems. Its excellent conductivity and thermal properties help prevent overheating and potential fire hazards.

Telecommunications

Copper wire plays a crucial role in telecommunications, ensuring clear and reliable signal transmission in telephone lines, internet cables, and other communication networks due to its high conductivity. This property is vital for maintaining the integrity of data transmission over long distances, which is essential for modern communication infrastructure.

Transformers

In transformers, copper wire is used for winding coils that transfer electrical energy between circuits. Copper’s excellent conductivity and thermal stability enable transformers to handle large amounts of current efficiently. The material’s durability ensures that transformers can operate reliably under various load conditions, reducing the risk of failure and downtime in power distribution networks.

Electrical Appliances

Copper wire is commonly used in the internal wiring of electrical appliances like refrigerators, washing machines, and air conditioners. Its excellent thermal and electrical conductivity ensures efficient operation and longevity of these devices. Copper wire’s resistance to corrosion and high tensile strength also contribute to the reliability and safety of household appliances.

Grounding Systems

Copper wire is ideal for grounding systems due to its excellent conductivity and corrosion resistance. Grounding systems are essential for protecting electrical installations from lightning strikes and power surges. Copper wire ensures a low-resistance path to the ground, which helps dissipate excess electrical energy safely, preventing damage to equipment and reducing the risk of electrical shock.

Renewable Energy Systems

In renewable energy systems, such as solar power and wind turbines, copper wire is used for wiring and connecting components. Its high conductivity minimizes energy losses, thereby improving the overall efficiency of the system.

Automotive Industry

The automotive industry relies heavily on copper wire for the electrical systems of vehicles. Copper is used in wiring harnesses, battery cables, and motor windings. Its flexibility allows it to be routed through the complex structures of vehicles, while its strength and conductivity ensure reliable performance of critical systems such as lighting, infotainment, and engine management.

Electric Vehicles

Copper is used in battery connections, charging infrastructure, and electric motors. Its excellent conductivity and thermal properties are crucial for managing the high currents and heat generated in EVs. This ensures efficient energy transfer and system reliability.

Smart Grids

The transition to smart grids, which integrate digital technology with traditional electrical networks, increases the demand for high-quality copper wiring. Copper’s reliability and conductivity are essential for the precise and efficient transmission of electricity in smart grids. These systems rely on real-time data and automated controls to optimize power distribution, and copper wire plays a vital role in maintaining the integrity and performance of these advanced networks.

Frequently Asked Questions

Below are answers to some frequently asked questions:

How does the resistance of copper wire affect electrical applications?

The resistance of copper wire significantly impacts electrical applications by influencing the efficiency and performance of electrical systems. Copper wire, known for its excellent conductivity, has a relatively low resistivity of approximately (1.68 x 10^-8Ω·m) at room temperature. The resistance ((R)) of a copper wire is determined using the formula (R=ρL/A), where (ρ) is the resistivity, (L) is the wire’s length, and (A) is its cross-sectional area.

Higher resistance in copper wire leads to increased energy losses in the form of heat, which can reduce the Understanding and managing the resistance of copper wire is essential for optimizing electrical performance, ensuring safety, and maintaining system reliability.

What is the specific heat capacity of copper wire and its implications?

The specific heat capacity of copper wire is approximately 0.385 J/g·K (or 384 J/kg·K) at room temperature. This property indicates the amount of heat energy required to raise the temperature of copper by one degree Celsius. In electrical applications, the specific heat capacity is significant for several reasons:

1. Thermal Management: Copper’s specific heat capacity helps in managing thermal loads efficiently, which is essential for maintaining stability under varying temperature conditions.
2. Heat Dissipation: Although copper’s specific heat capacity is lower than some other materials like aluminum, its high thermal conductivity (about 401 W/m·K) facilitates rapid heat dissipation. This makes copper wire ideal for applications requiring efficient heat transfer.
3. System Reliability: The ability of copper wire to absorb and dissipate heat effectively contributes to the Understanding the specific heat capacity of copper wire is crucial for optimizing its use in both electrical and thermal management systems.

How does current density impact the performance of copper wire?

Current density significantly impacts the performance of copper wire, influencing its thermal, electrical, and mechanical properties. Higher current density means more current flows through a smaller area, generating more heat due to the power dissipation proportional to the square of the current (P = I²R). This increased heat can lead to thermal stress and potential material degradation over time, affecting the wire’s longevity and reliability.

Additionally, high current density can increase electrical resistance, especially at high frequencies due to the skin effect, where current flows primarily near the wire’s surface. This can result in greater voltage drops and reduced efficiency in electrical systems. Mechanically, high current densities impose stress on the wire, potentially causing deformation and reducing durability.

Proper management of current density is crucial to ensure safe and efficient operation of copper wire in applications ranging from power distribution to PCB designs. Selecting the appropriate wire gauge and adhering to design guidelines can help mitigate these effects and optimize performance.

What are the best practices for calculating resistance and current density in copper wire?

Best practices for calculating resistance and current density in copper wire involve understanding the fundamental properties and applying accurate formulas. For resistance, the formula ( R=ρL/A ) is used, where ( ρ ) is the resistivity of copper (approximately (17.54nΩ⋅m), ( L ) is the length of the wire, and ( A ) is its cross-sectional area. It’s crucial to measure these parameters precisely and ensure temperature consistency, as resistance can vary with temperature.

For current density, use ( J=I/A), where ( I ) is the current and ( A ) is the cross-sectional area. Accurate measurement of current and understanding the wire’s dimensions are essential. Both calculations should consider practical implications, such as the wire’s operating environment and compliance with relevant standards (like IACS and ASTM) to ensure safe and efficient electrical system design.

How does copper wire compare to other materials in electrical systems?

Copper wire is highly favored in electrical systems due to its superior properties compared to other materials. Its high electrical conductivity (approximately 16.78 nΩ•m at 20 °C) ensures efficient energy transmission with minimal losses. Copper is also highly ductile and malleable, making it adaptable for various applications. Its thermal conductivity (about 401 W/(m·K) at room temperature) helps manage heat dissipation, enhancing system safety and performance. Additionally, copper’s natural corrosion resistance and high tensile strength (200 to 250 N/mm²) contribute to its durability.

When compared to aluminum, copper is more conductive (aluminum has only about 61% of copper’s conductivity) and more ductile, though aluminum is cheaper. Silver surpasses copper in conductivity but is prohibitively expensive for widespread use. Fiber optic cables offer higher bandwidth and less interference for signal transmission but are more costly and require specialized installation.

What are the common standards and compliance requirements for copper wire?

Common standards and compliance requirements for copper wire ensure safety, performance, and reliability. NFPA 79, for industrial control equipment in North America, requires copper conductors with a minimum 85°C temperature rating. The National Electrical Code (NEC) mandates safety for electrical installations, including conductor sizing. CSA focuses on Canadian electrical standards, covering voltage ratings and insulation. ASTM B3 details specifications for soft or annealed copper wire for electrical use, like tensile strength and resistivity. Adhering to these standards is crucial for copper wire applications.
