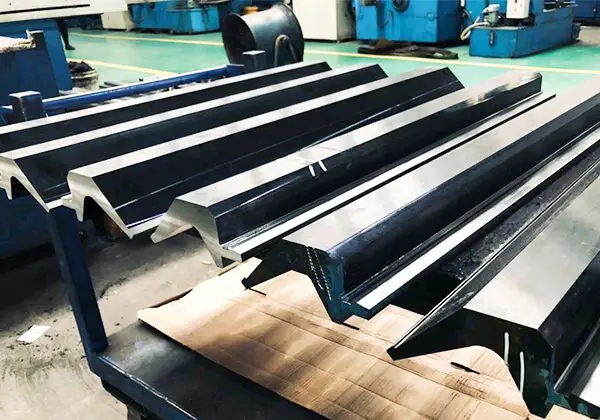

Press Brake Tools are used in conjunction with a press brake, a machine designed for bending sheet metal and metal plate. The press brake operates by clamping the workpiece between a matching top tool and bottom die, forming predetermined bends.
These tools are used to shape and bend sheet metal. The press uses a punch to force the metal sheet into the die, creating a permanent crease and reshaping the metal.
There are several types of press brakes, each with its own advantages:
Mechanical Press Brakes: Operate using a flywheel and crank mechanism to generate the force required to bend the metal. They are renowned for their speed and accuracy.
Hydraulic Press Brakes: Utilize hydraulic cylinders to generate the force required to bend the metal. They are known for their power and versatility.
Pneumatic Press Brakes: Employ compressed air to generate the force required to bend the metal. They are known for their speed and ease of use.
Electric Press Brakes: Use an electric motor to generate the force required to bend the metal. They are known for their precision and energy efficiency.
Manual Press Brakes: Require the operator to manually apply the force required to bend the metal. They are known for their simplicity and affordability.
Press Brake Tools play a vital role in the metalworking industry, allowing for the creation of accurate and precise bends in sheet metal or plate materials. It's important to choose the right type of press brake tooling for your specific application.
Press Brake Tools are used to form, bend, or flatten sheet metal. They are used in conjunction with a press brake, which operates a heavy boom or press to shape and bend sheet metal. Here are some types of Press Brake Tools:
Folding Tools: These tools clamp the sides of the sheet, and the bend beam extends between the clamps and creases the sheet around the bend profile.
Wiping Tools: In this instance, the sheet metal is clamped in the middle and bending tools are used to warp the metal by applying torque to the sides of the clamp.
Air Bending Tools: The punch presses the material into the die, but does not make contact with the die's deepest point. Multiple bend angles and materials can be used in this flexible technique because the crease depends on the material's resistance.
Bottoming Tools: A variation of air bending, the sheet metal is driven to the bottom depth of the die by a rounded punch.
Coining Tools: The punch crushes the sheet metal to the bottom of the die with heavy force, resulting in very precise bends¹.
Three Point Bending Tools: This method's die depth is adjustable in height, offering a precise bend when the punch drives the sheet metal to the die bottom.
Each type of tool has its own advantages and is used for different applications. It's important to choose the right type of press brake tooling for your specific application.
When purchasing Press Brake Tools, it's important to consider several factors to ensure you select the right tools for your needs. Here are some key factors to consider:
Parts Production: Understand what parts you are going to produce. This will help you determine the type of tools you need.
Crowning: Crowning is a technique used to compensate for deflection in the press brake. Depending on the type of work you'll be doing, you may need a press brake with crowning capabilities.
Material Texture: The texture of the materials you'll be working with can affect the type of tools you need.
Bending Radius: The bending radius of the workpiece can influence the type of tools required.
Bending Angle: The bending angle can also affect the type of tools needed.
Bending Accuracy Requirement: Depending on the precision required for your work, you may need tools that offer high accuracy.

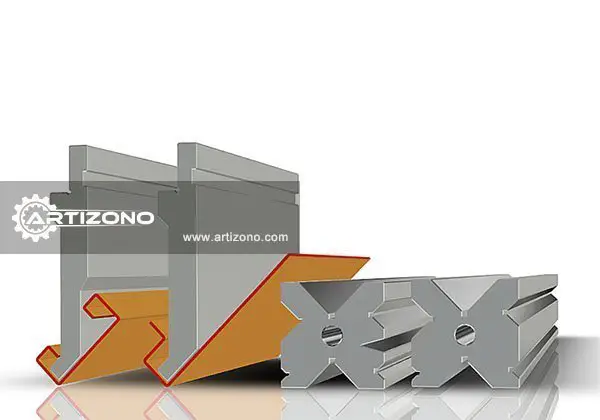

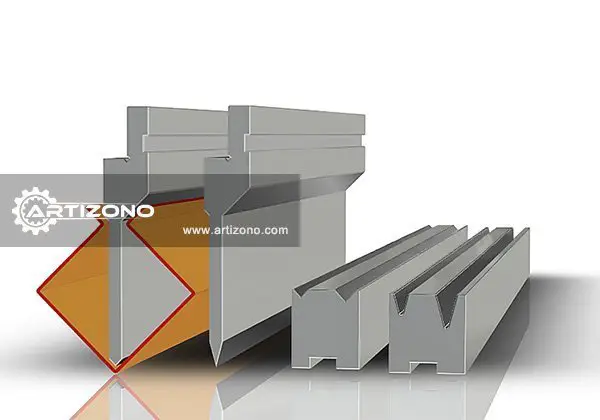

Punch and Die: The punch and die are crucial components of press brake tools. You'll need to consider what types of punches and dies are suitable for your work.
High Precision: The tools should be manufactured to tolerances within the 0.0004-inch range. This is critical to achieve part accuracy without shimming or other tweaks during setup.
Segmented Sections: These allow you to build various lengths out of several precut pieces. Small pieces are safer and easier to handle too.
Self-Retaining Installation: You should be able to load the tools with the ram up. The toolholding system should hold multiple pieces in place until the clamping pressure is applied.
Front Loading: You should be able to install tools from the front of the machine. This shortens setup time because you no longer need to spend time sliding tools from the end of the press brake.
Standard Sizes: Common-height tools can reduce the need for machine adjustments when changing jobs.
Remember, selecting the right press brake tooling is as important as selecting the press brake itself. Always consult with a professional or a trusted supplier if you're unsure about what type of press brake tooling is best for your specific application.
Press Brake Tools are typically made from a variety of materials, each with its own advantages and applications. Here are some common materials used in the manufacture of Press Brake Tools:
Steel: Steel is the most widely used material for producing press brake tools due to its durability and strength. Specific types of steel used include T8 steel, T10 steel, 42CrMo, and Cr12MoV.
Alloy Materials: These are often used for their unique properties, such as resistance to wear or ability to withstand high temperatures.
Polymer Materials: Some press brake tools are made from polymer materials like urethane. These are typically used when the application requires a softer material to prevent damage to the workpiece.
Urethane: Urethane tools are used when a softer material is required to prevent marring or marking on sensitive materials.
Each material has its own advantages and is used for different applications. It's important to choose the right type of press brake tooling material for your specific application.
Safety is paramount when using Press Brake Tools. Here are some guidelines to ensure a safe working environment:
Understanding the Machine: Have a clear understanding of the machine and its operation.
Pre-Operation Check: Conduct a thorough check-up before starting the machine.
Hand Safety: Always be mindful of your hands while operating the machine.
Protective Gear: Always wear your protective gear when operating the machine.
Safety Rules and Regulations: Follow the given safety rules and regulations.
Handling Wet Metals: Handle wet metals with care.
Correct Workpiece Handling: Do not place your hands between the folded workpiece and the die to avoid pinching your fingers.
CNC Press Brake Safety Rules: Strictly adhere to the safety regulations for machine tool workers and wear the required protective gear.
Motor, Switch, Wires, and Grounding Inspection: Before starting the press brake, thoroughly inspect the motor, switch, wires, and grounding to ensure they are functioning properly and securely.
Safeguarding Measures: Use safeguarding measures such as Presence Sensing Devices, Two-Hand Control Devices, Pullback Devices, or Restraint Devices.
Remember, safety should always be your top priority when operating press brake tools or any other machinery. Always consult with a professional or a trusted supplier if you're unsure about any safety procedures.
Optimizing the performance of your Press Brake Tools can significantly improve your productivity and the quality of your work. Here are some tips to help you optimize your Press Brake Tool performance:
Tool Marking and Storage: Being able to quickly locate the required tools to form the next part is the first step in the process. Having key information clearly marked on the tools makes it much easier to select the correct tools needed and reduces the chances for error.
High Precision: The tools should be manufactured to tolerances within the 0.0004-inch range. This is critical to achieve part accuracy without shimming or other tweaks during setup.
Segmented Sections: These allow you to build various lengths out of several precut pieces. Small pieces are safer and easier to handle too.
Self-Retaining Installation: You should be able to load the tools with the ram up. The toolholding system should hold multiple pieces in place until the clamping pressure is applied.
Front Loading: You should be able to install tools from the front of the machine. This shortens setup time because you no longer need to spend time sliding tools from the end of the press brake.
Standard Sizes: Common-height tools can reduce the need for machine adjustments when changing jobs.
Remember, optimizing your Press Brake Tools not only improves your productivity but also extends the lifespan of your tools and enhances the quality of your work.
Maintaining and caring for your Press Brake Tools is crucial for their longevity and optimal performance. Here are some tips to help you maintain your tools:
Tool Storage: Store your press brake tooling in an organized tool cabinet at the press brake where it will be used¹. Avoid storing tools in a general storage rack away from the press brake, as this can lead to productivity loss¹. Also, avoid storing tools in wooden units as they promote rust and corrosion.
Tool Handling: Always handle your tools with care. Use gloves when handling press brake tooling to prevent oil from your hands from damaging the tools.
Cleaning and Lubricating: After each handling, wipe down your tools thoroughly with a clean rag that is lightly soaked with isopropyl alcohol. This will eliminate handprints and acid left behind by human hands. Also, remove any resin, residue, or metal particles left on the tool during bending.
Proper Tool Loading: Make sure that press brake tooling is loaded securely during bending.
Avoid Damage: Store press brake tooling in a way that prevents them from banging into each other and causing damage.
Invest in a Tool Cabinet: Invest in a tool cabinet that is designed specifically for storing press brake tooling. This will protect your tools from airborne dust and debris and potential damage.
Remember, regular maintenance of your Press Brake Tools can extend their lifespan, improve their performance, and save you money in the long run.
There are several brands that specialize in press brake tooling and dies. Here are a few that you might consider:
Mate Precision Technologies
Wila
Wilson Tool
Rolleri USA
Remember to consider factors such as the variety of tooling styles, quality of material, special applications, support and warranty, additional features, and price when choosing a brand. It's also recommended to reach out to these brands directly for more specific information based on your unique needs.
When it comes to making the final decision on press brake tools, there are several factors to consider. Here are some key points based on the information I found:
Variety of Tooling Styles: There are different styles of press brake tooling available, including American Precision Style with Maglock® magnetic safety system, European Precision Style, and Wila Trumpf Style. Each style has its own unique features and benefits.
Quality of Material: The tools are generally manufactured from premium alloy tool steels. The quality of the material used in the tooling can significantly impact the performance and lifespan of the tools.
Special Applications: Some manufacturers offer special application solutions designed to accomplish complex sheet geometry with maximum efficiency.
Support and Warranty: Consider the support and warranty offered by the manufacturer. A good warranty can provide peace of mind in case of any issues with the tools.
Additional Features: Some manufacturers offer additional features like Mate's CleanBend™ forming technology, which is designed to enable high-quality sheet metal forming using rotating supports.
Price: The cost of the tools can vary based on the type, size, and brand. It's important to balance cost with quality and functionality.
Remember, the right tooling can greatly enhance your press brake's performance and productivity. Therefore, it's crucial to do thorough research and consider all these factors before making your final decision. If you need more specific advice or recommendations based on your unique needs, I recommend reaching out to a professional in the field or a trusted supplier.
