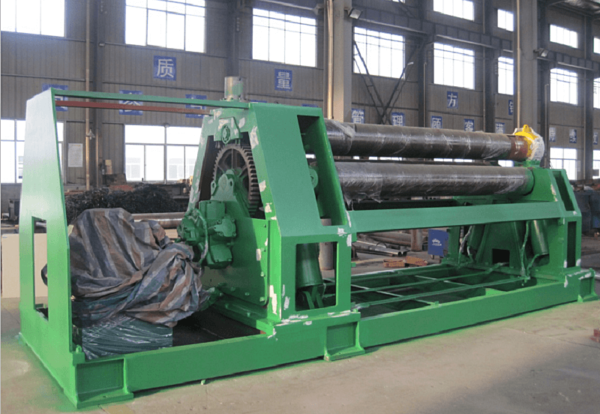

W11H Hydraulic Arc Adjust Plate Rolling Machine With 3 Rolls

Category

The plate rolling machine has three main drive rolls while top roller fixed and two bottom rollers move in the arc around the fixed rotary center. Two bottom rollers can be lifting up and down at the same time or separately. Both the rotate and lifting movement of top roller adopt hydraulic transmission.

  • Bending Thickness: 4-30mm
  • Pre-bending Thickness: 3.5-25mm
  • Roller’s Working Length: 2000-3000mm

Description

Hydraulic arc adjusts plate rolling machine has the pre-bending function. Able to feed plate at one time and finish pre-bending & rolling & roundness correction process without turn around the plate.

The plate rolling machine has three main drive rolls while top roller fixed and two bottom rollers move in the arc around the fixed rotary center. Two bottom rollers can be lifting up and down at the same time or separately. Both the rotate and lifting movement of top roller adopt hydraulic transmission. The screen displays the lifting displacement.

  • Italy technology;
  • Movable control panel, easy to operate;
  • Touch screen display the movement of two bottom rollers with high accuracy;
  • Two bottom rollers lifting by arc, leverage increase the forming force;
  • All three working rolls are main drive rolls, which have very good feeding & rolling function for plate with any thickness;
  • The plate always in the state of clamping during rolling process, without slipping;
  • Same diameter for three working rollers;
  • Three rollers can get very close, able to realize small diameter rolling and roundness correction;
  • With cone bending device;
  • CE certified.
