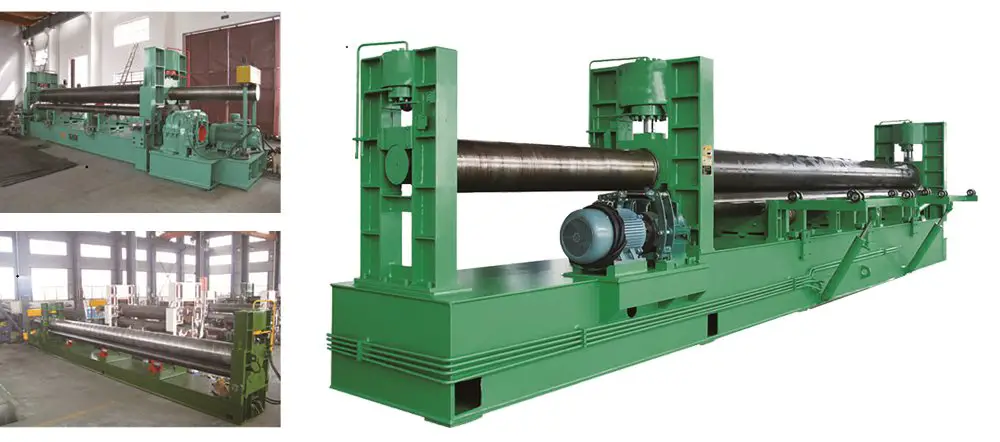

W11NC Trailer Rolling Machine

The W11NC Trailer Rolling Machine is a symmetrical rolling machine that is used for bending steel plates². Here are some key features and details to consider when buying:

1. Roller Adjustment: The machine has an upward adjustment series where the work roller can lift up and down in a vertical direction. The distance between the two bottom rollers is fixed.
2. Roller Movement: The work roller can also move parallel in a horizontal direction.
3. Additional Features: Some models come with press rollers installed in the lower part of the upper beam, which improves the stiffness of the upper roller. This feature is particularly useful for bending cans with a small radius.
4. Main Structure: The machine is composed of two parts: the working part and the moving part. The working part includes one upper roller and two bottom rollers, which are made of 45# steel and undergo heat treatment.
5. Drive Mechanism: The bottom rollers drive the upper roller to move, and the upper roller can move up and down by height way.
6. Motor: The machine is driven by a main motor through a main speed reducer.

Before purchasing, it’s recommended to contact the manufacturer or supplier directly to get a quote or find out more specific details about the product. Also, consider your specific needs such as the type of material you will be working with and the size of the plates you will be bending.
