W11Y Hydraulic Symmetric Plate Rolling Machine With 3 Rolls

Category

The structure of this machine is 3 roller symmetrical and is the hydraulic transmission. Top roller moves vertically in the central position between two bottom rollers which is driven by hydraulic oil.

  • Bending Thickness: 16-120mm
  • Bending Width: 2500-3000mm
  • Top Roller Dia.: 300-950mm

Description

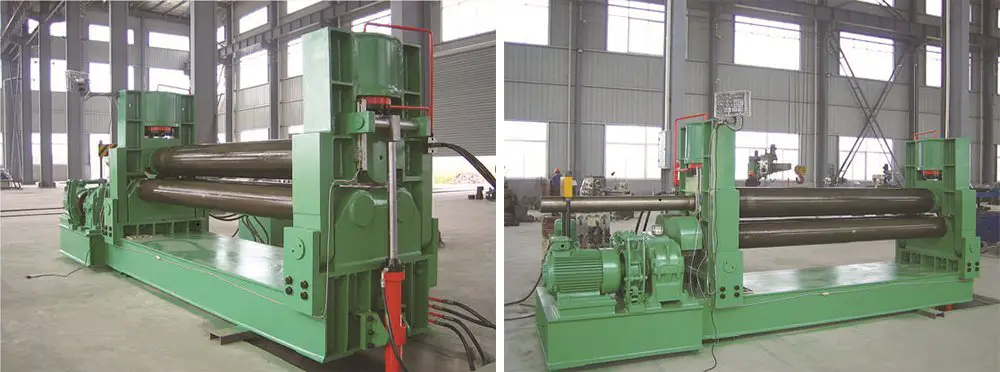

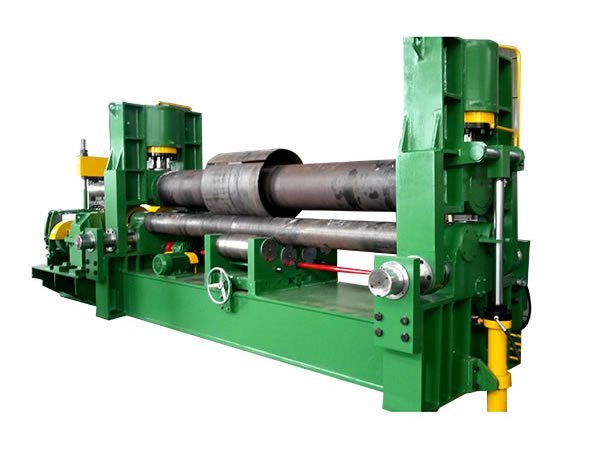

The structure of this machine is 3 roller symmetrical and is the hydraulic transmission. Top roller moves vertically in the central position between two bottom rollers which is driven by hydraulic oil. Two bottom rollers are main drive rolls. They rotate and supply the torque for bending plate through the output gear of gearbox meshes with bottom roller gear.

The symmetrical 3 rolls rolling machine has a compact structure, easy operation and maintenance.

Customer care

When you buy an Artizono machine, you’re buying a high-performance machine tool. To us, customer care is all about ensuring that we maintain that high performance for each and every one of our customers, no matter what it takes.

Technical spec.

Downloading our product brochure to learn more about the specific technical parameters of the machine.

Innovative Capacity

Strong techinical R&D force made Dachang a legacy. Dachang invented and applied 10+ patents, yet innovation never stops.

Standardized Production

Specialized production line, well-functioned components, experienced technicians together creates a sophisticated machine.

QC Management

No machine will be delivered until it reaches each standard of each QC process. You get only the capacity boosting machines.

Prioritized Customers' Need

Feel free to contact us or visit our plant at any time to convey your accurate production need, then wait to be satisfied.

Prompt Delivery

No matter you order 1 or a batch of machines, we have them delivered to you on time, intact.

Quality Guaranty

We assure you a stable quality. Yet if there is breakdown, which is rare, we provide 1 year of guaranty and on-site solution as appropriate.
