Understanding Swing Check Valves: Advantages, Disadvantages, and Applications

Imagine a world where the flow of liquids and gases is meticulously controlled, ensuring efficiency and safety in vital systems. At the heart of this intricate dance lies the swing check valve—a seemingly simple yet crucial component. Whether you’re an engineer, technician, or simply curious about industrial mechanisms, understanding the role of swing check valves can be incredibly beneficial. This article delves into the key advantages and disadvantages of these valves, offering insights into their unique functionality. We’ll compare swing check valves to other types, such as spring and wafer check valves, and explore their most suitable applications, from water supply systems to the petroleum industry. Ready to uncover the secrets behind these essential valves? Let’s dive in and see how they operate and where they shine the brightest.

Valve Types and Functions

Introduction to Valve Types

Valves are critical components in various industrial systems, used to control the flow and pressure of fluids within a pipeline. Different types of valves serve specific functions and are selected based on the requirements of the application. Understanding the various types of valves and their functions is essential for selecting the right valve for any given system.

Gate Valves

Gate valves are used to start or stop fluid flow. They operate by lifting a gate out of the path of the fluid. Gate valves are typically used when a straight-line flow of fluid and minimum restriction is desired. They are not suitable for throttling applications because partial opening can cause damage to the gate.

Ball Valves

Ball valves use a spherical disc to control flow. The ball has a hole through it, allowing fluid to pass when aligned with the pipeline. Ball valves are known for their durability and excellent shutoff capability. They are versatile, providing reliable service for both on/off and throttling applications.

Globe Valves

Globe valves are used for regulating flow in a pipeline. They have a movable disk and a stationary ring seat inside a spherical body. Globe valves are ideal for applications where precise control of flow is needed. However, they have a higher pressure drop compared to other valves due to their complex flow path.

Butterfly Valves

Butterfly valves use a rotating disc to regulate fluid flow. The disc rotates a quarter turn to open or close the valve. Their compact and lightweight design makes them ideal for tight spaces. Butterfly valves are used in large volume water and gas applications due to their quick operation and low pressure drop.

Check Valves

Check valves allow fluid to flow in one direction only, preventing backflow. They are essential in systems where backflow could cause contamination or damage. There are various types of check valves, including swing check valves, which use a hinged disc to block reverse flow, and spring-loaded check valves, which use a spring to close the valve when flow reverses.

Diaphragm Valves

Diaphragm valves use a flexible diaphragm to regulate flow. The diaphragm is pressed against a seat to close the valve. These valves are particularly useful in applications requiring contamination-free and leak-proof operations, such as in the pharmaceutical and food industries.

Pressure Relief Valves

Pressure relief valves are safety devices designed to protect equipment from excessive pressure. When the pressure exceeds a preset limit, the valve opens to release the excess pressure, preventing potential damage or explosions. They are critical in systems that handle high-pressure fluids or gases.

Functionality and Selection Criteria

The selection of a valve type depends on several factors, including:

• Flow Control Requirements: Whether the application requires on/off control, throttling, or non-return functions.
• Pressure and Temperature Conditions: The valve must endure the system’s pressure and temperature without failing.
• Material Compatibility: The valve material must be compatible with the fluid to prevent corrosion and ensure longevity.
• Installation and Maintenance: Consider the ease of installation, space constraints, and maintenance requirements.

By understanding the functions and characteristics of different valve types, engineers and maintenance professionals can select the appropriate valve for their specific applications, ensuring efficient and safe operation of their systems.

What is a Swing Check Valve?

A swing check valve is a type of check valve that ensures fluid flows in only one direction, preventing backflow. It operates using a disc that swings on a hinge or shaft, opening when fluid flows in the desired direction and closing when flow reverses. This mechanism ensures unidirectional flow, which is crucial in preventing contamination, damage to equipment, and ensuring the efficiency of fluid systems.

Operating Principle

When fluid flows forward, the pressure pushes the disc open, allowing passage; if the flow reverses, the disc swings back to close and block any backward flow. The valve’s ability to open and close automatically without external intervention makes it highly reliable for various applications.

Components of a Swing Check Valve

1. Body: The main casing that houses the internal components.
2. Disc: The movable part that swings open or closed to control flow.
3. Hinge Pin: The pivot point around which the disc swings.
4. Seat: The surface against which the disc rests to form a seal when closed.
5. Cover: Seals the valve body and provides access for maintenance.

Advantages

1. Simple Design: The straightforward mechanism of a swing check valve makes it easy to manufacture, install, and maintain.
2. Low Pressure Drop: Due to its design, the valve causes minimal resistance to flow, resulting in low pressure drop across the valve.
3. Versatility: Swing check valves are available in various materials, making them suitable for different fluids and operating conditions.
4. Reliability: The automatic operation without the need for external power or control ensures consistent performance.

Disadvantages

1. May not handle pulsating or low flow rates well, leading to wear and tear.
2. Water Hammer: Rapid closure of the valve can cause a sudden pressure surge, known as water hammer, which can damage the system.
3. Leakage: Over time, the disc and seat may wear out, leading to potential leakage and reduced sealing effectiveness.
4. Slow Response: Compared to other check valves, swing check valves may have a slower response time to flow reversals.

Applications

Swing check valves are used across various industries due to their reliability and effectiveness in preventing backflow. Common applications include:

• Water and Wastewater Treatment: To ensure unidirectional flow in water distribution and sewage systems.
• Oil and Gas: Used in pipelines to prevent reverse flow in oil and gas transmission.
• Chemical Processing: Suitable for chemical plants where preventing backflow is critical to avoid contamination.
• Power Generation: Employed in power plants to manage the flow of steam and other fluids in high-pressure systems.

Installation Considerations

1. Orientation: Swing check valves can be installed in both horizontal and vertical positions, though vertical installation typically requires flow from the bottom.
2. Flow Rate: Proper sizing of the valve is essential to match the system’s flow rate, ensuring efficient operation and minimizing wear.
3. Material Compatibility: Choosing the right materials for valve components is crucial to prevent corrosion and ensure durability, especially in harsh environments.

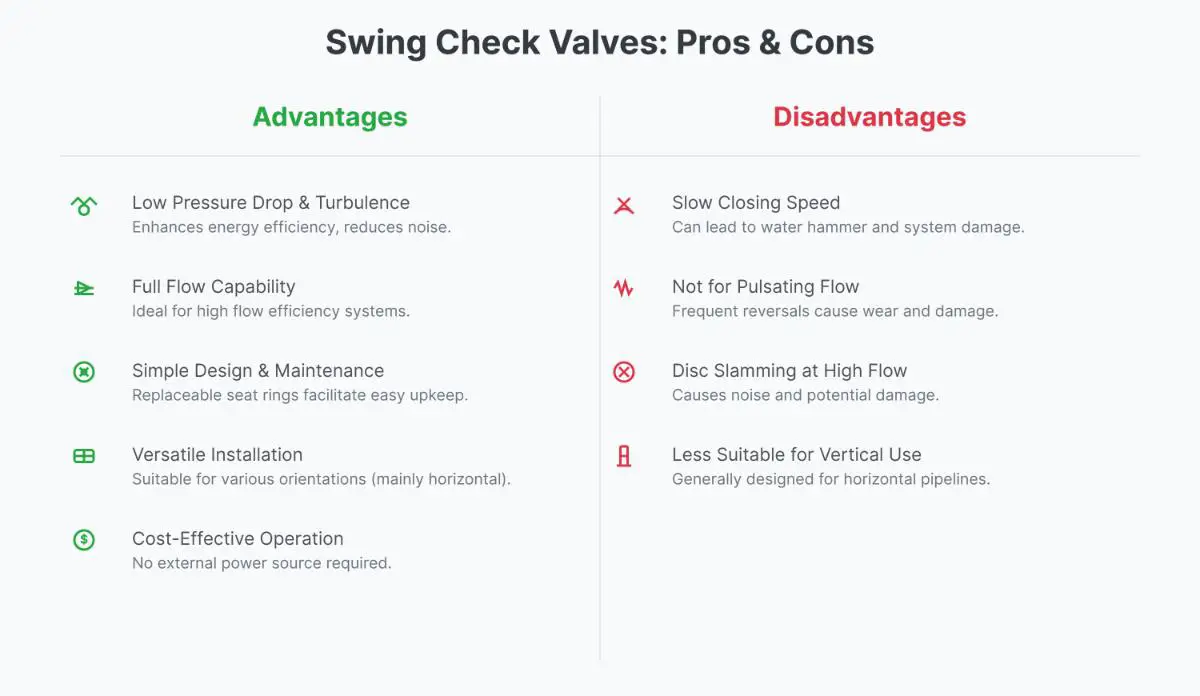

Advantages and Disadvantages of Swing Check Valves

Advantages of Swing Check Valves

Swing check valves offer several benefits that make them suitable for various industrial applications. Here are some key advantages:

Low Turbulence and Pressure Drop

Swing check valves are designed to minimize flow resistance, which leads to low turbulence and reduced pressure drop. This feature is particularly beneficial in systems where maintaining flow efficiency is critical. The streamlined flow path ensures that the fluid moves smoothly through the valve, reducing energy loss and maintaining system performance.

Full Flow Capability

These valves allow the disc to fully open, providing a full port for fluid flow, which is advantageous for applications requiring minimal pressure drop and maximum flow efficiency. The unobstructed flow path ensures that the valve can handle high flow rates without causing significant resistance.

Replaceable Seat Rings

One of the maintenance-friendly features of swing check valves is the replaceable seat rings. If the seating surface gets damaged or worn, it can be replaced without needing to replace the entire valve. This reduces maintenance costs and extends the service life of the valve, making it a cost-effective choice for long-term use.

Versatile Installation

Swing check valves can be installed in both horizontal and vertical orientations, offering flexibility in system design. However, when installed vertically, the flow direction must be from bottom to top to ensure proper operation. This versatility allows for easier integration into existing piping systems.

Cost-Effective

Swing check valves are generally more affordable than other types of check valves. They do not require external power sources for operation, which further reduces installation and operational costs. Their simple design and reliable performance make them a cost-effective solution for preventing backflow in various applications.

Disadvantages of Swing Check Valves

While swing check valves have many advantages, they also come with certain drawbacks that need to be considered:

Sealing Performance

Swing check valves do not seal as effectively as lift check valves, particularly in high-pressure situations. Over time, the disc and seat may experience wear, leading to potential leakage and reduced sealing effectiveness. This can be a concern in systems where a tight seal is critical.

Pulsating Flow Limitations

Swing check valves are not well-suited for systems with pulsating or frequently reversing flows. The constant opening and closing of the disc can cause premature wear and damage to the seating elements. In such environments, alternative check valve designs may offer better durability and performance.

Water Hammer Issues

Rapid closure of the swing check valve can lead to water hammer, a phenomenon where a sudden pressure surge occurs due to the abrupt stop of fluid flow. Water hammer can cause noise, vibration, and potential damage to the piping system. Careful consideration and mitigation strategies are required in systems prone to water hammer.

Vertical Flow Limitations

Although swing check valves can be installed vertically, they are generally not preferred for vertical applications. The flow must be from bottom to top, and there can be issues with the valve closing properly in vertical installations. This limitation may restrict their use in certain configurations.

Maintenance in Debris-filled Systems

While swing check valves are resistant to clogging, they may still require occasional cleaning in systems with suspended solids. Debris can build up on the seating surface, causing wear and potential blockages. Regular maintenance is necessary to ensure reliable operation in such environments.

Understanding the advantages and disadvantages of swing check valves helps in selecting the appropriate valve type for specific applications. Evaluating these factors ensures efficient and reliable system performance.

Comparison with Other Check Valves

Swing Check Valve vs. Spring Check Valve

Swing check valves use a hinged disc that swings open and closed with the flow of fluid. Spring check valves employ a spring-loaded disc that allows flow in one direction and closes to prevent backflow. The spring mechanism in spring check valves ensures quicker closure, reducing the risk of water hammer, a common issue with swing check valves due to their slower closure.

Spring check valves can be installed in any orientation—horizontal, vertical, or at an angle—making them versatile for various system configurations. In contrast, swing check valves are typically limited to horizontal installations, although they can be installed vertically with upward flow.

Swing check valves generally offer a lower pressure drop and are better suited for high-flow applications due to their full port design. Spring check valves, while effective, can have a slightly higher pressure drop because of the spring mechanism that partially restricts flow.

Swing check valves are often more cost-effective and easier to maintain, especially with features like replaceable seat rings. Spring check valves tend to be more expensive and may require more frequent maintenance to ensure the spring mechanism functions correctly over time.

Swing Check Valve vs. Wafer Check Valve

Wafer check valves are compact and designed to fit between two flanges, making them ideal for applications with limited space, whereas swing check valves require more installation space due to their bulkier design.

Wafer check valves may introduce more flow restriction compared to swing check valves. The streamlined flow path of swing check valves results in lower pressure drop and higher efficiency, making them suitable for systems where maintaining flow rate is critical.

Swing check valves are preferred in systems handling fluids with suspended solids, as their design can better manage such conditions without clogging. Wafer check valves are more suitable for clean fluid systems due to their compact design and installation ease.

Swing Check Valve vs. Ball Check Valve

Swing check valves provide smoother fluid flow with less turbulence and lower pressure drop compared to ball check valves. Ball check valves are more compact but can create more resistance to flow, making them less suitable for high-flow applications.

Both swing and ball check valves are relatively low maintenance. However, ball check valves may require occasional cleaning to prevent clogging, especially in systems with debris. Swing check valves, with their simpler design, are often easier to maintain and can handle particulate matter better.

Swing Check Valve vs. Vertical Check Valve

Vertical check valves are specifically designed for vertical pipelines and ensure rapid closure to prevent backflow. Swing check valves are mainly used in horizontal pipelines and may not close as quickly as vertical check valves.

Swing check valves are ideal for high-volume fluid systems where low pressure drop and high flow rates are essential. Vertical check valves are better suited for applications where quick response to flow reversal is critical, such as in vertical piping systems.

Swing Check Valve vs. Diaphragm Check Valve

Diaphragm check valves use a flexible diaphragm to control flow, ensuring a tight seal and preventing backflow. Swing check valves use a swinging disc, which may not seal as tightly as a diaphragm but offers lower resistance to flow.

Diaphragm check valves are ideal for applications requiring contamination-free and leak-proof operations, such as in the pharmaceutical and food industries. Swing check valves, with their robust design, are more suitable for general industrial applications where maintaining flow efficiency is crucial.

Applications of Swing Check Valves

Water Supply Systems

Swing check valves are widely used in water supply systems to ensure water flows in one direction, preventing backflow and contamination. These valves are vital in maintaining the integrity of potable water distribution networks. Their ability to handle large volumes of water with minimal pressure drop makes them ideal for such applications.

Petroleum and Firefighting Industries

In the petroleum industry, swing check valves play a crucial role in preventing reverse flow in pipelines carrying crude oil, refined products, and other hydrocarbons. They are employed in both upstream and downstream operations, ensuring the safe and efficient transport of fluids. Their robust construction allows them to withstand the harsh conditions often encountered in oil and gas environments.

Swing check valves are also integral components in firefighting systems, including sprinkler systems and fire pumps. They prevent the backflow of water, ensuring that water pressure is maintained in the event of a fire. This reliability is critical in emergency situations where consistent water supply can make a significant difference in controlling and extinguishing fires.

Sewage Systems

In sewage and wastewater treatment systems, swing check valves are used to manage the flow of waste fluids and prevent backflow that could lead to contamination and system failures. Their design can handle fluids with particles, making them ideal for tough sewage system conditions.

Chemical Processing

The chemical industry utilizes swing check valves to manage the flow of various chemicals, ensuring that there is no backflow that could cause cross-contamination or process disruptions. These valves can be constructed from materials that resist corrosion and chemical attack, making them suitable for handling aggressive and hazardous fluids.

Power Generation

In power generation facilities, swing check valves are used in cooling systems, steam lines, and other fluid management systems. They help maintain the efficiency and safety of operations by preventing backflow that could damage equipment or disrupt processes. Their ability to handle high-pressure and high-temperature fluids makes them well-suited for these demanding applications.

HVAC Systems

HVAC systems, which control indoor climate, also benefit from swing check valves. These valves ensure the proper direction of fluid flow within the system, maintaining efficiency and preventing potential damage to HVAC components. Their low pressure drop and reliability make them a preferred choice in both residential and commercial HVAC applications.

Marine Industry

In the marine industry, swing check valves are used in bilge systems, ballast systems, and cooling systems for various types of vessels. They prevent the backflow of seawater and other fluids, ensuring the smooth and safe operation of marine equipment. Their strength and resistance to rust are crucial for the tough marine environment.

Food and Beverage Industry

Swing check valves are employed in the food and beverage industry to ensure the hygienic and efficient flow of liquids, such as water, juices, and other food-grade fluids. They prevent backflow that could lead to contamination, ensuring that the production processes meet stringent sanitary standards. These valves are often made from materials that are safe for use with consumable products.

Pharmaceutical Industry

In pharmaceutical manufacturing, swing check valves are used to maintain the purity and integrity of fluids used in the production of medicines and other health-related products. They ensure that there is no backflow that could lead to contamination or compromise the quality of the final product. Their ability to handle sterile and clean-in-place (CIP) processes makes them invaluable in this industry.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the main advantages and disadvantages of using a swing check valve?

Swing check valves offer several advantages, including low pressure drop and minimal turbulence, which enhance energy efficiency and reduce noise. They allow full flow capability, making them ideal for systems requiring high flow efficiency. Their simple design and replaceable seat rings facilitate easy maintenance, and they can be installed in various orientations, primarily in horizontal pipelines. Additionally, they are cost-effective as they do not require an external power source.

However, swing check valves also have disadvantages. They close slowly, which can lead to water hammer and potential damage to the piping system. They are not suitable for systems with pulsating or frequent flow reversals, as this can cause wear and damage. At high flow rates, the valve disc may slam shut, causing noise and potential damage. Lastly, they are generally less suitable for vertical installations.

In what scenarios are swing check valves most suitable?

Swing check valves are most suitable for applications involving high-volume, consistent-pressure fluid flow, particularly in horizontal pipelines. They are extensively used in water supply and wastewater treatment systems to prevent backflow and handle large pipe sizes and fluids containing suspended solids. These valves are also common in the petroleum and chemical industries, where they manage clean process media and ensure smooth flow. Additionally, swing check valves are used in natural gas transmission pipelines to prevent reverse gas flow, and in power plants for cooling towers and other fluid control systems. Their low flow resistance and cost-effectiveness make them ideal for these scenarios.

How does a swing check valve compare to other types of check valves?

Swing check valves, as discussed earlier, allow fluid to flow in one direction and prevent backflow using a hinged disc. When comparing them to other types of check valves, there are several key differences to consider.

Swing check valves have a low pressure drop and are cost-effective, making them ideal for systems requiring full flow, such as water supply and wastewater systems. However, they are generally limited to horizontal installations and can cause water hammer due to rapid closure.

In contrast, spring check valves use a spring mechanism, providing faster response times and the ability to install in any orientation. They are more expensive and have a lower flow capacity but reduce water hammer and are suitable for systems where noise reduction is important.

Ball check valves use a spherical ball for closure, offering faster response and compact design, ideal for low-flow applications. However, they are more prone to clogging with debris and less effective with suspended solids.

Wafer check valves are compact and fit between flanges, making them suitable for tight spaces but they restrict flow more than swing check valves.

Lift check valves use gravity or a spring for closure, suitable for high-pressure systems and vertical piping, but they have a higher pressure drop.

What are common maintenance practices for swing check valves?

Common maintenance practices for swing check valves include regular cleaning, lubrication, inspection, and periodic replacement or overhaul of components. Cleaning is essential to remove debris and sediments that can impede the valve’s function. Proper lubrication minimizes friction between moving parts, ensuring smooth operation and reducing wear and tear. Regular inspections help identify signs of corrosion, wear, or damage, allowing for timely maintenance actions. When necessary, components should be replaced and the valve thoroughly overhauled, including cleaning, inspecting, and smoothing any imperfections. Additionally, correct storage and handling practices, as well as proper installation, are vital to maintaining the valve’s longevity and performance. Maintenance frequency varies based on operating conditions and the type of fluid handled, with routine checks recommended every few months and comprehensive inspections at least annually.

Can swing check valves be used in high-pressure systems?

Yes, swing check valves can be used in high-pressure systems. Their robust design allows them to withstand significant pressures without compromising performance, making them suitable for industries such as oil and gas, petrochemicals, and power plants where high-pressure conditions are common. Swing check valves operate using a hinged disc that swings open to allow forward flow and closes to prevent reverse flow. This design ensures smooth operation by minimizing resistance to forward flow while effectively blocking reverse flow, thus maintaining system integrity and preventing leaks. However, it is important to consider that they may not be ideal for applications with pulsating or low flow rates, as they might not respond well to fluctuating conditions.

What materials are swing check valves made from?

Swing check valves are made from a variety of materials, each selected based on the specific requirements of the application. Common materials for the valve body and disc include stainless steel, ductile iron, brass, bronze, Monel, Inconel, PVC, ABS, and carbon steel. Stainless steel is valued for its corrosion resistance, while ductile iron offers strength and cost-effectiveness. Brass and bronze are also popular for their durability and resistance to rust. Monel and Inconel are chosen for their performance in extreme environments, including underwater and high-temperature conditions. Additionally, PVC and ABS are used for budget-friendly applications with lower temperature requirements. Valve seats can be made from materials like FKM, Teflon (PTFE), NBR, EPDM, and metal, each providing different levels of chemical resistance, temperature tolerance, and abrasion resistance.
