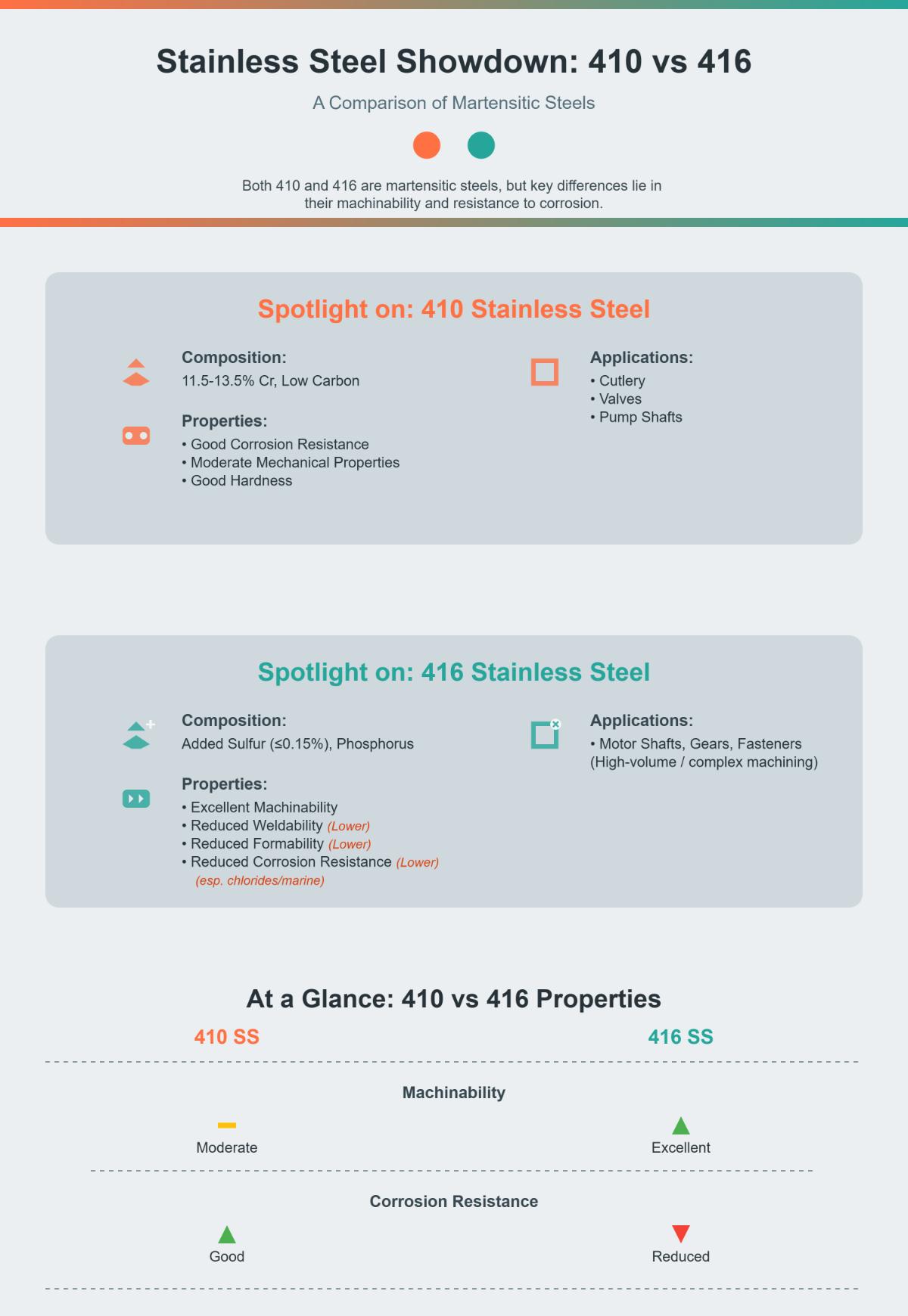

410 Stainless Steel vs 416: What’s the Difference?

In the world of stainless steel, choosing between 410 and 416 can be a critical decision, especially for those in industries like aerospace, automotive, and construction. 410 offers good corrosion resistance and high strength, while 416 is known for its superior machinability. But when should you opt for 410 over 416? And how do their machining processes differ?

This article will comprehensively compare these two stainless – steel grades, covering mechanical properties, corrosion resistance, and industry applications. Are you ready to discover which one is the best fit for your project?

Introduction to 410 and 416 Stainless Steel

Overview of 410 Stainless Steel

410 stainless steel is a martensitic alloy with around 11.5 – 13.5% chromium, known for its good corrosion resistance in mild environments. This alloy can be heat-treated to achieve a range of mechanical properties, from soft and ductile when annealed to hard and strong when hardened. In its annealed state, 410 stainless steel is moderately strong and relatively easy to machine compared to other stainless steels. It is commonly used in applications requiring both corrosion resistance and good mechanical strength, such as cutlery, surgical instruments, and certain automotive components.

Overview of 416 Stainless Steel

416 stainless steel is a martensitic stainless steel specifically formulated for enhanced machinability. It contains 12 – 14% chromium, along with sulfur and phosphorus additions. The sulfur content, up to 0.15%, significantly enhances machinability but reduces corrosion resistance, especially in environments with high chloride content. Additionally, 416 stainless steel has poor weldability compared to 410 stainless steel. It is often used in applications where high-precision machining is required, such as valves, pump shafts, and automatic screw machine parts.

Comparison of 410 and 416 Stainless Steel

When comparing 410 and 416 stainless steel, the most significant difference lies in their machinability. 416 stainless steel excels in machinability, making it ideal for complex machining operations, while 410 stainless steel offers better corrosion resistance and weldability, making it more suitable for applications where these properties are crucial. Both alloys are martensitic, meaning they can be heat-treated to adjust their mechanical properties.

Mechanical Properties Comparison

The chemical makeup of 410 and 416 stainless steels significantly influences their mechanical properties.

Chemical Composition and Its Impact on Mechanical Properties

• 410 Stainless Steel: Composed of approximately 11.5–13.5% chromium and 0.08–0.15% carbon, with very low sulfur and phosphorus levels. This mix offers a balance of strength, hardness, and corrosion resistance. The low sulfur content contributes to its superior corrosion resistance and mechanical strength.
• 416 Stainless Steel: Similar in chromium content to 410 but includes higher levels of sulfur (up to 0.15%) and sometimes phosphorus to enhance machinability. Higher sulfur content enhances machinability but reduces corrosion resistance, strength, and ductility.

Strength and Hardness

The strength and hardness of these stainless steels are key differentiators:

• 410 Stainless Steel: Offers higher tensile strength and can achieve significant hardness through heat treatment, making it suitable for high-stress applications.
• 416 Stainless Steel: Possesses moderately lower tensile strength and hardness, constrained by its sulfur content, which limits the maximum achievable hardness.

Ductility and Toughness

Ductility and toughness are essential for applications involving impact and mechanical stress:

• 410 Stainless Steel: Offers greater ductility and toughness, especially after tempering. This makes it suitable for applications requiring the absorption of mechanical stress without fracturing.
• 416 Stainless Steel: Reduced ductility due to the presence of sulfur and phosphorus, which can embrittle the alloy. Consequently, it has lower toughness and a higher tendency to crack, especially during welding.

Machinability and Workability

Machinability is a critical factor for manufacturing processes:

• 416 Stainless Steel: Its sulfur content significantly enhances machinability, allowing for faster cutting speeds, reduced tool wear, and lower production costs. It is ideal for precision-machined parts.
• 410 Stainless Steel: More challenging to machine due to its higher hardness and tendency to work-harden, leading to increased tool wear and slower production rates.

Corrosion Resistance

Corrosion resistance is vital for longevity in various environments:

• 410 Stainless Steel: Superior corrosion resistance due to its cleaner composition and chromium oxide layer formation. Suitable for atmospheric and mild chemical environments but not ideal for chloride-rich or strongly oxidizing conditions.
• 416 Stainless Steel: Lower corrosion resistance because sulfur and phosphorus impair the protective oxide layer. Best used in less aggressive environments where corrosion resistance is not a primary concern.

Heat Treatment

Heat treatment processes affect the mechanical properties of both alloys:

• 410 Stainless Steel: Can be hardened by heating to around 925–1010°C followed by quenching. Tempering typically occurs between 150–370°C to achieve a balance of hardness and toughness.
• 416 Stainless Steel: Also heat treatable, but tempering is typically done at slightly lower temperatures (below ~315°C) to avoid embrittlement due to the sulfur content.

Corrosion Resistance Comparison

Key Differences in Corrosion Resistance

410 Stainless Steel

410 stainless steel has about 11.5 – 13.5% chromium, which forms a strong passive oxide layer. This layer gives it moderate corrosion resistance. It can withstand atmospheric conditions, mild chemicals, and oxidation up to around 1300°F (705°C). However, it’s less resistant to chlorides and oxidizing acids. A major drawback is its susceptibility to pitting in high – chloride environments like marine settings.

416 Stainless Steel

The addition of about 0.15% sulfur in 416 stainless steel improves its machinability but creates sulfide inclusions that reduce its corrosion resistance. It’s prone to pitting and crevice corrosion in acidic or chloride – rich environments. This steel is only suitable for mild conditions, such as dry atmospheres and neutral pH. A smooth surface finish after hardening is needed to maximize its corrosion resistance.

Comparative Analysis

Application – Specific Suitability

410 stainless steel is ideal for applications where both strength and moderate corrosion resistance are critical, such as turbine blades, cutlery, and petrochemical components. In contrast, 416 stainless steel is preferred for machined parts, like screws and gears, in low – corrosion environments such as automotive or appliance manufacturing.

Limitations and Tradeoffs

410 Stainless Steel

To get the best corrosion resistance and mechanical properties from 410 stainless steel, it needs heat treatment, specifically quenching and tempering.

416 Stainless Steel

Welding 416 stainless steel is not recommended because of the risk of sulfur – induced cracking. If welding is necessary, preheating and post – weld annealing must be done.

Recent Industry Insights

Recent industry analyses show that 410 stainless steel is widely used in high – stress, mildly corrosive environments. 416 stainless steel, on the other hand, remains a niche choice. It’s used for precision – machined components where corrosion is less important than production efficiency. Without protective coatings or alternative alloys, neither grade is suitable for marine or severe chemical exposure.

Machining Processes and Machinability

Composition and Machinability

Machinability refers to how easily a material can be cut, shaped, or formed during machining operations. The composition of 410 and 416 stainless steels significantly impacts this property.

• 410 Stainless Steel: Without sulfur in its composition, 410 stainless steel is less machinable. Its high strength and hardness can lead to increased tool wear during machining, often requiring slower speeds. Despite these challenges, it offers good corrosion resistance, making it suitable for high-strength and moderately corrosive applications.
• 416 Stainless Steel: The presence of sulfur in 416 stainless steel acts as a lubricant at the cutting interface, significantly enhancing its machinability. This reduces tool wear and allows for higher production speeds, making it the top choice for applications involving extensive machining.

Machining Processes

• Machining Challenges with 410: Machining 410 stainless steel is difficult due to its high hardness and strength. For example, in processes like drilling and milling, operators need high-quality cutting tools and effective cooling techniques to maintain tool life and achieve satisfactory surface finishes. Without sulfur, it lacks the free-machining properties found in 416, making tasks like threading and turning more labor-intensive.
• Efficient Machining with 416: The sulfur content in 416 stainless steel greatly simplifies machining. It requires less effort and time, and the reduced tool wear allows for higher production speeds, contributing to lower manufacturing costs and improved efficiency.

Cost Considerations

• Initial Material Costs: Typically, 410 stainless steel is less expensive due to its simpler composition, while 416 stainless steel has slightly higher initial costs.
• Manufacturing Costs: The superior machinability of 416 stainless steel leads to lower


  Industry Applications

Aerospace Applications

In aerospace applications, the choice between 410 and 416 stainless steel is influenced by factors such as strength, machinability, and corrosion resistance.

410 Stainless Steel in Aerospace

410 stainless steel is preferred for its high strength and hardness, essential for parts facing extreme stress and wear. Typical aerospace applications include turbine blades and high-stress structural parts. Its moderate corrosion resistance makes it suitable for environments with exposure to atmospheric and mild chemical conditions.

416 Stainless Steel in Aerospace

416 stainless steel is less commonly used in aerospace due to its lower corrosion resistance and strength. However, it is used for precision-machined parts like fasteners and gears, where extensive machining is needed. The enhanced machinability of 416 stainless steel reduces production costs and time, making it suitable for components with complex geometries.

Automotive Applications

The automotive industry requires materials that offer a balance of strength, machinability, and corrosion resistance.

410 Stainless Steel in Automotive

410 stainless steel is used in automotive parts requiring high strength and wear resistance, like engine components, suspension systems, and brake parts. Its ability to withstand high stress and moderate corrosion makes it ideal for parts that experience significant mechanical loads and exposure to road conditions.

416 Stainless Steel in Automotive

416 stainless steel is preferred for components that require extensive machining, such as gears, valve parts, and fasteners. The superior machinability of 416 stainless steel leads to efficient production processes and reduced manufacturing costs. However, its lower corrosion resistance means it is less suitable for parts exposed to harsh environments or high chloride conditions.

Construction Applications

In construction, materials must offer durability, strength, and ease of fabrication.

410 Stainless Steel in Construction

410 stainless steel is utilized in construction for its high strength and moderate corrosion resistance. It is often used in structural components, fasteners, and tools where durability and resistance to wear are essential. Its ability to be heat-treated further enhances its mechanical properties, making it suitable for high-stress applications.

416 Stainless Steel in Construction

416 stainless steel is mainly used in construction for parts needing extensive machining. Its excellent machinability allows for the efficient production of complex components such as custom fasteners, fittings, and machine parts. However, its lower corrosion resistance limits its use in environments where exposure to moisture and chemicals is a concern.

Comparative Analysis

When comparing 410 and 416 stainless steels, note that 410 offers higher strength and hardness, ideal for high-stress applications. 416 stainless steel excels in machinability due to its sulfur content, which acts as a lubricant during cutting. This makes it suitable for applications requiring precise and extensive machining.

410 stainless steel provides better corrosion resistance, suitable for environments with moderate exposure to corrosive elements. 416 stainless steel, with its reduced corrosion resistance, is best used in less aggressive environments.

416 stainless steel’s superior machinability leads to lower manufacturing costs in high-volume production, despite a slightly higher raw material cost. 410 stainless steel may offer lower lifecycle costs in corrosive or high-stress environments.

The selection between 410 and 416 stainless steel should be guided by the specific performance requirements and production considerations of the intended application.

Advantages and Disadvantages

Advantages of 410 Stainless Steel

High Strength and Hardness

410 stainless steel is known for its impressive strength and hardness, particularly after heat treatment. It can achieve a hardness of up to 50 HRC, making it suitable for applications where wear resistance and high – stress tolerance are required. For instance, it is commonly used in turbine blades and high – stress structural parts in the aerospace industry.

Good Corrosion Resistance

With a chromium content of 11.5–13.5%, 410 stainless steel forms a stable chromium oxide layer. This layer offers good resistance to atmospheric corrosion and mild chemicals. It can withstand oxidation up to around 1300°F (705°C), making it a reliable choice for various industrial applications in moderately corrosive environments.

Better Weldability and Formability

Compared to 416 stainless steel, 410 has better weldability and formability due to its lower sulfur content, which reduces the risk of cracking during welding operations. Although preheating and post – weld heat treatment are still required to prevent cracking, it is more adaptable for complex fabrication processes. Also, it can be more easily shaped and bent, which is beneficial for applications that demand specific forms.

Disadvantages of 410 Stainless Steel

Poor Machinability

The high strength and hardness of 410 stainless steel, combined with the absence of sulfur, make it difficult to machine. Machining this steel requires high – quality cutting tools and effective cooling techniques to minimize tool wear. It often leads to slower production rates and increased manufacturing costs, especially for parts that require extensive machining.

Need for Heat Treatment

To achieve optimal mechanical properties and corrosion resistance, 410 stainless steel typically needs to undergo heat treatment, such as quenching and tempering. This additional process adds to the overall cost and complexity of manufacturing but results in a material that is well-suited for applications requiring high strength and moderate corrosion resistance.

Advantages of 416 Stainless Steel

Excellent Machinability

The high sulfur content (up to 0.15%) in 416 stainless steel significantly enhances its machinability. Sulfur acts as a lubricant at the cutting interface, promoting chip breaking and reducing tool wear. This allows for faster cutting speeds and lower production costs, making it ideal for high – volume manufacturing of precision – machined parts like fasteners and pump shafts.

Reduced Tool Wear and Faster Production

Due to its superior machinability, 416 stainless steel reduces tool wear during machining processes. This not only extends the lifespan of cutting tools but also enables faster production cycles. As a result, it can be more cost – effective for applications that require a large number of machined parts.

Suitable for Complex Machining Parts

The ease of machining 416 stainless steel makes it well – suited for parts with complex geometries. It can be precisely machined to meet the requirements of various industries, such as the automotive and appliance manufacturing sectors, where components often have intricate designs.

Disadvantages of 416 Stainless Steel

Lower Corrosion Resistance

Sulfur in 416 stainless steel reduces its ability to form a protective oxide layer, decreasing its corrosion resistance. It is more vulnerable to pitting and crevice corrosion, especially in acidic or chloride – rich environments. This limits its use in applications where corrosion resistance is a primary concern.

Difficult to Weld and Prone to Cracking

The sulfur content in 416 stainless steel makes it more difficult to weld compared to 410. Sulfur can cause cracking and brittleness in the welded joints, and special precautions such as preheating and post – weld annealing are necessary. This adds complexity and cost to the welding process and may also affect the overall mechanical properties and performance of the final product.

Reduced Strength and Hardness

Compared to 410 stainless steel, 416 generally has lower strength and hardness. Its tensile strength ranges from 517–758 MPa, and its hardness is up to 302 Brinell, which is lower than what 410 can achieve after heat treatment. This makes it less suitable for high – stress applications.

Sustainability and Cost-Efficiency Factors

Composition and Impact on Sustainability

410 Stainless Steel

410 stainless steel consists of about 11.5-13.5% chromium and very low sulfur content, generally below 0.03%. Chromium creates a protective oxide layer on the surface, which increases its resistance to air and mild chemicals. This durability means components made from 410 stainless steel have a longer service life, reducing the need for frequent replacements and minimizing waste, thus supporting sustainability.

416 Stainless Steel

416 stainless steel contains similar chromium levels (12-14%) but has added sulfur (up to 0.15%) to improve machinability. Although the added sulfur in 416 stainless steel enhances machinability, it slightly reduces corrosion resistance and mechanical strength, but this improved machinability allows for faster production rates, less tool wear, decreased energy consumption, and fewer tool replacements during manufacturing.

Mechanical Properties and Lifecycle Performance

410 stainless steel’s durability ensures a longer service life in structural or high-stress applications. This contributes to sustainability by reducing maintenance and replacements. Conversely, 416 stainless steel’s excellent machinability allows cost-effective manufacturing but may compromise long-term durability in corrosive conditions.

Cost-Efficiency Factors

Initial Material Cost

• 410 Stainless Steel: Generally less expensive in raw material cost due to its simpler alloy composition without costly additives like sulfur.
• 416 Stainless Steel: Slightly higher raw material cost because of the sulfur addition but gains cost benefits during machining.

Manufacturing Costs

• 410 Stainless Steel: Higher hardness and lower machinability increase tool wear and machining time, raising production costs.
• 416 Stainless Steel: Superior machinability reduces production time, energy use, and tooling wear, translating into lower manufacturing costs for high-volume parts requiring complex shapes or tight tolerances.

Lifecycle Cost

• 410 Stainless Steel: Despite higher initial machining costs, greater corrosion resistance and strength can lower lifecycle costs by reducing maintenance, repairs, and part replacements.
• 416 Stainless Steel: Lower corrosion resistance may lead to higher long-term costs in harsh environments due to earlier part degradation.

Heat Treatment and Workability

Both grades require heat treatment to optimize mechanical properties, but:

• 410 Stainless Steel: Hardened by heating to 925-1010°C followed by quenching and tempering at 150-370°C.
• 416 Stainless Steel: Undergoes similar hardening but requires tempering at lower temperatures (below 315°C) to avoid embrittlement caused by sulfur.

Formability is better in 410 due to lower sulfur content, making it more adaptable for bending and shaping. 416’s higher sulfur content reduces formability, limiting its use in applications requiring complex forming.

Compliance with ASTM/ASME Standards

Composition and Standards Compliance

Both Grade 410 and Grade 416 stainless steels comply with ASTM/ASME standards, ensuring they meet specific requirements for composition, mechanical properties, and manufacturing processes.

410 Stainless Steel

Grade 410 stainless steel is commonly used in high-stress environments such as dental and surgical instruments, pipelines, and automotive parts. It contains 11.5-13.5% chromium and 0.08-0.15% carbon. This grade meets ASTM A182, ASTM A276, and ASTM A479 standards.

416 Stainless Steel

Grade 416 has a similar chromium content to Grade 410 but includes higher sulfur content to enhance machinability. It complies with ASTM/ASME standards, focusing on machinability.

Applications and Corrosion Resistance

410 Stainless Steel

This grade is used in high-stress environments where superior resistance to atmospheric corrosion and mild acids is required.

416 Stainless Steel

Grade 416 is ideal for parts that require extensive machining, such as valves and pump shafts. Its corrosion resistance is adequate for less aggressive environments, but the higher sulfur content reduces its resistance compared to Grade 410.

Mechanical Properties

410 Stainless Steel

• Strength: High mechanical strength and hardness, up to 50 Rockwell C when heat-treated.
• Heat Treatment: This grade can be hardened by heating to 925-1010°C, followed by quenching and tempering.

416 Stainless Steel

• Strength: Lower mechanical strength and hardness but highly machinable.
• Heat Treatment: Hardened similarly to Grade 410 but tempered at lower temperatures to maintain machinability.

Comparison Summary

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the differences in properties and applications between 410 and 416 stainless steel?

410 stainless steel and 416 stainless steel are both martensitic stainless steels, but they differ primarily in their machinability and corrosion resistance properties. 410 stainless steel contains 11.5-13.5% chromium and has low carbon content, providing good corrosion resistance and moderate mechanical properties. It is suitable for applications requiring hardness and moderate resistance to corrosion, such as cutlery, valves, and pump shafts.

On the other hand, 416 stainless steel includes added sulfur (up to 0.15%) and phosphorus, which significantly improves its machinability. This makes 416 the preferred choice for high-volume or complex machining processes, such as manufacturing motor shafts, gears, and fasteners. However, the addition of sulfur reduces its weldability and formability and can decrease corrosion resistance, particularly in environments with chlorides or marine exposure.

When should I use 410 stainless steel over 416?

Choose 410 stainless steel over 416 when your application requires high strength, superior corrosion resistance, and less emphasis on machining speed. 410 has higher chromium content and no sulfur, offering better corrosion – resistance in moderate corrosive environments. It also has greater strength and hardness, suitable for high – stress applications. In industries like aerospace, automotive, and medical, where durability and performance are crucial, 410 is a better choice. Despite being less machinable, its mechanical properties can outweigh this drawback. Also, it’s a better option for applications in below – freezing or harsh conditions.

How do machining processes differ between 410 and 416 stainless steel?

The machining processes for 410 and 416 stainless steel differ primarily due to their compositions. 416 stainless steel contains added sulfur, which significantly enhances its machinability. This sulfur acts as a lubricant during machining, reducing tool wear and improving surface finish. As a result, 416 offers high machinability, around 85-90%, making it ideal for precision components that require extensive machining.

In contrast, 410 stainless steel has lower machinability, leading to more tool wear and potentially poorer surface finishes. It generally requires slower cutting speeds compared to 416. For instance, recommended cutting speeds for turning 416 are between 1210-1660 SFM, whereas 410 typically needs slower speeds due to its harder machinability.

When machining 416, carbide tools are often used, and coolants can help reduce thermal stress and improve chip removal. For 410, more robust tooling might be necessary, and while coolants are beneficial, they are not as critical as with 416.

What are the advantages and disadvantages of each stainless steel grade?

410 stainless steel offers good corrosion resistance for martensitic grades, high strength and hardness when heat-treated, and is cost-effective due to simpler processing. However, it’s difficult to machine, has moderate corrosion resistance compared to austenitic grades, and its magnetic nature can limit use in some applications.

On the other hand, 416 stainless steel has excellent machinability thanks to sulfur addition, high strength and hardness similar to 410, and is suitable for precision parts. But it has reduced corrosion resistance in aggressive environments, potential brittleness due to sulfur, and is also magnetic.

How do corrosion resistance properties compare between 410 and 416?

Corrosion resistance is a key consideration when comparing 410 and 416 stainless steels. Grade 410 stainless steel contains 11.5-13.5% chromium and 0.08-0.15% carbon, providing good resistance to atmospheric conditions and mild chemicals. It performs well in mildly corrosive environments but is less effective against chlorides and oxidizing conditions.

Grade 416 stainless steel, similar in composition to 410, includes added sulfur to enhance machinability. However, this sulfur content decreases its corrosion resistance compared to 410 stainless steel. The increased sulfur makes 416 more susceptible to pitting and crevice corrosion, especially in chloride-rich environments.

Which applications are best suited for 410 and 416 stainless steel?

410 stainless steel is best suited for applications requiring general-purpose use, good strength, and moderate corrosion resistance. Typical applications include cutlery, kitchen utensils, and various hardware components where precision machining is not critical. Its lower cost makes it favorable for budget-conscious projects that do not demand high machinability.

On the other hand, 416 stainless steel is ideal for applications where high machinability is essential due to its sulfur content, which enhances its machinability rating. This makes 416 stainless steel perfect for precision parts such as fasteners, valve components, and medical devices. It is also used in the firearms industry, marine applications, aerospace, and automotive sectors for parts requiring high strength and excellent corrosion resistance. Therefore, 416 stainless steel is preferred in industries where precision manufacturing and higher performance under corrosive conditions are crucial.
