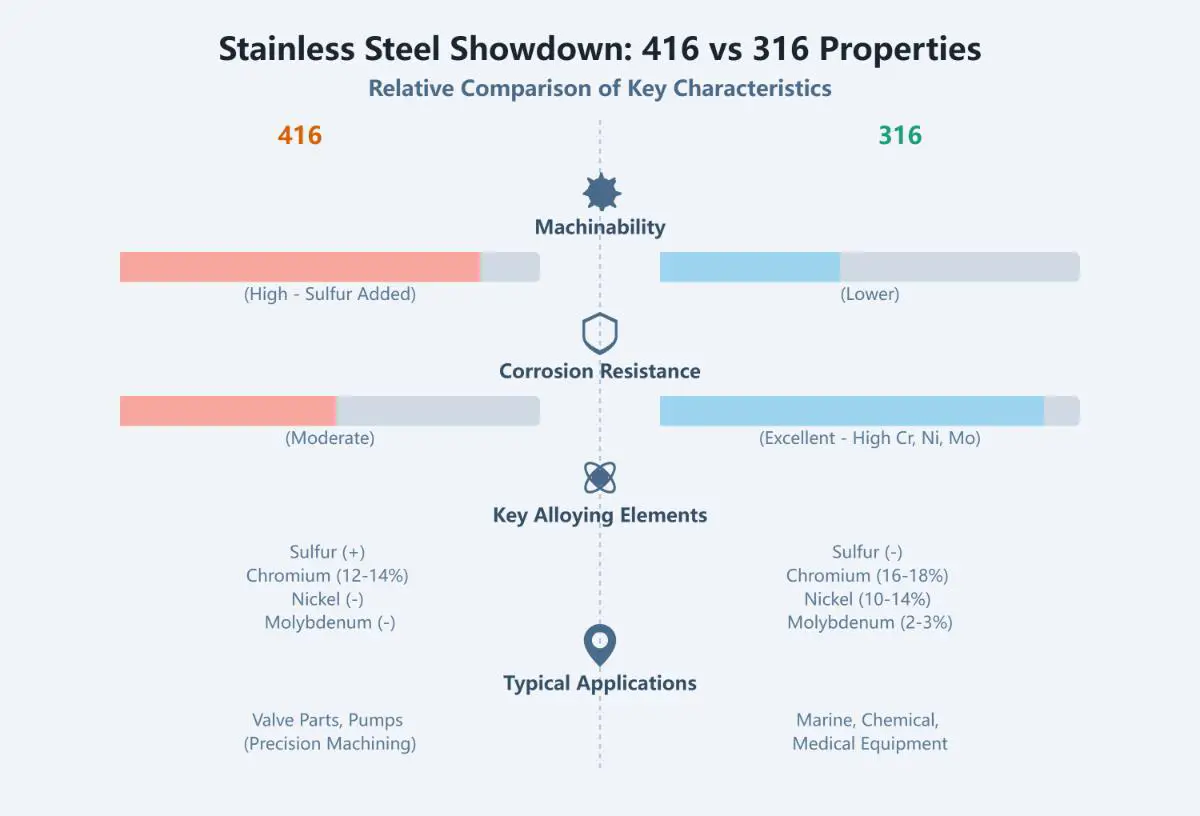

416 vs 316 Stainless Steel: What’s the Difference?

When it comes to selecting the right stainless steel for your project, understanding the nuances between different grades can be crucial. Two popular options, 416 and 316 stainless steel, each offer unique properties that make them suitable for specific applications. But what sets them apart? Is it their corrosion resistance, machinability, or perhaps their chemical composition? This article dives into a detailed comparison of these two types of stainless steel, exploring their differences in various aspects such as corrosion resistance, ease of machining, mechanical properties, and typical applications. Join us as we uncover which stainless steel might be the best fit for your needs and why.

Chemical Composition Differences

Definition and Importance of Chemical Composition

Chemical composition is the specific mix and arrangement of elements in a material. This composition significantly influences the material’s properties and suitability for various applications. In stainless steel, elements such as chromium, nickel, molybdenum, carbon, sulfur, manganese, and silicon play pivotal roles.

Detailed Comparison of the Chemical Compositions of 416 and 316 Stainless Steel

Key Elements in 416 Stainless Steel

• Chromium (12-14%): Provides corrosion resistance, though less effectively than higher chromium grades.
• Nickel (≤ 1.25%): Enhances corrosion resistance and ductility, but in smaller amounts compared to 316 SS.
• Carbon (≤ 0.15%): Increases hardness and strength, improving machinability but reducing corrosion resistance.
• Sulfur (0.15-0.35%): Enhances machinability but may complicate welding processes.
• Manganese: Present in higher quantities, contributing to the overall strength and hardness.
• Silicon: Similar levels to 316 SS, aids in deoxidation during steel production.

Key Elements in 316 Stainless Steel

• Chromium (16-18%): Creates a protective layer that greatly improves corrosion resistance.
• Nickel (10-14%): Nickel, though used less in 416 SS, enhances corrosion resistance and ductility; 316 SS uses more nickel, making it highly resistant to stress corrosion cracking.
• Molybdenum (2-3%): Boosts resistance to pitting and crevice corrosion, especially in salty or chlorinated environments.
• Carbon (≤ 0.08%): Maintains a balance between strength and corrosion resistance.
• Sulfur (≤ 0.03%): Low levels ensure better weldability and reduced risk of cracking.
• Manganese: Present in smaller amounts compared to 416 SS, contributing to toughness.
• Silicon: Similar levels to 416 SS, aiding in deoxidation during steel production.

Impact of Chemical Composition on Properties and Performance

The differences in chemical composition between 416 and 316 stainless steel lead to distinct properties and performance characteristics:

• Corrosion Resistance: 316 SS, with higher chromium and the addition of molybdenum, offers superior resistance to corrosion, making it ideal for harsh environments like marine and chemical processing industries. In contrast, 416 SS, with lower chromium content and no molybdenum, is less resistant to corrosion.
• Machinability: The higher sulfur content in 416 SS makes it easier to machine, ideal for producing gears and fasteners, but it can make welding difficult.
• Mechanical Properties: The carbon content in 416 SS enhances hardness and strength, beneficial for machining but less favorable for applications demanding high corrosion resistance. Conversely, the balanced carbon content in 316 SS ensures a good combination of strength and corrosion resistance.

Corrosion Resistance Comparison

Corrosion resistance is the ability of a material to resist damage caused by oxidation or other chemical reactions, especially in harsh environments. This property is critical for materials used in marine, chemical processing, and other demanding applications where exposure to corrosive agents is common.

Corrosion Resistance in 416 Stainless Steel

416 stainless steel is a martensitic alloy known for its enhanced machinability due to higher sulfur content, which, however, negatively impacts its corrosion resistance. With only 12-14% chromium and minimal nickel and molybdenum, 416 stainless steel lacks the strong protective layer of higher chromium grades. Consequently, it is more susceptible to corrosion, particularly in environments with high chloride exposure or aggressive chemical conditions.

Corrosion Resistance in 316 Stainless Steel

316 stainless steel, an austenitic grade, is renowned for its superior corrosion resistance. It contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, which significantly enhance its ability to resist corrosion. The high chromium and molybdenum content in 316 stainless steel offer excellent protection, making it the preferred choice for marine equipment and structures. This makes 316 stainless steel ideal for marine applications and chemical processing industries.

Comparative Analysis in Different Environments

Marine Environments

In marine environments, the presence of salt and chlorides can accelerate corrosion. 316 stainless steel’s high chromium and molybdenum content provide excellent protection against these conditions, making it a preferred choice for marine equipment and structures. On the other hand, 416 stainless steel, with lower chromium and no molybdenum, is less resistant and more prone to corrosion, limiting its suitability for such applications.

Chemical Processing Environments

Chemical processing applications often involve exposure to various corrosive agents. 316 stainless steel’s robust composition ensures it can withstand these harsh conditions, offering long-term durability and performance. Its ability to resist pitting and crevice corrosion is particularly beneficial in harsh environments. Conversely, 416 stainless steel’s limited corrosion resistance makes it less suitable for environments with aggressive chemicals, although its machinability may be beneficial for producing intricate components used in less corrosive areas.

Key Differences in Corrosion Resistance

Detailed Analysis

316 stainless steel’s superior corrosion resistance is attributed to its chemical composition, which includes higher levels of chromium, nickel, and molybdenum. These elements collectively form a protective layer, preventing the material from reacting with corrosive agents. In contrast, 416 stainless steel, designed for machinability, lacks these protective elements, making it more vulnerable to corrosion. Its primary advantage lies in its ease of machining, which is beneficial for applications where corrosion resistance is not the primary concern.

Application Suitability

316 stainless steel is ideal for applications demanding high corrosion resistance, such as marine equipment, chemical processing, and medical devices. Despite being more expensive and challenging to machine, its durability and resistance to corrosion make it the preferred choice in these environments. Conversely, 416 stainless steel is better suited for applications where machinability is crucial, and corrosion resistance is less critical. It is commonly used in components requiring intricate machining, such as fasteners, gears, and valves.

Machinability Differences

Definition and Importance of Machinability

Machinability refers to the ease with which a material can be cut, shaped, or finished using machine tools. It is a crucial factor in the manufacturing industry as it impacts efficiency, cost, and the quality of the final product. High machinability translates to lower tool wear, faster machining times, and better surface finishes, which are vital for meeting production demands and maintaining equipment longevity.

Machinability of 416 Stainless Steel

Sulfur Content and Chip Formation

416 stainless steel is highly machinable because it contains more sulfur (0.15-0.35%). Sulfur acts as a free-machining additive, forming short, brittle chips during cutting operations. These chips are easier to manage and cause less tool wear, making 416 stainless steel ideal for high-speed machining.

Tool Selection and Machining Conditions

Using high-speed steel (HSS) or carbide tools and water-based or synthetic coolants optimizes machining results by controlling heat and extending tool life. Moderate to high feed rates can be employed to capitalize on the material’s favorable chip-breaking properties, enhancing productivity and efficiency in manufacturing.

Machinability of 316 Stainless Steel

Minimal Sulfur Content and Challenges

316 stainless steel has poor machinability due to its minimal sulfur content (≤ 0.03%). This results in longer, more continuous chips that are harder to break and manage, increasing tool wear and machining forces. The tougher nature of 316 stainless steel makes it challenging to machine, requiring more precise control and specialized machining strategies.

Specialized Machining Techniques

Machining 316 stainless steel requires specialized tools and conditions, including slower feed rates and precise tool geometry, to avoid damage and achieve a good surface finish. Carbide tools are commonly used, and employing high-performance lubricants or coolants is essential to mitigate the heat and friction generated during machining.

Comparative Analysis of Machinability

Production Efficiency and Tool Longevity

The machinability differences between 416 and 316 stainless steel have significant implications for manufacturing processes. High machinability of 416 stainless steel enables faster machining, less tool wear, and lower costs, making it perfect for gears, fasteners, and precision components. Conversely, 316 stainless steel’s poor machinability necessitates slower machining speeds and more frequent tool changes, which can increase production costs and time.

Material Strength and Corrosion Resistance Trade-Offs

While 416 stainless steel offers superior machinability, it may require additional considerations regarding material strength and corrosion resistance. Its higher sulfur content can complicate welding and reduce its overall corrosion resistance. Conversely, 316 stainless steel, despite its machining challenges, provides excellent strength and corrosion resistance, making it suitable for applications in harsh environments where durability is paramount.

Comparison Summary

This comparison highlights the significant differences in machinability between 416 and 316 stainless steel. While 316 stainless steel excels in corrosion resistance and durability, making it ideal for demanding environments, 416 stainless steel is preferred for applications requiring high machinability, offering efficiency and cost-effectiveness in manufacturing processes.

Mechanical Properties: Tensile Strength, Hardness, and Density

Tensile strength is the maximum stress a material can endure while being stretched or pulled before it breaks. It is a critical property for materials used in structural applications, determining their ability to resist deformation and failure under load. Hardness, on the other hand, measures a material’s resistance to deformation, particularly permanent indentation. It is an important factor for wear resistance and durability in various applications.

Tensile Strength of 416 Stainless Steel

416 stainless steel has a tensile strength range of 510 to 800 MPa, which can reach up to 690 MPa when hardened and tempered. The tensile strength of 416 stainless steel makes it suitable for applications that require moderate to high mechanical strength. However, its strength is lower compared to 316 stainless steel, limiting its use in highly demanding structural applications.

Tensile Strength of 316 Stainless Steel

316 stainless steel offers a higher tensile strength, ranging from 520 to 1180 MPa. This superior strength makes it ideal for applications that require high mechanical performance. The higher tensile strength of 316 stainless steel is due to its composition, which includes higher levels of chromium and nickel, enhancing its overall durability and resistance to stress.

Hardness Comparison

416 Stainless Steel

Its Brinell hardness ranges from 230 to 320 HB, making it suitable for wear-resistant applications. The increased hardness is a result of its higher carbon content, which also contributes to its machinability.

316 Stainless Steel

316 stainless steel has a Brinell hardness ranging from 160 to 360 HB. While it can be harder than 416 stainless steel in certain conditions, it generally offers lower hardness, contributing to its ductility and toughness. This balance of hardness and ductility makes 316 stainless steel versatile for various demanding applications where both strength and flexibility are required.

Density Comparison

416 Stainless Steel

416 stainless steel typically has a density between 7.7 and 7.9 g/cm³, making it a good choice for applications where weight matters, without significantly compromising strength and durability.

316 Stainless Steel

With a density between 7.9 and 8.0 g/cm³, 316 stainless steel is robust and ideal for harsh environments due to its superior corrosion resistance.

The mechanical properties of 416 and 316 stainless steel highlight their suitability for different applications. 316 stainless steel, with its higher tensile strength and balanced hardness, is better suited for environments requiring high mechanical performance and corrosion resistance, such as marine and chemical processing industries. In contrast, 416 stainless steel, with its higher hardness and excellent machinability, is ideal for applications requiring wear resistance and ease of manufacturing, such as gears, fasteners, and precision components.

Typical Applications and Industries

Overview of Applications for Stainless Steel Grades

Stainless steel grades are chosen based on their properties, which determine their suitability for various applications. Understanding the typical applications of 416 and 316 stainless steel helps in selecting the right material for specific needs.

Common Applications of 416 Stainless Steel

416 stainless steel is prized for its machinability, making it ideal for precision parts requiring intricate machining. Its applications span several industries:

Food Processing Equipment

Its cost-effectiveness and ease of machining make 416 stainless steel ideal for gears and shafts in food processing machinery, where direct food contact isn’t needed.

Medical Devices

Surgical tools like scalpel handles and forceps benefit from the machinability of 416 stainless steel, though it’s not suitable for implants due to its lower corrosion resistance.

Automotive Industry

• Fuel injector parts and transmission components: The wear resistance and ease of machining make 416 stainless steel ideal for these automotive applications, where precise dimensions and durability are crucial.

Fasteners and Cutlery

• Screws, nuts, knives, and blades: 416 stainless steel’s wear resistance and ability to be sharpened easily make it a popular choice for fasteners and cutlery.

Common Applications of 316 Stainless Steel

316 stainless steel is known for its superior corrosion resistance and durability, making it suitable for demanding environments:

Marine Industry

Boat fittings, underwater piping, and ship components benefit from 316 stainless steel’s excellent resistance to saltwater corrosion.

Chemical and Pharmaceutical Industries

These industries use 316 stainless steel for its long-term durability and resistance to corrosive substances.

Food and Beverage Industry

• Direct food contact surfaces: Equipment like tanks, mixing vessels, and conveyor systems benefit from the high corrosion resistance of 316 stainless steel, ensuring hygiene and preventing contamination.

Automotive and Aerospace Industries

• Exhaust systems: Components exposed to high temperatures and corrosive environments, such as exhaust systems, utilize 316 stainless steel for its resistance to corrosion and heat.

Key Differences in Application

Corrosion Resistance

• 416 Stainless Steel: Provides moderate corrosion resistance, making it suitable for applications where corrosion resistance is not the primary concern.
• 316 Stainless Steel: Offers superior corrosion resistance, ideal for harsh environments like marine and chemical processing.

Machinability

• 416 Stainless Steel: High machinability due to its sulfur content, suitable for parts requiring precise machining.
• 316 Stainless Steel: More challenging to machine, necessitating specialized tools and conditions.

Weldability

• 416 Stainless Steel: Difficult to weld due to its martensitic nature and sulfur content.
• 316 Stainless Steel: Excellent weldability, suitable for applications requiring robust welded joints.

Choosing between 416 and 316 stainless steel depends on the specific needs of the application. For high machinability and cost-effectiveness, 416 stainless steel is preferred. However, for applications demanding superior corrosion resistance and weldability, 316 stainless steel is generally the better option.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the difference between 416 and 316 stainless steel?

The primary difference between 416 and 316 stainless steel lies in their chemical composition, corrosion resistance, machinability, and typical applications.

416 stainless steel is a martensitic alloy known for its high machinability due to the addition of sulfur. It has moderate corrosion resistance and is typically used in applications requiring precision machining, such as valve parts and pumps. Its lower chromium content (12-14%) and absence of nickel and molybdenum make it less suitable for highly corrosive environments.

On the other hand, 316 stainless steel is an austenitic alloy with a higher chromium content (16-18%) and significant amounts of nickel (10-14%) and molybdenum (2-3%). These additions provide excellent corrosion resistance, especially against chlorides and harsh chemicals, making it ideal for marine, chemical, and medical applications. Though its machinability is lower compared to 416, it offers superior strength, toughness, and weldability.

Which stainless steel has better corrosion resistance, 316 or 416?

When comparing 316 and 416 stainless steel in terms of corrosion resistance, 316 stainless steel is the superior choice. This is primarily due to its chemical composition, which includes higher concentrations of chromium (16-18%), nickel (10-14%), and molybdenum (2-3%). These elements significantly enhance its resistance to corrosive environments, especially those containing chlorides, such as marine and chemical processing settings. Molybdenum, in particular, helps prevent pitting and crevice corrosion.

In contrast, 416 stainless steel has a lower chromium content (12-14%) and lacks nickel and molybdenum, making it more susceptible to corrosion. It is more prone to pitting and crevice corrosion and therefore less suitable for environments where high corrosion resistance is essential. Instead, 416 stainless steel is often chosen for its excellent machinability rather than its corrosion resistance.

Which stainless steel is easier to machine, 416 or 316?

When comparing 416 stainless steel and 316 stainless steel in terms of machinability, 416 stainless steel is significantly easier to machine. The enhanced machinability of 416 stainless steel is mainly due to its chemical composition, which includes sulfur. This addition improves its machinability to about 85%, making it suitable for high-speed machining applications such as gears, bolts, and automatic screw-machined components.

In contrast, 316 stainless steel has poor machinability. Its higher nickel content makes it more challenging to machine, often requiring specialized cutting tools and techniques. Therefore, 316 stainless steel is less suitable for applications where high-speed machining is necessary. While 416 stainless steel excels in machinability, 316 stainless steel is preferred for applications requiring superior corrosion resistance.

What are typical applications for 416 stainless steel compared to 316?

416 stainless steel is primarily utilized in applications requiring excellent machinability and moderate corrosion resistance. Common uses include fasteners such as nuts, bolts, and screws, as well as various machine parts due to its strength and ease of machining. It is also found in valve and pump components, where its mechanical properties and moderate resistance to corrosion are beneficial. Additionally, 416 is employed in the automotive and aerospace industries for parts needing durability and strength, like compressor shrouds. In the food industry and cutlery manufacturing, its ability to withstand moderate corrosive conditions and ease of machining are advantageous.

In contrast, 316 stainless steel is preferred for applications demanding superior corrosion resistance, such as those exposed to seawater or strong acids, making it ideal for marine, chemical, and food processing environments. While 316 is less machinable than 416, it excels in harsher conditions where corrosion resistance is critical.

How do the chemical compositions of 316 and 416 stainless steel differ?

The chemical compositions of 316 and 416 stainless steel differ significantly due to their distinct metallurgical purposes and performance characteristics.

316 stainless steel is an austenitic alloy, known for its excellent corrosion resistance, especially in harsh environments. Its chemical composition includes approximately 16.0–18.5% chromium (Cr), 10.0–14.0% nickel (Ni), and 2.0–3.0% molybdenum (Mo), with the balance being iron (Fe) and minor amounts of carbon (C), manganese (Mn), silicon (Si), phosphorus (P), sulfur (S), and nitrogen (N). The higher chromium, nickel, and molybdenum contents significantly enhance its resistance to pitting and crevice corrosion, particularly in chloride-rich environments, making it suitable for marine and chemical applications.

In contrast, 416 stainless steel is a martensitic alloy designed for high strength and excellent machinability. Its composition includes approximately 12.0–14.0% chromium, significantly higher carbon content at 0.15–0.40%, and around 0.15% sulfur, which is added to improve machinability. Nickel content is typically low, less than 1%, with the balance being iron and trace amounts of manganese, silicon, and phosphorus. The higher carbon content allows 416 to be hardened by heat treatment, providing superior strength and wear resistance compared to 316, while the sulfur addition enhances machinability.
