420 Stainless Steel vs 17-4: What’s the Difference?

When it comes to choosing the right stainless steel for your project, understanding the differences between materials is crucial. 420 and 17-4 stainless steel are two popular options, but their distinct chemical compositions lead to significant variations in mechanical properties and corrosion resistance. For instance, 420 offers good hardness, while 17-4 boasts excellent strength and better corrosion resistance in many environments.

In this article, we’ll dissect these differences across various aspects, from heat treatment to cost – effectiveness. So, which of these stainless steels will be the optimal choice for your specific needs? Let’s find out.

Chemical Composition

420 stainless steel is a martensitic alloy known for its high hardness and moderate corrosion resistance, primarily composed of chromium and carbon. The primary elements in its composition include:

• Chromium (12-14%): This element imparts corrosion resistance by forming a passive oxide layer on the surface, protecting the underlying metal.
• Carbon (0.15-0.40%): The carbon content allows for significant hardening through heat treatment processes, contributing to the alloy’s high hardness levels.
• Manganese (≤1%) and Silicon (≤1%): Both 420 and 17-4 stainless steels contain minor amounts of manganese and silicon, which enhance strength and hardness.
• Nickel (≤0.5%) and Molybdenum (≤0.5%): These elements are present in trace amounts and contribute slightly to the alloy’s – Iron (balance): The remaining composition is primarily iron, forming the base of the alloy.

17-4 stainless steel, also known as 17-4 PH (precipitation hardening), is recognized for its excellent mechanical properties and superior corrosion resistance. Its composition includes:

• Chromium (15-17.5%): The higher chromium content compared to 420 stainless steel provides enhanced corrosion resistance.
• Nickel (3-5%): Nickel stabilizes the austenite phase and contributes to the alloy’s toughness and strength, also enhancing corrosion resistance.
• Copper (3-5%): Copper in 17-4 stainless steel enables precipitation hardening, significantly improving mechanical properties.
• Carbon (≤0.07%): The low carbon content reduces carbide formation, improving weldability and reducing brittleness.
• Niobium/Tantalum (0.15-0.45%): Niobium/tantalum in 17-4 stainless steel prevents corrosion between grains and stabilizes the alloy during heat treatment.
• Manganese (≤1%) and Silicon (≤1%): Both 420 and 17-4 stainless steels contain minor amounts of manganese and silicon, which enhance strength and hardness.
• Iron (balance): The remainder of the alloy is primarily iron, forming the bulk of its composition.

The chemical compositions of 420 and 17-4 stainless steels highlight distinct differences that influence their respective properties and applications.

420 stainless steel contains 12-14% chromium, offering moderate corrosion resistance, whereas 17-4 stainless steel has 15-17.5% chromium, providing superior corrosion resistance. The higher carbon content in 420 stainless steel (0.15-0.40%) allows for significant hardening, while the low carbon content in 17-4 stainless steel (≤0.07%) enhances weldability and reduces brittleness.

The differences in chemical compositions between 420 and 17-4 stainless steels directly impact their physical and mechanical properties, corrosion resistance, and suitability for various applications.

Physical and Mechanical Properties

Physical Properties

Density

• 420 Stainless Steel: Approximately 7.7 g/cm³.
• 17-4 Stainless Steel: Approximately 7.8 g/cm³.

Both materials have similar densities, with 17-4 stainless steel being slightly denser. This small difference usually won’t matter much in most uses, but it’s something to think about for designs where weight is key.

Thermal Conductivity

• 420 Stainless Steel: Around 27 W/m-K.
• 17-4 Stainless Steel: Approximately 17 W/m-K.

420 stainless steel has higher thermal conductivity, making it more suitable for applications requiring efficient heat dissipation. Conversely, 17-4 stainless steel’s lower thermal conductivity may be advantageous in scenarios where thermal insulation is beneficial.

Thermal Expansion

• 420 Stainless Steel: 10 µm/m-K.
• 17-4 Stainless Steel: 11 µm/m-K.

The thermal expansion rates are quite close, with 17-4 stainless steel having a marginally higher rate. This difference is generally negligible but can influence thermal stress considerations in certain applications.

Maximum Service Temperature

• Mechanical:
• 420 Stainless Steel: ~620 °C
• 17-4 Stainless Steel: ~850 °C
• Corrosion Resistance:
• 420 Stainless Steel: ~390 °C
• 17-4 Stainless Steel: ~450 °C

17-4 stainless steel can withstand higher temperatures both mechanically and in terms of corrosion resistance, making it more suitable for high-temperature environments.

Mechanical Properties

Tensile Strength (Ultimate, UTS)

• 420 Stainless Steel: 690 to 1720 MPa.
• 17-4 Stainless Steel: 910 to 1390 MPa.

420 stainless steel can achieve higher maximum tensile strengths, particularly with appropriate heat treatment, but this is at the expense of ductility. For example, in high – pressure valve components where the material needs to withstand extreme pulling forces without breaking, the higher maximum tensile strength of 420 stainless steel can be highly beneficial. 17-4 stainless steel offers a balanced range of tensile strength with more consistent properties.

Yield Strength

• 420 Stainless Steel: 380 to 1310 MPa.
• 17-4 Stainless Steel: 580 to 1250 MPa.

The yield strengths of both materials overlap, with 17-4 stainless steel generally providing higher yield strength, enhancing its ability to withstand deformation under load.

Elongation at Break

• 420 Stainless Steel: 8% to 15%.
• 17-4 Stainless Steel: 11% to 21%.

17-4 stainless steel exhibits better ductility, indicated by higher elongation at break values. This makes it more suitable for applications requiring flexibility and resistance to cracking under stress.

Brinell Hardness

• 420 Stainless Steel: Around 190 HB typical.
• 17-4 Stainless Steel: 280 to 440 HB.

17-4 stainless steel is significantly harder, particularly when precipitation hardened. This makes it more suitable for applications requiring a combination of hardness and toughness.

Fatigue Strength

• 420 Stainless Steel: 220 to 670 MPa.
• 17-4 Stainless Steel: 380 to 670 MPa.

Both materials exhibit similar ranges of fatigue strength, with 17-4 stainless steel often performing better in dynamic load applications due to its superior toughness.

Shear Strength

• 420 Stainless Steel: 420 to 1010 MPa.
• 17-4 Stainless Steel: 570 to 830 MPa.

420 stainless steel can achieve higher maximum shear strengths, but 17-4 stainless steel provides more consistent results, making it reliable for structural components.

Elastic (Young’s) Modulus

• Both Materials: Approximately 190 GPa.

The elastic modulus is nearly identical for both steels, indicating similar stiffness and elastic behavior under loading conditions. This property is crucial for predicting deformation and designing components subjected to elastic stress.

Comparative Analysis

420 stainless steel is preferable for applications requiring high hardness and wear resistance, particularly where heat dissipation is also a factor. However, it sacrifices ductility and corrosion resistance compared to other stainless steels. This makes it less suitable for environments where exposure to corrosive elements is a concern.

Corrosion Resistance

Corrosion Resistance of 420 Stainless Steel

420 stainless steel, a type of steel with a martensite structure, is primarily designed for hardness and moderate corrosion resistance. It typically contains 12-14% chromium and 0.15-0.4% carbon, forming a hard and wear-resistant material upon heat treatment.

In mild environments such as atmospheric conditions, fresh water, and some mild acids, 420 stainless steel shines. It can resist corrosion effectively when exposed to these less aggressive conditions. The best corrosion resistance is achieved in the fully hardened or hardened and tempered state, where it forms a protective passive oxide layer that enhances its resistance to corrosive elements.

A smooth, polished surface finish is crucial for maximizing corrosion resistance. Polishing minimizes the number of sites where corrosion can initiate, thereby extending the material’s lifespan in corrosive environments. However, in the annealed condition, 420 stainless steel’s corrosion resistance is significantly reduced, making it unsuitable for harsh chemical environments without proper heat treatment. Additionally, it is not recommended for highly corrosive or extreme environments due to its relatively lower chromium content and susceptibility to corrosion if not properly treated post-fabrication.

Corrosion Resistance of 17-4 Stainless Steel

17-4 stainless steel, a precipitation-hardening alloy, offers superior corrosion resistance compared to 420 stainless steel. Its composition includes 16-17.5% chromium, 3-5% nickel, and small amounts of copper and niobium, which contribute to its enhanced properties.

This alloy excels in oxidizing environments, where its higher chromium and nickel content form a more stable passive oxide layer. This layer provides increased resistance to pitting and crevice corrosion. Due to its superior corrosion resistance, 17-4 stainless steel is suitable for marine applications and chemical processing environments. It can withstand exposure to seawater and many industrial chemicals without significant degradation.

17-4 stainless steel maintains good corrosion resistance in both the precipitation-hardened (heat-treated) and annealed conditions. This versatility allows it to be used in various applications without compromising its corrosion-resistant properties. Additionally, it can resist corrosion at moderately high temperatures (up to about 600°C), making it a preferred choice for applications involving elevated temperatures.

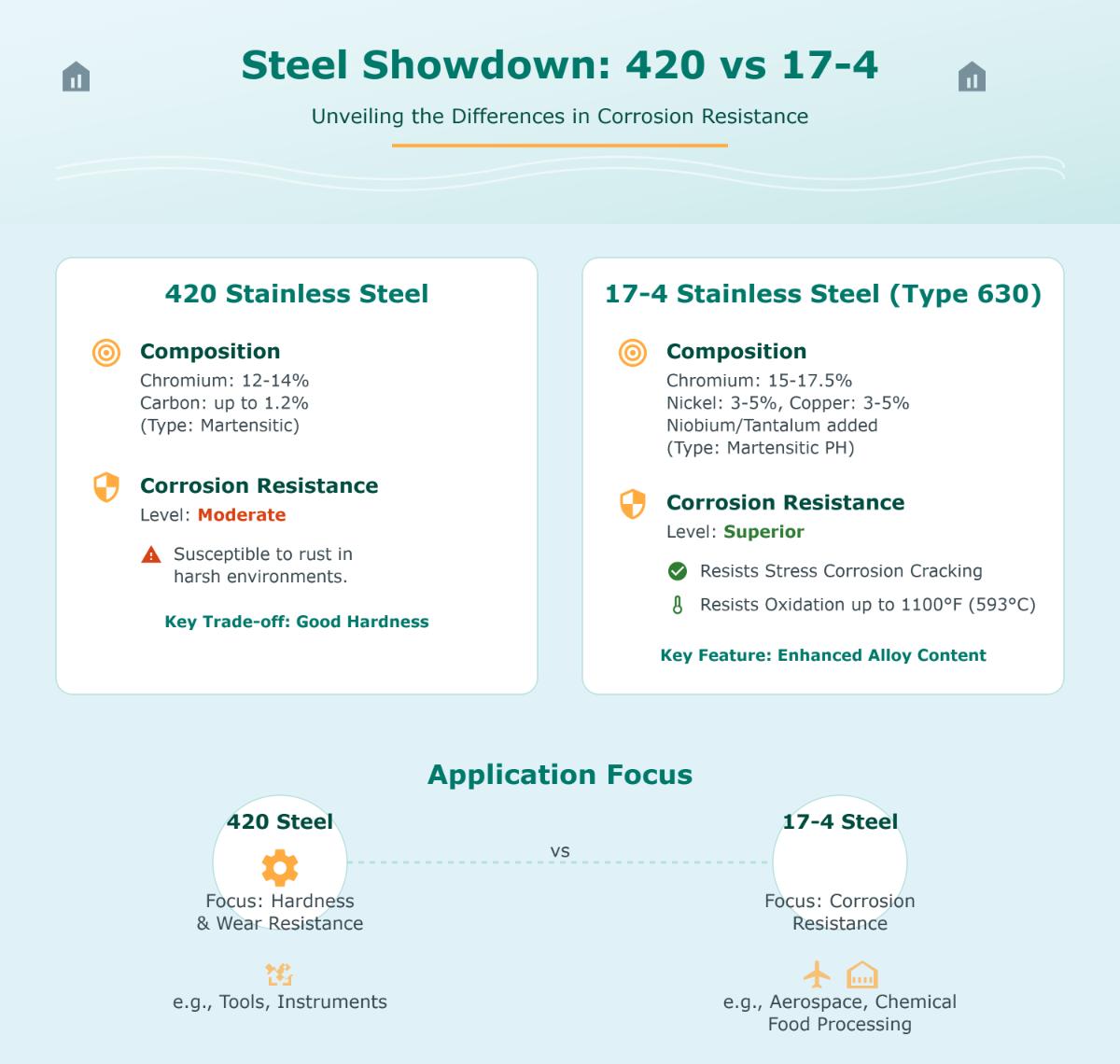

Comparative Analysis of Corrosion Resistance

When comparing the corrosion resistance of 420 and 17-4 stainless steels, several key differences emerge:

420 stainless steel contains 12-14% chromium, whereas 17-4 stainless steel contains 16-17.5%. This higher chromium content directly contributes to 17-4’s superior corrosion resistance. Additionally, the presence of nickel and copper in 17-4 stainless steel enhances its resistance to pitting and crevice corrosion, making it more suitable for aggressive environments. In contrast, 420 stainless steel relies heavily on its heat treatment and surface finish for corrosion resistance.

420 stainless steel is adequate for mild environments, but 17-4 stainless steel is more versatile, performing well in both mild and harsh conditions, including marine and chemical processing applications. Moreover, 420 stainless steel requires a fully hardened condition to achieve maximum corrosion resistance. On the other hand, 17-4 stainless steel retains good corrosion resistance across different heat treatment conditions, providing more consistent performance.

Comparative Analysis Table: Corrosion Resistance and Related Properties

Heat Treatment

Heat treatment processes significantly affect the properties of 420 and 17-4 stainless steels.

420 Stainless Steel Heat Treatment

Annealing: Annealing involves heating the steel to 1382–1650°F (750–900°C) and then cooling slowly to achieve maximum softness.

Hardening (Solution Treatment + Quenching): It is heated to 1742–1922°F (950–1050°C) and then rapidly cooled in air or oil. This transforms austenite to martensite, increasing hardness significantly.

Tempering: Tempering is performed at 300–1292°F (150–700°C) to balance hardness and toughness. To ensure optimal corrosion resistance, tempering between 797–1112°F (425–600°C) should be avoided to prevent temper embrittlement. Lower tempering temperatures lead to higher hardness, while higher temperatures improve toughness at the expense of hardness.

Stress Relieving and Hot Working: Stress relieving involves heating to 300–800°F (149–427°C) for 1–3 hours to reduce residual stresses. For hot working, preheat to 1400–1500°F (760–816°C) and heat to 2000–2200°F (1097–1204°C), followed by slow cooling.

17-4 Stainless Steel Heat Treatment

Solution Annealing: The steel is heated to approximately 1900–1950°F (1038–1066°C) and then rapidly cooled, usually by air or water quenching, to retain a martensitic structure.

Precipitation Hardening (Aging/Tempering): After solution annealing, the steel is aged at 900–1100°F (482–593°C) for 0.5 to 4 hours to precipitate copper-rich phases, increasing strength and hardness.

Stress Relieving: Stress relieving is often combined with the aging process to reduce residual stresses.

Hot Working: It can be hot worked in the annealed condition. However, after fabrication, solution annealing and aging are necessary to achieve optimal properties.

Key Differences in Heat Treatment

Microstructural and Mechanical Implications

420 Stainless Steel: Its properties rely on the martensitic transformation from high-temperature quenching. Tempering helps adjust carbide formation and martensite hardness. However, improper tempering can lead to embrittlement. Also, its corrosion resistance is moderate and can decline if tempered above 800°F (427°C).

17-4 Stainless Steel: Precipitation hardening forms fine copper-rich precipitates that strengthen the martensitic matrix. This results in higher strength, better corrosion resistance, and a more uniform microstructure with less risk of embrittlement compared to 420 stainless steel.

Practical Considerations

420 Stainless Steel: It is easier and less costly to heat treat. However, it has lower corrosion resistance and toughness. Its heat treatment is more sensitive to tempering temperature ranges, demanding careful control to prevent embrittlement.

17-4 Stainless Steel: It requires a more complex heat treatment process (solution annealing plus aging). But it offers superior mechanical properties, including strength, toughness, and corrosion resistance, making it suitable for demanding aerospace, chemical, and structural applications.

Applications

420 stainless steel is popular for its high hardness and wear resistance, making it suitable for various applications. In the cutlery industry, 420 stainless steel is ideal for knives, scissors, and shear blades due to its ability to hold a sharp edge. In the medical field, scalpels and forceps are often made from 420 stainless steel because of its good corrosion resistance and edge retention, which are crucial for surgical instruments.

In industrial settings, 420 stainless steel is used for components like needle valves, pump shafts, and fasteners, which need to withstand friction and wear. It is also used for bearings, bushings, valve components, turbine parts, and ladder rungs. Additionally, in food processing equipment, components such as graters and slicers benefit from the surface hardness and moderate corrosion resistance of 420 stainless steel.

17 – 4 stainless steel is used in demanding applications requiring high strength, toughness, and corrosion resistance. In the aerospace and defense sectors, it is used for structural components that need to withstand harsh environments and maintain mechanical properties.

In chemical and petrochemical industries, 17 – 4 stainless steel is used for valves, pumps, and fittings that must handle aggressive environments. The superior corrosion resistance of this steel makes it suitable for exposure to various chemicals. Marine applications also benefit from 17 – 4 stainless steel’s resistance to saltwater corrosion, with it being used in marine hardware.

In the medical field, surgical instruments with higher corrosion resistance requirements are often made from 17 – 4 stainless steel. Moreover, its better heat resistance compared to 420 stainless steel makes it suitable for high – temperature components.

The choice between 420 and 17 – 4 stainless steel depends on the specific requirements of the application. 420 stainless steel is well – suited for applications where high hardness and wear resistance are needed, and the exposure to corrosion is mild to moderate. It is a cost – effective option for tools and parts that are exposed to friction and abrasion in less aggressive environments.

On the other hand, 17 – 4 stainless steel is the preferred choice for applications in more demanding environments. Its combination of high strength, good corrosion resistance, and toughness allows it to perform well in aerospace, chemical, marine, and high – temperature applications. When corrosion resistance and performance at elevated temperatures are critical, 17 – 4 stainless steel outperforms 420 stainless steel.

In a cutlery manufacturing company, 420 stainless steel is used to produce kitchen knives. The high hardness of the steel allows the knives to maintain a sharp edge for a long time, which is highly valued by consumers. The moderate corrosion resistance is sufficient for normal kitchen use, and the relatively low cost of 420 stainless steel makes it an economical choice for mass – produced cutlery.

In an industrial pump manufacturing plant, 420 stainless steel is used for pump shafts. The wear resistance of the steel ensures that the shafts can withstand the continuous friction and rotation without significant degradation, contributing to the long – term reliability of the pumps.

In an aerospace company, 17 – 4 stainless steel is used for structural components in aircraft. These components need to have high strength and corrosion resistance to withstand the harsh conditions of flight, including exposure to high – altitude environments and various chemicals. The precipitation – hardening properties of 17 – 4 stainless steel allow it to meet these requirements effectively.

In a chemical processing plant, valves made from 17 – 4 stainless steel are installed in pipelines carrying corrosive chemicals. The superior corrosion resistance of the steel prevents the valves from being damaged by the chemicals, ensuring the safe and efficient operation of the plant.

Cost-Effectiveness

Material Cost

The base material cost is a primary factor influencing cost-effectiveness. 420 stainless steel generally has a lower cost compared to 17-4 stainless steel. This lower cost is beneficial for large-scale production and applications where budget constraints are significant.

Manufacturing Costs

Machinability

The high hardness of 420 stainless steel makes it challenging to machine. It requires specialized tools and techniques, potentially increasing manufacturing costs. On the other hand, 17-4 stainless steel, while also requiring careful handling, is more machinable and can be processed using conventional methods, which might reduce overall production expenses.

Welding

Welding 420 stainless steel is difficult because of its hardness, often requiring preheating and post-weld annealing to prevent cracking and maintain strength. These additional steps can increase the manufacturing cost. In contrast, 17-4 stainless steel, though requiring post-weld heat treatment to restore its properties, is generally easier to weld using standard techniques, potentially lowering welding-related costs.

Heat Treatment Costs

Heat treatment is a crucial step for both materials to achieve desired properties. 420 stainless steel requires a series of heat treatments, including hardening and tempering, which are relatively straightforward but need precise control to avoid brittleness. These processes are essential to achieve its high hardness and wear resistance.

17-4 stainless steel undergoes solution annealing followed by aging (precipitation hardening) to enhance its mechanical properties. This more complex, energy-intensive process can increase the material’s strength, hardness, and resistance to corrosion. Solution annealing involves heating the steel to a high temperature and then rapidly cooling it to dissolve the alloying elements into a solid solution.

Durability and Maintenance

Wear Resistance

420 stainless steel is highly wear-resistant, making it ideal for applications like cutlery and surgical instruments where durability and sharpness are critical. This wear resistance reduces the frequency of replacement and maintenance, contributing to long-term cost savings.

Corrosion Resistance

17-4 stainless steel offers superior corrosion resistance, particularly in harsh environments such as marine and chemical processing industries. This resistance reduces maintenance costs and extends the lifespan of components, providing better cost-effectiveness in applications where corrosion is a significant concern.

Energy and Environmental Impact

The energy required for producing and processing stainless steel can impact cost-effectiveness. 17-4 stainless steel generally has a higher embodied energy compared to 420 stainless steel. This higher energy consumption can translate into increased production costs and a larger carbon footprint, influencing sustainability considerations.

Application-Based Cost-Effectiveness

420 stainless steel is cost-effective for applications needing high hardness and moderate corrosion resistance, like cutlery, surgical tools, and industrial components. Its lower base material cost and adequate performance in these environments make it a suitable choice.

In applications demanding high strength, superior corrosion resistance, and good toughness, such as aerospace components, chemical processing equipment, and marine hardware, 17-4 stainless steel provides better cost-effectiveness. The initial higher material and processing costs are offset by the material’s enhanced performance and longevity in these demanding environments.

Sustainability

Environmental Impact of 420 Stainless Steel

The environmental impact of 420 stainless steel depends on its composition and how it is made. With a relatively lower chromium content of 12 – 14% and a carbon content ranging from 0.15 – 0.40%, its production requires less of certain alloying elements compared to 17 – 4 stainless steel.

420 stainless steel is easy to fabricate using conventional techniques, and its quenching and tempering processes are less energy-intensive than the complex treatments required for 17-4 stainless steel. However, in harsh environments, its moderate corrosion resistance leads to a shorter lifespan, which may result in more frequent replacements and increased material waste.

Environmental Impact of 17 – 4 Stainless Steel

17 – 4 stainless steel has a higher chromium content (15 – 17.5%) and additional alloying elements such as nickel, copper, and niobium. Producing these alloying elements and the complex heat treatments, like solution annealing and aging, use more energy.

On the positive side, its superior corrosion resistance allows it to have a longer service life, especially in aggressive environments like marine and chemical processing. This longer lifespan means fewer replacements, which reduces the overall maintenance costs and downtime.

Comparative Analysis of Sustainability Factors

Corrosion Resistance and Durability

420 stainless steel is moderately resistant to corrosion, making it suitable for mild environments. On the other hand, 17-4 stainless steel has better corrosion resistance, ideal for harsher conditions. The better corrosion resistance of 17 – 4 stainless steel translates into a longer material lifespan, resulting in less material waste over time and a more positive impact on sustainability.

Manufacturing and Energy Consumption

420 stainless steel generally has lower energy consumption during heat treatment due to its relatively simple quenching and tempering processes. 17 – 4 stainless steel, on the other hand, requires more energy – intensive precipitation – hardening heat treatments. This difference in energy consumption can have a significant impact on the overall production costs and environmental footprint of manufacturing processes.

Recyclability

Both 420 and 17 – 4 stainless steels are highly recyclable. They benefit from the well – established stainless steel recycling infrastructure, which significantly reduces their lifecycle carbon footprint. However, the longer lifespan of 17 – 4 stainless steel components may delay the recycling process but ultimately contributes to a more sustainable use of resources over time. This extended lifespan means that 17 – 4 stainless steel components can remain in service longer before needing to be recycled, thereby reducing the frequency of replacement and the associated environmental impact.

Cost and Sustainability Trade – Off

420 stainless steel is more affordable initially due to its lower material cost, making it suitable for applications that don’t require high corrosion resistance. 17 – 4 stainless steel has a higher upfront cost and energy footprint but offers superior mechanical and corrosion performance, leading to longer – lasting products and less frequent replacements. In the long run, this can contribute to sustainability through extended product life.

Standards Compliance

Standards Compliance of 420 Stainless Steel

420 stainless steel is standardized under several key specifications to ensure its reliable performance in various applications.

ASTM A276 / ASME SA276

ASTM A276 and ASME SA276 are standards that specify the requirements for stainless steel bars and shapes. They cover the chemical composition, mechanical properties, and testing procedures to ensure high quality. These standards specify the necessary tensile strength, yield strength, hardness, and elongation.

European Standard EN 1.4021

EN 1.4021 is the European standard equivalent for 420 stainless steel. It ensures consistency in chemical composition and mechanical properties across international markets, making it easier to use 420 stainless steel globally.

Japanese Standard JIS SUS 420J1

In Japan, 420 stainless steel is recognized under the JIS SUS 420J1 standard. This standard aligns with ASTM and EN requirements, supporting its application in Japanese industries, especially in cutlery and medical instruments.

UNS S42000

The Unified Numbering System (UNS) designates 420 stainless steel as S42000. This system helps identify and cross-reference materials across different standards, simplifying material selection and procurement processes.

Standards Compliance of 17-4 Stainless Steel

17-4 stainless steel is known for its precipitation-hardening capabilities and is standardized under various specifications to ensure high performance in demanding applications.

ASTM A564

ASTM A564 specifies the requirements for precipitation-hardening stainless steel bars and forgings. It covers the chemical composition, mechanical properties, and heat treatment procedures, ensuring the material meets criteria for strength, hardness, and corrosion resistance.

AMS 5643 / AMS 5659

The Aerospace Material Specifications (AMS) 5643 and AMS 5659 are critical for aerospace applications. They detail the requirements for 17-4 stainless steel, including composition, mechanical properties, and heat treatment processes. Compliance with AMS standards ensures 17-4 stainless steel components can withstand the rigorous demands of aerospace environments.

UNS S17400

The UNS designation for 17-4 stainless steel is S17400. This classification aids in identifying and cross-referencing the material across different standards, streamlining its application in various industries.

Comparative Analysis of Standards Compliance

Chemical Composition

420 and 17-4 stainless steels have distinct chemical compositions tailored to their specific applications. 420 stainless steel, with higher carbon content, is designed for high hardness. Conversely, 17-4 stainless steel includes chromium, nickel, and copper, essential for its precipitation-hardening process.

Mechanical Properties

Standards for both materials ensure they meet specific mechanical property requirements. 420 stainless steel standards emphasize hardness and wear resistance, making it suitable for cutlery and surgical instruments. On the other hand, 17-4 stainless steel standards focus on a balance of strength, toughness, and corrosion resistance, ideal for aerospace, chemical processing, and marine applications.

Heat Treatment

The standards for 420 stainless steel typically involve quenching and tempering to achieve desired hardness levels. In contrast, 17-4 stainless steel standards include solution annealing followed by aging, enhancing its mechanical properties and corrosion resistance.

Application Suitability

The compliance of 420 stainless steel with standards such as ASTM A276 and EN 1.4021 ensures its suitability for applications requiring high hardness. Meanwhile, the stringent requirements of ASTM A564 and AMS specifications for 17-4 stainless steel make it ideal for demanding environments where a combination of high strength, toughness, and corrosion resistance is essential.

Standards compliance ensures both 420 and 17-4 stainless steels meet the necessary criteria for their respective applications, providing reliability and performance consistency in various industrial contexts.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the differences in corrosion resistance between 420 and 17-4 stainless steel?

When comparing the corrosion resistance of 420 stainless steel and 17-4 stainless steel, it is important to understand their composition and metallurgical characteristics.

420 stainless steel, a martensitic stainless steel, contains about 12-14% chromium and up to 1.2% carbon. This composition provides good hardness and moderate corrosion resistance but makes it more susceptible to rust in harsh environments.

On the other hand, 17-4 stainless steel, also known as SAE Type 630, is a martensitic precipitation-hardening stainless steel with approximately 15-17.5% chromium, 3-5% nickel, and 3-5% copper, along with niobium or tantalum. This higher alloy content significantly enhances its corrosion resistance compared to 420 stainless steel.

17-4 stainless steel exhibits superior corrosion resistance, making it suitable for demanding environments such as aerospace, chemical processing, and food production. It resists oxidation up to 1100°F (593°C) and stress corrosion cracking, especially when overaged. In contrast, 420 stainless steel is more suitable for applications prioritizing hardness and wear resistance over corrosion resistance, such as cutting tools and surgical instruments.

How do the mechanical properties (including hardness and ductility) of 420 and 17-4 stainless steel compare?

When comparing the mechanical properties of 420 stainless steel and 17-4 stainless steel, several key differences arise.

420 stainless steel, a martensitic grade, is renowned for its high hardness and wear resistance. It achieves substantial hardness through heat treatment, making it suitable for applications like knives and surgical tools. However, its ductility is relatively lower, with elongation at break ranging from 8% to 15%.

On the other hand, 17-4 stainless steel is a precipitation-hardened grade that offers superior hardness and strength, especially after heat treatment. Its hardness generally exceeds that of 420, and it maintains better ductility, ranging from 11% to 21% elongation at break. This makes 17-4 stainless steel more versatile for complex shapes and applications requiring both strength and flexibility.

In terms of tensile strength, 420 stainless steel ranges from 690 to 1720 MPa, with the upper limit achievable through proper heat treatment. 17-4 stainless steel offers a tensile strength range from 910 to 1390 MPa, providing high strength without compromising ductility. Additionally, 17-4 has higher fatigue strength and yield strength, making it more resistant to cyclic loading and suitable for demanding applications.

Which stainless steel is better for cutlery: 420 or 17-4?

When comparing 420 stainless steel and 17-4 stainless steel for cutlery applications, 420 stainless steel is generally the better choice. This is due to its ability to achieve high hardness and excellent edge retention, which are essential for knife blades. Additionally, 420 stainless steel offers good wear resistance and is more cost-effective and easier to sharpen compared to 17-4 stainless steel.

Although 17-4 stainless steel has superior mechanical properties, including higher strength, toughness, and better corrosion resistance, it is more complex and expensive to process. These attributes make 17-4 stainless steel suitable for specialized knives and tools where mechanical durability under stress is critical. However, for typical kitchen and utility knives, the balance of performance and cost makes 420 stainless steel the preferred material.

What are the specific applications where 420 stainless steel excels?

420 stainless steel excels in applications that require a combination of high strength, good corrosion resistance, and the ability to be hardened through heat treatment. This makes it particularly suitable for:

1. Cutlery and Knife Blades: Its ability to achieve a high hardness level, typically up to 50 HRC, makes 420 stainless steel ideal for manufacturing durable and corrosion-resistant kitchen knives, carving knives, and table knives.
2. Surgical Instruments: The material’s good corrosion resistance and ability to maintain sharpness in sterile environments make it a preferred choice for scalpels, forceps, and other surgical tools.
3. Industrial Components: 420 stainless steel is used in needle valves, shear blades, scissors, and hand tools, where both hardness and mild corrosion resistance are essential.
4. Food Processing Equipment: Its ease of cleaning and resistance to rust make it suitable for cheese graters, meat slicers, and other food processing machinery.
5. Mechanical Parts: Bearings, bushings, fasteners, screens, and pump shafts benefit from the material’s strength and moderate corrosion resistance.

What are the specific applications where 17-4 stainless steel excels?

17-4 stainless steel, also known as SAE Type 630 or UNS S17400, excels in applications requiring high strength, excellent corrosion resistance, and robust mechanical properties. In the aerospace industry, it is used for critical components that must maintain structural integrity under high-stress conditions and resist corrosion across diverse environments. The food processing industry benefits from its high corrosion resistance and ease of cleaning, essential for maintaining hygiene standards. In the petroleum and chemical industries, 17-4’s resistance to corrosive chemicals makes it ideal for high-strength components such as piping and equipment in both onshore and offshore settings. Additionally, the pulp and paper industry utilizes 17-4 for equipment exposed to harsh conditions, reducing maintenance costs. General applications include the manufacture of fasteners, gears, pump shafts, and valve components, where its strength and wear resistance are highly valued.

How does heat treatment affect the properties of 420 and 17-4 stainless steel?

Heat treatment significantly affects the properties of 420 and 17-4 stainless steel. For 420 stainless steel, heating to 980–1050°C and quenching forms martensite, hardening the steel. Tempering at 150–370°C then improves toughness while retaining hardness. The final properties depend on the tempering temperature.

17-4 stainless steel undergoes a more complex process. Solution annealing at 1040–1100°C for 30 minutes to 1 hour dissolves precipitates and forms an austenitic phase, which transforms to martensite upon rapid cooling. Quenching retains the martensitic structure. Precipitation hardening at 482–621°C forms copper-rich precipitates, increasing strength and hardness. Different aging conditions can balance hardness and toughness, such as H900 for maximum hardness and H1150 for maximum toughness.

In comparison, 420 relies on martensitic transformation and tempering for hardening, while 17-4 uses martensitic transformation and copper precipitation strengthening. 17-4 offers better corrosion resistance and more flexibility in tailoring mechanical properties through heat treatment.
