440 Stainless Steel vs 440C: What’s the Difference?

When it comes to selecting the perfect stainless steel for your cutting tools, the decision often boils down to the subtle yet significant differences between 440 stainless steel and 440C. With both being popular choices in the cutlery and machining industries, understanding their distinctions is crucial for making an informed choice. In this article, we’ll dive into the specifics of 440 stainless steel grades, including 440A, 440B, 440C, and 440F, and explore their unique properties such as hardness, corrosion resistance, and edge retention. Whether you’re a knife maker or a machining enthusiast, we’ll help you determine which grade stands out for your specific needs. So, is 440C truly superior for knives, or does 440A offer its own advantages? Let’s uncover the answers together.

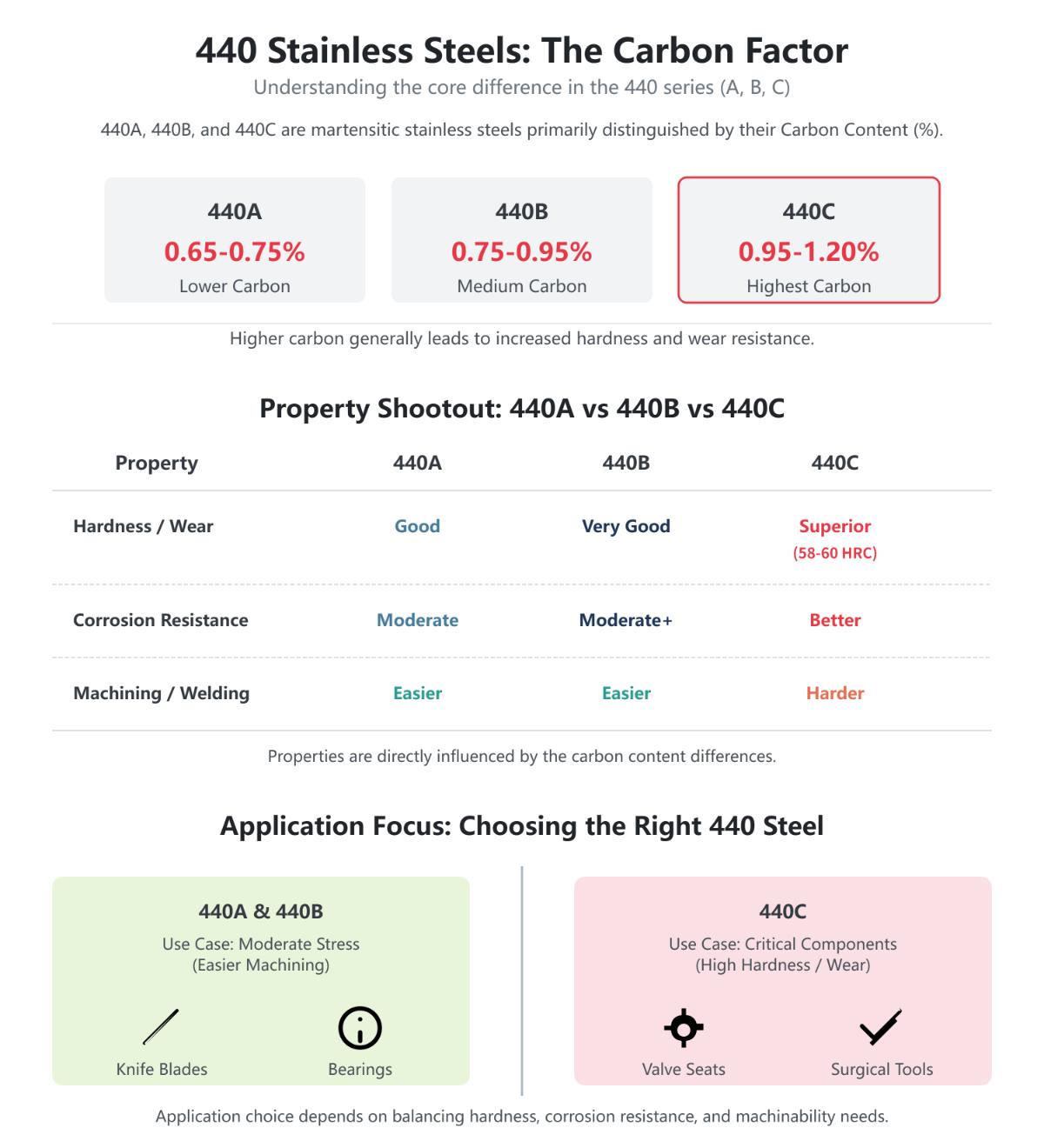

Introduction to 440 Stainless Steel Grades

The 440 series of stainless steel includes high-carbon, high-chromium martensitic alloys known for their exceptional hardness and corrosion resistance. The primary grades within this series are 440A, 440B, 440C, and 440F, each offering distinct properties suitable for various industrial applications.

Chemical Composition and Key Properties

440A Stainless Steel

• Carbon Content: 0.60-0.75%
• Chromium Content: 16-18%
• Properties: 440A offers a good balance of moderate corrosion resistance and high machinability.
• Applications: Commonly used for dental instruments, kitchen cutlery, and medical tools due to its ease of machining and reasonable hardness.

440B Stainless Steel

• Carbon Content: 0.75-0.95%
• Chromium Content: 16-18%
• Properties: Offers higher hardness than 440A, with moderate corrosion resistance, making it suitable for applications requiring a balance between these properties.
• Applications: Ideal for knife blades, industrial bearings, and valve components, where higher hardness is beneficial.

440C Stainless Steel

• Carbon Content: 0.95-1.20%
• Chromium Content: 16-18%
• Properties: 440C stands out with the highest hardness and excellent corrosion resistance in the 440 series.
• Applications: Frequently used in high-quality knife blades, ball bearings, and surgical tools, where superior hardness and wear resistance are critical.

440F Stainless Steel

• Carbon Content: Similar to 440A, 440B, and 440C
• Chromium Content: Similar to 440A, 440B, and 440C, with additional sulfur for machinability
• Properties: 440F is a free-machining variant of the 440 series, offering similar corrosion resistance and hardness but enhanced machinability due to added sulfur.
• Applications: Preferred in applications requiring extensive machining, such as high-precision components in machining tools and valve parts.

Comparative Analysis

Hardness and Wear Resistance

Among the 440 stainless steel grades, 440C stands out with the highest hardness, making it the best choice for applications demanding exceptional wear resistance. 440A and 440B provide lower hardness but are easier to machine, making them suitable for less demanding applications.

Corrosion Resistance

While all 440 grades offer moderate to high corrosion resistance, 440C’s higher carbon content enhances its resistance, making it suitable for environments where corrosion is a significant concern. 440A and 440B also offer good corrosion resistance, but their lower hardness might limit their use in high-stress conditions.

Machinability

440A and 440F are the most machinable grades due to their balanced properties and, in the case of 440F, the addition of sulfur. 440C, while providing superior hardness and wear resistance, presents more challenges during machining but can achieve precise tolerances with advanced techniques.

Applications in Various Industries

The 440 series stainless steels are widely used across industries requiring high strength and corrosion resistance. Common applications include:

• Cutlery: 440A and 440B are frequently used for kitchen knives, while 440C is favored for high-end blades.
• Medical Instruments: 440A and 440C are suitable for surgical tools due to their corrosion resistance and ability to maintain sharp edges.
• Bearings: 440C is the go-to choice for ball bearings, offering high hardness and wear resistance essential for reliable performance.

These grades provide a range of options tailored to specific industrial needs, ensuring optimal performance based on the application’s requirements.

Martensitic Stainless Steel

Definition and Characteristics

Martensitic stainless steels are a class of stainless steel known for their high strength, hardness, and moderate corrosion resistance. These steels are part of the 400 series and are characterized by their ability to form martensite, a body-centered tetragonal (BCT) crystal structure, when cooled rapidly from high temperatures.

Composition

Martensitic stainless steels typically contain:

• 12-17% chromium, which enhances corrosion resistance.
• 0.08-1.20% carbon, contributing to the hardness and strength.
• Nickel limited to below 2.5%, affecting the


  Magnetic Properties

Martensitic stainless steels are ferromagnetic because of their BCT structure, which means they are attracted to magnets. This is a significant difference from austenitic stainless steels, which are generally non-magnetic.

Heat Treatment

These steels can be uniquely hardened through heat treatments like:

• Quenching: Rapid cooling from a high temperature to form martensite.
• Tempering: Heating to a temperature range of 150-600°C to achieve a balance between hardness and toughness.

Role in 440 Stainless Steel Grades

Martensitic stainless steels are essential in 440 stainless steel grades like 440A, 440B, 440C, and 440F. These grades are distinguished by their carbon content and resulting hardness:

• 440A: Contains up to 0.75% carbon, offering a good balance of hardness and machinability.
• 440B: Slightly higher carbon content than 440A, resulting in increased hardness.
• 440C: Highest carbon content (0.95-1.20%), leading to the greatest hardness and wear resistance.
• 440F: Similar to other 440 grades but with added sulfur to enhance machinability.

Comparison with Other Types of Stainless Steel

Austenitic Stainless Steel

• Composition: Higher nickel content (8-10% or more) and chromium (18% or more).
• Properties: Non-magnetic, excellent corrosion resistance, not hardenable by heat treatment.
• Examples: 304, 316 stainless steels.

Ferritic Stainless Steel

• Composition: Lower carbon content, high chromium (10.5-27%).
• Properties: Magnetic, moderate corrosion resistance, limited hardenability.
• Examples: 430, 446 stainless steels.

Duplex Stainless Steel

• Composition: Balanced mix of austenitic and ferritic structures, high chromium (18-28%), moderate nickel (4.5-8%).
• Properties: Combination of high strength and excellent corrosion resistance.
• Examples: 2205, 2507 stainless steels.

Key Differences

• Hardening Capability: Martensitic stainless steels can be significantly hardened through heat treatment, unlike austenitic and ferritic steels.
• Magnetic Properties: Martensitic steels are magnetic, whereas austenitic steels are not.
• Corrosion Resistance: Generally, austenitic steels offer superior corrosion resistance compared to martensitic steels, which is somewhat compensated by the high hardness of martensitic grades.

Applications

Martensitic stainless steels are used in applications where high strength, hardness, and moderate corrosion resistance are required. Common applications include:

• Cutlery: Knives, scissors, and surgical instruments.
• Machining Tools: Bearings, valve parts, and high-precision components.
• Industrial Components: Shafts, gears, and fasteners.

These characteristics make martensitic stainless steels, especially the 440 series, highly valuable in industries requiring durability and wear resistance.

Properties of 440A, 440B, 440C, and 440F

Chemical Composition Comparison

The chemical composition of the 440 stainless steel grades significantly affects their properties and applications. Here’s a detailed comparison of the carbon and chromium content in 440A, 440B, 440C, and 440F:

Mechanical Properties

Hardness and Tensile Strength

The mechanical properties of the 440 stainless steel grades vary primarily due to differences in carbon content, which affects hardness and tensile strength. 440A exhibits moderate hardness and tensile strength, making it easier to machine and offering good corrosion resistance.

• 440B: Offers a balanced combination of hardness and tensile strength, higher than 440A but lower than 440C. It provides a good compromise for applications that require both hardness and machinability.
• 440C: Known for the highest hardness and tensile strength among the 440 grades, making it ideal for high-stress applications. The increased carbon content significantly enhances its hardness, making it suitable for demanding environments.
• 440F: Similar hardness to 440C but with added sulfur to improve machinability. This makes 440F excellent for high-precision machining applications while maintaining substantial hardness.

Corrosion Resistance Comparison

Corrosion resistance is a critical factor in selecting the appropriate 440 stainless steel grade for specific applications.

• 440A: Offers the best corrosion resistance among the 440 grades due to its lower carbon content, which reduces the formation of carbides that can compromise corrosion resistance.
• 440B: Provides moderate corrosion resistance, balancing between hardness and corrosion protection.
• 440C: Despite its high hardness, 440C has slightly lower corrosion resistance because of its higher carbon content. It is suitable for applications where wear resistance is more critical than corrosion resistance.
• 440F: Maintains similar corrosion resistance to 440C but is enhanced in machinability, making it suitable for components exposed to mild corrosive environments while requiring precision machining.

Edge Retention and Wear Resistance

Edge retention and wear resistance are crucial for applications like cutlery and surgical tools.

• 440A: Provides moderate edge retention and wear resistance, suitable for applications where frequent use and ease of sharpening are required.
• 440B: Improves upon 440A in terms of edge retention and wear resistance, making it more suitable for applications needing a balance between hardness and ease of maintenance.
• 440C: Excels in edge retention and wear resistance due to its high hardness, making it ideal for high-quality knife blades and components subjected to significant wear.
• 440F: Similar edge retention and wear resistance to 440C but designed for applications needing enhanced machinability, making it perfect for precision parts requiring both durability and ease of machining.

Comparison Chart

To visually summarize the differences, here’s a comparison chart of the key properties of 440A, 440B, 440C, and 440F:

Each grade within the 440 stainless steel family offers distinct advantages depending on the specific requirements of the application. Understanding these properties allows for selecting the most suitable grade for optimal performance in various industrial applications.

Comparative Analysis

The carbon content is a key difference among 440A, 440B, 440C, and 440F stainless steel grades. 440A has a carbon content ranging from 0.60 – 0.75%, 440B from 0.75 – 0.95%, 440C from 0.95 – 1.20%, and 440F typically has a high carbon content similar to 440C. This variation in carbon content significantly influences the properties of these alloys. Higher carbon content generally leads to increased hardness and wear resistance. For instance, 440C, with its high carbon content, can achieve a Rockwell hardness (RC) of 60, while 440A can only reach an RC of 56. However, higher carbon can also reduce corrosion resistance and machinability.

440C stands out as the hardest among the four grades due to its high carbon content, which allows it to form a robust martensitic structure during heat treatment. 440B offers a balanced combination of hardness and tensile strength, higher than 440A but lower than 440C. 440A has moderate hardness and tensile strength, making it easier to machine. 440F has similar hardness to 440C but is designed with added sulfur to improve machinability while maintaining substantial hardness.

Corrosion resistance varies among the grades. 440A offers the best corrosion resistance among them due to its lower carbon content. Lower carbon reduces the formation of carbides, which can act as sites for corrosion initiation. 440B provides moderate corrosion resistance, striking a balance between hardness and corrosion protection. 440C, despite its high hardness, has slightly lower corrosion resistance because of its higher carbon content. It is more suitable for applications where wear resistance is more critical than corrosion resistance. 440F maintains similar corrosion resistance to 440C but is enhanced in machinability, making it appropriate for components exposed to mild corrosive environments that also require precision machining.

Machinability is another crucial factor in comparing these grades. 440A is highly machinable, thanks to its balanced properties. The lower carbon content makes it less brittle and easier to cut, shape, and form during manufacturing processes. 440F is the most machinable because the added sulfur acts as a lubricant during machining, reducing tool wear and improving surface finish. On the other hand, 440C presents challenges during machining due to its high hardness. Specialized tools and techniques are often required to machine 440C to achieve precise tolerances. 440B has moderate machinability, falling between 440A and 440C.

Edge retention and wear resistance are vital for applications such as cutlery and surgical tools. 440C excels in these aspects due to its high hardness. It can maintain a sharp edge for a long time, even under heavy use. 440B improves upon 440A in terms of edge retention and wear resistance, making it more suitable for applications that need a balance between hardness and ease of maintenance. 440A provides moderate edge retention and wear resistance, which is sufficient for applications where frequent use and ease of sharpening are required. 440F has similar edge retention and wear resistance to 440C but is more suitable for precision parts that demand both durability and ease of machining.

Cost is an important consideration for many applications. Generally, 440A is the most cost-effective option due to its relatively lower carbon content and better machinability. Less energy and fewer resources are required during its production and machining processes. 440B is moderately priced, offering a good balance of properties at a reasonable cost. 440C, with its superior hardness and wear resistance, is usually more expensive. The high-carbon content and the challenges associated with machining it contribute to the higher cost. 440F, although it has good machinability, may also be relatively expensive due to the addition of sulfur and the specialized production processes required to ensure its properties.

Applications in Cutlery and Machining

Use of 440A, 440B, 440C, and 440F in Knife Making

440A, with its lower carbon content, is popular for mass-produced kitchen knives due to its high machinability, which allows for cost-effective manufacturing processes like stamping from sheet metal. It offers good corrosion resistance and moderate edge retention, making it suitable for everyday kitchen tasks like slicing and chopping. However, its lower hardness means it may need more frequent sharpening compared to other grades.

440B, with a slightly higher carbon content than 440A, offers a good balance between hardness and ease of manufacturing. It is used not only in mass-produced knives but also in some custom knives. It provides better edge retention than 440A, making it suitable for tasks that require more durability, like cutting through tougher materials.

440C is the go-to for high-end and custom cutlery. Its high carbon content results in the highest hardness among the 440 series, offering excellent edge retention. It is commonly used in high-end chefs’ knives, hunting knives, and collectors’ items. It can maintain a sharp edge even under heavy use, but it is more expensive and difficult to machine, which is reflected in the final price of the knives.

440F, while having similar hardness to 440C, is more focused on machinability due to the added sulfur. In knife making, it can be used for precision-crafted knives where the manufacturing process requires intricate cuts and shapes. It is suitable for high-precision components of knives, such as the blade tang or fine details on the handle.

Suitability for Different Machining Tools

When it comes to machining tools, the 440 grades also have distinct advantages.

440A excels in general machining applications. Its moderate hardness and high machinability make it easy to work with in processes like turning, milling, and drilling. It is often used in the production of simple machining tools, such as basic drill bits and small-scale cutting tools.

440B can be used in a wider range of machining applications. Its increased hardness compared to 440A allows it to handle more demanding tasks. It is commonly found in cutting tools for machinery components, where a balance between hardness and toughness is required.

440C is ideal for high-precision cutting tools, nozzles, and bearings. Its high hardness enables it to withstand high-stress environments and maintain its shape and sharpness during extended use. However, machining 440C requires specialized tools and techniques due to its hardness.

440F, with its enhanced machinability, is primarily used in automated machining processes. It is the top choice for applications where ease of cutting is crucial, such as in the production of high-precision components for machining tools. The added sulfur reduces tool wear and improves the surface finish, making it highly efficient in large-scale manufacturing.

Case Studies and Real-World Applications

In the cutlery industry, a well-known kitchenware brand uses 440A for its entry-level knife sets. These knives are affordable and accessible to the general public, meeting the basic needs of home cooking. On the other hand, a high-end custom knife maker prefers 440C for their limited-edition hunting knives. The superior edge retention and durability of 440C ensure that the knives can withstand the rigors of outdoor use.

In the machining industry, a small-scale shop utilizes 440B to manufacture custom cutting tools for local industries. The balance of properties in 440B allows them to produce tools that are both durable and cost-effective. In contrast, a large-scale automated machining plant relies on 440F to produce high-precision components for aerospace applications. The ease of machining and the ability to maintain tight tolerances make 440F the perfect choice for such demanding projects.

Hardness and Corrosion Resistance Comparison

Hardness Comparison

The hardness of 440 stainless steel grades varies widely based on their carbon content. Hardness is measured using the Rockwell Hardness Scale (RC), which indicates the material’s resistance to deformation.

440A Stainless Steel

440A stainless steel contains 0.60 – 0.75% carbon, resulting in a maximum hardness of approximately RC 56. This moderate hardness makes 440A easier to machine and shape, ideal for applications needing good corrosion resistance without the need for extreme hardness.

440B Stainless Steel

440B stainless steel has a higher carbon content, ranging from 0.75 – 0.95%. This allows it to achieve a hardness of about RC 58, making it harder than 440A. 440B offers a balance of moderate corrosion resistance and hardness, making it a well – rounded choice for applications requiring both durability and machinability.

440C Stainless Steel

440C stainless steel contains the highest carbon content among the 440 grades, from 0.95 – 1.20%. This results in a maximum hardness of around RC 60, making it the hardest grade in the 440 series. 440C is ideal for applications requiring high wear resistance and durability, such as ball bearings and high – end knife blades.

440F Stainless Steel

440F stainless steel shares similar carbon content with 440C but includes added sulfur to enhance machinability. The hardness of 440F is comparable to 440C, making it suitable for precision machining while maintaining substantial wear resistance.

Corrosion Resistance Comparison

Corrosion resistance is a critical factor in selecting the appropriate stainless steel grade for specific applications. The carbon content and resulting carbide formation influence the corrosion resistance of each grade.

440A Stainless Steel

440A offers the best corrosion resistance among the 440 grades due to its lower carbon content. The reduced formation of carbides minimizes sites for corrosion initiation, making 440A suitable for applications where exposure to corrosive environments is a concern.

440B Stainless Steel

440B provides a balance between hardness and corrosion protection. While it does not match the corrosion resistance of 440A, it is still suitable for environments where moderate corrosion resistance is acceptable.

440C Stainless Steel

Despite its high hardness, 440C has slightly lower corrosion resistance because of its higher carbon content. The increased carbide formation can act as sites for corrosion initiation, making 440C less suitable for highly corrosive environments. However, it remains adequate for applications where wear resistance is more critical than corrosion resistance.

440F Stainless Steel

440F maintains similar corrosion resistance to 440C but is enhanced in machinability. The added sulfur does not significantly impact corrosion resistance, making 440F appropriate for components exposed to mild corrosive environments while requiring precision machining.

Key Comparisons

Application Considerations

Knowing the hardness and corrosion resistance of each 440 stainless steel grade is essential for choosing the right material for specific uses. For example, 440A’s excellent corrosion resistance and moderate hardness make it suitable for medical instruments and kitchen cutlery. In contrast, 440C’s superior hardness and wear resistance make it ideal for high – performance knife blades and ball bearings, despite its lower corrosion resistance.

For applications that need extensive machining, 440F’s improved machinability and considerable hardness make it the best choice for precision parts. Meanwhile, 440B offers a balanced approach for general hardware and industrial bearings, providing a middle ground between hardness and corrosion resistance.

Heat Treatment of 440 Stainless Steel Grades

Heat Treatment of 440 Stainless Steel Grades

Heat treatment is essential for improving the properties of 440 stainless steel grades such as 440A, 440B, 440C, and 440F. Each grade requires specific heat treatment procedures to attain the desired hardness, corrosion resistance, and mechanical properties. The heat treatment of 440 stainless steel typically includes three stages: austenitizing, quenching, and tempering. Each stage is vital for achieving the desired final properties of the material.

Overview of Heat Treatment Process

1. Austenitizing: This stage involves heating the steel to a high temperature to transform its microstructure to austenite, followed by rapid cooling to convert the austenite to martensite, a hard and brittle structure.
2. Quenching: Rapid cooling follows austenitizing to convert the austenite to martensite.
3. Tempering: The final stage involves reheating the steel to a lower temperature to achieve a balance between hardness and toughness.

Detailed Heat Treatment for 440A, 440B, 440C, and 440F

440A Stainless Steel

• Austenitizing: Heat to 1010°C – 1065°C (1850°F – 1950°F) and hold at this temperature for 30 minutes.
• Quenching: Rapidly quench in oil or air to room temperature.
• Tempering: Temper at 150°C – 370°C (300°F – 700°F) for 1-2 hours to achieve a hardness of approximately 56 HRC. Lower tempering temperatures enhance corrosion resistance.

440B Stainless Steel

• Austenitizing: Heat to 1010°C – 1065°C (1850°F – 1950°F) and hold for 30 minutes.
• Quenching: Quench in oil or air to room temperature.
• Tempering: Temper at 150°C – 370°C (300°F – 700°F) for 1-2 hours. This process results in a hardness of around 58 HRC. Lower tempering temperatures can improve corrosion resistance.

440C Stainless Steel

• Austenitizing: Heat to 1010°C – 1065°C (1850°F – 1950°F) and maintain this temperature for 30 minutes.
• Quenching: Quench in oil, air, or using plates to cool rapidly. This step is critical as it converts the austenite to martensite.
• Tempering: Temper at 150°C – 370°C (300°F – 700°F) for 1-2 hours. Typical tempering at 190°C (375°F) for 2 hours can achieve a hardness of 59-60 HRC. Higher tempering temperatures can increase toughness but may reduce hardness and corrosion resistance.

440F Stainless Steel

• Austenitizing: Similar to 440C, heat to 1010°C – 1065°C (1850°F – 1950°F) and hold for 30 minutes.
• Quenching: Quench in oil or air to room temperature.
• Tempering: Temper at 150°C – 370°C (300°F – 700°F) for 1-2 hours. The presence of sulfur enhances machinability, making it easier to achieve desired shapes and sizes post-heat treatment without significantly altering hardness.

Effects of Heat Treatment on Properties

Hardness

• 440A: Achieves a moderate hardness of approximately 56 HRC, suitable for applications requiring ease of machining and good corrosion resistance.
• 440B: Hardness of around 58 HRC, balancing between 440A and 440C, making it suitable for parts needing higher hardness and moderate machinability.
• 440C: Achieves the highest hardness up to 60 HRC, ideal for high-wear applications like knife blades and ball bearings.
• 440F: Similar hardness to 440C but optimized for machinability.

Corrosion Resistance

• 440A: Best corrosion resistance due to lower carbon content and minimal carbide formation.
• 440B: Moderate corrosion resistance, suitable for environments with less stringent corrosion requirements.
• 440C: Good corrosion resistance but slightly lower than 440A and 440B due to higher carbon content.
• 440F: Maintains good corrosion resistance similar to 440C, with enhanced machinability.

Best Practices for Achieving Desired Properties

• Uniform Heating: Ensure uniform heating during austenitizing to avoid uneven microstructures.
• Controlled Quenching: Use controlled quenching methods to prevent warping and achieve desired martensitic transformation.
• Precision Tempering: Select appropriate tempering temperatures to balance hardness, toughness, and corrosion resistance based on application requirements.

By adhering to these heat treatment processes and best practices, each 440 stainless steel grade can be optimized for specific industrial applications, ensuring superior performance and durability.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the key differences between 440 stainless steel and 440C?

440 stainless steel is a group of martensitic stainless steels including 440A, 440B, 440C, and 440F. The key difference lies in chemical composition: 440C has the highest carbon content (0.95 – 1.20%) among the 440 series, while 440A has 0.65 – 0.75% and 440B has 0.75 – 0.95%. This gives 440C superior hardness and wear – resistance, often reaching 58 – 60 on the Rockwell Hardness Scale. In terms of corrosion resistance, 440C is better than 440A and 440B. 440A and 440B are used for moderate – stress applications like knife blades and industrial bearings, while 440C is for critical components such as valve seats and surgical instruments. 440A and 440B are easier to machine and weld than 440C.

Which is better for making knives, 440A or 440C?

When deciding between 440A and 440C for making knives, it’s essential to consider their distinct properties and how they align with your needs.

440C is generally preferred for knife making due to its higher carbon content (0.95-1.2% compared to 0.6-0.75% in 440A), which results in greater hardness and superior edge retention. This makes 440C knives ideal for tasks requiring a long-lasting sharp edge. However, the increased hardness of 440C also means it is more prone to chipping and can be more challenging to sharpen, which may not be suitable for all users.

On the other hand, 440A offers better toughness and is easier to sharpen due to its lower carbon content. It is also more cost-effective and simpler to machine, making it a good choice for budget-friendly production. Additionally, 440A provides good corrosion resistance, which is beneficial in environments where the knife might be exposed to moisture or corrosive elements.

What are the specific applications of 440 stainless steel grades?

440 stainless steel grades are utilized in various applications due to their distinct properties, primarily influenced by their carbon content and processing methods.

440A is commonly used in kitchen utensils and surgical blades because of its moderate corrosion resistance and ease of machining. It is also favored for applications that require frequent sterilization, such as certain medical instruments, due to its better corrosion resistance.

440B, with slightly higher carbon content than 440A, finds use in knife blades, bearings, and valves, offering a balance between hardness and machinability.

440C stands out with the highest carbon content, providing superior hardness and wear resistance. This makes it ideal for high-quality knives, ball bearings, and valves, as well as precision tools, mold inserts, and industrial machinery components. It is also employed in aerospace and automotive industries for parts like springs, fasteners, gears, and bushings.

440F, similar to 440C but with improved machinability due to added sulfur, is primarily used in machining applications where high hardness and ease of machining are crucial.

How does heat treatment affect the properties of 440C stainless steel?

Heat treatment significantly impacts the properties of 440C stainless steel, enhancing its hardness, wear resistance, and corrosion resistance. The process typically involves heating the steel to a high temperature, followed by rapid cooling (quenching) and then tempering.

1. Annealing: Heating to 1650°F (900°C) followed by slow cooling reduces internal stresses and softens the material, making it easier to machine or form before hardening.
2. Hardening: Austenitizing at temperatures between 1850°F and 1950°F (1010°C to 1066°C) and subsequent quenching forms martensite, a hard microstructure, increasing hardness and wear resistance.
3. Tempering: This step adjusts the hardness and relieves internal stresses, typically performed between 300°F and 800°F (149°C to 427°C) to maintain a balance of hardness and toughness.
4. Cryogenic Treatment: Cooling to sub-zero temperatures further enhances hardness by converting retained austenite to martensite, improving wear resistance without significantly affecting other properties.

Are there any standards compliance for 440 stainless steel grades?

Yes, 440 stainless steel grades, including 440A, 440B, 440C, and 440F, comply with several international standards, ensuring their reliability and performance across various applications. These standards include:

• ASTM Standards: The grades meet or exceed ASTM standards such as ASTM A276, which specifies requirements for stainless steel bars, and ASTM F899, which covers specifications for stainless steel implants.
• Aerospace and Military Standards: Compliance with standards like AMS 5618 and AMS 5630 is crucial for aerospace and defense applications.
• Federal Standards: Federal standards such as QQ-S-763 ensure suitability for government contracts and projects.
• Industrial Approvals: They also have approvals from major manufacturers like Barden, NHBB, and Woodward, which underscores their reliability in heavy equipment and industrial applications.

These standards ensure that 440 stainless steel grades maintain high quality, meet specific performance requirements, and are suitable for various demanding applications.

What is the significance of 440F in machining applications?

440F stainless steel is highly significant in machining applications due to its excellent machinability. It can be easily cut, drilled, and shaped, making it suitable for high – volume production and complex parts. Unlike 440C, which prioritizes hardness and wear resistance, 440F, especially the 440F Se variant with added selenium, is optimized for ease of machining and better surface finish. It has a tensile strength of about 103 ksi in annealed form. Commonly used in medical instruments, valves, fasteners, and automotive components, 440F offers the right balance of durability and machinability for precision parts.
