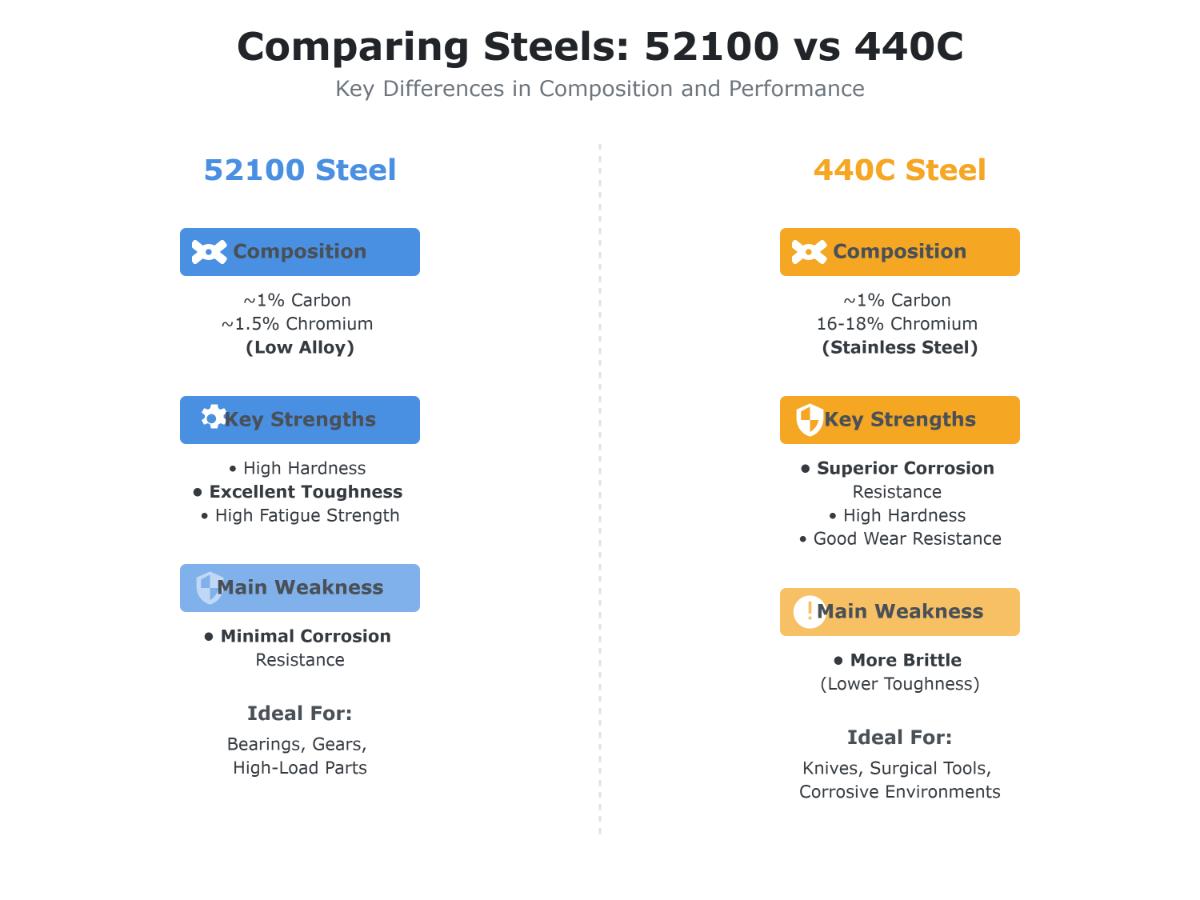

52100 Steel vs 440C: Comprehensive Comparison for Intermediate Users

When it comes to choosing the right steel for your project, the decision between 52100 and 440C can be daunting. Both steels have their unique strengths and characteristics, but how do they stack up against each other? Whether you’re crafting precision bearings or high-quality knives, understanding the subtle differences in their chemical composition, corrosion resistance, and mechanical properties is crucial. In this comprehensive comparison, we will delve into the chromium content’s impact on performance, analyze test results for corrosion resistance, and compare their wear resistance and fatigue life. By the end, you’ll have a clear understanding of which steel is best suited for your specific needs. So, which one will come out on top for your application—52100 or 440C? Let’s find out.

Chemical Composition and Effect of Chromium Content

Chemical Composition of 52100 Steel

52100 steel is a high-carbon, chromium-containing alloy known for its excellent hardness and wear resistance. The core chemical composition of 52100 steel includes:

• Carbon (C): 0.98–1.10% – Contributes to the steel’s hardness and wear resistance.
• Chromium (Cr): 1.30–1.60% – Enhances hardenability and provides moderate corrosion resistance.
• Manganese (Mn): 0.25–0.45% – Improves hardenability and strength.
• Silicon (Si): 0.15–0.35% – Adds to the strength and elasticity.
• Trace Elements: Includes minimal amounts of impurities such as phosphorus and sulfur.

Chemical Composition of 440C Steel

440C steel is a high-carbon, martensitic stainless steel renowned for its high hardness and excellent corrosion resistance. The chemical composition of 440C steel includes:

• Carbon (C): 0.95–1.20% – Balances hardness with toughness.
• Chromium (Cr): 16–18% – Crucial for stainless properties and superior corrosion resistance.
• Manganese (Mn): ≤1.0% – Enhances hardenability.
• Silicon (Si): ≤1.0% – Contributes to strength and elasticity.
• Molybdenum (Mo): ≤0.75% – Increases hardness and corrosion resistance.

Chromium Content and Its Effects

Corrosion Resistance

Chromium significantly impacts the corrosion resistance of steel.

• 52100 Steel: With chromium content ranging between 1.30–1.60%, 52100 steel offers limited corrosion resistance. This level of chromium is sufficient to enhance hardenability but insufficient to provide significant corrosion protection. In humid or chemically aggressive environments, 52100 steel often requires protective coatings to prevent rust and degradation.
• 440C Steel: Boasting a chromium content of 16–18%, 440C steel forms a passive oxide layer on its surface, which significantly enhances its corrosion resistance. This layer protects the steel from oxidizing agents, making 440C steel highly suitable for environments where corrosion resistance is critical, such as marine and medical applications.

Hardenability and Heat Treatment

Chromium affects how deeply steel can harden during heat treatment.

• 52100 Steel: The chromium content in 52100 steel allows it to achieve high hardness levels, typically between HRC 60–64, after precise heat treatment. The lower chromium content limits the depth of hardening, but the steel can still attain excellent hardness and wear resistance for applications like bearings and precision tools.
• 440C Steel: The high chromium content in 440C steel facilitates deeper hardening during heat treatment, achieving hardness levels around HRC 58–60. This makes 440C steel particularly suitable for applications requiring both hardness and corrosion resistance, such as knives and surgical instruments.

Microstructure and Mechanical Properties

Chromium impacts the microstructure stability and mechanical properties of steel.

• 52100 Steel: The small chromium carbides in 52100 steel enhance its strength under repeated stress and its ability to bear heavy loads. This makes it ideal for high-stress applications like bearings, where the steel undergoes cyclic loading.
• 440C Steel: The chromium-rich carbides in 440C steel enhance its wear resistance but may reduce toughness at extreme hardness levels. This trade-off is acceptable in applications where both wear resistance and corrosion resistance are required, such as in cutting tools and marine components.

Comparative Analysis

Trade-offs and Selection Criteria

• 52100 Steel: Opt for 52100 steel in cost-sensitive, high-wear applications where corrosion can be managed through coatings or controlled environments. It is particularly suitable for industrial bearings and precision tools.
• 440C Steel: Choose 440C steel for environments prone to corrosion, like coastal areas or medical applications. Despite its higher cost, the superior corrosion resistance and balanced mechanical properties make it ideal for knives, surgical instruments, and marine components.

Corrosion Resistance Analysis and Test Results

Material Composition and Corrosion Resistance

The corrosion resistance of steel largely depends on its chemical composition, especially the amount of chromium present.

52100 Steel

52100 steel is a high-carbon, chromium-containing alloy with approximately 1.5% chromium. This composition provides moderate corrosion resistance but is not sufficient to form a protective passive oxide layer, making it prone to rust and degradation in humid or chemically aggressive environments.

440C Steel

In comparison, 440C stainless steel has 16-18% chromium, which forms a protective chromium oxide layer that greatly improves corrosion resistance. This passive layer significantly enhances corrosion resistance, protecting the steel from oxidizing agents and making it suitable for applications in marine and medical environments.

Corrosion Resistance Performance

Laboratory and Field Test Results

A study comparing AISI 52100 and AISI 440C ball bearings in a corrosive environment showed significant differences in their corrosion resistance:

• 52100 Steel: Exhibited lower corrosion resistance, with primary failures due to corrosion-related rolling contact fatigue. The limited chromium content resulted in insufficient protection against moist carbon dioxide and sodium chloride contamination.
• 440C Steel: Demonstrated over twice the corrosion resistance compared to 52100 steel. The higher chromium content allowed for the formation of a robust passive layer, resulting in improved fatigue life and performance in unlubricated conditions.

Key Insights

• The high chromium content in 440C steel forms a robust passive layer, reducing oxidation and pitting corrosion, which maintains surface integrity and extends component life in humid or saline environments.
• Due to its lower chromium content, 52100 steel is more susceptible to corrosion, especially in moist or chloride-rich environments, leading to early failure via pitting and fatigue cracking.
• 440C steel exhibits approximately twice the corrosion resistance of 52100 steel under harsh industrial conditions.

Mechanisms Underlying Corrosion Differences

Chromium Content

The key factor in corrosion resistance is chromium concentration:

• 52100 Steel: Contains ~1.5% chromium, insufficient for forming a protective passive oxide layer.
• 440C Steel: Contains 16-18% chromium, forming a stable, self-healing passive film that significantly enhances corrosion resistance.

Environmental Sensitivity

• 52100 Steel: Vulnerable to chloride ion attack, causing pitting and stress corrosion cracking.
• 440C Steel: More resistant to chloride-induced corrosion but still requires maintenance in highly aggressive environments.

Practical Implications for Users

When to Prefer 440C

440C stainless steel is superior in applications where corrosion resistance is critical, such as marine, humid, or chemically aggressive environments. Its stainless properties and longer fatigue life under corrosive stress make it the preferred choice.

When to Prefer 52100

52100 steel is suitable for dry, controlled environments where maximum hardness, wear resistance, and toughness are prioritized over corrosion resistance. Its excellent mechanical properties and lower cost make it a viable option for such conditions.

Maintenance and Lubrication

Both steels benefit from lubrication:

• 440C Steel: Can better withstand periods of inadequate lubrication without rapid corrosion deterioration.
• 52100 Steel: Requires consistent maintenance to prevent corrosion-related failures.

Corrosion Resistance Comparison

Mechanical Properties Comparison

Hardness

Hardness is crucial for the wear resistance and durability of steel.

• 52100 Steel: 52100 steel, with its substantial carbon content forming many carbides, typically achieves hardness levels of HRC 60-64 after heat treatment. This high hardness is due to its significant amount of carbides.
• 440C Steel: While also hard, 440C stainless steel typically reaches hardness levels of HRC 58-60. Although slightly lower than 52100, its hardness is complemented by superior corrosion resistance, thanks to its high chromium content.

Tensile Strength

Tensile strength measures the steel’s ability to withstand tension without breaking.

• 52100 Steel: Exhibits a wide range of ultimate tensile strength (UTS) from 590 to 2010 MPa, depending on the specific heat treatment and processing conditions. This high UTS makes it suitable for high-stress applications.
• 440C Steel: Generally demonstrates UTS values ranging from 710 to 1970 MPa. While slightly lower on average than 52100, 440C offers a robust combination of tensile strength and corrosion resistance, making it ideal for harsh environments.

Fatigue Strength

Fatigue strength is essential for materials subjected to repeated stress cycles.

• 52100 Steel: Shows fatigue strength values between 250 and 340 MPa. Its ability to endure cyclic loading makes it a preferred choice for bearing applications where repeated stress is a factor.
• 440C Steel: Superior in fatigue resistance, with values ranging from 260 to 840 MPa. Its higher fatigue strength, particularly in corrosive environments, makes 440C ideal for applications needing both fatigue and corrosion resistance.

Ductility

Ductility refers to the material’s ability to deform without breaking.

• 52100 Steel: Exhibits higher ductility, with elongation at break ranging from 10 to 20%. This property allows 52100 steel to absorb more energy before fracturing, beneficial for applications requiring some degree of flexibility.
• 440C Steel: Offers lower ductility, with elongation at break between 2.0 to 14%. Although less ductile, 440C steel’s enhanced hardness and corrosion resistance often compensate for its lower flexibility.

Shear Strength

Shear strength is the capacity of a material to resist shear forces.

• 52100 Steel: Demonstrates shear strength values from 370 to 420 MPa. This moderate shear strength is adequate for many industrial applications.
• 440C Steel: Exhibits significantly higher shear strength, ranging from 430 to 1120 MPa. 440C’s superior shear strength makes it ideal for high-stress environments involving shear forces.

Young’s Modulus

Young’s modulus is a measure of the stiffness of a material.

• 52100 Steel: Typically has a Young’s modulus of around 190 GPa, indicating a moderately stiff material.
• 440C Steel: Slightly stiffer, with a Young’s modulus of approximately 200 GPa. This additional stiffness can be advantageous in applications requiring minimal deformation under load.

Wear Resistance and Fatigue Life Comparison

Wear Resistance

Wear resistance is a crucial property for materials used in applications involving high loads and frequent contact. The ability of steel to resist wear depends significantly on its hardness and microstructure.

52100 Steel

52100 steel is a high-carbon chromium alloy known for its exceptional hardness. After proper heat treatment, it typically achieves hardness levels ranging from 60 to 67 HRC. This high hardness comes from the formation of chromium carbides in the steel, which boost its wear resistance. Consequently, 52100 steel is ideal for applications such as precision bearings and gears, where high load and frequent contact are common.

440C Stainless Steel

440C stainless steel also offers good wear resistance, though its hardness levels are generally lower than those of 52100 steel, typically achieving 58-60 HRC after heat treatment. While chromium carbides enhance 440C’s wear resistance to a lesser extent than 52100 steel, its superior corrosion resistance makes it ideal for moist or corrosive environments like marine or food processing applications.

Fatigue Life

Fatigue life refers to the ability of a material to withstand repeated stress cycles without failing. This property is critical in applications where components are subjected to continuous cyclic loading.

52100 Steel

52100 steel exhibits high fatigue strength, making it suitable for applications involving repeated stress cycles, such as bearings and gears. Its fine chromium carbide microstructure ensures durability under repeated stress cycles. This contributes to a longer lifespan in demanding environments where mechanical stress is a constant factor.

440C Stainless Steel

While 440C stainless steel does not match the fatigue strength of 52100 steel, it performs exceptionally well in corrosive environments. Tests show 440C stainless steel has a better fatigue life in corrosive conditions, mainly because it resists corrosion-induced damage. This makes 440C a preferable choice for applications where both fatigue resistance and corrosion resistance are essential, such as in marine and medical environments.

Key Differences and Applications

52100 Steel

52100 steel’s high carbon content gives it excellent hardness and wear resistance, though it is more prone to corrosion. Its high fatigue strength makes it ideal for high-load, high-speed applications in automotive, aerospace, and industrial machinery.

440C Stainless Steel

440C stainless steel, with its higher chromium content, provides superior corrosion resistance, making it suitable for applications in marine, food processing, and medical environments. Although it has slightly reduced wear resistance and fatigue life compared to 52100 steel, its ability to withstand corrosive agents ensures its longevity in challenging conditions.

Practical Implications

When selecting between 52100 and 440C steels, consider the specific demands of the application environment. For high wear resistance and fatigue strength in non-corrosive settings, 52100 steel is the preferred choice. Conversely, for applications requiring superior corrosion resistance, 440C stainless steel is more suitable, despite its slightly lower wear resistance and fatigue life. The decision ultimately depends on balancing wear resistance, fatigue strength, and corrosion resistance based on the operational requirements.

Typical Applications and Suitability

Bearing Manufacturing

52100 Steel

52100 steel is widely used in bearing manufacturing for its high hardness, wear resistance, and fatigue strength. These properties are crucial for bearings, which operate under high stress and continuous cyclic loading. The steel’s ability to endure repeated stresses without significant deformation makes it ideal for high-load, high-speed applications in automotive, aerospace, and industrial machinery. However, its limited corrosion resistance requires protective coatings or lubrication in environments prone to moisture or chemical exposure.

440C Steel

440C stainless steel, while slightly less hard than 52100, offers significant advantages in corrosion resistance. This makes 440C a preferred material for bearings used in corrosive environments, such as marine applications or food processing industries. The higher chromium content in 440C forms a passive oxide layer that protects against rust and corrosion, ensuring longer service life and reduced maintenance needs in harsh conditions.

Knife Making

52100 Steel

52100 steel is favored by knife makers for its exceptional hardness and edge retention. Its high carbon and chromium content help it hold a sharp edge, making it suitable for various cutting tools, including lathe cutters and milling tools. Its toughness allows it to withstand heavy use without chipping or breaking, which is essential for knives subjected to rigorous tasks. However, its susceptibility to corrosion necessitates regular maintenance and care to prevent rust.

440C Steel

440C steel is renowned in the knife-making industry for its excellent balance of hardness, edge retention, and corrosion resistance. This makes it ideal for high-end knives, surgical instruments, and other cutting tools that require both sharpness and durability in humid or corrosive environments. The stainless properties of 440C ensure that knives remain rust-free with minimal maintenance, which is a significant advantage for users who need reliable performance with less upkeep.

Industrial Machinery Applications

52100 Steel

In industrial machinery, 52100 steel is commonly used for manufacturing gears, shafts, and other components that require high wear resistance and strength. Its ability to maintain dimensional stability under high loads and stresses makes it suitable for critical applications where precision and durability are paramount. The steel’s toughness and fatigue strength ensure long-term performance in demanding mechanical environments, provided that corrosion protection measures are in place.

440C Steel

440C steel is also used in industrial machinery, particularly in applications where corrosion resistance is a priority. Components like valves and pump parts exposed to moisture or chemicals benefit from 440C’s stainless properties. Its ability to resist corrosion while maintaining adequate hardness and wear resistance makes it a versatile choice for components that must endure both mechanical and environmental stresses.

Selection Criteria

• Choose 52100 for:
• Dry, high-stress environments needing maximum hardness and wear resistance.
• Cost optimization, as 52100 is generally more affordable than 440C.
• Applications involving high-load, high-speed conditions with controlled environments.
• Choose 440C for:
• Corrosion resistance as a primary concern, such as in marine, food processing, or medical environments.
• Maintenance-free operation and long-term durability in corrosive conditions.
• Applications requiring a balanced combination of hardness, wear resistance, and corrosion protection.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the difference between 52100 steel and 440C steel?

The primary difference between 52100 steel and 440C steel lies in their chemical composition and resulting properties.

52100 steel is a high-carbon chromium steel with approximately 1% carbon and 1.5% chromium. It is known for its excellent mechanical properties such as high hardness, toughness, and fatigue strength, making it ideal for high-load and high-speed applications like bearings and gears. However, its lower chromium content means it offers minimal corrosion resistance.

On the other hand, 440C steel is a high-carbon martensitic stainless steel containing about 1% carbon and 16-18% chromium. This higher chromium content provides superior corrosion resistance, making it suitable for environments exposed to moisture or corrosive substances. While 440C also offers high hardness and wear resistance, it is more brittle compared to 52100 steel.

Which steel has better corrosion resistance, 52100 or 440C?

When comparing 52100 steel and 440C stainless steel in terms of corrosion resistance, 440C stainless steel offers superior performance. The higher chromium content in 440C significantly enhances its ability to resist corrosion, making it suitable for environments with moisture or saline exposure. In contrast, while 52100 steel does contain chromium, its corrosion resistance is limited and not adequate for highly corrosive environments. Therefore, for applications where corrosion resistance is a primary concern, 440C stainless steel is the better choice. 52100 steel, however, excels in mechanical properties such as hardness and wear resistance, making it suitable for applications where these characteristics are more critical.

What are the mechanical property differences between 52100 and 440C steels?

52100 steel and 440C steel differ significantly in their mechanical properties due to variations in their composition and heat treatment responses. 52100 steel, with approximately 1.0% carbon and 1.5% chromium, is renowned for its high hardness (60-67 HRC), excellent wear resistance, and superior fatigue strength, making it ideal for high-load bearing applications. Its toughness and ability to endure repeated stress make it suitable for dynamic mechanical parts like aerospace and automotive bearings. However, its corrosion resistance is moderate due to the low chromium content.

In contrast, 440C steel contains higher chromium (16-18%), providing superior corrosion resistance while achieving a hardness range of 58-65 HRC after heat treatment. While it offers good wear resistance and is suitable for cutting tools and environments exposed to moisture, it is more brittle and has lower fatigue strength compared to 52100 steel. Consequently, 440C steel is often preferred for applications requiring a balance between hardness and corrosion resistance, such as knives, surgical instruments, and marine components.

Which steel is better for bearings, 52100 or 440C?

When determining which steel is better for bearings, the choice between 52100 and 440C depends on specific application requirements. 52100 steel, a high-carbon chromium steel, offers excellent hardness and wear resistance, making it ideal for high-load applications where wear resistance is crucial. However, it has limited corrosion resistance. On the other hand, 440C stainless steel, with its high chromium content, provides superior corrosion resistance and a longer fatigue life, especially in corrosive environments. While 440C is not as hard as 52100, it is still durable and suitable for applications where longevity and resistance to corrosion are essential. Therefore, for high-load, non-corrosive environments, 52100 is preferable, while 440C is better for corrosive environments and applications requiring extended fatigue life.

How does chromium content affect the performance of 52100 and 440C steels?

Chromium content significantly affects the performance of 52100 and 440C steels. 440C steel contains a high chromium content of approximately 16-18%, which imparts excellent corrosion resistance by forming a stable passive oxide layer that protects against oxidation. This makes 440C steel highly suitable for applications involving exposure to moisture or mild corrosive environments, such as cutlery and surgical tools. Additionally, the high chromium content in 440C promotes the formation of chromium carbides, enhancing wear resistance and hardness, although it may reduce toughness and make the steel more brittle compared to 52100.

On the other hand, 52100 steel contains much lower chromium content, around 1.5%. While this still contributes to some hardenability and wear resistance, it does not provide significant corrosion resistance, making 52100 steel more prone to rust in humid or wet conditions. However, 52100 steel excels in toughness and fatigue strength, making it ideal for high-impact mechanical parts like bearings and gears where corrosion can be controlled.

What are the typical applications of 52100 vs 440C?

52100 steel is typically used in applications requiring high strength and wear resistance. It is extensively employed in the manufacturing of precision bearings and machinery components, particularly in the automotive and aerospace sectors. Additionally, 52100 is used in mill rolls, machine parts, and hydraulic systems due to its high fatigue resistance and durability under heavy loads.

In contrast, 440C steel is favored for applications where corrosion resistance is crucial. It is commonly used in the production of high-quality cutlery and blades because of its excellent hardness and wear resistance. 440C is also preferred for medical instruments, which require frequent sterilization, and marine hardware, where resistance to corrosion from saltwater is essential.
