A Beginner’s Guide to Types of Ball Screws and Their Uses

Imagine a world where precision and efficiency are paramount, and every small component plays a crucial role in achieving flawless performance. Enter the realm of ball screws, the unsung heroes of mechanical engineering and manufacturing. For beginners stepping into this intricate world, understanding the different types of ball screws and their uses can be a game-changer.

In this article, we’ll unravel the mysteries behind the five main types of ball screws—heavy-duty, high-speed, cooling, self-lubricating, and silent—and explore their unique features and best applications. Whether you’re curious about how these components handle varying loads and speeds or seeking the right type for your specific needs, this guide will provide a comparative analysis that demystifies their capabilities.

Ready to dive into the fascinating world of ball screws and discover which type best suits your project? Let’s embark on this journey of precision and innovation.

Overview of Ball Screws

Ball screws are mechanical devices that efficiently convert rotary motion into linear motion using rolling elements, typically balls, which reduce friction compared to traditional sliding screws. Ball screws are crucial in manufacturing and engineering due to their high efficiency and load capacity. They can handle both static and dynamic loads, providing reliable and precise motion control. This capability is essential for applications requiring accuracy and repeatability, such as CNC machinery, robotics, and automated assembly systems.

Ball screws consist of several key parts: the screw shaft, the nut, balls, and the return system. The screw shaft, typically made from heat-treated alloy steel, has precision helical threads. The nut encases the screw shaft with internal threads that guide the balls. Hardened steel balls roll between the screw shaft and nut, reducing friction and wear. The return system recirculates the balls, ensuring continuous operation.

Ball screws offer significant benefits over traditional lead screws: higher efficiency, achieving over 90% due to the rolling action of the balls; precise motion control, essential for high-accuracy applications; and durability, thanks to the hardened steel balls and screw shaft materials.

There are various types of ball screws, each suited to specific applications: single nut ball screws for general machine tools and automation equipment; double nut ball screws for higher accuracy and rigidity in precision machinery and aerospace; high-speed ball screws for rapid linear motion; cooling ball screws to prevent overheating during high-speed or high-load operations; self-lubricating ball screws to reduce maintenance; and silent ball screws to minimize noise in sensitive environments.

Types of Ball Screws

Heavy-Duty Ball Screws

Heavy-duty ball screws are built to handle the toughest jobs in manufacturing and machinery. These ball screws are essential in semiconductor manufacturing and forging machines due to their high load capacity, durability, and efficiency.

• Features:

• High load capacity: Capable of supporting substantial heavy loads.

• Durability: Constructed from high-strength materials to withstand demanding applications.

• Efficiency: Maintains high efficiency even under significant loads.

• Best Uses:

• Semiconductor manufacturing: Ensures precise and reliable motion control.

• Forging machines: Ideal for shaping metal through compressive forces.

High-Speed Ball Screws

In addition to heavy-duty applications, high-speed ball screws are perfect for operations requiring rapid movement and precision. These ball screws are commonly used in machine tools and automated systems due to their high speed, low vibration, and precision.

• Features:

• High speed: Engineered to operate at high rotational speeds for rapid linear motion.

• Low vibration: Designed to minimize vibrations for smooth and stable performance.

• Precision: Maintains high accuracy even at elevated speeds.

• Best Uses:

• Machine tools: Essential for CNC machines and high-speed cutting centers.

• Automated systems: Suitable for applications requiring rapid and precise movement.

Cooling Ball Screws

Cooling ball screws are crucial for managing the heat generated during high-speed operations, ensuring consistent performance. These ball screws are perfect for high-speed machining and precision machinery due to their cooling system and high-speed capability.

• Features:

• Cooling system: Equipped to dissipate heat and maintain optimal operating temperatures.

• High-speed capability: Supports high-speed operations without overheating.

• Best Uses:

• High-speed machining: Essential in environments where prolonged high-speed operation generates significant heat.

• Precision machinery: Ensures accurate and reliable performance.

Self-Lubricating Ball Screws

Self-lubricating ball screws come with an integrated lubrication system, reducing the need for regular maintenance. These ball screws are ideal for automated systems and clean environments due to their self-lubricating feature, reduced maintenance, and consistent performance.

• Features:

• Self-lubricating: Built-in lubrication reduces friction and wear.

• Reduced maintenance: Minimizes the need for frequent checks and lubrication applications.

• Consistency: Maintains optimal lubrication levels for consistent performance.

• Best Uses:

• Automated systems: Ideal for environments where regular maintenance is challenging.

• Clean environments: Suitable for applications where oil supply is limited or undesirable.

Silent Ball Screws

Silent ball screws are designed to minimize noise during operation, making them suitable for noise-sensitive environments. These ball screws are perfect for medical devices and office machinery due to their noise reduction, smooth operation, and vibration dampening.

• Features:

• Noise reduction: Incorporates elements that reduce operational noise.

• Smooth operation: Ensures quiet and smooth linear motion.

• Vibration dampening: Reduces vibrations for quieter operation and improved accuracy.

• Best Uses:

• Medical devices: Used in medical imaging tools and surgical robots where noise reduction is critical.

• Office machinery: Suitable for environments where noise levels need to be minimized.

Comparative Analysis of Ball Screw Types

Performance Under Different Loads

Ball screws are designed to handle varying load capacities depending on their type and construction.

Heavy-Duty Ball Screws

Heavy-duty ball screws are designed to handle large loads. They are ideal for applications that demand high load capacity, such as heavy machinery and industrial equipment. These ball screws are constructed from high-strength materials that provide excellent durability and reliability under significant axial loads.

High-Speed Ball Screws

High-speed ball screws are optimized for applications requiring rapid movement and high precision. While they can handle moderate loads, their primary advantage lies in their ability to operate at high speeds with minimal vibration. They are perfect for CNC machines and other automated systems where speed is crucial.

Cooling Ball Screws

Cooling ball screws are designed to manage the heat generated during high-speed operations. They incorporate a cooling system that maintains optimal temperatures, ensuring consistent performance even under intense conditions. These ball screws are suitable for precision machinery where thermal stability is critical.

Self-Lubricating Ball Screws

Self-lubricating ball screws feature an integrated lubrication system that reduces the need for regular maintenance. They can handle moderate loads efficiently while maintaining consistent performance. These ball screws are ideal for automated systems and environments where frequent maintenance is impractical.

Silent Ball Screws

Silent ball screws are designed to minimize operational noise and vibrations. They can handle light to moderate loads and are best suited for applications in noise-sensitive environments, such as medical devices and office machinery.

Speed Capabilities

Different types of ball screws offer varying speed capabilities, which are crucial for applications that require fast and precise movements.

High-Speed Ball Screws

High-speed ball screws are engineered to operate at high rotational speeds. They provide rapid linear motion with high precision, making them suitable for high-speed machining and automated systems.

Cooling Ball Screws

Cooling ball screws also support high-speed operations, with the added benefit of heat management. This makes them ideal for continuous high-speed applications where thermal expansion could affect performance.

Heavy-Duty Ball Screws

While heavy-duty ball screws are not specifically designed for high speeds, they can still operate efficiently at moderate speeds. Their primary focus is on load-bearing capacity rather than speed.

Self-Lubricating Ball Screws

Self-lubricating ball screws offer moderate speed capabilities. They are designed to provide consistent performance with reduced maintenance, making them suitable for automated systems that do not require extremely high speeds.

Silent Ball Screws

Silent ball screws operate at lower speeds compared to high-speed ball screws. Their design focuses on reducing noise and vibrations, making them ideal for environments where quiet operation is essential.

Durability and Maintenance

The durability and maintenance requirements of ball screws vary depending on their type and application.

Heavy-Duty Ball Screws

Heavy-duty ball screws are built for durability. They are made from high-strength materials that can withstand demanding applications, providing long service life with minimal maintenance.

High-Speed and Cooling Ball Screws

High-speed ball screws require regular maintenance to ensure optimal performance. Their high-speed operation can lead to wear and tear, necessitating periodic checks and lubrication. Cooling ball screws are designed for longevity in high-speed environments. The cooling system helps manage heat, reducing the risk of thermal damage and extending the lifespan of the ball screw.

Self-Lubricating Ball Screws

Self-lubricating ball screws need less maintenance because they have built-in lubrication. This feature reduces friction and wear, resulting in longer service intervals and reduced downtime.

Silent Ball Screws

Silent ball screws need regular maintenance to keep their noise-reducing features working well. Regular checks and lubrication are necessary to maintain their smooth and quiet operation.

Cost Considerations

The cost of ball screws can vary widely based on their type and features.

Heavy-Duty Ball Screws

Heavy-duty ball screws tend to be more expensive due to their robust construction and high load capacity. They are an investment for applications that require durability and reliability.

High-Speed Ball Screws

High-speed ball screws are also on the higher end of the cost spectrum. Their precision engineering and ability to operate at high speeds contribute to their higher price point.

Cooling Ball Screws

Cooling ball screws are typically more expensive due to the added cooling system. This feature is essential for applications that generate significant heat, justifying the additional cost.

Self-Lubricating Ball Screws

Self-lubricating ball screws can be cost-effective in the long run due to their reduced maintenance requirements. While the initial cost may be higher, the savings on maintenance and downtime can offset the investment.

Silent Ball Screws

Silent ball screws are priced higher because of their specialized design to minimize noise and vibrations. They are worth the investment for applications where noise reduction is critical.

Manufacturer Comparisons

Different manufacturers offer various ball screw types with unique features and quality levels.

Leading Manufacturers

• THK: Known for their high-quality ball screws, THK offers a wide range of products suitable for different applications, including heavy-duty, high-speed, and cooling ball screws.
• NSK: NSK provides ball screws that emphasize precision and durability. Their products are widely used in automotive and industrial machinery.
• HIWIN: HIWIN offers a comprehensive range of ball screws, including self-lubricating and silent types. They are known for their innovation and quality.
• SKF: SKF’s ball screws are recognized for their reliability and performance. They provide solutions for various industries, including aerospace and medical devices.

When selecting a manufacturer, consider factors like product quality, availability, customer support, and cost. Each manufacturer has its strengths, and selecting the best one depends on the specific requirements of the application.

Ball Screw Applications

Machine Tools

Ball screws play a pivotal role in machine tools, such as lathes, milling machines, and CNC (Computer Numerical Control) equipment. They provide precise linear motion essential for high accuracy in metal cutting and shaping. Their efficiency and accuracy are perfect for meeting the tight tolerances needed in modern manufacturing.

Semiconductor Manufacturing

In semiconductor manufacturing, ball screws are integral to equipment used for wafer handling and precision positioning. The clean environments required for semiconductor fabrication benefit from ball screws’ ability to operate smoothly and with minimal particulate generation. This precision ensures wafers and components are placed accurately during fabrication.

Woodworking

Woodworking machinery, such as CNC routers and automatic saws, also utilize ball screws for precise control of tool movement. Ball screws allow for the detailed cuts needed in custom furniture and cabinetry. Their high efficiency and durability make them suitable for the repetitive and demanding tasks typical in woodworking applications.

Medical Devices

Medical devices like imaging tools and surgical robots use ball screws. Their high precision and reliability are crucial for delicate procedures where exact movement control is necessary. For instance, in medical imaging, ball screws help position equipment accurately to capture clear and detailed images.

Robotics

In the field of robotics, ball screws are essential for ensuring smooth and precise motion in robotic arms and legs. Their ability to handle dynamic loads with high accuracy makes them suitable for tasks that require repeatable and controlled movements. This is particularly important in industrial robots used for assembly, welding, and material handling.

Aerospace

The aerospace industry relies on ball screws for their precision and reliability in critical applications. They are used in aircraft control systems, such as flaps and thrust reversers, where precise and reliable motion is vital for safe operation. The durability of ball screws ensures long-term performance even under the demanding conditions of aerospace environments.

Automotive Industry

In the automotive industry, ball screws are employed in manufacturing and assembly lines to provide precise control over machinery and automation systems. They help achieve the high levels of accuracy needed for tasks like welding, assembly, and material handling, contributing to the

Office Machinery

Silent ball screws are particularly beneficial in office machinery, such as printers and copiers, where noise reduction is essential. Their smooth, quiet operation improves user experience and allows machinery to run in noise-sensitive areas without causing disturbances.

Ball Screw Features

Preloading Methods

Preloading is a technique used to eliminate the axial play between the ball screw and the nut, enhancing precision and rigidity. Several preloading methods are commonly used in ball screws:

Double Nut Preloading

This method involves using two nuts with a spacer between them. The nuts are tightened against each other to create a preload force. Double nut preloading is effective in reducing backlash and improving rigidity, making it suitable for applications requiring high accuracy.

Single Nut with Spring Preloading

In this approach, a spring is incorporated within the nut to apply a continuous preload force. This method is simpler and more cost-effective than double nut preloading. It is ideal for applications where moderate precision is sufficient.

Offset Preloading

Offset preloading is achieved by machining the ball grooves in the nut and screw with a slight offset. This mechanical preload provides consistent performance and is often used in applications where compact design and consistent accuracy are required.

Ball Circulation Types

Ball circulation refers to the mechanism by which the balls are recirculated within the nut to maintain continuous motion. Different ball circulation types offer unique benefits for various applications:

Internal Ball Return

Internal ball return systems use a deflector or return tube inside the nut to guide the balls back to the starting point. This method allows for a compact design and is suitable for applications with space constraints.

External Ball Return

External ball return systems feature an external return path for the balls, often using tubes or channels outside the nut. This design can handle higher loads and speeds, making it ideal for heavy-duty applications.

End Cap Return

End cap return systems use caps at the ends of the nut to direct the balls back to the beginning of the ball track. This type of circulation is efficient and provides smooth operation, which is beneficial for high-speed applications.

Lubrication Systems

Effective lubrication is crucial for the smooth operation and longevity of ball screws. Various lubrication systems are used to ensure optimal performance:

Manual Lubrication

Manual lubrication involves periodically applying lubricant to the ball screw. It is simple and cost-effective but requires regular maintenance to prevent wear and tear.

Automatic Lubrication

Automatic lubrication systems use pumps or reservoirs to deliver lubricant continuously. This method reduces maintenance and ensures consistent lubrication, making it ideal for automated systems.

Self-Lubricating Nuts

Self-lubricating nuts incorporate built-in lubrication mechanisms that reduce the need for external lubricant application. These nuts are ideal for environments where maintenance access is limited.

Noise Reduction Features

Certain ball screws are designed with features to minimize operational noise, which is important in noise-sensitive environments:

Silent Ball Screws

Silent ball screws use specialized materials and designs to dampen vibrations and reduce noise. They are ideal for applications like medical devices and office machinery where quiet operation is essential.

Vibration Dampening

Vibration dampening involves using materials or designs that absorb and reduce vibrations. This feature not only minimizes noise but also enhances the precision and smoothness of the ball screw’s operation.

Anti-Backlash Features

Backlash is the slight movement between the nut and screw when the direction of motion is reversed. Anti-backlash features are essential for maintaining high precision:

Adjustable Nuts

Adjustable nuts allow for fine-tuning of the preload, effectively reducing backlash. This feature is beneficial for applications requiring precise control and high accuracy.

Split Nuts

Split nuts are designed with a split that can be adjusted to eliminate backlash. They provide a simple yet effective solution for improving precision in various applications.

Load Handling Capabilities

Ball screws are designed to handle different types of loads, and their features can be tailored to specific requirements:

Static Load Capacity

Static load capacity refers to the maximum load a ball screw can support without moving. Heavy-duty ball screws are designed with high static load capacities for applications such as forging machines and large industrial equipment.

Dynamic Load Capacity

Dynamic load capacity is the maximum load a ball screw can handle while in motion. High-speed ball screws are optimized for dynamic load capacity, making them suitable for CNC machines and other automated systems.

Cooling Features

Cooling features are essential for maintaining performance in high-speed applications where heat generation is significant:

Cooling Channels

Cooling channels are integrated into the ball screw to allow coolant to flow through, dissipating heat effectively. These features are critical for applications such as high-speed machining where thermal stability is necessary.

Hollow Shafts

Hollow shafts enable coolant or air to flow through the center of the ball screw, providing efficient cooling. This design is ideal for precision machinery and environments where continuous operation generates significant heat.

Choosing the Right Ball Screw

Key Factors to Consider

Selecting the right ball screw for an application involves evaluating several critical factors to ensure optimal performance and longevity.

Load Capacity

The load capacity of a ball screw is fundamental. Static load capacity is the maximum load the ball screw can hold without moving, and dynamic load capacity is the load it can handle while moving. Choosing a ball screw with the appropriate load capacity ensures reliable performance and prevents premature wear.

Speed and Acceleration

Different applications require varying speeds and accelerations. High-speed ball screws are designed to operate at elevated speeds with minimal vibration, making them suitable for applications like CNC machines and high-speed machining centers. It is crucial to choose a ball screw that meets the specific speed and acceleration requirements of your system to maintain accuracy and efficiency.

Precision and Accuracy

In high-precision applications like semiconductor manufacturing, choosing a ball screw with low backlash is crucial. Backlash, the slight movement between the screw and nut when reversing direction, can be minimized with preloading methods such as double nut or spring preloading. These features enhance precision and ensure reliable performance.

Environmental Factors

Environmental factors like temperature, humidity, and exposure to corrosive substances can affect ball screw performance and longevity. For high temperatures, use cooling ball screws. In clean environments, self-lubricating ball screws reduce the need for external lubrication and minimize contamination.

Cost and Performance Balance

High-performance ball screws offer better precision and durability but at a higher cost. Balance cost with the needed performance and reliability for your application. Rolled ball screws are a cost-effective choice for general automation and industrial machinery.

Application-Specific Recommendations

Different applications have unique requirements, and selecting the right ball screw type can optimize performance and longevity.

Machine Tools

For machine tools, such as lathes and milling machines, high-speed ball screws are ideal due to their ability to handle rapid linear motion with high precision. These ball screws ensure smooth and accurate operation, essential for achieving tight tolerances in metal cutting and shaping.

Semiconductor Manufacturing

In semiconductor manufacturing, precision and cleanliness are paramount. Precision ball screws with low backlash and self-lubricating features are suitable for wafer handling and positioning equipment, ensuring accurate placement and minimal particulate generation.

Woodworking

Woodworking machinery, like CNC routers and automatic saws, benefit from ball screws that provide precise control of tool movement. Rolled ball screws are a cost-effective choice for these applications, offering adequate precision and durability for repetitive tasks.

Real-World Examples and Case Studies

High-Speed Machining Center

A high-speed machining center requiring rapid and precise movement can benefit from a high-speed ball screw with cooling features. The cooling system maintains optimal temperatures, ensuring consistent performance even under intense operating conditions.

Automated Assembly Line

An automated assembly line in a clean environment can utilize self-lubricating ball screws to minimize maintenance and contamination. These ball screws provide reliable and consistent performance, reducing downtime and maintenance costs.

Semiconductor Wafer Handler

A semiconductor wafer handler requires high precision and low backlash. Precision ball screws with double nut preloading offer the necessary accuracy and rigidity, ensuring precise positioning of wafers during the manufacturing process.

Frequently Asked Questions

Below are answers to some frequently asked questions:

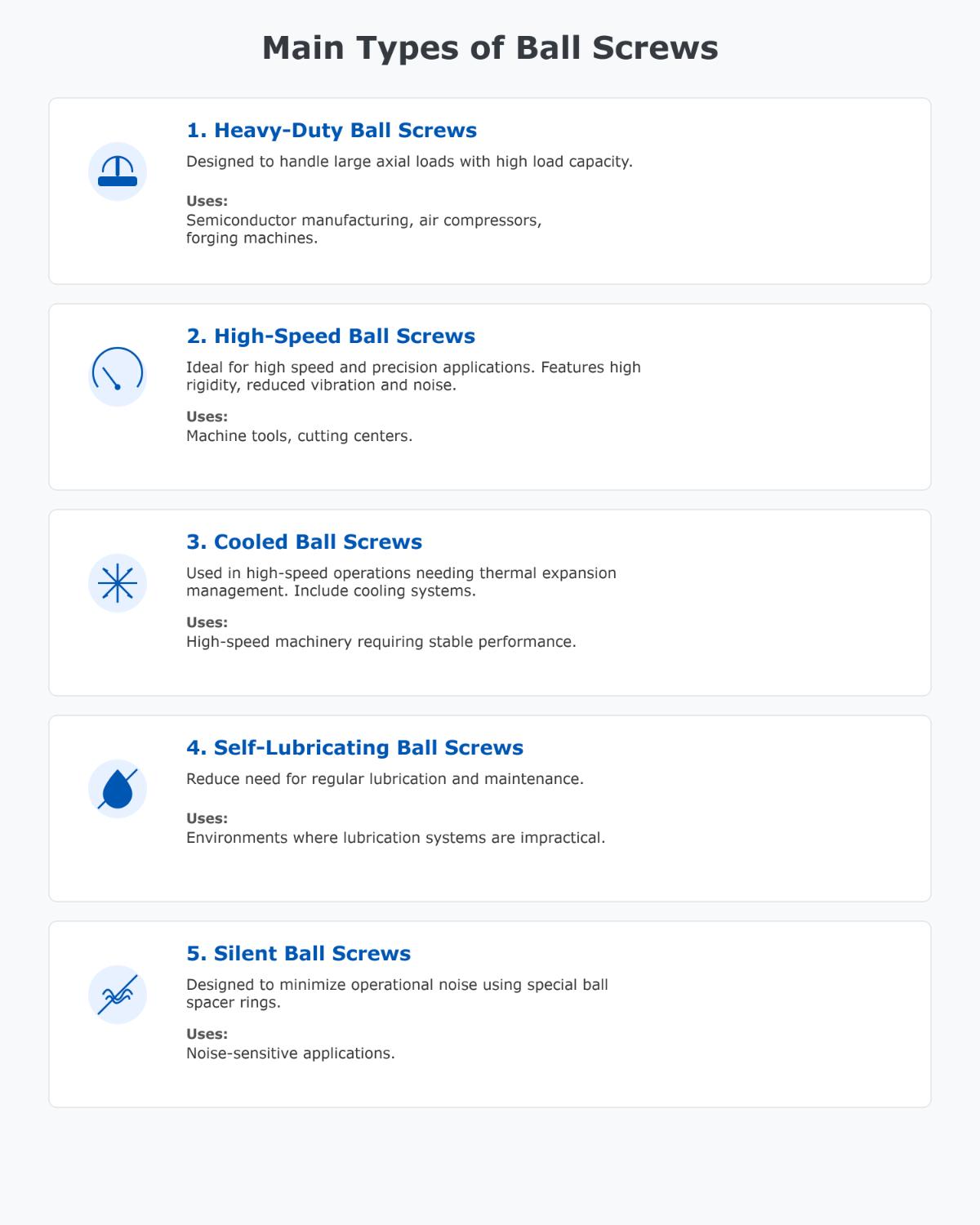

What are the main types of ball screws and their uses?

Ball screws are mechanical devices that convert rotary motion into linear motion using a recirculating ball mechanism. Several types of ball screws cater to different applications and requirements:

1. Heavy-Duty Ball Screws: Designed to handle large axial loads, these are often used in semiconductor manufacturing, air compressors, and forging machines due to their high load capacity.

2. High-Speed Ball Screws: Ideal for applications requiring high speed and precision, such as machine tools and cutting centers. They are characterized by high rigidity and reduced vibration and noise.

3. Cooled Ball Screws: Utilized in high-speed operations where managing thermal expansion is critical. They include cooling systems to maintain performance.

4. Self-Lubricating Ball Screws: These reduce the need for regular lubrication and maintenance, making them suitable for environments where lubrication systems are impractical.

5. Silent Ball Screws: Designed to minimize operational noise through the use of special ball spacer rings, making them preferable in noise-sensitive applications.

Each type serves specific needs, ensuring efficient, precise, and reliable performance in various industrial applications.

How do different ball screw types handle varying loads and speeds?

Ball screws convert rotational motion into linear motion efficiently and accurately, which is crucial for various industrial applications. Different types of ball screws handle varying loads and speeds based on their design and construction.

Single nut ball screws are lightweight and cost-effective, suitable for moderate loads and speeds typically found in general machine tools and industrial automation. Double nut ball screws, with their enhanced rigidity and accuracy due to pre-tensioning, are ideal for high precision tasks in high-tech machinery and aerospace applications.

High-speed ball screws are optimized for rapid movements with specialized thread shapes and ball return systems, making them perfect for high-speed machine tools and automotive assembly lines. Rolled ball screws, while more economical, are best for applications where moderate precision is acceptable, handling lower speeds than ground ball screws. Ground ball screws, manufactured for higher precision, support higher rotational speeds and are used in applications requiring high accuracy.

Ball screws are designed to handle high axial loads efficiently, but are less suitable for significant radial loads, which can lead to wear. The critical speed and lead accuracy are important considerations when selecting a ball screw for specific loads and speeds, ensuring the right balance between precision, load capacity, and operational speed.

What are the key criteria for selecting a ball screw for a specific application?

When selecting a ball screw for a specific application, it’s important to consider several key criteria to ensure optimal performance, efficiency, and longevity. First, determine the load capacity, which includes both static and dynamic loads, as well as the working conditions that could affect these loads, such as temperature and vibrations. Second, assess the required speed and acceleration, ensuring the ball screw can meet the necessary rotational speed and acceleration demands of your application.

Next, consider the ball nut configuration, including the type and lead length, to match the precision requirements. Precision and accuracy are crucial, so evaluate the lead accuracy and backlash, with ground ball screws offering higher precision than rolled ones. Environmental factors, such as materials and coatings resistant to corrosion, and the impact of temperature and humidity on the ball screw’s longevity, should also be taken into account.

Additionally, examine axial clearance and preload methods to improve positioning accuracy, and ensure the critical speed aligns with the mounting conditions. The ball screw’s expected service life, based on load ratings and operational conditions, is another important factor.

How does preloading affect ball screw performance?

Preloading in ball screws significantly enhances their performance by improving rigidity, accuracy, and stability. Preloading involves applying an internal axial force to minimize the clearance between the ball screw nut and the shaft. This results in several key benefits:

1. Increased Rigidity and Accuracy: Preloading reduces axial deflection, leading to higher positioning accuracy and repeatability, which is crucial for precision applications like CNC machines.
2. Elimination of Backlash: By removing internal clearance, preloading ensures smooth operation without lost motion, maintaining precision in linear motion systems.
3. Reduced Noise and Vibration: Preloaded ball screws operate more quietly and with less vibration, extending equipment life and reducing maintenance.
4. Improved Load Capacity and Reduced Wear: They can handle greater loads and operate with lower friction, reducing wear and extending lifespan.
5. Enhanced Dynamic Response: Preloaded ball screws adapt better to changing load conditions during rapid movements.

While preloading improves performance, it also increases friction and heat generation, which can affect the ball screw’s lifespan. Therefore, it’s essential to carefully select the appropriate preload level to balance performance with durability.

What are the benefits of self-lubricating ball screws in industrial applications?

Self-lubricating ball screws have built-in systems that continuously provide lubrication to their moving parts, which offers several benefits in industrial applications. Firstly, they significantly reduce maintenance requirements by ensuring consistent lubrication, extending the operational life of the ball screw, and minimizing the need for manual lubrication. This leads to cost savings due to reduced labor costs and less downtime.

Additionally, self-lubricating ball screws enhance reliability and performance by preventing friction buildup and wear. This ensures smooth operation and high repeatability, which is crucial for precision applications like CNC machines and robotics. The continuous lubrication also reduces friction, which improves the efficiency of the ball screw assembly by enabling smoother motion with less energy loss.

How do silent ball screws improve operational efficiency?

Silent ball screws improve operational efficiency by reducing noise and vibration, which is crucial in noise-sensitive environments like medical equipment and office machinery. These ball screws use specialized circulation paths and damping materials to minimize sound levels, creating a quieter work environment. Additionally, silent ball screws maintain high mechanical efficiency and precision, ensuring smooth and consistent linear motion. The reduction in vibration also means less wear and tear on components, leading to extended service life and lower maintenance costs. Overall, silent ball screws enhance operational efficiency by combining quiet operation with reliability and durability, making them ideal for various precision applications.
