Alloy 20 vs SS316: Comprehensive Material Comparison

When it comes to choosing the right materials for industrial applications, particularly those involving corrosive environments, Alloy 20 and SS316 often emerge as top contenders. But how do you decide which is better suited for your specific needs? This article dives deep into a comparative analysis of Alloy 20 and SS316, addressing key differences, their corrosion resistance capabilities, mechanical properties, and cost-effectiveness. Whether you’re an engineer looking for robust materials or a procurement specialist aiming to make cost-efficient decisions, our comprehensive comparison will equip you with the insights needed to make an informed choice. Are you ready to discover which material stands out in high-stress conditions and varied applications? Let’s delve into the specifics that could impact your next big project.

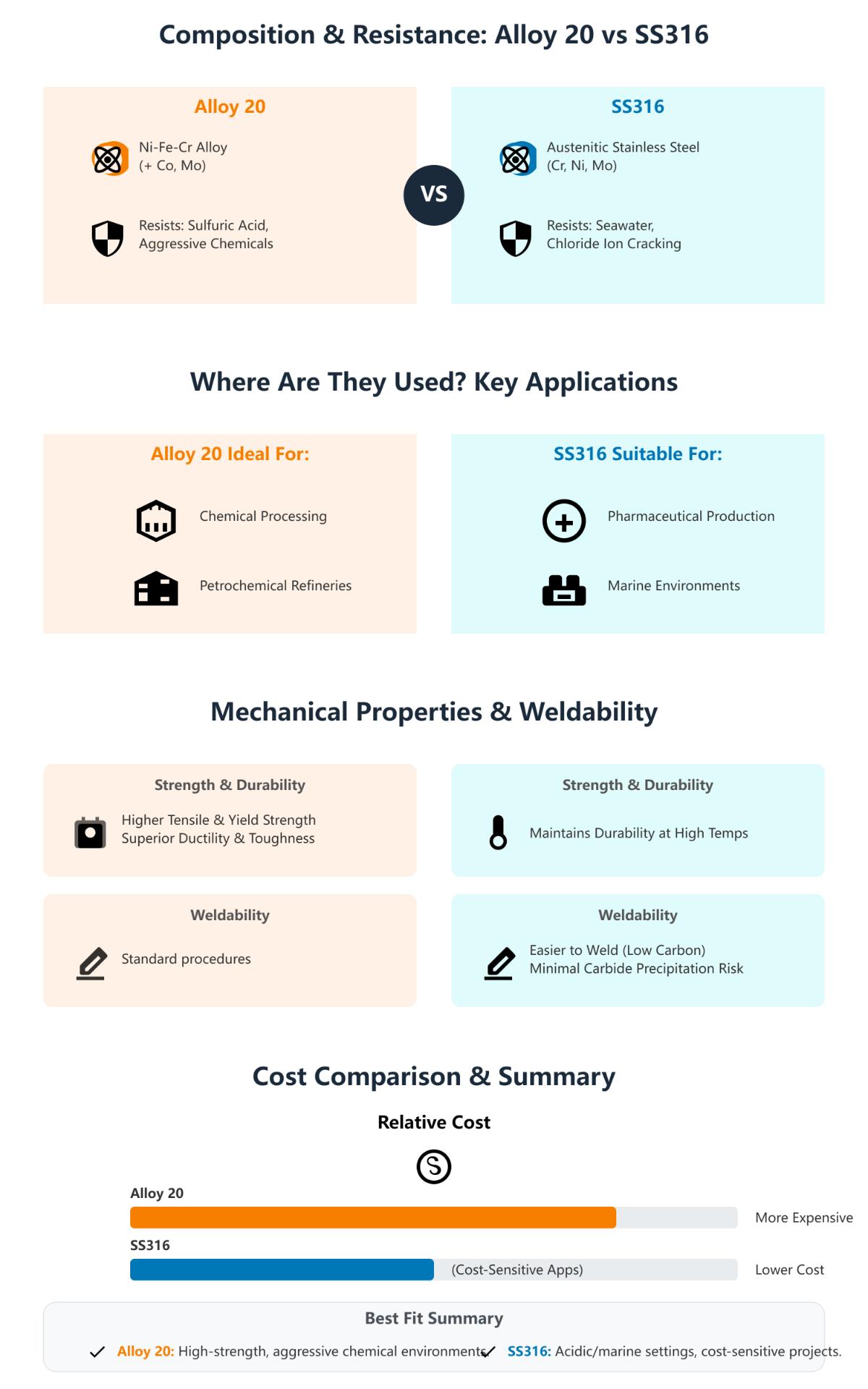

Key Differences Between Alloy 20 and SS316

Alloy 20 and SS316 differ mainly in their chemical composition, affecting their use in various environments.

Composition and Chemical Makeup

Alloy 20, also known as Carpenter 20, is a nickel-iron-chromium alloy with significant additions of copper and molybdenum. It typically contains 32-38% nickel, 19-21% chromium, and 3-4% copper, with iron making up the balance. This unique blend enhances its resistance to sulfuric acid and stress corrosion cracking.

SS316, or 316 Stainless Steel, is an austenitic chromium-nickel stainless steel with molybdenum. It generally includes 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, with iron as the balance. This composition provides good overall corrosion resistance and mechanical properties, suitable for various applications.

Corrosion Resistance

Alloy 20 is highly resistant to corrosion, especially in environments with sulfuric acid and chlorides, making it ideal for chemical processing. The copper and high nickel content offer superior protection against pitting and crevice corrosion.

SS316 offers good corrosion resistance in a variety of environments but is less effective in highly aggressive conditions compared to Alloy 20. It performs well in marine and mildly acidic environments but is more prone to pitting and crevice corrosion in chloride-rich settings. SS316 is widely used in the food and pharmaceutical industries due to its non-reactive nature and ease of cleaning.

Mechanical Properties

The mechanical properties of Alloy 20 and SS316 vary, impacting their suitability for different applications. Alloy 20 generally has higher tensile strength, which is the maximum stress it can withstand while being stretched or pulled before breaking. It also has a higher yield strength, meaning it can endure more stress before deforming permanently. This makes Alloy 20 more robust for demanding applications.

SS316 is known for its good balance of strength and ductility, which is adequate for many less demanding applications. It has a lower tensile and yield strength compared to Alloy 20 but offers greater elongation, allowing it to stretch more before breaking. This makes SS316 versatile for applications that require flexibility and toughness.

Fabrication and Welding

Fabrication and welding ease are crucial factors when choosing between Alloy 20 and SS316. Alloy 20 requires careful handling during welding due to its sensitivity to thermal stress, which can lead to cracking. Specific welding techniques and post-weld heat treatment may be necessary to maintain its properties and prevent degradation.

SS316 is known for its excellent weldability and ease of fabrication. It can be welded using standard techniques without stringent heat input controls. The low carbon version, 316L, is particularly useful for welding applications as it minimizes the risk of carbide precipitation, which can lead to intergranular corrosion.

Economic Considerations

The cost implications of selecting Alloy 20 or SS316 can significantly impact project budgets and long-term maintenance costs. Alloy 20 is generally more expensive upfront due to its specialized composition. However, its superior corrosion resistance can lead to lower maintenance and lifecycle costs, making it a cost-effective choice for environments where long-term durability and resistance to aggressive chemicals are crucial.

SS316 is less costly initially and is often chosen for its cost-effectiveness in less demanding environments. However, in highly corrosive settings, the potential for higher maintenance and replacement costs can offset the initial savings.

Corrosion Resistance: Alloy 20 vs SS316

Corrosion Resistance in Acidic Environments

Alloy 20 is highly resistant to corrosion, especially in environments containing sulfuric, phosphoric, and nitric acids. Its high nickel, chromium, and molybdenum content enhance resistance to pitting and crevice corrosion, while niobium prevents sensitization and reduces intergranular corrosion. This combination of elements makes Alloy 20 an excellent choice for applications involving exposure to highly acidic conditions.

Chloride Resistance

Alloy 20 is also highly resistant to chloride-induced corrosion, including pitting, crevice corrosion, and chloride stress corrosion cracking. This resistance is crucial for chemical processing applications where chlorides are present. In contrast, SS316, while offering good general corrosion resistance, is more susceptible to chloride-induced pitting and crevice corrosion, particularly in environments with high chloride concentrations.

Comparative Performance in Marine Environments

SS316 is commonly used in marine environments because it resists seawater and marine conditions well. However, it is less effective than Alloy 20 in areas with high chloride concentrations, like crevices or deposits. Alloy 20’s enhanced resistance to chloride corrosion makes it a better option for more aggressive marine conditions.

Resistance to General Corrosion

Both Alloy 20 and SS316 resist general corrosion well. SS316 is ideal for less aggressive environments, balancing corrosion resistance with cost-effectiveness. It works well in mildly acidic and neutral settings, making it popular in the food, pharmaceutical, and marine industries. Its reliability in mildly acidic and neutral conditions makes SS316 a popular choice in these sectors.

Mechanical Properties Comparison

Tensile and Yield Strength

Alloy 20 and SS316 have distinct tensile and yield strengths, making them suitable for different applications. Alloy 20, with a tensile strength of 690 MPa and yield strength of 350 MPa, is ideal for robust applications. SS316, with a tensile strength of 515 MPa and yield strength of 205 MPa, still offers sufficient durability for various industrial uses.

Ductility and Toughness

Alloy 20 is very ductile and tough, making it perfect for demanding environments with frequent mechanical stress and impact. SS316 also exhibits good ductility, allowing it to be shaped effectively, though it is generally less robust than Alloy 20 in terms of overall mechanical resilience.

Welding Characteristics

Alloy 20 can be welded using TIG, MIG, and submerged arc welding but needs careful temperature control to avoid carbide precipitation. Niobium helps maintain its properties during welding. SS316 is known for its ease of welding, cutting, and shaping due to its low carbon content, minimizing the risk of carbide precipitation and preserving its mechanical properties.

Formability and Machining

SS316 is renowned for its excellent formability and machining capabilities, making it versatile for a wide range of industrial applications. Alloy 20, while also capable of being formed through hot or cold working, requires more precise handling compared to SS316 to avoid compromising its mechanical properties.

Cost Considerations

Alloy 20 is costlier than SS316 due to its superior corrosion resistance and strength, making it ideal for critical applications. SS316 is more affordable and still offers good corrosion resistance, making it suitable for less demanding environments.

Industry Applications

Alloy 20 is favored in the chemical and petrochemical industries due to its superior resistance to aggressive chemicals and high mechanical strength. SS316 is widely used in marine, pharmaceutical, and food processing industries where general corrosion resistance and formability are valued.

Cost-Effectiveness Analysis

When comparing the initial costs of SS316 and Alloy 20, SS316 is generally more affordable due to its simpler chemical composition. Typically, SS316L is priced around $4.5 per kilogram, making it a budget-friendly option for many applications. In contrast, Alloy 20 is significantly more expensive, often costing 2-3 times more than SS316 due to its complex composition, which includes a higher percentage of nickel, chromium, molybdenum, copper, and manganese.

Long-term Cost-Effectiveness

Corrosion Resistance and Durability

Alloy 20’s superior resistance to corrosion, especially in acidic and high-temperature environments, can lead to a longer service life and reduced maintenance costs. Its enhanced resistance to pitting and crevice corrosion makes it ideal for chemical processing and pharmaceutical applications, where aggressive environments are common.

While SS316 offers good corrosion resistance, it is less effective in highly corrosive environments compared to Alloy 20. This can result in higher maintenance and replacement costs over time, particularly in environments with high chloride concentrations or exposure to sulfuric acid.

Maintenance and Lifecycle Costs

Although SS316 is less costly initially, its lower corrosion resistance in certain environments may require more frequent maintenance and replacements, leading to higher overall costs over time. Conversely, Alloy 20’s higher upfront cost can be offset by its lower long-term maintenance expenses, particularly in aggressive environments where its superior corrosion resistance is advantageous.

Fabrication and Weldability

SS316 is known for its excellent weldability and ease of fabrication. It can be welded using standard techniques without stringent heat input controls, and the low-carbon version, SS316L, is particularly favored for welding due to its reduced risk of intergranular corrosion. This makes SS316 suitable for a broader range of applications and more straightforward to work with.

Alloy 20, while also weldable, requires more careful handling during welding to prevent issues such as thermal stress and cracking. Specific welding techniques and post-weld heat treatment may be necessary to maintain its properties and prevent degradation, making it more challenging to fabricate compared to SS316.

Thermal Stability

Alloy 20 offers superior thermal stability and retains its mechanical strength better at elevated temperatures. This makes it more suitable for high-temperature applications where maintaining structural integrity is crucial. SS316, while still reliable, does not perform as well as Alloy 20 in these conditions.

Application Suitability

Chemical and Pharmaceutical Industries

Alloy 20 is preferred in chemical processing and pharmaceutical applications due to its exceptional corrosion resistance in acidic environments. Its ability to withstand harsh chemicals and high temperatures makes it a reliable choice for these demanding industries.

Biofuels and General Industrial Use

SS316 is widely used in biodiesel plants and other general industrial settings due to its cost-effectiveness, ease of maintenance, and adequate corrosion resistance. Its balance of affordability and performance makes it a popular choice for less aggressive environments where extreme corrosion resistance is not as critical.

Applications of Alloy 20 and SS316

Chemical Processing

Alloy 20 is widely used in the chemical processing industry because of its excellent resistance to sulfuric acid and other aggressive chemicals. It is ideal for applications such as storage tanks, heat exchangers, pumps and valves, piping systems, reactors, and agitators. These components often face exposure to highly corrosive environments, making Alloy 20’s superior resistance crucial for maintaining integrity and longevity.

Pharmaceutical Industry

In the pharmaceutical sector, Alloy 20 is chosen for its ability to withstand harsh cleaning agents and chemical processes. Its non-magnetic nature also makes it suitable for mixing tanks, process piping, heat exchangers, and reaction vessels. The material’s resistance to pitting and crevice corrosion ensures minimal contamination, which is essential for maintaining high purity standards in pharmaceutical production.

Food Processing

Alloy 20 is utilized in food processing applications where it can handle acidic food products and cleaning processes without degrading. Common uses include food processing equipment, storage tanks, mixing vessels, and conveyors. Its corrosion resistance ensures longevity and reduces the risk of contamination in food products, making it a reliable choice for the industry.

Marine Applications

While SS316 is more commonly used in general marine applications, Alloy 20 is preferred for more aggressive environments like offshore oil and gas platforms, marine exhaust systems, and seawater desalination plants. Alloy 20’s enhanced resistance to chloride-induced corrosion ensures better performance and durability in these demanding conditions.

Petrochemical Industry

In the petrochemical industry, Alloy 20 is favored for handling sulfuric acid and other harsh chemicals found in refining processes. Typical applications include reactor vessels, heat exchangers, process piping, and storage tanks. The material’s ability to resist corrosion in such environments translates to lower maintenance costs and extended equipment life.

SS316 Applications

SS316 is widely used in marine environments due to its good corrosion resistance and affordability, including boat fittings, marine hardware, and coastal architectural components. In the food and beverage industry, SS316’s excellent hygiene properties and ease of cleaning make it ideal for food processing equipment, dairy tanks, brewing tanks, and wine fermentation vats.

SS316 is also prevalent in the medical and pharmaceutical industries for manufacturing surgical instruments, medical implants, and pharmaceutical manufacturing equipment. Its biocompatibility and resistance to sterilization processes make it a reliable material for these sensitive applications.

In general industrial settings, SS316 is used for chemical containers, heat exchangers, pipelines, and fasteners. Its versatility and cost-effectiveness make it a popular choice for various less demanding applications where moderate corrosion resistance is sufficient.

Corrosion Resistance

Alloy 20 excels in highly corrosive environments, particularly those involving sulfuric acid and chlorides. The higher nickel content in Alloy 20 (20-23%) compared to SS316 (10-14%) and the presence of copper enhance its resistance to pitting and crevice corrosion. SS316, while effective in marine and mildly acidic conditions, falls short in environments with concentrated sulfuric acid or high chloride levels.

Mechanical Properties

Alloy 20 exhibits higher tensile and yield strength than SS316, with values around 550 MPa and 240 MPa respectively, whereas SS316’s values are 515 MPa and 205 MPa. This makes Alloy 20 more suitable for applications requiring higher strength. However, SS316 offers better temperature stability, maintaining its integrity up to 870°C (1600°F), which is advantageous for high-temperature applications.

Fabrication and Weldability

SS316 is generally easier to machine and weld with standard techniques. It can be machined and welded with standard techniques, and its low carbon content minimizes the risk of post-weld corrosion. Alloy 20 requires more precise temperature control during hot working and welding to prevent issues like carbide precipitation. The presence of niobium in Alloy 20 helps reduce sensitization during welding, though it still demands careful handling.

Cost and Application Suitability

The cost difference between Alloy 20 and SS316 is significant, with Alloy 20 being more expensive due to its specialized composition and enhanced corrosion resistance. This higher cost is justified in applications requiring superior corrosion resistance, such as chemical processing and sulfuric acid reactors. SS316 remains a cost-effective choice for environments with moderate corrosion, making it suitable for marine hardware, pharmaceutical equipment, and food processing applications.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the key differences between Alloy 20 and SS316?

Alloy 20 and SS316 are both high-performance alloys, but they differ significantly in composition and application. Alloy 20 is a nickel-iron-chromium alloy with cobalt and molybdenum additions, known for its exceptional corrosion resistance, particularly against sulfuric acid and aggressive chemicals. This makes it ideal for chemical processing plants and petrochemical refineries. SS316, an austenitic stainless steel containing chromium, nickel, and molybdenum, offers excellent resistance to corrosion from seawater and chloride ion stress corrosion cracking, suitable for pharmaceutical production and marine environments.

In terms of mechanical properties, Alloy 20 exhibits higher tensile and yield strength compared to SS316, along with superior ductility and toughness. However, SS316 maintains durability at high temperatures and is easier to weld, requiring minimal risk management for carbide precipitation due to its low carbon content.

Cost-wise, Alloy 20 is generally more expensive than SS316 due to its specialized properties and applications. SS316 is preferred in cost-sensitive applications like food processing and marine environments. Overall, Alloy 20 is better for high-strength and aggressive chemical environments, while SS316 is suitable for acidic and marine settings.

Which material is better suited for high corrosion environments?

For high corrosion environments, Alloy 20 is better suited than SS316. Alloy 20, with its nickel-iron-chromium composition and additions of molybdenum and copper, provides superior resistance to sulfuric acid and chloride ion stress corrosion. This makes it ideal for highly aggressive chemical environments. In contrast, SS316, while offering good corrosion resistance and balanced mechanical properties, is less effective in very aggressive conditions. Therefore, for applications involving highly corrosive chemicals, Alloy 20 is the preferred choice due to its enhanced durability and resistance.

How do the mechanical properties of Alloy 20 compare to SS316?

When comparing the mechanical properties of Alloy 20 and SS316, Alloy 20 generally exhibits superior performance. Alloy 20 has higher tensile and yield strengths, making it more robust and suitable for demanding applications that require high mechanical integrity. Its tensile strength exceeds that of SS316, which is approximately 515 MPa, and its yield strength is also higher than the 205 MPa typical for SS316. Additionally, Alloy 20 offers excellent ductility and toughness, which are advantageous in environments needing flexibility and resistance to deformation.

In contrast, SS316, while having good mechanical properties, typically falls short of Alloy 20 in terms of strength and toughness. However, SS316 is easier to weld, shape, and form due to its lower carbon content, which minimizes the risk of carbide precipitation and maintains its mechanical properties. This makes SS316 more user-friendly in manufacturing processes. Overall, Alloy 20 is the better choice for applications requiring superior mechanical properties and high corrosion resistance, whereas SS316 is preferred for its ease of use and cost-effectiveness in less aggressive environments.

What are the cost implications of choosing Alloy 20 over SS316?

Choosing Alloy 20 over SS316 involves several cost implications. Initially, Alloy 20 is significantly more expensive, often costing 2-3 times more than SS316. This higher cost is due to Alloy 20’s unique composition, which includes expensive elements like nickel, chromium, copper, and molybdenum. However, Alloy 20 offers superior corrosion resistance, particularly in acidic environments, leading to enhanced durability and reduced maintenance needs over time. Consequently, while the upfront cost of Alloy 20 is higher, its extended service life and lower long-term maintenance costs can make it a more economical choice for applications where corrosion is a major concern. In contrast, SS316 is more budget-friendly initially and easier to fabricate, potentially reducing labor costs. The decision should be based on specific application requirements, balancing initial costs with long-term savings.

In which applications is SS316 preferred over Alloy 20?

SS316 is preferred over Alloy 20 in several applications due to its cost-effectiveness, formability, and adequate performance under moderate conditions. In marine and chloride-rich environments, SS316 is ideal for boat fittings, underwater sensors, and coastal infrastructure because of its superior resistance to chloride-induced pitting and crevice corrosion. It is also extensively used in desalination plants where components are exposed to saline water.

In the food and pharmaceutical industries, SS316’s non-reactive surface and ease of sanitization make it suitable for food processing equipment, such as conveyor belts and storage tanks, as well as pharmaceutical manufacturing components like reactors and tubing.

Moreover, SS316 is preferred in cost-sensitive applications, including large-scale infrastructure projects like fasteners and piping systems, and consumer goods such as kitchen appliances and cutlery. For environments involving moderate acidic conditions, such as brewing and dairy processing or wastewater treatment, SS316 provides reliable performance.

Can Alloy 20 and SS316 be used interchangeably in all industries?

Alloy 20 and SS316 cannot be used interchangeably in all industries due to their distinct properties and performance in specific environments. Alloy 20, a nickel-iron-chromium alloy with added copper and molybdenum, is highly resistant to sulfuric acid and chloride ions, making it ideal for the chemical and petrochemical industries. Its superior tensile and yield strengths also make it suitable for applications requiring high mechanical integrity. On the other hand, SS316, an austenitic chromium-nickel alloy with molybdenum, offers good resistance to chloride ion stress corrosion cracking and is effective in marine and mild acidic environments. Its versatility, cost-effectiveness, and excellent formability make it a preferred choice in marine, pharmaceutical, and food processing industries. Therefore, the choice between Alloy 20 and SS316 should be based on the specific requirements and environmental conditions of the application.
