ASTM A105 vs ASTM A105N: Key Differences and Applications

When selecting materials for industrial applications, understanding the nuances between different standards is crucial. ASTM A105 and ASTM A105N are two commonly used specifications in the realm of carbon steel forgings, but what exactly sets them apart? The key difference lies in the heat treatment process: ASTM A105N undergoes normalization, a treatment that enhances its mechanical properties and makes it more suitable for low-temperature applications compared to its counterpart, ASTM A105. This article will delve into the chemical composition, mechanical properties, and practical applications of both materials, providing you with a comprehensive comparison to help you make an informed decision. Which one will emerge as the better option for your needs? Read on to find out.

Chemical Composition Differences

Overview of Chemical Composition

ASTM A105 and ASTM A105N are well-known forged carbon steels widely used in high-pressure and high-temperature piping systems. These materials are popular for components such as flanges, fittings, and valves. Despite their different designations, both materials share identical chemical compositions, ensuring a balance of strength, ductility, and weldability. The "N" in ASTM A105N indicates that this material has undergone a normalization heat treatment process, enhancing its mechanical properties.

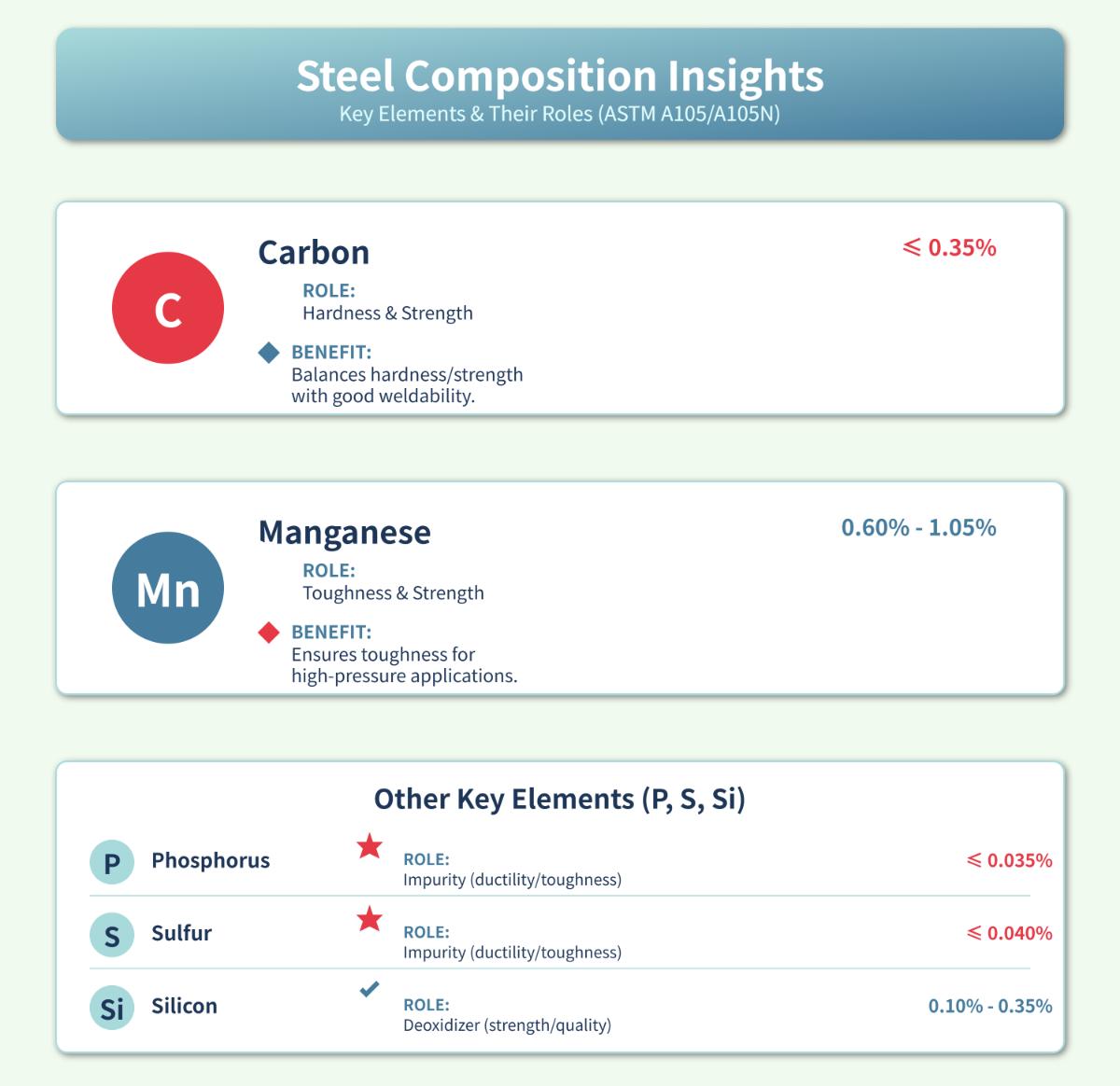

Key Elements in Chemical Composition

Carbon (C)

Carbon is crucial in steel, affecting its hardness and strength. Both ASTM A105 and ASTM A105N have a carbon content of up to 0.35%. This level of carbon provides adequate hardness and strength while maintaining good weldability.

Manganese (Mn)

Manganese makes the steel tougher and stronger. The manganese content in both ASTM A105 and ASTM A105N ranges between 0.60% and 1.05%, ensuring the material has sufficient toughness for high-pressure applications.

Phosphorus (P), Sulfur (S), and Silicon (Si)

Phosphorus and sulfur are impurities that can affect the steel’s ductility and toughness. The maximum allowable phosphorus content is 0.035%, and sulfur is limited to 0.040%. Silicon, added as a deoxidizer, ranges from 0.10% to 0.35%. Keeping phosphorus and sulfur low helps maintain the material’s mechanical properties, while silicon contributes to the

Trace Elements

Copper (Cu)

Copper, with a maximum content of 0.40%, improves corrosion resistance.

Nickel (Ni)

Nickel, also with a maximum content of 0.40%, enhances the steel’s toughness.

Chromium (Cr)

Chromium, with a maximum content of 0.30%, increases hardenability.

Molybdenum (Mo)

Molybdenum, with a maximum content of 0.12%, improves strength at high temperatures.

Vanadium (V)

Vanadium, with a maximum content of 0.08%, increases strength and toughness.

Comparative Analysis

While the chemical compositions of ASTM A105 and ASTM A105N are identical, the key difference lies in the heat treatment process applied to ASTM A105N. This process does not alter the chemical composition but significantly enhances the material’s mechanical properties, making ASTM A105N more suitable for critical applications where increased toughness and ductility are required.

Understanding the chemical composition and its impact on material properties allows engineers and material specifiers to make informed decisions when selecting the appropriate steel grade for their specific applications.

Carbon Content Analysis

Carbon Content in ASTM A105 and ASTM A105N

Carbon content is the amount of carbon in a steel alloy, which greatly affects the material’s strength, hardness, and weldability. In the case of ASTM A105 and ASTM A105N, carbon plays a crucial role in determining their mechanical properties. Both ASTM A105 and ASTM A105N have a maximum carbon content limit of 0.35%. This identical carbon content means that, chemically, they have the same basis for strength and hardness.

However, some sources may suggest that ASTM A105 has a higher carbon content than ASTM A105N. Official ASTM specifications and chemical tests confirm that both grades have the same carbon content limit. The confusion likely arises from the difference in their heat treatment processes rather than actual carbon content variation.

The carbon content ensures both materials are hard and strong, yet easy to weld. Although the carbon content is the same, the heat treatment of ASTM A105N (normalization) refines the grain structure without altering the carbon content. This results in improved mechanical properties such as toughness, ductility, and impact resistance, which are crucial in certain applications where ASTM A105 may not perform as well.

Normalization Heat Treatment Process

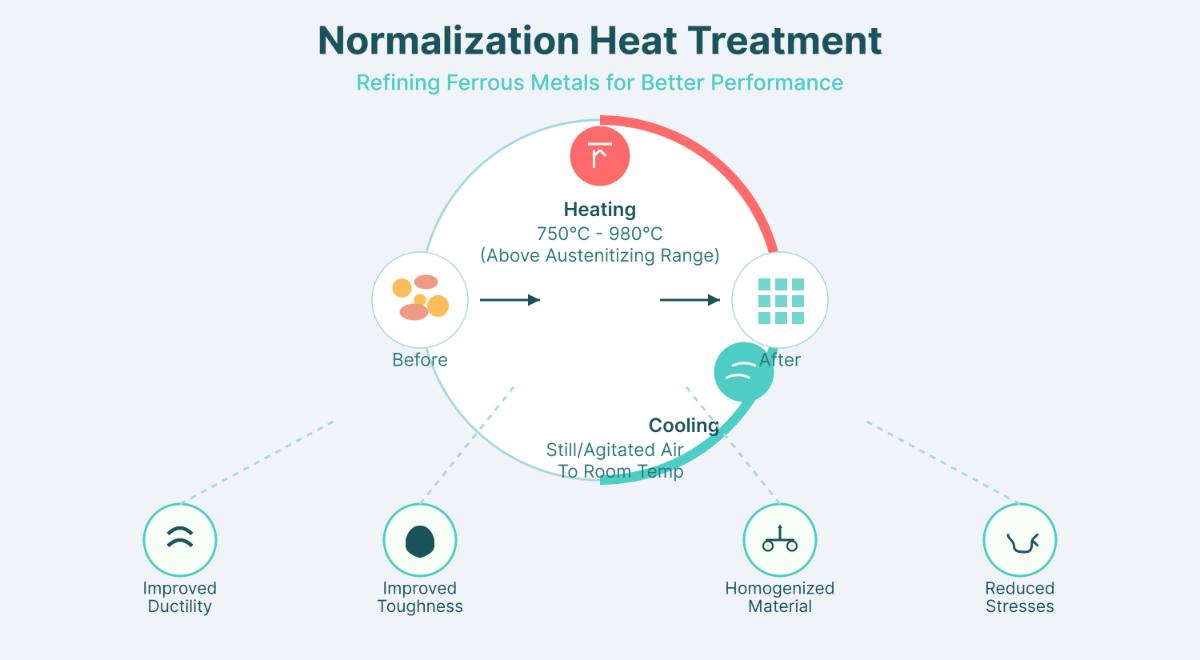

Overview of Normalization Heat Treatment

Normalization heat treatment is a process primarily applied to ferrous metals. It involves heating the steel to a temperature above its austenitizing range, typically between 750°C and 980°C, depending on the carbon content. After reaching the appropriate temperature, the steel is cooled in still or agitated air to room temperature. This process refines the microstructure, homogenizes the material, reduces residual stresses, and improves mechanical properties such as ductility and toughness.

ASTM A105 and ASTM A105N: Heat Treatment Context

ASTM A105 is a standard specification for carbon steel forgings used mainly in pressure vessels and piping components that require moderate strength and toughness. Usually, it is supplied in a forged or as-rolled condition, and normalization is optional unless specified.

On the other hand, ASTM A105N is the normalized version of ASTM A105. The "N" suffix indicates that the forgings have undergone normalization heat treatment after forging.

Key Differences in Heat Treatment

Heat Treatment Requirement

• ASTM A105: Forged and typically supplied as-is. Normalization is not mandatory unless the customer specifically requests it.
• ASTM A105N: Mandatory normalization heat treatment after forging.

Microstructure

• ASTM A105: May have non-uniform grain sizes and residual stresses from the forging process.
• ASTM A105N: Due to normalization, it has a uniform fine-grained pearlitic structure with reduced residual stresses.

Mechanical Properties

• ASTM A105: Mechanical properties can vary based on forging and cooling conditions. It may have higher residual stresses and hardness, which can lead to lower ductility.
• ASTM A105N: Improved ductility, toughness, and machinability due to the refined microstructure and homogenization achieved through normalization.

Hardness

• ASTM A105: Potentially higher hardness and brittleness due to forging and cooling conditions.
• ASTM A105N: Moderate hardness with a better balance of strength and ductility.

Residual Stresses

• ASTM A105: Higher residual stresses from forging and uneven cooling, increasing the risk of cracking and distortion.
• ASTM A105N: Reduced residual stresses after normalization, which lowers the risk of cracking and distortion.

Dimensional Stability

• ASTM A105: Less stable, with a higher risk of distortion during machining or welding.
• ASTM A105N: Better dimensional stability, crucial for precision components.

Cost and Lead Time

• ASTM A105: Potentially lower cost if normalization is not required, with a shorter lead time.
• ASTM A105N: Slightly higher cost and longer lead time because of the additional heat treatment step.

Normalization Process Parameters for ASTM A105N

• Heating Temperature: Typically about 55°C above the upper critical temperature (Ac3), usually in the range of 750–980°C depending on carbon content.
• Holding Time: Approximately 1 hour per 25 mm of thickness to ensure complete transformation into austenite.
• Cooling: Air cooling to room temperature, resulting in a fine pearlite and ferrite microstructure. This process refines the grain size, enhances toughness and machinability, reduces hardness from forging, and removes internal stresses.

Mechanical Properties Comparison

Core Mechanical Properties

Understanding the mechanical properties of ASTM A105 and ASTM A105N is crucial for selecting the appropriate material for specific applications. Although both share identical chemical compositions, their mechanical properties differ significantly due to the normalization heat treatment applied to ASTM A105N.

Tensile and Yield Strength

Both ASTM A105 and ASTM A105N have minimum tensile and yield strength requirements:

• Tensile Strength: ≥485 MPa
• Yield Strength: ≥250 MPa

While these values are the same for both grades, ASTM A105N offers more consistent performance under stress because of its refined microstructure from the normalization process.

Impact Toughness

Impact toughness is a critical factor, especially for low-temperature applications. ASTM A105N exhibits superior impact resistance compared to ASTM A105. The normalization process enhances grain uniformity, significantly improving the material’s ability to absorb energy without fracturing. This makes ASTM A105N ideal for environments where materials are subjected to dynamic loads or low temperatures.

Hardness

The Brinell hardness (HB) for both ASTM A105 and ASTM A105N is capped at a maximum of 187 HB. However, the uniform grain structure of ASTM A105N reduces localized stress concentrations, thereby mitigating the risk of brittle failure. This results in a better balance of hardness and toughness in ASTM A105N compared to ASTM A105.

Microstructural Differences

The microstructure of a material greatly influences its mechanical properties.

Grain Structure

ASTM A105 typically has a coarser grain structure due to the absence of post-forging heat treatment, which can lead to non-uniform mechanical properties.

In contrast, ASTM A105N undergoes normalization, which refines the grain structure, resulting in a more uniform and finer grain size. This refinement contributes to enhanced mechanical properties, including better toughness and ductility.

Stress Resistance

The refined grain structure of ASTM A105N also enhances its resistance to stress. This makes ASTM A105N more suitable for applications involving cyclic loading or high-pressure surges. The reduced residual stresses from normalization further boost its performance under challenging conditions.

Temperature Service Range

The suitability of ASTM A105 and ASTM A105N for various temperature ranges is an essential consideration for material selection.

High-Temperature Applications

Both ASTM A105 and ASTM A105N can be used in high-temperature applications. ASTM A105 is generally more cost-effective for standard high-temperature applications where extreme toughness is not critical, making it a practical choice for many industries.

Low-Temperature Applications

ASTM A105N is the preferred choice for low-temperature applications. Its superior impact toughness prevents brittle fracture at temperatures as low as -29°C to -46°C, making it suitable for subzero pipelines and cryogenic storage systems.

Practical Implications

The differences in mechanical properties between ASTM A105 and ASTM A105N have practical implications for their use in industry.

While ASTM A105 is more cost-effective for general applications where extreme mechanical properties are not required, ASTM A105N justifies the higher cost for critical applications requiring enhanced toughness and stress resistance.

ASTM A105 is suitable for high-temperature, non-critical systems such as general flanges, valves, and fittings in oil and gas pipelines. On the other hand, ASTM A105N is ideal for low-temperature, high-stress environments, including subzero pipelines, cryogenic storage, and dynamic load systems.

When selecting between ASTM A105 and ASTM A105N, consider the specific mechanical property requirements and the environmental conditions of the application.

Mechanical Test Data Summaries

Tensile and Yield Strength

Both ASTM A105 and ASTM A105N have a minimum tensile strength of 70,000 psi (485 MPa) and a minimum yield strength of 36,000 psi (250 MPa), but ASTM A105N may have slightly higher values due to its normalization heat treatment. The normalization process refines the grain structure, allowing ASTM A105N to better withstand stress, making it more reliable in high-stress applications.

Reduction of Area

The reduction of area measures a material’s ductility, with ASTM A105 having a minimum reduction of area of 30%. The normalization process of ASTM A105N enhances ductility by refining grain size and reducing internal stresses, making it more suitable for applications requiring significant deformation.

Hardness (Brinell)

Both ASTM A105 and ASTM A105N have a maximum Brinell hardness of 187 HB. However, ASTM A105N generally has a more consistent hardness due to the normalization process, which helps prevent localized hardness variations that could lead to premature failure in ASTM A105.

Impact Toughness (CVN)

Impact toughness is especially important for materials used in low-temperature environments. ASTM A105 does not require mandatory CVN (Charpy V-notch) impact testing and generally has lower impact toughness at low temperatures. In contrast, ASTM A105N requires CVN testing and has better low-temperature toughness due to the normalization process, making it more suitable for dynamic loads or low-temperature conditions.

Temperature Suitability and Applications

Temperature Suitability

High-Temperature Applications

ASTM A105 performs well in high-temperature settings. Its inherent properties make it an excellent choice for components subjected to elevated temperatures, such as flanges, valves, and fittings in pressure systems, ensuring reliable performance. Industries like oil and gas, chemical processing, and power generation often use ASTM A105 for these reasons.

Low-Temperature Applications

ASTM A105N is designed to perform better in low-temperature environments. The normalization process enhances ASTM A105N’s toughness, making it capable of withstanding stress and reducing the risk of brittle fracture at lower temperatures. This makes it particularly suitable for applications where the material will be exposed to subzero temperatures, such as cryogenic storage systems and pipelines operating in cold climates.

Applications

General-Purpose Applications

ASTM A105 is commonly used in general-purpose applications involving moderate to high temperatures due to its robust mechanical properties, including strength and weldability. Typical uses include flanges and fittings in oil and gas pipelines, valves in chemical processing plants, and components in power generation systems.

High-Stress and Low-Temperature Applications

ASTM A105N’s enhanced mechanical properties due to normalization make it ideal for high-stress and low-temperature applications. The improved toughness and reduced internal stresses allow it to perform reliably under demanding conditions. This material is preferred for critical applications where failure is not an option, such as subzero pipelines in arctic regions, cryogenic storage tanks and systems, and high-pressure systems in petrochemical plants.

Comparative Analysis

Performance Under Stress

Both materials work in high temperatures, but ASTM A105N’s enhanced toughness makes it better for high-stress, low-temperature applications. The normalization process refines the grain structure, reducing internal stresses and improving the material’s

Application Suitability

• ASTM A105: Ideal for high-temperature, moderate-stress environments such as oil and gas pipelines, chemical processing plants, and power generation systems.
• ASTM A105N: Best suited for low-temperature, high-stress applications such as cryogenic storage, subzero pipelines, and high-pressure systems in critical industries.

By understanding the temperature suitability and specific applications for ASTM A105 and ASTM A105N, engineers and material specifiers can make informed decisions about which material to use based on the environmental conditions and mechanical demands of their projects.

Application-Based Recommendation Guidance

High-Temperature Applications

ASTM A105 is ideal for high-temperature pressure vessels and piping. Its slightly higher carbon content provides the necessary strength and hardness at elevated temperatures, making it suitable for industries like oil and gas, chemical processing, and power generation. For standard industrial flanges, fittings, and valves at room temperature, ASTM A105 is also sufficient. It offers adequate mechanical properties, and since normalization is not required, it can be procured at a lower cost with a shorter lead time.

Low-Temperature Applications

ASTM A105N is the preferred material for low – temperature service. In sub – zero environments or refrigerated systems, ASTM A105N’s normalization heat treatment ensures toughness and prevents brittle fracture. For example, in cryogenic storage systems or pipelines operating in cold climates, the enhanced impact toughness of ASTM A105N is crucial. It can withstand the stress and reduce the risk of sudden failure at low temperatures.

Critical Pressure Systems

For critical pressure systems needing enhanced mechanical reliability, ASTM A105N is the superior choice. The normalization process refines the grain structure, reducing internal stresses and improving

Applications with Thermal Cycling or Shock Loading

For applications involving frequent thermal cycling or shock loading, ASTM A105N is highly recommended. Its refined grain structure allows it to resist cracking under thermal and mechanical stress. In contrast, ASTM A105, with its coarser grain structure and potential internal stresses, may be more likely to develop cracks in such demanding applications.

Practical Application Scenarios

High-Temperature Applications

ASTM A105 is highly effective in high-temperature environments due to its robust mechanical properties. Its strength and hardness make it ideal for components such as flanges, valves, and fittings used in pressure systems, commonly utilized in industries like oil and gas, chemical processing, and power generation. The material’s ability to withstand high temperatures without significant degradation ensures reliable performance and longevity.

Low-Temperature Applications

For low-temperature applications, ASTM A105N is the preferred choice. The normalization process enhances the material’s toughness and flexibility, making it suitable for very cold environments. ASTM A105N is commonly used in cryogenic storage systems and pipelines operating in cold climates. Its superior impact toughness prevents brittle fracture, ensuring the integrity and safety of the system in subzero conditions.

High-Stress Environments

In high-stress environments, ASTM A105N offers distinct advantages due to its enhanced mechanical properties. The normalization process refines the grain structure, reducing internal stresses and improving

General Industrial Use

For general industrial applications where high stress or low temperatures are not a concern, ASTM A105 is a cost-effective and reliable choice. It has good mechanical properties and weldability, making it suitable for a wide range of applications, including flanges, fittings, and valves in standard pressure systems. ASTM A105 is often used in routine maintenance and construction projects where the conditions do not demand the enhanced properties of ASTM A105N.

Comparative Analysis

When choosing between ASTM A105 and ASTM A105N, consider the specific requirements of the application. ASTM A105 is suitable for high-temperature environments and general industrial use, offering strength and reliability at a lower cost. In contrast, ASTM A105N is better for low-temperature applications and high-stress environments due to its enhanced toughness and reduced internal stresses from normalization. Understanding these practical application scenarios helps engineers and material specifiers select the appropriate material for their projects.

Typical Industrial Uses

Oil and Gas Industry

ASTM A105 is commonly used in the oil and gas industry to manufacture flanges, fittings, and valves. These components are crucial in pipelines and pressure systems, where they must withstand high temperatures and pressures. ASTM A105 is favored for its cost-effectiveness and adequate performance in standard applications, such as oil extraction and refinery processes.

For more critical applications, ASTM A105N is preferred for its enhanced toughness and ductility. The normalization process makes it suitable for environments with fluctuating pressures and temperatures, such as deep-sea drilling and high-pressure gas transport systems, where its improved impact resistance helps prevent failures.

Power Generation

In power generation plants, ASTM A105 is commonly used for steam piping, boiler components, and general-purpose fittings. Its ability to maintain strength and stability at high temperatures makes it a reliable choice for these applications, ensuring efficient and safe operation of power generation systems.

ASTM A105N is particularly valuable in power generation environments where components are subject to thermal cycling and stress. The normalization process provides the material with better dimensional stability and reduced risk of distortion, making it ideal for high-stress applications such as superheaters, reheaters, and turbine components.

Chemical and Petrochemical Industry

ASTM A105 is used in less demanding applications in the chemical and petrochemical industry. It works well for standard flanges, fittings, and valves in systems that don’t face extreme conditions, offering a cost-effective solution for many chemical processes and plant maintenance.

ASTM A105N is ideal for challenging environments with corrosive chemicals or low temperatures. Its superior toughness and reduced residual stresses make it suitable for critical applications such as reactor vessels, high-pressure pipelines, and storage tanks. The enhanced mechanical properties ensure reliability and safety in aggressive chemical environments.

Water Distribution Systems

In water distribution systems, ASTM A105 is utilized for various fittings and flanges that do not require advanced mechanical properties. Its performance under standard pressure and temperature conditions makes it a practical choice for municipal and industrial water supply networks.

For applications where water distribution systems are exposed to stress corrosion or fluctuating pressures, ASTM A105N offers better performance. The normalization process enhances its resistance to cracking and stress corrosion, making it suitable for critical components in high-pressure water transport systems and desalination plants.

Marine Applications

ASTM A105 is employed in shipbuilding and marine installations for components such as flanges and fittings that operate under moderate conditions. Its ability to withstand high temperatures and pressures makes it suitable for engine rooms and general marine piping systems.

In marine applications requiring higher toughness and impact resistance, ASTM A105N is preferred. Its improved mechanical properties from normalization make it ideal for critical systems such as ballast water treatment, offshore oil platforms, and submarine pipelines. The material’s enhanced performance ensures long-term reliability in the challenging marine environment.

Comparative Summary

ASTM A105 is suitable for general-purpose applications with standard requirements, while ASTM A105N is essential for critical and high-stress environments due to its superior toughness and resistance. The choice between these materials depends on the specific demands of the application, balancing cost-effectiveness with the need for enhanced performance.

Comparison Table of Key Differences and Usage Scenarios

Key Differences and Usage Scenarios

Material Type and Heat Treatment

ASTM A105 and ASTM A105N are both commonly used for making flanges, fittings, and valves. ASTM A105 is typically used in its forged or as-rolled condition, whereas ASTM A105N undergoes a normalization heat treatment process. This treatment involves heating the steel to a specific temperature and then air – cooling it, which refines the grain structure and reduces internal stresses.

Mechanical Properties

Both ASTM A105 and ASTM A105N have a minimum tensile strength of 70,000 psi (485 MPa) and a yield strength of 36,000 psi (250 MPa). However, the normalized structure of ASTM A105N ensures more consistent performance under stress. ASTM A105N offers superior impact toughness due to the normalization process, making it suitable for low – temperature applications where brittleness could be an issue. Both materials have a maximum Brinell hardness of 187 HB. ASTM A105N’s normalized structure results in more uniform hardness, reducing the risk of brittle failure.

Temperature Suitability

ASTM A105 is ideal for high – temperature environments because of its strength and hardness, making it suitable for pressure system components. ASTM A105N is better suited for low – temperature environments because the normalization process enhances its toughness, preventing brittle fractures at subzero temperatures.

Applications

ASTM A105 is used in general pressure systems with standard mechanical requirements, while ASTM A105N is preferred for high – stress or low – temperature applications like cryogenic equipment.

Comparison Table

Practical Scenarios

In the oil and gas industry, ASTM A105 is used for standard flanges, fittings, and valves in oil and gas pipelines. ASTM A105N is used in more critical applications, such as deep – sea drilling and high – pressure gas transport systems. In power generation, ASTM A105 is used for steam piping and boiler components. ASTM A105N is preferred for components subjected to thermal cycling and stress, such as superheaters and turbine components. ASTM A105 suits standard flanges and fittings, whereas ASTM A105N is ideal for reactor vessels and high – pressure pipelines in corrosive or low – temperature settings. In water distribution systems, ASTM A105 is used for general fittings and flanges, while ASTM A105N is used for components exposed to stress corrosion or fluctuating pressures. In marine applications, ASTM A105 is used for moderate conditions, while ASTM A105N is preferred for critical systems like offshore platforms and submarine pipelines.

Standards and Specifications Overview

Overview of ASTM A105

ASTM A105 is a standard specification for forged carbon steel piping components primarily used in ambient and high-temperature service applications. It encompasses a wide range of products, including flanges, fittings, valves, and pressure vessels, ensuring that the materials can withstand the required pressure and temperature conditions without failure.

ASTM A105N and Normalization

ASTM A105N, a variation of ASTM A105, has an "N" suffix indicating the material has been normalized, which means heating the steel above its critical temperature and then air-cooling it. This process refines the grain structure, relieves internal stresses, and improves the material’s mechanical properties, particularly its toughness at low temperatures.

Dimensional Standards Compliance

Both ASTM A105 and ASTM A105N comply with several key dimensional standards that dictate the size and pressure ratings of piping components:

• ANSI/ASME B16.5: This standard offers guidelines on dimensions, tolerances, and marking for pipe flanges and flanged fittings.
• ANSI/ASME B16.47: This standard applies to large-diameter steel flanges, including dimensions and pressure classes.
• ANSI/ASME B16.48: This standard specifies the dimensions and pressure ratings for line blanks, which are used to isolate sections of piping systems.

In addition to these American standards, ASTM A105 and A105N also meet international standards such as BS, DIN, and EN, making them suitable for use in global projects.

Key Differences in Specifications

Below is a table summarizing the key differences between ASTM A105 and ASTM A105N:

Applications and Service Conditions

• ASTM A105: Commonly used in applications where components are exposed to ambient or high temperatures. This includes general piping, pressure vessels, and valves in industries like oil and gas, chemical processing, and power generation.
• ASTM A105N: Preferred for applications requiring enhanced mechanical performance at low temperatures. Typical uses include cryogenic systems, offshore platforms, and pipelines in cold climates, where the material’s improved toughness and reduced internal stresses are critical.

Mechanical and Chemical Requirements

Chemical Composition

Mechanical Properties

While both ASTM A105 and A105N have similar chemical compositions and mechanical properties, the normalization process in ASTM A105N significantly enhances its toughness and reliability, making it suitable for more demanding applications.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the main difference between ASTM A105 and ASTM A105N?

The main difference between ASTM A105 and ASTM A105N lies in the heat treatment process and the resulting mechanical properties. ASTM A105 is a forged carbon steel material that is typically used without mandatory normalization. In contrast, ASTM A105N undergoes a normalization heat treatment process, indicated by the "N" suffix. This process involves heating the steel to a specific temperature and then air cooling it, which refines the grain structure, reduces internal stresses, and enhances toughness. Consequently, ASTM A105N exhibits improved mechanical properties, especially at low temperatures, making it more suitable for applications requiring better toughness and resistance to brittle fracture in cold environments.

Which material is better for low temperature applications: ASTM A105 or ASTM A105N?

ASTM A105N is better suited for low temperature applications compared to ASTM A105. The primary distinction lies in the heat treatment process. ASTM A105N undergoes normalization, a heat treatment that refines the grain structure and relieves internal stresses, enhancing its toughness and ductility at low temperatures. This process also slightly lowers the carbon content, which further improves its impact resistance in cold conditions. On the other hand, ASTM A105, which is not normalized, tends to retain higher internal stresses and has lower toughness at low temperatures, increasing the risk of brittle fracture. Therefore, for applications involving sub-zero or low-temperature environments, ASTM A105N is the preferable choice due to its superior performance and reliability in such conditions.

What are the mechanical property differences between ASTM A105 and ASTM A105N?

The primary mechanical property differences between ASTM A105 and ASTM A105N stem from the heat treatment process applied to ASTM A105N. ASTM A105 is typically supplied as forged without mandatory heat treatment, resulting in a higher hardness due to its slightly elevated carbon content. However, this can lead to increased brittleness, especially at low temperatures.

In contrast, ASTM A105N undergoes a normalization process, where the steel is heated above its critical temperature (approximately 950°C) and then air-cooled. This treatment refines the grain structure, reduces internal stresses, and enhances the material’s toughness and ductility. Consequently, ASTM A105N exhibits superior impact toughness and better performance in low-temperature environments compared to ASTM A105. Both materials have similar tensile (minimum 485 MPa) and yield strengths (minimum 250 MPa), but ASTM A105N’s mechanical properties are more uniform and reliable due to the normalization process.

What heat treatment is applied to ASTM A105N and why?

ASTM A105N undergoes a specific heat treatment process known as normalization. This involves heating the steel to approximately 950°C (1742°F) and then allowing it to cool in still air. The purpose of this normalization process is to refine the grain structure of the steel, enhance its mechanical properties, and reduce internal stresses. This treatment significantly improves the material’s strength, toughness, and ductility. Consequently, ASTM A105N becomes more suitable for critical applications that involve high stress and low temperatures. This makes it preferable for demanding environments where enhanced performance is crucial, such as in downstream facilities handling temperature fluctuations and other extreme conditions.

What are typical applications for ASTM A105 and ASTM A105N?

ASTM A105 and ASTM A105N are widely used in industries requiring strength and durability under pressure and temperature stress. ASTM A105 is suitable for general high – pressure, high – temperature applications. It’s commonly used in oil and gas pipelines, refineries, less critical zones of power generation, typical municipal water systems, construction projects, and industrial machinery. ASTM A105N, with enhanced mechanical properties due to normalization heat treatment, is preferred for more demanding conditions. It’s used in deep – water or high – temperature zones in the oil and gas industry, extreme temperature cycle equipment in power plants, harsh chemical environments in petrochemical plants, more demanding industrial water applications, aggressive saline marine environments, and critical load – bearing components.

How does carbon content impact the performance of ASTM A105 and ASTM A105N?

The carbon content in both ASTM A105 and ASTM A105N is approximately 0.35%, which influences their strength and hardness. Higher carbon content typically enhances these properties but can reduce toughness. Despite having the same carbon content, the primary difference between the two lies in their heat treatment. ASTM A105N undergoes normalization, which refines its grain structure and improves toughness and ductility. This makes ASTM A105N more suitable for low-temperature and high-stress applications compared to ASTM A105, which may have coarser grains and residual stresses due to the lack of normalization. Therefore, while carbon content provides baseline mechanical properties, the heat treatment process in ASTM A105N significantly enhances performance in more demanding conditions.
