ASTM A53 Grade A vs Grade B Pipes: What’s the Difference?

When it comes to choosing the right pipe for your project, the details matter. Among the most commonly used pipes in various industries are ASTM A53 Grade A and Grade B pipes, but how do you decide which one is right for your needs? Understanding the differences between these two grades can be crucial for ensuring optimal performance and cost-effectiveness in your applications. In this article, we’ll delve into the key distinctions between ASTM A53 Grade A and Grade B pipes, from mechanical properties and chemical composition to manufacturing processes and typical applications. Are you ready to find out which grade suits your project best? Let’s explore the specifics and see how these two grades stack up against each other.

Overview of ASTM A53 Standard and Pipe Grades

Introduction to ASTM A53 Standard

ASTM A53 is an important standard for carbon steel pipes used in mechanical, pressure, and general applications like steam, water, gas, and air lines. This standard ensures that pipes meet specific criteria to be reliable and effective for these uses.

Types of ASTM A53 Pipes

ASTM A53 pipes are categorized into three types based on their manufacturing processes:

• Type F (Furnace Welded): Continuous welded pipes created through furnace welding. Typically used in scenarios where welding is acceptable but flanging is not suitable, and primarily employed in low-pressure applications.
• Type E (Electric Resistance Welded – ERW): Manufactured using electric resistance welding. These pipes are ideal for mechanical and pressure applications and can undergo welding and coiling processes. ERW pipes are widely used due to their versatility and reliability in various pressure systems.
• Type S (Seamless): Seamless pipes, meaning they do not have welding seams. Offering superior strength, they are preferred for high-temperature and high-pressure applications where maximum durability is required.

Grades of ASTM A53 Pipes

ASTM A53 pipes are available in two primary grades—Grade A and Grade B—each with distinct mechanical properties and applications.

Grade A Pipes

Grade A pipes have moderate strength, with a minimum tensile strength of 48,000 psi (330 MPa) and a minimum yield strength of 30,000 psi (205 MPa). These pipes are suitable for lower pressure applications and are often chosen for their cost-effectiveness without compromising essential mechanical properties.

Grade B Pipes

Grade B pipes offer higher strength compared to Grade A, with a minimum tensile strength of 60,000 psi (415 MPa) and a minimum yield strength of 35,000 psi (240 MPa). Due to their enhanced strength, Grade B pipes are preferred in higher pressure and structural applications where durability and reliability are critical.

Comparative Analysis of ASTM A53 Grades

The main difference between Grade A and Grade B pipes is their mechanical strength, especially in terms of tensile and yield strengths.

Application Suitability

• Grade A Pipes: Ideal for water, gas, and air lines in low-pressure settings. These pipes offer a cost-effective option without compromising essential strength.
• Grade B Pipes: Preferred for steam lines, high-pressure systems, and structural frameworks. Their higher strength makes them suitable for applications requiring robust and durable pipes.

Mechanical Properties Comparison

Tensile Strength Comparison

Tensile strength measures the maximum stress a material can endure while being stretched or pulled before breaking. The ASTM A53 Grade A pipes have a minimum tensile strength of 48,000 psi (330 MPa), while Grade B pipes exhibit a higher minimum tensile strength of 60,000 psi (415 MPa). This significant difference indicates that Grade B pipes are more robust and can handle greater stress, making them suitable for applications that demand higher durability and resistance to deformation.

Yield Strength Comparison

Yield strength is the stress level at which a material starts to deform permanently. For ASTM A53 Grade A pipes, this is at least 30,000 psi (205 MPa), while for Grade B pipes, it is at least 35,000 psi (240 MPa). This higher yield strength in Grade B pipes provides better resistance to permanent deformation under load, making them ideal for high-pressure applications.

Elongation Characteristics

Elongation measures how much a material can stretch before it breaks. Both ASTM A53 Grade A and Grade B pipes have a similar elongation requirement of at least 25% for longitudinal tension test specimens. This property ensures that both grades can absorb energy and deform without breaking, which is crucial for applications involving dynamic or fluctuating loads.

Impact of Mechanical Properties on Applications

The mechanical properties of ASTM A53 Grade A and Grade B pipes determine their suitability for different applications. Grade A pipes, with lower tensile and yield strengths, are used in low-pressure systems where cost is a key factor, such as water, gas, and air lines. Grade B pipes, which are stronger, are preferred for high-pressure systems and structural uses like steam lines and frameworks, where strength and durability are essential.

Cost Implications Based on Mechanical Properties

The differences in mechanical properties also affect the cost of these pipes. Grade A pipes are typically less expensive due to their lower strength requirements, making them a cost-effective choice for applications that do not demand high strength. Conversely, Grade B pipes are more expensive but provide superior mechanical properties, justifying the higher cost for applications requiring enhanced strength and reliability.

Chemical Composition Differences

Carbon Content

One of the main differences between ASTM A53 Grade A and Grade B pipes is their carbon content.

• Grade A: The maximum carbon content for Grade A pipes is 0.25% for seamless and ERW types, and up to 0.30% for furnace-welded pipes.
• Grade B: Grade B pipes have a slightly higher maximum carbon content of 0.30%.

The higher carbon content in Grade B pipes contributes to increased strength but can reduce weldability, making it a critical factor in choosing the appropriate grade for specific applications.

Manganese Content

Manganese is another element that significantly differs between the two grades, with Grade A containing up to 0.95% and Grade B up to 1.20%. This higher manganese content in Grade B pipes enhances mechanical strength, making these pipes more suitable for high-stress environments.

Phosphorus and Sulfur Content

Both grades have strict limits on phosphorus and sulfur to ensure good machinability and resistance to cracking.

• Phosphorus: Both Grade A and Grade B pipes have a maximum phosphorus content of 0.05%.
• Sulfur: Both grades also have a maximum sulfur content of 0.045%.

These limits are essential for maintaining the integrity and workability of the pipes during various manufacturing and operational processes.

Trace Elements

Both grades of ASTM A53 pipes may contain trace amounts of elements like copper, nickel, chromium, molybdenum, and vanadium, which influence their properties:

• Copper: Up to 0.40%
• Nickel: Up to 0.40%
• Chromium: Up to 0.40%
• Molybdenum: Up to 0.15%
• Vanadium: Up to 0.08%

These trace elements can enhance properties such as corrosion resistance and structural integrity, contributing to the overall performance of the pipes in different environments.

Comparison Summary

Here is a comparative summary of the chemical composition between Grade A and Grade B pipes:

These differences in chemical composition are crucial as they influence the mechanical properties and the suitability of Grade A and Grade B pipes for various applications. Understanding these variations helps in selecting the appropriate grade for specific needs, ensuring optimal performance and durability.

Manufacturing Processes

Overview of Manufacturing Processes

The manufacturing processes for ASTM A53 pipes, including Grade A and Grade B, differ based on the type of pipe and specific grade requirements. Understanding these processes is essential for selecting the appropriate pipe for specific applications.

Raw Material Production

Both ASTM A53 Grade A and Grade B pipes start with raw steel, produced using basic oxygen furnaces, open hearth furnaces, or electric furnaces. These methods ensure the steel meets the required chemical composition and mechanical properties standards.

Type F Pipes (Furnace Welded)

Grade A pipes are produced using a continuous coil with the longitudinal seam sealed through forge welding. This involves heating the edges of the coil and pressing them together to form a bond. Type F pipes are cost-effective and suitable for lower pressure applications and non-critical structural uses. Note that Type F pipes are not produced for Grade B.

Type E Pipes (Electric Resistance Welded – ERW)

ERW pipes are created by passing a high-frequency electrical current through the steel, heating it, and welding the edges together. This method is efficient and produces strong, consistent welds, making these pipes suitable for mechanical and pressure applications.

Seamless Pipes

Seamless pipes, produced without welding seams, are made by heating a solid steel billet and piercing it to create a hollow tube. This method provides superior strength, ideal for high-temperature and high-pressure applications. Grade B seamless pipes may undergo additional processes like alloying, heat treatment, or cold working to enhance their mechanical properties.

Comparison of Key Manufacturing Aspects

Grade A pipes, with their simpler manufacturing processes and lack of additional processing steps, are more cost-effective and suited for lower pressure applications. They focus on weldability and ductility, making them ideal for non-critical uses. Grade B pipes, on the other hand, benefit from potential enhancements such as alloying and heat treatment, which increase their strength and make them suitable for higher pressure and more demanding applications.

Applications and Suitability

Applications of ASTM A53 Grade A Pipes

Low-Pressure Systems

ASTM A53 Grade A pipes are often chosen for moderate pressure applications due to their adequate mechanical properties and cost-effectiveness. These pipes are suitable for transporting water, gas, and air in systems where high strength is not critical.

General Mechanical Applications

Grade A pipes are also utilized in general mechanical applications, such as in the construction of non-critical structural components. Their moderate strength and good ductility make them suitable for bending, coiling, and forming operations, offering flexibility for various mechanical uses without requiring high-pressure resistance.

Cost-Sensitive Projects

Grade A pipes are cost-effective for budget-sensitive projects. The lower material costs associated with Grade A pipes make them an attractive option for large-scale installations where high strength is not a primary requirement.

Applications of ASTM A53 Grade B Pipes

High-Pressure Systems

ASTM A53 Grade B pipes are preferred for high-pressure systems thanks to their superior tensile and yield strengths. These properties make Grade B pipes suitable for applications such as steam lines, where higher pressure resistance is essential to ensure safety and durability. The increased strength of Grade B pipes allows them to withstand greater internal and external pressures.

Structural and Load-Bearing Applications

Grade B pipes are widely used in structural and load-bearing applications where strength and durability are crucial. These pipes are employed in the construction of frameworks, supports, and other critical structural components that require enhanced mechanical properties. The higher strength of Grade B pipes ensures that they can support significant loads without risk of failure.

Demanding Environments

In environments that demand high durability and reliability, Grade B pipes are the preferred choice. Their superior mechanical properties make them suitable for use in more challenging conditions, such as those involving higher temperatures or corrosive substances. Grade B pipes are often utilized in industrial settings where robust performance is necessary to maintain operational integrity.

Comparative Analysis

Strength Requirements

When comparing Grade A and Grade B pipes, the primary consideration is the strength requirement of the application. Grade A pipes are suitable for lower strength applications, while Grade B pipes are necessary for higher strength and more demanding environments. The choice between the two grades depends on the specific mechanical requirements of the project.

Cost Considerations

Cost is another critical factor in selecting between Grade A and Grade B pipes. While Grade B pipes offer superior strength and durability, they are also more expensive. For projects where budget constraints are tight and high strength is not required, Grade A pipes provide a more economical option without compromising necessary mechanical properties.

Application-Specific Suitability

The choice between ASTM A53 Grade A and Grade B pipes depends largely on the specific application. Grade A pipes are ideal for low-pressure, cost-sensitive projects, while Grade B pipes are better suited for high-pressure, structural, and demanding environments. Understanding the mechanical requirements and environmental conditions of the application is essential in making an informed selection between these two grades.

Practical Guidance for Application-Based Selection

The main difference between the two grades is in their mechanical properties, particularly their yield and tensile strengths. Grade B pipes have significantly higher yield and tensile strengths compared to Grade A:

• Yield Strength: Grade B’s 35,000 psi versus Grade A’s 30,000 psi means Grade B pipes can withstand higher stress before deforming permanently, crucial for pressure vessels and high-stress piping systems.
• Tensile Strength: Grade B’s 60,000 psi versus Grade A’s 48,000 psi indicates greater resistance to breaking under tension.

This makes Grade B pipes the preferred choice for applications involving higher pressures, such as steam lines, high-pressure water systems, and certain industrial processes where safety margins are critical. Conversely, Grade A’s lower carbon content results in better weldability and ductility, making it suitable for applications where ease of fabrication and forming are prioritized over ultimate strength.

Grade B pipes have a slightly higher carbon and manganese content, contributing to their enhanced mechanical strength. The higher carbon content (up to 0.30% in Grade B versus 0.25% in Grade A) and manganese (up to 1.20% versus 0.95%) improve strength but reduce ductility and weldability to some extent.

Grade A’s lower carbon content results in better weldability and ductility, making it suitable for applications where ease of fabrication and forming are prioritized over ultimate strength.

Both grades are available in seamless and ERW forms. However, Grade B generally finds broader use in larger diameter pipes and higher-pressure systems due to its superior strength. Grade A is often used in smaller diameter pipes (under 2 inches NPS) and lower-pressure systems.

Application-Based Selection Guidance

• Choose ASTM A53 Grade A if:

• The application involves relatively low to moderate pressure.

• Enhanced weldability and ductility are important for fabrication.

• The pipe size is relatively small (often under 2 inches NPS).

• Cost sensitivity is a factor, as Grade A can be less expensive.

• Structural uses or mechanical tubing without high stress demands.

• Choose ASTM A53 Grade B if:

• The system involves high-pressure fluids or gases.

• Higher strength and toughness are required for safety and performance.

• Larger pipe diameters are needed.

• It is used in pressure piping systems for industrial plants, oil and gas, or steam conveyance.

• Slightly reduced ductility is acceptable for improved mechanical properties.

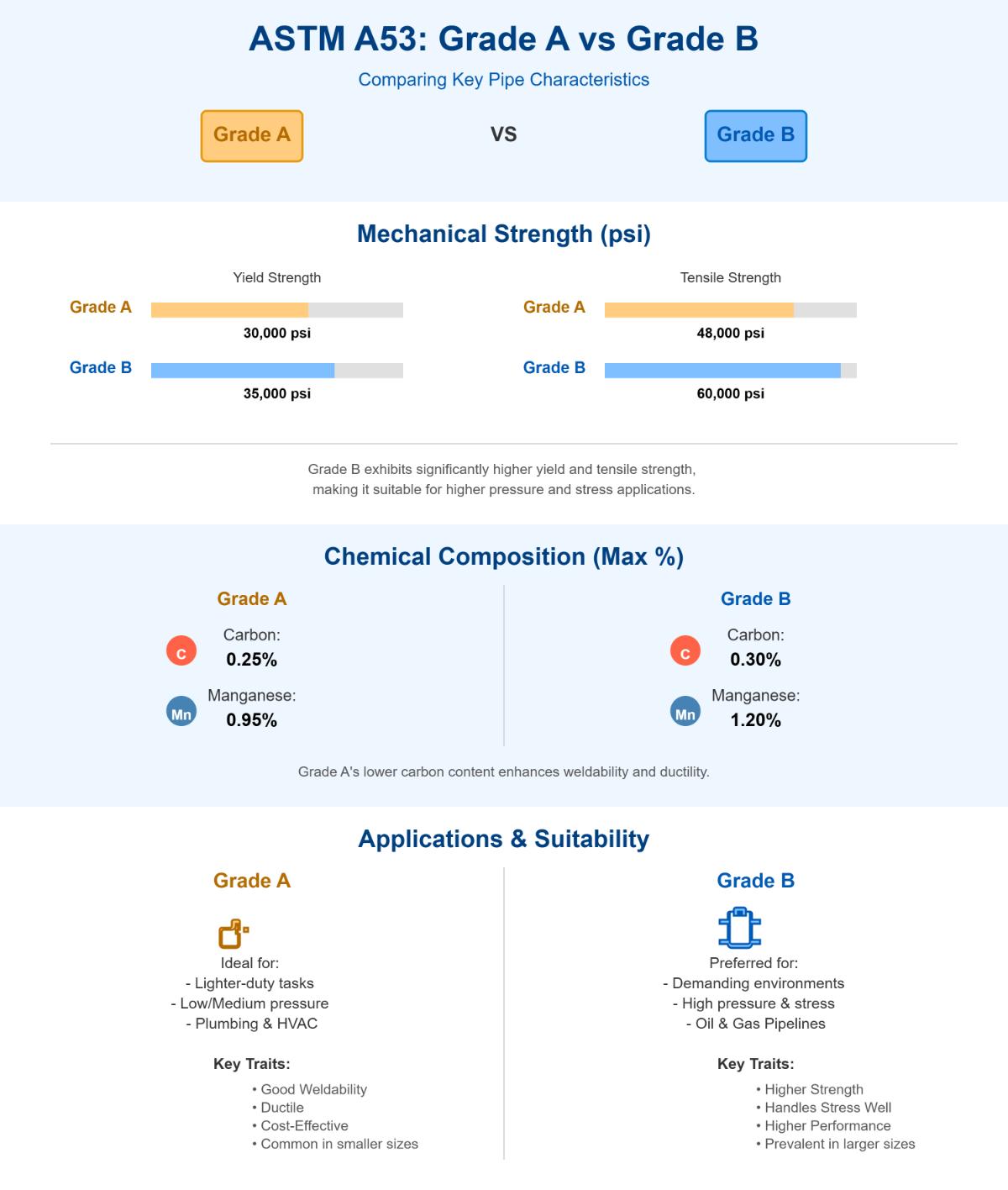

Visual Summary of Mechanical Property Differences

Understanding the mechanical properties of ASTM A53 Grade A and Grade B pipes is crucial for determining their appropriate applications. These properties, which include yield strength, tensile strength, and chemical composition, play a critical role in the pipes’ performance and usage.

Yield Strength Comparison

Yield strength is the point at which a material starts to deform permanently. Grade A pipes have a minimum yield strength of 30,000 psi (205 MPa), while Grade B pipes can withstand higher stress with a minimum yield strength of 35,000 psi (240 MPa). This means Grade B pipes are more suitable for high-pressure applications as they can handle greater stress before deformation.

Tensile Strength Comparison

Tensile strength is the maximum stress a material can endure when stretched or pulled before breaking. Grade A pipes have a minimum tensile strength of 48,000 psi (330 MPa), whereas Grade B pipes are stronger, with a minimum tensile strength of 60,000 psi (414 MPa). The higher tensile strength of Grade B pipes indicates better performance under tension, making them ideal for applications that require robust resistance to breaking.

Chemical Composition Impact

The chemical makeup of Grade A and Grade B pipes affects their strength and performance. Grade A pipes contain up to 0.25% carbon and 0.95% manganese, while Grade B pipes have slightly higher levels of up to 0.30% carbon and 1.20% manganese. These differences enhance the strength of Grade B pipes but may impact their weldability and flexibility. Both grades have similar limits for phosphorus (0.05%) and sulfur (0.045%), ensuring good machinability and resistance to cracking.

Practical Application Differences

The mechanical properties of ASTM A53 Grade A and Grade B pipes determine their practical applications:

• Grade A Pipes: Suitable for low-pressure mechanical applications, structural uses, and situations where critical stress limits are not exceeded. Their better weldability and ductility make them ideal for projects where fabrication ease is crucial.
• Grade B Pipes: Preferred for higher pressure piping, mechanical tubing under more demanding conditions, and structural applications requiring higher strength. Their higher yield and tensile strengths make them suitable for environments where durability and robustness are essential.

The following table summarizes the key mechanical property differences between ASTM A53 Grade A and Grade B pipes:

These differences highlight the suitability of Grade B pipes for high-stress and high-pressure applications, while Grade A pipes are more appropriate for lower-stress environments where weldability and ductility are prioritized.

Both ASTM A53 Grade A and Grade B pipes are made from carbon steel, ensuring strength and durability for various applications.

Manufacturing Process

Both grades include seamless and Electric Resistance Welded (ERW) methods, though Grade B pipes are not available in the Type F (forge welded) form. This difference highlights Grade B’s emphasis on strength and integrity, particularly in higher-pressure applications.

Chemical Composition

Grade A has a maximum carbon content of 0.25%, while Grade B’s maximum is 0.30%, contributing to its higher strength. Both grades have similar manganese content, ranging from 0.95% to 1.2%, which supports mechanical strength and toughness. The maximum phosphorus and sulfur contents are 0.05% for both grades, maintaining machinability and resistance to brittleness.

Mechanical Properties

Grade A pipes have a minimum yield strength of 30,000 psi (205-207 MPa), whereas Grade B pipes have a minimum of 35,000 psi (240-241 MPa), making them suitable for higher-pressure applications. The minimum tensile strength for Grade A is 48,000 psi (330-331 MPa), while Grade B offers 60,000 psi (414-415 MPa), enhancing durability under stress.

Test Pressure

Grade B pipes undergo higher pressure testing, ensuring better integrity and reliability for demanding applications.

Applications

Grade A pipes are suitable for low-pressure plumbing, water lines, underground piping, and non-critical structural uses, and are more commonly available in smaller pipe sizes (

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the difference between ASTM A53 Grade A and Grade B pipes?

The primary differences between ASTM A53 Grade A and Grade B pipes lie in their mechanical properties, chemical composition, and application suitability.

Grade A pipes have a lower yield strength (30,000 psi) and tensile strength (48,000 psi) compared to Grade B pipes, which have a yield strength of 35,000 psi and tensile strength of 60,000 psi. This makes Grade B more suitable for high-pressure and high-stress applications, such as oil and gas pipelines.

Chemically, Grade A has a lower maximum carbon content (0.25%) and manganese content (0.95%) than Grade B, which has up to 0.30% carbon and 1.20% manganese. The lower carbon content in Grade A improves weldability and ductility, making it ideal for low-to-medium pressure systems like plumbing and HVAC.

Grade A pipes are typically used for lighter-duty applications, while Grade B is preferred for more demanding environments. Grade A is also more cost-effective and available in smaller sizes, whereas Grade B is more prevalent in larger diameters.

How do the mechanical properties of Grade A and Grade B ASTM A53 pipes compare?

The mechanical properties of ASTM A53 Grade A and Grade B pipes differ primarily in their tensile and yield strengths. Grade A pipes have a minimum tensile strength of 48,000 psi (approximately 331 MPa) and a minimum yield strength of 30,000 psi (approximately 207 MPa). These properties make Grade A pipes suitable for lower pressure applications and non-critical structural uses due to their adequate strength and better weldability.

In contrast, Grade B pipes possess a higher minimum tensile strength of 60,000 psi (approximately 414 MPa) and a minimum yield strength of 35,000 psi (approximately 241 MPa). These enhanced mechanical properties make Grade B pipes more appropriate for high-pressure applications and situations requiring higher strength and resistance to deformation.

What are the typical applications for ASTM A53 Grade A vs Grade B pipes?

ASTM A53 Grade A pipes are typically used in plumbing systems for water and gas transportation due to their durability and corrosion resistance. They are also common in HVAC systems for ductwork and piping because of their smooth interior surface, which aids efficient airflow. In addition, Grade A pipes can be used in less demanding structural applications such as scaffolding.

On the other hand, ASTM A53 Grade B pipes, which offer higher tensile and yield strength, are more suited for demanding applications. They are frequently used in the oil and gas industry for conveying petroleum products, making them ideal for both onshore and offshore pipelines. Grade B pipes are also employed in structural applications like building frameworks and bridges, where higher strength is advantageous, and in mechanical components and high-pressure systems where their increased strength provides a significant benefit.

Are there differences in manufacturing processes between Grade A and Grade B ASTM A53 pipes?

Yes, there are differences in the manufacturing processes between ASTM A53 Grade A and Grade B pipes. Both grades use similar basic processes, including seamless and electric resistance welding (ERW) techniques. However, Grade A pipes can also be produced as Type F, which involves a continuous coil production process with forge welding for the longitudinal joint, a specification not applicable to Grade B pipes.

Additionally, Grade B pipes often undergo further post-manufacturing treatments such as heat treatment and alloying to enhance their strength and mechanical properties. This is not typically required for Grade A pipes, which have lower mechanical demands. Grade B ERW pipes, due to their higher carbon content, may require post-weld heat treatment to relieve residual stresses and ensure weld integrity, whereas Grade A pipes are generally easier to weld due to their lower carbon content.

These additional treatments for Grade B pipes increase their suitability for high-pressure applications but also raise production costs compared to Grade A pipes, which are more cost-effective for lower-pressure environments.
