ASTM vs EN Pipe Specifications: A Comprehensive Comparison

When it comes to selecting the right pipes for your project, understanding the differences between ASTM and EN specifications can be crucial. These two standards are widely used in various industries, but they have distinct characteristics that can impact your choice. How do you navigate the maze of material grades, pipe schedules, and regulatory compliance? Which ASTM grade corresponds to EN 1.0305, and how do you convert ASTM pipe schedules to EN dimensions? In this comprehensive comparison, we’ll delve into the key differences between ASTM and EN standards, explore their material grade equivalents, and provide practical insights to help you make informed decisions. Ready to unravel the complexities of these two pivotal standards? Let’s dive in.

ASTM and EN/DIN Standards Overview

ASTM International, formerly known as the American Society for Testing and Materials, is a globally recognized leader in developing and delivering voluntary consensus standards. These standards cover a wide range of materials, products, systems, and services. They are extensively used in North America and beyond to ensure quality, safety, and efficiency in manufacturing, construction, and pipeline applications.

Scope and Application

• ASTM: Widely used in North America, ASTM standards are essential in industrial, construction, and pipeline applications. They include material grades like A53 and A106, and dimensional specifications such as Schedule 40/80.
• EN/DIN: Predominant in Europe, these standards ensure the safety and performance of pressure equipment, water systems, and welded/seamless pipes. Common material designations include P235GH (EN 10216) and St 52-3 (DIN 17100).

Material Equivalents

ASTM and EN/DIN standards often have equivalent material grades. Here are some common examples:

Dimensional Standards

• Wall Thickness:
• EN Series: Includes various series for standard wall welded and seamless pipes, with specific designs for high-pressure systems.
• ASTM Schedules: Defines wall thickness using schedules such as Schedule 40 and Schedule 80, specifying precise measurements.
• Tolerances:
• ASTM standards enforce strict outer diameter tolerances (e.g., ±0.004″ for 1/2″ pipe).
• EN/DIN standards specify seamless tube tolerances aligned with DIN 2448, ensuring consistency in dimensions.

Design and Compliance

• Pressure Ratings:
• EN standards ensure robust performance for boiler and pressure vessels, while ASTM standards emphasize general service and structural integrity across various applications.
• Testing Requirements:
• EN/DIN standards mandate comprehensive testing methods, including hydrostatic, ultrasonic, and eddy-current testing. ASTM standards focus on mechanical properties such as tensile strength, yield strength, and elongation.

Key Considerations

• Material Certification: ASTM standards require mill test reports (MTRs), while EN 10204 includes 3.1/3.2 inspection certificates for traceability and quality assurance.
• Welding Compatibility: EN 10253-4 standardizes wall thickness for stainless steel fittings, whereas ASTM uses ASME B16.9 for similar applications.
• Global Projects: Dual compliance with both EN and ASTM standards is common in multinational contracts, ensuring interoperability and adherence to regional requirements.

Material Grade Equivalents

Material grade equivalents are crucial for comparing pipe specifications across different standards like ASTM and EN/DIN. These equivalents help engineers and procurement specialists identify compatible materials for international projects, ensuring that materials meet required chemical compositions, mechanical properties, and performance criteria.

Common ASTM and EN Material Grade Equivalents

The table below outlines common material grade equivalents between ASTM and EN/DIN standards. It includes non-alloy carbon steels, alloy steels, and stainless steels frequently used in piping applications:

Examples of Material Grade Equivalents

A53 Grade A vs St 37.0

A53 Grade A and St 37.0 (EN/DIN 1.0254) are carbon steels used in structural and pressure pipe applications with similar mechanical properties. While the chemical compositions and testing requirements may differ slightly, both grades ensure compliance and performance.

P235GH and S355J2H Equivalents

P235GH (EN 10216) and its ASTM equivalent, A106 Grade B, are used in high-temperature pressure systems. Similarly, S355J2H (EN 10210) matches closely with ASTM A500 Grade B/C, both offering high strength and good toughness. Differences in impact testing requirements may exist between the standards.

Conversion Tables for Material Grades

Conversion tables provide a quick reference to ensure selected materials meet necessary specifications for their intended application. Below is an example conversion table for commonly used pipe grades:

Understanding these material grade equivalents allows for seamless integration and compliance with international standards, ensuring the quality and performance of piping systems across diverse applications.

Pipe Schedules and Dimensional Tolerances

Pipe schedules are essential for defining the wall thickness of pipes, using a standardized numbering system to ensure consistent performance under varying pressures and temperatures. The concept of pipe schedules originated to address the need for consistent and predictable pipe performance under different pressures and temperatures.

ASTM Pipe Schedules

ASTM (American Society for Testing and Materials) standards use a series of pipe schedules. These include Schedule 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, as well as XS (Extra Strong) and XXS (Double Extra Strong). Each schedule corresponds to specific wall thicknesses, classifying pipes for different pressure ratings and mechanical properties. The schedules are standardized in ASME (American Society of Mechanical Engineers) B36.10M for carbon steel pipes and B36.19M for stainless steel pipes.

EN Pipe Schedules

EN (European Norms) standards define pipe dimensions and wall thicknesses based on material grades and application requirements, rather than using a specific schedule numbering system. For instance, non-alloy pipes might be specified under grades like P235TR1, while alloyed pipes may be defined by grades such as X2CrNiMoN22-5-3. EN standards focus on material properties and specific applications, ensuring pipes meet the required performance criteria.

Understanding Dimensional Tolerances

Dimensional tolerances are the allowable variations in the physical dimensions of pipes, ensuring that they fit properly with fittings and other components. ASTM standards provide strict guidelines for these tolerances to maintain consistency and compatibility across different manufacturers. For example, ASTM standards like ASME B36.10M and B36.19M specify precise outer diameter (O.D.) tolerances, which are crucial for ensuring that pipes fit properly with fittings and other components. These tolerances help maintain the integrity and reliability of the piping system.

EN standards also specify dimensional tolerances, but they may approach them differently compared to ASTM. EN standards often emphasize material properties and the manufacturing process, which indirectly influence the dimensional tolerances. The tolerances in EN standards ensure that the pipes meet the required performance criteria for their intended applications, maintaining consistency and quality across the European market.

Conversion of ASTM Pipe Schedules to EN Dimensions

Converting ASTM pipe schedules to EN dimensions involves understanding the corresponding wall thicknesses and material properties. While a direct one-to-one conversion may not always be possible due to the different approaches in defining pipe schedules, engineers can use comparison tables and reference standards to find equivalent specifications. For instance, an ASTM Schedule 40 pipe might correspond to a specific EN material grade and wall thickness that meets similar performance requirements.

By understanding the differences and commonalities between ASTM and EN standards, engineers and procurement specialists can ensure that they select the appropriate pipes for their specific applications, achieving the necessary performance and compliance with international standards.

Technical Specifications Comparison

Understanding the scope and standards of ASTM and EN pipe specifications is crucial for selecting the appropriate materials for different applications.

ASTM Standards

ASTM standards, widely recognized in the United States and internationally, cover various types of pipes including carbon steel, alloy steel, and stainless steel. These specifications often align with ASME codes, such as ASME B36.10M for carbon steel pipes and ASME B36.19M for stainless steel pipes.

EN Standards

European Norms (EN) are developed by the European Committee for Standardization (CEN) and are predominantly used across Europe. EN standards typically align with DIN (German Institute for Standardization) designations and focus on material grades, mechanical properties, and chemical composition.

Material Grades and Designations

Comparing material grades and designations between ASTM and EN standards shows significant differences in their classification systems.

ASTM employs a letter-number combination system (e.g., A106 Grade B), while EN utilizes numeric systems often linked with material numbers (e.g., 1.0570 for St 52-3).

Dimensions and Thickness

A key comparison between ASTM and EN pipe specifications involves their dimensions and thicknesses.

ASTM Pipe Dimensions

ASTM pipe dimensions are standardized through ASME codes, detailing nominal pipe sizes (NPS), outside diameters, wall thicknesses, and schedules (e.g., 40, 80, 120). The schedule number indicates thickness, which affects pressure rating.

EN Pipe Dimensions

EN pipe standards specify dimensions based on outside diameter and wall thickness, with specific tolerances defined per standard (e.g., EN 10216). Dimensions are generally metric (millimeters), and thicknesses are categorized differently than ASTM schedules.

ASTM schedules standardize thickness across nominal sizes, while EN pipes specify exact thicknesses with metric tolerances.

Mechanical and Chemical Properties

Both ASTM and EN standards specify mechanical properties such as tensile strength, yield strength, elongation, and hardness. However, EN standards tend to be more prescriptive about chemical composition limits and heat treatment processes.

EN standards often provide higher safety factors for material properties due to stricter European regulations, impacting design and application in high-pressure or high-temperature environments.

Testing and Quality Assurance

Testing and quality assurance are crucial to ensure pipes are suitable for their intended applications.

ASTM Testing

ASTM standards include hydrostatic tests, nondestructive tests (NDT), and chemical composition analysis. The focus is on performance-based criteria.

EN Testing

EN standards typically require more comprehensive testing, including impact tests at specified temperatures, hardness testing, and detailed traceability requirements. European standards emphasize conformity assessment under CE marking regulations for safety and environmental compliance.

Applications and Industry Usage

Understanding the applications and industry usage of ASTM and EN pipes helps in selecting the appropriate standards for specific projects.

ASTM Pipes

ASTM pipes are widely used in North America and globally in industries such as oil & gas, petrochemical, power generation, and construction. The schedule system simplifies selection based on pressure and temperature requirements.

EN Pipes

EN pipes are preferred in Europe and increasingly adopted worldwide, especially for projects requiring compliance with EU regulations. They are common in infrastructure, chemical processing, and power plants where detailed material traceability and stringent testing are mandatory.

Industrial Applications

Oil & Gas Industry

In the oil and gas industry, choosing the right pipe standards is crucial for ensuring safety and efficiency. ASTM standards are extensively used in North America, particularly for pipelines. For instance, ASTM A106 Grade B is favored for high-temperature service pipelines due to its excellent mechanical properties and ability to withstand extreme conditions. Additionally, ASTM A333 Grade 6 is commonly employed for low-temperature applications, making it suitable for environments such as arctic regions.

EN standards are dominant in European projects, with P265GH (EN 10216-2) commonly used in refinery piping due to its strength in medium-pressure applications. Furthermore, EN standards like 1.4462 Duplex stainless steel are utilized for subsea components due to their superior corrosion resistance and strength, which are critical for offshore operations.

Power Generation

Power generation plants require high-quality piping systems that can endure high temperatures and pressures, and ASTM standards such as A335 P11 and P22 are widely used for these high-temperature steam lines. These Cr-Mo alloys offer exceptional thermal resistance and mechanical strength, making them ideal for boiler systems and turbine headers.

In Europe, EN standards such as 16Mo3 (EN 10216-2) are frequently selected for boiler tubes due to their excellent high-temperature performance and resistance to oxidation. Similarly, 13CrMo4-5 (EN 10216-2) is used for turbine headers, providing reliable service in demanding power generation environments.

Chemical Processing

Chemical processing plants need pipes that can handle corrosive substances and high-pressure environments, making ASTM 316L stainless steel a preferred choice for acid handling due to its superior corrosion resistance. Additionally, UNS N08926 (super-austenitic stainless steel) is chosen for environments rich in chlorides, ensuring longevity and reliability.

EN standards also offer suitable options for chemical processing. X2CrNiMo17-12-2 (EN 10216-5) stainless steel is employed in reactors for its excellent resistance to chemical attack. For sulfuric acid plants, 1.4539 (EN 10216-5) super austenitic stainless steel is utilized, providing exceptional performance and durability in highly corrosive conditions.

Construction

In the construction industry, the selection of pipe standards is critical for ensuring structural integrity and compliance with safety regulations. ASTM standards like A53 Grade A are commonly used for structural supports due to their reliable mechanical properties and ease of fabrication. Additionally, ASTM A500 is favored for HVAC systems, providing durability and efficiency in building applications.

EN standards such as S355J2H (EN 10210) are widely adopted for load-bearing frameworks in Europe. This high-strength steel offers excellent toughness and weldability, making it suitable for various construction projects, including bridges and high-rise buildings.

Selection Criteria

When choosing between ASTM and EN standards for industrial applications, several factors must be considered. Projects in the EU typically require adherence to EN standards, such as the PED Directive, while North American projects often mandate ASTM compliance. Understanding material equivalence is crucial; for example, P235GH (EN) is equivalent to A106 Grade B (ASTM), ensuring compatibility in high-temperature applications. Fabrication requirements also play a role, as EN pipes usually follow metric tolerances, which may necessitate localized adaptations when integrating with ASTM-based designs.

Challenges in Cross-Standard Use

Implementing cross-standard piping systems can present challenges, including dimensional mismatch, which may require the use of adapters to ensure proper fit. Dual-standard testing and certification, such as EN 10204 and ASTM A370, can increase project costs and complexity. Variations in welding standards, like EN 1011 vs. AWS D1.1, can complicate joint procedures and require specialized techniques.

Future Trends

The future of industrial piping standards is moving towards global harmonization. Collaboration between ASME and CEN aims to develop unified pressure vessel codes, facilitating easier cross-standard implementation. Additionally, high-alloy materials such as Superduplex (UNS S32750) and nickel alloys (UNS N06625) are gaining traction in emerging industries like hydrogen infrastructure. Digital compliance technologies, including blockchain-based material traceability, are expected to enhance supply chain transparency and efficiency across ASTM and EN standards.

Regulatory Compliance Information

Understanding regulatory compliance for ASTM and EN standards is essential to ensure that pipes and materials meet safety, performance, and quality benchmarks in various industries. Each set of standards comes with its own rules and guidelines that must be adhered to in order to achieve compliance.

Compliance with ASTM Standards

ASTM standards often require Mill Test Reports (MTRs), which document the chemical and mechanical properties of materials to verify they meet specified criteria. These reports are essential for ensuring that the materials meet the ASTM standards.

Compliance with ASTM standards involves rigorous inspection and testing procedures. This includes hydrostatic testing, non-destructive testing (NDT), and checking dimensions to ensure pipes meet the required specifications for pressure, temperature, and mechanical properties.

ASTM standards emphasize the importance of traceability. Each pipe must be marked with the manufacturer’s identification, the specification number, and the grade of material, ensuring that the origin and quality of the pipe can be traced throughout its lifecycle.

In the United States, compliance with ASTM standards is often mandated by regulatory bodies such as the American Petroleum Institute (API) and the American Society of Mechanical Engineers (ASME). These organizations ensure that the materials used in critical applications, such as oil and gas pipelines, meet stringent safety and performance standards.

Compliance with EN Standards

EN standards require detailed documentation, often in the form of inspection certificates as per EN 10204. These certificates, particularly the 3.1 and 3.2 types, provide a thorough account of the material’s properties and the inspection results, ensuring compliance with the specified standards.

EN standards also mandate comprehensive inspection and testing, such as tensile and impact tests, and non-destructive methods like ultrasonic and radiographic inspections to verify the integrity of the pipes.

Similar to ASTM standards, EN standards require clear marking and traceability of the pipes. Each pipe must be marked with the manufacturer’s logo, the relevant EN specification, and the material grade, ensuring that the pipe’s history can be traced back to its source.

In Europe, compliance with EN standards is enforced by regulatory bodies such as the European Committee for Standardization (CEN). These organizations ensure that materials used in various applications, including construction and pressure equipment, adhere to the highest safety and quality standards.

Differences in Compliance for ASTM and EN Standards

While both ASTM and EN standards require certification, the type and extent of documentation can vary. ASTM standards typically rely on MTRs, whereas EN standards often require more detailed inspection certificates (EN 10204 3.1/3.2).

The testing protocols also differ between the two standards. ASTM standards emphasize performance-based criteria, including hydrostatic and mechanical tests, whereas EN standards may include additional tests, such as impact testing at specific temperatures, to ensure material resilience under varying conditions.

The regulatory oversight for ASTM standards is primarily driven by organizations like API and ASME in the U.S., whereas EN standards are governed by CEN and other European regulatory bodies. This can lead to differences in the stringency and focus of compliance requirements.

Impact of Non-Compliance on Industry Operations

Using non-compliant materials can lead to safety hazards, operational failures, and legal liabilities. For instance, in the oil and gas industry, non-compliance with ASTM standards can result in pipeline leaks or ruptures, posing environmental and safety risks. Similarly, in construction, using non-compliant materials can compromise structural integrity, leading to potential collapses and severe safety incidents.

In addition to safety and operational risks, non-compliance can also result in financial losses due to project delays, increased inspection and testing costs, and potential fines from regulatory bodies. Ensuring compliance with the relevant standards is therefore critical for maintaining safety, reliability, and efficiency in industrial operations.

Future Trends in Global Standardization

Increasing Harmonization and Convergence

The global trend towards harmonizing ASTM and EN standards aims to facilitate international trade, reduce technical barriers, and ensure interoperability of components across markets. This harmonization involves aligning material grade nomenclature, dimensional standards, and testing protocols, encouraging cross-recognition and simplifying material selection for global stakeholders. For example, both EN 10255 and ASTM A53 are increasingly used in international projects, promoting seamless material selection for global markets.

Digitalization and Smart Specifications

The future of standardization will see significant integration of digital data management. Technologies such as blockchain-based certification, real-time quality tracking, and Industry 4.0 manufacturing processes will enhance traceability, reduce certification delays, and improve overall efficiency. These advancements will enable better compliance with standards and streamline the supply chain, offering benefits like reduced costs and enhanced accuracy in material tracking.

Sustainability and Environmental Compliance

Both ASTM and EN standards are increasingly incorporating environmental criteria into pipe specifications, focusing on lifecycle analysis, recyclability, and sustainable sourcing of raw materials. EN standards, in particular, emphasize eco-design principles aligned with the EU Green Deal policies. This shift towards sustainability will influence material selection, manufacturing processes, and end-of-life handling of piping systems, ensuring industries meet stringent environmental regulations.

Advanced Materials and Higher Performance Standards

Future standardization efforts will expand to cover new alloy compositions, corrosion-resistant materials like duplex and superduplex stainless steels, and composites. ASTM and EN standards are being updated to include these advanced materials, which are essential for aggressive service environments such as subsea and chemical industries. This expansion will ensure that new materials are adequately tested and certified for high-performance applications.

Regional Adaptations within Global Frameworks

While global harmonization advances, regional adaptations will continue to address specific climatic, seismic, or regulatory environments. For instance, ASTM standards may evolve to incorporate more metric references to facilitate international use, while EN standards may adapt to requirements in non-European markets. These regional adaptations ensure that standards remain relevant and effective in diverse geographical contexts.

Implications for Industry Stakeholders

Manufacturers and suppliers must maintain dual compliance capabilities and invest in understanding both ASTM and EN requirements to serve global markets effectively. Engineers and designers need proficiency in converting between NPS and metric systems, understanding pressure schedules, and selecting appropriate materials based on project location and regulatory demands. Regulatory bodies and standard organizations should continue fostering dialogue and joint committees to minimize duplications and contradictions in pipe specifications, ensuring smooth international collaboration and adherence to evolving standards.

Case Studies of Standard Selection Failures

Background: Key Differences Between ASTM and EN Pipe Standards

Choosing the right pipe standards, whether ASTM or EN, is vital for the safety and effectiveness of engineering projects. ASTM standards, common in North America, use Nominal Pipe Size (NPS) and wall thickness schedules such as Schedule 40 and Schedule 80. In contrast, EN standards, predominant in Europe, utilize metric dimensions and have distinct material designations like P235TR1 and S355J2H, which often differ in chemical composition and mechanical properties.

Case Study 1: Material Grade Mismatch Leading to Structural Failure

Scenario:
A European pipeline project specified EN standard pipes, specifically the S355J2H grade, for pressure service. However, the procurement team sourced ASTM A106 Grade B pipes, assuming equivalency due to similar tensile strengths.

Consequence:
In cold weather, the ASTM pipes broke because they weren’t tough enough, causing a pipeline rupture and major delays.

Analysis:

• EN standards mandate impact testing at low temperatures to ensure ductility, which ASTM Grade B lacks.
• The failure illustrates the risk of assuming direct equivalence between ASTM and EN grades without a thorough comparison of material properties.

Case Study 2: Dimensional Incompatibility Causing Assembly Issues

Scenario:
An industrial plant retrofit involved connecting new ASTM Schedule 40 pipes to existing EN standard pipes, which follow metric dimensions.

Consequence:
The different sizes of ASTM and EN pipes caused flange misalignment and gasket issues, leading to leaks and delays.

Analysis:

• ASTM pipes use fixed nominal outside diameters regardless of schedule, while EN pipes vary in metric dimensions.
• The dimensional incompatibility required custom adapters and rework, highlighting the importance of verifying dimension compatibility.

Case Study 3: Pressure Rating Discrepancies and Safety Risks

Scenario:
A chemical processing facility used EN standard pipes rated under PN (pressure nominal) classifications but applied ASTM pressure ratings (psi) for design calculations.

Consequence:
The facility underestimated the required pipe thickness, resulting in pipe deformation under pressure testing.

Analysis:

• EN standards use PN ratings to show the maximum pressure at a specific temperature.
• Misinterpretation of pressure ratings between ASTM and EN standards can lead to underdesign and compromise safety.

Comparative Technical Summary

Lessons Learned and Best Practices

• Thorough Material Comparison: Direct substitution between ASTM and EN pipe grades is unsafe without detailed chemical, mechanical, and toughness comparison.
• Dimension Verification: Confirm metric vs. imperial dimensions and wall thickness compatibility to avoid mechanical fitment issues.
• Pressure Rating Alignment: Use consistent pressure rating systems and convert correctly to ensure structural integrity.
• Cross-standard Expertise: Engineering teams must engage experts familiar with both ASTM and EN standards to prevent costly specification errors.

Frequently Asked Questions

Below are answers to some frequently asked questions:

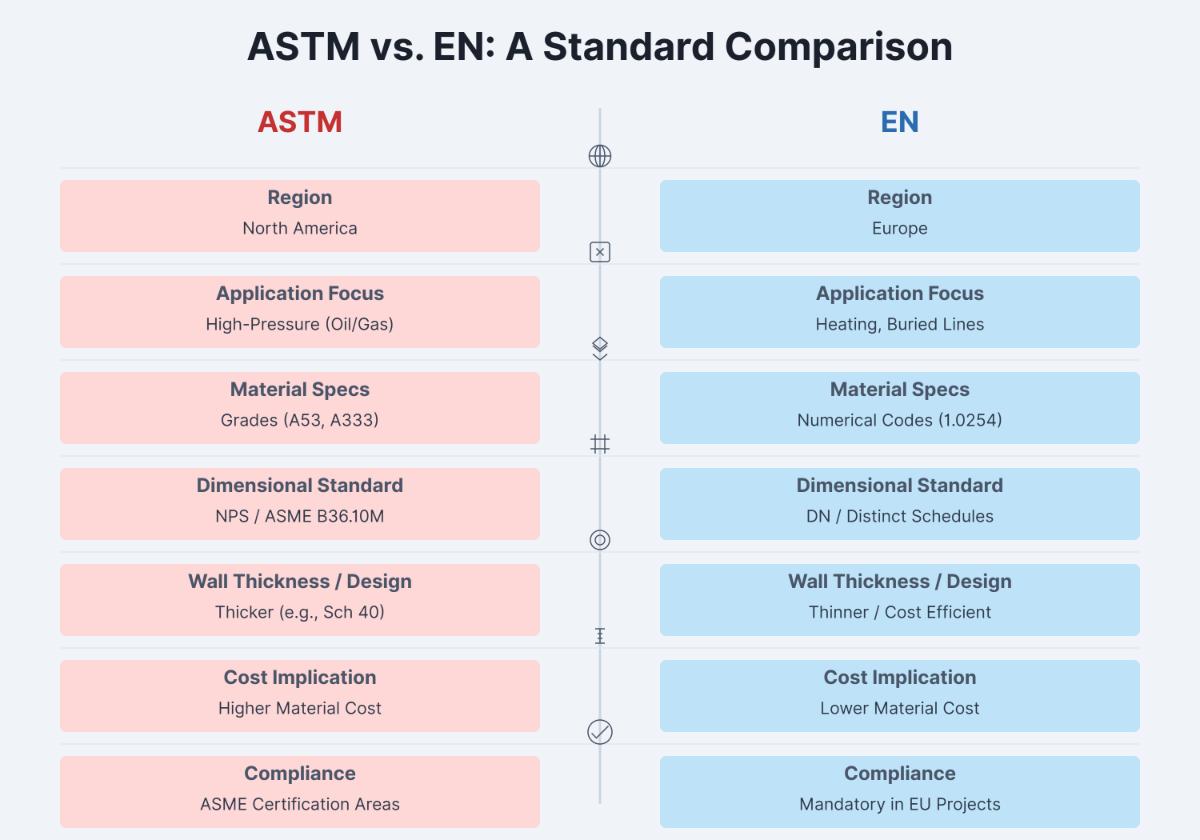

What are the key differences between ASTM and EN pipe standards?

The key differences between ASTM and EN pipe standards revolve around material specifications, dimensional standards, application and design philosophy, cost implications, and compliance.

ASTM standards, prevalent in North America, focus on high-pressure systems such as oil and gas pipelines. They use material grades like A53 and A333, emphasizing mechanical properties and chemical composition. ASTM pipes typically have thicker walls (e.g., Schedule 40), which increase material costs and require additional supports to handle axial stress.

In contrast, EN standards, common in Europe, utilize numerical codes (e.g., 1.0254) and often align with DIN designations. They prioritize thinner walls for cost efficiency and ease of installation. EN pipes are designed for district heating and buried pipelines, incorporating integrated insulation solutions for thermal efficiency.

Dimensional conventions also differ: ASTM uses NPS (Nominal Pipe Size) and ASME B36.10M/B36.19M, while EN employs DN (Diameter Nominal) with distinct wall thickness schedules. Compliance requirements vary, with ASTM dominating in regions requiring ASME certification and EN mandatory in EU projects.

How do I convert ASTM pipe schedules to EN dimensions?

To convert ASTM pipe schedules to EN dimensions, start by identifying the specific outside diameter (OD) and wall thickness from the ASTM schedule. ASTM schedules use Nominal Pipe Size (NPS) and schedule number to determine these dimensions. For example, an NPS 2 Schedule 40 pipe has an OD of 60.3 mm and a wall thickness of 3.91 mm.

Next, convert these dimensions to metric units if necessary (1 inch = 25.4 mm). Then, find the closest equivalent in the EN (European Norm) standards, which use DN (Diamètre Nominal) for nominal sizes and specify the OD and wall thickness directly in millimeters.

For instance, the 60.3 mm OD of the NPS 2 pipe closely matches DN 65 in the EN system. Compare the wall thickness to typical EN specifications (e.g., thin, normal, thick series) to find the best match. While exact equivalence is rare due to different sizing systems, this method ensures a close approximation suitable for most applications. Use established conversion charts for quick reference and verify pressure ratings and mechanical properties to ensure compatibility.

Which ASTM grade matches EN 1.0305?

The ASTM grade that matches EN 1.0305 is ASTM A106 Grade A. EN 1.0305, also known as St 35.8, is a non-alloy steel commonly used for pipes and tubes in pressure applications. ASTM A106 Grade A is the closest equivalent, sharing similar mechanical properties and applications. However, there may be slight variations due to differences in testing methods and acceptance criteria set by the European Committee for Standardization (CEN) for EN standards and the American Society for Testing and Materials (ASTM) for ASTM standards. Therefore, it is essential to consult both EN and ASTM standards to ensure compliance and optimal performance for specific project requirements.

What are the regulatory compliance requirements for ASTM and EN standards?

Regulatory compliance for ASTM and EN standards differs significantly in their frameworks and enforcement mechanisms. ASTM standards, developed by the American Society for Testing and Materials, are generally voluntary and adopted by industries to ensure product quality and safety. Compliance with ASTM standards is often driven by market demands and industry practices rather than legal mandates. However, many regulatory bodies and industries integrate ASTM standards into their legal or contractual frameworks, giving them a quasi-mandatory status in certain sectors.

On the other hand, EN standards, issued by the European Committee for Standardization (CEN), are often mandatory under European Union directives and regulations. These standards serve as references for legally binding requirements across EU member states, such as the Construction Products Regulation (CPR) and the Pressure Equipment Directive (PED). Compliance with EN standards leads to the ability to affix the CE marking, certifying conformity with EU safety, health, and environmental protection legislation. EN standards require detailed technical and safety requirements, verified through third-party certification bodies and ongoing market surveillance activities.

What are the future trends in global pipe standardization?

The future trends in global pipe standardization are shaped by several key factors, primarily the convergence and harmonization of ASTM and EN standards. As infrastructure projects become increasingly international, there is a growing need to align testing methods, material grades, and dimensional tolerances between these standards to facilitate cross-border trade and reduce technical barriers. This trend includes mutual recognition agreements that will allow manufacturers and end-users to confidently use pipes certified under either system.

Performance-based standards are becoming more prevalent, focusing on the actual behavior of pipes under service conditions such as pressure, temperature, and corrosion resistance. This shift accommodates advanced materials and new manufacturing processes that offer superior performance but may not fit traditional prescriptive categories.

Integration of advanced materials and technologies is another significant trend, with standards evolving to include testing protocols for high-performance materials like clad pipes and corrosion-resistant alloys. Innovations in manufacturing, such as automated welding and additive manufacturing, are influencing standardization to ensure consistent quality and traceability.

Sustainability and environmental compliance are increasingly important, with both ASTM and EN standards incorporating requirements for materials’ environmental impact, recyclability, and lifecycle assessment. Digitalization and smart pipe technologies, including sensors and AI, are also shaping future standards, ensuring real-time monitoring and enhanced safety.

These trends reflect the industry’s movement towards a collaborative future where ASTM and EN standards complement each other, supporting a global, sustainable, and technologically advanced pipe market.

Can you provide examples of failures due to incorrect standard selection?

Failures due to incorrect standard selection often occur because of mismatched material properties, dimensional incompatibility, and pressure rating discrepancies. For instance, using ASTM A53 pipes in a system designed for EN 10216-1 specifications can lead to premature rusting and failure due to less stringent material requirements in ASTM standards compared to EN specifications. Another example includes using EN-standard pipes in a U.S. plant designed for ASTM Schedule 40 pipes, which led to leaks and fitting issues because of slight dimensional differences. Moreover, selecting pipes with insufficient pressure ratings based on ASTM standards for a system requiring higher EN-standard ratings can cause repeated pipe bursts under operational pressure, resulting in downtime and safety hazards. To avoid these failures, it is essential to conduct thorough comparisons of ASTM and EN/DIN specifications, ensuring material compatibility, dimensional alignment, and adequate pressure ratings for the intended application.
