Balancing Valve vs Double Regulating Valve: A Comprehensive Comparison

In the intricate world of hydronic systems, ensuring optimal performance often boils down to selecting the right components. Among these crucial elements are balancing valves and double regulating valves, each playing a pivotal role in maintaining system efficiency and stability. But what exactly sets these two types of valves apart?

This article dives deep into the fundamental differences between balancing valves and double regulating valves, providing a comprehensive comparison tailored for those with an intermediate understanding of hydronic systems. We’ll explore their unique functionalities, structural distinctions, and performance in various applications. Additionally, we will examine how each valve contributes to enhancing system efficiency, backed by real-world case studies and technical specifications.

Whether you’re an HVAC professional, a plumbing specialist, or simply someone looking to refine your knowledge, this detailed guide will equip you with the insights needed to make informed decisions. Ready to discover which valve best suits your needs and why? Let’s delve into the nuances of these essential components.

Understanding Hydronic Systems

Hydronic systems, which use water to transfer heat, are widely used in homes, offices, and industrial settings due to their efficiency and consistent temperature control. The primary components of hydronic systems include boilers, pumps, piping, radiators, and valves.

Boilers heat the water that circulates through the system, while pumps ensure this water moves efficiently through the piping network to different parts of the building. The network of pipes, typically made of copper, steel, or plastic, transports water throughout the system. Radiators and heat exchangers transfer heat from the water to the air in a room or to another medium. Valves play a crucial role in controlling the flow, pressure, and temperature of the water circulating through the system.

Valves are essential for the operation and efficiency of hydronic systems. Two primary types of valves used in hydronic systems are balancing valves and double regulating valves (DRVs).

Balancing valves ensure even fluid distribution across multiple branches, preventing overcooling or overheating in specific areas. There are two types: static (manual) and dynamic (automatic).

Double regulating valves offer precise control over flow rate and pressure, making them ideal for smaller systems that need consistent settings. They come in two types: fixed orifice (constant flow) and variable orifice (adjustable flow).

Balancing valves are best for large HVAC systems needing uniform heating or cooling, while double regulating valves excel in applications requiring precise control, like chilled water systems and ring main piping circuits.

Balancing Valve Overview

Definition and Basic Concept

A balancing valve is an adjustable device used in fluid systems, especially in hydronic heating and cooling. Adjusting the valve changes its resistance, which helps control how fluid is distributed across different branches of the system. The main goal is to ensure that each branch gets the appropriate flow rate for the desired heat transfer or cooling effect, even when branches vary in length, pipe size, or heat emitters.

Unlike balancing valves, double regulating valves not only adjust flow but also have a shut-off feature. This combination allows for precise flow adjustment and isolation within a single unit.

Functionality and Operation in a System

Balancing valves ensure fluid is evenly distributed throughout the system. Without them, branches near the pump might get too much flow, while distant branches might not get enough. This imbalance can lead to inefficient heat transfer, temperature inconsistencies, and increased energy consumption.

There are two types of balancing valves: static (manual) and dynamic (automatic). Static balancing valves have fixed or manual settings that provide constant resistance. They are adjusted once during setup and are best for simple, stable systems. Dynamic balancing valves adjust automatically to maintain constant flow, even when system demands change. They are ideal for larger, complex, or variable-load systems.

Double regulating valves provide precise flow adjustment with a preset orifice and a shut-off capability. They are typically manually regulated and are installed where both flow balancing and isolation are necessary, often upstream or downstream in a system.

Common Uses in HVAC and Plumbing

In HVAC and plumbing systems, balancing valves are commonly used in hydronic heating/cooling systems and industrial fluid systems that require flow balancing and energy efficiency. They ensure that different parts of a building receive the right amount of heated or cooled water, leading to consistent temperatures and reduced energy waste.

Double regulating valves are more prevalent in systems that need precise flow control combined with isolation, such as HVAC terminal units, pump stations, or complex piping networks. Their ability to shut off the flow makes them useful for maintenance and isolation purposes, a feature not always emphasized in balancing valves.

Double Regulating Valve Overview

Definition and Basic Concept

A Double Regulating Valve (DRV) precisely controls water flow and pressure in HVAC and plumbing systems. It combines two main functions: flow regulation and isolation. This dual – functionality enables detailed adjustment of flow rates and the ability to shut off flow for maintenance without disrupting the entire system. The DRV ensures optimal performance and efficiency by maintaining the desired flow and pressure levels, which is crucial for the proper functioning of heating, ventilation, and air conditioning systems.

Functionality and Operation in a System

Flow Regulation

The main function of a DRV is to accurately regulate water flow. This can be achieved using either fixed or variable orifices:

• Variable Orifice DRVs (VODRVs): These valves let you manually adjust the flow coefficient (Kv) with a handwheel, providing flexibility to fine – tune the flow rate as required.
• Fixed Orifice DRVs (FODRVs): They use static venturis, which keep a stable Kv value, ensuring consistent flow rates without the need for manual adjustments.

Pressure Independence

Many advanced DRVs include Pressure Independent Control Valves (PICVs) to keep flow rates steady despite pressure changes. This feature greatly reduces the need for manual balancing, improving system efficiency and performance. By maintaining a consistent flow rate, PICVs help ensure that heating and cooling systems operate optimally, leading to enhanced comfort levels and energy savings.

Isolation for Maintenance

DRVs allow for maintenance without a full system shutdown by isolating specific sections. A built – in locking mechanism maintains the preset flow rate when the valve is reopened.

Common Uses in HVAC and Plumbing

DRVs are widely used in various applications within HVAC and plumbing systems, including:

• Chilled Water Systems: Ensuring consistent flow rates to maintain optimal cooling performance.
• Fan Coil Units: Providing precise flow control to individual units for effective temperature regulation.
• Industrial Heating Applications: Facilitating accurate flow and pressure control in complex heating systems.

Key Features

Adjustable Orifice

DRVs have adjustable orifices, allowing for precise flow modulation. This can be through variable or fixed orifices, each with its own advantages in terms of flexibility and stability.

Installation Requirements

Installing DRVs correctly is crucial; they are usually mounted on return lines with flow direction arrows. Additionally, upstream and downstream straight piping is necessary to minimize turbulence and ensure accurate flow measurement.

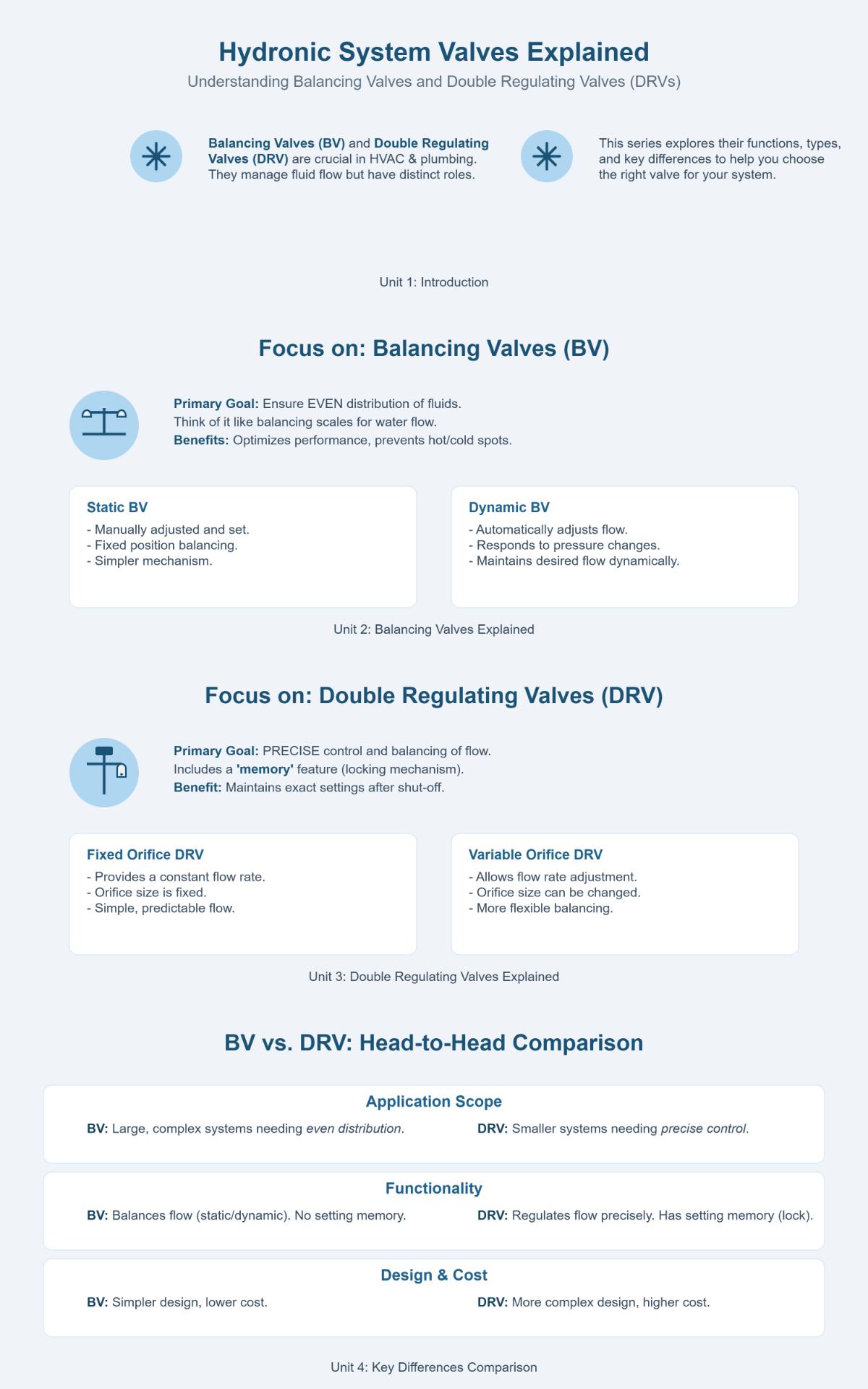

DRV vs. Balancing Valve: Critical Differences

Recent Advancements

Venturi FODRVs

Venturi – based FODRVs can recover up to 80% of pressure loss after measurement, significantly improving efficiency in systems with low differential pressures.

PICV Integration

The integration of PICVs within DRVs allows for automatic flow adjustment via pre – calibrated cartridges. This innovation can reduce commissioning time by 30 – 50%, streamlining the setup process and improving system efficiency.

Practical Considerations

Commissioning

Commissioning DRVs depends on the orifice type. FODRVs enable faster setup due to their fixed Kvs values, while VODRVs require iterative calculations of differential pressure (ΔP) and Kv to achieve the desired flow rates.

Energy Impact

DRVs with venturis can reduce pump energy consumption by minimizing unrecovered pressure losses, contributing to more efficient fluid handling systems. By optimizing the flow and reducing the need for excessive pumping power, these devices help lower operational costs and enhance overall system performance.

Maintenance

To make servicing easy, it’s advisable to install isolation valves on both sides of the DRVs. This allows for maintenance without shutting down the whole system, ensuring continuous operation.

Selection Criteria

• System Size: DRVs are ideal for compact systems with variable loads, while balancing valves are better for large, multi – zone networks.
• Accuracy Needs: For high precision needs, such as in laboratories or data centers, choose FODRVs with venturis for ±3% flow accuracy. Although DRVs have higher initial costs, they offer long – term energy savings, making them cost – effective. Balancing valves are cheaper upfront but may need more frequent adjustments.

Detailed Comparison of Valves

Structural Differences

Balancing valves generally have a simpler structure. Static balancing valves, for example, often consist of a fixed or manually adjustable element that provides a set resistance to fluid flow. In most cases, they have no complex moving parts, with the adjustment typically being a one-time operation during installation. Automatic balancing valves, on the other hand, have internal moving components such as diaphragms or pistons that respond to pressure changes to maintain a constant flow rate.

Double regulating valves, however, are more complex. They are equipped with built-in measuring elements like flow meters or pressure gauges in addition to the flow-regulating mechanism. This dual-functionality design requires more space and a more intricate arrangement of components within the valve body to accommodate both the regulation and measurement functions.

Functional Differences

Primary Function

The primary function of balancing valves is to achieve system balance by regulating fluid flow and pressure. They distribute the fluid evenly across different branches of the system, compensating for variations in pipe lengths, diameters, and pressure differences. This helps maintain consistent temperature control and energy efficiency in HVAC and hydronic systems.

Double regulating valves, as the name implies, have a dual function. They not only regulate the flow rate but also monitor the flow or pressure differentials. This real-time monitoring allows for more precise control and adjustment of the system, which is crucial in applications where accurate fluid distribution is required.

Adjustment Mechanism

Balancing valves can be adjusted either manually or automatically. Static balancing valves are adjusted manually during installation and then remain in a fixed state. Automatic balancing valves, however, self-adjust to changes in differential pressure to maintain a constant flow rate.

Double regulating valves are mainly adjusted manually. They come with the advantage of built-in measurement capabilities. This means that the operator can make adjustments based on the real-time data provided by the measuring elements, ensuring more accurate flow rate settings.

Performance in Various Applications

HVAC and Hydronic Systems

In large-scale HVAC and hydronic systems, balancing valves are extremely useful in ensuring uniform heating or cooling. They help reduce energy consumption by preventing over- or under-distribution of the fluid. For example, in a multi-zone building, balancing valves can ensure that each zone receives the appropriate amount of heated or cooled water, leading to consistent temperatures and energy savings.

Double regulating valves are more suitable for complex HVAC systems or smaller systems that require precise flow control. In systems such as chilled water systems or fan coil units, where accurate flow rates are essential for optimal performance, double regulating valves can provide the necessary precision and real-time monitoring.

Industrial Applications

In industrial fluid systems, balancing valves are often used for general flow balancing and pressure equalization. They are effective in maintaining the stability of the system and ensuring that different parts of the process receive the right amount of fluid.

Double regulating valves are preferred in industrial applications since they can precisely control and monitor flow. For example, in chemical processing plants or food and beverage production lines, double regulating valves can help maintain the correct flow rates of various fluids, which is crucial for product quality and process efficiency.

Enhancing System Efficiency

Role of Balancing Valves in Optimizing Efficiency

Balancing valves ensure even fluid distribution across multiple branches in hydronic systems. This even distribution prevents issues like overcooling or overheating in different zones of a building, leading to energy waste.

Flow Equalization

Balancing valves maintain consistent flow rates across all branches of a system. In larger, complex HVAC systems, this ensures each zone receives the right amount of heated or cooled water. The result is a more uniform temperature distribution, enhancing the overall comfort and efficiency of the space. Properly balanced systems can also reduce energy consumption and operational costs by preventing unnecessary strain on equipment.

Energy Efficiency

Balancing valves optimize flow distribution, reducing the workload on pumps and lowering energy consumption. Automatic balancing valves dynamically adjust to changes in system pressure, maintaining a consistent flow without requiring manual recalibration.

Role of Double Regulating Valves in Enhancing Performance

Double regulating valves (DRVs) provide precise control of both flow and pressure, which is crucial for systems requiring consistent temperature and pressure settings. This precision makes DRVs effective in smaller systems or applications sensitive to flow variations.

Accurate Flow and Pressure Control

DRVs allow for precise adjustment of flow rates and pressure, ensuring systems operate within optimal parameters. This is essential for maintaining desired performance levels in applications like chilled water air-conditioning systems and temperature-sensitive industrial processes.

Stability and Consistency

DRVs have a locking mechanism that maintains set flow rates even after the valve has been closed and reopened. This feature is beneficial for system stability and consistency, preventing deviations in flow settings that could lead to inefficiencies or performance issues.

Real-World Case Studies on Efficiency Improvements

Case Study: Large Commercial Building HVAC System

In a large commercial building, automatic balancing valves were installed in the HVAC system. These valves ensured even distribution of chilled water across multiple zones, preventing overcooling in some areas and undercooling in others. As a result, energy usage for the HVAC system was reduced by 20%. This case demonstrates how balancing valves can significantly enhance system efficiency.

Case Study: Chilled Water System in a Data Center

A data center implemented double regulating valves in its chilled water system to maintain precise temperature control. The valves ensured that servers received a consistent supply of cooled water, preventing overheating and potential downtime. Using DRVs contributed to a 15% improvement in energy efficiency by reducing the need for frequent manual adjustments and optimizing the cooling process.

Comparison of Efficiency Enhancement

Both balancing valves and double regulating valves contribute significantly to enhancing system efficiency, albeit in different ways. Balancing valves excel in larger, complex systems by ensuring uniform fluid distribution, while double regulating valves provide the precision needed for smaller, sensitive systems. The choice between the two depends on the specific requirements of the application, such as system size, complexity, and the need for precise control.

Technical Specifications and Standards

Balancing valves and double regulating valves (DRVs) must follow ASME standards to ensure they are safe, reliable, and perform well in HVAC and plumbing systems.

Balancing Valves

• Material Standards: Balancing valves are usually made from brass, bronze, or stainless steel, in compliance with ASME B16.34 standards.
• Design Standards: They must meet ASME B31.1 and B31.9 design standards, ensuring they can handle the pressures and temperatures of hydronic systems.
• Testing Standards: Performance testing for balancing valves follows ASME PTC 25, ensuring they can maintain accurate flow rates under varying conditions.

Double Regulating Valves (DRVs)

• Material Standards: DRVs are also made from robust materials like brass, bronze, and stainless steel, adhering to ASME B16.34 standards.
• Design Standards: These valves must meet ASME B31.1 and B31.9 design standards, similar to balancing valves, but with additional requirements for their flow and pressure regulation capabilities.
• Testing Standards: DRVs undergo rigorous testing as per ASME PTC 25 to validate their precision in flow and pressure control, ensuring reliability and performance.

Key Technical Specifications and Ratings

Pressure and Temperature Ratings

• Balancing Valves: Typically rated for pressures up to 300 psi and temperatures ranging from -20°F to 250°F. These ratings ensure they can handle the demands of various HVAC and hydronic applications.
• Double Regulating Valves (DRVs): Rated for similar pressure ranges but often designed to operate at slightly higher precision levels, with pressure ratings up to 400 psi and temperature ranges from -20°F to 300°F, catering to more sensitive applications.

Flow Coefficient (Cv) Ratings

• Balancing Valves: The Cv rating indicates the valve’s capacity to allow fluid flow. Balancing valves generally have a lower Cv rating compared to DRVs, reflecting their role in maintaining even flow distribution rather than precise control.
• Double Regulating Valves (DRVs): DRVs have higher and adjustable Cv ratings, enabling precise flow rate control. The variable orifice design in some DRVs provides flexibility to adjust the flow coefficient to meet specific system requirements.

Installation and Maintenance Standards

Installation Guidelines

• Balancing Valves: These valves should be installed with straight runs of pipe upstream and downstream to minimize turbulence and ensure accurate flow measurement. Proper orientation according to the flow direction marked on the valve is essential.
• Double Regulating Valves (DRVs): DRVs require similar installation conditions but also need access points for measuring devices to monitor flow and pressure. The installation must allow for easy access to the handwheel and locking mechanism for adjustments.

Maintenance Standards

• Balancing Valves: Regular inspection and calibration are necessary to maintain performance, especially for manual types. Automatic balancing valves require less frequent maintenance due to their self-adjusting capabilities.
• Double Regulating Valves (DRVs): Maintenance includes regular checks of flow and pressure settings to ensure the locking mechanism works properly. DRVs with pressure independent control valves (PICVs) may require less maintenance due to their automatic adjustment features.

Balancing valves and double regulating valves both meet rigorous standards to ensure their suitability for various hydronic and HVAC systems, with each type providing unique advantages based on their specific technical specifications and regulatory compliance.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the difference between balancing valves and double regulating valves?

Balancing valves and double regulating valves (DRVs) are essential components in hydronic systems, particularly in HVAC and plumbing applications, but they serve different purposes and have distinct functionalities.

Balancing valves are designed to ensure the even distribution of fluids throughout a system. They maintain consistent flow rates and pressure distribution, which helps optimize system performance and prevents issues such as overcooling or overheating in specific areas. There are two main types: static balancing valves, which require manual adjustment, and dynamic balancing valves, which automatically adjust to maintain the desired flow rate based on differential pressure changes.

Double regulating valves, on the other hand, are used to control and balance water flow with precise flow and pressure control. They include mechanisms to maintain consistent flow settings even after the valve is closed and reopened. DRVs can be either fixed orifice, providing a constant flow rate, or variable orifice, allowing for adjustable flow.

The key differences between the two lie in their application scope, functionality, and design complexity. Balancing valves are better suited for larger, complex systems requiring even flow distribution, while DRVs are ideal for smaller systems needing precise control. Additionally, DRVs are more complex and costly due to their locking mechanisms, whereas balancing valves are generally simpler and less expensive.

How do balancing valves optimize system efficiency?

Balancing valves optimize system efficiency in hydronic systems, particularly HVAC, by ensuring proper flow distribution and temperature control. They work by adjusting the flow rate in each circuit to match the system’s demand, which reduces energy consumption and extends the life of system components. This optimization of flow rates maintains consistent temperatures throughout the system, enhancing occupant comfort and equipment performance. Additionally, balancing valves reduce pressure drops, ensuring stable system operation even under varying conditions, which increases

In which applications are balancing valves more suitable than double regulating valves?

Balancing valves are more suitable than double regulating valves in several applications. In larger, complex systems with multiple branches or zones like large commercial HVAC installations, district heating or cooling plants, and industrial process water systems, they ensure even flow distribution. For systems requiring adaptive flow control under variable loads, such as variable flow HVAC systems, dynamic balancing valves automatically adjust to load changes. In systems prioritizing energy efficiency, they equalize system – wide flow, reducing pump energy consumption. When flow measurement and monitoring are important, balancing valves come with features for precise measurement. Also, in systems where isolation is less critical, their focus on balancing flow makes them a better choice.

What are the key technical specifications to consider when choosing a valve?

When choosing between balancing valves and double regulating valves, several key technical specifications should be considered to ensure optimal performance in hydronic systems.

Firstly, consider the valve type and function: Balancing valves are primarily designed to achieve hydraulic balance by adjusting flow rates to match design conditions. Double regulating valves, on the other hand, not only balance the system but also regulate flow rate or pressure to maintain specific conditions, offering more precise control.

Next, evaluate the materials and construction: The valve body and components should be made from materials compatible with the fluid and operating environment, such as stainless steel, brass, or ductile iron, to prevent corrosion and ensure longevity.

End connections and compatibility are also crucial. Ensure that the valve’s end connections (threaded, flanged, or press-fit) are compatible with the existing piping system to facilitate seamless integration.

Pressure and temperature ratings must be considered to ensure the valve can withstand the system’s maximum operating conditions. Double regulating valves often require more precise control, making these ratings particularly critical.

Actuation and control methods vary between the two valve types. Balancing valves are typically manually adjusted but can include automatic features, while double regulating valves often come with electronic or pneumatic actuators for more precise control over flow or pressure.

By carefully considering these specifications, you can select the appropriate valve that best meets the demands of your hydronic system.
