Brass Ms58: Composition, Properties, and Applications

Imagine a material that combines the warmth of copper with the resilience of zinc, resulting in a versatile alloy known as Brass Ms58. This unique composition not only boasts impressive machinability but also stands out for its free-cutting characteristics due to its lead content. For those delving into the world of metallurgy, understanding the precise chemical makeup of Brass Ms58 is crucial, as it directly influences its mechanical properties and wide-ranging applications—from plumbing fixtures to musical instruments. But how does this alloy compare to its counterparts, and what are the secrets behind its superior corrosion resistance? Join us as we embark on a technical deep dive into the composition, properties, and applications of Brass Ms58, unraveling the intricacies that make it a staple in various industries.

Material Composition of Brass Ms58

Overview of Brass Ms58

Brass Ms58, also known as CuZn39Pb3, is a popular brass alloy appreciated for its excellent machinability and strength. This alloy is highly valued in various industrial applications due to its balanced mechanical properties and ease of machining.

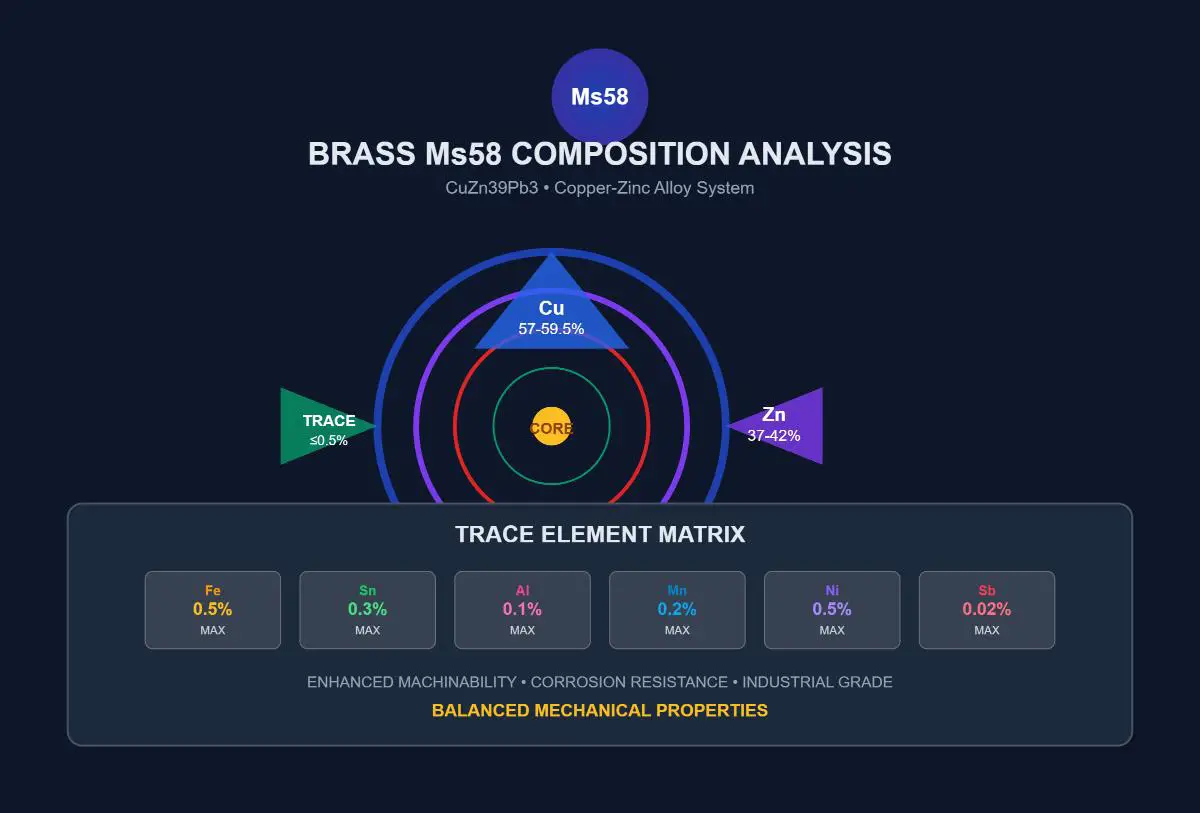

Chemical Composition

The chemical composition of Brass Ms58 is carefully controlled to achieve its desirable characteristics. The primary elements and their typical percentage ranges in the alloy are as follows:

• Copper (Cu): 57-59.5%
• Lead (Pb): 1-3%
• Zinc (Zn): The remainder, typically around 39%
• Iron (Fe), Tin (Sn), Aluminum (Al), Manganese (Mn), Nickel (Ni), Antimony (Sb): Small amounts up to specified limits

Copper-Zinc Alloy

The primary constituents of Brass Ms58 are copper and zinc. The copper content, typically ranging from 57% to 59.5%, provides the alloy with excellent electrical and thermal conductivity, as well as good corrosion resistance. Zinc, making up around 39% of the alloy, contributes significantly to its strength and hardness.

Lead Content

Lead, present in 1% to 3%, improves machinability and reduces wear on cutting tools, making Brass Ms58 ideal for precise machining applications. This property is particularly beneficial in producing intricate components and fittings.

Alloying Elements

Brass Ms58 includes small amounts of iron, tin, aluminum, manganese, nickel, and antimony, each contributing to the alloy’s strength, corrosion resistance, and overall toughness. These additional elements are carefully controlled to optimize the performance of Brass Ms58 for its intended applications.

The precise balance of copper, zinc, lead, and other elements ensures Brass Ms58’s desirable properties, such as machinability, strength, and corrosion resistance, making it versatile for various industrial uses.

Mechanical Properties and Machining Optimization

Strength and Durability

Brass Ms58 is renowned for its mechanical strength and durability, attributed to its balanced composition of copper and zinc. The addition of zinc notably enhances the alloy’s tensile strength compared to pure copper, enabling Brass Ms58 to withstand substantial mechanical loads—ideal for applications demanding robust materials.

Tensile Strength

Tensile strength is a crucial mechanical property of Brass Ms58. This alloy can achieve a tensile strength of up to 350 MPa, contingent on its specific formulation and processing conditions. The zinc content contributes to the alloy’s resistance to deformation under stress, ensuring reliable performance in demanding environments.

Ductility

Brass Ms58 maintains good ductility, essential for applications involving forming and bending. Its ability to elongate without fracturing allows it to be shaped into complex components while preserving structural integrity, which is advantageous in manufacturing processes requiring intricate designs.

Corrosion Resistance

Brass Ms58 offers excellent resistance to corrosion, critical for applications exposed to moisture and varying environmental conditions. The copper content provides inherent corrosion resistance, while zinc helps form a protective oxide layer on the surface, minimizing the likelihood of rust and deterioration.

Protective Coatings

To further enhance corrosion resistance, Brass Ms58 can be coated with protective materials such as lacquers or plating. These coatings add a barrier against environmental factors, extending the alloy’s lifespan in harsh conditions, particularly in plumbing fixtures exposed to water.

Machinability

Brass Ms58 is celebrated for its exceptional machinability. The presence of lead in the alloy reduces tool wear and improves cutting performance, making it a preferred choice for precision machining. This property allows manufacturers to produce high-quality, intricate components efficiently.

Impact of Lead Content

Lead is a critical element in Brass Ms58, typically comprising 1% to 3% of the alloy. The lead content significantly enhances machinability by acting as a lubricant during cutting, reducing friction and tool wear, enabling smoother, faster machining. However, with growing regulations on lead content, alternative formulations such as Eco M58 have been developed to achieve similar machinability without the environmental concerns.

Machining Optimization Techniques

Optimizing machining processes for Brass Ms58 involves selecting appropriate tools and parameters to maximize efficiency and product quality.

Tool Selection

Carbide tools with sharp edges are recommended for machining Brass Ms58. These tools minimize work hardening and provide clean cuts, improving the surface finish of machined components. Carbide tools are also more durable, reducing tool changes and downtime.

Coolant and Lubrication

Applying coolant and lubrication during machining is essential to prevent overheating and reduce tool wear. Coolants help dissipate heat generated during cutting, while lubricants reduce friction between the tool and material, ensuring smooth operation and extending tool life.

Feed Rates

Moderate feed rates are advisable when machining Brass Ms58. Balancing speed and feed rate ensures optimal chip formation and surface finish. High feed rates can cause rough surfaces and tool wear, while low rates may lead to heat buildup and deformation.

Free-Cutting Brass Characteristics

Brass Ms58 is classified as a free-cutting brass due to its enhanced machinability. This classification means these alloys can be machined efficiently with minimal tool wear and produce high-quality surface finishes. The free-cutting nature of Brass Ms58 makes it ideal for applications requiring precision and intricate designs, such as electrical connectors and automotive components.

Applications

The excellent machinability of Brass Ms58 makes it suitable for a wide range of industrial applications, including:

• Plumbing Fixtures: Valves, pumps, and fittings benefit from the alloy’s corrosion resistance and ease of machining.
• Electrical Components: Connectors and terminals require the balanced conductivity and durability provided by Brass Ms58.
• Automotive: Door hardware and decorative trim utilize the alloy’s wear resistance and aesthetic appeal.
• Decorative Items: Lamps, knobs, and architectural accents leverage its polishability and oxidation resistance.

Microstructure-Property Relationships

The microstructure of Brass Ms58, an alloy of copper, zinc, and lead, greatly influences its mechanical properties. This alloy consists mainly of a solid solution of zinc in alpha copper, with discrete lead particles dispersed throughout. This specific arrangement has a profound impact on various mechanical characteristics such as tensile strength, ductility, hardness, and toughness.

Mechanical Properties

Tensile strength and ductility are critical properties of Brass Ms58. The zinc-rich alpha phase provides the alloy with strength and the ability to deform without breaking, while the lead particles, which do not dissolve in the copper matrix, enhance ductility by preventing the formation of brittle phases. This combination allows the alloy to withstand significant mechanical stresses.

Additionally, the hardness and toughness of Brass Ms58 are affected by its microstructure. The fine dispersion of lead particles along grain boundaries acts as a lubricant during deformation, reducing internal stresses and enhancing toughness. This makes the alloy suitable for applications where both hardness and the ability to absorb energy are essential.

Corrosion Resistance

The corrosion resistance of Brass Ms58 mainly depends on its microstructure, particularly how zinc and lead are distributed. The alpha phase, enriched with zinc, forms a protective oxide layer that shields the alloy from corrosion. Although lead is inert and does not directly contribute to corrosion resistance, its distribution can influence the overall protective behavior of the alloy. A uniform distribution of zinc helps prevent dezincification, a form of corrosion where zinc is selectively leached out, by maintaining the integrity of the protective oxide layer.

Microstructure Analysis Techniques

To optimize the microstructure of Brass Ms58, various analysis techniques are employed, each providing unique insights into phase composition, grain size, and lead particle distribution.

Optical Microscopy is a fundamental tool for examining the microstructure, allowing for visualization of grain boundaries and phase distribution. It is essential for routine quality control and evaluation.

Scanning Electron Microscopy (SEM) offers higher magnification and resolution, enabling detailed analysis of the microstructure. SEM is particularly useful for studying the morphology and distribution of lead particles and identifying microstructural defects.

X-Ray Diffraction (XRD) is used to determine the phase composition and crystallographic structure of Brass Ms58. This technique helps in identifying the presence and proportions of different phases, which are critical for understanding mechanical behavior and optimizing heat treatment processes.

Role of Lead in Microstructural Characteristics

Lead significantly influences the microstructure of Brass Ms58. Despite being practically insoluble in the copper matrix, lead particles are strategically dispersed to enhance machinability and mechanical properties. During machining, lead acts as a lubricant, reducing friction and wear on cutting tools due to its low melting point, which forms a thin lubricating layer at the tool-material interface. Furthermore, lead particles at grain boundaries can impede dislocation movement, contributing to grain boundary strengthening and enhancing the overall strength and toughness of the alloy.

Industrial Applications of Brass Ms58

Plumbing and Sanitary Fixtures

Brass Ms58 is ideal for plumbing and sanitary fixtures due to its corrosion resistance and durability, making it suitable for valves, faucets, showerheads, and other bathroom fittings. These components are frequently exposed to water and varying environmental conditions, which makes the corrosion resistance of Brass Ms58 particularly valuable. Additionally, its machinability allows for the precise manufacturing of intricate parts, ensuring reliable performance and tight seals in plumbing systems.

Door Hardware

The strength and aesthetic appeal of Brass Ms58 make it an excellent material for door hardware. This includes door handles, hinges, locks, and other fittings that require both mechanical strength and a pleasing appearance. Brass Ms58’s ability to be easily machined and polished ensures that these components not only function well but also maintain a high-quality finish. The alloy’s durability ensures that door hardware can withstand frequent use and resist wear over time.

Vehicle Construction

In the automotive industry, Brass Ms58 is valued for its strength, machinability, and corrosion resistance. It is used in the manufacturing of various components such as valve parts, pump components, and swivel parts. These parts often require precise machining and must handle heavy use and pressure, making Brass Ms58’s properties highly suitable. The alloy’s ability to resist corrosion also contributes to the longevity and reliability of automotive components, particularly those exposed to harsh environments.

Musical Instruments and Engraving Materials

Brass Ms58 is favored in crafting musical instruments like trumpets and decorative items such as nameplates due to its excellent acoustic properties and ability to be polished and engraved. The alloy’s durability ensures that musical instruments produce a clear, resonant sound, while its machinability allows for the precise crafting of intricate designs in decorative pieces. This combination of properties makes Brass Ms58 a popular choice for high-quality musical and decorative items.

Automotive and General Engineering

Brass Ms58 is widely used in general engineering for parts like gears, bearings, and bushings. Its strength and machinability make it suitable for precise, durable components. These parts often require exact dimensions and high durability, which Brass Ms58 can provide. The alloy’s versatility allows it to be used in a wide range of engineering applications, from small precision components to larger structural parts.

Material Standards for Brass Ms58

DIN 17660 is an essential standard for brass alloys, ensuring quality and consistency in manufacturing by specifying chemical compositions, mechanical properties, and tolerances for Brass Ms58. The ASTM C38500 standard offers detailed guidelines for leaded brass alloys, including Brass Ms58, defining its composition, mechanical properties, and testing methods to ensure compliance. Comparing DIN 17660 and ASTM C38500, both standards emphasize chemical composition and mechanical properties but differ in testing methodologies and tolerances. Understanding these differences is vital for global manufacturers who need cross-compliance in various markets.

DIN 2.0401 complements DIN 17660 by providing additional specifications for Brass Ms58, focusing on processing aspects like machinability and corrosion resistance. This ensures optimal performance in intended applications and uniform product quality across industries.

EN 12164 is a European standard specifying requirements for free-cutting brass rods, such as Brass Ms58, focusing on dimensions, tolerances, and mechanical properties. This standard is crucial for manufacturers needing precision machining where accuracy and surface quality are key.

The Japanese Industrial Standard JIS C3603 outlines specifications for brass alloys similar to Brass Ms58, detailing chemical composition and mechanical properties. Widely recognized in Asia, compliance with JIS C3603 ensures products meet local market demands and quality expectations, facilitating international trade and collaboration.

Hot Formability of Brass Ms58

Understanding Hot Formability

Hot formability is the capability of a material to be shaped at high temperatures while maintaining its structural integrity. For Brass Ms58, which includes copper, zinc, and lead, hot formability is crucial as it allows the material to be shaped into complex forms while preserving its mechanical properties.

Safe Temperature Range for Hot Forming

The safe temperature range for hot forming Brass Ms58 generally falls between 880°C and 940°C. Keeping within this temperature range ensures the alloy remains pliable, making it easier to shape into desired forms. Adhering to this range prevents issues such as excessive grain growth or unwanted phase changes that could affect the alloy’s properties.

Thermal Properties

Brass Ms58’s thermal properties play a pivotal role in its hot formability. The copper content in Brass Ms58 determines its thermal conductivity. This property ensures even heat distribution during forming processes, maintaining consistent mechanical properties across the formed component for reliability and performance in applications.

Advantages of Hot Formability

The excellent hot formability of Brass Ms58 offers several advantages:

• Precision and Complexity: The ability to form complex shapes at high temperatures allows for precise manufacturing of components that require intricate geometries.
• Reduced Tool Wear: Hot forming reduces the stress on machining tools, prolonging their lifespan and enhancing efficiency in production processes.
• Enhanced Material Properties: Forming the alloy at high temperatures can enhance its mechanical properties, like strength and flexibility, depending on the technique used.

Applications Leveraging Hot Formability

Industries capitalize on the hot formability of Brass Ms58 for various applications, including:

• Plumbing and Sanitary Fixtures: Components such as faucets and showerheads benefit from the alloy’s ability to be formed into complex shapes while maintaining corrosion resistance.
• Automotive Components: The precision required in manufacturing vehicle parts like gears and bushings is facilitated by Brass Ms58’s hot formability.
• Musical Instruments: The acoustic properties of the alloy are enhanced through precise shaping, which is achievable due to its ability to be hot-formed.

The versatility offered by Brass Ms58’s hot formability makes it a preferred choice for manufacturers seeking materials that can meet demanding specifications and deliver exceptional performance across diverse applications.

Failure Analysis Case Studies

Dezincification and Stress Corrosion Cracking in Plumbing Systems

Brass Ms58, also called C26000, is popular in plumbing because it’s easy to work with and resists corrosion. However, some components, like hexagonal threaded connectors, have been failing due to transverse cracking and leakage.

Failure Mechanisms

Two main mechanisms contribute to these failures: dezincification and stress corrosion cracking (SCC).

• Dezincification: This occurs when water causes zinc to leach out of the brass, leaving behind weak, porous copper. The structural integrity of the connectors diminishes, making them susceptible to cracking.
• Stress Corrosion Cracking (SCC): Residual stresses from manufacturing, combined with cyclic loading and exposure to aggressive ions like chlorides or ammonia, can cause SCC. This manifests as intergranular cracks that propagate under stress.

Critical Factors

• Residual Stresses: Skipping stress-relief annealing after manufacturing can leave residual stresses that trigger cracks.
• Environmental Conditions: Aggressive ions in the environment, such as those in tap water with high chloride content, accelerate dezincification and SCC.

Seasonal Cracking in Agricultural Environments

Failures have been noted in brass Ms58 bolts used in rural mausoleums after 8 to 12 years, leading to structural failures in marble slabs. These bolts are exposed to agricultural environments rich in fertilizers and moisture.

Root Causes

• Ammonia-Induced SCC: Fertilizer runoff containing ammonia interacts with moisture, resulting in SCC. Ammonia is a known stress corrosion agent for brass.
• Microstructural Analysis: Intergranular cracks starting at thread roots indicate SCC, with no general corrosion present, suggesting SCC as the dominant failure mechanism.

Design Considerations

• Material Specification: Insufficient detail in material specifications beyond the alloy type failed to account for environmental factors affecting the bolts.

Radiant Heating System Failures

Failures in radiant heating systems have been linked to brass fittings, resulting in leaks and component degradation.

Failure Modes

• Thermal Cycling Fatigue: Repeated heating and cooling cycles cause fatigue in brass fittings, leading to cracks and leaks.
• Chloride-Induced SCC: Brass alloys not adequately treated are prone to SCC in high-chloride environments, common in heating systems.

Lessons for Material Selection

Stress-Relief Annealing

Stress-relief annealing after manufacturing reduces residual stresses, lowering SCC risk and improving brass durability.

Environmental Controls

Avoiding exposure to environments with ammonia and chlorides is critical. In unavoidable situations, selecting alternative alloys with better SCC resistance is advisable.

Alternative Alloys

Consider using inhibited brass alloys, such as C26800, which include arsenic or antimony to enhance resistance to dezincification and SCC.

Applications and Risk Mitigation

Common Uses

Brass Ms58 is favored for plumbing parts, fasteners, and decorative pieces because it’s easy to shape and looks great.

Best Practices

• Dezincification-Resistant Brass: For wet environments, specify alloys like C36000, resistant to dezincification, to enhance longevity.
• Finite Element Analysis (FEA): Conducting FEA can help identify stress concentrations in threaded components, allowing design modifications to reduce failure risk.

Corrosion Resistance Comparison

Comparison of Corrosion Resistance

Corrosion resistance is a crucial property of brass alloys, influencing their effectiveness in various applications. Brass Ms58 is recognized for its machinability and moderate corrosion resistance, often compared with other brass types to find the best fit for different environments.

Corrosion Resistance of Brass Ms58

Brass Ms58, a copper-zinc alloy with added lead, demonstrates good corrosion resistance in non-aggressive environments. It is particularly resistant to atmospheric corrosion and many industrial conditions. The copper component in the alloy forms a protective oxide layer that inhibits corrosion, while zinc contributes to overall strength and hardness.

However, Brass Ms58 is not recommended for direct exposure to seawater or highly saline environments. In marine conditions, Brass Ms58 can suffer from dezincification, where zinc is removed from the alloy, leaving a weakened copper structure. This can lead to stress corrosion cracking (SCC), compromising the integrity of components used in such environments.

Comparison with Marine Brass Alloys

Marine brass alloys, such as CW617, are specifically designed to withstand harsh marine environments. These alloys often include tin, which helps protect the alloy from dezincification and stress corrosion cracking. Tin helps stabilize the brass structure, making it less susceptible to the detrimental effects of seawater.

In comparison, Brass Ms58’s lead content improves machinability but slightly reduces its corrosion resistance. Marine brass alloys typically have lower or no lead content, prioritizing corrosion resistance over machinability. This makes marine brass more suitable for applications involving prolonged exposure to seawater, such as ship fittings and marine hardware.

Corrosion Resistance in Atmospheric Conditions

In atmospheric conditions, Brass Ms58 performs well, providing reliable corrosion resistance for applications such as plumbing fixtures, door hardware, and musical instruments. The protective oxide layer formed by the copper component is effective in preventing corrosion from exposure to air and moisture. This makes Brass Ms58 a popular choice for components that need to maintain their appearance and functionality over time.

Factors Influencing Corrosion Resistance

Factors affecting corrosion resistance include:

• Environmental conditions such as moisture and chlorides.
• Alloy composition, including elements like tin and lead.
• Protective coatings that act as barriers against environmental exposure.

Applications and Limitations

Brass Ms58 is widely used in applications where moderate corrosion resistance and excellent machinability are required. Its suitability for plumbing fixtures, door hardware, and musical instruments is well-established due to its ability to withstand atmospheric conditions and mild industrial environments.

However, for applications demanding higher corrosion resistance, especially in marine or highly corrosive environments, alternative alloys like marine brass (CW617) should be considered. These alloys are engineered to provide superior resistance to dezincification and SCC, ensuring longevity and reliability in challenging conditions.

Understanding the specific environmental factors and application requirements is crucial in selecting the appropriate brass alloy, balancing corrosion resistance with machinability to achieve optimal performance.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the exact chemical composition of Brass Ms58?

Brass Ms58, also referred to as CuZn39Pb3, is a copper-zinc alloy known for its machinability and strength. The exact chemical composition of Brass Ms58 includes 57-59.5% copper (Cu), 1-3% lead (Pb) for enhanced machinability, and the remainder primarily zinc (Zn), which is about 37-42%. Additionally, it contains small amounts of other elements such as iron (Fe) at 0.5%, tin (Sn) at 0.3%, aluminum (Al) at 0.1%, manganese (Mn) at 0.2%, nickel (Ni) at 0.5%, antimony (Sb) at 0.02%, and other elements up to 0.2% maximum. This specific composition provides Brass Ms58 with a balance of mechanical properties, including good strength, durability, and corrosion resistance, making it suitable for various industrial applications.

How does lead content affect machining characteristics?

The lead content in Brass Ms58 significantly enhances its machining characteristics. Lead acts to improve chip formation, producing small, well-formed chips that reduce clogging and wear on cutting tools. This allows for higher machining speeds and greater efficiency. Additionally, lead decreases friction at the tool-chip interface, reducing cutting forces and extending tool life. Contrary to some assumptions, lead does not melt during machining but rather modifies the mechanical interaction at the tool interface, enhancing chip segmentation and reducing friction. Without lead, machinability declines, leading to higher cutting forces and the formation of longer, continuous chips that can clog cutting tools and increase wear, thereby slowing production and raising costs. Overall, the controlled lead content in Brass Ms58, typically around 2-3%, balances optimal machining performance with regulatory limits.

What temperature range is safe for hot forming?

The safe temperature range for hot forming Brass Ms58 is approximately 650°C to 750°C. This range is optimal for enhancing the material’s ductility and reducing flow stress during the forming process, without approaching the melting range, which is approximately 870°C to 916°C. Staying within this temperature range ensures the brass retains its structural integrity and mechanical properties, preventing issues like melting or grain coarsening that could degrade its performance. Additionally, soft annealing is typically performed at temperatures between 450°C and 550°C to relieve stresses and soften the material either before or after forming. This precise temperature control during hot forming is crucial for maintaining the quality and functionality of Brass Ms58 in applications such as valves, sanitary fittings, and automotive components, as discussed earlier.

How does Brass Ms58 compare to other brass alloys?

Brass Ms58 (CuZn39Pb3) is a leaded brass alloy known for its excellent machinability, due to the presence of 1–3% lead, which enhances its free-cutting capabilities. This makes it ideal for automated machining processes, especially in industries where precision and speed are crucial. Compared to other brass alloys like C26000 (Cartridge Brass), which is lead-free and has lower machinability but better cold-forming properties, Brass Ms58 offers a balance between performance and cost-effectiveness.

When compared to C36000 (Free-Cutting Brass), which has similar lead content, Brass Ms58 maintains its distinct identity under the legacy DIN designation while remaining prevalent in modern standards like EN 12164. Moreover, Brass Ms58 outperforms other high-lead brass alloys like C48500 in terms of corrosion resistance, making it suitable for applications such as plumbing, automotive components, and consumer goods. Overall, Brass Ms58 is favored for its combination of machinability, corrosion resistance, and economic production.

What are common machining challenges with leaded brass and how can they be optimized?

Common machining challenges with leaded brass, such as Ms58, stem from its chemical composition and physical properties. The presence of lead in brass enhances machinability by reducing friction and improving chip formation, but also introduces environmental and health concerns. Managing swarf generation is another issue, as leaded brass produces significant waste material that can clog cutting tools and machinery, necessitating regular cleanup. Additionally, the softness of brass can lead to increased tool wear, requiring careful adjustment of feeds and speeds to avoid damage to the workpiece.

To optimize machining, selecting sharp, high-quality cutting tools with appropriate rake angles is essential. Adjusting machining conditions, such as feeds and speeds, to match the specific properties of the brass alloy can help prevent workpiece damage and ensure a quality finish. Implementing effective cooling systems can manage heat buildup, extending tool life and maintaining workpiece integrity. Regular maintenance of machinery and proper preparation of workpieces also contribute to operational efficiency.

While leaded brass offers superior machinability compared to lead-free alternatives, these optimization strategies can mitigate the associated challenges, ensuring efficient and high-quality machining processes.

How does the microstructure affect the properties of Brass Ms58?

The microstructure of Brass Ms58, also known as CuZn39Pb3, significantly influences its properties. This alloy primarily consists of a copper-rich alpha (α) phase, which is a solid solution of zinc in copper. The α-phase provides Brass Ms58 with good ductility and inherent corrosion resistance, essential for applications like plumbing fixtures and door hardware.

The inclusion of lead (Pb) in the microstructure is critical for its machinability. Lead particles are finely dispersed throughout the copper-zinc matrix and act as internal lubricants and chip breakers during machining. This feature enhances the alloy’s free-cutting ability, making it suitable for precision machining tasks without compromising overall strength.

Zinc content in Brass Ms58 contributes to solid solution strengthening, increasing the alloy’s strength and hardness, although higher zinc levels may slightly reduce ductility. Minor alloying elements such as iron, nickel, and tin further refine the grain structure, enhancing mechanical stability and corrosion resistance.
