Captive vs Non-Captive Screws: Understanding the Differences

Imagine working on a complex industrial machine, only to find yourself frantically searching for a tiny screw that has rolled away into oblivion. This scenario highlights the critical role of choosing the right type of screw for your applications. Captive and non-captive screws, while seemingly similar, offer distinct advantages depending on your needs. In this article, we’ll delve into the differences between these two types of screws, exploring their design features, benefits, and ideal use cases. From preventing screw loss to ensuring ease of replacement, understanding these differences can significantly impact your project’s efficiency and safety. Curious about when to opt for captive screws over non-captive ones? Join us as we unravel the intricacies of these essential components and guide you toward making informed decisions in your next endeavor.

What Are Captive Screws?

Definition and Basic Design Features

Captive screws are specialized fasteners designed to stay attached to a panel or assembly even when loosened, preventing loss during maintenance or operation. These screws typically incorporate a retention mechanism, such as an interference fit or spring-ejected design, ensuring they remain secured within the panel and providing smooth operation without interference from other components.

Common Uses and Applications

Captive screws are widely used in industries that prioritize safety and reliability. They are commonly found in:

• Machinery: Securing access panels and safety guards.
• Electrical Equipment: Ensuring secure connections in control panels and power distribution units.
• Server Enclosures: Maintaining the integrity of server racks and IT equipment.
• Automotive: Facilitating quick access to components in vehicles.
• Medical Devices: Providing secure and reliable fastening in medical equipment.

Key Benefits

• Prevention of Screw Loss: Captive screws remain attached to the panel even when loosened, reducing the risk of losing components during maintenance or operation.
• Ease of Handling: The spring-ejected design allows for quick release and re-engagement, making it easier to access internal components without the hassle of completely removing and reattaching screws.
• Safety: Captive screws enhance safety by ensuring compliance with safety standards, such as the EU Machine Safety Directive 2006/42/EC, which mandates their use for safety guards.

Captive Screw Retainer Flange: Design and Purpose

A retainer flange is an essential component of captive screws. It is designed to provide a secure fit and prevent the screw from being completely removed from the panel. The flange creates an interference fit, ensuring that the screw remains attached even when loosened. This design is crucial for maintaining the functionality and safety of the fastening system.

Captive Washers: Definition, Types, and Functions

Captive washers are used alongside captive screws to enhance their retention capabilities. They come in various types, including spring washers, flat washers, and lock washers. These washers help distribute the load, prevent loosening due to vibrations, and ensure a secure fit. The combination of captive screws and washers provides a reliable and robust fastening solution.

Retaining Mechanisms: Different Types and How They Work

Captive screws use various mechanisms to stay attached to the panel, such as spring-ejected designs that retract threads when not engaged, tight interference fits, and press-in or flare-in installation methods. Each mechanism offers benefits like easy installation, secure fitting, and prevention of screw loss.

What Are Non-Captive Screws?

Definition and Basic Design Features

Non-captive screws are standard fasteners designed to be fully removable from assemblies. They work by passing through clearance holes in one component and threading securely into another, allowing them to be completely detached when unscrewed. This is in contrast to captive screws, which are engineered to stay attached to a panel or assembly even when loosened.

Common Uses and Applications

Non-captive screws are perfect for applications that require frequent disassembly and reassembly, such as consumer products, furniture, automotive parts, and electronics panels. For example, in furniture, non-captive screws allow for easy disassembly during shipping and reassembly by the customer. In automotive parts, they can be quickly removed for maintenance or repair, providing convenience and efficiency.

Key Benefits

• Complete Removability: One of the primary advantages of non-captive screws is their ability to be entirely removed. This feature enables components to be separated and reattached as needed, providing maximum flexibility in design and maintenance.
• Versatility: Non-captive screws are widely used across diverse industries due to their simplicity and availability in various head styles, such as flat, round, and hex, and sizes. This makes them suitable for a broad range of applications.
• Ease of Replacement: If a non-captive screw gets damaged, it can be easily replaced without the need for specialized parts, unlike captive screws which might require specific tools.
• Cost-Effectiveness: Their straightforward design keeps manufacturing costs low, making them an economical choice for many applications.

Risk of Loss

However, non-captive screws can be completely removed, which increases the risk of losing them during maintenance. This is particularly concerning in environments where small parts can be easily misplaced. Additionally, non-captive screws are less suitable for high-vibration environments as they may loosen or fall out under dynamic loads, risking equipment failure. They also present security concerns in situations where tamper resistance is necessary, unlike captive screws, which are often used in safety-critical applications to prevent unauthorized access.

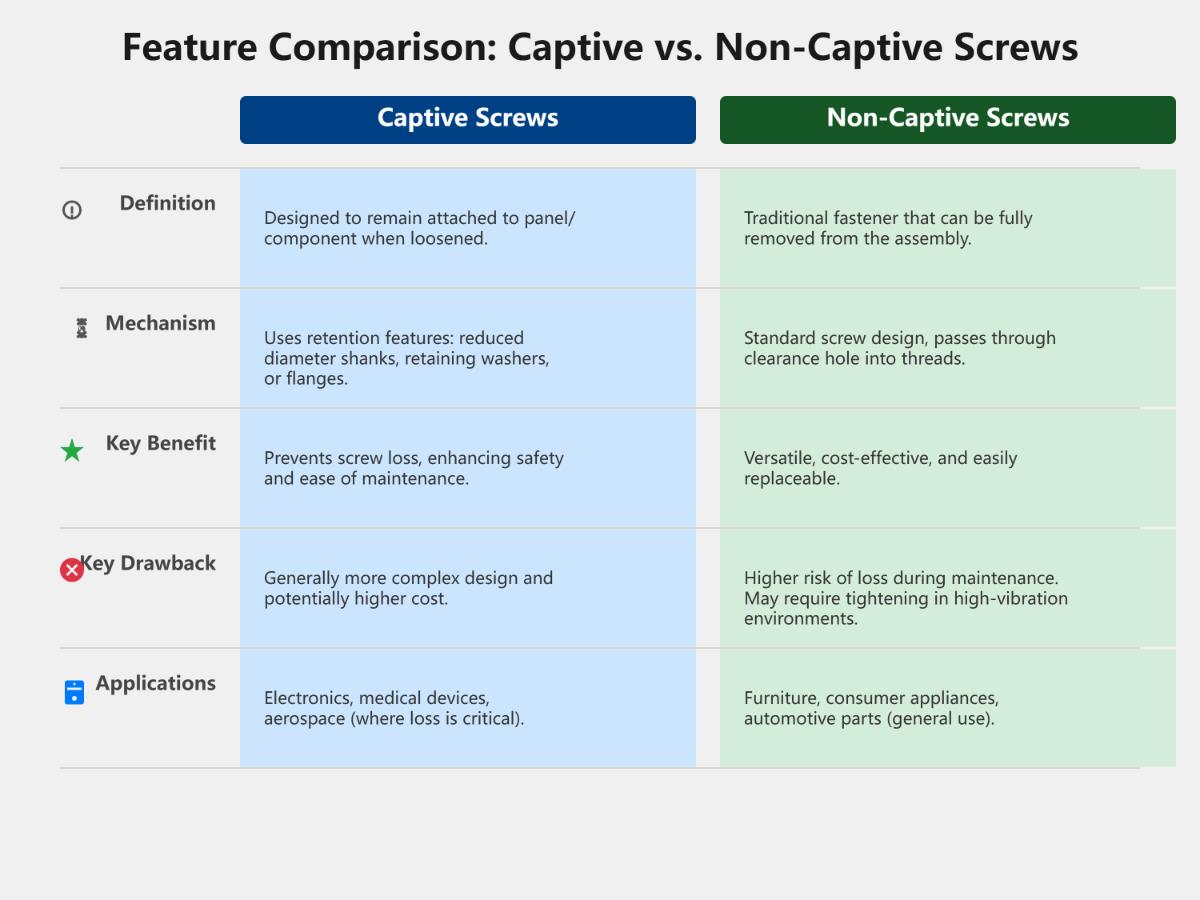

Comparative Analysis: Captive Screws vs Non-Captive Screws

Captive screws and non-captive screws serve different purposes based on their retention mechanisms. Captive screws are designed to remain attached to a panel or assembly even when loosened. They achieve this through features like relief cuts, retaining washers, or spring-ejected designs. Non-captive screws, in contrast, are traditional fasteners that can be completely removed once loosened, as they lack any retention mechanism.

Pros and Cons of Captive Screws

Pros:

• Prevention of Hardware Loss: Captive screws stay attached to the panel, preventing the risk of losing screws during maintenance.
• Enhanced Safety: They comply with safety standards like the EU Machinery Directive 2006/42/EC, ensuring protective covers and guards stay secure.
• Ease of Use: Spring-ejected designs allow for quick loosening and re-tightening without needing to remove the screw entirely.
• Versatility: Available in various head styles and materials, making them suitable for diverse applications, including IT, electrical, automotive, and medical devices.

Cons:

• Complexity and Cost: The specialized design and retention features make them more expensive and complex to manufacture than non-captive screws.
• Limited Removability: The inability to fully remove captive screws can be a drawback in applications requiring complete disassembly.

Pros and Cons of Non-Captive Screws

Non-captive screws are straightforward and versatile, fitting a wide range of applications where screw retention is not critical. They are simple to manufacture and use, contributing to lower costs. However, the potential for screws to be completely removed and lost during maintenance can lead to increased downtime and costs. Non-captive screws are also more prone to loosening in high-vibration environments, which can compromise equipment integrity and safety.

Scenarios Where One is Preferred Over the Other

Captive Screws:

• Safety-Critical Applications: In the aerospace industry, where losing a screw could lead to significant safety hazards, captive screws are essential. For instance, in aircraft engines, every component must remain secure to ensure passenger safety.
• High-Maintenance Environments: Server racks require frequent access for upgrades and repairs. Captive screws ensure that fasteners are not misplaced, facilitating efficient maintenance.

Non-Captive Screws:

• Permanent Assemblies: In furniture assembly, where screws are rarely removed, non-captive screws are ideal. They provide a secure hold without the need for additional retention mechanisms.
• Cost-Sensitive Projects: In general machinery, where budget constraints are a concern, non-captive screws offer a cost-effective fastening solution without the need for specialized parts.

Important Components and Tools

Retaining Washer: Definition and Use

A retaining washer is a vital component for captive screws. It secures the screw within the assembly, preventing it from being completely removed. These washers can be mechanical rings or flat washers that hold the screw against the panel. In captive screws, retaining washers ensure the screw remains attached during disassembly and maintenance.

In contrast, non-captive screws do not require retaining washers. Designed to be fully removable, they have no need for a component that keeps them attached to the assembly.

Retainer Flange: Definition and Use

The retainer flange is another key part of captive screws. It creates an interference fit, ensuring the screw stays attached to the panel even when loosened. This secure fit is essential for the proper functioning and safety of the fastening system, especially in applications where screw loss is unacceptable.

Non-captive screws lack retainer flanges. Their design allows for complete removal, so there is no need for a feature that restricts the screw’s movement within the assembly.

Thread Engagement: Importance and Best Practices

Thread engagement refers to the contact area between the threads of the screw and the mating component. For both captive and non-captive screws, proper thread engagement is crucial for secure fastening.

In captive screws, the partially unthreaded or reduced-diameter shank near the head requires careful consideration of thread engagement. For example, in a high-vibration environment, the reduced shank area may limit the
Non-captive screws, with their fully threaded design, generally have a more straightforward thread engagement process. However, in applications with high vibration, ensuring proper thread engagement is vital. Using appropriate locking mechanisms, such as lock washers, can prevent loosening and potential screw loss.

Applications of Captive and Non-Captive Screws

Industrial Machinery

Captive screws are frequently used for access panels and safety guards in industrial machinery. These areas require regular inspection and maintenance, and the captive feature ensures that screws are not lost, preventing them from falling into the machinery and causing damage or malfunctions, especially in large manufacturing equipment where vibrations are common.

Non-captive screws are used in permanent or semi-permanent assemblies within industrial machinery. For instance, in the structural framework of heavy machinery, non-captive screws provide a secure and stable connection. Since these parts are not frequently disassembled, the risk of losing the screws is minimal, and the lower cost of non-captive screws makes them a more economical choice.

Electronics Enclosures

Captive screws are the go-to choice for electronics enclosures. In servers, computers, and telecommunications devices, there is a need for frequent access to internal components for upgrades, repairs, or maintenance. The captive nature of these screws eliminates the risk of losing screws inside the sensitive electronic equipment, which could lead to short-circuits or other malfunctions.

Non-captive screws can be used in less-critical parts of electronics enclosures or in situations where cost is a major concern. For example, in consumer electronics with a simple design and infrequent need for disassembly, non-captive screws can be used to reduce production costs.

Medical Devices

Medical devices demand high levels of safety and reliability. Captive screws are used to ensure that no hardware is lost during maintenance or operation, which could contaminate the device or cause harm to patients. For example, in surgical equipment or diagnostic machines, captive screws provide a secure and hygienic solution.

Non-captive screws can be used in external parts of medical devices that need to be completely removed for cleaning or replacement. For instance, in the housing of some non-invasive medical monitoring devices, non-captive screws can be used for easy assembly and disassembly.

Aerospace

In the aerospace industry, safety is of utmost importance. Captive screws are essential in aircraft engines, avionics systems, and other critical components. Losing a screw in flight could have catastrophic consequences, so the captive feature ensures that fasteners remain attached during operation and servicing.

Non-captive screws are used in less-critical areas of an aircraft, such as in the interior fittings or non-structural components. These areas do not require the high-level security of captive screws, and non-captive screws offer a cost-effective solution.

Food Manufacturing

In food manufacturing, hygiene is a top priority. Captive screws are used in equipment that comes into contact with food to prevent hardware from falling into the food product, which could pose a safety hazard. For example, in mixing machines or conveyor systems, captive screws are used to secure access panels.

Non-captive screws can be used in the external framework or support structures of food manufacturing equipment. Since these parts are not in direct contact with food, the risk of contamination is low, and non-captive screws can be used for their simplicity and cost-effectiveness.

High-Vibration Environments

Captive screws are ideal for high-vibration environments, as their retention mechanisms prevent them from loosening and falling out. This is crucial for heavy-duty vehicles, construction equipment, and power generation facilities.

Non-captive screws are less suitable for high-vibration environments due to their tendency to loosen and fall out. However, with proper locking mechanisms like lock washers or thread-locking compounds, they can still be used in less-critical high-vibration applications.

Safety-Critical Applications

Captive screws are the preferred choice for safety-critical applications. In nuclear power plants, military equipment, and emergency response systems, the prevention of screw loss is essential to ensure the safety and proper functioning of the equipment.

Non-captive screws may be used in safety-critical applications only when there are strict procedures in place to prevent screw loss, such as in some large-scale construction projects where parts are assembled and disassembled under controlled conditions.

Safety and Standards

Machinery Directive 2006/42/EC

The Machinery Directive 2006/42/EC is a fundamental piece of legislation in the European Union that sets stringent safety requirements for machinery. The directive mandates the use of captive screws in certain applications, particularly where the removal of protective covers or guards could lead to safety hazards. It ensures that screws securing these components do not fall out when the cover is removed, thereby preventing potential hazards such as injuries or equipment damage. Compliance with this directive is essential for manufacturers who wish to market their machinery within the EU, as it helps ensure the continuous protection of operators and maintenance personnel.

Prevention of Foreign Object Damage (FOD)

Foreign Object Damage (FOD) is a significant concern in industries such as aerospace, automotive, and medical equipment manufacturing. The loss of a screw during maintenance can lead to severe operational hazards, including mechanical failures or contamination. Captive screws are designed to mitigate this risk by ensuring the fastener remains attached to the panel even when loosened. This design feature is crucial in maintaining operational safety and integrity, as it prevents screws from becoming foreign objects that could interfere with the machinery’s functionality or pose safety risks to operators.

Safety Compliance

Captive screws must meet additional safety standards in many industries. For example, in aerospace and medical devices, regulatory bodies may mandate the use of captive screws to ensure that critical components remain secured and do not pose a hazard if they become loose. These screws are designed to comply with safety standards that focus on preventing accidental detachment, thereby enhancing the overall reliability and safety of the equipment.

Ease of Maintenance

One of the key advantages of captive screws is their ability to simplify maintenance procedures. By remaining attached to the panel, these screws eliminate the need to handle loose fasteners, which can be easily dropped or misplaced. This feature saves time during maintenance and reduces the risk of injuries from dropped screws, especially in environments with hot or electrically charged screws. They are particularly beneficial in settings where panels need frequent removal and reattachment, streamlining the process and enhancing safety.

Vibration Resistance

High-vibration environments, such as those found in industrial machinery, construction equipment, and transportation, present unique challenges for fasteners. Retention mechanisms like washers and flanges keep captive screws secure and prevent loosening, making them ideal for applications where vibration resistance is critical. This feature is essential for ensuring the continued safe operation of machinery in high-vibration settings.

Tamper Resistance

In addition to their safety benefits, captive screws can also offer tamper resistance. Many captive screws are available with special security features, such as unique drive styles or security sleeves, that restrict unauthorized removal. This is particularly important in applications where preventing unauthorized access is crucial, such as in military equipment, high-security enclosures, and critical infrastructure. By incorporating tamper-resistant designs, captive screws provide an added layer of security and ensure that only authorized personnel can access sensitive components.

Cost Considerations

While captive screws offer numerous safety and compliance benefits, they are typically more expensive than non-captive screws due to their complex design and additional features. However, the cost is often justified by the enhanced safety, reduced risk of hardware loss, and compliance with regulatory standards that captive screws provide. In applications where safety and regulatory compliance are paramount, the investment in captive screws can lead to long-term savings by reducing maintenance costs, preventing equipment damage, and ensuring operational integrity.

Selecting the appropriate screw type requires balancing safety, compliance, and cost-effectiveness. Captive screws are essential for applications where hardware retention and regulatory compliance are critical, while non-captive screws may be more suitable for less demanding environments where cost and ease of replacement are the primary considerations.

Tips for Selecting the Right Screw

Choosing the right screw requires understanding the specific needs of your application. Consider if the screw should stay attached to a panel or component even when loosened. Captive screws are ideal for situations where losing hardware could cause equipment failure or safety hazards, such as in aerospace, medical devices, and high-security environments. Conversely, if the application involves frequent disassembly and reassembly, non-captive screws provide the necessary flexibility.

Environmental Conditions

The environment in which the screws will be used plays a crucial role in your selection. Consider factors like vibration, temperature, and humidity. Captive screws are more resilient in harsh conditions due to their retention mechanisms, making them suitable for high-vibration environments like industrial machinery and construction equipment. Non-captive screws, while versatile, may loosen over time in dynamic conditions, so additional locking mechanisms might be necessary.

Assembly and Maintenance

Ease of assembly and maintenance can significantly impact operational efficiency. Captive screws simplify these processes by reducing the risk of lost hardware, which is particularly useful in confined spaces or areas needing frequent maintenance, like electronics enclosures and server racks. Non-captive screws, on the other hand, require careful tracking during maintenance to prevent loss, but they offer complete removability, which can be advantageous for thorough inspections or replacements.

Cost and Versatility

Budget constraints and the need for versatility should also influence your choice. Non-captive screws are generally more cost-effective and available in a wide range of sizes and head styles, making them suitable for diverse applications, including furniture, appliances, and general construction. Captive screws, while potentially more expensive due to their specialized design, offer long-term savings in applications where preventing hardware loss is critical.

Material and Design

The material and design of the screw must align with the application’s demands. Captive screws can be made from various materials, such as stainless steel or titanium, to enhance durability and resistance to environmental factors. Make sure the material suits the application’s conditions to avoid corrosion or wear. Non-captive screws also come in a variety of materials and designs, but their selection should focus on ease of replacement and compatibility with the components they secure.

Thread Engagement

Proper thread engagement is essential for secure fastening. For both captive and non-captive screws, ensure that the screw length and thread count match the requirements of the mating component. Adequate thread engagement prevents loosening and ensures a robust connection. In high-vibration environments, consider using thread-locking compounds or lock washers to enhance security.

By carefully evaluating these factors, you can select the most appropriate screw type for your application, ensuring optimal performance and safety.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the difference between captive and non-captive screws?

Captive screws and non-captive screws differ primarily in their design and functional characteristics. A captive screw is designed to remain attached to its panel or component even when loosened, thanks to built-in retention mechanisms like reduced diameter shanks, retaining washers, or flanges. This design prevents the screw from being completely removed, thereby minimizing the risk of loss and enhancing safety and ease of maintenance. Captive screws are particularly useful in applications where losing a screw could lead to contamination, equipment failure, or safety hazards, such as in electronics, medical devices, and aerospace.

On the other hand, a non-captive screw is a traditional fastener that can be fully removed from the assembly. This type of screw passes through a clearance hole and threads into another part, allowing for complete detachment. Non-captive screws are versatile and cost-effective, suitable for a wide range of applications where complete removal and ease of replacement are important, such as in furniture, consumer appliances, and automotive parts. However, they pose a higher risk of loss during maintenance and might require frequent tightening in high-vibration environments.

When should I use captive screws instead of non-captive screws?

Captive screws should be used instead of non-captive screws in situations where preventing screw loss is critical. These screws are designed to stay attached to a panel or component even when fully unscrewed, which makes them ideal for applications requiring frequent maintenance, such as industrial machinery, electrical panels, and medical devices. They enhance safety by ensuring that screws do not fall into sensitive equipment, which could lead to malfunctions or hazards. Additionally, many safety standards mandate the use of captive screws to prevent loose hardware from causing injury or equipment damage. Captive screws are also beneficial in environments where cross-threading or misalignment is a concern, as their design helps maintain proper alignment and connection integrity.

What are the benefits of captive screws in industrial applications?

Captive screws offer significant advantages in industrial applications due to their design, which prevents them from being fully detached from the assembly. One primary benefit is the prevention of hardware loss, as these screws remain attached to the panel or assembly even when loosened. This feature minimizes the risk of losing screws during maintenance, repair, or operation, thereby reducing downtime and preventing potential damage to machinery.

Additionally, captive screws enhance safety and reliability. By staying secured within their mounting, they prevent loose screws from falling into sensitive or moving parts, which could lead to operational failures or safety hazards. This is particularly important in critical industries such as military, medical, and industrial machinery.

Captive screws also improve maintenance efficiency. Their design allows for quick and easy release and re-engagement without the need for full removal, speeding up assembly and disassembly processes. This is beneficial in applications that require frequent access, such as IT server racks or electrical enclosures.

Furthermore, captive screws are available in various materials and styles, making them suitable for diverse environmental conditions and applications. They also help ensure compliance with safety standards, such as the EU Machine Safety Directive 2006/42/EC, which often mandates their use to secure protective equipment and safety guards.

How do captive screws prevent loss during maintenance?

Captive screws prevent loss during maintenance by incorporating retention features that keep the screw attached to the panel or assembly even when it is loosened. This is achieved through several mechanisms:

1. Reduced Shank Design: Captive screws typically have a reduced diameter shank section just below the screw head. This section fits into a retaining washer, ferrule, or flange, which holds the screw in place. This allows the screw to rotate and be loosened or tightened but prevents it from being completely removed from the panel.
2. Interference Fit or Snap-In Assembly: Captive screws often use a ferrule that is pressed, flared, or snapped into the panel hole, creating an interference fit. This fit grips the ferrule, preventing the screw from being fully removed while still allowing for operational ease.
3. Spring-Ejected Design: Some captive screws feature a spring-ejected mechanism that retracts the threaded portion when loosened. This design ensures the screw remains captive and operationally smooth, reducing the risk of losing screws during frequent maintenance activities.

These mechanisms ensure that captive screws remain physically attached to the assembly, eliminating the risk of dropping or misplacing screws. This is particularly beneficial in industries where lost screws can lead to operational failures or safety hazards, such as aerospace, defense, industrial machinery, and electronics.

Are there standards or regulations governing the use of captive screws?

Yes, there are standards and regulations governing the use of captive screws. One key regulation is the EU Machinery Directive 2006/42/EC, which mandates that screws must be captivated in certain situations, particularly when covers are removed, to prevent loose fasteners during maintenance. This ensures safety and compliance by keeping screws attached to panels or components, reducing the risk of hardware loss that could lead to equipment failure or safety hazards.

Additionally, captive screws often need to meet various industrial safety standards designed to prevent accidents and improve operational efficiency. They comply with quality standards such as ISO and RoHS, which ensure their material and manufacturing quality. In specific industries like aerospace and defense, captive screws must meet specialized standards, such as AS 9100, to reduce Foreign Object Damage (FOD) and ensure adherence to industry-specific regulations. These standards and regulations underscore the importance of captive screws in maintaining safety and compliance across various applications.

How can I ensure proper thread engagement when using captive or non-captive screws?

To ensure proper thread engagement when using captive or non-captive screws, it is crucial to consider several key factors:

1. Thread Length and Pitch: For both captive and non-captive screws, the thread length must be sufficient to achieve full engagement with the mating component. Ensure the thread pitch matches the mating threads to secure a tight fit.
2. Material-Specific Guidelines: The required thread engagement varies with material:
   • For steel, aim for a thread engagement of 1.0 to 1.5 times the screw’s diameter.
   • For cast iron or brass, use 1.5 to 2.0 times the screw’s diameter.
   • For aluminum, use 2.0 to 2.5 times the screw’s diameter.
3. Installation Practices: For captive screws, insert the screw through the panel to the reduced diameter section, ensuring no interference with adjacent components. Secure the retaining washer or flange to maintain the screw’s captive status. For non-captive screws, ensure proper alignment to avoid cross-threading and apply appropriate torque to prevent over-tightening, which can strip threads.
4. Material Compatibility: Select thread types and materials that minimize the risk of galling or seizing, especially with softer metals like aluminum or stainless steel.

By following these practices, you can ensure optimal thread engagement, enhancing the reliability and strength of your assemblies.
