Chemical Earthing vs. Traditional Earthing: Advantages and Applications

When it comes to protecting lives and equipment from electrical faults, earthing systems are the unsung heroes of safety and reliability. But not all earthing systems are created equal. Traditional methods, like plate or rod earthing, have long been the standard, offering simplicity and familiarity. Enter chemical earthing—a modern alternative designed to tackle the limitations of its conventional counterpart, particularly in challenging soil conditions. With promises of improved fault current dissipation, lower maintenance, and greater durability, chemical earthing has sparked curiosity and debate.

So, how do these two systems stack up in terms of performance, cost, and environmental impact? And what makes chemical earthing particularly effective in high-resistivity soils or demanding industrial applications? Join us as we delve into the advantages and disadvantages of each, exploring their unique strengths and real-world applications to help you make an informed choice. Are you ready to uncover which system suits your needs best? Let’s dive in.

Introduction to Earthing Systems

The Role of Earthing in Electrical Systems

Earthing, or grounding, is a critical safety feature in electrical systems. It establishes a direct connection between electrical installations and the earth, allowing excess electrical charges, such as fault currents, to dissipate safely. This prevents hazards like electric shocks, fires caused by leakage currents, and damage to equipment, while ensuring the system operates reliably.

Types of Earthing Systems

Traditional Earthing Systems

Traditional earthing systems use metal electrodes, such as copper or galvanized iron (GI), buried in the soil to create a conductive path. Common techniques include pipe, plate, and rod earthing, tailored to specific soil conditions and applications. These systems rely heavily on the soil’s natural conductivity, making their effectiveness dependent on environmental factors such as moisture content and soil resistivity.

Chemical Earthing Systems

Chemical earthing enhances traditional methods by using conductive materials like bentonite or graphite around the electrode. These materials improve soil conductivity, retain moisture, and reduce electrode corrosion, creating a stable and low-resistance path for fault currents. Chemical earthing is particularly effective in environments with high soil resistivity, such as rocky or sandy areas, where traditional systems often underperform.

Key Objectives of Earthing Systems

• Safety: Prevents electrical shocks by directing fault currents safely into the earth.
• Equipment Protection: Shields electrical devices from damage caused by overvoltage or surges.
• System Stability: Ensures reliable operation by maintaining consistent grounding and minimizing disruptions.
• Compliance: Meets safety standards and regulatory requirements for electrical installations.

Importance of Choosing the Right Earthing System

Choosing the right earthing system is crucial for the performance and lifespan of electrical installations. Factors such as soil resistivity, environmental conditions, and project scale influence this decision. Chemical earthing is often preferred for industrial applications and challenging soil conditions due to its superior efficiency and durability, while traditional systems remain cost-effective for smaller installations in favorable environments.

Advancements in Earthing Technologies

Modern earthing systems are designed for long-term benefits and lower operational costs. They also ensure safety in complex electrical networks, adapting to diverse environmental challenges and providing reliable protection for people and infrastructure.

Understanding Chemical Earthing

Chemical earthing is an advanced grounding technique that improves electrical system safety and reliability. Unlike traditional earthing methods that depend on natural soil conductivity, chemical earthing incorporates specialized conductive materials like bentonite or graphite around the electrode. These materials enhance soil conductivity and create a dependable low-resistance pathway for fault currents to safely disperse into the earth. This approach is particularly effective in high-resistivity soils, such as rocky or sandy terrain, where conventional methods often fall short. Chemical earthing enhances the connection between the electrode and the earth, ensuring consistent performance and reducing electrical risks.

Key Components and Materials Used in Chemical Earthing

1. Earthing Electrode: The electrode, usually made of copper or galvanized iron (GI), acts as the main conductor for fault currents. Copper electrodes are preferred for their excellent conductivity and resistance to corrosion.
2. Backfill Compounds: Surrounding the electrode are conductive compounds such as bentonite, graphite, or specially formulated chemical mixtures. These materials improve soil conductivity by retaining moisture and reducing resistivity.
3. Earth Pit: A pit is created to house the electrode and backfill compound. Its dimensions are tailored to the soil type and the specific grounding requirements of the installation.
4. Moisture Retention Enhancers: Certain compounds are designed to retain moisture around the electrode, ensuring consistent conductivity even in dry or adverse conditions.

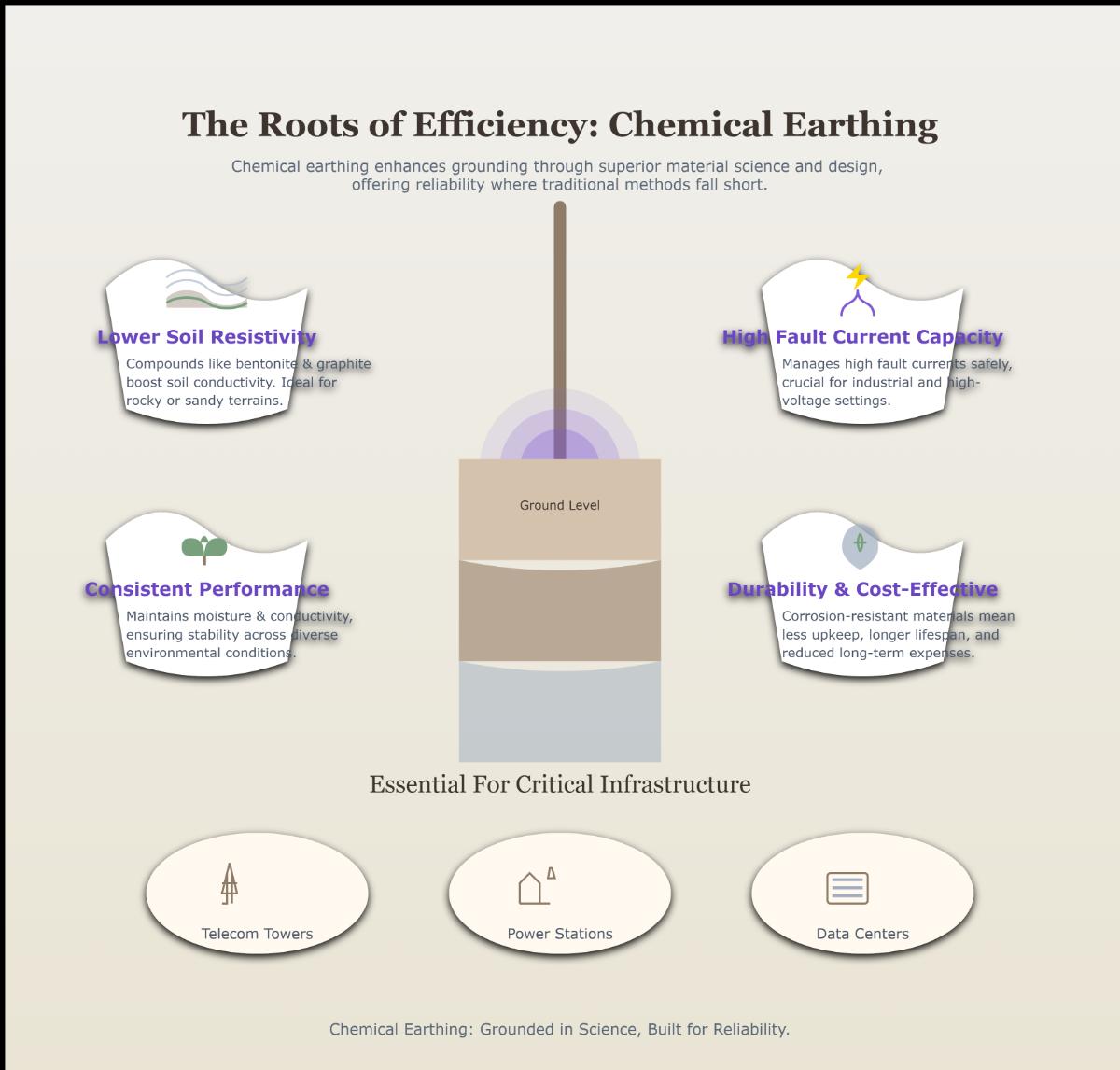

Advantages of Chemical Earthing

Chemical earthing offers several benefits that make it a preferred choice in modern electrical systems:

1. Low Maintenance: The use of corrosion-resistant and durable materials minimizes upkeep, making it a cost-effective solution over time.
2. High Efficiency: Chemical earthing lowers soil resistivity, providing a stable, low-resistance connection even in difficult environments.
3. Long Lifespan: The durability and anti-corrosive properties of the materials ensure extended service life.
4. Adaptability: This system can be customized to suit various soil types and climatic conditions, making it versatile for diverse applications.
5. Enhanced Safety: Reliable fault current dissipation and consistent performance improve overall safety, reducing the risk of electrical hazards and ensuring the protection of both equipment and personnel.

Applications of Chemical Earthing

Chemical earthing is widely used in industries and infrastructure, such as:

• Telecommunication Towers: Provides stable grounding for high-frequency signals and protects sensitive equipment.
• Power Plants and Substations: Essential for managing high fault currents in high-voltage systems.
• Industrial Facilities: Ensures safety in environments with heavy electrical loads and complex machinery.
• Residential and Commercial Buildings: Offers reliable grounding for modern electrical systems, particularly in areas with poor soil conductivity.
• Data Centers: Protects critical IT infrastructure from electrical surges and disruptions.

Traditional Earthing Systems Explained

Types of Traditional Earthing Systems

Traditional earthing systems provide a safe pathway for fault currents by using locally available materials and straightforward methods. These systems are adaptable to various soil conditions and applications, making them a reliable choice in many settings.

Pipe Earthing

Pipe earthing involves burying galvanized iron (GI) or copper pipes vertically in the ground. These pipes act as the primary electrode for dissipating fault currents into the earth. Charcoal and salt are typically packed around the pipe to improve soil conductivity and ensure effective current dissipation. This method is popular in residential and industrial installations due to its simplicity and affordability.

Plate Earthing

Plate earthing uses copper or GI plates buried horizontally at a depth of 2 to 3 meters. The plates are surrounded by conductive materials, such as charcoal and salt, to enhance soil conductivity. This method is particularly suitable for installations requiring higher fault current dissipation and is widely used in industrial and commercial applications.

Rod Earthing

Rod earthing employs copper or GI rods driven into the ground. These rods are ideal for areas with limited space or unique soil conditions. Their versatility allows them to be adapted for both residential and industrial applications, making them a practical choice in challenging environments.

Typical Materials and Installation Process

Traditional earthing systems rely on accessible materials and straightforward installation procedures, ensuring their practicality for diverse setups.

Materials Used

1. Electrodes: Copper and GI are commonly used for their excellent conductivity and durability.
2. Enhancement Materials: Charcoal and salt are added around the electrode to improve soil conductivity and maintain moisture.
3. Earthing Conductors: Copper or GI wires connect the electrode to the electrical system, creating a reliable pathway for fault currents.

Installation Process

1. Site Preparation: The site is chosen based on soil resistivity and moisture levels to maximize system efficiency.
2. Electrode Placement: The electrode is buried at an appropriate depth, typically 2 to 3 meters, depending on the soil conditions.
3. Conductive Packing: Charcoal and salt are packed around the electrode to enhance conductivity and ensure consistent performance.
4. System Connection: Copper or GI wires link the electrode to the electrical system, completing the earthing setup.

Strengths of Traditional Earthing Systems

Traditional earthing systems offer several advantages:

• Cost Efficiency: Using local materials and simple installation lowers initial costs.
• Ease of Installation: Straightforward procedures make these systems accessible for smaller-scale and residential projects.
• Reliable Performance in Favorable Conditions: When soil conductivity is high, these systems effectively dissipate fault currents, protecting electrical equipment and infrastructure.

Common Applications

Traditional earthing systems are widely employed in:

• Residential Installations: Their simplicity and affordability make them a practical choice for grounding household electrical systems.
• Small-Scale Industrial Applications: These systems are suitable for industries with moderate electrical loads and favorable soil conditions.
• Rural and Remote Areas: The reliance on locally available materials ensures feasibility in areas with limited access to advanced resources.

Limitations of Traditional Earthing Systems

Despite their advantages, traditional earthing systems have certain limitations:

• Dependence on Soil Conditions: Their performance depends greatly on soil conductivity, moisture, and resistivity.
• Maintenance Requirements: Electrodes can corrode over time, necessitating regular inspections and replacements.
• Challenges in High-Resistivity Soils: Sandy, rocky, or dry soils increase resistance, reducing system efficiency.
• Limited Longevity: These systems may not provide the durability needed for demanding industrial applications or challenging environmental conditions.

Comparative Analysis: Chemical Earthing vs. Traditional Earthing

Installation Costs

Chemical earthing generally costs more upfront than traditional earthing because it uses specialized materials, such as copper electrodes and conductive backfill compounds like bentonite or graphite. Additionally, installation often requires skilled labor and precise techniques for best results. Traditional earthing systems, on the other hand, are more affordable to install as they use simpler materials like galvanized iron (GI) electrodes and basic enhancement materials such as salt and charcoal. However, traditional systems may lead to higher long-term expenses due to frequent maintenance and electrode replacements, particularly in corrosive or high-resistivity soils.

Maintenance Requirements

Chemical earthing systems are designed to require minimal maintenance. The use of corrosion-resistant materials and moisture-retaining compounds helps ensure consistent performance over long periods, reducing the need for regular upkeep. Traditional earthing systems need regular maintenance. Conductive materials like salt and charcoal often leach away over time and must be replenished. Furthermore, the electrodes in traditional systems are more prone to corrosion, requiring periodic replacement to maintain efficiency. This makes chemical earthing an ideal choice for installations where maintenance access is challenging or costly.

Performance in Various Soil Conditions

Chemical earthing demonstrates superior performance across a wide range of soil conditions, including high-resistivity environments like rocky, sandy, or dry soils. Its conductive backfill compounds enhance soil conductivity, ensuring a stable and low-resistance pathway for fault current dissipation, regardless of environmental changes. As a result, traditional systems are less effective in difficult soil conditions because their performance depends heavily on the natural conductivity of the soil. In high-resistivity areas, traditional systems may struggle to provide adequate safety and efficiency.

Durability

The durable materials used in chemical earthing, such as copper electrodes and corrosion-resistant backfill compounds, contribute to its long lifespan. These systems are built to withstand environmental stresses, including moisture fluctuations and soil corrosivity, ensuring reliable performance for decades. Traditional earthing systems, however, are more susceptible to wear and tear. Corrosion of GI electrodes and depletion of conductive materials over time can compromise their effectiveness, leading to frequent replacements and reduced durability.

Environmental Impact

Chemical earthing is often considered more environmentally sustainable due to its long lifespan and reduced maintenance needs, which minimize resource consumption over time. Additionally, modern backfill compounds are designed to be eco-friendly, lowering the risk of soil contamination. In contrast, traditional earthing systems can have a greater environmental impact. Frequent replenishment of salt and charcoal may alter the soil’s chemical composition, posing challenges in environmentally sensitive areas or regions with strict regulations.

Fault Current Capacity

Chemical earthing can handle higher fault currents than traditional systems. Its combination of high-conductivity materials and improved soil resistivity ensures effective dissipation of fault currents, making it well-suited for high-voltage applications and industrial environments. Traditional systems, while adequate for low to moderate fault currents, may struggle with higher levels due to limitations in soil conductivity and electrode efficiency, making them less reliable for critical installations.

Factors Influencing the Choice of Earthing System

Soil resistivity at the installation site is a key factor in selecting the right earthing system. It determines how well the soil conducts electrical currents and varies based on composition, moisture content, and temperature. For example, high-resistivity soils, such as rocky or sandy terrain, often hinder the performance of traditional earthing systems. In these cases, chemical earthing, which uses conductive compounds like bentonite or graphite, enhances soil conductivity and ensures a stable, low-resistance path for fault currents. Conversely, in low-resistivity soils, such as moist or clay-rich areas, traditional earthing systems can perform effectively without significant modifications, offering a cost-effective solution.

Environmental factors like temperature and precipitation impact performance, with chemical earthing systems offering consistency through moisture-retaining compounds, while traditional systems may need more maintenance in extreme conditions. For instance, in arid regions where soil dries out quickly, chemical earthing provides reliability by retaining moisture, whereas traditional systems may degrade over time without frequent replenishment of materials.

The scale of the project and budget constraints also influence the choice of earthing systems. While chemical earthing has higher upfront costs, it saves money long-term through reduced maintenance, unlike traditional systems, which may seem cheaper initially but require more upkeep. For large-scale industrial installations, such as substations or data centers, the reliability and durability of chemical earthing often justify its higher initial investment. In contrast, small-scale residential projects with moderate fault current requirements often benefit from the affordability of traditional systems.

Safety regulations often favor chemical earthing for its ability to handle fault currents and minimize electrical hazards, making it ideal for critical industries like telecommunications, power plants, and high-voltage applications. In these environments, the enhanced fault current dissipation provided by chemical earthing reduces risks and ensures compliance with stringent safety standards. For residential or low-power applications, traditional systems may suffice, provided they meet local electrical codes.

Long-term maintenance and durability are also key considerations. Chemical earthing systems are designed for low maintenance, with corrosion-resistant electrodes and moisture-retaining compounds ensuring stable performance over time. Traditional systems, however, often require regular inspections and replenishment of materials like salt and charcoal, especially in corrosive soils. Over time, this can increase maintenance costs and reduce the system’s
Space and installation constraints further shape the decision. In urban areas or sites with limited space, chemical earthing systems are advantageous due to their compact design and high efficiency. Traditional systems, on the other hand, often require larger areas to accommodate electrodes and conductive materials. Installation complexity matters too; traditional systems are simpler, while chemical earthing may need skilled labor for precise setup, especially in difficult soils.

Applications and Real-World Examples

Applications of Chemical Earthing

Chemical earthing is ideal for industrial and commercial settings that require stable grounding for high electrical loads. Corrosion-resistant materials and conductive backfill ensure reliability in difficult soil conditions like rocky or dry areas, making this system particularly effective in environments where traditional methods may fall short.

In telecommunication and broadcasting, chemical earthing combines low-resistance pathways with the ability to handle high fault currents and resist environmental degradation. This makes it a reliable choice for towers, especially in challenging soil conditions where consistent performance is essential for uninterrupted operations.

Data centers depend on strong grounding systems to protect IT equipment from surges and ensure stable operations. Chemical earthing offers minimal maintenance and superior fault current dissipation, making it an optimal solution for facilities that demand high reliability and safety.

Urban residential and commercial buildings benefit from chemical earthing’s compact design and adaptability to poor soil conditions. Its long-lasting performance and low-maintenance nature make it an appealing choice for property owners seeking cost-effective grounding solutions.

Applications of Traditional Earthing

Traditional earthing systems are widely used in residential properties due to their affordability and ease of installation. These systems are effective in areas with favorable soil conductivity, providing adequate grounding for household electrical systems.

In rural and agricultural areas, traditional earthing is a practical choice. These systems are commonly used in small-scale setups like irrigation systems and homes, where the soil naturally supports conductivity. Local materials like galvanized iron are often used, making installation straightforward and cost-effective.

Small-scale industries with moderate power needs often opt for traditional earthing systems. Workshops, warehouses, and small manufacturing units benefit from their simplicity and affordability, provided soil conditions are conducive to effective grounding.

Real-World Examples

Telecommunication installations in high-resistivity soils, such as mountainous or desert regions, often rely on chemical earthing. The enhanced conductivity provided by chemical backfill compounds ensures reliable operation and protection against electrical faults in these challenging environments.

Urban substations frequently face space constraints and unfavorable soil conditions. Chemical earthing systems, with their smaller installation footprint and adaptability, provide consistent grounding performance while minimizing the need for extensive space.

In rural agricultural settings, pipe earthing systems are employed to ground electrical pumps and irrigation equipment. These systems take advantage of naturally favorable soil conditions, offering a cost-effective solution for small-scale electrical needs.

Data centers located in coastal areas with highly corrosive soil often utilize chemical earthing systems. The corrosion-resistant materials ensure durability and consistent performance, safeguarding critical infrastructure from environmental degradation.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What makes chemical earthing more efficient than traditional earthing in certain conditions?

Chemical earthing is more efficient than traditional earthing in certain conditions due to its ability to maintain lower soil resistivity, higher fault current capacity, and consistent performance. By using conductive compounds like bentonite and graphite, chemical earthing significantly improves soil conductivity, making it particularly effective in high-resistivity soils such as rocky or sandy areas. Additionally, it can handle higher fault currents without degradation, making it suitable for high-voltage and industrial applications.

Unlike traditional earthing, which is more affected by environmental changes, chemical earthing retains moisture and conductivity over time, ensuring stable performance in varying conditions. Its corrosion-resistant materials also result in lower maintenance requirements and longer service life, reducing long-term costs. These factors make chemical earthing ideal for challenging environments and critical applications where reliable grounding is essential, such as telecommunication towers, power stations, and data centers.

How do installation and maintenance costs compare between the two systems?

Chemical earthing systems generally involve higher initial installation costs compared to traditional earthing due to the use of specialized conductive compounds, electrodes, and professional installation requirements. However, these systems are designed for durability and require minimal maintenance over time, as their materials resist corrosion and maintain performance for 10 to 15 years. This results in significant long-term savings.

Traditional earthing systems, on the other hand, have lower upfront costs because they use simpler, more readily available materials and are easier to install. However, they are more maintenance-intensive, requiring regular inspections, replacement of corroded parts, and frequent watering in dry conditions. These recurring costs, combined with a shorter lifespan (typically 5 to 7 years), can make them less cost-effective in the long run.

Can traditional earthing be upgraded to chemical earthing?

Yes, traditional earthing systems can be upgraded to chemical earthing to improve performance and reliability. The process involves enhancing the existing setup with conductive materials and techniques used in chemical earthing systems. First, the soil around the traditional electrodes is treated with Earth Enhancing Compounds (EEC) like bentonite or graphite-based materials to lower soil resistivity and improve conductivity. Next, the electrodes themselves can be replaced or augmented with corrosion-resistant copper-bonded rods for better durability and efficiency. This upgrade ensures consistent fault current dissipation, reduced maintenance needs, and improved performance, particularly in high-resistivity soil conditions. While the initial cost of upgrading may be higher, the long-term benefits in terms of reliability and reduced upkeep often justify the investment.

What role does soil resistivity play in selecting an earthing system?

Soil resistivity is a critical factor in selecting an earthing system because it directly impacts the system’s ability to dissipate electrical fault currents safely and efficiently. Soil resistivity measures the resistance of soil to electrical current flow, expressed in ohm-meters (Ωm). Low soil resistivity indicates better conductivity, which supports effective grounding, while high resistivity poses challenges for safe dissipation.

In areas with high soil resistivity, such as rocky or sandy terrains, chemical earthing is often preferred. It uses conductive compounds to lower soil resistivity, enhancing efficiency and reducing the need for extensive electrode installations. Traditional earthing, on the other hand, is more cost-effective and suitable for soils with naturally low resistivity, like clay or loam, where standard electrodes suffice.

Understanding soil resistivity ensures proper system design, including electrode type, depth, and spacing, and helps optimize performance under varying environmental conditions.

Are there any environmental concerns associated with chemical earthing?

Yes, chemical earthing does raise certain environmental concerns. The primary issue is the potential for chemical leaching into the surrounding soil and groundwater. Materials like bentonite, copper sulfate, and other conductive salts used in chemical earthing can seep into the environment over time, potentially contaminating water sources and harming local ecosystems. Additionally, prolonged exposure to these chemicals may affect soil quality, making it less suitable for vegetation or other uses.

To mitigate these risks, proper installation and regular maintenance are critical. Using eco-friendly compounds and implementing containment measures, such as barriers to prevent chemical leakage, can help reduce environmental impact. While chemical earthing offers significant advantages in terms of efficiency and reliability, especially in high-resistivity soils, careful management is necessary to address its sustainability concerns.

Which earthing system is more environmentally sustainable?

Chemical earthing is generally more environmentally sustainable than traditional earthing systems. Traditional earthing often uses materials like charcoal and salt, which can degrade soil quality and contribute to environmental harm, such as deforestation and groundwater contamination. In contrast, chemical earthing employs non-toxic, engineered compounds like bentonite or graphite that do not harm the soil or leach pollutants. Additionally, chemical earthing systems have a longer lifespan and require minimal maintenance, reducing waste and resource consumption over time. Their ability to perform consistently in various soil conditions without frequent material replacement further enhances their sustainability. Thus, chemical earthing aligns better with ecological preservation and long-term environmental stewardship.
