Chrome Molybdenum vs S2 Steel: What’s the Difference?

When it comes to selecting the right type of steel for high-impact and wear-resistant applications, the decision often boils down to choosing between chrome molybdenum steel and S2 steel. But what truly sets these two materials apart? Chrome molybdenum steel, known for its robustness and resilience, is a go-to choice in industries ranging from automotive to aerospace. On the other hand, S2 steel is renowned for its exceptional hardness and toughness, making it a staple in tool making. In this comparative analysis, we will delve into the chemical compositions, mechanical properties, and specific applications of these two steels. By the end, you’ll have a clear understanding of their respective advantages and limitations, helping you make an informed decision on which steel is best suited for your needs. So, which one will emerge as the superior choice for your project? Let’s find out.

Chemical Composition and Alloying Elements

AISI 4140, a type of Chrome Molybdenum Steel, is known for its versatility and contains chromium and molybdenum as primary alloying elements.

Definition and Composition

AISI 4140 is defined by its chemical composition, which includes:

• Chromium (Cr): Typically between 0.50% and 0.90%. Chromium contributes to increased hardness and corrosion resistance.
• Molybdenum (Mo): Ranges from 0.15% to 0.25%. Molybdenum enhances strength and resistance to wear and tear.
• Carbon (C): Around 0.38% to 0.43%, providing a balance of strength and ductility.
• Iron (Fe): Forms the base element, constituting the majority of the steel.
• Other elements: Such as manganese (Mn) and silicon (Si), which further improve mechanical properties.

Chromium in AISI 4140 steel increases hardness and provides excellent corrosion resistance, which is essential for applications involving exposure to harsh environments. Molybdenum contributes to the steel’s ability to withstand high temperatures and improves its creep resistance. Together, these elements make AISI 4140 suitable for high-stress applications such as gears, shafts, and high-strength components.

S2 Steel

S2 Steel is known for its shock-resisting properties and is predominantly used in tools subjected to heavy impact loads.

Definition and Composition

S2 Steel typically contains:

• Carbon (C): Higher carbon content compared to CrMo steel, often around 0.45% to 0.55%, which increases hardness.
• Manganese (Mn): Significant content, usually between 0.60% and 0.90%, contributing to toughness and strength.
• Chromium (Cr): Lower than CrMo steel, typically around 0.15% to 0.30%.
• Other elements: Silicon (Si) and vanadium (V) may also be present to improve impact resistance and overall toughness.

The higher carbon and manganese content in S2 Steel make it very tough and resistant to impact, making it ideal for applications such as chisels, punches, and dies. The presence of vanadium further enhances its ability to resist wear and deformation under high stress.

Comparison of Alloying Elements

• Chromium Content
• Chrome Molybdenum Steel (AISI 4140): Higher chromium content (0.50%-0.90%) provides superior corrosion resistance and hardness.
• S2 Steel: Lower chromium content (0.15%-0.30%) leads to reduced corrosion resistance compared to CrMo steel.
• Molybdenum Content
• Chrome Molybdenum Steel (AISI 4140): Molybdenum content (0.15%-0.25%) enhances high-temperature performance and creep resistance.
• S2 Steel: Generally lacks molybdenum, focusing instead on carbon and manganese for impact resistance.
• Carbon Content
• Chrome Molybdenum Steel (AISI 4140): Moderate carbon content (0.38%-0.43%) balances strength and ductility.
• S2 Steel: Higher carbon content (0.45%-0.55%) increases hardness and strength, essential for impact tools.

How Chromium and Molybdenum Affect Steel Performance

Chromium

Chromium is a critical alloying element in steel, significantly enhancing several key properties:

Impact on Mechanical Properties

• Corrosion and Oxidation Resistance: Chromium enhances steel’s ability to resist corrosion and oxidation by forming a stable oxide layer on the surface, protecting the underlying material from corrosive agents. This property is particularly beneficial in environments exposed to moisture, chemicals, or high temperatures.
• Hardness and Wear Resistance: Chromium makes steel harder and more resistant to wear and abrasion, which is important in high-stress applications.
• Tensile Strength: By refining the grain structure, chromium increases the tensile strength of steel, enabling it to withstand greater forces without deforming.

Benefits in Steel Alloys

• Durability in Harsh Environments: Chromium-containing steels, such as Chrome Molybdenum steel, are highly valued in industries requiring materials to maintain integrity under challenging conditions, like the petrochemical and power generation sectors.
• Enhanced Surface Stability: The formation of the chromium oxide layer not only prevents corrosion but also maintains the structural stability of the steel at elevated temperatures, crucial for high-temperature applications.

Molybdenum

Molybdenum is another essential alloying element that plays a significant role in enhancing steel performance:

Impact on Mechanical Properties

• High-Temperature Strength and Toughness: Molybdenum significantly improves the steel’s strength and toughness at high temperatures, helping the steel maintain its mechanical properties even under intense thermal conditions, which is vital for components in high-stress environments.
• Creep Resistance: Molybdenum increases the steel’s resistance to creep, the tendency to deform permanently under constant stress over long periods. This property is crucial for materials used in high-temperature industrial applications.
• Hardenability: Molybdenum enhances the hardenability of steel, allowing it to achieve greater hardness and strength throughout its thickness during heat treatment processes.

Benefits in Steel Alloys

• Extended Service Life: Adding molybdenum extends the service life of steel components by improving their resistance to mechanical and thermal fatigue.
• Improved Performance Under Load: Molybdenum-containing steels can perform reliably under high loads and stresses, making them suitable for critical structural applications.

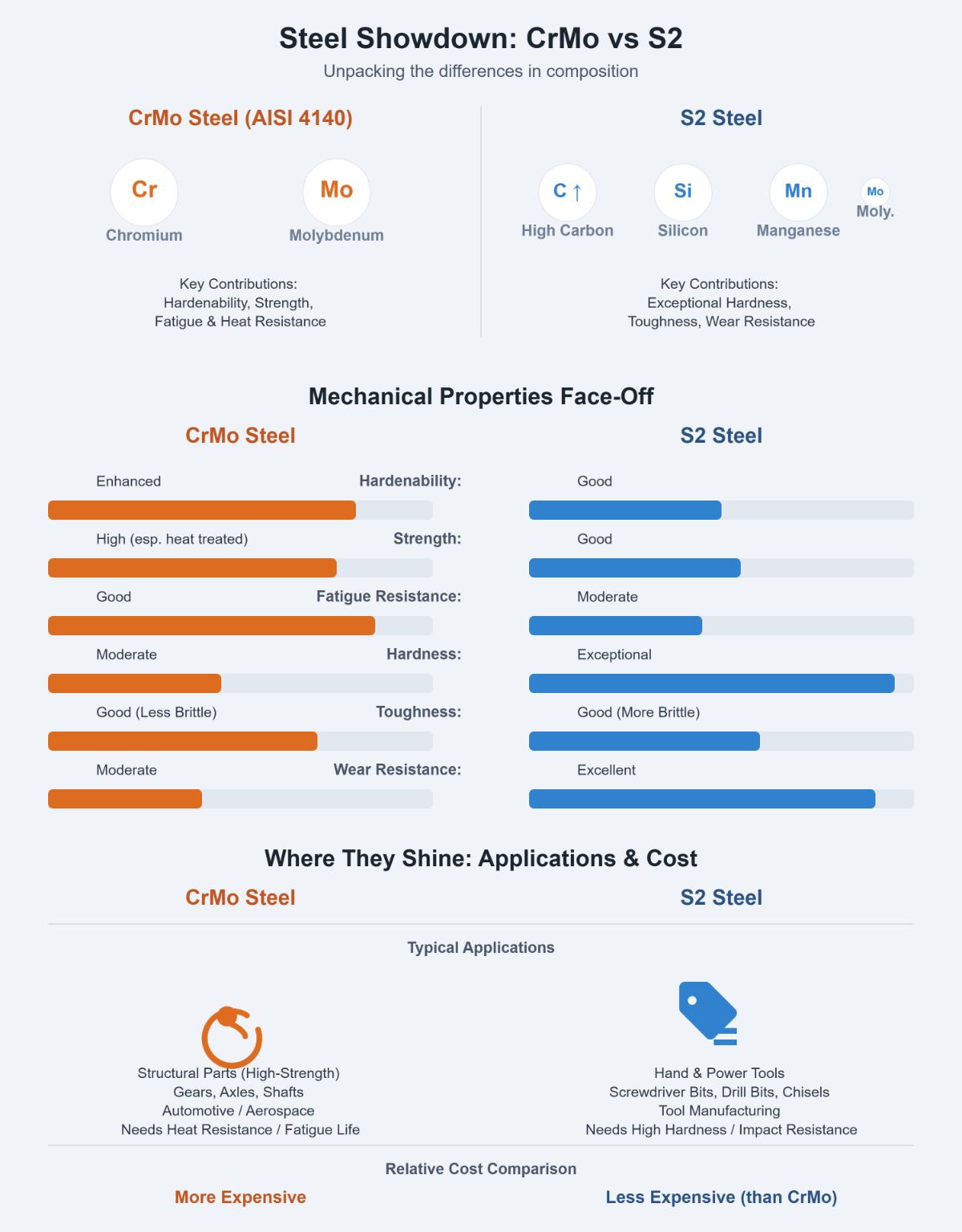

Comparison: Chromium and Molybdenum in Chrome Molybdenum Steel vs. S2 Steel

Here’s a comparison of Chrome Molybdenum Steel (AISI 4140) and S2 Steel, highlighting their key properties:

Chrome Molybdenum steel (AISI 4140) benefits from higher chromium and molybdenum content, leading to superior corrosion resistance, heat resistance, and overall tensile strength. These properties make it ideal for high-stress applications where durability and performance under extreme conditions are required. In contrast, S2 steel, with its higher carbon and manganese content, excels in impact resistance, making it suitable for tools and components that undergo heavy shock loads. However, its lower chromium content reduces its effectiveness in corrosive environments, and the lack of molybdenum limits its high-temperature performance.

Mechanical Properties Comparison

Hardness

Chrome Molybdenum steel (AISI 4140) is known for its moderate to high hardness, especially after appropriate heat treatment. In its normalized state, it typically achieves hardness levels around 30-40 HRC. The presence of chromium and molybdenum enhances the steel’s ability to undergo hardening processes, resulting in a uniform hardness distribution that is beneficial for components requiring resistance to wear and deformation.

S2 steel, known for its use in impact-resistant tools, achieves significantly higher hardness levels compared to Chrome Molybdenum steel. After heat treatment, S2 steel can reach hardness levels of 55-60 HRC. This high hardness is crucial for applications where tools are subjected to repetitive impacts and abrasion, ensuring prolonged durability and performance.

Toughness

The toughness of Chrome Molybdenum steel, enhanced by the combination of chromium and molybdenum, makes it ideal for high-stress applications. This combination not only improves the steel’s strength but also its toughness, enabling it to withstand mechanical stresses without fracturing. This property is particularly advantageous in applications such as pressure vessels and power plant components, where both strength and resilience are required.

S2 steel is specifically engineered for superior toughness, especially in applications involving high-impact forces. Its alloy composition, which includes higher levels of carbon and manganese, contributes to its exceptional ability to absorb energy and resist sudden shocks. This makes S2 steel an ideal choice for manufacturing tools like chisels, punches, and dies that must endure significant mechanical stress without failure.

Wear Resistance

Chrome Molybdenum steel offers moderate wear resistance, which is enhanced by the presence of chromium. The chromium content forms a hard oxide layer on the surface, reducing wear from friction and extending the lifespan of components. This wear resistance is beneficial in applications where components are subject to continuous use and mild abrasive conditions, such as gears and shafts in automotive and industrial machinery.

S2 steel is excellent at resisting wear because it stays hard even under abrasive conditions. The steel’s ability to maintain a hard surface under such conditions makes it ideal for tools that experience high levels of wear and tear. This property ensures that S2 steel tools remain effective and durable over extended periods of heavy use, reducing the need for frequent replacements and maintenance.

Corrosion Resistance

Chrome Molybdenum steel provides moderate corrosion resistance, primarily due to its chromium content. The chromium forms a protective oxide layer on the steel’s surface, which helps to shield it from corrosive environments. While not as resistant as stainless steel, Chrome Molybdenum steel is suitable for applications where exposure to moisture and mild corrosive agents is expected, such as in petrochemical and power generation industries.

S2 steel is less resistant to corrosion compared to Chrome Molybdenum steel due to its lower chromium content. Its lower chromium content means it lacks the same level of protective oxide formation, making it more susceptible to corrosion in harsh environments. As a result, S2 steel is generally used in applications where corrosion exposure is minimal or where protective coatings can be applied to mitigate corrosion risks.

Ductility

Chrome Molybdenum steel exhibits good ductility, which allows it to undergo significant deformation before fracturing. This property is essential for applications requiring forming and shaping, as well as for components that must absorb and redistribute mechanical stresses. The balanced carbon content in AISI 4140 ensures that the steel maintains sufficient ductility while still providing high strength and toughness.

S2 steel is very tough and hard, but it has lower ductility. Its high carbon content makes it more brittle, limiting its ability to deform without cracking. This characteristic is acceptable for tool applications where hardness and impact resistance are prioritized over ductility.

Applications and Suitability

High Temperature Applications

Chrome Molybdenum steel is highly effective in high-temperature settings because of its excellent thermal stability and resistance to creep. Chromium and molybdenum in the alloy help it stay strong and resist deformation at high temperatures. This makes it ideal for power generation equipment, oil and gas pipelines, and automotive and aerospace components.

On the other hand, S2 steel, though known for its shock resistance and toughness, is less suited for high-temperature environments. Its primary strength lies in handling repeated impacts rather than maintaining stability under heat. Therefore, its use in high-temperature settings is limited and generally not recommended.

Impact Resistance

Chrome Molybdenum steel offers good impact resistance, making it suitable for applications where materials face mechanical shocks and stresses. Its balance of hardness and toughness ensures it can absorb energy without fracturing. This makes it beneficial for construction equipment and industrial machinery.

S2 steel stands out for its exceptional impact resistance. It contains high levels of carbon and manganese, as well as vanadium. These elements make it highly impact-resistant and tough. This makes S2 steel the preferred material for hand tools and high-stress mechanical parts, such as hammer bits and drill bits.

Tool Making

Chrome Molybdenum steel is used in tool making when a combination of strength, wear resistance, and toughness is required. Its balanced properties make it suitable for high-strength tools and forming equipment, such as molds and dies used in manufacturing processes.

S2 steel is highly favored in tool making due to its superior toughness and wear resistance. It is particularly effective for tools that experience high impact and abrasion, such as hammers, chisels, and screwdrivers. Additionally, it is ideal for mold and die components used in environments where repeated impacts and high stress are common.

Comparative Analysis

Understanding the specific operational demands of an application is crucial in selecting the appropriate steel. Chrome Molybdenum steel is ideal for high-temperature and high-stress environments, while S2 steel is best suited for applications requiring high impact resistance and toughness.

Advantages and Limitations

Advantages of Chrome Molybdenum Steel

One of the primary benefits of Chrome Molybdenum steel is its high strength-to-weight ratio, making it particularly useful in the aerospace and automotive industries, where both strength and weight are critical factors.

CrMo steel excels in fatigue resistance, which is the ability to withstand repeated cycles of stress without failure. This property is essential for components that experience continuous or fluctuating loads, such as gears, shafts, and high-pressure pipelines.

The addition of molybdenum enhances CrMo steel’s thermal stability, allowing it to maintain its mechanical properties at elevated temperatures. This makes it ideal for applications in power generation and high-temperature industrial processes.

Chromium in CrMo steel significantly improves its corrosion resistance. This property is crucial for components exposed to harsh environments, such as offshore oil rigs and chemical plants.

Limitations of Chrome Molybdenum Steel

Despite its advantages, Chrome Molybdenum steel has certain limitations. Compared to S2 steel, CrMo steel is not as hard, making it less suitable for applications requiring extreme hardness like cutting tools and drill bits.

The complexity of the alloy and the inclusion of chromium and molybdenum increase the cost of CrMo steel. This can be a limiting factor for budget-sensitive projects.

Advantages of S2 Steel

S2 steel stands out in specific applications due to its unique advantages. It is known for its exceptional hardness, which is a key requirement for cutting tools, drill bits, and other applications where wear resistance is critical.

The high carbon and manganese content in S2 steel contribute to its superior impact resistance. This property is vital for tools and components that must endure heavy mechanical shocks, such as chisels and punches.

S2 steel is generally more cost-effective for manufacturing high-wear tools. The steel’s ability to maintain hardness and toughness under stress reduces the need for frequent replacements, leading to cost savings over time.

Limitations of S2 Steel

Despite its benefits, S2 steel has some notable limitations. Due to its high hardness, S2 steel can be prone to brittleness, especially under extreme force. Thin sections or small tools may be susceptible to cracking or shattering.

Compared to CrMo steel, S2 steel has inferior corrosion resistance. Its lower chromium content means it lacks the protective oxide layer that shields against corrosion. This limitation necessitates additional coatings or treatments for applications in corrosive environments.

Specific Applications of Chrome Moly Steel

Chrome Molybdenum steel is highly valued in the automotive industry due to its strength, toughness, and resistance to wear and fatigue.

Gears and Shafts

Automotive gears and shafts require materials that can withstand high mechanical stresses and rotational forces, and Chrome Molybdenum steel’s high tensile strength and wear resistance make it an ideal choice. The presence of chromium enhances the steel’s hardness and wear resistance, ensuring that gears and shafts maintain their integrity and performance over prolonged use.

Aerospace Industry

The aerospace industry needs materials with high strength-to-weight ratios that can endure extreme conditions. Chrome Molybdenum steel meets these needs due to its robust mechanical properties and resistance to high temperatures.

High-Strength Components

Aerospace applications, such as landing gear, engine components, and structural parts, benefit from the high strength and toughness of Chrome Molybdenum steel. The molybdenum content improves the steel’s ability to withstand high temperatures and stresses, making it suitable for critical components that must perform reliably under extreme conditions.

Oil and Gas Industry

Materials in the oil and gas industry must endure harsh environments, including high pressures, corrosive substances, and extreme temperatures. Chrome Molybdenum steel is well-suited for these demanding conditions.

Pipelines and Drilling Equipment

Pipelines and drilling equipment made from Chrome Molybdenum steel benefit from its high tensile strength, corrosion resistance, and ability to withstand high pressures and temperatures. The steel’s chromium content provides excellent resistance to corrosion, particularly in environments exposed to saltwater and chemicals. Molybdenum enhances the steel’s high-temperature performance, making it ideal for use in drilling equipment and high-pressure pipelines.

Construction Industry

The construction industry often requires materials that can endure heavy loads and resist wear over long periods. Chrome Molybdenum steel is utilized in various construction applications due to its strength and durability.

Structural Components

Structural components such as beams, columns, and frameworks benefit from the high strength and toughness of Chrome Molybdenum steel. The steel’s ability to withstand mechanical stresses and its resistance to wear and fatigue make it a reliable choice for construction projects that demand long-lasting performance.

Power Generation Industry

The power generation industry requires materials that can perform reliably in high-temperature environments, such as those found in power plants and turbine systems. Chrome Molybdenum steel is a preferred material in this sector due to its high-temperature strength and resistance to creep.

High-Temperature Components

Components like boiler tubes, heat exchangers, and turbine blades are made from Chrome Molybdenum steel to take advantage of its high-temperature properties. The addition of molybdenum ensures that the steel maintains its mechanical integrity and resists deformation under prolonged exposure to high temperatures, which is essential for efficient and safe power generation.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the main differences between chrome molybdenum steel and S2 steel?

The main differences between Chrome Molybdenum steel (CrMo) and S2 steel lie in their chemical composition, mechanical properties, application suitability, and cost.

Chrome Molybdenum steel, known as AISI 4140, is alloyed with chromium and molybdenum, which enhance its hardenability, strength, and fatigue resistance, especially under heat treatment. This makes it ideal for high-strength structural parts and applications requiring durability and performance at high temperatures.

S2 steel, on the other hand, contains higher carbon content along with silicon, manganese, and molybdenum. This composition gives S2 steel exceptional hardness and toughness, making it well-suited for high-impact tools like drill bits and chisels. S2 steel’s superior hardness results in excellent wear resistance but also makes it more brittle compared to Chrome Molybdenum steel.

In terms of applications, Chrome Molybdenum steel is preferred for components subjected to heavy loads and cyclic stress, such as gears, shafts, and high-strength components in the automotive and aerospace industries. S2 steel is favored for tool making due to its high hardness and impact resistance, crucial for maintaining sharp edges and enduring shock loads.

Cost-wise, Chrome Molybdenum steel is generally more expensive due to its alloying elements and heat treatment processes, while S2 steel, though costly, is usually less expensive than Chrome Molybdenum steel but more than standard steels.

What are the mechanical properties of chrome molybdenum steel compared to S2 steel?

Chrome Molybdenum Steel (AISI 4140) and S2 Steel differ significantly in their mechanical properties. Chrome Molybdenum Steel is known for its high strength and hardenability, making it suitable for applications requiring enhanced durability. Chromium in CrMo steel provides moderate corrosion resistance, while molybdenum contributes to high-temperature strength and creep resistance, allowing the steel to perform well in environments up to 650°C. Additionally, CrMo steel exhibits good weldability due to molybdenum’s ability to reduce carbide formation at grain boundaries.

In comparison, S2 Steel, typically used for tool-making, is characterized by high hardness and impact resistance, making it ideal for applications involving repeated stress. However, specific data on its corrosion resistance and heat resistance are less documented. Generally, S2 Steel is optimized for specific applications requiring toughness and durability.

Which steel is better for high impact and wear resistance applications?

For high impact and wear resistance applications, S2 steel is generally the better choice. This is due to its superior hardness and ability to withstand repetitive stress and wear, making it ideal for tools that require durability and sharpness under heavy-duty conditions, such as chisels and high-torque screwdrivers. S2 steel maintains its hardness at high temperatures, which further enhances its suitability for such demanding applications.

On the other hand, Chrome Molybdenum steel offers excellent strength, fatigue resistance, and corrosion resistance, making it highly versatile and easier to fabricate and weld. While it is superior in high-strength and high-temperature applications, it does not match the exceptional hardness and wear resistance of S2 steel for cutting tools.

Therefore, for applications that prioritize high impact and wear resistance, S2 steel is the preferred option. However, for applications needing corrosion resistance and ease of fabrication, Chrome Molybdenum steel is more suitable.

What is the chemical composition of 4140 chrome molybdenum steel?

4140 Chrome Molybdenum steel, also known as AISI 4140, is a medium-carbon alloy steel known for its balanced mechanical properties, such as strength, toughness, and wear resistance. Its typical chemical composition includes the following elements:

• Carbon (C): 0.38 – 0.43%
• Chromium (Cr): 0.80 – 1.10%
• Manganese (Mn): 0.75 – 1.00%
• Molybdenum (Mo): 0.15 – 0.28%
• Silicon (Si): 0.15 – 0.30%
• Sulfur (S): ≤ 0.040%
• Phosphorus (P): ≤ 0.035%
• Iron (Fe): Balance

The presence of chromium and molybdenum in 4140 steel enhances its hardenability, toughness, and corrosion resistance, making it suitable for applications such as gears, shafts, and high-stress components.

What are the specific applications of Chrome Moly Steel in various industries?

Chrome Molybdenum steel, often referred to as Chrome Moly, is widely used across various industries due to its exceptional high-temperature resistance, corrosion resistance, and tensile strength. In the automotive industry, Chrome Moly steel is used in the manufacturing of gears and shafts, providing durability and strength essential for high-performance components. The aerospace industry relies on Chrome Moly for high-strength components that must endure extreme conditions, such as engine parts and structural elements. In the oil and gas industry, Chrome Moly is utilized in pipelines and drilling equipment, where its resistance to high-pressure and corrosive environments is crucial. Additionally, it is used in power plants for constructing boilers and pressure vessels due to its ability to withstand high temperatures and pressures. Overall, Chrome Moly steel’s versatile properties make it suitable for demanding applications across these sectors.

How do Chromium and Molybdenum enhance the performance of steel alloys?

Chromium and molybdenum are critical alloying elements in steel, enhancing its performance in various ways. Chromium increases corrosion resistance by forming a protective oxide layer on the steel surface, which shields it from corrosive agents. It also boosts the strength and hardness of steel, facilitating easier hardening and improving wear resistance. Additionally, chromium provides exceptional oxidation resistance at high temperatures, crucial for applications involving heat exposure.

Molybdenum contributes to high-temperature strength and thermal stability, allowing steel to maintain structural integrity under elevated temperatures. It ensures uniform hardness throughout the steel, which enhances its overall strength and durability. Molybdenum also improves creep resistance, helping steel resist deformation under prolonged high-temperature conditions. Together, these elements make steel alloys like chrome molybdenum steels highly suitable for demanding industrial applications, offering superior mechanical properties, durability, and resistance to harsh environments.
