Comparing Weld Neck and Long Weld Neck Flanges: Key Differences

In the intricate world of piping systems, choosing the right flange type can significantly impact performance and reliability. When it comes to weld neck and long weld neck flanges, understanding their key differences is essential for engineers and technicians seeking optimal solutions for their projects. Both flange types offer unique advantages, but they cater to different needs and applications. How does the length of the neck influence stress distribution and durability? Which flange stands out in high-pressure environments? This article dives deep into the comparative analysis of these flanges, exploring their features, applications, and the technical nuances that set them apart. Join us as we unravel the complexities behind these vital components and discover which flange might be the perfect fit for your next venture.

Introduction to Flange Types

Flanges are essential components in piping systems that connect pipes, valves, pumps, and other equipment, ensuring efficient fluid or gas flow in industrial setups. Two prevalent types of flanges are weld neck flanges and long weld neck flanges, each serving distinct purposes and offering unique benefits.

Weld neck flanges feature a smooth, tapered neck extending from the flange body to the pipe, facilitating a strong weld joint crucial for secure connections. This design ensures a leak-proof connection by matching the tapering of the neck to the wall thickness of the pipe, evenly distributing stress and minimizing the risk of fatigue. They are commonly used in applications requiring robust connections under high pressure and temperature conditions.

Long weld neck flanges have an elongated neck that offers more support and stability, making them ideal for high-pressure and high-stress applications. The extended neck reduces the effects of fluid turbulence and vibration, which can lead to wear and tear over time. These flanges are often employed in specialized installations, such as pressure vessels and complex process equipment, where structural integrity is paramount.

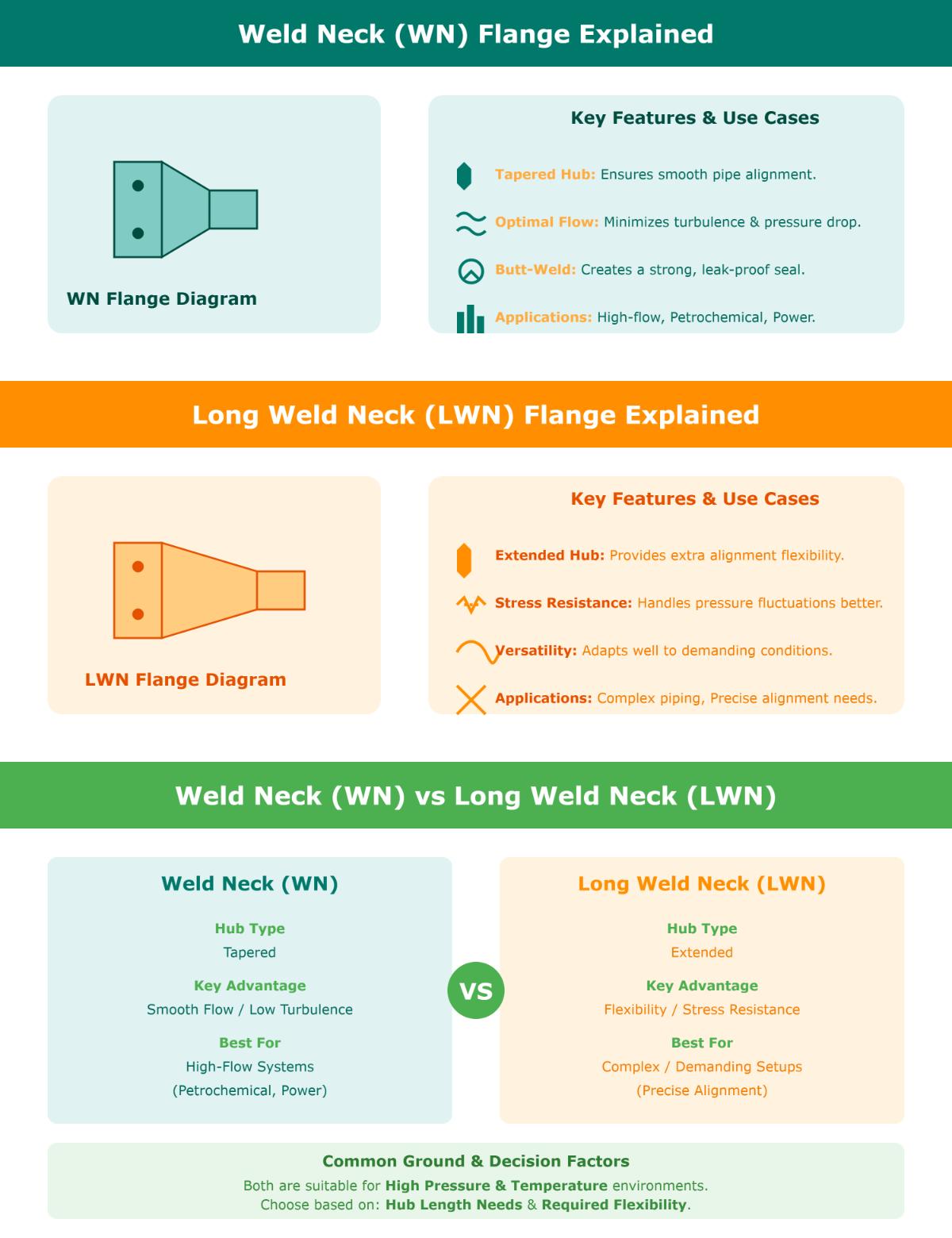

The primary difference between weld neck and long weld neck flanges is the neck length. Weld neck flanges have a shorter neck, while long weld neck flanges feature an extended neck, providing superior structural support and reducing stress concentration. Long weld neck flanges handle dynamic forces and fluid dynamics better, making them ideal for environments where efficiency and performance are critical. By understanding these differences, engineers and technicians can make informed decisions when selecting the appropriate flange type for their specific applications, ensuring optimal performance and reliability in their piping systems.

Features of Weld Neck Flanges

Weld neck flanges are designed with a long, tapered hub, providing superior strength and durability in piping systems. This unique design distributes stress evenly along the flange and pipe, reducing the risk of mechanical failure, especially in high-pressure and high-temperature environments.

Design and Structural Features

Long-Tapered Hub

The defining characteristic of weld neck flanges is their long, tapered hub. This feature is crucial for stress distribution, as it allows forces to be evenly spread along the neck and into the pipe, minimizing localized stress points that could lead to fatigue or failure. The hub’s tapering matches the pipe’s wall thickness, ensuring a seamless transition and robust structural integrity.

Butt Weld Connection

Weld neck flanges are connected to pipes using a butt weld, which creates a strong, leak-proof joint. This method ensures the flange and pipe function as a single unit, capable of withstanding demanding industrial conditions.

Matching Bore Diameter

Matching the bore diameter of the flange with the pipe ensures a smooth flow, reducing turbulence and preventing pressure drops, which is crucial for maintaining system efficiency.

Material and Manufacturing

Forging Process

Weld neck flanges are usually made by forging, a process that enhances their durability. Forging shapes metal using compressive forces, resulting in flanges with high strength and resistance to wear, suitable for demanding industrial applications despite higher production costs.

Comparative Advantages

Compared to other flange types, weld neck flanges offer distinct advantages in terms of durability and performance. Their robust design makes them ideal for environments where high pressure and temperature are prevalent, such as in the oil and gas, petrochemical, and power generation industries. The seamless joint and efficient stress distribution contribute to their reliability, making them a preferred choice for critical applications where leakage risks must be minimized.

By understanding these features, engineers and technicians can select the appropriate flange type for their specific needs, ensuring optimal performance and longevity in their piping systems.

Features of Long Weld Neck Flanges

Extended Neck Structure

Long weld neck flanges feature an extended neck that provides crucial structural support. This design element reinforces stability, making these flanges particularly suitable for high-pressure and high-temperature applications. The extended neck acts as a boring extension, reducing the effects of vibration and turbulence within the piping system, thus enhancing the overall durability and performance of the installation.

Material Composition and Strength

Manufactured from robust materials such as carbon steel and stainless steel, long weld neck flanges are built to withstand significant pressure and temperature fluctuations. The choice of material ensures these flanges maintain their integrity in demanding environments, offering high resistance to corrosion and mechanical stress. This makes them ideal for applications in industries like petrochemical and oil and gas, where reliability is critical.

Functional Benefits

Enhanced Stress Distribution

The extended neck helps distribute stress more evenly, reducing the risk of fatigue and failure. This feature is particularly beneficial in systems subject to dynamic forces, where maintaining structural integrity is paramount.

Superior Reinforcement

Compared to standard weld neck flanges, the long neck provides superior reinforcement, essential in environments with extreme operational conditions. This additional support ensures that the flange can better handle mechanical loads and thermal expansions without compromising the connection’s integrity.

Comparative Advantages

Application Suitability

They can handle higher pressure and temperature, making them more advantageous than standard weld neck flanges in demanding applications. Long weld neck flanges are particularly beneficial in specialized applications such as pressure vessels and complex process equipment, where structural demands are more intense.

Installation and Alignment

The extended neck design facilitates easier alignment during welding, ensuring a secure and efficient connection while reducing the likelihood of misalignment and leaks. This feature can be a significant advantage in installations where precision is crucial, ensuring the connection is both secure and efficient. The extended neck allows for more flexibility during installation, reducing the likelihood of misalignment and potential leaks.

Applications and Durability Comparison

Key Differences in Design and Functionality

Neck Length

The primary difference between weld neck (WN) and long weld neck (LWN) flanges is the length of the neck. Weld neck flanges have a shorter neck with a tapered hub, designed for smooth transitions from the pipe to the flange, which reduces turbulence and stress concentrations. Conversely, long weld neck flanges have an extended neck that acts as an additional pipe segment, providing greater structural stability and alignment accuracy, particularly beneficial in high-pressure or large-diameter systems.

Stress Distribution

Another key difference is stress distribution; weld neck flanges evenly distribute stress across the flange and pipe, making them suitable for moderate-pressure applications. Long weld neck flanges, on the other hand, transfer stress more effectively to the base, such as a vessel connection, enhancing durability under extreme loads. This characteristic makes LWN flanges preferable in high-stress environments.

Customization

When it comes to customization, long weld neck flanges offer more flexibility. They can be manufactured with varying neck lengths and wall thicknesses to match specific pipe bore and pressure requirements. This adaptability is crucial for custom engineering projects. In contrast, weld neck flanges generally follow standardized dimensions, offering limited customization options.

Applications

Weld Neck Flanges

Weld neck flanges are commonly used in moderate-pressure applications, such as piping systems in cryogenic environments and general process industries. Their design ensures smooth fluid flow and reduced turbulence, making them ideal for systems that experience cyclic loading and require reliable, leak-proof connections.

Long Weld Neck Flanges

Long weld neck flanges find their primary applications in high-pressure vessels, vacuum systems, and large-diameter pipelines. Their longer neck offers better alignment and support, crucial for high-stress systems. Additionally, LWN flanges comply with stringent ASME standards, making them suitable for critical applications where load-bearing capacity and precision are paramount.

Durability Factors

Material Grades

Both weld neck and long weld neck flanges typically use high-grade materials such as ASTM A-105 and A182-F304/316. However, long weld neck flanges often employ thicker barrels to enhance high-temperature resistance, providing better performance in extreme conditions.

Stress Mitigation

Weld neck flanges are effective in managing routine thermal expansion and vibration, ensuring longevity in standard industrial applications. Long weld neck flanges, with their extended neck and reinforced base, excel in mitigating stress in extreme conditions such as chemical plants and offshore rigs.

Failure Resistance

The design of long weld neck flanges minimizes the risks of crack propagation and misalignment, which are critical in safety-sensitive systems. This feature enhances the overall durability and reliability of the flange, making it suitable for applications where failure is not an option.

Selection Criteria

Pressure and Temperature

Long weld neck flanges are often preferred for ASME pressure vessels and systems operating above Class 900 due to their superior structural integrity and load-bearing capabilities.

Alignment Needs

In complex setups with multiple connection points, long weld neck flanges ensure precise alignment, reducing the risk of leaks and misalignments.

Cost vs. Performance

While weld neck flanges offer cost efficiency for standard applications, long weld neck flanges justify their higher costs in critical, high-stress environments. While they are more expensive, their superior performance and durability in demanding applications justify the cost.

Recent trends highlight the increasing preference for long weld neck flanges in custom engineering projects, particularly where ASME compliance and load-bearing capacity are critical factors. This shift underscores the importance of selecting the appropriate flange type based on specific application requirements and environmental conditions.

Stress Distribution Analysis

Stress distribution in flanges is crucial for the performance and reliability of piping systems. The design of weld neck and long weld neck flanges plays a pivotal role in managing stress across connection points effectively.

Design Influence on Stress Distribution

Conical Neck Design

Weld neck flanges feature a conical neck that helps uniformly spread stress across the flange and pipe interface, reducing stress concentration and potential fatigue failure. This design facilitates a smoother transition of forces, ensuring the flange can endure high-pressure and high-temperature conditions efficiently.

Extended Neck Design

Long weld neck flanges, with their extended neck, offer enhanced stress distribution capabilities. The longer neck provides additional structural support, which is crucial in applications requiring high stability and mechanical strength. This design is particularly beneficial in environments like the oil and gas industry, where connection integrity under dynamic loads is essential.

Comparative Stress Handling

Weld Neck Flanges

These flanges manage stress well due to their tapered neck, which minimizes leakage or rupture risks under pressure changes. Their ability to evenly distribute stress makes weld neck flanges suitable for industries that demand robust connections capable of enduring rigorous operational conditions.

Long Weld Neck Flanges

Long weld neck flanges excel in scenarios requiring enhanced mechanical stability. Their design not only facilitates improved stress distribution but also provides a larger welding area, beneficial in high-pressure applications. This extensive welding surface ensures a secure and durable connection, contributing to the system’s overall reliability.

Application-Based Stress Management

In high-pressure and temperature environments like chemical processing and power generation, weld neck flanges are favored for their efficient stress management. These flanges provide the reliability needed to maintain system integrity and prevent failures.

For environments demanding additional structural reinforcement, such as pressure vessels and tanks, long weld neck flanges are preferred. Their superior stress distribution and stability make them ideal for applications where mechanical strength is paramount.

Material Considerations

Weld neck and long weld neck flanges are made from materials like carbon steel, stainless steel, and alloy steel. The choice of material affects stress management, with some alloys offering better corrosion and wear resistance, thus enhancing the flange’s performance under stress.

Installation and Structural Integrity

Precision in installing both types of flanges is crucial for optimal stress distribution. While weld neck flanges are available in various face types to accommodate different application needs, long weld neck flanges focus more on structural integrity, ensuring stress is effectively managed throughout the installation.

Welding Techniques for Flanges

Proper welding techniques are crucial for ensuring the strength and performance of flanges in piping systems. Both weld neck flanges and long weld neck flanges require precise welding methods to create robust connections, particularly in high-stress and high-pressure environments.

Butt Welding Process

Weld Neck Flanges

For weld neck flanges, the butt welding process involves welding the flange’s tapered hub directly to the pipe. This ensures a smooth transition of stress from the flange to the pipe, maintaining the structural integrity of the joint. The process includes:

• Preparation: Ensure the pipe and flange are clean and free from contaminants. Proper alignment is essential to prevent weld defects.
• Fit-Up: Ensure precise alignment and consider using additional supports or fixtures during welding to maintain alignment, especially for long weld neck flanges.
• Welding: Use a full penetration weld to join the flange to the pipe, typically involving multi-pass welding to ensure the weld is robust and defect-free.
• Inspection: After welding, conduct non-destructive testing (NDT) such as radiography or ultrasonic testing to verify the weld quality and detect any potential defects.

Long Weld Neck Flanges

The welding process for long weld neck flanges is similar to that of weld neck flanges but requires additional considerations due to the extended neck length. This longer neck provides additional mechanical strength but also necessitates careful heat management to prevent distortion. The steps include:

• Preparation: As with weld neck flanges, ensuring cleanliness and proper alignment is crucial.
• Fit-Up: Ensure precise alignment and consider using additional supports or fixtures during welding to maintain alignment, especially for long weld neck flanges.
• Welding: Carefully control heat input to prevent warping the longer neck. Multi-pass welding is often used to achieve full penetration and ensure the weld’s robustness.
• Inspection: Due to higher mechanical demands, more stringent post-weld inspections are required. NDT methods such as radiography or ultrasonic testing ensure weld integrity.

Heat Management

Managing heat input during welding is crucial for both flange types to prevent defects such as warping, cracking, or distortion. For long weld neck flanges, the extended length requires meticulous control of welding parameters to maintain structural integrity. Techniques such as preheating and controlled cooling may be used to manage thermal stresses effectively.

Alignment and Fit-Up

Accurate alignment and fit-up are crucial for the joint’s structural integrity. Misalignment can lead to stress concentrations, reducing the overall strength and reliability of the connection. For long weld neck flanges, additional supports or fixtures may be necessary to maintain proper alignment throughout the welding process.

Inspection and Quality Assurance

Post-weld inspection is a critical step to ensure the quality and reliability of the welded joint. Techniques such as radiography and ultrasonic testing are employed to detect any internal or surface defects that could compromise the joint’s integrity. These inspections are particularly important for long weld neck flanges due to their application in high-stress environments.

Case Studies of Flange Applications

Case Study: Chemical Processing Plants

Long weld neck flanges are ideal for chemical processing plants due to their ability to withstand extreme pressures and temperatures. These flanges are selected for their durability and performance in high-stress environments. The extended neck design of long weld neck flanges reduces stress concentrations and enhances the overall stability of connections. In one particular case, a chemical plant replaced its standard weld neck flanges with long weld neck variants to connect large-diameter pipes. This change resulted in improved system reliability and reduced maintenance costs by minimizing potential failure points related to stress and misalignment.

Case Study: Industrial Piping Systems

In industrial piping systems, weld neck flanges are a cost-effective and reliable choice for ensuring robust connections between pipes and equipment. In a typical industrial setup, these flanges provide strong connections without the necessity for additional support structures. One case study involves an industrial facility that employed weld neck flanges to ensure safe and reliable fluid transmission across its systems. The flanges’ ability to maintain system integrity under moderate pressure conditions proved to be both economically and operationally advantageous, meeting the facility’s needs without the additional expense associated with long weld neck flanges.

Case Study: Offshore Oil and Gas Platforms

Offshore oil platforms present unique challenges due to their exposure to harsh environmental conditions and heavy load demands. Long weld neck flanges are often preferred in these settings because of their superior structural support and adaptability. An offshore platform faced frequent maintenance issues due to flange misalignment and stress-related failures. By switching to long weld neck flanges, the platform improved its structural integrity, resulting in fewer operational disruptions and enhanced safety. The customizable design of these flanges allowed for precise adaptations to the platform’s specific piping requirements, underscoring their suitability for high-stress applications.

Comparative Insights

When comparing the applications of weld neck and long weld neck flanges across these case studies, several insights emerge. Weld neck flanges are ideal for standard applications that require a balance of reliability and cost. They perform well under moderate conditions and are suited for general industrial use. Conversely, long weld neck flanges excel in environments requiring enhanced structural support and stress management, such as high-pressure chemical plants and offshore platforms. Thanks to their flexible design and durability, these flanges are essential for critical and custom applications. These case studies highlight the importance of selecting the appropriate flange type based on specific operational demands and environmental conditions.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the differences between weld neck and long weld neck flanges?

Weld neck flanges and long weld neck flanges are both integral components in piping systems, distinguished primarily by their hub length and specific applications. The weld neck flange features a tapered hub that provides smooth alignment with pipes, reducing turbulence and pressure drop, making it suitable for high-flow applications. These flanges are commonly butt-welded to pipes, ensuring a robust and leak-proof connection, which is essential in industries like petrochemical and power generation.

In contrast, long weld neck flanges have an extended hub that offers additional alignment flexibility and better resistance to stress and pressure fluctuations. This extra length makes them particularly advantageous in complex piping setups where space or precise alignment is critical. While both types are designed to handle high-pressure and high-temperature environments, the long weld neck flange’s extended hub provides enhanced versatility and adaptability in demanding applications. The choice between the two largely depends on the specific requirements of the piping system, with considerations for hub length and configuration flexibility being key factors.

How do weld neck flanges compare in terms of application and durability?

Weld neck flanges are highly valued in high-pressure and high-temperature applications, such as those found in the oil, gas, and chemical industries. Their design, featuring a tapered hub, allows for optimal stress distribution at the base of the flange, significantly reducing the risk of failure under cyclic loading conditions. This characteristic makes them particularly suitable for systems experiencing frequent pressure and temperature changes.

In terms of durability, weld neck flanges are known for their robustness. The use of materials like stainless steel and Monel 400 alloys ensures excellent resistance to corrosion and oxidation, making them ideal for harsh environments, including marine and chemical processing applications. The tapered hub design of weld neck flanges also prevents stress concentration cracks, enhancing their fatigue resistance. Additionally, the full-penetration welds used in their installation ensure joint integrity, even under thermal expansion and contraction.

While long weld neck flanges offer similar benefits, they are specifically designed for applications requiring additional reinforcement against bending forces, such as large-diameter piping and offshore platforms. Overall, weld neck flanges provide a balance of durability and performance, making them a versatile choice for various high-stress systems.

What are the advantages of using long weld neck flanges in high-pressure environments?

Long weld neck flanges offer several advantages in high-pressure environments, making them particularly suitable for demanding applications. First, they provide enhanced resistance to high pressure and temperature fluctuations due to their robust design featuring a tapered hub that gradually increases in thickness from the weld joint to the flange face. This design reinforces the connection, ensuring it can withstand pressures often up to 5,000 psi, which is crucial in industries like oil, gas, and petrochemicals.

Moreover, long weld neck flanges are bored to match the pipe’s internal diameter, promoting smooth fluid flow and reducing turbulence. This characteristic minimizes erosion and extends the pipe’s lifespan by preventing flow restrictions. Additionally, the longer hub facilitates easier alignment and installation, ensuring a secure and leak-proof connection. The durability and strength of these flanges also enhance material traceability and reduce fabrication costs, contributing to their resilience in extreme conditions. Overall, long weld neck flanges provide superior performance in high-pressure settings compared to standard weld neck flanges.

How does stress distribution affect flange performance?

Stress distribution plays a crucial role in the performance of weld neck (WN) and long weld neck (LWN) flanges by influencing their mechanical integrity and sealing capabilities. In WN flanges, stress concentrations are typically higher near the weld neck, leading to potential issues with fatigue and deformation due to abrupt load transfer. This can impact gasket performance and increase the risk of leakage as stress peaks affect bolt preload and gasket compression.

Conversely, LWN flanges, with their extended neck, distribute stresses more evenly along the length of the neck. This results in lower stress concentrations at critical junctions, improving fatigue resistance and reducing the likelihood of weld failure under cyclic loads. The uniform stress distribution also enhances bolt and gasket performance, maintaining joint integrity under varying thermal and pressure conditions. Overall, LWN flanges provide better structural stiffness and manage thermal stresses more effectively, making them advantageous in high-pressure and dynamic environments.

What types of welding techniques are used for these flanges?

Weld neck and long weld neck flanges utilize similar welding techniques, primarily TIG (Gas Tungsten Arc Welding) and SMAW (Shielded Metal Arc Welding). These methods are favored for their precision and reliability in high-pressure and high-temperature applications. The welding process for weld neck flanges involves multi-pass welding to ensure structural integrity, requiring root, filler, and cap passes. This approach helps achieve full penetration and aligns the bore to minimize turbulence and stress concentration. For long weld neck flanges, the extended hub necessitates more weld preparation and potentially post-weld heat treatment to manage residual stresses effectively. Both types demand careful fit-up and alignment to prevent misalignment-induced stresses, adhering to standards like ASME B16.5/B16.47 to ensure proper dimensions and tolerances. These techniques are crucial for maintaining the integrity and performance of flanges in demanding environments.

Can you provide examples of successful flange applications in industry?

Weld neck and long weld neck flanges find successful applications across various industries due to their distinct features and capabilities. In the oil and gas sector, weld neck flanges are commonly used in high-pressure pipelines for transporting crude oil and natural gas, thanks to their strength and reliability. Similarly, in power generation, these flanges are essential for maintaining the integrity of steam and cooling water systems under high temperatures and pressures. Chemical processing plants also rely on weld neck flanges for handling aggressive chemicals, benefiting from their robust design.

Long weld neck flanges, with their extended necks, offer additional structural support and alignment, making them suitable for complex piping systems that require extra reinforcement. Although specific applications are less documented, they are generally advantageous in scenarios where flexibility and structural support are critical.
