Comprehensive Guide to Anchor Bolts: Types and Applications

Imagine you’re about to embark on a major construction project. The foundation is laid, the plans are set, but there’s one critical component you need to ensure stability and longevity—anchor bolts. These unassuming yet vital pieces of hardware play a crucial role in securing structures, from towering skyscrapers to simple signposts. But with an array of types available, how do you determine the best fit for your specific needs?

In this comprehensive guide, we delve into the world of anchor bolts, exploring their different types and applications. You’ll learn about cast-in-place, wedge, L, and J bolts, each with unique characteristics and uses. Through comparative analysis, we will shed light on their strengths, installation methods, durability, and cost-effectiveness. Whether you’re anchoring heavy machinery or securing a light pole, understanding these details will empower you to make informed decisions. Ready to fortify your knowledge and projects? Let’s dive deeper into the realm of anchor bolts and discover which one suits your needs best.

Overview of Anchor Bolts

Definition and Purpose

Anchor bolts are crucial fasteners that secure components to concrete or masonry surfaces. They provide the necessary stability and safety for a wide range of applications, ensuring that the connected elements remain firmly in place under various loads and conditions.

Role in Construction and Engineering

In construction and engineering, anchor bolts play a critical role in maintaining the structural integrity of buildings, bridges, machinery, and other infrastructural elements. Designed to withstand substantial forces like tension, shear, and compressive loads, anchor bolts are indispensable in projects where safety and durability are paramount.

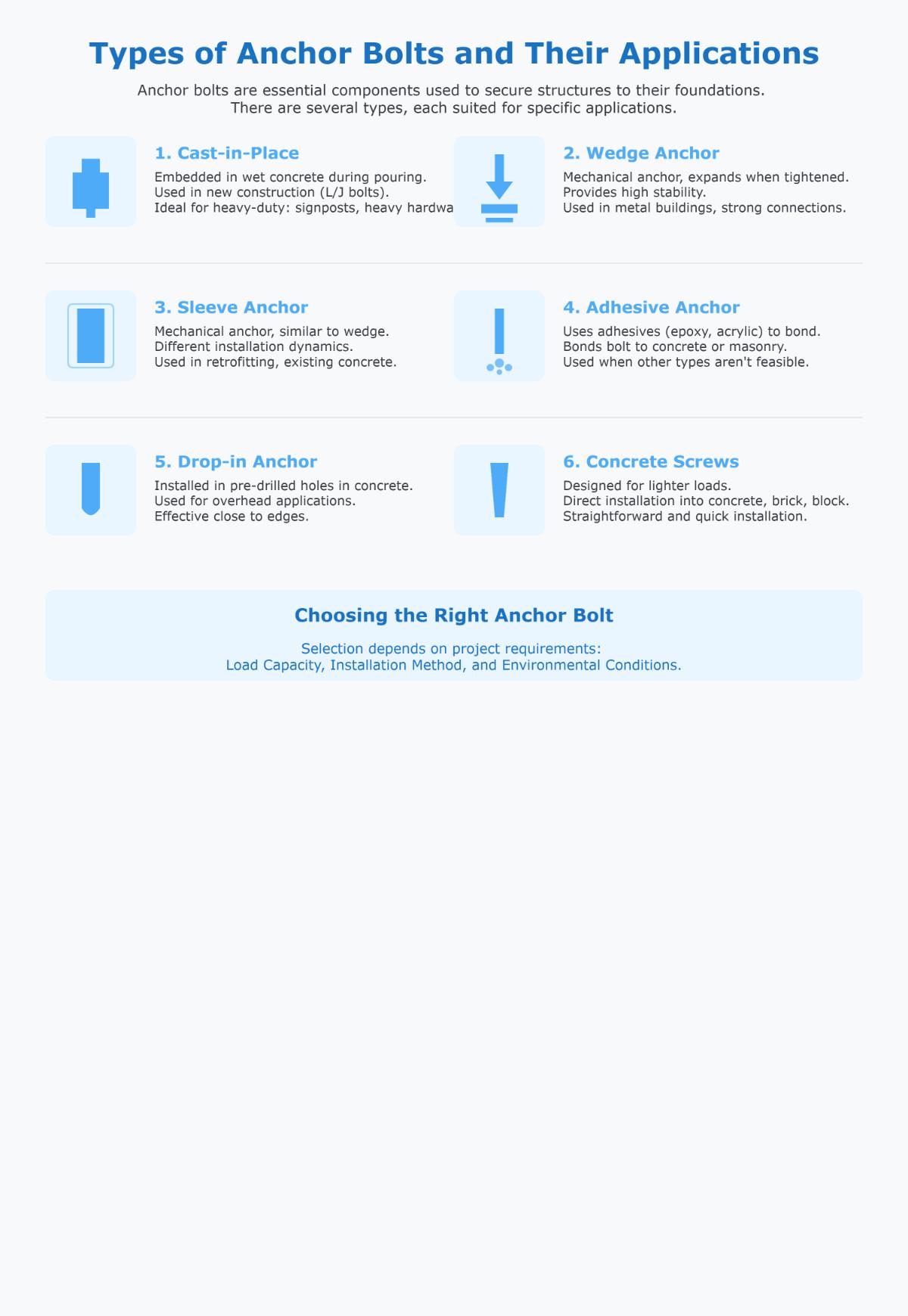

Types of Anchor Bolts

There are several types of anchor bolts, each suited for specific applications and environments:

• Cast-in-Place Anchor Bolts: These bolts are embedded in concrete during the pouring process, such as in the construction of skyscraper foundations. They provide a permanent, robust connection often used in structural steel connections.
• Expansion Anchors: These bolts expand within a drilled hole when tightened, creating a secure hold. They are ideal for heavy-duty applications, such as securing machinery.
• Mechanical and Chemical Anchors: Mechanical anchors rely on physical expansion or interlock within the substrate, while chemical anchors use adhesives or resins for bonding.

Material Specifications and Their Applications

The performance and durability of anchor bolts depend significantly on the materials used in their construction. Common materials include:

• Carbon Steel: Known for its strength and cost-effectiveness, it is suitable for general construction and light to medium-duty applications.
• Stainless Steel: Offers excellent corrosion and heat resistance, making it ideal for marine, chemical, and food processing industries.
• Galvanized Steel: Zinc-coated to enhance corrosion resistance, it is perfect for outdoor and industrial environments exposed to weather and corrosive agents.

Sizing and Tensioning

Proper sizing of anchor bolts is crucial. Factors include the number of bolts, their diameter, length, and the strength of both the bolt and the substrate material. Correct sizing ensures the bolts can withstand anticipated loads during operation.

Anchor bolts hold securely by stretching slightly when tightened, much like a spring. The torque applied during installation stretches the bolt, generating tension that secures the connection. This tension counters external forces acting on the structure, ensuring stability.

Industrial Applications

Anchor bolts are widely used in various sectors, including:

• Construction: Securing structural elements to concrete foundations is critical for building stability and safety.
• Infrastructure: Anchoring highway signs, bridges, and columns to withstand environmental stresses.
• Marine: Securing docks and offshore platforms, where resistance to saltwater corrosion is essential.
• Industrial Machinery: Anchoring heavy equipment to prevent movement and ensure operational safety.
• Renovation and Retrofitting: Supporting new elements attached to existing structures to enhance stability.

Installation Considerations

Installing anchor bolts involves drilling precise pilot holes slightly larger than the bolt diameter to ensure a snug fit without cracking the concrete. Typically, a hammer drill is used for accurate drilling. After insertion, bolts are tightened to achieve the required tension, ensuring a secure connection.

Types of Anchor Bolts

Cast-in-Place Anchor Bolts

Cast-in-place anchor bolts are set into wet concrete during the pouring process. As the concrete cures, it locks the bolt securely in place, creating a strong and permanent bond. These bolts are commonly used in structural foundations to secure columns, beams, and heavy equipment.

Characteristics

• Forms: Typically available as L-shaped bolts and J-shaped bolts.
• Strength: Known for their high load capacity and reliability.
• Installation: Embedded during concrete pouring, providing a permanent fixture.

Applications

• Structural Foundations: Ideal for securing heavy structural elements in new constructions.
• Heavy Equipment: Often used to anchor machinery and large industrial components.

Wedge Anchor Bolts

Wedge anchor bolts are mechanical anchors installed in cured concrete. They expand within the drilled hole when tightened, creating a strong grip.

Characteristics

• Installation: Post-installed, requiring precise drilling into cured concrete.
• Strength: Designed for heavy loads and shear applications.
• Types: Includes standard wedge anchors and specialized variants for different load capacities.

Applications

• Fixtures: Commonly used to attach fixtures and machinery to existing concrete surfaces.
• Structural Elements: Suitable for securing structural components where cast-in-place anchors cannot be used.

L Bolts

L bolts are characterized by an L-shaped bend at one end, with the other end threaded for fastening nuts and washers. These versatile bolts can be used in both cast-in-place and post-installed applications.

Characteristics

• Shape: L-shaped bend provides a secure grip in concrete.
• Installation: Can be embedded in wet concrete or installed in cured concrete.
• Load Capacity: Good load-bearing capacity for various applications.

Applications

• Foundations: Commonly used to secure beams, ledges, and plates in masonry and concrete foundations.
• Signage: Effective for balancing signage and supporting steel plates in walls.

J Bolts

Similar to L bolts, J bolts feature a J-shaped bend at one end and a threaded end at the other. These bolts are typically used in cast-in-place applications.

Characteristics

• Shape: J-shaped bend enhances anchorage in concrete.
• Installation: Primarily embedded in wet concrete.
• Load Capacity: Suitable for medium to heavy loads.

Applications

• Structural Connections: Used to secure structural elements like beams and columns.
• Heavy Equipment: Effective for anchoring large machinery to concrete foundations.

Mechanical Anchor Bolts

Mechanical anchor bolts achieve their hold by mechanical expansion or interlock within the substrate. They are installed after the concrete has cured.

Types

• Expansion Bolts: Expand within the drilled hole when tightened, creating a secure hold.
• Sleeve Anchors: Feature a metal sleeve that expands upon tightening, suitable for light to medium loads.

Characteristics

• Installation: Post-installed in cured concrete, requiring precise drilling.
• Strength: Offers varying load capacities based on the type of mechanical anchor.

Applications

• Fixtures and Machinery: Ideal for attaching fixtures and machinery to existing concrete surfaces.
• Structural Elements: Suitable for medium to heavy load applications where cast-in-place anchors are not feasible.

Chemical Anchor Bolts

Chemical anchor bolts use strong adhesive to bond to the concrete. This method is effective in retrofit projects or where mechanical expansion is unsuitable.

Types

• Epoxy Anchors: Provide superior strength and vibration resistance.
• Polyester Resin Anchors: Suitable for lighter loads and quick-setting scenarios.

Characteristics

• Installation: Bonded with resin adhesive, allowing flexibility in retrofit projects.
• Strength: High load capacity, especially with epoxy anchors.

Applications

• Seismic Zones: Commonly used in areas prone to earthquakes for enhanced vibration resistance.
• Retrofitting: Effective for securing new elements to existing structures.

Headed Anchor Bolts

Headed anchor bolts have a head on one end, similar to a screw head, providing a secure anchor in concrete.

Characteristics

• Shape: The head provides solid anchorage.
• Installation: Can be cast-in-place or post-installed.
• Load Capacity: Suitable for heavy structural connections.

Applications

• Structural Connections: Used in applications requiring heavy load resistance.
• Industrial Settings: Effective for anchoring heavy machinery and components.

Double-End Rods with Plate Anchor Bolts

Double-end rods with plate anchor bolts consist of threaded rods with plates attached, providing anchorage through embedded plates.

Characteristics

• Design: Provides anchorage through plates embedded in concrete.
• Load Capacity: High load capacity due to the distribution of loads over a wider area.

Applications

• Load Distribution: Used where additional bearing surface is needed to distribute loads in concrete or masonry.
• Heavy Anchoring: Suitable for applications requiring robust load distribution.

Material Considerations

The material of anchor bolts greatly affects their performance and durability. Common materials include:

Carbon Steel

• Strength: Offers high strength and cost-effectiveness.
• Applications: Suitable for general construction and light to medium-duty applications.

Stainless Steel

• Corrosion Resistance: Excellent resistance to corrosion and heat.
• Applications: Ideal for marine, chemical, and food processing industries.

Galvanized Steel

• Protection: Zinc-coated for enhanced corrosion resistance.
• Applications: Perfect for outdoor and industrial environments exposed to weather and corrosive agents.

Comparative Analysis of Anchor Bolt Types

Strength and Load Capacity

Anchor bolts come in various types. Each type is designed to handle different levels of strength and load capacity. The load capacity of an anchor bolt is influenced by its design, material, and method of installation.

L-Shaped Anchor Bolts

These bolts offer moderate to high load capacity, making them suitable for securing structural elements such as beams and plates.

Swedge Anchor Bolts

These bolts provide high load capacity due to their strong mechanical interlock, making them suitable for heavy load applications, often in structural steelwork.

Headed Anchor Bolts

These bolts feature a high load capacity with excellent pull-out resistance, used in applications requiring robust load-bearing capabilities, such as heavy structural connections.

Double-End Rods with Plate Anchor Bolts

These bolts have very high tensile strength due to the distribution of loads over a larger area, preferred for anchoring heavy structural elements where high strength is essential.

Expansion (Mechanical) Anchor Bolts

These bolts offer high holding power through expansion within drilled holes, effective for heavy-duty fastening in concrete and masonry.

Chemical Anchor Bolts

These bolts provide very high load-bearing capability, especially with epoxy-based adhesives, ideal for applications requiring high strength and vibration resistance.

Installation Methods and Ease

L-Shaped Anchor Bolts

Installed by casting in place during concrete pouring.

Swedge Anchor Bolts

Embedded into concrete, often requiring pre-drilled holes.

Headed Anchor Bolts

Cast-in-place, with the head providing secure anchorage.

Double-End Rods with Plate Anchor Bolts

Cast-in-place with plates needing precise alignment.

Expansion (Mechanical) Anchor Bolts

Post-installed in pre-drilled holes, expanding upon tightening.

Chemical Anchor Bolts

Bonded with chemical adhesives, often requiring clean and prepared holes.

Durability and Environmental Resistance

L-Shaped Anchor Bolts

• Durability: Good overall durability, especially with galvanized or stainless steel.
• Environmental Resistance: Suitable for various environments, including outdoor and industrial settings.

Swedge Anchor Bolts

• Durability: High durability with strong mechanical interlock.
• Environmental Resistance: Effective in structural steel applications, but may require corrosion-resistant coatings in harsh environments.

Headed Anchor Bolts

• Durability: Excellent pull-out resistance and durability.
• Environmental Resistance: Highly durable, suitable for heavy load applications in various environments.

Double-End Rods with Plate Anchor Bolts

• Durability: Very durable due to load distribution over a wider area.
• Environmental Resistance: High resistance when using corrosion-resistant materials, ideal for heavy-duty applications.

Expansion (Mechanical) Anchor Bolts

• Durability: High holding power but dependent on the quality of the concrete.
• Environmental Resistance: Effective in various environments, especially with galvanized or stainless steel options.

Chemical Anchor Bolts

• Durability: Highly durable with excellent load-bearing and vibration resistance.
• Environmental Resistance: Ideal for use in cracked or damaged concrete, as well as seismic zones.

Comparative Summary Table

• Anchor Bolt Type: L-Shaped Bolt

• Design Feature: Bent end with threaded top

• Load Capacity: Moderate to High

• Installation Timing: Cast-in-place

• Primary Applications: Structural supports, signage

• Advantages: Simple, versatile

• Limitations: Requires precise positioning

• Anchor Bolt Type: Swedge Bolt

• Design Feature: Tapered end for embedment

• Load Capacity: High

• Installation Timing: Cast-in-place

• Primary Applications: Structural steel attachments

• Advantages: Strong interlock

• Limitations: Installation complexity

• Anchor Bolt Type: Headed Bolt

• Design Feature: Manufactured head on one end

• Load Capacity: High

• Installation Timing: Cast-in-place

• Primary Applications: Heavy load structures

• Advantages: Excellent pull-out resistance

• Limitations: Not adjustable post-installation

• Anchor Bolt Type: Double-End Rod with Plate

• Design Feature: Threaded both ends with plate

• Load Capacity: Very High

• Installation Timing: Cast-in-place

• Primary Applications: Heavy structural anchoring

• Advantages: High tensile strength

• Limitations: Complex installation

• Anchor Bolt Type: Expansion (Mechanical)

• Design Feature: Expands inside drilled holes

• Load Capacity: High

• Installation Timing: Post-installed

• Primary Applications: Heavy-duty fastening in concrete

• Advantages: Retrofit friendly

• Limitations: Hole precision critical

• Anchor Bolt Type: Chemical Anchor

• Design Feature: Bonded with epoxy or resin

• Load Capacity: Very High

• Installation Timing: Post-installed (curing needed)

• Primary Applications: Vibration resistance, cracked concrete

• Advantages: High strength, vibration resistant

• Limitations: Expensive, sensitive installation

Applications and Uses of Anchor Bolts

Heavy Machinery Installation

Anchor bolts are vital for securing heavy machinery to concrete foundations, ensuring stability during operation. Their ability to withstand significant loads and vibrations makes them indispensable in industrial settings where large equipment must remain stable.

Building Foundations

Building foundations often rely on cast-in-place anchor bolts, which are embedded in concrete during the pouring process. This provides a permanent and robust connection for structural elements such as columns and beams, particularly beneficial in high-rise buildings and other structures where stability is critical.

Signposts and Light Poles

L-shaped and J bolts are popular for securing signposts and light poles because they provide a secure grip in concrete, ensuring stability even in bad weather. These bolts help maintain the upright position of signage and lighting fixtures in adverse conditions.

Outdoor and Recreational Structures

Anchor bolts are crucial for securing outdoor structures like solar panel arrays, sports facilities, and amusement park rides. Hot galvanized anchor bolts are often used for their corrosion resistance, ensuring long-term durability in outdoor environments.

Industrial and Heavy-Duty Applications

In industrial settings, F1554 anchor bolts are commonly used to secure large storage tanks, refineries, and ethanol plants due to their high strength and reliability. These bolts provide the necessary support to withstand external forces such as wind and seismic activity, ensuring the safety and stability of industrial installations.

Infrastructure and Transportation

Anchor bolts are crucial in infrastructure projects, including bridges and highways. They secure guardrails, traffic signs, and lighting fixtures, contributing to overall safety and functionality. Utility installations, such as utility poles and telecom towers, also benefit from the stability provided by anchor bolts, particularly in areas prone to environmental stresses.

Environmental and Earthquake Resistance

Anchor bolts enhance the stability of structures in seismic zones and other environments where resistance to natural forces is essential. Chemical anchor bolts, especially epoxy anchors, offer superior strength and vibration resistance, making them ideal for retrofitting projects and areas with high earthquake activity. These bolts help prevent structural failure by providing secure anchorage.

Fencing and Gates

Heavy-duty fencing and gates often require anchor bolts to ensure stability and security. Mechanical anchor bolts, such as expansion bolts, are frequently used in these applications due to their high holding power. These bolts ensure that fencing and gates remain firmly in place, providing reliable security for industrial and commercial properties.

Selecting the Right Anchor Bolt for Your Project

Key Considerations

Selecting the correct anchor bolt for your project is essential to ensure safety, stability, and durability. Several factors must be considered to select the appropriate anchor bolt, including load requirements, environmental conditions, material compatibility, and adherence to building codes.

Load Requirements

Understanding the load requirements is crucial to ensure that the anchor bolt can handle the stresses it will encounter. Consider both the tension and shear forces that the bolt will need to withstand. Larger diameters and longer lengths generally provide higher load capacities. It’s important to match the bolt’s load capacity with the demands of the application to prevent failure.

Environmental Conditions and Material Compatibility

The environment where the anchor bolt will be used greatly influences the choice of material. For instance, stainless steel or galvanized steel bolts are ideal for outdoor or marine environments due to their superior corrosion resistance. In contrast, carbon steel bolts may suffice for indoor applications where exposure to moisture and corrosive elements is minimal. Ensure that the anchor bolt material is compatible with the materials it will be anchoring. For example, chemical anchors are suitable for use in cracked concrete or masonry, offering a strong bond even in less-than-ideal conditions. The choice of material also affects the bolt’s durability and performance over time.

Building Codes and Standards

Compliance with relevant industry standards and building codes is imperative. Standards like ASTM, ACI, and ISO offer guidelines for choosing, installing, and assessing anchor bolts. Adhering to these standards ensures that the project meets safety regulations and minimizes the risk of structural failures.

Step-by-Step Selection Process

1. Determine the Load Requirements

Identify the specific load requirements for your project, including both static and dynamic loads. Calculate the tension and shear forces the anchor bolt will need to withstand.

2. Assess Environmental Conditions

Evaluate the environmental conditions where the anchor bolt will be installed. Consider factors such as exposure to moisture, chemicals, temperature fluctuations, and potential corrosive elements.

3. Choose the Appropriate Material

Select a material that matches the environmental conditions and load requirements. Options include carbon steel for general applications, stainless steel for corrosion resistance, and galvanized steel for outdoor use.

4. Select the Anchor Bolt Type

Based on the application and installation method, choose the appropriate type of anchor bolt. Options include cast-in-place bolts for new constructions, wedge anchors for heavy loads, and chemical anchors for retrofit projects.

5. Verify Compliance with Standards

Ensure that the selected anchor bolt meets relevant industry standards and building codes. This verification ensures that the bolt is suitable for the specific application and provides the necessary safety and performance.

6. Calculate the Embedment Depth

Determine the required embedment depth to achieve optimal holding power. This depth typically ranges from 5 to 15 times the bolt diameter, depending on the type of anchor and load conditions.

7. Plan for Proper Installation

Follow manufacturer guidelines and industry best practices during installation. This includes drilling precise holes, cleaning the drilled area, and adhering to torque specifications during tightening.

Common Mistakes and How to Avoid Them

Improper Sizing

A common mistake is choosing an anchor bolt that doesn’t match the load requirements. Ensure accurate calculations and select a bolt with the correct diameter and length.

Inadequate Embedment Depth

Failing to achieve the correct embedment depth can compromise the bolt’s holding power. Follow recommended depth guidelines based on the bolt type and application.

Incorrect Material Selection

Using the wrong material for the environmental conditions can lead to premature failure. Always consider the exposure conditions and select a material that offers the necessary resistance to corrosion and other environmental factors.

Non-Compliance with Standards

Ignoring industry standards and building codes can result in unsafe installations. Verify that all selected anchor bolts meet the required specifications and standards for the project.

Poor Installation Practices

Improper installation can significantly reduce the effectiveness of anchor bolts. Ensure that holes are drilled to the correct size, cleaned thoroughly, and that bolts are tightened to the specified torque. Following manufacturer instructions and industry best practices is essential for a secure installation.

Industry Standards and Regulations for Anchor Bolts

The Occupational Safety and Health Administration (OSHA) has established strict requirements for anchor bolts in construction to ensure safety and stability. Under OSHA regulation 29 CFR 1926.755, specific criteria are established for column anchorage:

• Anchor bolts must resist a minimum eccentric gravity load of 300 pounds, applied 18 inches from the column’s outer face in all directions, ensuring they can withstand realistic construction loads and maintain structural integrity.

The American Society for Testing and Materials (ASTM) provides comprehensive standards for the materials and performance of anchor bolts, ensuring consistency and reliability in construction applications.

ASTM F1554

ASTM F1554 is the primary standard for steel anchor bolts used in construction, detailing three grades based on yield strength:

• Grade 36: Minimum yield strength of 36 KSI, suitable for general construction.
• Grade 55: Minimum yield strength of 55 KSI, offering higher strength for more demanding applications.
• Grade 105: Minimum yield strength of 105 KSI, designed for high-strength requirements.

These standards ensure anchor bolts meet strict criteria for strength, durability, and load capacity.

ASTM F593

ASTM F593 specifies standards for stainless steel bolts, including anchor bolts, hex cap screws, and studs. This standard is crucial for applications in corrosive environments, such as marine or chemical industries, ensuring bolts provide adequate corrosion resistance and mechanical properties.

Material Specifications and Corrosion Protection

Choosing the right material for anchor bolts is crucial for their performance and longevity in various environments. Common options include carbon steel for its strength and cost-effectiveness, stainless steel for its excellent corrosion resistance, and galvanized steel for enhanced protection against the elements.

Customization and Application-Specific Standards

Manufacturers can customize anchor bolts to meet specific project requirements, including dimensions, threading, shapes, and materials. This customization is often guided by the structural engineer’s specifications to ensure compliance with relevant ASTM and OSHA standards, optimizing the bolts’ fit and performance for the intended application.

Here is a summary of key regulatory and industry standards for anchor bolts:

Adherence to these standards is essential for ensuring the reliability and safety of anchor bolt installations in construction and industrial projects.

Real-World Case Studies

Infrastructure: Swedge Anchor Bolts in Highway and Bridge Construction

Swedge anchor bolts are extensively used in highway and bridge construction projects due to their outstanding strength and resistance to pull-out forces. In Department of Transport projects, these bolts connect piers and girders to concrete foundations, allowing them to withstand heavy traffic loads and environmental forces like wind and seismic activity. This application ensures long-term structural integrity.

• Application: Connecting structural steel components to concrete piers and girders
• Key Benefit: High pull-out resistance and durability under dynamic loads
• Project Example: Highway overpasses and bridge supports in transport infrastructure

Industrial Machinery Installation Using Wedge Anchor Bolts

In industrial plants, wedge anchors are chosen to secure heavy machinery to concrete floors, as they can handle significant shear and tensile forces generated during operation.

• Application: Fixing heavy industrial machines to concrete foundations
• Key Benefit: Stability under vibration and dynamic loads, preventing misalignment
• Project Example: Assembly lines and manufacturing plants where machinery precision is vital

Retrofitting and Renovation with Adhesive Anchor Bolts

Renovation projects involving old or damaged concrete structures require specific solutions. Adhesive anchor bolts are used for retrofitting because they adhere well to damaged concrete, where traditional mechanical anchors would fail. This method enables secure attachment of new structural elements to existing buildings without compromising integrity.

• Application: Reinforcing existing concrete structures, attaching new elements
• Key Benefit: Strong adhesion in weakened or cracked concrete, ease of installation
• Project Example: Historical building renovations and structural reinforcements

Corrosion-Resistant Sleeve Anchors in Marine and Harsh Environments

Marine facilities and chemical plants often encounter serious corrosion issues. In these settings, sleeve anchors made from stainless steel or other corrosion-resistant materials are employed to ensure longevity and safety of installations.

• Application: Securing structures and equipment in coastal or chemical processing environments
• Key Benefit: Resistance to corrosion and environmental degradation
• Project Example: Coastal piers, offshore platforms, and chemical plant infrastructure

L-Shaped Anchor Bolts in Structural and Masonry Applications

L-shaped anchor bolts, also known as foundation or masonry anchors, are widely used to secure beams, ledges, and steel plates to concrete or masonry walls. Their permanent and maintenance-free installation suits structural applications requiring reliable load transfer.

• Application: Embedding in concrete foundations to support structural steel elements
• Key Benefit: High load-bearing capacity and permanence
• Project Example: Commercial buildings and industrial warehouses supporting heavy structural frameworks

Anchor Bolts in Renewable Energy: Wind Turbine Foundations

In the renewable energy sector, anchor bolts secure wind turbine towers to their foundations. These bolts need to withstand severe weather and varying wind loads to keep the towers stable and ensure uninterrupted energy production.

• Application: Fixing wind turbine towers to concrete foundations
• Key Benefit: Stability under cyclic, extreme environmental loading
• Project Example: Wind farms in regions with high wind variability and storm risk

Automotive Industry: Assembly Line Machinery Anchoring

Anchor bolts play a crucial role in automotive factories by securing assembly line machines, such as robotic arms and conveyor systems, to concrete floors. This anchoring minimizes vibration and movement, improving safety and manufacturing precision.

• Application: Securing assembly line equipment in automotive plants
• Key Benefit: Enhanced safety, machine stability, and production consistency
• Project Example: Automotive manufacturing plants employing robotic assembly lines

Pharmaceutical and Food Processing Plants

Hygiene-sensitive environments like pharmaceutical and food processing facilities rely on anchor bolts to secure equipment and structural components. These bolts contribute to operational safety and equipment stability, ensuring compliance with strict sanitation standards.

• Application: Securing equipment and structures in sanitary environments
• Key Benefit: Reliable fixation that supports hygiene and precision operations
• Project Example: Pharmaceutical manufacturing and food processing lines

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the different types of anchor bolts and their applications?

Anchor bolts are essential components in construction and engineering, used to secure structures to their foundations. There are several types, each suited for specific applications:

1. Cast-in-Place Anchor Bolts: These are embedded in wet concrete during pouring and are commonly used in new construction projects. Examples include L bolts and J bolts, which are ideal for heavy-duty applications like signposts and heavy hardware.

2. Wedge Anchor Bolts: A type of mechanical anchor that expands when tightened, providing high stability. They are often used in metal buildings and structures where strong, reliable connections are needed.

3. Sleeve Anchor Bolts: Another mechanical anchor, similar to wedge anchors, but with different installation dynamics. They are used in retrofitting projects or on existing concrete surfaces.

4. Adhesive Anchor Bolts: These use adhesives like epoxy or acrylic to bond the bolt to concrete or masonry. They are suitable for situations where mechanical or cast-in-place anchors are not feasible.

5. Drop-in Anchors: Installed in pre-drilled holes in concrete, these are typically used for overhead applications or close to edges where other anchors might not work effectively.

6. Concrete Screws: Designed for lighter loads, these screws are used for direct installation into concrete, brick, or block, providing straightforward and quick installation.

Each type of anchor bolt has specific applications, ranging from structural support in buildings and bridges to securing machinery, signposts, and in retrofitting projects. The choice of anchor bolt depends on the project’s requirements, including load capacity, installation method, and environmental conditions.

How do I choose the right anchor bolt for my construction project?

Choosing the right anchor bolt for your construction project involves several key considerations to ensure stability, safety, and longevity. First, assess the load requirements of your project. Heavy loads, such as those in high-rise buildings, demand high-strength bolts like ASTM F1554 Grade 105, whereas lighter loads may only require Grade 36 bolts. Environmental conditions also play a crucial role; for instance, marine or chemical plant environments necessitate corrosion-resistant materials like stainless steel or galvanized steel.

The type and shape of the anchor bolt should match the specific application. Headed anchor bolts offer superior holding power for heavy loads and seismic zones, while hooked (J-shaped) bolts are more suitable for lighter, less critical installations. Additionally, ensure the bolt diameter and length meet the structural plans to achieve adequate embedment and anchorage.

Material grade and compliance with standards such as ASTM F1554 ensure the bolts can withstand the required tensile strength. Custom-sized anchor bolts may be necessary for unique project specifications, enhancing fit and performance. By considering these factors—load, environment, bolt type, diameter, material grade, and custom specifications—you can select the appropriate anchor bolt to ensure the safety and durability of your construction project.

What are the advantages of using wedge anchor bolts over other types?

Wedge anchor bolts offer several advantages over other types of anchor bolts, making them a preferred choice in many construction and engineering projects. One of the primary benefits is their high load capacity, which allows them to handle significant pullout and shear forces, ensuring stability in heavy-duty applications. This makes them ideal for anchoring heavy machinery and structural components.

Another advantage is their versatility and consistent performance in various concrete types, including normal-weight, lightweight, and high-strength concrete. This adaptability is beneficial for a wide range of projects.

Wedge anchors also provide a permanent and reliable connection once properly installed. They are resistant to vibration and movement, which helps maintain the integrity of the anchored components over time. Their design allows for precise alignment and easy adjustability, ensuring proper load distribution and structural stability.

Additionally, wedge anchors can be quickly installed and can serve as temporary supports during construction, providing immediate stability and safety.

Can anchor bolts be reused, and if so, how?

Anchor bolts can be reused, but this process requires careful consideration to ensure safety and structural integrity. The reusability of anchor bolts depends heavily on their type, condition, and previous use. High-strength bolts, such as ASTM A490, and galvanized bolts should generally not be reused due to concerns over their strength and corrosion resistance. On the other hand, plain finish ASTM A325 bolts may be reused if approved by an engineer.

Before reuse, anchor bolts must be thoroughly inspected for damage, including thread wear, corrosion, deformation, and any signs of plastic deformation. Bolts that have been tensioned beyond their yield point should not be reused, as they may have permanently elongated, compromising their load-bearing capacity.

When reinstalling reused bolts, care must be taken to avoid damaging threads or the surrounding concrete. Some anchors are specifically designed for reuse in temporary applications, where the outer bolt portion can be removed and reused according to manufacturer guidelines.

What are the common issues faced during anchor bolt installation and how can they be avoided?

Common issues during anchor bolt installation include incorrect type selection, improper embedment depth, misaligned drilling, and inadequate bolt tightening. These problems can compromise the stability and safety of the construction project. To avoid these issues:

1. Incorrect Anchor Bolt Type Selection: Ensure the chosen anchor bolt matches the project’s structural and environmental demands by consulting engineering guidelines and manufacturer recommendations.
2. Improper Embedment Depth: Follow precise embedment depth specifications from engineering standards or manufacturers, considering factors like anchor type and load requirements.
3. Misaligned Drilling: Stabilize the drilling rig and ensure it remains secure throughout the process to maintain a straight hole.
4. Inadequate Bolt Tightening: Use calibrated torque tools and adhere to manufacturer torque specifications to avoid under or over-tightening.
5. Poor Installer Capability: Ensure installers are well-trained and follow relevant installation standards and guidelines, with regular supervision to maintain quality control.

By addressing these issues through careful planning and skilled installation, the risks associated with anchor bolt installation can be significantly reduced.

Are there specific industry standards or regulations I should be aware of when using anchor bolts?

When using anchor bolts in construction, it is critical to comply with specific industry standards and regulations to ensure safety and structural integrity. The Occupational Safety and Health Administration (OSHA) regulation 29 CFR 1926.755 mandates that column anchorage assemblies, including anchor bolts, must withstand a minimum eccentric gravity load of 300 pounds applied 18 inches from the column’s outer face. This ensures bolts can handle critical loads in structural applications. Additionally, ASTM F1554 is the primary standard specifying mechanical properties and grades for steel anchor bolts cast in place. It defines three grades—Grade 36, Grade 55, and Grade 105—each with minimum yield strengths suited to different load requirements. Adhering to these standards ensures proper bolt strength, durability, and regulatory compliance, helping to prevent structural failures. As discussed earlier, selecting anchor bolts that meet these requirements is essential for reliable construction outcomes.
