Comprehensive Guide to Different Types of Check Valves

Did you know that the right check valve can significantly enhance the efficiency and safety of your system? For intermediate users looking to explore their options, understanding different types of check valves is crucial. These valves, essential in water, wastewater, and industrial systems, come in various forms like swing, ball, piston, and nozzle check valves, each with unique applications, advantages, and disadvantages.

In this guide, we’ll compare these types, discuss selection criteria, and present real – world case studies. So, are you ready to discover which check valve is the perfect fit for your needs?

Overview of Check Valves

Definition and Purpose

Check valves, also called non-return or one-way valves, allow fluid or gas to flow in only one direction. Their primary function is to prevent backflow, which can cause contamination, pressure surges, or damage to equipment. These valves operate automatically based on pressure differentials and do not require external control or power, making them essential components in various systems.

Importance in Various Systems

In water supply and wastewater treatment systems, check valves are critical for maintaining the integrity of the supply network and controlling flow direction. They ensure that water flows in the desired direction and prevents contamination from backflow, which is particularly crucial in potable water systems. By preventing reverse flow, check valves protect the quality of water and the safety of the public. In wastewater treatment, they prevent the backflow of treated water into the raw sewage lines, ensuring effective processing and discharge.

Fundamental Operation and Design Principles

A check valve operates by opening when the pressure on the inlet side exceeds the outlet pressure, known as "cracking pressure." This allows fluid to flow in the forward direction. When the flow reverses or the pressure drops, an internal part like a disc, ball, or piston seals against a seat to stop backflow. The sealing force often increases with higher reverse pressure, enhancing the valve’s effectiveness in preventing leakage.

Material Selection and Construction

The materials used in check valves vary depending on the application requirements, such as pressure, temperature, and chemical compatibility. Common materials include:

• Stainless Steel: Known for its high strength and corrosion resistance, suitable for demanding industrial environments.
• Brass: Versatile and cost-effective, ideal for low-pressure applications but less resistant to high temperatures and corrosion.
• PVC and Other Plastics: Excellent chemical resistance, suitable for corrosive media but limited to lower temperature environments.

Valve bodies and internal parts can be made of metal, plastic, or a mix, based on application needs.

Critical Design Considerations

When selecting and designing check valves, several factors must be considered to ensure optimal performance:

• Pressure and Flow Rate: The valve must withstand the maximum system pressure and allow the required flow rates with minimal pressure drop.
• Fluid Characteristics: The viscosity, vapor pressure, and corrosiveness of the fluid impact the choice of valve material and design.
• Sealing Integrity: Precise dimensions and component tolerances are vital for effective sealing to prevent leakage and backflow.
• Valve Orientation and Installation: The orientation can affect sealing performance, especially for gravity-reliant designs.
• Redundancy: Using double ball or dual check valves provides backup sealing, extending service intervals and improving reliability.

By addressing these considerations, check valves can be effectively integrated into various systems to control flow direction and protect against the adverse effects of backflow.

Applications of Check Valves

Water Supply Systems

Check valves are crucial in water-supply systems as they stop backflow that can contaminate clean water and ensure one-way flow. They are used in municipal water distribution networks, residential plumbing, and irrigation systems. In these applications, check valves help maintain water pressure and prevent reverse flow, which can occur due to pressure drops or pump failures.

Wastewater Treatment Systems

In wastewater treatment facilities, check valves play a critical role in managing the flow of sewage and treated water. They prevent the backflow of untreated sewage into the treatment process and protect equipment from damage caused by reverse flow. Check valves are used in various stages of wastewater treatment, including pumping stations, sludge processing, and discharge lines, ensuring efficient and safe operation of the entire system.

Industrial Processes

Oil and Gas Industry

In the oil and gas industry, check valves are essential for preventing backflow in pipelines. They ensure the safe and efficient transport of crude oil, natural gas, and refined products. They are used in compressor discharge lines, hydraulic systems, and pump stations to maintain pressure and prevent contamination.

Chemical Plants

Chemical plants rely on check valves to manage the flow of various chemicals and prevent cross-contamination. These valves are used in processes involving corrosive or hazardous materials, ensuring that backflow does not compromise safety or product quality. Check valves in chemical plants must be made from materials that can withstand harsh chemical environments.

Steam Systems

Check valves are crucial in steam systems, where they prevent the backflow of steam and condensate. They are used in boiler feedlines, steam traps, and hot water circuits to protect equipment from damage caused by reverse flow and to maintain efficient system operation.

Domestic and Environmental Applications

Domestic Water Supply

In home plumbing, check valves stop contaminated water from flowing back into the clean water supply. They are commonly installed in water heaters, sump pumps, and outdoor sprinkler systems to ensure safe and reliable operation.

Irrigation Systems

Check valves in irrigation systems prevent the drainage of water lines when the system is shut off, ensuring that water is available immediately when the system is reactivated. This prevents water waste and maintains consistent irrigation schedules.

Hydraulic Systems

Check valves are widely used in hydraulic systems to control the flow of hydraulic fluid, maintain pressure, and prevent backflow. They are found in hydraulic jacks, lifts, and machinery, ensuring that hydraulic systems operate efficiently and safely.

Aerospace Applications

In aerospace applications, check valves must perform reliably under extreme conditions, including high vibration and temperature fluctuations. They are used in fuel systems, hydraulic lines, and environmental control systems to ensure the safety and efficiency of aircraft operations.

Pumps and Inflatables

Check valves are often used with metering pumps to stop backflow and keep dosing accurate. In inflatables, such as air mattresses and inflatable boats, check valves allow air to enter without escaping, ensuring that the inflatable remains properly inflated.

Types of Check Valves

Swing Check Valves

Swing check valves have a disc or flap hinged on a pin. This disc swings open when fluid flows in the forward direction and closes when the flow reverses. The design allows for minimal resistance to the flow.

Common Applications

• Water distribution systems
• Wastewater treatment
• Low-pressure systems

Advantages

• Simple and cost-effective
• No external power required
• Available with open/close indicators

Disadvantages

• Slower closure time compared to spring-assisted valves
• Not suitable for systems with high pressure surges

Ball Check Valves

Ball check valves use a ball inside the valve body. The ball moves away from the seat with forward flow and returns to the seat with reverse flow, sealing the valve effectively.

Common Applications

• Wastewater systems
• Small water pumps
• Systems requiring low maintenance

Advantages

• Compact and simple design
• Self-cleaning due to ball rotation
• Low risk of clogging

Disadvantages

• No open/close indicator
• May slam in high head or parallel pump systems due to ball inertia

Piston Check Valves

Piston check valves, also known as plug check valves, feature a piston that moves linearly within a chamber. Often spring-loaded, these valves close when the flow stops, providing precise control.

Common Applications

• Systems requiring rapid flow control
• Industrial processes with precise sealing needs

Advantages

• Suitable for rapid flow changes
• Robust backflow prevention

Disadvantages

• More complex than ball or swing check valves
• Higher maintenance requirements

Nozzle Check Valves

Nozzle check valves have a disc connected to a stem with a spring. This spring compresses under flow pressure, opening the valve. The spring forces the disc closed when the flow stops, ensuring a rapid response.

Common Applications

• High-pressure industrial systems
• Power plants
• Systems where water hammer protection is critical

Advantages

• Quick-acting and suitable for pumped systems
• Minimizes water hammer

Disadvantages

• Higher head loss compared to swing check valves
• More expensive and complex design

Lift Check Valves

Lift check valves have a disc that lifts off the seat vertically with forward flow and drops back by gravity and backflow pressure. The disc is often piston or ball-shaped.

Common Applications

• High-rise buildings
• Industrial plants
• Water treatment facilities

Advantages

• Reliable in high-pressure environments
• Good sealing capabilities

Disadvantages

• Requires specific orientation for installation
• Potential for increased maintenance

Stop Check Valves

Stop check valves combine a globe valve and a check valve. This allows manual operation to regulate flow or act as a backflow preventer.

Common Applications

• Power plants
• Boiler systems
• High-stakes environments requiring both isolation and backflow prevention

Advantages

• Versatile and multifunctional
• External control allows manual operation

Disadvantages

• More complex and expensive
• Requires manual intervention for certain operations

Spring-Loaded Check Valves

Spring-loaded check valves incorporate a spring to assist valve closure. This enables rapid shutoff before backflow can occur and allows installation in any orientation.

Common Applications

• Fluid process systems
• Systems concerned with water hammer and backflow prevention

Advantages

• Prevents water hammer
• Reliable sealing and adaptable

Disadvantages

• Potential for higher maintenance
• More complex than non-spring-assisted valves

Dual Disc (Wafer) Check Valves

Dual disc check valves feature two opposing D-shaped discs that pivot on a hinge pin, stabilized by stop pins. They have a compact wafer design that fits between pipe flanges.

Common Applications

• Water and treated effluent systems
• Clean fluid lines

Advantages

• Good non-slam characteristics with torsion spring
• Automatic operation

Disadvantages

• Pins and spokes in the flow path can trap debris
• Less suitable for wastewater with solids

Tilted Disc Check Valves

Tilted disc check valves have a butterfly valve-type disc tilted to allow flow on both sides. This provides a large port area and reliable metal seats.

Common Applications

• Water and treated effluent systems requiring surge protection

Advantages

• Fast closure with non-slam characteristics
• External position indicators

Disadvantages

• More complex and expensive
• Potential for increased maintenance

Vent Check Valves

Vent check valves open to vent excess pressure while preventing backflow. They are crucial in systems where pressure fluctuations occur due to temperature changes.

Common Applications

• Fuel tanks
• Systems requiring pressure fluctuation management

Fill and Drain Check Valves

Fill and drain check valves allow fluid into a system and prevent its escape. They can sometimes be piloted open for draining, making them ideal for hydraulic and pneumatic systems requiring safe depressurization.

Common Applications

• Hydraulic systems
• Pneumatic systems

Technical Specifications

Head Loss

Head loss, which indicates the pressure reduction as fluid flows through the valve, is a crucial specification for check valves. Different types of check valves exhibit varying degrees of head loss, with swing check valves typically having low head loss due to their full bore design, making them suitable for systems where minimal pressure drop is essential. Ball check valves may have slightly higher head loss because the ball can create turbulence as it moves. Piston check valves often present moderate head loss due to the movement of the piston within the chamber. Nozzle check valves, designed for high-pressure systems, can introduce higher head loss due to the disc and spring mechanism within the flow path.

Flow Dynamics

Flow dynamics describe how fluid behaves as it moves through the check valve. This includes aspects like velocity, turbulence, and laminar flow characteristics. Swing check valves offer smooth flow with minimal turbulence, making them ideal for water and wastewater systems. Ball check valves, with the rolling action of the ball, can induce some turbulence, which may impact flow efficiency. Piston check valves provide precise control over flow dynamics, suitable for systems requiring accurate flow regulation. Nozzle check valves are known for their rapid response to flow changes, effectively preventing water hammer but potentially affecting flow smoothness.

Fluid Compatibility

Ensuring a check valve’s material is compatible with the fluid it handles is essential for optimal performance and longevity. Swing check valves are commonly constructed from metals like cast iron, ductile iron, and stainless steel, making them suitable for water, wastewater, and some chemical applications. Ball check valves, often made from brass, stainless steel, or plastic, are versatile and used in a range of applications from water systems to chemical processing. Piston check valves are typically fabricated from stainless steel or other corrosion-resistant materials, ideal for industrial applications handling aggressive fluids. Nozzle check valves, usually constructed from high-strength alloys and stainless steel, are suitable for high-pressure systems and fluids that require robust materials to prevent corrosion and wear.

Temperature and Pressure Ratings

Check valves must withstand specific temperature and pressure conditions to function effectively, with swing check valves generally rated for moderate temperature and pressure ranges, making them versatile for various applications. Ball check valves are available in designs that can handle a wide range of temperatures and pressures, from low to moderate levels. Piston check valves are often rated for higher pressures and temperatures, suitable for demanding industrial environments. Nozzle check valves are designed for high-pressure applications and can withstand elevated temperatures, making them ideal for power generation and high-pressure fluid systems.

Installation and Maintenance

The ease of installation and maintenance varies among different check valve types. Swing check valves are simple to install and maintain, often requiring minimal servicing due to their straightforward design. Ball check valves are easy to install with low maintenance needs, but may require occasional cleaning to ensure the ball moves freely. Piston check valves are more complex to install and maintain due to their intricate design, requiring regular inspection and servicing to ensure optimal performance. Nozzle check valves can be more challenging to install due to their precise alignment requirements; however, they offer reliable performance with minimal maintenance once correctly installed.

Size and Weight

The physical dimensions and weight of check valves are important for system design and installation. Swing check valves are generally larger and heavier due to their full bore design, which can impact space requirements and support structures. Ball check valves are compact and lightweight, making them suitable for applications with limited space. Piston check valves can vary in size and weight depending on the specific design and materials used, often being heavier due to their robust construction. Nozzle check valves are typically more compact but can be heavier due to the materials and components required for high-pressure applications.

Selection Criteria for Check Valves

It’s crucial to ensure the check valve material is compatible with the fluid it will handle. This involves considering the chemical composition, temperature, viscosity, and presence of solids or sediments in the fluid. For instance, some check valves are designed to handle aggressive chemicals and high temperatures, while others are better suited for clean or treated water. Material selection directly impacts the valve’s corrosion resistance, risk of contamination, and
Understanding pressure ratings is crucial for safe and durable valve operation. Key ratings include: Operating Pressure (normal system pressure in both flow directions), System Pressure (maximum nominal pressure at the valve’s location), Proof Pressure (maximum pressure without deformation), and Burst Pressure (pressure causing rupture). Selecting a valve with pressure ratings that exceed the system pressures ensures reliability and prevents valve failure.

The check valve must accommodate the required flow rate with minimal restriction. Head loss, or pressure drop due to flow resistance, varies by valve design. For example, swing check valves typically have low head loss due to their full bore design, while nozzle check valves may introduce higher head loss due to the disc and spring mechanism. Proper sizing relative to pipe diameter and flow requirements is crucial for maintaining system efficiency.

Non-slam check valves prevent water hammer, a surge caused by sudden closure that can damage systems. The closing speed and mechanism (spring-assisted, dashpot, gravity) should match system dynamics. Non-slam features are particularly vital in noise-sensitive or surge-prone systems.

Initial costs include the purchase price of the valve and installation expenses, such as piping modifications and supports. Valves with more complex designs or requiring additional space may have higher installation costs. Maintenance costs, including the frequency of servicing and ease of access, also contribute to the total ownership cost. Generally, simpler valve designs require less maintenance.

Check valves may be designed to function only in specific orientations (e.g., horizontal or vertical flow up). The physical size of the valve must fit within the available space and allow for easy installation and maintenance access. Following manufacturer guidelines for flow direction and ensuring adequate straight pipe lengths upstream can prevent operational issues.

Sealing tightness levels vary depending on the application—ranging from gas-tight to drip-tight. The valve’s ability to prevent backflow or leakage is critical, especially in systems where contamination or efficiency is a concern. Internal leakage allowances depend on the system type (open vs. closed) and specific efficiency needs.

The valve size must match the pipe size and flow requirements. Connection types (e.g., flanged, threaded, wafer) should be compatible with the existing piping system to ensure proper installation and sealing. Choosing the correct size and connection type is essential for reliable performance.

Some applications may need additional features, like industry-standard compliance, thermal expansion resistance, or weight constraints for portable systems. Certain applications might also require valves with open/close indicators or remote monitoring capabilities, adding another layer of functionality.

Comparison of Different Check Valve Types

Swing Check Valves vs. Ball Check Valves

Design and Operation

Swing check valves have a disc on a hinge that swings open with forward flow and closes with reverse flow. Ball check valves use a spherical ball that moves to open or block the flow path based on fluid pressure.

Advantages

Swing check valves are cost-effective, with a full-bore opening that minimizes flow resistance. They also don’t need external power or control and can have indicators to show if they are open or closed. Ball check valves are simple, compact, and cost-effective. Their full-bore design minimizes flow restriction, and the self-cleaning action of the rolling ball reduces debris buildup. They also feature an accessible top port for easy maintenance.

Limitations

Swing check valves are not suitable for systems with pulsating flow and may suffer from water hammer. Ball check valves can lack a visual indicator and may slam shut in high-head systems.

Applications

Swing check valves are ideal for steady flow water and wastewater systems. Ball check valves are best for low-head water pumps and systems where cost and reliability are key.

Piston Check Valves vs. Nozzle Check Valves

Design and Operation

Piston check valves use a piston moving linearly inside the valve chamber, often spring-loaded to ensure closure. Nozzle check valves have a disc connected to a central stem with a spring that assists closure, and the disc moves linearly with a short stroke.

Advantages

Piston check valves offer precise control over flow, and the spring ensures the valve remains closed when there is no flow. They are effective in systems with rapid flow changes. Nozzle check valves have spring-assisted rapid closure, which minimizes water hammer. They have a smooth venturi-shaped flow path that reduces head loss compared to some other types and are designed for high-pressure and pumped systems.

Limitations

Piston check valves are more complex and costly. Nozzle check valves have the disc remaining in the flow path, causing some head loss, and they are typically more expensive and complex.

Applications

Piston check valves are used in high-precision fluid management systems requiring quick response and adaptability. Nozzle check valves are employed in industrial and power plant applications with stringent requirements on water hammer and rapid valve response.

Valves with full-bore designs, like swing and ball check valves, generally have low head loss. Fast-closing valves, such as nozzle and spring-loaded check valves, are good for preventing water hammer. Simpler valves like swing and ball check valves are easier to maintain and more cost-effective. Lift check valves seal well, while butterfly check valves have relatively poor sealing. Orientation flexibility varies, with some valves like spring-loaded check valves suitable for any position.

Real – world Case Studies and In – depth Technical Analyses

Ball Check Valves in Wastewater Pumps

Ball check valves are popular in wastewater pump systems because they are simple and effective. In a municipal wastewater treatment facility, ball check valves were deployed in small pump stations. The rotating ball within these valves helped minimize sediment buildup, thus reducing clogging incidents. However, in applications involving parallel pump systems with high heads, operators noted issues with valve slamming, which caused noise and accelerated wear. To address these issues, the facility transitioned to spring-assisted or nozzle check valves in these high-head scenarios to mitigate water hammer and enhance system longevity.

Swing Check Valves in Water Supply Networks

Swing check valves are a staple in water supply networks for their cost-effectiveness and low pressure drop; a water utility company that implemented them across its low-pressure distribution system observed excellent reliability with minimal maintenance. However, during pump start and stop cycles, the slow closure of the swing check valves occasionally led to pressure surges. To combat this, the utility retrofitted some installations with spring-assisted swing check valves, improving response times and reducing the impact of pressure surges on the system.

Nozzle Check Valves in High-Pressure Systems

A power plant dealing with high-pressure feedwater systems utilized nozzle check valves to prevent water hammer during rapid pump shutdowns. The spring-assisted closure of these valves enabled quick response times, effectively protecting sensitive upstream equipment from pressure surges. The maintenance team reported a slight increase in head loss but found it acceptable due to the improved protection and longer equipment life. This demonstrated the efficacy of nozzle check valves in high-pressure environments where rapid closure is critical.

Stop Check Valves in Boiler Systems

In a thermal power station, stop check valves were used in steam lines to provide both backflow prevention and manual isolation capabilities. Operators valued these valves for their dual functionality, making maintenance and emergency isolation easier. The manual operation feature allowed for controlled flow regulation, enhancing operational safety. Despite the higher cost and maintenance requirements, the versatility and reliability of stop check valves made them a valuable choice for critical lines within the power station.

Technical Analysis of Valve Performance

Fluid Compatibility and Material Selection

Choosing the right check valve involves considering fluid compatibility carefully. For instance, ball check valves are effective in handling wastewater with solids due to their self-cleaning action. In contrast, untreated sewage solids can pose clogging risks. Materials such as stainless steel and high-strength alloys are often chosen for their durability and resistance to corrosion, ensuring the valve’s longevity and reliability in various fluid conditions.

Surge Protection and Flow Dynamics

Rapid valve closure is essential to prevent reverse flow damage but can also induce water hammer. Nozzle and spring-assisted valves are particularly effective in offering surge protection due to their quick response times. In contrast, basic swing or ball check valves may allow water hammer unless assisted by additional mechanisms like springs or dashpots. The choice of valve type must balance the need for rapid closure with the potential impact on flow dynamics and system stability.

Head Loss Considerations

Valves with full bore or large port areas, such as swing or tilted disc valves, typically exhibit minimal head loss, making them suitable for energy-sensitive systems. Conversely, designs with discs or pistons in the flow path, such as nozzle or piston check valves, may increase velocity and head loss. Engineers must evaluate head loss implications to ensure system efficiency and performance are not compromised.

Maintenance and Reliability

Maintenance requirements and reliability are critical factors in valve selection. Ball check valves offer straightforward maintenance with top access ports and a self-cleaning mechanism. However, valves with more complex designs, such as piston or nozzle check valves, may require tighter manufacturing tolerances and more frequent inspections. The trade-off between ease of maintenance and advanced functionality must be considered based on the specific application needs.

Rational Valve Selection Process

Engineers use a weighted criteria approach to evaluate and select the most suitable check valve for a given application. Factors such as cost, non-slam action, fluid compatibility, and system dynamics are rated to identify the best fit. For example, in residential areas where noise reduction is critical, non-slam valves like resilient hinge valves with springs may score higher. In industrial plants where durability is paramount, nozzle or dual disc valves might be preferred. This process ensures that the selected valve meets the operational, economic, and safety requirements of the system.

Frequently Asked Questions

Below are answers to some frequently asked questions:

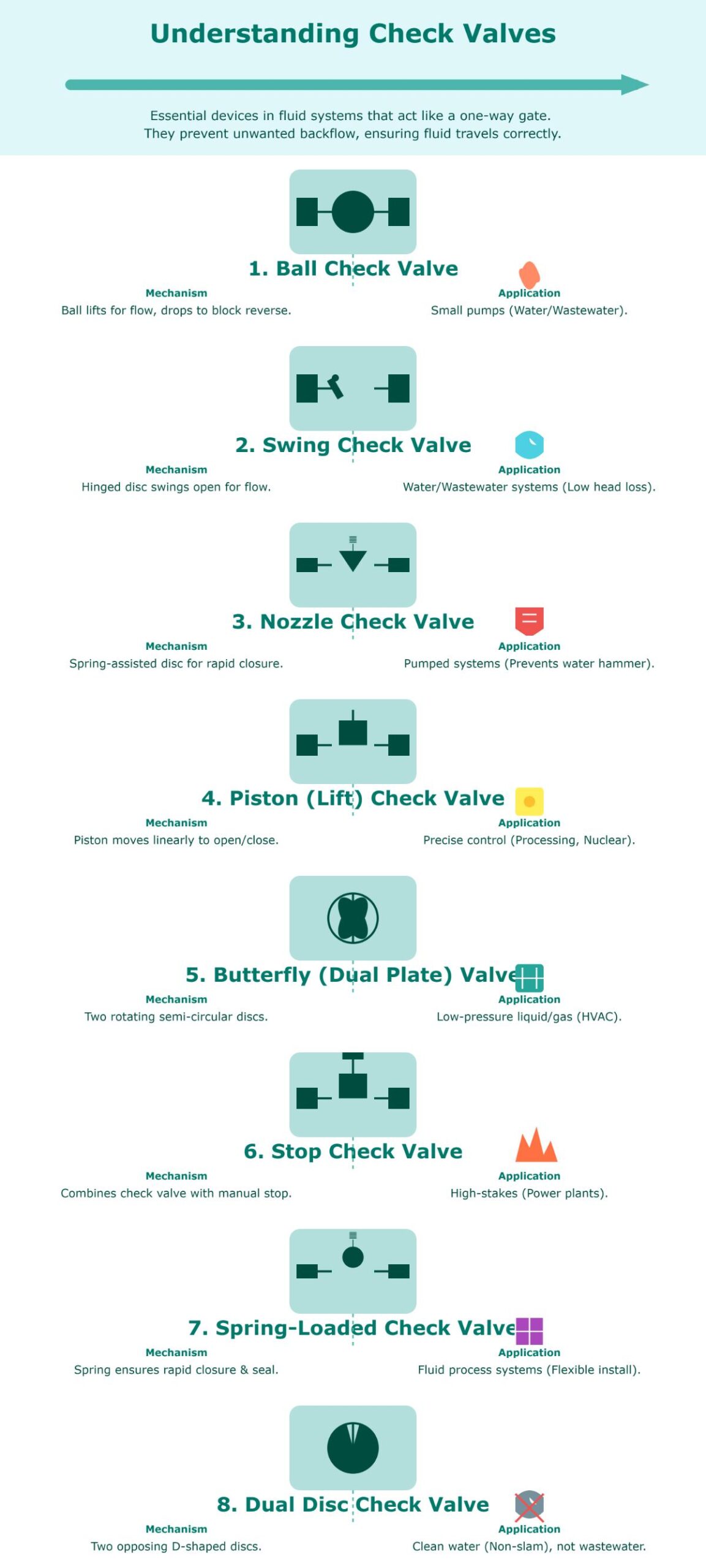

What are the different types of check valves and their applications?

Check valves are crucial components in fluid management systems, preventing backflow and ensuring unidirectional flow. There are several types of check valves, each suited to specific applications:

1. Ball Check Valves: These use a rubber-coated ball that lifts with forward flow and seals back into place to prevent backflow. They are commonly used in small water or wastewater pumps due to their simplicity and low maintenance requirements.

2. Swing Check Valves: Featuring a hinged disc that swings open with forward flow, these valves are ideal for water and wastewater systems. They offer low head loss and are effective in applications with minimal pressure surges.

3. Nozzle Check Valves: With a spring-assisted disc, these valves close quickly to prevent water hammer. They are often used in pumped systems where rapid closure is necessary to mitigate hydraulic shock.

4. Piston Check Valves (Lift Check Valves): These operate via a linear motion of a piston and are suitable for systems requiring precise control over flow changes, such as in processing plants and nuclear facilities.

5. Butterfly Check Valves (Dual Plate Check Valves): These feature two semi-circular discs that rotate to open or close and are commonly used in low-pressure liquid and gas systems, such as heaters and air conditioners.

6. Stop Check Valves: Combining features of globe and check valves, they allow manual operation and backflow prevention, making them suitable for high-stakes environments like power plants.

7. Spring-Loaded Check Valves: These use a spring mechanism for rapid closure, providing secure seals in fluid process systems and flexibility in installation orientations.

8. Dual Disc Check Valves: With two opposing D-shaped discs, they offer good non-slam characteristics, making them suitable for clean water applications but not ideal for wastewater systems.

Selecting the appropriate check valve depends on factors such as fluid compatibility, flow characteristics, head loss, and pressure surge protection to ensure reliable and efficient system performance.

How do I choose the right check valve for my system?

To choose the right check valve for your system, you need to consider several key factors that align with your specific application requirements and system conditions. First, evaluate the operating conditions, including pressure ratings, flow rate, and fluid compatibility. Ensure the valve materials can handle the chemical properties, temperature, and viscosity of the fluid to prevent corrosion or clogging.

Next, consider the installation orientation; some check valves require specific positioning for optimal performance. Assess the system’s tolerance for leakage and the need for non-slam characteristics to minimize noise and pressure surges. Head loss is another critical factor, as valves with lower pressure drops enhance energy efficiency.

Cost considerations include the initial purchase price, installation expenses, and maintenance requirements. Simpler designs generally incur lower maintenance costs, while more complex valves may need frequent servicing.

By systematically evaluating these parameters, you can select a check valve that ensures reliability, efficiency, and longevity for your system.

What are the advantages and disadvantages of each type of check valve?

Swing check valves are simple and cost-effective, featuring a pivoting disc that swings open with forward flow and closes to prevent backflow. They offer minimal head loss and automatic operation but are prone to wear and slow closure, making them unsuitable for high-pressure surge systems. Ball check valves use a ball to block flow, are compact and self-cleaning, suitable for systems with solids, but can slam in high head conditions and lack position indicators. Piston check valves provide precise control and rapid closure with a piston mechanism, ideal for high-pressure applications, but are complex and costly. Nozzle check valves close quickly with spring assistance, reducing water hammer, suitable for high-pressure systems, but have higher head loss and are more expensive. Butterfly check valves are compact and lightweight, ideal for low-pressure systems, but do not provide a tight seal and are unsuitable for high solids.

What technical specifications should I consider when selecting a check valve?

When selecting a check valve, several technical specifications are crucial to ensure optimal performance and reliability. First, consider the working pressure of the valve, which must match or exceed the system’s maximum pressure. Valve size is another key factor, as it needs to fit the pipeline and handle the required flow rate. Material compatibility is essential to prevent corrosion and ensure durability, with options including PVC, CPVC, polypropylene, ductile iron, and stainless steel, depending on the application.

End connections, such as threaded, flanged, or socket, should suit the installation requirements. Flow characteristics, indicated by Cv values, determine the valve’s flow capacity and efficiency. Operating conditions, including temperature and pressure drop, impact the valve’s performance and noise levels. By considering these specifications, you can select the most appropriate check valve for your system.

How do different check valves impact system efficiency and sustainability?

Different types of check valves impact system efficiency and sustainability in various ways due to their design, operation, and specific applications. Ball check valves are efficient for small water or wastewater systems because of their compactness and low head loss, which minimizes energy consumption. Their self-cleaning mechanism also reduces maintenance needs, extending the valve’s lifespan and contributing to sustainability.

Swing check valves are cost-effective and provide minimal head loss, enhancing system efficiency by reducing energy consumption. However, they may not perform well in systems with frequent pressure surges, potentially compromising sustainability in those environments.

Nozzle check valves are designed to prevent water hammer issues, ensuring rapid closure to protect upstream equipment, which enhances reliability. They may introduce slightly higher head loss, possibly increasing energy use.

Piston check valves offer precise control and quick closure, making them suitable for systems requiring rapid flow changes. Their spring mechanism allows for flexible installation, reducing the need for additional equipment and improving adaptability.

Butterfly check valves are lightweight and compact, ideal for low-pressure applications. Their quick operation can reduce energy consumption and their space-saving design lowers material usage and installation costs, promoting environmental sustainability.

Are there video tutorials available for valve installation?

Yes, there are numerous video tutorials available for valve installation, including check valves. These tutorials can be found on platforms such as YouTube, where channels dedicated to plumbing and engineering offer detailed, step-by-step guides. These videos cover various types of check valves, such as swing check valves, ball check valves, and piston check valves. The tutorials typically include important steps like cleaning pipe surfaces, aligning the valve correctly, applying sealing materials such as Teflon tape, and conducting pressure tests to ensure a leak-free installation. These resources are valuable for anyone looking to understand and execute valve installations effectively.
