Introduction to Four Roll Bending Machine

Overview of Four Roll Bending Machine Structure

Four roll bending machines are sophisticated pieces of equipment designed for the precise bending and shaping of metal plates. They have a distinct structure that enhances their performance and accuracy over traditional three-roll machines.

Key Components

• Machine Frame: The frame supports the machine, ensuring stability during operation.
• Upper and Lower Rolls and Hydraulic System: The upper roll functions as the primary drive component, while the lower and side rolls are driven by hydraulic cylinders. The lower roll supports the metal plate and assists in the bending process. The hydraulic system controls the movement of the lower and side rolls, allowing for precise adjustments and positioning of the metal plate.
• Electronic Control System: Equipped with CNC (Computer Numerical Control), this system offers high precision and repeatability, making the machine suitable for complex bending tasks.
• Drive Unit: The drive unit, connected to hydraulic motors, ensures smooth roll operation.
• Lubrication System: A crucial component that maintains the efficiency and longevity of the machine by reducing wear and tear on moving parts.

Working Principle of Four Roll Bending Machines

The four-roll design of these machines allows for several operational advantages, including the ability to pre-bend the leading edge of the metal plate and roll the cylinder body simultaneously. This dual functionality reduces cycle time and increases productivity.

Operational Steps

1. Pre-Bending: The process begins with the pre-bending of the leading edge of the metal plate. The lower roll moves upward to clamp the plate against the upper roll, while the side rolls position themselves to initiate the bend.
2. Bending: Once the leading edge is pre-bent, the machine rolls the metal plate into the desired cylindrical shape. The upper roll drives the plate while the side rolls ensure the plate maintains the correct curvature.
3. Finishing: The trailing edge of the plate is pre-bent in a similar manner to the leading edge, completing the cylindrical form.

Advantages and Mechanics

Four roll bending machines offer several advantages that make them superior to three-roll machines. The four-roll system ensures synchronization accuracy of +/- 0.2mm, making it the most accurate bending machine available. Pre-bending and rolling in one step eliminates the need for extra equipment, making the process more efficient. This design allows for convenient center alignment and a small surplus straight edge, beneficial for achieving high-accuracy roundness correction.

The mechanics of four roll bending machines involve complex calculations to ensure optimal performance. The driving power of the machine, often referred to as Pq, is determined by the larger value between pre-bending (PY) and rolling (PJ) powers.

Key Considerations

• Maximum Deformation Bending Moment: This parameter is crucial for understanding the force required to bend the metal plate.
• Bear Force of the Working Roller: The bear force must be analyzed to select the appropriate main motor power, ensuring the machine can handle the required workload without overloading.

Recent Developments and Applications

Recent advancements in CNC hydraulic four-roll bending machines have made them increasingly popular in industries requiring high-quality metal processing. These machines are ideal for applications where precision, efficiency, and flexibility are critical, such as in the manufacturing of pressure vessels, pipes, and structural components.

By integrating advanced technology and precise control systems, four roll bending machines have become essential tools in modern metalworking and industrial fabrication, offering unmatched performance and reliability.

Load and Torque Analysis on Rollers

Analyzing the load in four roll bending machines is essential to comprehend the forces exerted on the rollers during bending. A four roll bending machine features four main rollers: the Upper Roller (Driven Roller), the Bottom Roller (Support Roller), and the Side Rollers (Assist Rollers).

Various factors affect the load and torque on the rollers in a four roll bending machine:

1. Material Properties: The yield strength and thickness of the metal plate significantly impact the force required for bending.
2. Bending Radius: A smaller bending radius increases the load needed to deform the plate.
3. Plate Geometry: The dimensions and shape of the plate affect the distribution of forces during bending.
4. Friction: This includes rolling friction between the roller and the plate, as well as bearing friction within the rollers.

The bending moment is crucial in load analysis because it represents the internal forces that resist bending within the plate. This moment is key to determining the deformation load on the rollers.

As the main driver, the upper roller needs a thorough torque analysis. The total torque includes two components: the torque for deformation and the torque for friction.

Mathematically, the total torque ( T ) can be expressed as:

[
T = T{\text{deformation}} + T{\text{friction}}
]

Where:

• ( T_{\text{deformation}} ) is the torque needed to deform the plate.
• ( T_{\text{friction}} ) accounts for frictional forces.

The bending angle ( L ), which corresponds to the length of the plate under bending, also influences the torque calculation.

Understanding the load and torque analysis is vital for several reasons:

• Optimal Motor Power Selection: Ensures that the motor power is appropriately matched to the required operations.
• Machine Efficiency: Accurate load and torque calculations help in designing machines that operate efficiently, reducing energy consumption and wear.
• Preventing Mechanical Failure: Proper analysis prevents overloading of rollers, which could lead to mechanical failure and downtime.
• Energy Consumption: Reducing frictional forces through proper lubrication and design can significantly lower energy consumption during operation.

By incorporating these analyses into the design and operation of four roll bending machines, engineers can achieve higher efficiency, reliability, and performance in metal plate bending applications.

Mathematical Formulas for Load and Drive Power Calculation

Key Formulas Used in Load Analysis

Accurate load analysis is crucial for optimizing four roll bending machines. Several mathematical formulas are employed to determine the loads and forces acting on the machine’s components.

Bending Moment Calculation

The bending moment ( M ) is a critical parameter in load analysis. It is determined by the following formula:

[
M = \frac{\sigma \cdot I}{y}
]

Where:

• ( \sigma ) is the yield strength of the material.
• ( I ) is the moment of inertia of the plate section.
• ( y ) is the distance from the neutral axis to the outermost fiber of the plate.

Roller Load Calculation

Calculate the load on the rollers with this formula:

[
P = \frac{2 \cdot M}{D}
]

Where:

• ( P ) is the load on the rollers.
• ( M ) is the bending moment.
• ( D ) is the diameter of the roller.

Calculating Drive Power for Four Roll Bending Machines

Drive power calculation ensures that the machine’s main motor has sufficient power to perform bending operations efficiently. The main drive power is calculated by considering both pre-bending and rolling power requirements.

General Drive Power Formula

The driving power of the main drive system ( P_q ) is calculated as:

[
P_q = \frac{P_S + P_J}{\eta}
]

Where:

• ( P_S ) is the power required during pre-bending.
• ( P_J ) is the power required during rolling.
• ( \eta ) is the transmission efficiency, typically around 0.9.

Pre-Bending Power Calculation

Use the following formula to determine the power needed for pre-bending ( P_S ):

[
P_S = \frac{M \cdot \nu}{r}
]

Where:

• ( M ) is the bending moment.
• ( \nu ) is the rolling speed.
• ( r ) is the radius of the driven roller.

Rolling Power Calculation

The rolling power ( P_J ) can be calculated as:

[
P_J = \frac{T \cdot \omega}{\eta}
]

Where:

• ( T ) is the torque required for rolling.
• ( \omega ) is the angular velocity of the roller.
• ( \eta ) is the transmission efficiency.

Step-by-Step Breakdown of the Calculation Process

For clarity, here is a step-by-step breakdown of the calculation process:

1. Identify Material Properties: Find the yield strength (( \sigma )) and thickness of the material.
2. Calculate Bending Moment (( M )): Use the bending moment formula with the material properties.
3. Compute Roller Load (( P )): Calculate the load on the rollers using the bending moment and roller diameter.
4. Estimate Pre-Bending Power (( P_S )): Calculate the power required during pre-bending using the bending moment, rolling speed, and roller radius.
5. Determine Rolling Power (( P_J )): Calculate the rolling power using the torque, angular velocity, and transmission efficiency.
6. Calculate Total Drive Power (( P_q )): Combine the pre-bending and rolling power requirements, adjusted for transmission efficiency.

By following these steps, engineers can accurately determine the drive power required for efficient operation of four roll bending machines.

Rolling Speed and Transmission Efficiency

Importance of Rolling Speed in Bending Processes

Rolling speed is a crucial factor in operating four roll bending machines because it affects both the quality and efficiency of the bending process. Rolling speed, measured in meters per minute (m/min), refers to the rate at which the metal plate moves through the bending machine and significantly influences the bending outcome.

Factors Affecting Rolling Speed

Several factors impact the optimal rolling speed for a given bending process:

• Material Properties: The type and thickness of the metal plate affect the rolling speed. Softer materials like aluminum can be rolled at higher speeds compared to harder materials like steel.
• Desired Bend Quality: Higher rolling speeds can boost production rates but might reduce bend precision. For high-quality bends, slower speeds are often preferred.
• Machine Capability: The design and capacity of the bending machine, including the power of the motor and the efficiency of the transmission system, also dictate the maximum rolling speed.
• Plate Geometry: The dimensions and shape of the plate being bent influence the rolling speed. Wider and thicker plates generally require slower speeds to ensure proper bending.

Understanding Transmission Efficiency

Transmission efficiency measures how effectively the motor’s power is transferred to the rollers. It is expressed as a percentage, typically ranging from 85% to 95% for well-maintained machines. Higher transmission efficiency means more motor power is used for bending, with less lost to friction and heat.

Role in Power Calculation

Transmission efficiency (( \eta )) is crucial in the calculation of the driving power required for the bending process. It is used to account for the losses in the transmission system when determining the effective power delivered to the rollers.

The general formula for calculating the driving power (( P )) is:

[
P = \frac{T \times \nu}{\eta \times r}
]

Where:

• ( T ) is the torque applied to the rollers.
• ( \nu ) is the rolling speed.
• ( \eta ) is the transmission efficiency.
• ( r ) is the radius of the driven roller.

Impact on Machine Performance

High transmission efficiency leads to several benefits:

• Energy Savings: Less power is wasted, resulting in lower energy consumption and reduced operational costs.
• Improved Performance: Efficient power transmission ensures that the machine operates at optimal capacity, enhancing productivity and product quality.
• Reduced Wear and Tear: Efficient systems experience less mechanical stress, extending the lifespan of machine components and reducing maintenance requirements.

Practical Examples Involving Transmission Efficiency

Consider a four roll bending machine with a transmission efficiency of 90% (( \eta = 0.9 )). If the required torque (( T )) is 500 Nm and the rolling speed (( \nu )) is 10 m/min, with a driven roller radius (( r )) of 0.1 m, the driving power (( P )) can be calculated as follows:

[
P = \frac{500 \times 10}{0.9 \times 0.1} = \frac{5000}{0.09} = 55555.56 \, \text{W} \, (55.56 \, \text{kW})
]

This example demonstrates the importance of considering transmission efficiency in power calculations to ensure accurate results and optimal machine performance. By understanding and optimizing rolling speed and transmission efficiency, manufacturers can achieve higher efficiency, better quality bends, and longer machine life.

Drive Power Calculation Examples

Let’s calculate the drive power needed for pre-bending a metal plate with these properties:

• Material Yield Strength (( \sigma )): 250 MPa
• Plate Thickness: 10 mm
• Roller Diameter (( D )): 150 mm
• Rolling Speed (( \nu )): 5 m/min
• Transmission Efficiency (( \eta )): 0.9

Step-by-Step Calculation

1. Calculate the Bending Moment (( M )):

Using the formula (M = \frac{\sigma \cdot I}{y}), where (I = \frac{b \cdot h^3}{12}) and (y = \frac{h}{2}), we can calculate the bending moment. Assuming a width ( b ) of 1000 mm:

[
I = \frac{1000 \cdot 10^3}{12} = 833333.33 \, \text{mm}^4
]
[
y = \frac{10}{2} = 5 \, \text{mm}
]
[
M = \frac{250 \cdot 833333.33}{5} = 41666666.5 \, \text{Nmm} = 41.67 \, \text{kNm}
]

This gives us the bending moment, which is crucial for understanding the forces involved.

2. Determine the Roller Load (( P )):

Using the formula (P = \frac{2 \cdot M}{D}):

[
P = \frac{2 \cdot 41.67}{0.15} = 555.6 \, \text{kN}
]

This step helps us understand the load applied to the rollers.

3. Calculate Pre-Bending Power and Adjust for Transmission Efficiency:

Next, calculate the pre-bending power and adjust for transmission efficiency. Using the formula (P_S = \frac{M \cdot \nu}{r} / \eta), where the radius of the driven roller ( r ) is ( \frac{D}{2} = 0.075 \, \text{m}):

[
P_S = \frac{41.67 \cdot 5}{0.075} = 2778.0 \, \text{Nm/min}
]
[
P_S = \frac{2778.0}{0.9} = 3086.67 \, \text{Nm/min}
]

Rolling Power Calculation Example

Now, consider the rolling phase with the same metal plate and machine settings.

Step-by-Step Calculation

1. Calculate the Torque (( T )):

Using the formula (T = M + \text{friction torque}), and assuming friction torque is approximately 10% of the bending moment:

[
\text{friction torque} = 0.1 \cdot 41.67 = 4.167 \, \text{kNm}
]
[
T = 41.67 + 4.167 = 45.837 \, \text{kNm}
]

This step helps us understand the total torque, including friction.

2. Determine Angular Velocity (( \omega )):

Using the formula (\omega = \frac{\nu}{r}):

[
\omega = \frac{5}{0.075} = 66.67 \, \text{rad/min}
]

This gives us the angular velocity of the roller.

3. Calculate Rolling Power (( P_J )):

Using the formula (P_J = \frac{T \cdot \omega}{\eta}):

[
P_J = \frac{45.837 \cdot 66.67}{0.9} = 3397.4 \, \text{Nm/min}
]

By following these calculations, engineers can accurately determine the drive power needed for both pre-bending and rolling phases, ensuring efficient operation of four roll bending machines.

Selecting Main Motor Power

Choosing the right motor power for a four roll bending machine is crucial for its efficient and reliable performance. Several factors must be considered to match the motor power to the machine’s requirements.

Load and Torque Analysis

The initial step in selecting the main motor power involves a detailed analysis of the load and torque on the machine’s rollers. This analysis includes material properties such as the yield strength, thickness, and type of metal being processed; the bending radius, where smaller radii require higher bending forces; plate geometry, including dimensions like width and length which affect the bending force distribution; and friction, both rolling friction between the plate and rollers and internal bearing friction.

The required power is the sum of pre-bending power ((P_S)) and rolling power ((P_J)), adjusted for transmission efficiency ((\eta)).

[ P_q = \frac{P_S + P_J}{\eta} ]

Where:

• ( P_S ) is the power needed during pre-bending.
• ( P_J) is the power needed during rolling.
• (\eta) is the transmission efficiency, typically between 0.85 and 0.95.

Linking Load Analysis to Motor Selection

The results of the load and torque analysis directly influence the motor selection process. The motor should handle the highest calculated power with an added safety margin for varying operational conditions.

Motor Sizing

Motor sizing involves selecting a motor whose power rating exceeds the calculated drive power to ensure reliability and longevity. Factors to consider include:

• Overload Capacity: Motors often need to handle short-term overloads without damage.
• Duty Cycle: Continuous operation versus intermittent use impacts motor selection.
• Environmental Conditions: Ambient temperature, humidity, and dust levels can affect motor performance.

Considerations for Optimizing Motor Efficiency

Optimizing motor efficiency involves balancing power requirements with energy consumption. Key considerations include:

• Rolling Speed: Slower speeds can reduce energy consumption but may impact productivity.
• Transmission Efficiency: Improving transmission efficiency reduces power losses, allowing for smaller, more efficient motors.
• Advanced Control Systems: Variable frequency drives (VFDs) can adjust motor speed to match load requirements, enhancing efficiency.

Example of Motor Power Selection Process

To illustrate the selection process, consider a four roll bending machine with the following parameters:

• Material Yield Strength: 250 MPa
• Plate Thickness: 10 mm
• Roller Diameter: 150 mm
• Rolling Speed: 5 m/min
• Transmission Efficiency: 0.9

1. First, calculate the bending moment using the yield strength and plate thickness. Assuming a width of 1000 mm, the moment of inertia (I) and distance (y) can be calculated, yielding a bending moment (M).
2. Determine the roller load by calculating the load based on the bending moment and roller diameter.
3. Calculate pre-bending and rolling power using the formulas for (P_S) and (P_J) to determine the power needed for pre-bending and rolling phases.
4. Adjust for transmission efficiency to find the total power required:

[ P_q = \frac{P_S + P_J}{\eta} ]

5. Select the motor by choosing one with a power rating exceeding the calculated (P_q), considering overload capacity and duty cycle.

By following these steps, engineers can ensure the selected motor meets the operational demands of the four roll bending machine, providing efficient and reliable performance.

Frequently Asked Questions

Below are answers to some frequently asked questions:

How is the drive power of a four roll bending machine calculated?

To calculate the drive power of a four-roll bending machine, you need to consider several factors related to the mechanics and forces involved in the bending process. The key components include the torque on the upper roller and the efficiency of the transmission system.

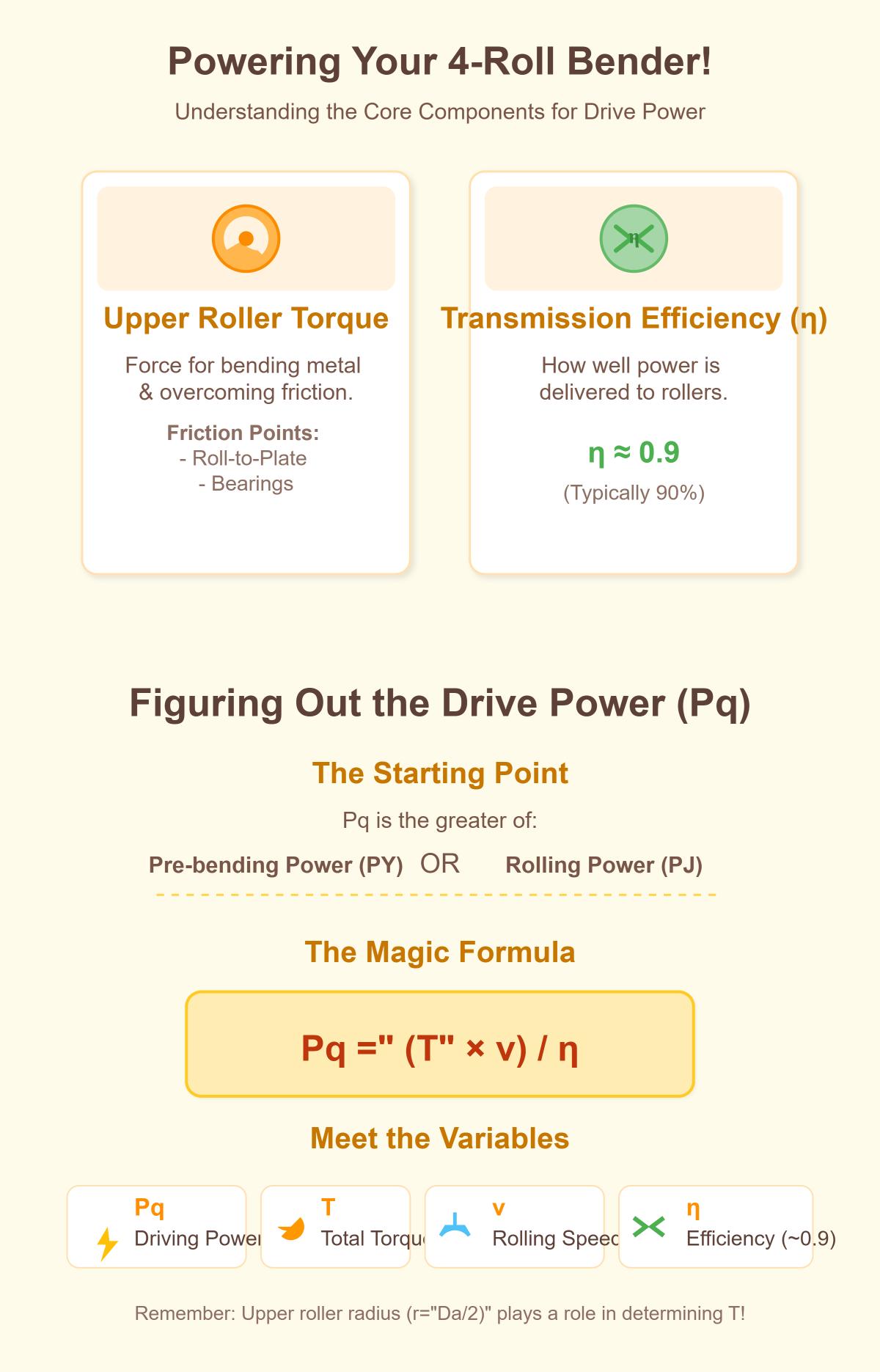

1. Upper Roller Drive Torque: The torque required on the upper roller comprises the torque needed for deformation and the torque to overcome frictional resistance. Friction occurs both at the contact points between the rolls and the plate and within the bearings.
2. Driving Power Calculation:
   • The driving power ((P_q)) is determined based on the higher value between the power required during pre-bending ((P_Y)) and the power required during rolling ((P_J)).
   • The essential formula incorporates the rolling speed ((\nu)), the radius of the upper roller ((r = Da/2), where (Da) is the diameter of the upper roller), and the transmission efficiency ((\eta)), which is typically around 0.9.
3. Formula: The driving power can be expressed as:
   [
   P_q = \frac{T \cdot \nu}{\eta}
   ]
   where (T) is the total torque on the upper roller.

What factors influence the load and torque on the rollers in a four roll bending machine?

Several factors influence the load and torque on the rollers in a four roll bending machine. These include the material properties and dimensions of the plate, such as its thickness and width, which directly affect the required bending force. Stronger materials with higher yield strengths demand more force, increasing torque on the rollers. The roller configuration and positioning, including the gap between the rollers and the positioning of the side rollers, also play a crucial role. A smaller gap or tighter roller configuration leads to higher bending forces.

The bending mechanics, particularly the bending angle and radius, significantly impact the internal bending moment. A tighter bend requires more force, thereby increasing torque. Additionally, frictional forces between the rollers and the plate, as well as friction within the roller bearings and shafts, contribute to the total torque required.

How to select the main motor power for a four roll bending machine based on load and power calculations?

To select the main motor power for a four roll bending machine based on load and power calculations, follow these steps:

First, perform a thorough load analysis to determine key parameters such as roll pressure, bending torque, and friction torque. Roll pressure is the force applied by the rollers on the material, bending torque is the rotational force needed to bend the material, and friction torque accounts for resistance from roller bearings and plate rolling.

Next, calculate the driving power using the formula ( P = \frac{T \times n}{60 \times \eta} ), where ( T ) is the torque, ( n ) is the rotational speed, and ( \eta ) is the transmission efficiency. This calculation should be done for both pre-bending and rolling processes.

After calculating the driving power, select the highest power value obtained between the pre-bending and rolling calculations. This ensures that the motor can handle the maximum load required during operation.

Why is rolling speed important in bending machines?

Rolling speed is crucial in four-roll bending machines for several reasons. Firstly, it directly affects the plastic deformation process of the metal plate, ensuring consistent bending without defects like wrinkling or cracking. An optimal rolling speed allows the material to flow smoothly through the rollers, maintaining a uniform bend radius and high precision.

Secondly, rolling speed is related to the bending force and power consumption. Different materials and thicknesses require adjustments to both speed and force. Higher speeds demand more motor torque and energy to maintain consistent pressure, impacting the overall power consumption of the machine.

Additionally, rolling speed influences machine efficiency and cycle time. Properly controlled higher speeds can reduce cycle times, increasing throughput and productivity. It also helps prevent material slippage by ensuring synchronization between the plate feed and roll movements, which is essential for accurate and consistent bending.

Lastly, rolling speed affects product quality. Consistent speed supports high-quality bends with uniform radii, while variations can lead to inconsistent deformation and compromised structural integrity. Therefore, carefully managing rolling speed is vital for achieving precise, efficient, and high-quality bending operations in four-roll bending machines.

How does transmission efficiency affect the power calculation in bending machines?

Transmission efficiency significantly impacts the power calculation in bending machines. Transmission efficiency is defined as the ratio of useful power output to the total power input, typically expressed as a percentage. This efficiency determines how much of the motor’s power is effectively utilized in the bending process versus how much is lost due to factors like friction and heat.

In practical terms, if a bending machine has a transmission efficiency of 70%, only 70% of the input power is converted into useful work for bending, while the remaining 30% is lost. This efficiency must be factored into power calculations to ensure the motor can provide adequate power for bending operations. For example, the formula to calculate motor power ((P)) considering transmission efficiency ((\eta)) is:
[ P = \frac{T_b \cdot v}{\eta \cdot 1000} ]
where (T_b) is the bending torque and (v) is the roller speed. Accurate power calculations, incorporating transmission efficiency, are essential for selecting the appropriate motor and optimizing machine performance, ensuring efficient and cost-effective operation.

What practical examples can help understand transmission efficiency in four roll bending machines?

Practical examples that help understand transmission efficiency in four roll bending machines include:

1. Pre-bending and Rolling Efficiency: Four roll bending machines can perform pre-bending and rolling operations in a single pass without requiring the plate to be reversed. This capability enhances efficiency by reducing handling times and improving throughput compared to machines that need separate pre-bending steps.
2. Energy Conservation: These machines typically achieve high transmission efficiency by delivering over 98% of the generated power directly to the roll surfaces. This minimizes energy loss, leading to significant energy savings and lower operational costs, which is particularly advantageous in high-volume production environments.
3. High Precision and Consistency: The design of four roll bending machines ensures consistent rolling results with minimal flat spots that are often present after pre-bending. This precision ensures uniform quality across large production runs, reducing waste and rework.
4. Hydraulic and Planetary Gear Drives: The use of hydraulic cylinders for vertical motion and planetary gear drives for roll rotation eliminates the need for complex transmission systems. This design reduces wear and tear, maintains rolling accuracy, and extends the machine’s service life, contributing to overall operational efficiency.

These examples illustrate how the design and operational principles of four roll bending machines enhance transmission efficiency, leading to better performance, energy conservation, and cost-effectiveness in metal sheet processing.
