Comprehensive Guide to Machine Bolts: Uses and Properties

Imagine constructing a towering skyscraper, where each piece of steel and concrete must be meticulously joined to ensure stability and safety. At the heart of this intricate puzzle lies a seemingly simple yet crucial component: the machine bolt. But what exactly are these vital fasteners, and why are they indispensable in construction and engineering? In this comprehensive guide, we will explore the fundamental uses and properties of machine bolts, offering a clear understanding tailored for beginners. We’ll delve into their various types, the unique advantages they offer, and how they stand apart from screws. Ready to uncover the secrets behind these essential fasteners and learn how they keep our world together? Let’s dive in.

What is a Machine Bolt?

A machine bolt is a type of fastener with a cylindrical, threaded shaft and a head that can be tightened with a wrench or spanner. It is primarily used to connect two or more components by pairing with a nut, creating a secure and reliable connection. The head of a machine bolt is typically hexagonal or square, allowing for easy application of torque during installation.

Machine bolts are often referred to by various names depending on their specific characteristics and applications, such as hex bolts, square head bolts, and fully threaded bolts. Despite these variations, they all have a threaded shaft that pairs with a nut.

Machine bolts are essential in construction and engineering because they are strong, reliable, and easy to use. They play a crucial role in assembling machinery, building structures, and manufacturing automotive and heavy equipment. The ability to disassemble and reassemble components makes machine bolts invaluable in situations where maintenance and repairs are necessary. Their versatility and ability to adapt to different materials and environments make them crucial in various industrial applications.

Types of Machine Bolts

Overview of Different Types of Machine Bolts

Machine bolts are versatile fasteners designed for various specific needs in different applications. Understanding the differences between them is crucial for selecting the right bolt for your project.

Hex Head Bolts

Hex head bolts, the most common type, feature a hexagonal head that allows for easy tightening with wrenches or sockets. These bolts are widely used in construction, machinery, and automotive applications due to their strength and ease of use.

Square Head Bolts

Square head bolts are less common but still useful in specific applications. They have a square-shaped head, which provides a larger surface area for the application of torque. This design can be advantageous in situations where a higher level of grip is needed, such as in traditional construction or specialized machinery.

Fully Threaded Bolts

Fully threaded bolts, or continuous-thread bolts, are threaded along their entire length. This design provides a greater surface area for gripping, making them ideal for applications requiring a strong, consistent hold. These bolts are often used in situations where the bolt needs to be adjustable or where maximum thread engagement is necessary.

Partially Threaded Bolts

Partially threaded bolts have a section of unthreaded shank between the head and the threaded portion. This design allows for better alignment and shear strength, making them suitable for applications where the bolt needs to bear heavy loads. The unthreaded portion provides a smooth surface that can help distribute stress more evenly.

Carriage Bolts

Carriage bolts, with their domed head and square neck, prevent turning when the nut is tightened, making them ideal for fastening wood. These bolts are commonly used in woodworking, including furniture construction and timber framing.

Elevator Bolts

Elevator bolts have a flat, countersunk head and are typically used in conveyor systems and elevators. The flat head allows the bolt to sit flush with the surface, preventing interference with moving parts. They are designed for applications where a smooth, unobtrusive fastening is needed.

Flange Bolts

Flange bolts have a built-in washer-like flange under the head, which distributes the load over a larger area. This design reduces the need for a separate washer and provides a more secure fastening. Flange bolts are often used in automotive and machinery applications where high vibration and heavy loads are common.

Comparison with Other Fasteners

While machine bolts are a type of fastener, it’s important to distinguish them from other types such as screws and studs. Unlike screws, machine bolts typically require a nut to secure them, making them suitable for applications where disassembly is necessary. Studs, on the other hand, are threaded rods that may be used in conjunction with nuts or threaded holes.

Machine bolts offer several advantages, including their strength, ease of use, and versatility. Their ability to create strong, reliable connections makes them indispensable in construction, engineering, and various industrial applications. Understanding the different types of machine bolts helps ensure that the right fastener is chosen for the job, leading to better performance and safety.

Fasteners: An Overview

Definition and Types of Fasteners

Fasteners are crucial mechanical components used to securely join two or more objects. They are integral to various industries such as construction, manufacturing, and engineering, ensuring stable and reliable connections. The primary types of fasteners include bolts, screws, nuts, and studs, each designed for specific applications and offering unique features.

Bolts

Bolts are fasteners with a head and external threading, typically paired with nuts to secure parts with through holes. Common types include hex bolts, square bolts, and carriage bolts, known for their strength and widespread use in construction, machinery, and automotive sectors.

Screws

Screws are fasteners that create their own threads in the material they are driven into. Types include machine screws for pre-threaded holes, wood screws for driving into wood, and self-tapping screws that cut their own threads in softer materials.

Nuts

Nuts are internally threaded components used with bolts or studs to secure parts together. They come in various shapes and sizes, such as hex nuts, square nuts, and wing nuts. Nuts are essential for creating strong, detachable connections in various applications.

Studs

Studs are threaded rods without heads, used in applications where frequent disassembly or a compact structure is needed. They are often used in engines, machinery, and structural applications where precise alignment and strong connections are required.

Role of Machine Bolts Among Fasteners

Machine bolts are specific types of bolts with a cylindrical, threaded shaft and a head designed to be tightened with a wrench or spanner. They are crucial in construction and engineering for their strength, reliability, and ease of use. Machine bolts are typically used in conjunction with nuts to create secure, detachable connections in machinery, buildings, and heavy equipment.

Advantages of Using Machine Bolts

Machine bolts offer several advantages over other types of fasteners:

• Strength and Durability: Machine bolts are designed to withstand high levels of stress and load, making them suitable for heavy-duty applications.
• Ease of Installation: They can be easily installed and tightened using standard tools such as wrenches and spanners.
• Versatility: Machine bolts come in various sizes and materials, allowing them to be used in a wide range of applications.
• Reusability: Unlike some fasteners, machine bolts can be easily removed and reused, making them ideal for applications requiring frequent maintenance or adjustments.

Properties and Uses of Machine Bolts

Machine bolts are versatile fasteners used in a wide range of applications from construction to automotive assembly. Key properties include:

• Material Variety: Common materials include carbon steel, alloy steel, stainless steel, aluminum, and titanium. Each material offers different strengths and corrosion resistance levels.
• Design Variations: Hexagonal heads, cylindrical heads, and threaded holes cater to specific needs, enhancing ease of use and load distribution.
• Applications: Machine bolts are crucial in securing components in machinery, construction projects, and household appliances due to their strength and versatility.

Selection Criteria for Fasteners

When selecting fasteners, consider the following:

• Strength and Load Requirements: Ensure the fastener can handle the expected load.
• Material Compatibility: Choose materials that match the components being joined.
• Environmental Conditions: Account for factors like corrosion resistance.
• Ease of Installation and Maintenance: Opt for fasteners that simplify assembly and maintenance.

Recent Trends in Fasteners

Recent trends focus on enhanced durability, improved corrosion resistance, and ease of use. Stainless steel and titanium are increasingly used for their high performance in challenging environments. Additionally, advancements in manufacturing processes have led to more precise and cost-effective production of fasteners.

Key Uses of Machine Bolts

Machine Bolts in Construction

Machine bolts play a vital role in construction, providing the necessary strength and stability for various structures. They are commonly used in steel frameworks, bridge construction, and building foundations. The robust and reliable connections formed by machine bolts ensure the structural integrity of buildings and infrastructure, making them indispensable in the construction industry.

Engineering Applications

In the field of engineering, machine bolts are crucial for the assembly and maintenance of machinery. They secure different components together, ensuring that the machinery operates smoothly and reliably. Designed to withstand high loads and stresses, machine bolts are suitable for heavy-duty applications in industrial machinery and equipment.

Specialized Uses in Various Industries

Machine bolts are versatile and find applications in various specialized industries:

Automotive Industry

In the automotive sector, machine bolts are essential for putting together and maintaining vehicle parts. They stabilize frames and engine parts, ensuring a secure fit in engine assemblies and other critical areas. The durability and strength of machine bolts contribute to the overall safety and performance of the vehicle.

Plumbing Systems

Machine bolts are also used in plumbing systems to secure pipes, flanges, and fixtures. For example, flange bolts connect pipes in tight spaces, ensuring a tight and leak-proof seal. The reliability of machine bolts in maintaining secure connections is crucial for the proper functioning of plumbing systems.

Household Appliances

Machine bolts are commonly used in household appliances to secure various components. These bolts provide the structural integrity needed during operation, ensuring that appliances function correctly and safely. The ease of installation and removal makes machine bolts ideal for appliances that may require maintenance or repairs.

Case Studies on Bolt Applications in Construction and Engineering

Case Study: Bridge Construction

In bridge construction, machine bolts are used to connect steel beams and other structural components. A notable example is the use of high-strength machine bolts in the assembly of the Golden Gate Bridge in San Francisco. These bolts provided the necessary strength to withstand the bridge’s load and environmental stresses, ensuring its long-term stability and safety.

Case Study: Industrial Machinery Assembly

Machine bolts are crucial in assembling industrial machinery, such as conveyor systems and manufacturing equipment. In one case, a manufacturing plant used machine bolts to secure conveyor belt components, ensuring the system’s reliability and efficiency. The bolts’ ability to handle heavy loads and vibrations was essential for the continuous operation of the machinery.

Innovative Materials for Machine Bolts

Traditional Materials and Challenges

Machine bolts have traditionally been made from materials like steel alloys, stainless steel, and aluminum, each offering unique benefits and drawbacks:

• Steel Alloys: Known for their strength and durability, steel alloys are the most commonly used materials for machine bolts, but they are susceptible to corrosion, which can compromise their integrity over time. Additionally, their relatively heavy weight is a disadvantage in applications where weight reduction is crucial, such as in aerospace and automotive industries.
• Stainless Steel: This material offers excellent corrosion resistance, making it ideal for outdoor and marine applications. Stainless steel bolts are also known for their strength and durability, but they can be more expensive than regular steel bolts.
• Aluminum: Valued for its lightweight properties, aluminum is used in applications where reducing weight is essential. However, aluminum bolts may not provide the same level of strength as steel alloys, which can limit their use in high-stress applications.

Innovative Materials

To overcome the limitations of traditional materials, several innovative materials have been developed for machine bolts. These materials offer enhanced properties such as higher strength-to-weight ratios, better corrosion resistance, and increased durability.

Titanium Alloys

Titanium alloys are known for their exceptional strength-to-weight ratio and corrosion resistance. These alloys are lightweight yet strong, making them ideal for high-performance applications in industries such as aerospace, where reducing weight without sacrificing safety is critical. Titanium bolts are also used in medical devices and high-end automotive applications.

Carbon Fiber Composites

Carbon fiber composites provide a unique combination of lightness and strength. These materials are increasingly used in the automotive and aerospace industries to improve fuel efficiency and reduce emissions. Carbon fiber bolts are particularly useful in applications where weight reduction is paramount, and they are often found in mixed-material assemblies and advanced structural components.

Ceramic Coatings

Ceramic coatings are applied to machine bolts to enhance their durability and resistance to wear. These coatings provide a hard, wear-resistant surface that extends the lifespan of bolts, especially in high-friction environments. Ceramic-coated bolts are ideal for applications involving high temperatures and extreme environmental conditions, such as in industrial machinery and engines.

Advanced Steel Alloys

Modern steel alloys incorporate additional elements such as chromium and molybdenum to enhance their mechanical properties. These advanced alloys offer higher tensile strength, toughness, and improved corrosion resistance compared to traditional steel. They are suitable for demanding industrial applications where high strength and durability are required.

Nanotechnology

Nanotechnology is being explored to develop machine bolts with enhanced strength and performance. By manipulating materials at the nanoscale, researchers aim to create bolts with superior mechanical properties and resistance to wear. While still in development, nanostructured materials hold promise for the future of machine bolts.

Applications Across Industries

The use of innovative materials in machine bolts has expanded their applications across various industries:

Aerospace

In the aerospace industry, the use of titanium alloys and carbon fiber composites is crucial for reducing fuel consumption and enhancing safety. Lightweight bolts made from these materials help in constructing aircraft components that require high strength without adding excessive weight.

Automotive

The automotive industry benefits from the adoption of carbon fiber composites and advanced steel alloys. These materials help reduce vehicle weight, improve fuel economy, and lower emissions. Machine bolts made from these innovative materials are used in engine assemblies, chassis, and other critical components.

Renewable Energy

In the renewable energy sector, corrosion-resistant materials such as stainless steel and advanced steel alloys are essential for the longevity of wind turbines, solar panels, and other outdoor installations. These materials ensure that machine bolts can withstand harsh environmental conditions and maintain their integrity over time.

Future Trends and Technologies

The development of mixed-material fastening techniques and advanced joining methods is set to revolutionize the use of machine bolts. For example, the Flowpoint Delta PT screw allows direct fastening into both plastic and metal without needing pilot holes, enhancing versatility in mixed-material assemblies. Additionally, friction welding techniques like Ejoweld enable the joining of dissimilar materials, such as aluminum to steel, without holes, using thermomechanical processes. These advancements will continue to improve the performance, efficiency, and sustainability of machine bolts in various applications.

Properties of Machine Bolts

Material Composition

Machine bolts are crafted from strong materials to ensure they are durable and reliable for various uses. Common materials include:

• Carbon Steel: This material is often chosen for its strength and cost-effectiveness, making it suitable for a wide range of applications. However, protective coatings may be necessary to prevent corrosion.
• Stainless Steel: With excellent corrosion resistance, stainless steel is perfect for moist or harsh environments. It also offers good strength and durability.
• Alloy Steel: Enhanced with elements like chromium and molybdenum, alloy steel bolts provide higher strength and better resistance to wear and fatigue.
• Aluminum: Lightweight and resistant to corrosion, aluminum bolts are ideal where weight reduction is crucial, such as in aerospace applications.
• Titanium: Offering a high strength-to-weight ratio and excellent corrosion resistance, titanium bolts are used in high-performance applications, including medical devices and aerospace components.

Mechanical Properties

Understanding the mechanical properties of machine bolts is crucial for their effective performance in different applications. Key properties include:

• Tensile Strength: This is the maximum load a bolt can withstand before breaking, ensuring the bolt can handle significant stress and load.
• Yield Strength: The stress at which a bolt begins to deform permanently. A higher yield strength means the bolt can endure more stress without permanent deformation.
• Hardness: Indicates the bolt’s resistance to surface indentation and wear, crucial for bolts used in high-wear environments.
• Ductility: The ability of a bolt to deform under tensile stress, important for absorbing impacts and preventing brittle failure.
• Fatigue Resistance: The ability to withstand cyclic loads over time without failure, essential for bolts used in applications with repeated loading and unloading.

Standards Compliance

Machine bolts need to meet international standards to ensure they are safe, high-quality, and compatible. Key standards include:

• ISO Standards: The International Organization for Standardization (ISO) provides specifications for bolt dimensions, materials, and mechanical properties. Compliance with ISO standards ensures bolts meet global quality and performance criteria.
• ASME Standards: The American Society of Mechanical Engineers (ASME) sets standards for bolt dimensions, material properties, and testing procedures, widely used in North America.
• DIN Standards: The German Institute for Standardization (DIN) provides specifications for bolts used in European applications, covering dimensions, mechanical properties, and material requirements.
• ASTM Standards: The American Society for Testing and Materials (ASTM) sets standards for the material composition and mechanical properties of bolts, ensuring suitability for specific industrial applications.

Design and Functionality

Machine bolts are designed with specific features to enhance their functionality:

• Threaded Shaft: The cylindrical shape with threads along the shaft allows for secure connections with nuts. Threads can be partially or fully along the shaft, providing flexibility for different fastening needs.
• Head Styles: Common head styles include hexagonal, square, and domed. The head design allows for easy installation using tools like wrenches or spanners.
• Thread Types: Threads can vary in pitch and depth, with coarse and fine threads available. The choice of thread type depends on the application and required strength of the connection.

Applications

Machine bolts are used in a variety of industries due to their versatility and strength:

• Construction: Essential for connecting structural components, such as beams and columns, ensuring the stability and integrity of buildings and infrastructure.
• Automotive: They are used to assemble vehicle parts like engines, frames, and suspensions, ensuring reliable and durable connections.
• Machinery: Integral in assembling and maintaining industrial machinery, ensuring secure connections that can withstand high loads and vibrations.
• Marine: Stainless steel machine bolts are commonly used in marine applications due to their corrosion resistance, ensuring long-lasting performance in harsh environments.
• Aerospace: Lightweight materials like aluminum and titanium are used for machine bolts in aerospace applications, where reducing weight is critical without compromising strength.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the main uses of machine bolts?

Machine bolts are versatile fasteners extensively used across various industries for their ability to provide strong and reliable connections. Their main uses include:

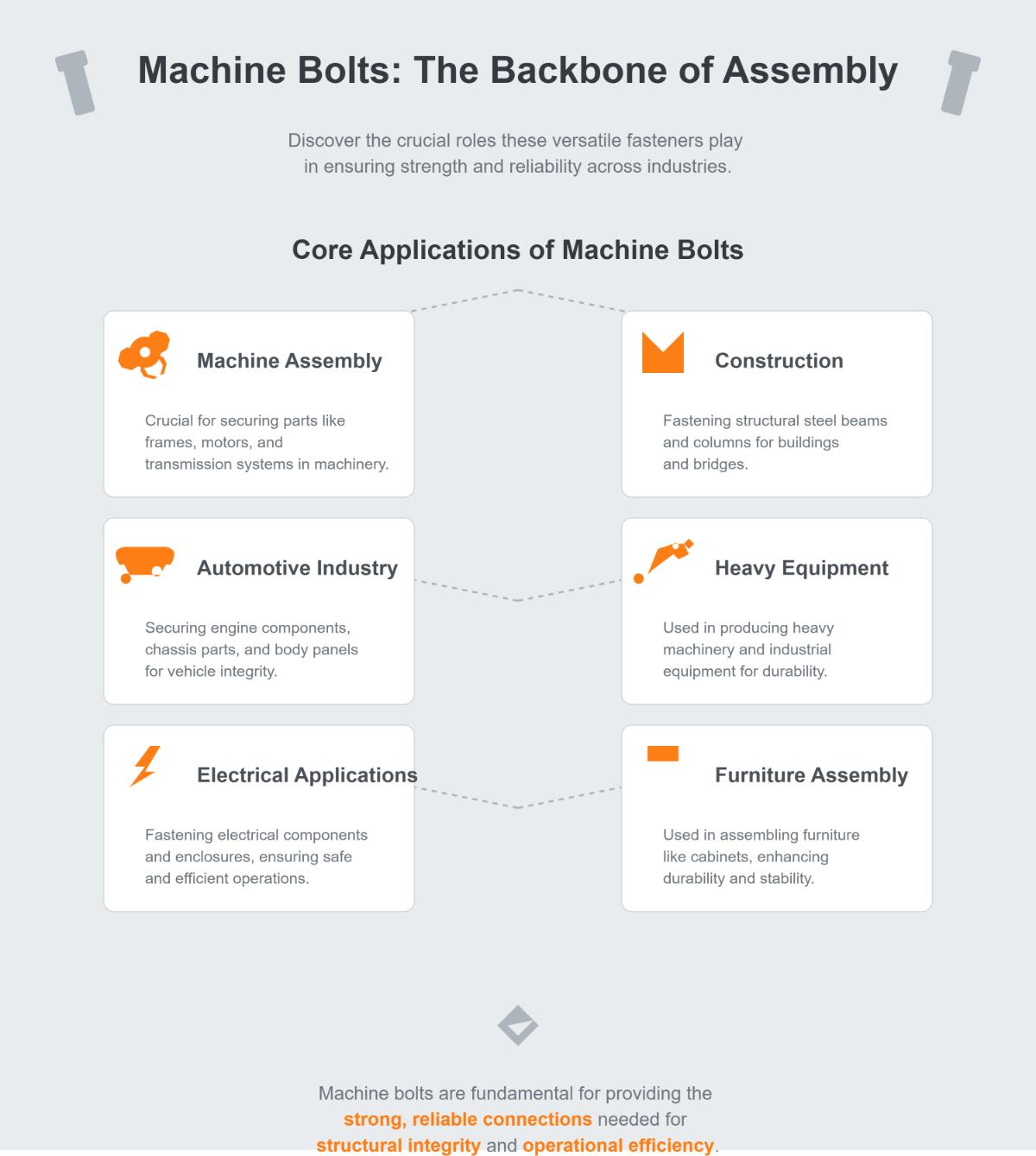

1. Machine Assembly and Manufacturing: Machine bolts are crucial in securing parts like frames, motors, and transmission systems in machinery, ensuring the assembly and manufacturing processes are efficient and stable.
2. Construction: These bolts are widely employed to fasten structural steel beams and columns, providing the necessary stability and strength for buildings and bridges.
3. Automotive Industry: In vehicle assembly, machine bolts secure engine components, chassis parts, and body panels, contributing significantly to the structural integrity of vehicles.
4. Heavy Equipment Manufacturing: They are used in producing heavy machinery and industrial equipment, offering secure and durable connections.
5. Electrical Applications: Machine bolts fasten electrical components and enclosures, ensuring safe and efficient operations.
6. Furniture Assembly: They are also used in assembling furniture, such as cabinets, enhancing the durability and stability of wood or metal structures.

These applications highlight the importance of machine bolts in providing strong, reliable connections essential for structural integrity and operational efficiency.

What are the key properties of machine bolts?

Machine bolts are essential components in construction and engineering, known for their strength, durability, and versatility. Key properties of machine bolts include:

1. Material and Strength: Machine bolts are typically made from materials such as carbon steel, stainless steel, alloy steels, aluminum, and titanium. These materials provide various benefits like high strength, corrosion resistance, and a good strength-to-weight ratio. Bolts are classified into different strength grades (e.g., Grade 2, Grade 5, Grade 8 in imperial, and 8.8, 10.9, 12.9 in metric) indicating their tensile and yield strengths.
2. Design Features: Common head styles include hexagonal and cylindrical heads, suitable for different applications. Bolts can be fully or partially threaded, with chamfers at the ends to facilitate smooth insertion.
3. Mechanical Properties: Key mechanical properties include tensile strength (maximum stress before breaking), yield strength (stress at which permanent deformation occurs), and shear strength (resistance to perpendicular loads).
4. Corrosion Resistance and Coatings: Many machine bolts are made from stainless steel or coated to resist rust, making them suitable for harsh environments.

These properties ensure that machine bolts can reliably secure structures and components in various applications.

How do bolts differ from screws?

Bolts and screws are both types of fasteners used to secure objects, but they have distinct differences. Bolts are designed to be used with a nut. They are inserted through pre-drilled holes in the parts being assembled and are then secured by tightening the nut on the other side. This makes bolts ideal for heavy-duty applications where high strength is required, such as in construction, automotive assemblies, and industrial machinery.

In contrast, screws do not require a nut to secure them. They can create their own threads in the material they are driven into or be used in pre-tapped holes. Screws are typically fully threaded and come in various head shapes, making them versatile for use in wood, metal, plastic, and other materials. They are commonly used in DIY projects, woodworking, and applications where ease of installation is important.

The key differences are that bolts require a nut and offer greater holding strength for heavy-duty applications, while screws can be used directly in materials without a nut, making them more suitable for lighter, more convenient applications.

What are the standards governing machine bolts?

Machine bolts are governed by various standards to ensure they meet specific requirements for dimensions, materials, strength, and performance. These standards are crucial for maintaining uniformity, quality, and safety in their applications.

Key standards include:

1. ISO Standards:
   • ISO 898-1 defines mechanical properties for carbon and alloy steel bolts.
   • ISO 3506 covers corrosion-resistant stainless steel bolts.
   • ISO 4014 and ISO 4017 specify dimensions for hex bolts.
2. ANSI/ASME Standards:
   • ASME B18.2.1 details dimensions and tolerances for imperial-sized bolts.
   • ASME B18.2.3.6M and ASME B18.2.3.7M cover metric-sized bolts.
3. ASTM Standards:
   • ASTM A307 and ASTM A490 define material properties for construction and high-strength applications.
4. SAE Standards:
   • SAE J429 specifies grades for inch-sized bolts used in automotive and aerospace applications.

These standards ensure that machine bolts from different manufacturers are interchangeable, reliable, and safe for use in various industries like construction, automotive, and aerospace.

How can I choose the right machine bolt for my project?

Choosing the right machine bolt for your project involves several important considerations. First, assess the application environment—whether it is indoors or outdoors—to select an appropriate material. For example, stainless steel is ideal for outdoor use due to its corrosion resistance, while carbon steel provides strength and durability for general applications.

Next, determine the bolt dimensions, including diameter, length, and thread pitch. The diameter must fit the intended hole or nut, and the length should ensure proper engagement. The thread pitch impacts assembly ease and vibration resistance; coarse threads are easier to assemble and suited for softer materials, while fine threads offer higher tensile strength for precision applications.

Consider environmental conditions such as temperature, moisture, and chemical exposure when choosing materials and coatings. Evaluate load requirements, including tension, shear, and torque, and apply safety margins to account for uncertainties. Adhere to industry standards like ASTM specifications for compliance and safety.

By carefully evaluating these factors, you can select the right machine bolt for your project, ensuring optimal performance and safety.

What are some common issues with machine bolts and how can they be avoided?

Common issues with machine bolts include overloading, incorrect installation, corrosion, loosening, fatigue failure, and material mismatch. Overloading and incorrect installation can be avoided by selecting the appropriate bolt size and material for the task and ensuring proper alignment during installation. Corrosion and rust can be mitigated by using corrosion-resistant materials like stainless steel. Loose bolts, often caused by under-tightening or vibrations, can be prevented with proper tightening techniques and devices like washers. Fatigue failure, due to repeated stress cycles, can be minimized by applying the correct torque to achieve necessary preload. Finally, ensuring compatibility between bolt materials and surrounding materials can prevent grip loss or corrosion. Regular inspection and maintenance, proper installation techniques, and environmental considerations also play crucial roles in preventing these common issues.
