Comprehensive Guide To Metal Hardening Techniques

Imagine transforming a piece of steel from a pliable material into one of the hardest, most durable components in machinery. This metamorphosis is made possible through various metal hardening techniques, a critical process in manufacturing that ensures strength and longevity. In this comprehensive guide, we’ll embark on a technical deep-dive into the four primary types of metal hardening: quenching, flame hardening, induction hardening, and carbonitriding. Each technique offers unique benefits and applications, from enhancing the wear resistance of automotive parts to fortifying aerospace components against extreme conditions.

Curious about how induction hardening works or the advantages of carbonitriding? This guide will unravel these processes, providing detailed explanations and real-world applications. As we explore the comparative analysis and sustainability aspects, you’ll gain a thorough understanding of how to choose the right hardening technique for your specific needs. Ready to enhance your knowledge and delve into the science of metal hardening? Let’s get started.

Comprehensive Guide to Metal Hardening Techniques

Introduction to Metal Hardening

Overview of Metal Hardening

Metal hardening is an essential process in materials science and engineering, aimed at enhancing the mechanical properties of metals. This process focuses on increasing the hardness and strength of metals, making them more suitable for demanding applications. It involves changing the metal’s structure with precise heating and cooling, which improves its durability, wear resistance, and load-bearing capacity.

Importance in Manufacturing

Metal hardening is crucial in manufacturing. The hardening processes are vital for producing components that must withstand high stress, impact, and abrasive conditions. By increasing the hardness of metals, manufacturers can extend the lifespan of parts, reduce maintenance costs, and enhance the overall performance and reliability of the final products. This improvement leads to increased safety, efficiency, and customer satisfaction, making metal hardening an essential aspect of modern manufacturing practices.

Mechanisms of Metal Hardening

Microstructural Changes

The hardening process induces microstructural changes in the metal, typically involving the formation of martensite, a very hard and brittle phase, in steels. This is done by heating the metal to a high temperature and then quickly cooling it, usually in a quenching medium such as water, oil, or air. The rapid cooling prevents the formation of softer phases like pearlite or ferrite, resulting in a harder and stronger material.

Phase Transformations

Phase transformations are a key aspect of metal hardening. When steel is heated to its austenitizing temperature, its crystal structure changes from body-centered cubic (BCC) to face-centered cubic (FCC). Upon rapid cooling, the FCC structure transforms into a highly strained BCC structure known as martensite. This transformation is responsible for the increased hardness and strength of the steel.

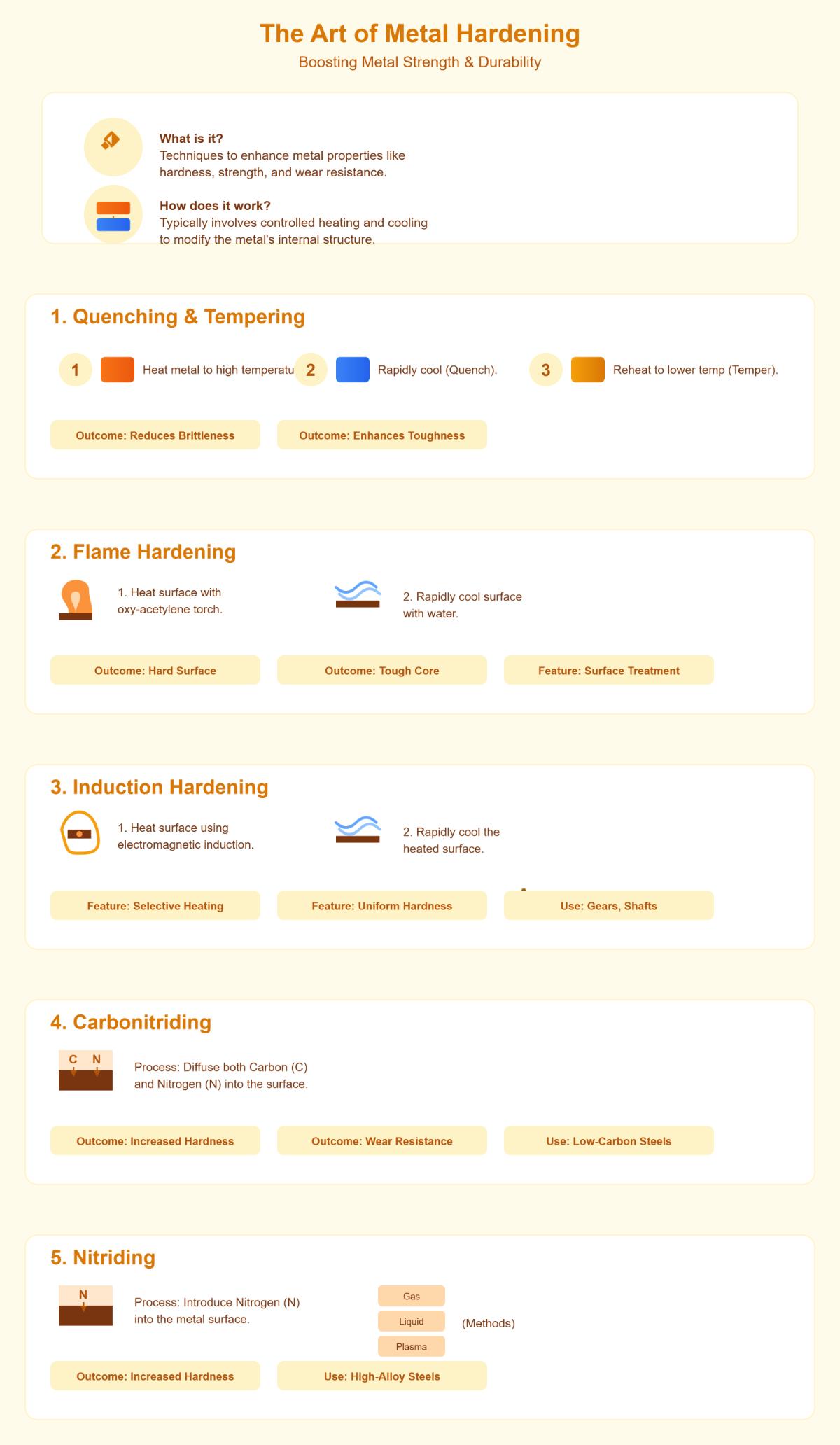

Common Metal Hardening Techniques

There are various methods to harden metals, each offering unique benefits:

Quenching: Involves heating the metal to a high temperature and then rapidly cooling it in a quenching medium. This technique is widely used for steels and other ferrous alloys.
Flame Hardening: Uses a direct flame to heat the surface of the metal, followed by rapid cooling. This method is suitable for large and localized areas.
Induction Hardening: Employs electromagnetic induction to heat the metal, followed by quenching. It is used for precise and controlled hardening of specific areas.
Carbonitriding: Introduces carbon and nitrogen into the surface layer of the metal to increase hardness. This process is commonly used for gears and other wear-resistant components.
Nitriding: Diffuses nitrogen into the surface of the metal, forming hard nitrides. This technique is used for parts that require high surface hardness and wear resistance.

Benefits of Metal Hardening

The hardening of metals offers numerous benefits:

Enhanced Wear Resistance: Hardened metals can withstand abrasive conditions, reducing wear and tear.
Improved Strength: Increased hardness translates to higher strength, enabling the metal to handle greater loads and stresses.
Extended Lifespan: Hardened components have a longer service life, reducing the need for frequent replacements.
Reduced Maintenance Costs: The durability of hardened metals lowers the frequency of maintenance and repair, leading to cost savings.

Applications of Hardened Metals

Hardened metals are used in many industries:

Automotive: Components such as gears, crankshafts, and camshafts require hardening to endure the stresses of operation.
Aerospace: Aircraft parts, including landing gear and turbine blades, are hardened to withstand extreme conditions.
Toolmaking: Cutting tools, dies, and molds are hardened to maintain their sharpness and functionality.
Construction: Structural components and fasteners are hardened to ensure the integrity and safety of buildings and infrastructure.

Types of Metal Hardening Techniques

Quenching

Quenching is a common metal hardening method where the metal is heated to a high temperature and then quickly cooled in water, oil, or air. This rapid cooling changes the metal’s microstructure, increasing its hardness and strength.

Process

Heating: The metal is heated to its austenitizing temperature.
Soaking: The metal is held at this temperature to ensure uniform heating.
Quenching: The metal is quickly cooled, changing its structure to become hard and brittle.

Applications

Quenching is widely used in manufacturing tools, automotive parts, and structural components that require high strength and wear resistance.

Advantages and Limitations

Advantages: Produces high hardness and strength; Cost-effective and relatively simple process.
Limitations: Can lead to distortion and cracking; Requires precise control of heating and cooling rates.

Flame Hardening

Flame hardening uses a direct flame to heat the metal surface, which is then quickly cooled. This technique is suitable for large and localized areas that require hardening.

Process

Heating: An oxyacetylene torch heats the metal surface.
Quenching: The heated surface is quickly cooled using water or another quenching medium.

Applications

Flame hardening is often used for large gears, shafts, and machine parts that need localized hardening.

Advantages and Limitations

Advantages: Suitable for large and localized areas; No special equipment required.
Limitations: May cause surface oxidation; Hardness depth is limited by the heat penetration.

Induction Hardening

Induction hardening uses electromagnetic induction to heat the metal, followed by quenching. This method provides precise and controlled hardening of specific areas.

Process

Heating: An induction coil generates an electromagnetic field that heats the metal surface.
Quenching: The heated area is quickly cooled using a quenching medium.

Applications

Induction hardening is used for components such as gears, bearings, and crankshafts that require precise hardening.

Advantages and Limitations

Advantages: Precise control of heating and hardening areas; Minimal distortion and oxidation.
Limitations: Requires specialized equipment; Limited to electrically conductive materials.

Carbonitriding

Carbonitriding involves introducing carbon and nitrogen into the surface layer of the metal to increase hardness. This process is commonly used for parts that require high wear resistance.

Process

Heating: The metal is heated in a carbon and nitrogen-rich atmosphere.
Diffusion: Carbon and nitrogen atoms diffuse into the surface of the metal.
Quenching: The metal is quickly cooled to lock in the hardness.

Applications

Carbonitriding is used for gears, camshafts, and other components that require high surface hardness and wear resistance.

Advantages and Limitations

Advantages: Produces a hard and wear-resistant surface; Minimal distortion compared to other hardening techniques.
Limitations: Requires precise control of atmosphere and temperature; Potential environmental and health concerns due to the use of nitrogen.

Nitriding

Nitriding is a diffusion hardening process that introduces nitrogen into the surface of the metal, forming hard nitrides. This technique is used for parts that require high surface hardness and wear resistance.

Process

Heating: The metal is heated in a nitrogen-rich environment.
Diffusion: Nitrogen atoms diffuse into the metal surface, forming nitrides.

Applications

Nitriding is used for components such as gears, crankshafts, and valve parts that require high surface hardness and fatigue resistance.

Advantages and Limitations

Advantages: Produces a very hard and wear-resistant surface; Minimal distortion and no quenching required.
Limitations: Slower process compared to other hardening methods; Requires precise control of temperature and environment.

Comparative Analysis of Hardening Methods

Quenching vs. Flame Hardening

Process

Quenching involves heating the metal to its austenitizing temperature and then rapidly cooling it in a medium such as water, oil, or air. This rapid cooling rate alters the metal’s microstructure, enhancing its hardness and strength. Flame hardening, in contrast, uses a direct oxy-fuel flame to heat the metal surface locally, followed by rapid cooling.

Advantages and Limitations

Quenching can produce high hardness and strength throughout the metal. However, it requires precise control of heating and cooling rates to avoid distortion and cracking. Flame hardening is suitable for large and localized areas. It does not require special equipment, though it may cause surface oxidation. The hardness depth is limited by heat penetration.

Applications

Quenching is widely used in manufacturing tools, automotive parts, and structural components that need high strength and wear resistance. Flame hardening is often employed for large gears, shafts, and machine parts requiring localized hardening, as well as agricultural tools like plowshares.

Induction Hardening vs. Carbonitriding

Process

Induction hardening uses electromagnetic induction to rapidly heat the metal surface. An induction coil generates an electromagnetic field that heats the metal, which is then quenched. Carbonitriding involves heating the metal in a carbon- and nitrogen-rich atmosphere. Carbon and nitrogen atoms diffuse into the surface layer, and the metal is then quenched to lock in the hardness.

Advantages and Limitations

Induction hardening offers precise control over the heating and hardening areas, with minimal distortion and oxidation. However, it requires specialized equipment and is limited to electrically conductive materials. Carbonitriding produces a hard, wear-resistant surface with less distortion. It requires precise control of the atmosphere and temperature and poses potential environmental and health concerns due to the use of nitrogen.

Applications

Induction hardening is used for components such as gears, bearings, and crankshafts that require precise hardening. Carbonitriding is commonly applied to gears, camshafts, and other components needing high surface hardness and wear resistance.

Nitriding vs. Other Techniques

Process

Nitriding is a diffusion hardening process where the metal is heated in a nitrogen-rich environment. Nitrogen atoms diffuse into the metal surface, forming hard nitrides. In contrast, other techniques like quenching rely on rapid cooling to change the microstructure, and carbonitriding involves the diffusion of both carbon and nitrogen.

Advantages and Limitations

Nitriding produces a very hard and wear-resistant surface with minimal distortion and no quenching required. However, it is a slower process and demands precise control of temperature and environment. Other techniques may offer faster results but could involve issues like distortion or less control over the hardening process.

Applications

Nitriding is used for components such as gears, crankshafts, and valve parts that require high surface hardness and fatigue resistance. Other techniques are chosen based on the specific requirements of the part, such as the need for rapid hardening or the ability to harden large areas.

Carbonitriding vs. Nitriding

Process

Carbonitriding introduces both carbon and nitrogen into the metal surface layer by heating the metal in a carbon- and nitrogen-rich atmosphere followed by quenching. Nitriding only diffuses nitrogen into the metal surface by heating it in a nitrogen-rich environment.

Advantages and Limitations

Carbonitriding can produce a hard surface with good wear resistance and relatively less distortion. It requires careful control of the atmosphere and has potential environmental issues. Nitriding offers high surface hardness and fatigue strength with minimal distortion, but it is a slower process.

Applications

Carbonitriding is used for parts like gears and camshafts that need high surface hardness and wear resistance. Nitriding is suitable for components in high-stress applications where surface hardness and fatigue resistance are critical, such as in aerospace and automotive components.

Factors to Consider When Choosing a Hardening Technique

Material Type

Different metals respond differently to hardening processes. For example, steels are well-suited for quenching, while some non-ferrous metals may require other methods like nitriding.

Component Complexity

Complex geometries may require techniques like induction hardening, which offer precise control over the hardening area. For large, simple-shaped components, flame hardening could be a more practical choice.

Required Mechanical Properties

If high hardness and strength throughout the part are needed, quenching might be appropriate. For parts that need a hard surface and a tough core, case hardening methods like carbonitriding could be used.

Cost and Time

Some processes like nitriding are slower and more expensive due to the need for precise control and specialized equipment. In contrast, quenching can be a more cost-effective and quicker option in some cases.

Applications of Hardening Techniques

Aerospace Industry Applications

In the aerospace industry, the stringent requirements for safety, performance, and reliability necessitate the use of hardened metal components. Hardening techniques are applied to critical parts such as turbine blades, landing gear, and structural elements. These components must endure extreme conditions, including high temperatures, mechanical stress, and exposure to corrosive environments.

Turbine Blades

Turbine blades in jet engines are subjected to high thermal and mechanical stresses. Quenching and tempering processes are used to strengthen turbine blades and prevent creep deformation. Surface hardening techniques such as nitriding are also used to improve wear resistance, thereby extending the service life of these critical components.

Landing Gear

Landing gear must absorb significant impact forces during takeoff and landing. Induction hardening is commonly used for landing gear components to provide the necessary hardness and fatigue resistance. This hardening technique ensures the parts endure repeated stress without failing.

Automotive Industry Applications

The automotive industry benefits significantly from metal hardening techniques to ensure the durability and reliability of various components. These techniques are crucial for parts that experience high wear and stress, such as engine components, transmission gears, and suspension systems.

Engine Components

Engine parts like crankshafts, camshafts, and valve components are subjected to high loads and temperatures. Nitriding is often used to enhance the surface hardness and wear resistance of these components. This process ensures that the parts can endure the demanding conditions within an engine, reducing the likelihood of failure and extending their operational life.

Transmission Gears

Transmission gears require both high surface hardness to resist wear and a tough core to absorb impact loads. Case hardening methods, such as carburizing and carbonitriding, are used to achieve this combination of properties. These methods produce a hard, wear-resistant surface and a tough core, ensuring the gears handle transmission stresses effectively.

Construction Industry Applications

In the construction industry, the durability and strength of metal components are paramount. Hardening techniques are applied to structural steel and reinforcement bars to enhance their mechanical properties, ensuring the safety and longevity of buildings and infrastructure.

Structural Steel

Structural steel used in building frames and bridges must possess high strength and toughness. Quenching and tempering processes are commonly employed to achieve these properties. This treatment allows the steel to support heavy loads and resist deformation.

Reinforcement Bars

Reinforcement bars (rebar) are used to strengthen concrete structures. Induction hardening is often applied to rebar to increase its tensile strength and fatigue resistance. This process enhances the material’s ability to withstand high-stress conditions and extend the lifespan of the structure. Adding ribbed patterns to the surface of rebar further improves its bonding capacity with concrete, reducing the likelihood of slippage and enhancing overall structural integrity.

Manufacturing Industry Applications

The manufacturing industry relies on hardened metals for tools, dies, and machinery components that must withstand high wear and stress. Hardening techniques are essential to ensure the longevity and performance of these critical components.

Cutting Tools

Cutting tools such as drills, milling cutters, and lathe tools require high hardness to maintain their cutting edges. These tools are often hardened through quenching and tempering. Additionally, surface hardening techniques like carburizing can be applied to further enhance wear resistance.

Dies and Molds

Dies and molds used in forming processes must endure high pressures and repeated use. Flame hardening and induction hardening are often employed to harden the surfaces of these components. This increases their wear resistance and extends their service life, reducing downtime and maintenance costs in manufacturing operations.

Sustainability in Metal Hardening

Surface Hardening Techniques

Surface hardening techniques are crucial for enhancing the sustainability of metal hardening processes by improving efficiency and precision in hardening specific areas of components.

Induction Hardening: This technique employs electromagnetic induction to heat the metal surface rapidly, followed by quick cooling. It is commonly used in the automotive industry for components like gears and crankshafts. The localized heating minimizes energy consumption and reduces the risk of distortion. Laser Hardening: Laser hardening offers high precision in hardening complex shapes. This method is frequently used for medical and precision components due to its ability to control the hardening depth accurately, which reduces material waste. Carburizing and Nitriding: These case hardening methods enhance wear resistance by adding carbon or nitrogen to the metal’s surface layer. Carburizing involves heating in a carbon-rich environment, while nitriding uses a nitrogen-rich atmosphere. Both methods are vital for parts that need a hard surface and a tough core, such as gears and camshafts.

Heat Treatment Processes

Heat treatment processes are integral to metal hardening, improving mechanical properties while considering sustainability.

Quenching: This process involves rapid cooling to increase hardness. Although energy-intensive, advancements in quenching technology focus on optimizing cooling rates and reducing energy consumption.
Tempering: Tempering follows quenching to enhance toughness and ductility, ensuring that the metal retains its hardness without becoming brittle.
Case Hardening: This method increases surface hardness while maintaining a ductile core, which is critical for components subjected to high-stress environments. Techniques like vacuum hardening have been developed to minimize contamination and improve environmental sustainability.

Sustainability Considerations

Energy Efficiency

Modern hardening methods focus on precision and reducing energy use to enhance energy efficiency. For example, induction and laser hardening target specific areas, minimizing unnecessary heating and lowering energy use. Additionally, advancements in furnace design and heat recovery systems contribute to more efficient energy usage in processes like carburizing and nitriding.

Material Optimization

Sustainable metal hardening practices emphasize material optimization. Techniques like case hardening allow manufacturers to use less material to achieve the desired mechanical properties, reducing waste and conserving resources. By hardening only the necessary areas, these methods enhance the component’s performance without excess material usage.

Reduced Environmental Impact

Innovative hardening processes aim to reduce environmental impact. For instance, vacuum hardening minimizes the risk of contamination and the use of harmful chemicals. Plasma quenching offers precision without excessive heating, further reducing the environmental footprint. Additionally, the use of environmentally friendly quenching media and controlled atmospheres in processes like nitriding and carburizing helps lower emissions and hazardous waste.

Recent Developments and Future Directions

Technological Advancements

Continuous improvements in heat treatment technologies enhance precision and efficiency, contributing to more sustainable processes. Developments in induction and laser hardening equipment have resulted in better control over heating and cooling cycles, reducing energy consumption and improving process repeatability.

Research on Material Behavior

Advanced simulations and computational models help predict material behavior under extreme conditions, guiding more efficient hardening processes. These tools enable manufacturers to optimize hardening parameters, reducing trial-and-error approaches and minimizing waste.

Increased Focus on Low-Carbon Processes

There is a growing emphasis on reducing carbon emissions in metal processing. Innovations such as low-carbon quenching techniques and the use of renewable energy sources for heat treatment processes are gaining traction. These efforts align with global sustainability goals and help reduce the carbon footprint of metal hardening.

Industry Applications and Benefits

In the automotive industry, induction hardening improves the durability of engine parts, leading to longer-lasting components and fewer replacements.

The aerospace industry benefits from advanced heat treatments like vacuum hardening, which produce high-strength, lightweight components. These components improve fuel efficiency and reduce emissions, supporting the industry’s sustainability targets.

In tooling and medical applications, increased wear resistance and precision are achieved through hardening techniques like laser hardening. These methods ensure that tools and medical devices maintain their performance over extended periods, reducing the need for frequent replacements and lowering environmental impact.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the different types of metal hardening techniques?

Metal hardening techniques are essential for improving the strength, durability, and performance of metal components. These methods generally involve controlled heating and cooling processes to alter the microstructure and mechanical properties of metals. Key techniques include:

Quenching and Tempering: Involves heating the metal to a high temperature, rapidly cooling it (quenching), and then reheating to a lower temperature to reduce brittleness and enhance toughness.
Flame Hardening: Utilizes an oxy-acetylene torch to heat the metal surface, followed by rapid cooling with water, increasing surface hardness while maintaining a tough core.
Induction Hardening: Employs electromagnetic induction to selectively and uniformly heat the metal surface, then rapidly cool it, commonly used for gears and shafts.
Carbonitriding: Combines carbon and nitrogen diffusion into the metal surface, enhancing hardness and wear resistance, typically used for low-carbon steels.
Nitriding: Introduces nitrogen into the metal surface to increase hardness, often applied to high-alloy steels using gas, liquid, or plasma nitriding.

These techniques are chosen based on material type, desired properties, and application requirements, as discussed earlier.

How does induction hardening work?

Induction hardening is a specialized heat treatment process used to selectively harden specific areas of metal parts, particularly those made from ferrous materials like steel. The process begins by placing the metal part within a copper coil, through which an alternating current (AC) is passed. This creates a high-frequency magnetic field that induces eddy currents in the metal, causing rapid heating due to electrical resistance. The heating depth can be controlled by adjusting the AC frequency—higher frequencies for shallow heating and lower frequencies for deeper penetration.

Once the surface layer reaches the desired temperature, the metal is quickly cooled (quenched) using a medium such as water, oil, or air. This rapid cooling transforms the austenite phase in the heated layer into martensite, a hard and brittle microstructure, significantly increasing the surface hardness and wear resistance of the component. Induction hardening offers benefits like enhanced surface properties, minimized distortion, energy efficiency, precision, and high reproducibility, making it ideal for applications in automotive engineering, tool manufacturing, and mechanical engineering.

What are the benefits of carbonitriding?

Carbonitriding offers several key benefits that make it a valuable metal hardening technique. This process enhances the surface hardness and wear resistance of steel components by introducing both carbon and nitrogen into the material’s surface layer. The primary benefits include:

Enhanced Wear Resistance and Hardness: The addition of nitrogen in carbonitriding increases the surface hardness beyond what carburizing alone can achieve, often resulting in hardness levels between 55-66 HRC. This makes the treated components more durable and capable of withstanding high-wear conditions.
Increased Fatigue Strength: Carbonitrided components exhibit improved fatigue strength, making them more resistant to cyclic stresses. This is particularly beneficial for parts subjected to repeated loading, such as those in automotive and machinery applications.
Greater Case Depth: Compared to other methods like nitrocarburizing, carbonitriding typically achieves greater case depths, providing a thicker hardened layer that enhances the longevity and performance of the treated parts.
High-Temperature Hardness Retention: Components treated with carbonitriding maintain their hardness even at elevated temperatures, which is crucial for applications requiring thermal stability.
Reduced Distortion: The lower temperatures used in carbonitriding reduce the risk of distortion and quench cracking, preserving the original dimensions and integrity of the components.
Suitability for Mass Production: Carbonitriding is well-suited for the mass production of small components, making it an efficient and cost-effective hardening process for items like gears, bearings, and tools.

These benefits make carbonitriding a preferred choice for enhancing the durability and performance of various steel components in demanding industrial applications.

How do I choose the right hardening technique for my application?

Choosing the right hardening technique for your application involves evaluating several factors to ensure the desired mechanical properties are achieved. Firstly, consider the material composition as different techniques are suitable for specific materials. For example, case hardening methods like carburizing or nitriding work well with low-carbon steels, whereas induction hardening is more suited to medium-carbon steels.

Next, identify the required mechanical properties. If high wear resistance is needed, quenching followed by tempering is effective. For a hard surface with a tough core, case hardening is ideal, commonly used in the automotive and aerospace industries.

The size and shape of the part also play a role. Small or thin parts may warp during quenching, making techniques like laser hardening preferable due to its precision. Additionally, assess the available equipment; some methods like induction hardening require specialized induction coils.

What is the difference between thermal hardening and diffusion hardening?

Thermal hardening and diffusion hardening are two distinct metal hardening techniques. Thermal hardening heats the metal above its critical temperature and then rapidly cools it, transforming the internal crystal structure to martensite for uniform hardness throughout the metal. It’s suitable for components needing consistent hardness, like gears and shafts.

On the other hand, diffusion hardening diffuses elements like carbon or nitrogen into the metal surface, creating a hardened outer layer while keeping the core softer and more impact – resistant. This technique is ideal for wear – prone components. In essence, thermal hardening offers uniform hardness throughout the entire metal, ensuring that the component can withstand consistent stress and wear, making it suitable for applications where strength and durability are critical.

What are the latest trends in metal hardening techniques? (Highlighting sustainability aspects)

The latest trends in metal hardening techniques emphasize sustainability through advanced materials, eco-friendly processes, and digitalization. Advanced alloys and composites are being developed to enhance properties such as temperature resistance and strength, improving component efficiency and longevity. Cutting-edge processes like laser and induction hardening are gaining prominence due to their precision and energy efficiency.

Eco-friendly practices are becoming more common, with methods like induction heating systems and vacuum quenching followed by gas cooling reducing energy consumption and environmental impact. Digitalization and Industry 4.0 technologies, including sensors and data analytics, are being integrated into heat treating processes for real-time monitoring and predictive maintenance, enhancing operational efficiency.

Surface and case hardening techniques, such as plasma nitriding, offer environmentally friendly options by focusing on hardening only the surface or maintaining a softer core. Vacuum hardening, performed in controlled environments, eliminates oxidation and contamination risks, making it ideal for precision applications. These innovations align with global sustainability goals and improve overall efficiency and product quality.
