Comprehensive Guide to Post Weld Heat Treatment (PWHT) Requirements

Imagine a world where the integrity of welded structures could be compromised simply because the post-weld treatment wasn’t up to par. This is where the critical process of Post Weld Heat Treatment (PWHT) steps in. If you’ve ever wondered how industries ensure the durability and safety of their welded components, you’re in the right place. PWHT is a pivotal process that affects material properties, mitigates residual stresses, and ensures compliance with stringent standards like those outlined in ASME Section VIII Division 1. In this comprehensive guide, we’ll delve deep into the nuances of PWHT requirements, exploring how material thickness impacts procedures, the various methods available, and their applications across different industries. Ready to uncover the intricacies of PWHT and its crucial role in industrial applications? Let’s dive in.

Understanding Post Weld Heat Treatment (PWHT)

Definition and Importance of PWHT

Definition of PWHT

Post Weld Heat Treatment (PWHT) is a thermal process used after welding to relieve stresses, improve mechanical properties, and ensure structural integrity. It involves heating a welded component to a specific temperature, holding it at that temperature for a predetermined period, followed by controlled cooling. This process mitigates the adverse effects of welding, such as residual stresses and potential microstructural changes, which can compromise the performance and longevity of the welded joint.

Importance of PWHT

PWHT is especially important in industries where equipment faces extreme conditions or strict safety standards, such as oil and gas, petrochemicals, power generation, and aerospace. The primary reasons for performing PWHT include:

• Residual Stress Relief: Welding generates significant residual stresses due to rapid heating and cooling cycles. These stresses can lead to distortion, cracking, and other structural issues. PWHT helps reduce these stresses, enhancing the dimensional stability and integrity of the welded structure.
• Improved Mechanical Properties: By refining the microstructure and alleviating residual stresses, PWHT improves the toughness, ductility, and strength of the weld joint. This is crucial for maintaining the performance and reliability of the component under operational loads.
• Enhanced Corrosion Resistance: In certain materials, PWHT can improve corrosion resistance by homogenizing the microstructure and reducing the potential for localized corrosion, which is vital for components exposed to corrosive environments.

Benefits of PWHT in Welding Processes

Reduction of Residual Stresses

Residual stresses from welding can cause distortion, cracking, and reduced fatigue life, compromising the structural integrity of the welded component. These stresses result from the rapid thermal expansion and contraction of the material. By applying PWHT, these residual stresses are effectively reduced, minimizing the risk of such defects and enhancing the performance and longevity of the welded structure.

Enhancement of Mechanical Properties

PWHT plays a crucial role in optimizing the mechanical properties of welded joints. The benefits include:

• Increased Toughness: PWHT can enhance the toughness of the weld joint, making it more resistant to impact and sudden loading conditions.
• Improved Ductility and Strength: By relieving residual stresses and refining the microstructure, PWHT improves the ductility and strength of the material, allowing it to deform plastically without fracturing and increasing its


  Prevention of Stress Corrosion Cracking

Stress corrosion cracking (SCC) is a severe form of corrosion that occurs under the combined influence of tensile stress and a corrosive environment. PWHT helps in mitigating the risk of SCC by:

• Reducing Residual Stresses: Lower residual stresses decrease the susceptibility to SCC.
• Homogenizing the Microstructure: A more uniform microstructure reduces the sites for localized corrosion initiation.

Common Types of PWHT

Different PWHT methods are employed based on the specific requirements of the welded component and the material involved. The most common types include:

Post Heating

Post heating involves heating the welded area immediately after welding to a temperature just below the material’s transformation temperature. This method is particularly effective in preventing hydrogen-induced cracking by allowing hydrogen to diffuse out of the weld metal.

Stress Relieving

Stress relieving is a widely used PWHT method that involves heating the welded component to a temperature typically ranging from 550°C to 650°C (1022°F to 1202°F) and holding it for a specified duration. This process reduces residual stresses without significantly altering the microstructure of the material.

Normalizing

Normalizing heats the welded component above its transformation range and then cools it in air, refining the grain structure and improving mechanical properties.

Requirements for PWHT

The necessity and parameters for PWHT depend on various factors, including:

• Material Composition: Different materials have distinct requirements for PWHT. For example, carbon steels and low-alloy steels often require stress relieving, while stainless steels may need solution annealing.
• Weld Thickness: Thicker welds generate higher residual stresses and typically require more rigorous PWHT procedures.
• Service Conditions: Components operating in high-temperature or corrosive environments may necessitate PWHT to ensure long-term performance and safety.
• Industry Standards: Compliance with standards such as ASME Section VIII Division 1 mandates specific PWHT procedures for certain applications, ensuring uniformity and safety in pressure vessel and piping system designs.

ASME Section VIII Division 1: Standards and Compliance

ASME Section VIII Division 1 is a key part of the ASME Boiler and Pressure Vessel Code (BPVC) that sets guidelines for designing, fabricating, inspecting, testing, and certifying pressure vessels. These standards ensure the safety, reliability, and efficiency of pressure vessels used in various industries, including oil and gas, chemical processing, and power generation.

Specific PWHT Requirements According to ASME Standards

General Requirements

Post Weld Heat Treatment (PWHT) is mandated by ASME Section VIII Division 1 for certain materials and thicknesses to mitigate residual stresses and ensure the structural integrity of pressure vessels. The requirements for PWHT are detailed in various tables within the code, such as UCS-56 for carbon and low alloy steels.

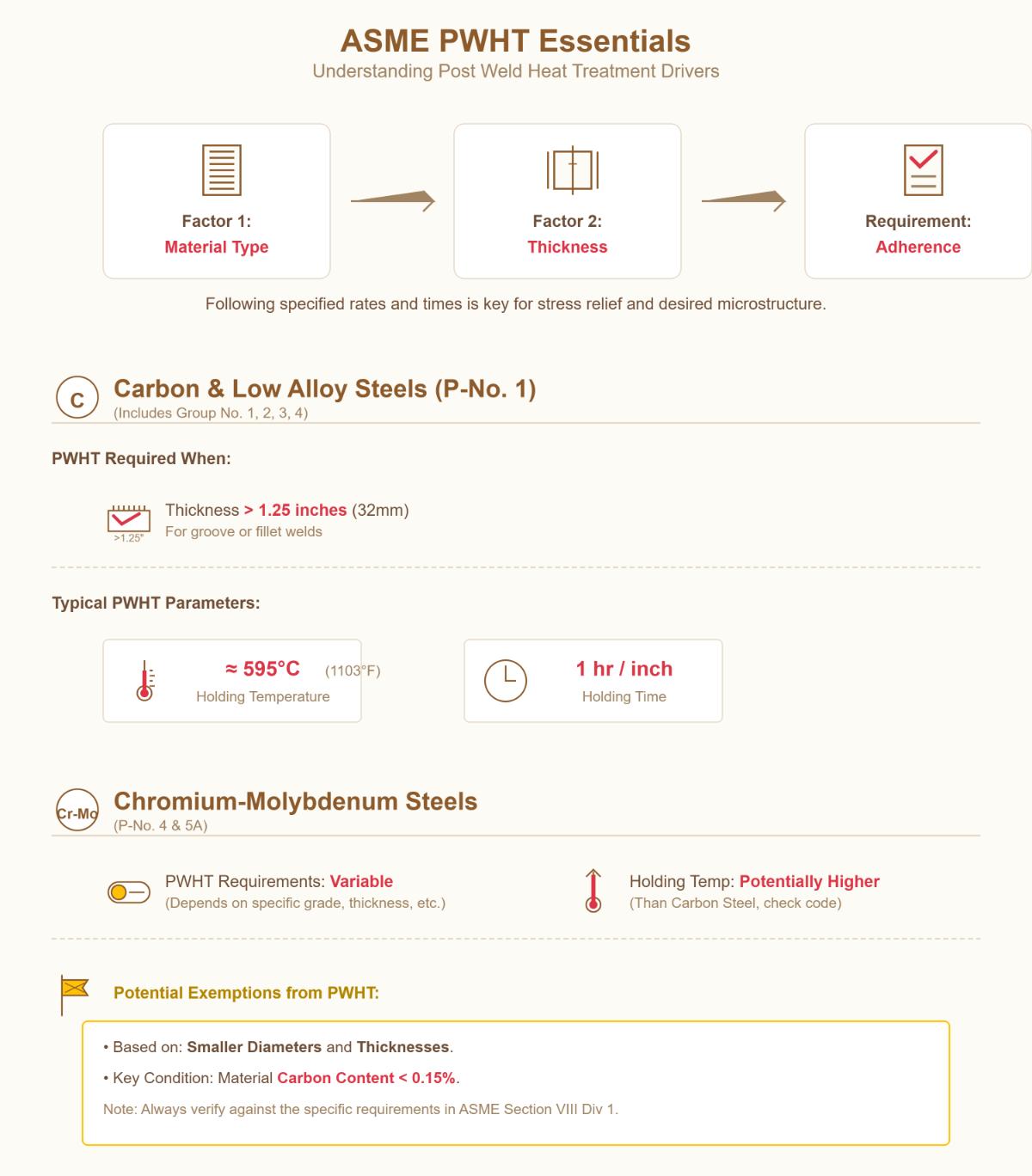

Material Grouping, P-Numbers, and Time and Temperature Parameters

Materials are categorized by P-Numbers and Group Numbers as per ASME Section IX. This classification helps in determining the specific PWHT requirements for each material type. For example, carbon steels and low alloy steels have different PWHT temperature and holding time requirements compared to high alloy steels and nonferrous materials. The time and temperature for PWHT are specified in the ASME code and must be adhered to strictly. Carbon steels typically require heating to around 1100°F (593°C) and holding for a specified duration depending on the material thickness. The tables in ASME Section VIII Division 1 provide the minimum time and temperature criteria that must be met.

Exemptions and Special Cases

Certain exemptions and special cases are considered under ASME Section VIII Division 1:

• PWHT is required for certain groove and fillet welds unless they are preheated to at least 200°F (95°C) for thicknesses up to 1.25 inches.
• For clad or overlayed vessels, the total thickness, including cladding or overlays, is used to determine the PWHT requirements.
• PWHT is generally not required for nonferrous materials unless specified by the user and manufacturer.

Compliance and Certification Processes

To comply with ASME Section VIII Division 1, pressure vessels must go through a detailed certification process to meet all standards. This process includes:

• Design Review: Verification that the vessel design meets all applicable ASME standards and codes.
• Material Verification: Ensuring that all materials used comply with the specified P-Numbers and Group Numbers.
• Welding Procedure Qualification: Welding procedures must be qualified according to ASME Section IX, ensuring that they meet all requirements for the specific materials and thicknesses involved.
• Inspection and Testing: Non-destructive testing (NDT) methods such as radiography and ultrasonic testing are used to inspect welds and verify their integrity.

Detailed Steps and Requirements for Certification

The certification process involves several key steps:

1. Design Approval: The design must be approved by an Authorized Inspector (AI) who ensures it complies with ASME Section VIII Division 1.
2. Material Certification: Review material test reports (MTRs) to ensure they meet the specified standards.
3. Welding Procedure Qualification Records (WPQR): These records must demonstrate that the welding procedures used are qualified as per ASME Section IX.
4. Heat Treatment Records: Documentation of the PWHT process, including temperature, holding time, and cooling rates, must be maintained and reviewed.
5. Final Inspection and Testing: The completed vessel undergoes final inspection and testing, including hydrostatic testing, to ensure it meets all ASME requirements.

Compliance with ASME Section VIII Division 1 ensures that pressure vessels are safe, reliable, and capable of withstanding the demanding conditions in which they operate. Understanding and adhering to these standards is essential for manufacturers and engineers involved in the design and fabrication of pressure vessels.

Material Thickness and Its Impact on PWHT

Material thickness refers to the measurement of the distance between two surfaces of a material, usually in inches or millimeters. In welding, this parameter is crucial as it significantly influences the thermal and mechanical behavior of the material during and after the welding process.

Importance in Welding Processes

Thicker materials require more heat input to achieve proper fusion, leading to higher residual stresses which can cause distortion, cracking, and other integrity issues in the welded structure. Understanding this relationship is essential for ensuring the quality and durability of the weld.

How Material Thickness Influences PWHT Procedures

Heat Distribution and Retention

Thicker materials retain heat longer and distribute it less evenly than thinner materials. This characteristic necessitates specific PWHT procedures to ensure that the entire thickness of the material is treated uniformly. The goal is to avoid temperature gradients that could lead to uneven stress relief or incomplete microstructural transformation.

Residual Stress and Microstructural Changes

Residual stresses are more pronounced in thicker materials due to the higher volume of material undergoing thermal cycles. PWHT helps in reducing these stresses by allowing the material to relax and redistribute internal forces. Additionally, PWHT can aid in refining the microstructure of the welded zone, which is particularly critical in high-strength and alloy steels.

Guidelines for Different Material Thicknesses

Thin Sections (Up to 1 Inch)

For thin sections up to 1 inch, PWHT is generally not required unless specified by industry standards or specific service conditions. However, PWHT may still be beneficial for certain materials to enhance mechanical properties or prevent corrosion.

Medium Sections (1 to 2 Inches)

PWHT is typically recommended for medium-thickness sections. The process helps in reducing residual stresses and improving the microstructure, ensuring better mechanical properties and structural integrity. The holding time and temperature for PWHT are dictated by the material type and the specific requirements of the application.

Thick Sections (Over 2 Inches)

Thick sections almost always require PWHT due to the substantial residual stresses generated, which can lead to significant integrity issues if not properly treated. Industry codes, such as ASME Section VIII, specify PWHT for components over a certain thickness to ensure safety and performance. The PWHT process for thick sections involves precise control of heating and cooling rates to avoid thermal shock and ensure uniform treatment.

Practical Considerations

Energy and Time Requirements

The energy and time required for PWHT increase with material thickness. Thicker sections need longer heating and holding times to ensure that the entire material volume reaches the desired temperature. This consideration is crucial for planning and executing PWHT in industrial settings.

Temperature Control

Maintaining precise temperature control is essential during PWHT. Overheating or underheating can lead to suboptimal stress relief or even damage the material. For thick sections, achieving uniform temperature throughout the material can be challenging, necessitating advanced monitoring and control systems.

Compliance with Industry Standards

Industry standards provide detailed guidelines on PWHT procedures based on material thickness to ensure safety and performance. Compliance with these standards is mandatory for certification and safe operation of pressure vessels and other critical components.

Material thickness plays a critical role in determining the PWHT requirements and procedures. Understanding how thickness influences the thermal and mechanical behavior of materials during PWHT is essential for achieving desired outcomes and ensuring the reliability and safety of welded structures.

Residual Stress Reduction Through PWHT

Residual stress in welded materials arises from the rapid heating and cooling cycles during welding. When the weld and adjacent base metal heat up and cool down quickly, uneven expansion and contraction occur, leading to internal stresses. These stresses can significantly impact the structural integrity and performance of the welded component, potentially causing problems such as distortion, cracking, and reduced fatigue life.

Post Weld Heat Treatment (PWHT) plays a crucial role in reducing residual stress in welded materials. By applying controlled heating and cooling cycles, PWHT allows the material to undergo stress relaxation and changes in the material’s internal structure, which help mitigate the adverse effects of residual stress. The primary mechanism of stress relief during PWHT involves the reduction of yield strength at elevated temperatures. As the material is heated, its yield strength decreases, allowing the internal stresses to redistribute and equalize. This process helps to reduce peak stresses, improve dimensional stability, and enhance structural integrity.

To effectively reduce residual stress through PWHT, several techniques and best practices can be employed. A key aspect of PWHT is the controlled heating and cooling of the welded component. This process typically involves gradually increasing the temperature to avoid thermal shock and ensure uniform heating, holding the material at a specific soaking temperature for a predetermined period, and controlled cooling to prevent the reintroduction of thermal stresses.

The selection of the appropriate PWHT temperature is critical for effective stress reduction. The temperature must be high enough to allow stress relief but low enough to prevent adverse changes in the material’s internal structure. Typical PWHT temperatures for common materials include 550°C to 650°C (1022°F to 1202°F) for carbon steels and similar ranges for low alloy steels, though specific temperatures may vary based on alloy composition. Stainless steels often require lower temperatures to avoid sensitization and other detrimental effects.

The soaking time during PWHT is determined by the thickness of the material and the degree of residual stress present. A general guideline is to hold the material at the soaking temperature for 1 hour per 25mm of thickness. However, specific soaking times may vary based on material properties and industry standards.

Ensuring uniform heating throughout the material is essential to achieve consistent stress reduction. Techniques such as furnace heating, localized heating with induction coils, or resistance heating blankets are commonly used to achieve uniform temperature distribution.

Monitoring and verifying the PWHT process is crucial to ensure it effectively reduces residual stress. This can be done through temperature monitoring using thermocouples and temperature recorders to track the heating and cooling cycles, and residual stress measurement techniques such as X-ray diffraction, hole-drilling, or ultrasonic methods to measure residual stress before and after PWHT.

The effectiveness of PWHT in reducing residual stress can vary based on the material being treated. For example, quenched and tempered (Q&T) steels require careful control of PWHT temperature to avoid altering the tempered martensitic structure. High alloy steels may need specific PWHT parameters to prevent the formation of undesirable phases or sensitization, while nonferrous materials often have different PWHT requirements compared to ferrous materials, necessitating tailored procedures.

By understanding and applying the appropriate PWHT techniques and best practices, it is possible to effectively reduce residual stresses in welded materials, thereby enhancing the structural integrity and performance of welded components.

Different PWHT Methods and Comparisons

Overview of PWHT Methods

Post Weld Heat Treatment (PWHT) methods are diverse and tailored to meet specific requirements based on material type, component size, and desired outcomes. Each method has its own pros and cons, so it’s important to choose the right technique for the job.

Furnace Heating

Furnace heating is a widely used PWHT method that provides uniform heating and controlled cooling, making it ideal for large components or multiple parts. This method ensures consistent temperature distribution and minimizes thermal shock and residual stresses.

Advantages of Furnace Heating

• Uniform Heating: Ensures consistent temperature distribution throughout the component.
• Controlled Cooling: Minimizes thermal shock and residual stresses.
• Scalability: Suitable for treating large components or batches of parts simultaneously.

Limitations of Furnace Heating

• High Energy Costs: Requires significant energy input, especially for large furnaces.
• Space Requirements: Large furnaces necessitate substantial space and infrastructure.

Localized Heating

Localized heating targets specific weld zones using heating pads, torches, or electrical resistance.

Advantages of Localized Heating

• Efficiency: Directly targets weld areas, reducing – Cost-Effective: Less expensive compared to full furnace heating for small or specific areas.
• Flexibility: Suitable for components where uniform heating is not feasible or necessary.

Limitations of Localized Heating

• Risk of Uneven Heating: Potential for temperature gradients leading to inconsistent stress relief.
• Limited to Certain Geometries: Not ideal for complex shapes or large areas requiring uniform treatment.

Induction Heating

Induction heating uses electromagnetic induction to heat the material, offering precise and consistent heat application.

Advantages of Induction Heating

• Precision: Provides accurate control over heating parameters.
• Speed: Rapid heating process, reducing treatment time.
• Energy Efficiency: Efficient heat application with minimal energy wastage.

Limitations of Induction Heating

• Material Limitations: Effective primarily for magnetic materials.
• Equipment Costs: Requires specialized equipment, which can be costly.

Resistance Heating

Resistance heating uses electrically heated ceramic pads to provide uniform heating, suitable for various materials.

Advantages of Resistance Heating

• Versatility: Not limited to magnetic materials, applicable to various material types.
• High Temperature Capability: Can reach high temperatures using standard or high-temperature elements.
• Uniform Heating: Ensures consistent temperature distribution across the treated area.

Limitations of Resistance Heating

• Direct Contact Required: Heating pads must be in direct contact with the material, potentially limiting application to certain geometries.
• Equipment Costs: Investment in specialized heating pads and controllers can be significant.

Comparative Analysis of PWHT Methods

To assist in selecting the most appropriate PWHT method, the following comparison highlights the key advantages and limitations of each technique:

Factors to Consider When Selecting a PWHT Method

Choosing the right PWHT method requires considering several factors for the best results:

• Material Type: Different materials may require specific PWHT methods based on their thermal and mechanical properties.
• Component Size and Geometry: Large or complex-shaped components may necessitate uniform heating methods like furnace heating.
• Desired Outcomes: The choice of method depends on the specific goals, such as stress relief, microstructural improvement, or hydrogen removal.
• Cost and Efficiency: Balancing the cost of the treatment with its efficiency and effectiveness for the given application.
• Compliance with Standards: Adhering to industry standards and codes, such as ASME Section VIII, to ensure safe and reliable treatment.

By understanding the distinct characteristics and applications of each PWHT method, engineers and technicians can make informed decisions to optimize the performance and integrity of welded components.

Industrial Applications of PWHT

Importance of PWHT in Pressure Vessels and Piping Systems

Post Weld Heat Treatment (PWHT) is critical for maintaining the integrity and reliability of pressure vessels and piping systems used in various industries. These components are subject to high pressure and temperature conditions, making them susceptible to stress-related failures. PWHT helps mitigate these risks by:

• Reducing Residual Stresses: Welding induces significant residual stresses due to thermal expansion and contraction. PWHT helps alleviate these stresses, reducing the risk of both distortion and cracking.
• Enhancing Mechanical Properties: By refining the microstructure, PWHT improves the toughness, ductility, and strength of the welded joints, ensuring they can withstand operational loads.
• Preventing Stress Corrosion Cracking (SCC): SCC is a critical issue in corrosive environments. PWHT reduces residual stresses and homogenizes the microstructure, lowering the susceptibility to SCC.

Case Studies: Real-World Applications of PWHT

Oil and Gas Industry

In the oil and gas sector, PWHT is extensively used to ensure the safety and reliability of pressure vessels and pipelines. For example:

• High-Pressure Vessels: PWHT is applied to high-pressure vessels to help them withstand intense pressures and temperatures in oil refining, thereby reducing the risk of catastrophic failures and improving the vessel’s lifespan.
• Subsea Pipelines: Subsea pipelines are subject to harsh environmental conditions and high internal pressures. PWHT is used to enhance the mechanical properties of the welds, ensuring they can endure the demanding conditions without failure.

Petrochemical Industry

In the petrochemical industry, PWHT is vital for components exposed to aggressive chemicals and high temperatures:

• Reactors and Heat Exchangers: These components operate under extreme conditions and require robust mechanical properties to prevent failures. PWHT ensures the welds can withstand thermal and mechanical stresses during operation.
• Storage Tanks: Large storage tanks for corrosive chemicals benefit from PWHT by reducing the risk of stress corrosion cracking and enhancing


  Aerospace Industry

The aerospace industry relies on PWHT to ensure the reliability and performance of critical components:

• Aircraft Engine Components: PWHT is used to enhance the mechanical properties of welded components in aircraft engines, ensuring they can withstand high temperatures and mechanical stresses during flight.
• Airframe Structures: Welded joints in airframe structures are treated with PWHT to improve their toughness and resistance to fatigue, ensuring the safety and longevity of the aircraft.

Comparative Analysis of PWHT Methods in Different Industries

Different industries have specific requirements for PWHT based on the materials used and the operational conditions. Here is a comparative analysis of PWHT methods in key industries:

• Oil and Gas: Emphasizes stress relieving and post heating to prevent hydrogen-induced cracking and SCC.
• Petrochemical: Focuses on stress relieving and normalization to improve mechanical properties and resistance to harsh chemicals.
• Aerospace: Utilizes precise control of PWHT parameters to enhance the mechanical properties of high-performance alloys without compromising their integrity.

Factors Influencing PWHT Selection

When selecting a PWHT method, several factors must be considered:

• Material Type: Different materials respond differently to heat treatment. For example, carbon steels and low alloy steels have specific temperature and time requirements, while stainless steels may require lower temperatures to avoid sensitization.
• Component Size and Complexity: Larger and more complex components may require uniform heating methods, such as furnace heating, to ensure consistent treatment.
• Operating Environment: The operating environment, including temperature, pressure, and corrosive conditions, influences the choice of PWHT method.
• Industry Standards: Compliance with industry standards, such as ASME Section VIII, ensures that the PWHT process meets safety and performance requirements.

Understanding the specific needs of each industry and the factors influencing PWHT selection helps engineers treat welded components effectively, enhancing their performance and longevity in demanding applications.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the ASME PWHT requirements for different materials?

ASME Section VIII Division 1 specifies Post Weld Heat Treatment (PWHT) requirements based on the type of material and its thickness. For carbon and low alloy steels (e.g., P-No. 1, Gr-No. 1, 2, 3, 4), PWHT is mandatory for certain weld configurations, such as groove welds or fillet welds where thickness exceeds 1.25 inches. The process typically involves heating the weld area to around 595°C (1103°F) and holding it for 1 hour per inch of thickness. For chromium-molybdenum steels (e.g., P-No. 4 and P-No. 5A), PWHT requirements vary, with exemptions for smaller diameters and thicknesses, provided the carbon content is below 0.15%. The holding temperature for these steels can be higher, depending on the chromium content. It is crucial to adhere to the specified heating rates, holding times, and cooling rates to ensure compliance and achieve the desired stress relief and microstructural modifications.

How does PWHT affect material properties?

Post-weld heat treatment (PWHT) significantly affects the material properties of weldments. Primarily, PWHT helps in relieving residual stresses that develop during welding, which can enhance the toughness and ductility of the material. By altering the microstructure, PWHT can refine grain sizes and promote phase transformations that improve mechanical properties. For instance, in high-strength steels, PWHT can facilitate the formation of acicular ferrite, which enhances toughness. However, it can sometimes lead to a slight reduction in yield and tensile strength due to the formation of less desirable phases.

Additionally, PWHT improves corrosion resistance by relieving stresses that could lead to stress corrosion cracking and refining microstructures. This is particularly beneficial for stainless steels and high-strength alloys. The effectiveness of PWHT depends on precise control of temperature, holding time, and cooling rates. Incorrect procedures can negatively impact material properties, highlighting the importance of adhering to proper PWHT protocols. Understanding these effects is crucial for optimizing the reliability and performance of welded structures across various industries.

What are the typical applications of PWHT in industry?

Post Weld Heat Treatment (PWHT) is widely used in various industries to enhance the mechanical properties of welded components. Its primary applications include reducing residual stresses, improving material strength and toughness, and preventing defects such as hydrogen-induced cracking (HIC) and stress corrosion cracking (SCC).

Typical applications of PWHT can be found in the oil and gas industry, where it ensures the integrity of pipelines and equipment exposed to high temperatures and pressures. In the petrochemical industry, PWHT is essential for maintaining the durability and safety of equipment operating under harsh conditions. The aerospace industry employs PWHT to improve the mechanical properties of welded components to withstand extreme conditions. Lastly, in the nuclear industry, PWHT is critical for maintaining the safety and structural integrity of reactors and other critical components by mitigating residual stresses.

What safety standards must be adhered to during PWHT?

During Post Weld Heat Treatment (PWHT), adherence to safety standards is crucial to ensure both the quality and safety of the process. Key safety standards include:

1. Temperature Control and Monitoring: Accurate temperature control is vital. Utilize calibrated thermocouples to monitor temperatures consistently, ensuring the material is neither overheated nor underheated.
2. Material-Specific Guidelines: Follow industry-specific guidelines, such as those outlined in ASME Section VIII Division 1, which provide detailed PWHT requirements based on material types and properties.
3. Safety Precautions: Certified professionals should perform PWHT to ensure proper execution. Protect the work area from environmental factors like wind and rain to maintain process integrity.
4. Documentation and Traceability: Maintain detailed records of the PWHT process, including temperatures and inspection results, to ensure compliance and facilitate traceability.
5. Material Inspection: Conduct visual inspections and hardness tests post-PWHT to verify the material has achieved the desired properties and to identify any defects.

By following these standards, industries can ensure that PWHT is performed safely, effectively, and in compliance with regulatory requirements.

How to choose the right PWHT method for your project?

Choosing the right Post Weld Heat Treatment (PWHT) method for your project involves considering several key factors to ensure optimal results. Firstly, assess the type of material being welded. For example, carbon and low alloy steels typically require PWHT for thicker sections to reduce residual stresses, while stainless steels may only need it under specific conditions, such as when joining dissimilar metals.

Next, adhere to industry standards and codes, such as the ASME Boiler and Pressure Vessel Codes, which provide detailed guidelines on PWHT temperature and time requirements based on material classification. Consider the weld geometry and thickness, as thicker welds usually necessitate PWHT, whereas thinner sections might be exempt.

The application environment also plays a crucial role; high-temperature applications may require PWHT to prevent creep and enhance long-term performance, while low-temperature environments might focus on stress relief to avoid cracking.

What are the common challenges in PWHT and how to overcome them?

Common challenges in Post Weld Heat Treatment (PWHT) include time and cost, equipment limitations, distortion and warping, delayed cracking, environmental concerns, and material properties alteration.

Time and cost can be significant due to the need for specialized equipment and skilled personnel. To mitigate this, employing efficient heating methods like induction heating and optimizing equipment usage can be beneficial. Equipment limitations may arise due to size, geometry, or material constraints, which can be addressed by using localized heating techniques to focus on specific weld zones without compromising structural integrity.

Distortion and warping are common due to heating and cooling cycles, which can be controlled by managing heating and cooling rates and ensuring uniform heating. Delayed cracking can occur, making defects harder to detect; therefore, thorough inspections using non-destructive testing (NDT) post-PWHT are essential.

Environmental concerns are related to the high energy consumption of PWHT, which can be mitigated by minimizing treatment cycles and using energy-efficient methods. Material properties can also be altered during PWHT, particularly in high-strength steels. Selecting materials less susceptible to changes and adjusting welding techniques can help maintain desired mechanical properties.

By understanding these challenges and implementing tailored solutions, industries can effectively maximize the benefits of PWHT while minimizing its drawbacks.
