Comprehensive Guide to S2 Tool Steel: Properties, Composition, and Applications

Imagine a material that combines exceptional hardness, impressive toughness, and remarkable wear resistance—this is precisely what S2 Tool Steel offers. Known for its unique blend of properties, S2 Tool Steel (UNS T41902) stands out in the world of high-performance tool steels. Whether you’re an engineer, machinist, or materials scientist, understanding the intricate details of S2 Tool Steel is crucial for optimizing its use in demanding applications.

In this comprehensive guide, we’ll delve into the chemical composition, mechanical properties, and versatile applications of S2 Tool Steel. We’ll also explore the intricacies of its heat treatment process and compare it with other tool steels. By the end of this article, you’ll gain a thorough understanding of why S2 Tool Steel is a preferred choice in various industries, from automotive to aerospace. Ready to uncover the secrets behind its superior performance? Let’s dive in.

Overview of S2 Tool Steel

S2 tool steel, known by its UNS designation T41902, is a high-carbon steel alloy celebrated for its exceptional shock-resisting properties. This material is extensively used in applications that demand high impact resistance and toughness, making it a preferred choice in various industries, including manufacturing and engineering.

Key Characteristics

S2 tool steel is distinguished by its ability to withstand repeated stress and shock without losing its structural integrity. This makes it an ideal material for tools that are subjected to heavy use and harsh conditions. Its high carbon content contributes to its hardness and wear resistance, while other alloying elements enhance its

Chemical Composition

The chemical makeup of S2 tool steel includes several critical elements that contribute to its properties:

• Carbon (C): 0.90–1.10% – Adds hardness and strength.
• Silicon (Si): 0.50–0.80% – Enhances strength and elasticity.
• Manganese (Mn): 0.50–0.80% – Improves toughness and hardenability.
• Chromium (Cr): 0.30–0.60% – Increases corrosion resistance and hardenability.
• Molybdenum (Mo): 0.20–0.40% – Enhances strength and wear resistance.
• Phosphorus (P): ≤0.030% – Kept low to maintain toughness.
• Sulfur (S): ≤0.030% – Kept low to avoid brittleness.

Physical Properties

S2 tool steel exhibits several notable physical properties:

• Density: Approximately 7.79 g/cm³ (0.281 lb/in³)
• Melting Point: About 1421°C (2590°F)
• Thermal Conductivity: 27.5 to 44 W/m-K (19.0 to 25 BTU/h-ft-°F)
• Coefficient of Thermal Expansion: 10.9 x 10^-6/°C to 12.5 µm/m·°C (7.0 x 10^-6 /°F)

These properties make S2 tool steel suitable for applications that require both thermal stability and mechanical robustness.

Mechanical Properties

The mechanical properties of S2 tool steel are crucial for its performance in demanding applications:

• Elastic Modulus: 190 to 210 GPa (27 x 10^6 psi)
• Tensile Strength: 670 to 1940 MPa (97 to 280 x 10^3 psi)
• Poisson’s Ratio: 0.27 to 0.30
• Shear Modulus: Approximately 72 GPa (10 x 10^6 psi)
• Hardness: Achievable Rockwell C hardness of 50 to 60 after tempering

These mechanical properties ensure that S2 tool steel can endure high stress and maintain its shape and functionality over time.

Fabrication and Heat Treatment

S2 tool steel is known for its good machinability and weldability, making it a versatile material in manufacturing. Heat treatment involves preheating to 649°C (1200°F), heating to 871°C (1600°F), followed by quenching in brine or water, and tempering at 177 to 427°C (350 to 800°F) for optimal hardness. Forging is conducted at 899 to 1093°C (1650 to 2000°F) to further enhance its properties.

Common Applications

Due to its high impact resistance and toughness, S2 tool steel is widely used in the production of:

• Springs
• Chisels
• Hammers
• Forging Dies
• Punches
• Screwdrivers
• Driver Bits

S2 tool steel’s unique combination of chemical composition, physical and mechanical properties, and fabrication capabilities makes it an invaluable material in industries where durability and performance are paramount.

Chemical Composition of S2 Tool Steel

S2 tool steel’s chemical composition is carefully designed to provide exceptional hardness, toughness, and wear resistance. The primary elements and their respective percentage contents are as follows:

Role of Each Element

Carbon (C)

Carbon is crucial for S2 tool steel, making it hard and strong. The presence of 0.40-0.55% carbon ensures that the steel can achieve high levels of hardness, which is vital for tools subjected to high impact and wear.

Silicon (Si)

Silicon, at 0.90-1.20%, boosts the steel’s toughness and wear resistance. Silicon also enhances the steel’s ability to withstand high temperatures and improves its

Manganese (Mn)

Manganese, present at 0.30-0.50%, improves the steel’s toughness and hardenability. It helps in forming a more stable and durable microstructure, which is essential for shock-resistant tools.

Molybdenum (Mo)

Molybdenum (0.30-0.60%) greatly strengthens S2 tool steel and enhances its wear resistance. It helps maintain the steel’s properties at elevated temperatures, making it suitable for high-impact applications.

Vanadium (V)

Vanadium is included up to 0.50%. It forms carbides that increase the hardness and impact toughness of the steel, ensuring tools made from S2 steel can endure rigorous use.

Phosphorus (P) and Sulfur (S)

Both phosphorus and sulfur are kept at low levels (≤0.03%) to maintain the steel’s toughness. High levels of these elements can lead to brittleness and reduced impact resistance, which is undesirable for shock-resistant tools.

Importance of Chemical Composition

The balanced chemical composition of S2 tool steel is critical in achieving its desirable mechanical properties. Each element plays a specific role in enhancing the steel’s performance, making it suitable for applications that demand high strength, toughness, and wear resistance. Understanding the chemical makeup allows manufacturers and engineers to optimize the material for various high-impact and demanding environments.

Mechanical Properties of S2 Tool Steel

Key Mechanical Properties of S2 Tool Steel

Tensile Strength

S2 tool steel has an impressive tensile strength that ranges from 670 to 1940 MPa (97,000 to 280,000 psi), depending on the heat treatment it undergoes. This high tensile strength is critical for applications where the material must endure substantial pulling forces without breaking.

Hardness and Elastic Modulus

Proper heat treatment allows S2 tool steel to achieve a Rockwell C hardness of 50 to 60 HRC, which is essential for tools that need to maintain sharp edges and resist deformation under heavy loads. Additionally, the elastic modulus of S2 tool steel ranges from 190 to 210 GPa (27 to 30.5 x 10^6 psi), indicating its ability to deform elastically under stress without permanent changes.

Poisson’s Ratio

S2 tool steel has a Poisson’s ratio of approximately 0.27 to 0.30, which describes how much it expands in directions perpendicular to the direction of compression.

Shear Modulus

The shear modulus of S2 tool steel is around 72 GPa (10 x 10^6 psi). This property reflects the steel’s resistance to shear forces, which is crucial for maintaining structural integrity under torsional stress.

Impact Toughness

Known for its high impact toughness, S2 tool steel has a Charpy impact value of about 20 J (14.8 ft-lb), making it suitable for high-impact applications like hammers and chisels.

Physical Properties

Density

The density of S2 tool steel is approximately 7.79 g/cm³ (0.281 lb/in³). This density contributes to the material’s

Thermal Conductivity

S2 tool steel has a thermal conductivity of 44 W/m·K (25 BTU/h-ft-°F). This property is crucial for tools subjected to high temperatures, as it allows the steel to efficiently dissipate heat during use, preventing overheating.

Thermal Expansion

The thermal expansion coefficient of S2 tool steel is about (10.9×10⁻⁶°C⁻¹). This coefficient measures the degree to which the material expands or contracts with temperature changes, which is important for applications involving fluctuating temperatures.

Applications of S2 Tool Steel

Thanks to its exceptional mechanical properties, S2 tool steel is widely used in various demanding applications:

• Cutting Tools: The high toughness and wear resistance make S2 tool steel ideal for hammers, chisels, and punches.
• Hand Tools: Screwdrivers and driver bits benefit from the steel’s ability to maintain precision and withstand repetitive stress.
• Manufacturing Components: Springs and forging dies require the resilience and impact resistance that S2 tool steel provides.

Heat Treatment of S2 Tool Steel

Heat Treatment Processes for S2 Tool Steel

Heat treatment is essential for enhancing the properties of S2 tool steel, renowned for its exceptional impact resistance and toughness. The process involves several key steps, each designed to optimize the steel’s mechanical properties for demanding applications.

Annealing

Annealing relieves internal stresses, softens the steel, and enhances its machinability. The steel is heated to approximately 788°C (1450°F) and then allowed to cool slowly in the furnace at a controlled rate, typically not exceeding 4°C per hour. This slow cooling ensures uniform softening and minimizes the risk of internal stresses that could compromise the steel’s performance.

Preheating

During preheating, the steel’s temperature is gradually increased to about 649°C (1200°F). This step prevents thermal shock by ensuring even heating, which helps to avoid cracking during subsequent heat treatment stages. Preheating is crucial for achieving a homogeneous temperature distribution throughout the material, maintaining the steel’s structural integrity.

Austenitizing

Austenitizing involves heating the steel to 871°C (1600°F) and holding it at this temperature for 10 to 20 minutes. At this stage, the steel transforms into austenite, ensuring the even distribution of carbon and alloying elements. This transformation prepares the steel for hardening by creating a uniform microstructure that contributes to the steel’s final mechanical properties.

Quenching

Quenching quickly cools the steel, locking in the hardened structure and greatly improving its hardness and strength. S2 tool steel is typically quenched in brine or water, depending on the specific requirements and desired hardness level. This rapid cooling is crucial for achieving the desired mechanical properties.

Tempering

Tempering is performed after quenching to reduce brittleness and improve toughness. The steel is heated to a tempering temperature ranging from 177°C to 427°C (350°F to 800°F), depending on the required mechanical properties. Higher tempering temperatures generally result in lower hardness but improved toughness. This step ensures the steel achieves a balanced combination of hardness and toughness, making it suitable for high-impact applications.

Forging

Forging, conducted at temperatures between 899°C and 1093°C (1650°F to 2000°F), involves shaping the steel under high pressure while hot, enhancing its mechanical properties. Forging below 871°C (1600°F) is generally not recommended, as it can lead to reduced ductility and increased brittleness. After forging, additional heat treatment is necessary to restore the desired mechanical properties and relieve any residual stresses.

Key Considerations in Heat Treatment

• Decarburization: S2 tool steel is susceptible to decarburization during thermal processing, which can reduce its surface hardness and – Welding: S2 tool steel can be welded using standard methods. Preheating to about 649°C (1200°F) is recommended to minimize the risk of cracking. Post-weld heat treatment is advised to restore the steel’s mechanical properties and ensure optimal performance.

Effective heat treatment of S2 tool steel involves careful control of each stage, from annealing to tempering, to achieve the desired combination of hardness, toughness, and wear resistance. This process is crucial for optimizing the steel’s properties for high-impact and demanding applications.

In-depth Analysis of Heat Treatment Effects

Understanding Heat Treatment

Heat treatment is a controlled process used to change the physical and sometimes chemical properties of materials. In the context of S2 tool steel, heat treatment is essential for enhancing its mechanical properties, such as hardness, toughness, and wear resistance. This process typically involves heating and cooling the material in a specific manner to achieve the desired properties.

Annealing

Purpose, Process, and Effects

Annealing is the first step in the heat treatment of S2 tool steel. The primary purpose of annealing is to reduce hardness, relieve internal stresses, and improve machinability. During annealing, S2 tool steel is heated to approximately 788°C (1450°F) and then allowed to cool slowly in the furnace. This slow cooling process helps to soften the steel and make it more workable.

Annealing significantly reduces brittleness and enhances the ductility of S2 tool steel, making it easier to machine and shape. This step is crucial for preparing the steel for further processing, such as forging or cutting.

Austenitizing

Purpose, Process, and Effects

Austenitizing involves heating the steel to a temperature where it transforms into austenite, typically between 850°C and 900°C (1562°F and 1652°F). The steel is kept at this temperature long enough to form a uniform austenite structure. This transformation is essential for the subsequent hardening process.

The austenitizing process helps to dissolve carbides and distribute carbon and alloying elements evenly throughout the steel. This uniform distribution is critical for achieving a consistent microstructure, which in turn enhances the steel’s

Quenching

Purpose, Process, and Effects

Quenching is the rapid cooling of austenitized steel to lock in the hardened structure. S2 tool steel is typically quenched in brine or water. The choice of quenching medium can significantly affect the final properties of the steel.

While quenching significantly hardens S2 tool steel, it also creates internal stresses that can lead to brittleness. The rapid cooling transforms the austenite into martensite, a very hard but brittle phase. This step is crucial for achieving the high wear resistance required for tools and components subjected to heavy use.

Tempering

Purpose, Process, and Effects

Tempering is performed after quenching to reduce brittleness and improve toughness. The steel is reheated to a temperature between 177°C and 427°C (350°F and 800°F) and held at this temperature for a specified duration. The exact tempering temperature is chosen based on the desired balance between hardness and toughness.

Tempering converts some martensite into tempered martensite, resulting in a better balance of hardness and toughness. This process reduces the internal stresses introduced during quenching and enhances the steel’s ability to absorb impact without fracturing. The result is a material with improved toughness and sufficient hardness for high-impact applications.

Microstructural Changes

Martensite Formation

The quenching process primarily results in the formation of martensite, a highly strained and supersaturated form of carbon in iron. Martensite is responsible for the high hardness and strength of S2 tool steel. However, its brittleness requires subsequent tempering to make the steel more usable in practical applications.

Carbide Precipitation

During tempering, the carbide particles precipitate from the martensite matrix, which helps in reducing the internal stresses and improving toughness. The distribution and size of these carbide particles play a significant role in determining the final mechanical properties of the steel.

By understanding and controlling the heat treatment processes, manufacturers can optimize the mechanical properties of S2 tool steel for various high-impact and demanding applications.

Applications of S2 Tool Steel

Heavy-Duty Tools

S2 tool steel is extensively utilized in the production of heavy-duty tools due to its exceptional impact resistance and toughness. This makes it perfect for tools that face heavy stress and frequent use.

Hammers and Chisels

Hammers and chisels made from S2 tool steel are known for their durability and ability to withstand heavy impacts, making them ideal for the tough conditions of construction and demolition work.

Punches and Driver Bits

Punches and driver bits benefit from S2 tool steel’s high hardness and impact resistance. These tools must maintain their integrity under high stress and repeated use, making the steel’s mechanical properties particularly advantageous.

Industrial Applications

S2 tool steel’s combination of strength, toughness, and wear resistance makes it suitable for various industrial applications.

Forging Dies

Forging dies made from S2 tool steel can endure the high-impact forces of the forging process. The steel’s ability to maintain its properties under such conditions ensures the longevity and reliability of the dies.

Springs and Shock Absorbers

S2 tool steel is ideal for making springs and shock absorbers due to its excellent fatigue resistance. The steel’s mechanical properties allow these components to perform reliably under repetitive stress and load cycles.

Automotive and Manufacturing

In the automotive and manufacturing industries, S2 tool steel is valued for its high strength and wear resistance.

Drive Shafts and Suspension Components

S2 tool steel drive shafts and suspension components benefit from the steel’s high-stress endurance and wear resistance. This ensures the durability and performance of these critical automotive parts.

Die-Casting Tools and Shear Blades

Die-casting tools and shear blades require materials that can withstand the rigors of manufacturing processes. S2 tool steel’s toughness and wear resistance make it an excellent choice for these applications, ensuring the tools’ longevity and effectiveness.

Other Uses

S2 tool steel’s unique properties also make it suitable for various other applications.

Battering Tools

Tools such as pneumatic chisels, concrete breakers, and rivet busters are often made from S2 tool steel. These tools must endure extreme impact forces, and the steel’s toughness ensures they can perform effectively without failure.

Wrenches and Fingers

Wrenches and other hand tools that require both strength and toughness are commonly made from S2 tool steel. The material’s ability to resist deformation and maintain its integrity under stress makes it ideal for these applications.

Understanding UNS T41902

UNS T41902, commonly known as S2 Tool Steel, is a high-carbon alloy steel renowned for its exceptional resistance to shock and impact. It is composed primarily of Iron (96.0 to 98.1%), with Carbon (0.40 to 0.55%), Silicon (0.90 to 1.20%), and Manganese (0.30 to 0.50%) among other elements. These elements are carefully balanced to enhance the steel’s properties, with carbon contributing to hardness, silicon and manganese improving toughness, and molybdenum and vanadium adding strength and wear resistance.

UNS T41902 exhibits a range of mechanical properties that make it suitable for demanding applications:

• Tensile Strength: 670 MPa to 1940 MPa (varies with heat treatment)
• Elastic Modulus: Approximately 190 GPa
• Poisson’s Ratio: 0.27 to 0.30
• Density: 7.79 g/cm³

These properties ensure that S2 Tool Steel can endure significant stress and wear, making it ideal for tools that must withstand heavy use and impact.

The thermal characteristics of UNS T41902 are also noteworthy:

• Melting Point: 1410°C (2570°F) to 1450°C (2640°F)
• Thermal Conductivity: 44 W/m·K
• Specific Heat Capacity: 470 J/kg·K

These properties allow S2 Tool Steel to maintain performance even at elevated temperatures, making it suitable for high-heat applications.

The heat treatment of UNS T41902 is crucial for achieving optimal hardness and performance. The process includes:

1. Preheating: Slowly raising the temperature to approximately 649°C (1200°F).
2. Austenitizing: Heating to 871°C (1600°F) and holding for 10 to 20 minutes.
3. Quenching: Rapid cooling using a 5% to 10% brine solution.
4. Tempering: Heating to 177°C (350°F) to 427°C (800°F) to relieve internal stresses and achieve a Rockwell C hardness of 50 to 60.

UNS T41902 is indispensable in various applications such as cutting tools (chisels, punches, and screwdrivers), molds and dies, and components like springs and fasteners that require high impact resistance and durability. In the manufacturing sector, S2 Tool Steel is valued for its machinability and ability to be heat treated for enhanced performance.

Comparing S2 Tool Steel with Other Tool Steels

S2 Tool Steel vs. S7 Tool Steel

Composition and Properties

S2 and S7 tool steels are designed for high-impact applications, but they differ significantly in composition and properties. S2 tool steel typically contains 0.90-1.10% carbon, 0.50-0.80% silicon, 0.50-0.80% manganese, 0.30-0.60% chromium, and 0.20-0.40% molybdenum. On the other hand, S7 tool steel has a slightly different composition, including 0.45-0.55% carbon, 0.20-0.80% silicon, 0.20-0.80% manganese, 3.00-3.50% chromium, and 1.40-1.80% molybdenum.

Mechanical Performance

With higher chromium content, S7 is stronger, more corrosion-resistant, and tougher than S2, making it ideal for extreme impact applications like punches and chisels. While both steels are heat-treated to achieve high hardness, S7 can attain higher hardness levels, making it suitable for more demanding tasks.

S2 Tool Steel vs. A2 Tool Steel

Composition and Properties

A2 tool steel is another popular choice in the tool steel category, known for its air-hardening properties. It contains 0.95-1.05% carbon, 0.15-0.50% silicon, 1.00% manganese, 5.00% chromium, and 1.00% molybdenum. The high chromium content in A2 provides excellent wear resistance and stability during heat treatment.

Mechanical Performance

A2 tool steel is less tough than S2 but offers superior wear resistance, making it ideal for applications involving abrasive wear, such as coining and extrusion dies. A2’s air-hardening property simplifies heat treatment, reducing distortion and improving dimensional stability. However, for applications requiring high impact resistance, S2 remains the better choice due to its superior toughness.

S2 Tool Steel vs. D2 Tool Steel

Composition and Properties

D2 tool steel, with high carbon and chromium, is renowned for its exceptional wear resistance. It typically contains 1.40-1.60% carbon, 0.60% silicon, 0.60% manganese, 11.00-13.00% chromium, and 0.70-1.20% molybdenum. The high chromium content contributes to its outstanding wear resistance and hardenability.

Mechanical Performance

Compared to S2, D2 tool steel is much less tough but excels in wear resistance, making it suitable for cutting tools and other applications where abrasion resistance is critical. D2’s high carbon and chromium content allow it to maintain a sharp edge and resist wear over prolonged use. However, D2 is not ideal for high-impact applications due to its lower toughness.

S2 Tool Steel vs. Chromium Vanadium Steel

Composition and Properties

Chromium vanadium steel is another alternative commonly used in tools, containing 0.50-0.95% carbon, 0.15-0.40% silicon, 0.50-1.00% manganese, 0.50-0.80% chromium, and 0.15-0.25% vanadium. This steel is less expensive and offers good strength and durability.

Mechanical Performance

Chromium vanadium steel offers good strength and durability, but it doesn’t match the high impact resistance of S2 tool steel. S2’s superior toughness makes it more suitable for tools subjected to repeated shock and stress. Chromium vanadium steel, while cost-effective, is better suited for general-purpose tools that do not require the extreme toughness of S2.

Frequently Asked Questions

Below are answers to some frequently asked questions:

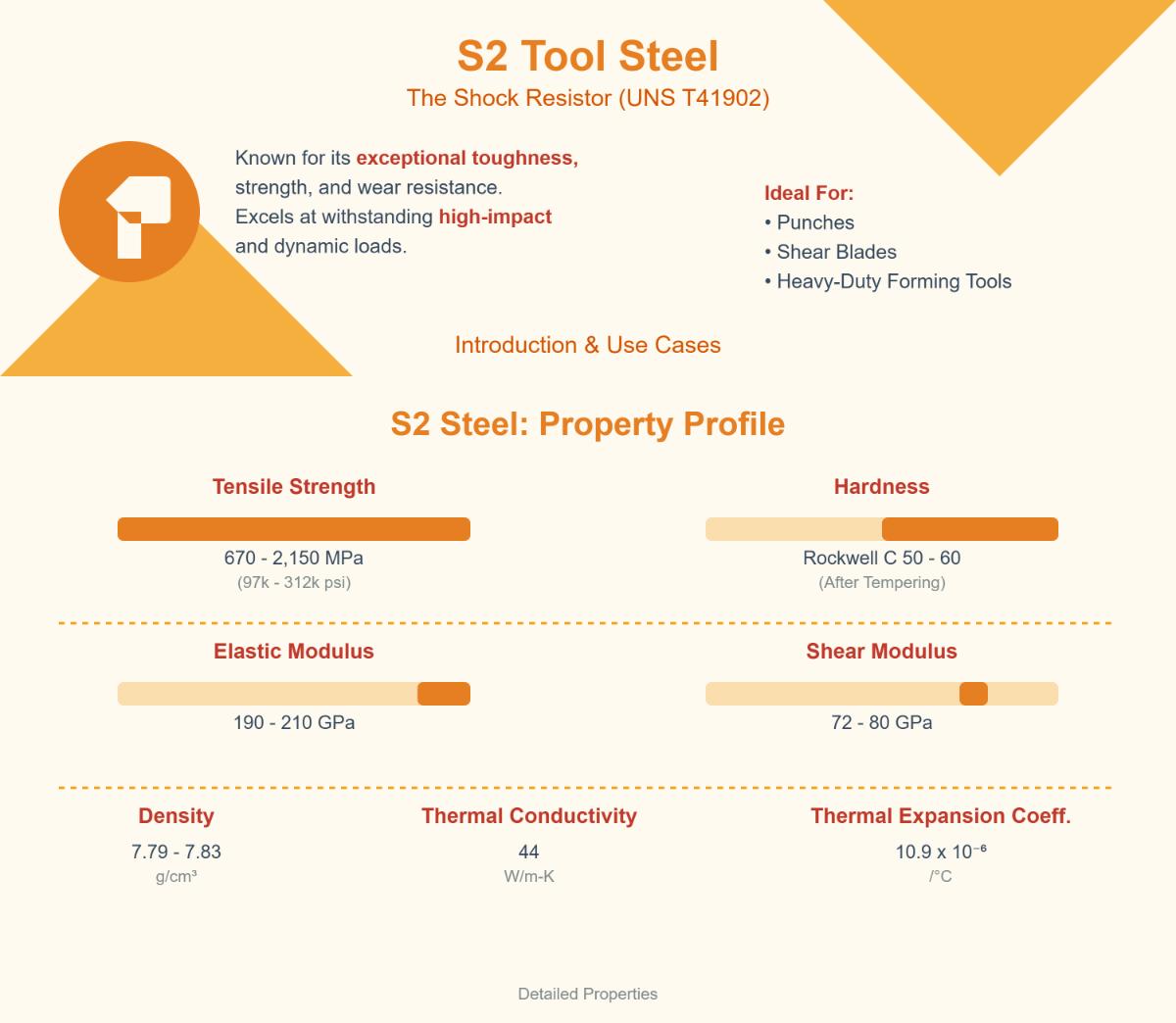

What are the properties of S2 Tool Steel?

S2 tool steel, designated as UNS T41902, is a shock-resisting tool steel known for its exceptional toughness, strength, and wear resistance. This steel is characterized by its ability to withstand high-impact and dynamic loads, making it suitable for demanding applications such as punches, shear blades, and heavy-duty forming tools.

Key properties of S2 tool steel include:

• Tensile Strength: 670 to 2,150 MPa (97,000 to 312,000 psi)
• Hardness: Rockwell C scale of 50 to 60 after tempering
• Elastic Modulus: 190 to 210 GPa
• Shear Modulus: 72 to 80 GPa
• Density: Approximately 7.79 to 7.83 g/cm³
• Thermal Conductivity: 44 W/m-K
• Thermal Expansion Coefficient: 10.9 x 10^-6/°C

These properties make S2 tool steel particularly effective in applications where high toughness and the ability to endure repeated impacts are critical.

How is S2 Tool Steel heat treated?

S2 Tool Steel undergoes a series of heat treatment processes to optimize its mechanical properties, particularly its toughness and impact resistance. The heat treatment begins with annealing, where the steel is heated to approximately 788°C (1450°F) and then slowly cooled to relieve internal stresses and improve machinability. Next, the steel is preheated to about 649°C (1200°F) to minimize thermal shock during the subsequent heating stages.

Austenitizing follows, heating the steel to 850-900°C (1562-1652°F) to transform its structure into austenite, preparing it for hardening. The steel is then quenched in a brine solution or oil to rapidly cool and harden it.

What are the applications of UNS T41902?

UNS T41902, known as S2 Tool Steel, is extensively utilized in various industries due to its exceptional hardness, shock resistance, and ability to maintain sharp edges even under high temperatures. This makes it ideal for several high-performance applications. In the cutting tools sector, S2 Tool Steel is used to manufacture broaches, threading tools, taps, and dies, benefiting from its high hardness after appropriate heat treatment. In the automotive industry, it is employed for gears, shafts, bearings, and impact tools such as wrenches and sockets, which require durability and resistance to heavy loads. The manufacturing industry leverages S2 Tool Steel for making machinery parts, heavy-duty screwdrivers, and tools needing significant strength and resilience. Additionally, it is favored for creating shock-resisting tools like springs, chisels, forging dies, punches, and screwdrivers due to its high impact resistance. Lastly, it is used in the mining industry for ball bearings, appreciated for its durability and wear resistance.

How does S2 Tool Steel compare to other tool steels?

S2 tool steel, part of the AISI S-group, is distinguished by its high carbon content and remarkable toughness and shock resistance, making it ideal for high-impact applications. Compared to other tool steels, S2 excels in scenarios where durability and resistance to impact are critical. For instance, it outperforms Chrome Vanadium steel in impact resistance due to its higher carbon content, though Chrome Vanadium offers superior wear resistance and is typically more expensive.

When compared to Chrome Molybdenum steel, S2 tool steel provides moderate hardenability and is specifically suited for hand tools like chisels and punches, whereas Chrome Molybdenum steel is preferred in structural applications due to its high strength and uniform hardness.

What is the chemical composition of S2 Tool Steel?

S2 tool steel is a high-carbon alloy steel known for its excellent shock-resisting properties. Its chemical composition typically includes:

• Carbon (C): 0.40% to 0.55%
• Silicon (Si): 0.50% to 1.20%
• Manganese (Mn): 0.30% to 0.80%
• Molybdenum (Mo): 0.20% to 0.60%
• Vanadium (V): Up to 0.50%
• Chromium (Cr): Up to 0.60%
• Nickel (Ni): Trace amounts
• Phosphorus (P) and Sulfur (S): Less than 0.03%

These elements contribute to the steel’s hardness, strength, toughness, and wear resistance, making it suitable for high-stress applications such as tools that endure heavy impact.
