Comprehensive Guide to SAE AISI 1080 Steel: Composition, Properties, and Uses

Imagine a steel that combines high strength with remarkable versatility, making it a favorite in numerous industries. SAE AISI 1080 steel, also known as UNS G10800, is just that material. But what exactly makes this steel so special? This article takes a deep dive into the intricate details of SAE AISI 1080 steel, exploring its chemical composition, mechanical properties, and myriad uses. By examining the elements that constitute this steel, such as its significant carbon content, and understanding how heat treatment processes affect its performance, you will gain a comprehensive understanding of why SAE AISI 1080 is highly valued. Ready to uncover the secrets behind this robust material and its applications? Let’s delve into the specifics.

Overview of SAE AISI 1080 Steel and UNS G10800 Standard

Introduction to SAE AISI 1080 Steel

SAE AISI 1080 steel is a type of high-carbon steel that stands out for its strength, hardness, and resistance to wear. It is classified as a carbon (non-alloy) steel, meaning it does not contain significant amounts of alloying elements other than carbon. The steel’s properties are primarily influenced by its carbon content, which typically ranges from 0.75% to 0.88%. This high carbon content is responsible for the steel’s ability to achieve significant hardness and strength through heat treatment processes.

Chemical Composition

SAE AISI 1080 steel has a chemical composition that includes 0.75 – 0.88% carbon, up to 1.2% manganese, up to 0.4% silicon, ≤ 0.04% phosphorus, and ≤ 0.05% sulfur, making it ideal for applications requiring high wear resistance and strength. The minor presence of manganese and silicon helps to improve the steel’s hardenability and tensile strength.

UNS G10800 Standard

The Unified Numbering System (UNS) designation for SAE AISI 1080 steel is G10800. The UNS system standardizes the identification of materials based on their chemical makeup and properties. This designation ensures consistency and reliability in the steel’s performance across various applications.

Importance of the UNS G10800 Standard

The UNS G10800 standard is crucial in the engineering and manufacturing industries by providing a clear specification for the steel’s chemical composition and mechanical properties. This standardization allows engineers and designers to confidently select SAE AISI 1080 steel for their projects, knowing it will meet the required criteria for strength, hardness, and wear resistance.

Key Characteristics

SAE AISI 1080 steel is known for its high hardness and tensile strength, which can be further improved through heat treatments like annealing, quenching, and tempering. These treatments alter the steel’s microstructure, resulting in enhanced mechanical properties suited for demanding applications.

Mechanical Properties

Depending on the heat treatment applied, SAE AISI 1080 steel can achieve:

• Tensile Strength: 770 – 870 MPa in the hot-rolled condition, up to 965 MPa when quenched and tempered.
• Yield Strength: 480 – 590 MPa in the hot-rolled condition, up to 586 MPa when quenched and tempered.

These properties make SAE AISI 1080 steel ideal for applications requiring high strength and durability.

Applications

Thanks to its excellent mechanical properties, SAE AISI 1080 steel is widely used in cutting tools, springs, agricultural machinery parts, and high-strength wires and rods.

Detailed Chemical Composition Analysis

Key Elements

SAE AISI 1080 steel is a high-carbon, non-alloy steel primarily composed of iron with a significant carbon content. Its chemical composition is meticulously designed to achieve a balance between strength and hardness, making it suitable for demanding applications.

Carbon Content

Carbon, ranging from 0.75% to 0.88%, is crucial for the steel’s hardness and strength. Carbon forms carbides and helps harden the steel through heat treatment. The precise control of carbon content ensures the steel can be tailored to specific mechanical property requirements.

Manganese

Manganese, present in amounts ranging from 0.60% to 0.90%, plays a vital role in enhancing the hardenability and tensile strength of the steel. It acts as a deoxidizer and helps in improving the hot working properties of the steel. Additionally, manganese contributes to the steel’s wear resistance and toughness, making it more durable under stress.

Phosphorus and Sulfur

Phosphorus and sulfur are controlled to prevent brittleness and hot shortness, which occur at high temperatures. These elements are present in minimal quantities, with maximum allowable concentrations of 0.040% and 0.050% respectively.

Additional Elements

SAE AISI 1080 steel mainly contains iron, carbon, manganese, phosphorus, and sulfur, with trace amounts of other elements. These include:

• Chromium: Typically not a significant component in SAE AISI 1080 steel, but traces might be found, contributing to corrosion resistance.
• Boron: Occasionally added in minute quantities to enhance hardenability.
• Copper: Can be present as a residual element, often contributing to corrosion resistance.
• Molybdenum: Rarely found in SAE AISI 1080 steel, but when present, it can enhance strength and toughness.
• Nickel: Not a standard component, but traces can improve toughness and resistance to impact.
• Lead: Generally not included in SAE AISI 1080 steel due to its adverse effects on machinability and health concerns.

Chemical Composition Summary

The chemical composition of SAE AISI 1080 steel is a carefully balanced mix of elements designed to optimize its mechanical properties. The primary elements include:

• Iron (Fe): 98.0 – 99.0%
• Carbon (C): 0.75 – 0.88%
• Manganese (Mn): 0.60 – 0.90%
• Phosphorus (P): ≤ 0.040%
• Sulfur (S): ≤ 0.050%

Together, these elements give the steel its hardness, strength, and wear resistance, making it valuable for many industrial uses.

Mechanical Properties and Performance Metrics

Tensile Strength

Tensile strength is a crucial property of SAE AISI 1080 steel, indicating the maximum stress it can endure while being stretched or pulled before breaking. In its untreated condition, the tensile strength typically ranges from 690 to 850 MPa. This value can be significantly increased through various heat treatment processes, making the steel suitable for high-stress applications.

Yield Strength

SAE AISI 1080 steel typically has a yield strength between 390 and 450 MPa. Like tensile strength, yield strength can be enhanced through heat treatment, which is essential for applications requiring high resilience and minimal permanent deformation.

Elongation at Break

SAE AISI 1080 steel has moderate ductility, with an elongation at break typically around 10% to 11%, beneficial for applications requiring some flexibility. This moderate ductility highlights the balance between hardness and pliability.

Hardness

In its untreated state, SAE AISI 1080 steel’s hardness ranges from 192 to 229 HB on the Brinell scale. Through quenching and tempering, its hardness can reach Rockwell C 50-58, making it ideal for applications requiring high wear resistance.

Impact Resistance

Although specific data on SAE AISI 1080 steel’s impact resistance is not readily available, tempering can improve its toughness, making it suitable for dynamic or shock-loading applications.

Fatigue Strength

Fatigue strength refers to the maximum stress a material can endure for a specified number of cycles without breaking. For SAE AISI 1080 steel, the fatigue strength is approximately 300 MPa. This property is crucial for components subjected to repetitive loading, such as springs and certain machinery parts.

Reduction of Area

Reduction of area is a measure of the material’s toughness and ductility, indicating the decrease in cross-sectional area when the material is pulled to fracture. SAE AISI 1080 steel typically exhibits a reduction of area between 25% and 40%. This range suggests moderate toughness, balancing strength and flexibility, which is advantageous for various mechanical applications.

Elastic Modulus

The elastic modulus, or Young’s modulus, measures the material’s stiffness, defining the relationship between stress and strain in the elastic deformation region. For SAE AISI 1080 steel, the elastic modulus is approximately 190 GPa (27 x 10^6 psi). This high modulus indicates that the material is relatively stiff, which is beneficial for structural applications where rigidity is essential.

Performance Metrics

SAE AISI 1080 steel’s mechanical properties and performance metrics, including tensile and yield strength, elongation, hardness, impact resistance, fatigue strength, reduction of area, and elastic modulus, make it a versatile material. These properties are crucial for determining its suitability for various industrial applications, ensuring that the steel can meet the demands of strength, toughness, and wear resistance in different environments.

Heat Treatment Techniques and Their Impact

Common Heat Treatment Processes

Heat treatment is a critical process for modifying the mechanical properties of SAE AISI 1080 steel. Due to its high carbon content, this steel responds well to heat treatment techniques, which can greatly improve its hardness, strength, and wear resistance. Here are the key heat treatment processes used for SAE AISI 1080 steel:

Austenitizing

• Process: Austenitizing involves heating the steel to 800°C–850°C (1470°F–1560°F), transforming its microstructure into austenite.
• Purpose: This process prepares the steel for subsequent quenching by dissolving carbon into the austenitic matrix, which is essential for forming martensite upon rapid cooling.
• Impact: Uniform heating is crucial to avoid thermal stresses and distortion, which can negatively affect the steel’s properties.

Quenching

• Process: Quenching rapidly cools the steel from the austenitizing temperature, typically using oil or water.
• Oil Quenching: Provides a slower cooling rate, reducing the risk of cracking and distortion.
• Water Quenching: Offers a faster cooling rate, resulting in higher hardness but with an increased risk of warping or cracking.
• Microstructural Change: Quenching transforms austenite into martensite, a very hard and brittle phase.
• Impact: This process significantly increases hardness and tensile strength, making the steel suitable for applications requiring sharp edges and high wear resistance.

Tempering

• Process: Tempering involves reheating the quenched steel to a temperature range of 200°C–600°C (390°F–1110°F) and holding it for 1–2 hours.
• Purpose: The main goals are to relieve internal stresses, make the steel less brittle, and improve its toughness.
• Effect on Properties: While tempering slightly decreases hardness, it greatly enhances ductility and impact resistance, balancing strength and toughness.
• Temperature Variation: Lower tempering temperatures retain more hardness, whereas higher temperatures improve toughness at the expense of some hardness.

Normalizing

• Process: Normalizing is performed by heating the steel to approximately 830°C (1525°F) and then allowing it to cool in air.
• Purpose: This process refines the grain structure, improves uniformity, and enhances machinability.
• Impact: Normalizing produces a more uniform and tougher steel compared to annealing but with higher hardness, making it suitable for applications requiring a balance between hardness and toughness.

Annealing

• Process: Annealing involves heating the steel to 790-845°C (1450-1550°F) and then cooling it slowly.
• Purpose: The goal is to soften the steel, increase ductility, and improve machinability.
• Impact: Annealed steel exhibits lower hardness and tensile strength but higher toughness and workability, making it ideal for subsequent machining or forging operations.

Effects on Mechanical Properties

The mechanical properties of SAE AISI 1080 steel are greatly influenced by the specific heat treatment process applied. Here’s a detailed look at the impact of different heat treatments:

Practical Examples

Industrial Cutting Tools

Properly heat-treated SAE AISI 1080 steel achieves superior hardness and edge retention, which is essential for cutting tools. Quenching and tempering processes ensure that the tools maintain their sharpness and durability under rigorous use.

Springs and Agricultural Machinery

Heat treatment optimizes the tensile strength and fatigue resistance of SAE AISI 1080 steel, making it ideal for springs and agricultural machinery parts that undergo cyclic loading. The tempering process, in particular, enhances toughness, preventing premature failure under repeated stress.

Challenges

The high carbon content in SAE AISI 1080 steel can make it brittle if not properly quenched or tempered. Additionally, its weldability is limited due to its hardness and carbon content, necessitating careful control of heat treatment parameters to achieve the desired properties without compromising the steel’s integrity.

Common Applications and Industry Uses

Automotive Components

SAE AISI 1080 steel is widely used in the automotive industry because of its high strength and wear resistance. Common applications include suspension springs, where the steel’s elasticity and tensile strength ensure durability under repeated stress, and transmission components, where its hardness withstands high loads. Additionally, its wear resistance is essential for brake components like discs and pads, which must endure friction and heat.

Agricultural Tools

In agriculture, SAE AISI 1080 steel’s toughness and ability to retain a sharp edge are highly valued. It is used for plows and harrows, where the steel’s hardness allows these tools to cut through soil effectively, maintaining sharpness over time. Sickles, scythes, and hoes benefit from the steel’s ability to hold a sharp edge, improving efficiency and longevity. Components in agricultural machinery, such as bearings and gears, utilize the steel’s strength and wear resistance.

Industrial Machinery

SAE AISI 1080 steel is crucial in building industrial machinery due to its excellent mechanical properties. Applications include cutting tools, where the steel’s hardness and wear resistance are ideal for manufacturing industrial blades and dies. High-stress parts such as bearings, shafts, and gears leverage the steel’s strength and durability. Springs used in various machinery benefit from the steel’s elasticity and ability to absorb shock loads without permanent deformation.

Metalworking and Wear Resistance

In metalworking, SAE AISI 1080 steel’s properties are essential for tools and components that require high wear resistance and hardness. Forging dies benefit from the steel’s ability to withstand repeated impacts. Wear plates used in machinery protect surfaces from abrasion and wear, extending the equipment’s lifespan. Punches and chisels rely on the hardness and toughness of SAE AISI 1080 steel for effective metal cutting and shaping.

Custom and Artisanal Uses

Artisans and custom tool makers prefer SAE AISI 1080 steel for its versatility and excellent edge retention. It is ideal for high-quality knifemaking, where the steel’s ability to achieve a sharp, durable edge is crucial. Blacksmiths appreciate its ease of heat treatment and forgeability for both decorative and functional items. Sculptors and metal artists use SAE AISI 1080 steel for projects requiring detailed work and durability.

Woodworking Tools

For woodworking, SAE AISI 1080 steel’s hardness and sharpness are beneficial. Plane blades made from this steel maintain a sharp edge, crucial for precision woodworking. Chisels retain their cutting edge over extended use due to the steel’s durability. Saw blades benefit from the wear resistance of SAE AISI 1080 steel, allowing them to remain effective and sharp through continuous use.

Comparative Analysis with Similar Steels

Chemical Composition Comparison

SAE AISI 1080 steel is known for its high carbon content, which ranges from 0.75% to 0.88%. This high carbon content is crucial for achieving significant hardness and strength through heat treatment. When compared to similar high-carbon steels, such as AISI 1095, the carbon content is slightly lower. AISI 1095 typically contains 0.90% to 1.00% carbon, resulting in higher hardness but increased brittleness.

The presence of manganese in SAE AISI 1080 steel enhances its hardenability and tensile strength, providing a balance between hardness and toughness. Other high-carbon steels might have varying manganese content, affecting their overall mechanical properties and suitability for different applications.

Mechanical Properties Comparison

SAE AISI 1080 steel’s mechanical properties are comparable to those of other high-carbon steels but with distinct differences in tensile strength, yield strength, and hardness. These properties are key factors in determining how suitable the steel is for different uses.

AISI 1095 steel, with its higher carbon content, achieves greater hardness but sacrifices ductility, making it more brittle compared to SAE AISI 1080. This brittleness can be a disadvantage in applications where toughness is critical. SAE AISI 1080 offers a better balance of properties, suitable for applications requiring strength and moderate ductility.

Heat Treatment Response

Heat treatment significantly impacts the performance of high-carbon steels like SAE AISI 1080 and similar grades, enhancing their mechanical properties through processes like quenching and tempering.

• Quenching: Both SAE AISI 1080 and AISI 1095 steels achieve high hardness through quenching. However, AISI 1095 tends to become more brittle due to its higher carbon content.
• Tempering: Tempering reduces brittleness and enhances toughness. SAE AISI 1080 steel can achieve a balanced combination of hardness and toughness, making it ideal for applications requiring durable and resilient materials.
• Normalizing: Normalizing improves the grain structure and uniformity of SAE AISI 1080 steel, enhancing its toughness and machinability. This process is beneficial for applications requiring a balance between hardness and ductility.
• Annealing: Annealing softens SAE AISI 1080 steel, increasing its ductility and machinability. This process is essential for applications involving extensive machining or forming.

Applications Comparison

The specific applications of SAE AISI 1080 steel and similar high-carbon steels depend on their mechanical properties and heat treatment responses.

SAE AISI 1080 steel is favored in applications where a combination of strength, moderate ductility, and wear resistance is required. In contrast, AISI 1095 is preferred for applications demanding extreme hardness, such as high-quality blades and cutting tools, but with increased brittleness.

Advantages and Limitations

SAE AISI 1080 steel has several advantages compared to other high-carbon steels:

• Strength and Hardness: High tensile and yield strength, with significant hardness after heat treatment.
• Ductility: Better ductility compared to steels with higher carbon content, reducing brittleness.
• Wear Resistance: Excellent wear resistance, suitable for high-stress applications.
• Weldability: Limited due to high carbon content, similar to other high-carbon steels.
• Machinability: Challenging without annealing, but manageable compared to higher carbon grades.
• Corrosion Resistance: Moderate, requires protective coatings for enhanced performance.

SAE AISI 1080 steel balances hardness, strength, and ductility well, but it has limitations like poor weldability and moderate corrosion resistance, which require careful heat treatment and protection.

Frequently Asked Questions

Below are answers to some frequently asked questions:

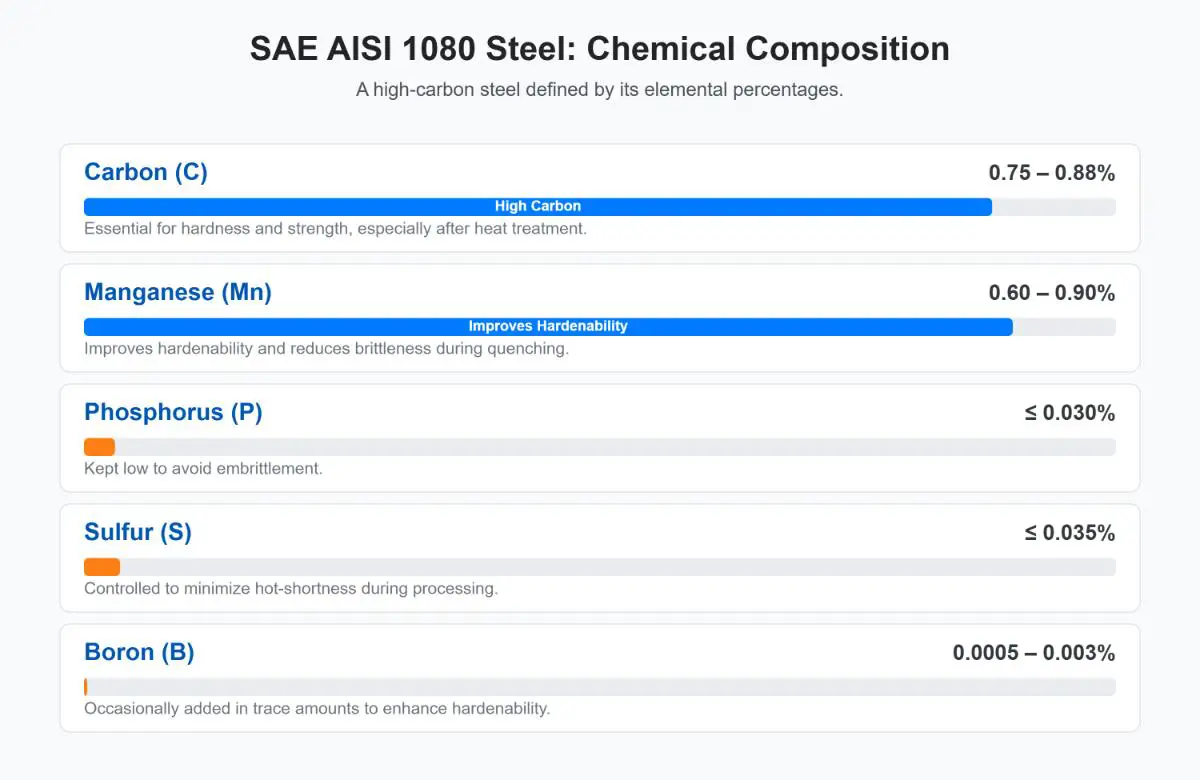

What is the chemical composition of SAE AISI 1080 steel?

SAE AISI 1080 steel is a high-carbon steel with a well-defined chemical composition that significantly influences its mechanical properties. The primary elements include:

• Carbon (C): 0.75–0.88% – This high carbon content is essential for achieving the desired hardness and strength, especially after heat treatment.
• Manganese (Mn): 0.60–0.90% – Manganese improves the steel’s hardenability and reduces brittleness during quenching.
• Phosphorus (P): ≤0.030% – Kept to a minimum to avoid embrittlement.
• Sulfur (S): ≤0.035% – Controlled to minimize issues like hot-shortness during processing.
• Boron (B): 0.0005–0.003% – Occasionally added in trace amounts to further enhance hardenability.

Minor residual elements such as chromium, nickel, molybdenum, and copper may be present but are not primary alloying components. This composition makes SAE AISI 1080 steel suitable for applications requiring high strength and wear resistance, such as cutting tools and springs.

What are the mechanical properties of SAE AISI 1080 steel?

SAE AISI 1080 steel is a high-carbon steel known for its high strength and wear resistance. Its mechanical properties are influenced by its chemical composition, particularly its carbon content, and the effects of heat treatment. Typical values for key mechanical properties of SAE AISI 1080 steel are as follows:

• Tensile Strength: 690 – 850 MPa in untreated form, which can increase to approximately 965 MPa after normalizing heat treatment.
• Yield Strength: 390 – 450 MPa, indicating the onset of permanent deformation.
• Elongation at Break: Around 11%, reflecting moderate ductility.
• Brinell Hardness: 220 – 260 in the as-received condition, which can be significantly increased with heat treatment.
• Rockwell Hardness (C scale): 50 – 58 when quenched and tempered, demonstrating high hardness.
• Elastic Modulus: Approximately 190 GPa.
• Fatigue Strength: Around 300 MPa, important for applications involving cyclic loading.
• Poisson’s Ratio: 0.27 – 0.30.

Heat treatment processes such as annealing, normalizing, quenching, and tempering can significantly alter these properties, enhancing machinability, strength, hardness, and wear resistance. This makes SAE AISI 1080 steel suitable for various demanding applications, including cutting tools, springs, and agricultural machinery. However, its high carbon content can limit ductility and weldability, necessitating careful handling to prevent cracking.

What are the common uses and applications of SAE AISI 1080 steel?

SAE AISI 1080 steel is a high-carbon steel known for its high tensile strength, wear resistance, and hardness, making it suitable for various demanding applications. Common uses include:

1. Cutting Tools and Blades: Its hardness and edge retention make it ideal for industrial knives, axes, hammers, and agricultural blades, ensuring precision and durability.

2. Springs and High-Strength Wire: It is widely used in automotive suspension springs and vibration-prone environments due to its high elasticity and fatigue resistance. Additionally, it is employed in the production of high-tensile wire rods and structural reinforcements.

3. Heavy Machinery Components: SAE AISI 1080 steel is used in bearings, shafts, gears, and linkages, especially in tractors, combines, and construction equipment, where high-stress conditions demand durable materials.

4. Specialized Industrial Applications: It finds application in vibration-damping parts and bearing components that maintain structural integrity under heavy loads.

How does heat treatment affect SAE AISI 1080 steel properties?

Heat treatment significantly affects the properties of SAE AISI 1080 steel by altering its microstructure to enhance mechanical characteristics such as hardness, strength, and toughness. The main heat treatment processes for SAE AISI 1080 steel include austenitization, quenching, tempering, normalizing, and annealing.

Austenitization involves heating the steel to approximately 790°C to 815°C to form austenite. This is followed by quenching, typically in oil or water, to rapidly cool the steel, producing martensite, which greatly increases hardness and strength. However, quenching can also introduce brittleness and internal stresses.

Tempering, performed at temperatures between 200°C and 600°C, is used to reduce brittleness and improve toughness by adjusting the hardness based on the desired application. Normalizing, at around 830°C, refines the grain structure and alleviates internal stresses, while annealing, conducted at 790°C to 845°C, softens the steel, enhancing its machinability and reducing stresses.

Each of these processes tailors the mechanical properties of SAE AISI 1080 steel to meet specific application requirements, balancing hardness, strength, and toughness for optimal performance.

What is the UNS G10800 standard?

The UNS G10800 standard refers to the Unified Numbering System designation for SAE AISI 1080 steel. This designation standardizes the identification of this specific grade of carbon steel, ensuring consistency across various industries and applications. SAE AISI 1080 steel is a medium-high carbon steel known for its high carbon content, typically ranging from 0.75% to 0.88%, which contributes to its hardness and strength potential, especially after heat treatment processes like quenching and tempering. The UNS G10800 designation helps engineers and manufacturers to reliably identify and utilize this steel for applications requiring good wear resistance, strength, and toughness, such as automotive components, agricultural tools, and industrial machinery.

How does SAE AISI 1080 steel compare to similar steels?

SAE AISI 1080 steel, known for its high carbon content (0.75-0.88%) and excellent strength, wear resistance, and hardness, is often compared to other high-carbon steels such as DIN C92D and JIS SWR9. These steels share similar mechanical properties, such as high tensile strength (690-850 MPa before heat treatment) and high hardness (Rockwell C 50-58 after quenching).

While the chemical compositions of these steels are similar, with comparable levels of carbon and manganese, they may have slight variations tailored to specific regional standards. For instance, DIN C92D and JIS SWR9 are used in similar applications like springs, high-strength components, and cutting tools, but they might have country-specific uses.
