Comprehensive Guide to Stud Bolts for Pipe Flanges

Imagine the critical infrastructure of an oil refinery, where each connection must withstand extreme pressures and temperatures. At the heart of these connections are stud bolts, the unsung heroes ensuring the integrity of pipe flanges. But what type of stud bolt is used for pipe flanges, and how do you choose the right one for your application? In this comprehensive guide, we will delve deep into the world of stud bolts, exploring their types, materials, and the crucial standards that govern their use. From fully threaded to tap end bolts, you’ll gain a clear understanding of how to select the perfect stud bolt for any industrial scenario. Ready to uncover the intricacies that keep our industrial systems running smoothly? Let’s dive in.

Understanding Pipe Flange Connections

Definition of Pipe Flanges

Pipe flanges are mechanical components that connect pipes, valves, pumps, and other equipment within a piping system. They provide a reliable and flexible method for assembling and disassembling components without the need for extensive cutting or welding. Flanges typically consist of a flat, round disc with bolt holes around the perimeter, allowing them to be securely fastened to the corresponding component using bolts or stud bolts.

Importance of Pipe Flange Connections in Industrial Applications

Pipe flange connections are crucial in various industrial applications due to their numerous benefits. They offer:

• Ease of Maintenance and Flexibility: Flange connections allow for the easy removal and replacement of components, facilitating routine maintenance and repairs without the need for specialized tools or procedures, while also offering flexibility to connect pipes of different sizes and materials.
• Leak Prevention: Properly installed flange connections create a tight seal to prevent leaks, ensuring safe and efficient system operation.
• Strength and Durability: Flanges are designed to withstand high pressure and temperature conditions, making them suitable for demanding industrial environments such as oil and gas, petrochemical, and power generation.

Overview of Stud Bolts in Pipe Flange Connections

Stud bolts are crucial fasteners that secure pipe flanges and maintain the stability of flange connections. They play a critical role in maintaining the integrity and stability of flange connections. Here are key aspects of stud bolts:

Specifications and Standards

Stud bolts used in flange connections must adhere to specific standards to ensure compatibility and performance. ASME B16.5 is one such standard, which provides guidelines on bolt sizes, lengths, and materials based on the flange diameter and operating conditions. Compliance with these standards is vital for ensuring the reliability and safety of the piping system.

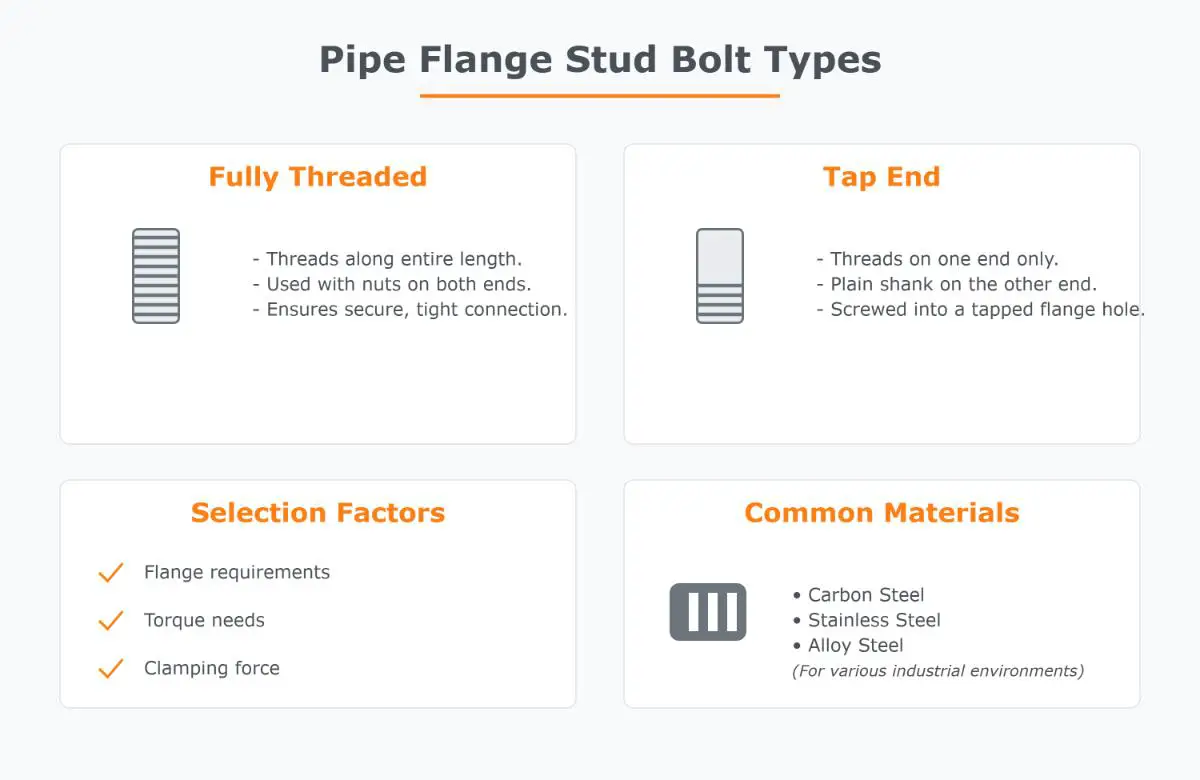

Types of Stud Bolts

There are several types of stud bolts used in pipe flange connections, each with unique characteristics and applications:

• Fully Threaded Stud Bolts: These bolts have threads along their entire length, providing a strong and secure connection. They are commonly used in high-pressure and high-temperature environments.
• Tap End Stud Bolts: These bolts have threads on one end only, with the other end being plain. They are typically used in applications where one end of the bolt needs to be embedded in a tapped hole.

Installation and Maintenance

Proper installation and maintenance of stud bolts are vital for flange connection performance. Key considerations include using torque wrenches for uniform pressure distribution to prevent leaks and gasket damage, ensuring correct gasket placement for a reliable seal, and aligning pipes and flanges properly to avoid stress and joint failure.

Understanding the role and specifications of stud bolts in pipe flange connections is fundamental for engineers and technicians involved in designing, installing, and maintaining industrial piping systems. This knowledge helps in making informed decisions that ensure the safety and efficiency of the operations.

Types of Stud Bolts

Stud bolts are crucial for maintaining the structural integrity of pipe flange connections, with various types designed for specific needs.

Fully Threaded Stud Bolts

Fully threaded stud bolts are threaded along their entire length. This design allows nuts to be tightened on both ends, ensuring an even distribution of force across the connection. Fully threaded studs are commonly used in high-pressure flange connections where uniform tension and clamping force are crucial for maintaining a secure and leak-proof joint.

Tap End Stud Bolts

Tap end stud bolts have threads on one end only, while the unthreaded end is designed to be screwed into a tapped hole. This type of stud bolt is particularly useful for mounting equipment onto flanges, providing a stable and secure attachment point. Tap end studs are often found in applications requiring a robust connection between the flange and the mounted equipment.

Double-End Stud Bolts

Double-end stud bolts feature threads on both ends but lack a head. They are essential for applications requiring precise torque and clamping force. Double-end studs are commonly used in flange connections that demand high precision and reliable performance under varying operational conditions.

Partially Threaded Stud Bolts

Partially threaded stud bolts have threads on part of their length, with the remainder being smooth. This design enhances strength and resistance to fatigue, making them ideal for high-stress applications.

Materials for Stud Bolts

Stud bolts are manufactured from various materials to accommodate different environmental conditions and mechanical requirements. The choice of material impacts the bolt’s durability, corrosion resistance, and

• Carbon Steel: Known for its durability and mechanical strength, carbon steel is often used in general-purpose flanges.
• Stainless Steel: Offers high corrosion resistance, making it suitable for environments exposed to chemicals or seawater.
• Alloy Steel: Provides high strength and temperature resistance, ideal for high-stress environments.

Thread Types and Standards

Stud bolts come with various thread profiles, each suited for different applications:

• UNC (Coarse Thread): Suitable for general applications due to its ease of assembly.
• UNF (Fine Thread): Preferred in applications requiring finer adjustments and higher precision.
• 8UN (High-Strength Applications): Used where high strength is a priority.

Compliance with standards such as ANSI/ASME B16.5, DIN 976, and ISO specifications is crucial to ensure the dimensions and material properties meet the required performance criteria.

Materials and Standards

Selecting the right materials for stud bolts is essential for their durability and effectiveness in industrial use. The primary materials used in manufacturing stud bolts include:

Stainless Steel

Stainless steel is widely used for stud bolts because it resists corrosion and offers strong mechanical properties. Common grades are:

• 304 Stainless Steel (ASTM A193 B8): Known for its good corrosion resistance and – 316 Stainless Steel (ASTM A193 B8M): Offers superior corrosion resistance, especially against chlorides and other harsh environments. It is ideal for marine and chemical processing applications.

Alloy Steel

Alloy steel is used for stud bolts that need to withstand high stress and elevated temperatures. Key grades include:

• ASTM A193 Grade B7: A chromium-molybdenum alloy steel known for its high tensile strength and durability at high temperatures. This material is commonly used in oil and gas, petrochemical, and power generation industries.

Carbon Steel

Carbon steel is preferred for its strength and affordability in less challenging conditions:

• ASTM A105: Typically used for general-purpose flanges, carbon steel provides adequate strength and hardness for many standard applications.

Standards and Specifications

Standards guarantee the quality, uniformity, and safety of stud bolts in industrial use. Some of the key standards include:

ASTM Standards

• ASTM A193: This specification covers alloy steel and stainless steel bolting materials for high-temperature or high-pressure service. It includes grades like B7, B8, and B8M.
• ASTM A320: Specifies alloy steel and stainless steel bolting materials for low-temperature service, ensuring they maintain their mechanical properties in cold environments.
• ASTM A194: Covers nuts made from carbon steel, alloy steel, and stainless steel for high-pressure or high-temperature service. It complements the ASTM A193 specification by providing the necessary nuts for stud bolts.

ASME Standards

• ASME B16.5: This standard provides the dimensions and material specifications for pipe flanges and flanged fittings. It includes guidelines for the number, size, and length of bolts required for various flange sizes and pressure ratings, ensuring compatibility and safety in piping systems.

Importance of Standards Compliance in Stud Bolts

Adhering to established standards is vital for several reasons:

• Safety: Ensures that the stud bolts can handle the specified loads, pressures, and temperatures without failing, which is essential for maintaining the integrity of the piping system.
• Interchangeability: Allows components from different manufacturers to be compatible, facilitating easier maintenance and replacement.
• Quality Assurance: Provides a benchmark for material properties and manufacturing processes, ensuring consistent and reliable performance across different batches of stud bolts.

Other Relevant Standards

In addition to ASTM and ASME standards, other organizations provide guidelines relevant to stud bolts, including:

• ISO Standards: International standards that ensure compatibility and performance across global markets.
• DIN Standards: German standards that specify dimensions, materials, and performance criteria for stud bolts used in various industrial applications.

Real-World Applications and Examples

Case Studies from Manufacturing and Construction

Manufacturing Industry

Stud bolts play a critical role in the manufacturing industry, particularly in the assembly and maintenance of heavy machinery. For example, stud bolts are essential for securing components like engines, compressors, and turbines in large-scale industrial equipment.

The use of fully threaded ASTM A193 Grade B7 stud bolts ensures uniform clamping force, crucial for maintaining the structural integrity and operational efficiency of high-pressure steam turbines. These stud bolts are chosen for their high tensile strength and ability to withstand the extreme temperatures and pressures encountered in steam turbine operations. The uniform tension provided by these stud bolts minimizes the risk of mechanical failures and ensures the safe and reliable operation of the turbines.

Construction Industry

In the construction industry, stud bolts are used to secure structural elements such as steel beams and columns. These bolts are vital for maintaining the stability and safety of steel structures, particularly in high-rise buildings and bridges. Alloy steel stud bolts, known for their high strength and resistance to environmental stress, are commonly used.

For example, in the construction of a steel-framed skyscraper, ASTM A325 and A490 high-strength stud bolts are used to connect the primary structural members. These stud bolts provide the necessary clamping force to withstand the dynamic loads and stresses imposed on the structure, ensuring its stability and longevity.

Examples from Oil and Gas Industry

The oil and gas industry relies heavily on stud bolts for the assembly and maintenance of piping systems, pressure vessels, and other critical infrastructure. Stud bolts are particularly important in high-pressure and high-temperature environments, where the integrity of flange connections is crucial for preventing leaks and ensuring operational safety.

High-Pressure Pipelines

In high-pressure natural gas pipelines, stud bolts secure the flanges connecting different pipeline sections. The choice of material, such as ASTM A193 B7 stud bolts, is critical due to the harsh operating conditions. These stud bolts offer excellent mechanical properties and resistance to hydrogen embrittlement, which is essential for maintaining the integrity of the pipeline.

Offshore Platforms

Offshore oil platforms operate in some of the most challenging environments, with exposure to saltwater, high winds, and extreme temperatures. Stainless steel stud bolts, such as ASTM A193 B8M, are commonly used in these applications due to their superior corrosion resistance. These stud bolts are essential for securing flanges, valves, and other components, ensuring the platform’s structural integrity and operational reliability.

Comparative Analysis of Different Materials in Real-World Scenarios

Stainless Steel vs. Alloy Steel

When comparing stainless steel and alloy steel stud bolts, it is important to consider the specific requirements of the application. Stainless steel stud bolts, such as ASTM A193 B8 and B8M, are preferred for their excellent corrosion resistance, making them ideal for environments exposed to chemicals or seawater. In contrast, alloy steel stud bolts, such as ASTM A193 B7, offer higher tensile strength and are better suited for high-pressure and high-temperature applications.

For example, in a petrochemical plant where exposure to corrosive chemicals is a concern, stainless steel stud bolts would be the material of choice to prevent corrosion-related failures. On the other hand, in a high-pressure steam line within the same plant, alloy steel stud bolts would be preferred for their ability to withstand the high operational stresses.

Carbon Steel Applications

Carbon steel stud bolts, like ASTM A105, are often chosen for less demanding, cost-effective applications. These stud bolts provide adequate strength and durability for general-purpose flange connections in low to moderate pressure and temperature environments. For instance, in municipal water treatment plants, carbon steel stud bolts are commonly used to secure flanges in water pipelines, offering a balance between performance and cost.

By understanding the specific needs of each application, engineers and technicians can make informed decisions to ensure the safety and reliability of their piping systems and equipment.

Selecting the Right Stud Bolt

Criteria for Selecting Stud Bolts

Choosing the appropriate stud bolt for a specific application involves several key criteria that ensure the bolt will perform adequately under the given conditions. These criteria include environmental conditions, load requirements, compatibility with pipe flanges, and the materials used.

Environmental Conditions

The environment in which the stud bolt will be used greatly affects the selection process. Factors to consider include:

• Corrosion Resistance: For applications in corrosive environments, such as chemical plants or marine settings, materials like stainless steel (e.g., ASTM A193 B8, B8M) are preferred due to their superior resistance to rust and corrosion.
• Temperature: High-temperature applications, such as those found in power plants or petrochemical facilities, require stud bolts made from materials that can withstand thermal expansion and maintain mechanical integrity. Alloy steels like ASTM A193 B7 are well-suited for these conditions.
• Humidity and Exposure to Elements: In environments with high humidity or exposure to harsh elements, materials with excellent weather resistance, such as certain grades of stainless steel, should be selected to prevent degradation over time.

Load Requirements

Understanding the load requirements is crucial for selecting the right stud bolt. Key considerations include:

• Tensile Strength: The stud bolt must be strong enough to handle the operational loads without breaking.
• Shear and Fatigue Resistance: In applications where the bolts are subjected to cyclic loads or shear forces, materials with high fatigue resistance, such as alloy steels, are necessary to ensure longevity and safety.
• Clamping Force: The bolt must provide adequate clamping force to maintain the integrity of the flange connection. Fully threaded stud bolts are often used in applications requiring uniform clamping force across the connection.

Compatibility with Pipe Flanges

Making sure the stud bolt fits with the pipe flanges is crucial for a secure connection. Consider the following:

• Flange Size and Pressure Class: The size and pressure class of the flange determine the required dimensions and strength of the stud bolt. Standards such as ASME B16.5 provide guidelines on the appropriate bolt sizes and materials based on flange specifications.
• Gasket Material: The type of gasket used in the flange connection can influence the choice of stud bolt material and design, as the bolt must apply the correct amount of pressure to create a reliable seal without damaging the gasket.

Step-by-Step Guide to Stud Bolt Selection

Step 1: Identify Application Requirements

Begin by identifying the specific requirements of your application, including the operational environment, load conditions, and flange specifications. This information will guide your selection process and ensure the chosen stud bolt meets all necessary criteria.

Step 2: Choose the Appropriate Material

Select a material that can withstand the environmental conditions and load requirements. For instance, use stainless steel for corrosive environments and alloy steel for high-temperature applications. Refer to relevant ASTM standards for guidance on material properties.

Step 3: Determine the Correct Size and Thread Type

Based on the flange size and pressure class, determine the appropriate length, diameter, and thread type of the stud bolt. Ensure the bolt size conforms to standards such as ASME B16.5 to guarantee compatibility and safety.

Step 4: Verify Standards Compliance

Ensure the selected stud bolt complies with applicable standards, such as ASTM A193 for high-temperature service or ASTM A320 for low-temperature service. Compliance with these standards ensures the bolt’s reliability and performance.

Step 5: Consider Installation Practices

Plan for proper installation practices, including the use of calibrated torque wrenches and following a specific tightening sequence. Proper installation is critical to achieving the desired clamping force and maintaining the integrity of the flange connection.

Step 6: Conduct Regular Maintenance and Inspection

Regularly check the installed stud bolts for wear, rust, or looseness. Routine maintenance helps prevent failures and extends the service life of the bolts, ensuring ongoing safety and reliability of the piping system.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What type of stud bolt is used for pipe flanges?

Stud bolts used for pipe flanges are typically either fully threaded or tap end. Fully threaded stud bolts have threads along their entire length, making them suitable for applications where nuts are required on both ends, providing a secure and tight connection. Tap end stud bolts have threads on one end and a plain shank on the other, often used in flanges where the bolt is screwed into a tapped hole. The choice between these types depends on the specific requirements of the flange connection, including the need for torque and clamping force. Materials such as carbon steel, stainless steel, and alloy steel are commonly used to manufacture these stud bolts, ensuring they meet the demands of various industrial environments.

How are stud bolts selected for different applications?

Selecting stud bolts for different applications involves considering several key factors to ensure optimal performance and safety. Firstly, the material of the stud bolt is crucial. Common materials include carbon steel, stainless steel, and alloy steel, each suited for specific environments and conditions. For instance, stainless steel is preferred for its corrosion resistance in chemical or marine environments, while alloy steel is chosen for high-temperature and high-strength applications, such as in petrochemical plants.

Thread type and pitch are also important; coarse threads (UNC) are typically used in flange connections for their ease of assembly and strength, whereas fine threads (UNF) provide better resistance to vibration. The length and thread engagement of the stud bolt must be sufficient to secure nuts properly, leaving a few threads exposed to prevent corrosion.

Environmental conditions, such as humidity, corrosion, and temperature, influence material selection. Additionally, the stud bolt must meet the required load-bearing capacity based on the operational pressures and tensile strength needed. Ensuring compatibility with the size of the pipe flange and adhering to industry standards like ASME B16.5 and ASTM specifications are essential for reliable and compliant connections. Regular maintenance, including torque application and thread cleaning, further ensures the integrity and longevity of the stud bolt connections.

What are the key standards for stud bolts in piping systems?

Key standards for stud bolts in piping systems primarily include material and thread specifications to ensure safety and compatibility. Notable material standards are ASTM A193, which covers alloy steel and stainless steel suitable for high-temperature and high-pressure applications, with common grades like B7 and B8. ASTM A320 focuses on low-temperature service, with the L7 grade being prevalent.

Thread standards are defined by ASME B1.1, specifying thread types such as UNC, UNF, and 8UN, with the 8UN series commonly used for high-strength applications. Additionally, ASME B16.5 and ASME B16.47 provide guidelines for the dimensions and lengths of stud bolts, ensuring they fit correctly with pipe flanges based on diameter and pressure class.

Compliance with these standards is essential for ensuring the reliability and integrity of flange connections in various industrial applications.

What are the benefits of using alloy steel stud bolts?

Alloy steel stud bolts offer several key benefits that make them highly suitable for use in pipe flanges and other industrial applications. Firstly, they provide superior tensile strength and durability, making them ideal for high-pressure and high-stress environments such as petrochemical plants and power generation facilities. The inclusion of elements like chromium and molybdenum enhances their structural integrity and ability to withstand extreme conditions.

Additionally, alloy steel stud bolts exhibit excellent corrosion resistance, protecting against rust and extending their lifespan even in environments with significant moisture and chemical exposure, such as the oil and gas industry. They also perform well under high temperatures, maintaining thermal stability and ensuring secure connections even under fluctuating thermal conditions.

Their versatility is another advantage, as alloy steel is suitable for cold forming, which enhances manufacturing efficiency and strength. This makes them an efficient choice for producing stud bolts. Moreover, their design allows for easy installation and removal, facilitating maintenance in demanding environments.

How do environmental conditions affect stud bolt selection?

Environmental conditions significantly impact the selection of stud bolts for pipe flanges. Temperature is a critical factor; high-temperature applications require materials like Inconel or stainless steel (e.g., ASTM A193 Grade B8 and B8M) due to their thermal resistance and strength retention, while low-temperature applications necessitate materials such as ASTM A320 Grade L7 for their ductility and strength in cold environments. Corrosive environments demand materials with high corrosion resistance, such as stainless steel (ASTM A193 Grade B8) and super duplex steel, and may also require protective coatings like electro zinc plating, PTFE, or hot-dip galvanizing to further enhance corrosion resistance. In vibratory conditions, fine threads (e.g., UNF) are preferred over coarse threads (e.g., UNC) due to their better vibration resistance. Additionally, regulatory compliance with standards like REACH and RoHS, and considerations for electrical conductivity or insulation, may influence the choice of materials and coatings. Ensuring compatibility with flange materials and adhering to design temperature and pressure requirements are also essential for selecting the appropriate stud bolts.
