Imagine a world where the durability and lifespan of metal components are significantly extended, reducing wear and tear in critical applications. This is the promise of surface hardening processes—a suite of techniques designed to enhance the hardness and performance of metal surfaces. If you’re looking to delve deeper into the nuances of these processes, you’re in the right place.

In this comprehensive guide, we will explore the five main types of surface hardening processes, each with unique benefits and applications. You’ll discover the differences between carburizing and nitriding, and learn which method is best suited for low-alloy steels. From technical specifications to process selection criteria, this article will equip you with the knowledge to make informed decisions about surface hardening.

Ready to uncover the secrets behind enhancing metal surfaces? Let’s dive into the comparative analysis and see which technique reigns supreme.

Comprehensive Guide to Surface Hardening Processes

Overview of Surface Hardening

Surface hardening is an essential metalworking process that enhances the wear resistance and surface hardness of metal parts while preserving their core ductility and toughness. The benefits of surface hardening include improved wear resistance, fatigue strength, and component lifespan, which are crucial for parts under high stress and friction.

Surface hardening aims to form a tough, wear-resistant exterior while keeping a softer, ductile core, ensuring the component endures surface wear and absorbs shocks without breaking. This combination is particularly beneficial for gears, bearings, and shafts.

Various surface hardening techniques are suited to different applications and materials. These can be categorized into diffusion methods and selective surface hardening methods.

Diffusion Methods

  1. Carburizing: This process introduces carbon into the surface layer of steel at high temperatures. The steel is heated in a carbon-rich environment, allowing carbon atoms to diffuse into the metal. Carburizing is suitable for components with complex shapes, such as gear teeth.
  2. Nitriding: Nitriding increases surface hardness and corrosion resistance without needing further quenching, making it perfect for precision parts. It involves diffusing nitrogen into the steel surface at lower temperatures compared to carburizing.

Selective Surface Hardening Methods

  1. Flame Hardening: An oxyacetylene flame heats the metal surface to its austenitizing temperature, followed by rapid quenching. Flame hardening is suitable for large components and parts with simple geometries.
  2. Induction Hardening: Electromagnetic fields rapidly heat specific areas of a component. This method allows for precise control over the hardening depth and is widely used in high-volume production of automotive parts.
  3. Laser Hardening: Laser beams provide concentrated heat, creating very hard surface layers with minimal thermal distortion. Laser hardening is effective for intricate or thin-walled components.
  4. Electron Beam Hardening: Similar to laser hardening, this method uses electron beams in a vacuum chamber to achieve high precision in surface hardening. It is often used for specialized applications in the aerospace industry.

Each surface hardening method has unique advantages and limitations. Carburizing is cost-effective and suitable for complex shapes but requires high temperatures and post-treatment. Nitriding provides excellent surface hardness and corrosion resistance, operates at lower temperatures, but is slower than carburizing. Flame hardening is simple and cost-efficient for large parts but offers less precise control over hardening depth. Induction hardening provides precise control and rapid processing, ideal for high-volume production, but requires specialized equipment. Laser hardening offers high precision and minimal distortion, suitable for small or complex parts but can be expensive. Electron beam hardening is extremely precise, best for aerospace applications, but requires a vacuum environment and is costly.

The choice of surface hardening technique also depends on the material of the component. For instance, low-carbon steels are well-suited for carburizing, while alloy steels are more compatible with induction hardening. Understanding the material properties and the desired performance characteristics is crucial in selecting the appropriate hardening method.

It’s important to consider both cost and practicality when choosing a surface hardening method. Techniques like flame and induction hardening are cost-effective for large batches, while laser and electron beam hardening are more suitable for high-precision, niche applications. Additionally, factors such as production volume, component geometry, and required hardness levels play a significant role in the decision-making process.

Types of Surface Hardening Processes

Case Hardening

Case hardening enhances the surface of a metal component by infusing it with elements like carbon or nitrogen. This results in a hard, wear-resistant surface while maintaining a ductile core. Common case hardening processes include:

Carburizing

Carburizing introduces carbon into the surface of low-carbon steel by heating the metal in a carbon-rich environment at temperatures between 850°C and 950°C. Once the desired carbon depth is achieved, the steel is quenched to form a hardened case. Carburizing is ideal for parts such as gears and camshafts due to its ability to create a hard, wear-resistant surface.

Nitriding

Nitriding involves diffusing nitrogen into the surface of steel at lower temperatures, typically around 500°C to 550°C. This process increases surface hardness and corrosion resistance without quenching, making it ideal for precision parts like crankshafts and valves. Nitriding is performed in a controlled atmosphere of ammonia gas or plasma.

Carbonitriding

Carbonitriding is a hybrid process that introduces both carbon and nitrogen into the steel surface. Conducted at temperatures between 760°C and 870°C, this method provides a hard, wear-resistant case with improved toughness compared to carburizing. Carbonitriding is used for small parts like screws and fasteners that require enhanced wear resistance.

Cyaniding

Cyaniding involves immersing steel parts in a molten cyanide salt bath at temperatures between 760°C and 870°C. The process introduces both carbon and nitrogen into the surface, resulting in a hard, wear-resistant layer. Cyaniding is a fast process, typically completed within 30 minutes, making it suitable for small parts like gears and pins.

Selective Surface Hardening

Selective surface hardening techniques heat the metal surface to high temperatures without altering its chemical composition. These methods are typically used for components that require localized hardening.

Flame Hardening

Flame hardening uses an oxyacetylene or oxyhydrogen torch to heat the metal surface to its austenitizing temperature. The heated area is quickly quenched to create a hard, wear-resistant layer. Flame hardening is suitable for large components such as machine beds and railway tracks due to its simplicity and cost-effectiveness.

Induction Hardening

Induction hardening employs electromagnetic induction to heat the surface of the metal. The process involves passing the component through an induction coil, which generates eddy currents and rapidly heats the surface. After heating, the part is quenched to form a hard surface layer. Induction hardening provides precise control over the hardening depth and is widely used in the automotive industry for parts like drive shafts and gear teeth.

Laser Hardening

Laser hardening uses a high-powered laser to heat the surface of the metal. This localized heating offers precise control, making laser hardening perfect for small or intricate parts. The process produces minimal thermal distortion and is often used for components such as cutting tools and medical devices.

Electron Beam Hardening

Electron beam hardening is similar to laser hardening but uses an electron beam instead of a laser. The process occurs in a vacuum chamber, providing high precision and control over the hardened area. Electron beam hardening is commonly used in the aerospace industry for specialized components requiring exact hardening specifications.

Key Considerations

When selecting a surface hardening process, it is crucial to consider factors such as material type, desired hardness, depth of hardening, and precision requirements. Each method offers unique advantages and limitations, making it essential to match the process to the specific application and material properties.

Comparative Analysis of Surface Hardening Methods

Nitriding

Nitriding is a surface hardening process where metal is heated in a nitrogen-rich environment, typically using ammonia gas. This forms hard nitrides on the surface, improving wear and corrosion resistance. One of the key benefits of nitriding is that it causes minimal distortion to the component, making it suitable for precision parts such as gears and engine components.

Carburizing

Carburizing diffuses carbon into the surface of low-carbon steel by heating it in a carbon-rich environment. This creates a hard, high-carbon surface that enhances wear resistance, fatigue strength, and toughness, making it ideal for automotive parts like gears and axles.

Flame Hardening

Flame hardening uses a direct flame to heat the material’s surface to its austenitizing temperature, followed by rapid quenching. It is cost-effective for large surfaces and suitable for components like engine blocks and large machine parts.

Induction Hardening

Induction hardening uses electromagnetic induction to quickly heat the surface, followed by quenching to form a hardened layer. Known for its speed and minimal distortion, it’s perfect for parts with complex shapes like shafts and gears, especially in high-volume production.

Laser Surface Hardening

Laser surface hardening utilizes a high-intensity laser beam to selectively heat the surface of the material, followed by rapid cooling. This technique offers precise control over the hardening process and minimal thermal distortion, making it suitable for intricate or precision components. Laser hardening is commonly used for cutting tools, medical devices, and other components requiring exact hardening specifications.

Plasma Nitriding

Plasma nitriding is a variation of nitriding that uses plasma to introduce nitrogen into the material’s surface. This process enhances wear and corrosion resistance while offering better control over the hardening process. Plasma nitriding is often used in aerospace, automotive, and medical industries where high-performance components are required.

Electron Beam Surface Hardening

Electron beam surface hardening involves using an electron beam to heat the surface of the material in a vacuum chamber, creating a hardened layer. This method provides improved wear resistance and fatigue strength with minimal distortion. Electron beam hardening is suitable for high-tech applications, particularly in the aerospace industry, where precise surface hardening is necessary.

Friction Stir Processing

Friction stir processing is an emerging technique that uses a rotating tool to generate friction and heat, thereby hardening the surface. This method improves mechanical properties with minimal thermal distortion. Although still experimental, friction stir processing shows potential in advanced materials processing and could be beneficial for future applications.

Key Differences and Applications

Method Process Advantages Applications
Nitriding Nitrogen diffusion Wear resistance, minimal distortion Gears, engine parts
Carburizing Carbon diffusion High surface hardness, fatigue strength Automotive parts
Flame Hardening Flame heating, quenching Economical for large surfaces Engine blocks, large components
Induction Hardening Electromagnetic heating Fast, minimal distortion, complex shapes Shafts, gears
Laser Hardening Laser heating, cooling Precise, minimal distortion Precision components
Plasma Nitriding Plasma nitrogen diffusion Improved wear and corrosion resistance Aerospace, automotive
Electron Beam Hardening Electron beam heating Improved wear resistance, minimal distortion Aerospace, high-tech
Friction Stir Processing Rotating tool friction Mechanical property improvement, minimal thermal distortion Experimental, advanced materials

Technical Specifications and Considerations

Different materials react differently to surface hardening methods. For instance, low-carbon steels are ideal for carburizing, significantly enhancing their surface hardness by introducing carbon. Conversely, alloy steels, which contain elements like chromium, molybdenum, and vanadium, are better suited for nitriding due to their ability to form stable nitrides that improve surface hardness and wear resistance. Understanding the material composition and its interaction with the hardening process is essential to achieve optimal results.

Heat Treatment Temperatures

The temperature at which heat treatment is conducted plays a crucial role in surface hardening. Each method has specific temperature requirements to achieve the desired hardness. Carburizing typically occurs between 850°C and 950°C, allowing carbon to diffuse into the steel surface. Nitriding is conducted at lower temperatures, around 500°C to 550°C, forming hard nitrides without causing significant distortion. Flame hardening uses an oxyacetylene or oxyhydrogen flame to heat the surface to its austenitizing temperature, usually between 850°C and 900°C, followed by rapid quenching. Induction hardening involves rapidly heating the surface using electromagnetic induction, often reaching temperatures of 800°C to 900°C, then quenching immediately. Laser hardening utilizes a high-energy laser to heat the surface precisely, typically at temperatures around 900°C to 1400°C, depending on the material.

Depth of Hardening

The thickness of the hardened surface layer, called case depth, is crucial in surface hardening. It determines the thickness of the hard, wear-resistant surface layer and varies depending on the method used. Carburizing can achieve case depths ranging from 0.5 mm to 2.5 mm, making it suitable for components requiring substantial surface hardness. Nitriding produces shallower case depths, typically between 0.1 mm and 0.6 mm, but provides excellent hardness and wear resistance. Flame hardening can achieve depths between 1 mm and 6 mm by adjusting the flame intensity and duration. Induction hardening offers precise control over case depth, usually ranging from 0.5 mm to 5 mm, making it ideal for parts with specific hardening requirements. Laser hardening provides very precise control over the depth of hardening, typically achieving depths between 0.1 mm and 1 mm, suitable for fine and intricate components.

Residual Stress and Cost-Effectiveness

Surface hardening processes often introduce residual stresses into the material, which can enhance or impair the component’s performance. Compressive residual stresses are generally beneficial as they improve fatigue resistance and reduce the risk of crack initiation. Carburizing can introduce significant compressive stresses due to the volume expansion associated with carbon diffusion and subsequent quenching. Nitriding generates compressive stresses without quenching, resulting in minimal distortion and improved fatigue strength. Flame hardening’s rapid heating and cooling cycle can induce compressive stresses in the hardened layer. Induction hardening can introduce compressive stresses due to rapid surface heating and cooling. Laser hardening’s controlled and localized heating minimizes thermal distortion and introduces beneficial compressive stresses.

The cost-effectiveness of a surface hardening process depends on factors such as equipment requirements, process duration, and the need for additional treatments. Carburizing is generally cost-effective for large batches, but the high temperatures and extended processing times can increase operational costs. Nitriding, while slower than carburizing, can be more cost-effective for precision parts due to its lower temperature and minimal distortion. Flame hardening is economical for large components and simple geometries, but less precise control over hardening depth can be a limitation. Induction hardening has high initial equipment costs but is very efficient for high-volume production with precise control over hardening. Laser hardening is typically more expensive due to advanced equipment and high energy consumption, but offers unparalleled precision for small or intricate parts.

Environmental Impact

Different hardening methods affect the environment in terms of energy use, emissions, and waste. Carburizing has high energy consumption and potential emissions from carbon-rich environments. Nitriding requires lower energy and produces fewer emissions, but handling ammonia gas requires careful management. Flame hardening uses significant amounts of fuel gases, contributing to emissions. Induction hardening is more energy-efficient with minimal emissions, making it a greener option. Laser hardening, while having high energy consumption, reduces the overall environmental footprint through localized heating.

Geometric Complexity

The ability to harden components with complex geometries varies among different surface hardening processes. Carburizing is suitable for complex shapes as the process uniformly diffuses carbon into the surface. Nitriding is also effective for intricate geometries, providing uniform hardness without quenching. Flame hardening is best for simpler geometries due to the manual control of the flame. Induction hardening is ideal for complex shapes, offering precise control over the heated areas. Laser hardening excels for small or intricate parts due to precise, localized heating.

Health and Safety

Safety considerations are paramount when selecting a surface hardening process. Carburizing involves high temperatures and potentially toxic fumes from carbon sources, requiring robust ventilation and protective equipment. Nitriding necessitates stringent safety protocols to prevent exposure to ammonia gas. Flame hardening poses fire hazards from open flames and high temperatures, necessitating careful handling. Induction hardening involves high-frequency electromagnetic fields that require shielding to protect operators. Laser hardening requires protective eyewear and controlled environments to prevent accidental exposure to high-energy lasers.

Process Selection Criteria

Material Compatibility

Choosing the right surface hardening process depends greatly on the material’s compatibility. Different metals and alloys respond uniquely to various hardening methods. For instance, low-carbon steels are ideal candidates for carburizing due to their ability to absorb carbon and enhance surface hardness effectively. Alloy steels, which contain elements like chromium and molybdenum, perform better with nitriding processes, as they form stable nitrides that significantly improve surface hardness and wear resistance. Understanding the material’s characteristics and its interaction with the hardening process is crucial for optimal results.

Desired Hardness and Depth

The required hardness level and depth of the hardened layer are crucial factors, with hardness measured using scales like Rockwell or Vickers, and different applications needing varying levels. For example, laser hardening provides precise control over the hardness depth, making it suitable for applications requiring exact specifications. In contrast, carburizing can achieve deeper case depths, typically ranging from 0.5 mm to 2.5 mm, making it ideal for components needing substantial surface hardness. The depth of hardening impacts the component’s durability and performance under stress.

Geometric Complexity

Induction hardening works well for parts with complex shapes because it can heat specific areas precisely. Components like gear teeth and camshafts benefit from this method as it allows precise control over the hardened areas. Flame hardening, however, is more suitable for simpler geometries and larger surfaces, such as machine beds and railway tracks, due to its straightforward application.

Production Volume and Cost-Effectiveness

Carburizing is cost-effective for large-scale production, even though it uses a lot of energy and takes longer. Induction hardening, while requiring specialized equipment, offers efficiency and speed for high-volume production, making it economically viable for automotive components like drive shafts and gears. Laser hardening, although more expensive, provides unparalleled precision for small or intricate parts, justifying its cost in specialized applications.

Surface Preparation

Proper surface preparation is essential for achieving consistent and high-quality hardening results. Cleaning and roughening the surface enhance the diffusion of hardening elements like carbon or nitrogen. For processes such as carburizing and nitriding, a clean surface ensures uniform element diffusion and adhesion, resulting in a durable hardened layer. Surface preparation steps may include degreasing, sandblasting, or chemical cleaning, depending on the chosen hardening method.

Environmental Impact

Environmental considerations are increasingly important in process selection. Methods like induction hardening and laser hardening are more energy-efficient and produce fewer emissions compared to traditional techniques like carburizing and flame hardening. The use of ammonia in nitriding requires careful management to prevent environmental contamination. Selecting a process that balances performance with environmental sustainability can contribute to greener manufacturing practices.

Safety Considerations

High-temperature methods like carburizing and flame hardening pose risks such as burns and toxic fume exposure, necessitating robust safety measures to protect workers and maintain a safe production environment. Induction hardening requires shielding to protect operators from electromagnetic fields, while laser hardening demands protective eyewear and controlled environments to prevent accidental exposure. Ensuring safety compliance is critical to protecting workers and maintaining a safe production environment.

Step-by-Step Procedures for Common Hardening Processes

Carburizing Process

Carburizing is a common case hardening process that involves the diffusion of carbon into the surface layer of steel to enhance its hardness. Here is a step-by-step procedure for carburizing:

Step 1: Preparation

  • Material Selection: Choose low-carbon steel or iron as the base material.
  • Surface Cleaning: Clean the surface of the metal thoroughly to remove any contaminants that could interfere with carbon diffusion.

Step 2: Heating

  • Furnace Setup: Place the steel components in a furnace capable of reaching high temperatures.
  • Carbon-Rich Environment: Introduce materials like charcoal or carbon monoxide gas into the furnace to create a carbon-rich atmosphere.
  • Temperature Control: Heat the steel to temperatures between 850°C and 950°C. Maintain these temperatures for a specified duration to allow carbon atoms to diffuse into the surface layer.

Step 3: Quenching

  • Rapid Cooling: After reaching the desired carbon depth, quickly cool the steel in water or oil to form a hard, wear-resistant layer called martensite.
  • Post-Quenching Treatment: Perform tempering if needed to reduce brittleness and achieve the desired mechanical properties.

Nitriding Process

Nitriding enhances the surface hardness of steel by diffusing nitrogen into the metal. Here is a step-by-step procedure for nitriding:

Step 1: Preparation

  • Material Selection: Select alloy steel containing elements such as aluminum, chromium, or molybdenum.
  • Surface Cleaning: Clean the metal surface to ensure efficient nitrogen diffusion.

Step 2: Heating

  • Controlled Atmosphere: Place the steel in a furnace with an ammonia gas atmosphere.
  • Temperature Control: Heat the steel to temperatures between 500°C and 550°C. Maintain these temperatures for an extended period, typically 10 to 60 hours, depending on the desired nitriding depth.

Step 3: Cooling

  • Gradual Cooling: Let the steel cool slowly in the furnace to prevent distortion. This process forms a hard nitrided layer without the need for quenching.

Induction Hardening Process

Induction hardening uses electromagnetic induction to rapidly heat the surface of metal components. Here is a step-by-step procedure for induction hardening:

Step 1: Preparation

  • Material Selection: Choose steel or iron components suitable for induction hardening.
  • Surface Cleaning: Clean the surface to remove any impurities.

Step 2: Induction Heating

  • Induction Coil Setup: Place the component inside an induction coil.
  • Electromagnetic Field: Generate an electromagnetic field to induce eddy currents, rapidly heating the surface to the austenitizing temperature (800°C to 900°C).
  • Heating Duration: Control the heating duration to achieve the desired hardening depth.

Step 3: Quenching

  • Rapid Cooling: Immediately quench the heated surface with water or a polymer solution to form a hard martensitic layer.
  • Post-Quenching Treatment: Perform tempering if needed to reduce brittleness and achieve the desired mechanical properties.

Flame Hardening Process

Flame hardening involves heating the metal surface with a direct flame followed by rapid quenching. Here is a step-by-step procedure for flame hardening:

Step 1: Preparation

  • Material Selection: Select steel components that require localized hardening.
  • Surface Cleaning: Clean the surface to ensure effective heating.

Step 2: Flame Heating

  • Torch Setup: Use an oxyacetylene or oxyhydrogen torch to heat the metal surface.
  • Heating Control: Heat the surface to the austenitizing temperature (850°C to 900°C) by adjusting the flame intensity and movement.

Step 3: Quenching

  • Rapid Cooling: Immediately quench the heated area with water or a water-based polymer solution to form a hard, wear-resistant surface layer.
  • Post-Quenching Treatment: Perform tempering if needed to reduce brittleness and achieve the desired mechanical properties.

Laser Hardening Process

Laser hardening uses a high-powered laser to precisely heat the metal surface. Here is a step-by-step procedure for laser hardening:

Step 1: Preparation

  • Material Selection: Select components requiring precise hardening, such as cutting tools or medical devices.
  • Surface Cleaning: Clean the surface to ensure optimal laser interaction.

Step 2: Laser Heating

  • Laser Setup: Position the component under the laser.
  • Controlled Heating: Heat the surface with the laser to temperatures between 900°C and 1400°C, based on the material.
  • Heating Duration: Adjust the laser parameters to control the heating duration and depth.

Step 3: Cooling

  • Rapid Cooling: Allow the surface to cool rapidly, forming a hard layer with minimal thermal distortion.
  • Post-Heating Treatment: Perform tempering if needed to fine-tune the hardness and mechanical properties.

Post-Hardening Treatments

Key Post-Hardening Treatments

Post-hardening treatments are essential steps to optimize the mechanical properties of metals, particularly steel, after surface hardening. These treatments address brittleness and residual stresses induced by hardening while tailoring the balance between hardness, toughness, and strength.

Tempering

Process:
Tempering follows the quenching (rapid cooling) of steel, which results in a very hard but brittle martensitic structure. The tempered steel is reheated to a temperature below its critical transformation point (usually between 150°C to 700°C), held at this temperature for a specific time, and then cooled at a controlled rate.

Purpose:

  • Relieves internal stresses caused by quenching.
  • Reduces brittleness while preserving a significant portion of the hardness.
  • Improves toughness and ductility by modifying the microstructure (e.g., converting brittle martensite into tempered martensite or bainite).
  • Achieves a tailored balance of hardness and toughness suitable for the application.

Applications:
Tempering is essential for tools, gears, and components subjected to impact or cyclic loading to prevent fracture despite their hardened surfaces.

Precipitation Hardening (Aging)

Process:
This process heats the alloy to a high temperature to form fine precipitates within its microstructure, then cools it slowly and ages it at lower temperatures. This process is often applied to specific alloys (e.g., some stainless steels and aluminum alloys) that respond well to precipitate formation.

Purpose:

  • Enhances strength and hardness via the dispersion of precipitates that hinder dislocation movement.
  • Improves mechanical properties without drastically reducing ductility.
  • Alters the crystalline structure to optimize performance for high-stress applications.

Applications:
Common in aerospace and high-performance engineering alloys where precise strength and toughness levels are critical.

Stress Relieving

Process:
This mild heat treatment is done at lower temperatures than tempering (550°C to 650°C), held for several hours, and then cooled slowly.

Purpose:

  • Reduces residual stresses generated from hardening or machining processes without significant changes in hardness.
  • Prevents distortion and cracking during subsequent manufacturing or service.

Applications:
Used in large or complex components where dimensional stability is crucial.

Surface Post-Treatments After Case Hardening

In surface hardening techniques like carburizing, nitriding, induction hardening, or flame hardening, post-treatments help refine the surface and subsurface properties:

  • Tempering after Induction or Flame Hardening:
    Reduces brittleness in the hardened surface layer to improve wear resistance and fatigue life without compromising the core toughness.
  • Stress Relieving after Carburizing:
    Minimizes distortion and residual stresses that arise from the carbon-enriched surface layer’s transformation.

These post-treatments ensure the hardened surface stays wear-resistant while the core remains tough and ductile.

Treatment Process Description Purpose Common Uses
Tempering Reheat quenched steel below critical temperature Reduce brittleness, improve toughness Tools, gears, wear-resistant components
Precipitation Hardening Heat to form precipitates, controlled aging Increase strength and hardness Aerospace alloys, high-performance materials
Stress Relieving Mild heating and slow cooling Reduce residual stresses Large or precision components
Post-Treatment for Case Hardening Tempering or stress relief after surface hardening Balance surface hardness and core toughness Carburized, nitrided, induction/flame hardened parts

Frequently Asked Questions

Below are answers to some frequently asked questions:

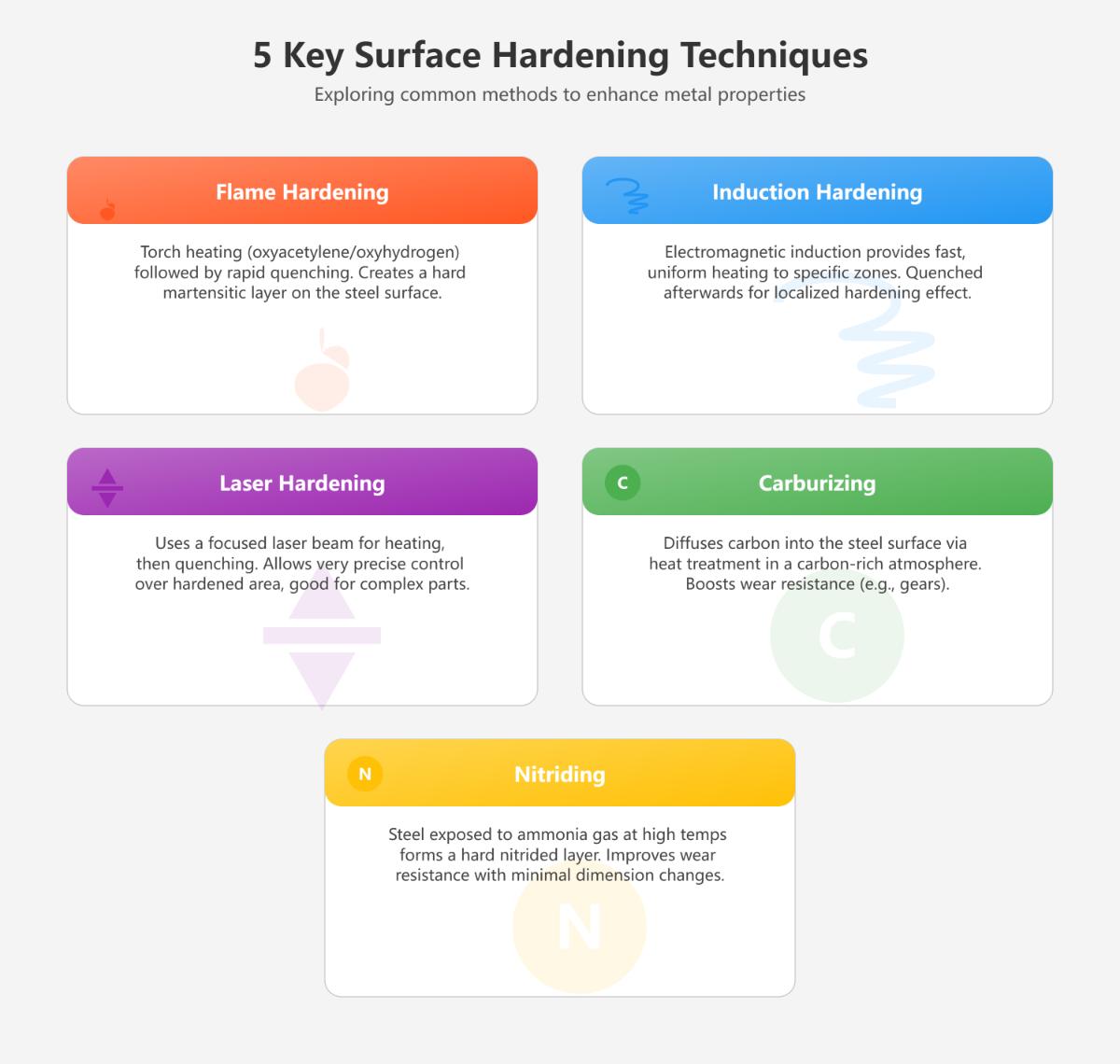

What are the 5 main types of surface hardening processes?

The five main types of surface hardening processes are:

  1. Flame Hardening: This process involves heating the steel surface with an oxyacetylene or oxyhydrogen torch followed by rapid quenching, creating a hard martensitic layer.
  2. Induction Hardening: Utilizing electromagnetic induction, this method quickly and uniformly heats specific areas of metal parts, followed by quenching to achieve localized hardening.
  3. Laser Hardening: A laser beam is used to heat and subsequently quench the metal surface, allowing precise control over the hardened area, suitable for complex geometries.
  4. Carburizing: This process adds carbon to the surface layer of steel through heat treatment in a carbon-rich environment, enhancing wear resistance and making it suitable for components like gears.
  5. Nitriding: By exposing the steel surface to an ammonia atmosphere at high temperatures, a hard nitrided layer is formed, improving wear resistance without significant dimensional changes.

How does carburizing differ from nitriding in surface hardening?

Carburizing and nitriding are both surface hardening processes used to enhance the durability and wear resistance of steel components, but they differ in their mechanisms, temperatures, and outcomes. Carburizing involves heating low-carbon steel in a carbon-rich environment at high temperatures (850°C to 950°C), allowing carbon atoms to diffuse into the steel surface. This process creates a deep, hard case that is ideal for parts requiring high load-bearing capacity, such as gears and heavy machinery components. Carburizing often requires additional heat treatments like quenching to achieve optimal hardness.

Nitriding, on the other hand, introduces nitrogen into the steel surface at lower temperatures (500°C to 600°C). This process forms hard nitrides with alloying elements, resulting in excellent surface hardness (1000-1200 HV) and wear resistance without the need for quenching. However, the nitrided layer is thinner compared to carburized layers, making it suitable for applications that demand high wear resistance and minimal deformation, such as engine components and critical machinery parts. The choice between carburizing and nitriding depends on specific requirements like case depth, hardness, and application constraints.

Which surface hardening method is best for low-alloy steels?

For low-alloy steels, induction hardening is generally considered the best surface hardening method. Induction hardening rapidly heats the steel surface using an alternating current and then quickly quenches it to achieve the desired hardness. This method is efficient, clean, and cost-effective, making it highly suitable for low-alloy steels. It maintains the steel’s corrosion resistance, which is particularly beneficial for applications involving stainless steels. While other methods like carburizing, nitriding, and carbonitriding have their merits, induction hardening stands out for its speed and repeatability, providing a robust solution for enhancing surface durability and wear resistance without extensive processing times or distortion risks.

What are the advantages of laser hardening over traditional methods?

Laser hardening offers several significant advantages over traditional surface hardening methods such as flame and induction hardening. Firstly, laser hardening minimizes the risk of distortion and cracking. This process precisely targets the surface layer with a controlled laser beam, heating it rapidly and locally, allowing the surrounding material to act as a heat sink for self-quenching. This results in minimal thermal stresses and preserves the dimensional integrity of components.

Secondly, laser hardening provides high precision and control. The laser beam can be accurately focused and moved, enabling selective hardening of specific areas without affecting the entire part. This precision is particularly beneficial for small or intricate components with complex geometries.

Thirdly, laser hardening is compatible with complex and small components. Its non-contact nature allows for effective treatment of irregular shapes and three-dimensional surfaces, which traditional methods might find challenging.

Additionally, laser hardening reduces processing and post-processing costs. It eliminates the need for liquid quenching, reducing costs associated with quenching media and potential post-hardening machining.

Moreover, the rapid heating and cooling in laser hardening produce a fine-grained, tough martensitic microstructure, enhancing the wear resistance, fatigue life, and overall strength of the treated surface.

Lastly, laser hardening is environmentally friendly, as it does not require liquid quenching oils or salts, reducing environmental hazards and waste disposal issues.

These advantages make laser hardening a preferred choice in modern manufacturing for achieving high-quality, durable, and precisely hardened components.

How to measure case depth in surface hardening?

To measure case depth in surface hardening, you can use both destructive and non-destructive methods.

Destructive methods, such as cross-sectional hardness testing, involve cutting a specimen perpendicular to the hardened surface, polishing, and etching it to reveal the microstructure. Microhardness indentations are then performed from the surface inward to determine the effective case depth, which is the depth at which hardness drops to a predefined value (e.g., 50 HRC). Total case depth can be visually assessed or determined by the hardness gradient where the distinction between the hardened case and the core disappears.

Non-destructive techniques, such as Barkhausen Noise Analysis and Eddy Current Testing, measure changes in magnetic properties or conductivity variations to estimate the case depth. These methods are advantageous for continuous monitoring and avoiding damage to the component.

Proper specimen preparation and adherence to standards like ISO 2639 are crucial for accurate measurement. Emerging trends, including automated hardness scanners and machine learning integration, are improving measurement accuracy and efficiency in both destructive and non-destructive methods.

Don't forget, sharing is caring! : )
Request FREE Quote
Contact Form

You May Also Like
We picked them just for you. Keep reading and learn more!
Talk To An Expert
Contact Us
Our sales engineers are readily available to answer any of your questions and provide you with a prompt quote tailored to your needs.

Request a Custom Quote

Contact Form

Request A Custom Quote
Get a personalized quote tailored to your unique machining needs.
© 2025 Artizono. All rights reserved.
Get Free Quote
You will get our expert reply within 24 hours.
Contact Form
