Welding galvanized steel sheets can be a daunting task, but mastering this skill opens up a world of possibilities for various industrial applications. The primary challenge lies in the zinc coating, which, while offering excellent corrosion resistance, introduces complexities during the welding process. Are you curious about the best welding techniques for galvanized steel or how to effectively remove the zinc coating before you start? This comprehensive guide is tailored for intermediate welders, providing you with detailed insights into the most effective welding processes, including MIG, FCAW, stick, and TIG welding. We will also delve into the common issues encountered, such as welding spatter and puddle adhesion problems, and offer practical solutions to overcome them. By the end of this guide, you’ll have a robust understanding of how to tackle the unique challenges posed by galvanized steel, ensuring strong and reliable welds. Ready to dive in and refine your welding expertise? Let’s get started!
Understanding Galvanized Steel and Its Challenges
Challenges in Welding Galvanized Steel
Welding galvanized steel introduces several challenges primarily due to the presence of the zinc coating. These challenges must be addressed to ensure effective and safe welding practices.
Impact of Zinc Coating
Although the zinc coating enhances corrosion resistance, it creates several challenges during welding:
- Zinc Vaporization and Toxic Fumes: Zinc has a low melting point (419°C) and vaporizes at 907°C. During welding, the zinc coating vaporizes, producing zinc oxide fumes that are hazardous if inhaled. Proper ventilation, personal protective equipment (PPE), and post-weld treatments like zinc-rich primers or cold galvanizing compounds are essential to ensure safety and restore corrosion protection.
- Coating Degradation and Loss: The intense heat from welding can burn off the zinc coating near the weld zone, leaving the bare steel exposed to corrosion. Applying zinc-rich primers or cold galvanizing compounds after welding is necessary to restore corrosion protection.
- Weld Quality and Defects: Zinc can cause weld defects like porosity, inclusions, and weak joints. Vaporized zinc interferes with the shielding gas and molten pool stability, causing defects such as cracking or incomplete fusion. Careful control of welding parameters, such as using lower heat input or specialized welding processes, can help mitigate these issues.
- Thermal Expansion and Distortion: Differences in thermal expansion rates between steel and zinc can induce stresses or distortions, particularly in thin sheets. Proper fixture and heat management techniques are required to minimize these effects.
- Surface Preparation: Cleaning the weld area to remove contaminants and some zinc coating can enhance weld quality. This step necessitates re-coating the area afterward to restore corrosion protection.
Special Techniques Needed
To overcome the challenges associated with welding galvanized steel, specific techniques and precautions are required:
- Use of Appropriate Welding Techniques: MIG welding with inert or mixed shielding gases is often preferred for better control over zinc vaporization. TIG welding is less common due to its slower speed and higher heat input.
- Pre-Weld Preparation: Mechanical removal of the zinc coating along the weld joint (e.g., grinding or sanding) can reduce zinc vapor and improve weld penetration. This step necessitates re-coating the area afterward to restore corrosion protection.
- Post-Weld Treatments: Applying zinc-rich paints or cold galvanizing compounds on weld areas helps restore the protective barrier and prevent corrosion.
- Ventilation and PPE: Ensuring adequate ventilation and using respiratory protection are critical to mitigate exposure to zinc oxide fumes.
- Heat Control: Using lower amperage and faster speeds can reduce heat and zinc vaporization.
Selecting the Best Welding Process
MIG Welding
MIG (Metal Inert Gas) welding, also known as Gas Metal Arc Welding (GMAW), is a widely used method for welding galvanized steel due to its efficiency and simplicity.
Advantages
- High Speed and Efficiency: MIG welding is faster than many other welding methods, making it ideal for large-scale projects.
- Ease of Use: The process is relatively easy to learn and operate, making it accessible for both professionals and hobbyists.
- Cleaner Welds: When done correctly, MIG welding can produce clean welds with minimal spatter.
Disadvantages
- Spatter Issues: Incorrect settings or techniques can cause significant spatter, which can be problematic when welding galvanized steel.
- Sensitivity to Contaminants: MIG welding is sensitive to surface contaminants, including the zinc coating on galvanized steel, which can affect weld quality.
Step-by-Step Process
- Surface Preparation: Clean the weld area to remove contaminants and, if necessary, grind off the zinc coating to reduce zinc vaporization.
- Select Appropriate Settings: Adjust the welding machine settings according to the material thickness and desired weld penetration.
- Use Proper Shielding Gas: Employ a mixture of argon and CO2 to ensure optimal shielding and arc stability.
- Welding Technique: Keep a steady hand and consistent speed to avoid excessive heat, which can lead to zinc vaporization and weld defects.
Flux Core Arc Welding (FCAW)
FCAW is another effective method for welding galvanized steel, particularly in outdoor or drafty environments where shielding gas might be problematic.
Advantages
- Self-Shielding: FCAW uses a flux-cored wire that provides its own shielding, making it less sensitive to wind and outdoor conditions.
- Deep Penetration: This process offers good penetration, which is beneficial for thicker materials.
- Reduced Spatter: Compared to MIG welding, FCAW typically produces less spatter, leading to cleaner welds.
Disadvantages
- More Smoke and Fumes: FCAW can generate more smoke and fumes, which necessitates proper ventilation and safety measures.
- Slag Removal: The process leaves a slag layer that must be removed after welding, adding an extra step.
Step-by-Step Process
- Surface Preparation: Clean the weld area and consider grinding off the zinc coating in the weld zone.
- Adjust Machine Settings: Set the welding machine to the correct voltage and wire feed speed for the material thickness.
- Choose the Right Wire: Use a flux-cored wire suitable for galvanized steel to ensure proper shielding and penetration.
- Welding Technique: Apply a consistent weaving motion to distribute heat evenly and minimize zinc vaporization.
Stick Welding (6010/6012/6013 Rods)
Stick welding, or Shielded Metal Arc Welding (SMAW), is a versatile and widely used method that can be effective for galvanized steel with the right electrodes.
When to Use Stick Welding
- Field Repairs: Ideal for field repairs and situations where portability is essential.
- Thick Materials: Suitable for welding thicker sections of galvanized steel.
- Budget Constraints: Often more cost-effective due to lower equipment and material costs.
Techniques and Tips
- Electrode Selection: Use electrodes such as 6010, 6012, or 6013, which are known for their ability to handle contaminants and produce strong welds.
- Pre-Weld Preparation: Clean the weld area and remove as much zinc coating as possible to minimize fume production.
- Welding Technique: Use a whipping or weaving motion to control the weld pool and reduce heat concentration.
TIG Welding
TIG (Tungsten Inert Gas) welding, or Gas Tungsten Arc Welding (GTAW), is less commonly used for galvanized steel but can be effective for specific applications requiring precision.
Advantages
- Precision and Control: TIG welding offers superior control over the weld pool, making it ideal for detailed and intricate welds.
- Clean Welds: It produces high-quality, visually appealing welds with minimal spatter.
Disadvantages
- Slower Process: TIG welding is slower than other methods, which can be a drawback for large projects.
- Higher Skill Level: Requires more skill and experience to master, making it less accessible for beginners.
Step-by-Step Process
- Surface Preparation: Thoroughly clean the weld area and remove the zinc coating to prevent contamination.
- Set Up the TIG Welder: Adjust the machine settings for the material thickness and use a suitable tungsten electrode.
- Shielding Gas: Use pure argon or an argon-helium mix for proper shielding.
- Welding Technique: Maintain a steady hand and consistent torch angle to control the heat input and avoid overheating the zinc coating.
Preparing Galvanized Steel for Welding
Removing Zinc Coating
It’s essential to remove the zinc coating from galvanized steel before welding to avoid several problems. Zinc vaporizes at relatively low temperatures, creating toxic fumes and causing weld defects such as porosity and weak joints. Effective removal of the zinc coating ensures better weld quality and safety.
Methods for Zinc Coating Removal
Grinding is the most common and effective method. Use a 220-grit sandpaper or grinding wheel to remove the zinc coating from the weld area. Ensure thorough removal to prevent zinc vapor interference during welding. For large-scale operations, chemical stripping can be used. Specialized chemicals dissolve the zinc coating, leaving a clean surface ready for welding. Always follow safety guidelines when using chemicals.
Surface Preparation Techniques
After removing the zinc coating, clean the surface to get rid of any contaminants. Use a degreasing agent to eliminate oil, grease, and dirt. This step ensures a cleaner weld and reduces the risk of weld defects.
Proper ventilation is vital when welding galvanized steel. Zinc fumes can be harmful if inhaled. Ensure the workspace is well-ventilated and consider using fume extraction systems to minimize exposure.
Aligning and Clamping
Aligning the steel sheets correctly is vital for maintaining structural integrity. Ensure the sheets are properly positioned before welding.
Use clamps to secure the steel sheets in place. This reduces movement during welding and helps achieve a consistent weld.
Welding Methods and Techniques
MIG welding is preferred for galvanized steel due to its high-speed welds and good penetration. Use a mixture of argon and CO2 for optimal shielding and arc stability. Stick welding is versatile and effective for various thicknesses of steel, especially in outdoor environments. Use electrodes like 6012, 6013, or 7016, which have low silicon content to minimize the risk of weld metal cracking due to zinc penetration.
Welding Techniques
When using Stick welding, employ a whipping motion with the electrode. This ensures the zinc vapor is fully volatilized before proceeding with the weld.
Minimize heat input by using a short arc length and avoiding excessive weaving or multiple beads. This prevents damaging the adjacent coating and reduces the risk of weld defects.
In butt joints, use slightly wider gaps (up to 3/32 inch) or a 15-degree edge angle. This facilitates smoother welding and better penetration.
Ensuring Safety in Welding
Safety Basics
Welding galvanized steel requires strict safety measures because of the dangers associated with its zinc coating. Proper safety practices help prevent health risks and ensure high-quality welds.
Personal Protective Equipment (PPE)
Using appropriate PPE is mandatory to protect welders from harmful zinc fumes and physical hazards, including:
- Respiratory Protection: Use respirators to filter out zinc oxide fumes effectively. Choose respirators that meet OSHA standards for filtering particulates.
- Welding Helmets: Helmets with proper filters protect against UV radiation and flying debris. Make sure the helmet is suitable for the welding process you are using.
- Gloves and Protective Clothing: Wear flame-resistant gloves and clothing to shield against heat, splatter, and sparks. These should cover all exposed skin to minimize burn risks.
- Eye Protection: Safety goggles or glasses protect against flying particles and intense light. Ensure they fit well with the welding helmet.
Ventilation and Fume Extraction
Proper ventilation is essential to mitigate the inhalation of toxic zinc fumes produced during welding. Effective ventilation strategies include:
Importance of Proper Ventilation
Zinc oxide fumes can cause respiratory issues and metal fume fever. Ensuring adequate airflow and fume extraction significantly reduces these risks.
Types of Fume Extraction Systems
Various fume extraction systems help keep the welding environment safe:
- Local Exhaust Ventilation (LEV): LEV systems capture fumes directly at the source, preventing them from dispersing into the workspace. Ensure the LEV system is positioned correctly and is functioning efficiently.
- General Ventilation: Use fans and air movers to maintain a steady airflow throughout the welding area. This helps dilute and disperse fumes away from the welder.
- Portable Fume Extractors: These mobile units can be positioned close to the welding site to provide targeted extraction. They are useful for small-scale or temporary welding operations.
Handling Welding Spatter
Welding spatter can pose physical risks and affect weld quality. Implementing preventive measures and proper cleanup techniques is essential.
Preventive Measures
To minimize welding spatter, consider the following techniques:
- Adjust Welding Parameters: Set the correct voltage, amperage, and wire feed speed to reduce spatter. Use welding techniques that maintain a stable arc.
- Use Anti-Spatter Products: Apply anti-spatter sprays or gels to the workpiece and surrounding areas. These products prevent spatter from sticking and facilitate easier cleanup.
- Optimize Shielding Gas: Use the appropriate shielding gas mixture to stabilize the arc and reduce spatter. Commonly used gases include argon and CO2.
Cleanup Techniques
After welding, effective cleanup ensures a smooth and clean surface:
- Mechanical Removal: Use wire brushes, grinders, or chipping hammers to remove spatter. Ensure thorough cleaning to prevent any residual spatter from affecting the weld.
- Chemical Cleaners: Apply chemical cleaners designed to dissolve spatter. Follow safety guidelines when using these products to avoid harmful exposure.
- Post-Weld Inspection: Inspect the weld area for remaining spatter and defects, and address any issues immediately to maintain weld quality.
By adhering to these safety measures, welders can protect themselves from the hazards associated with welding galvanized steel and ensure high-quality welds. Proper use of PPE, effective ventilation, and careful handling of welding spatter are critical components of a safe welding environment.
Troubleshooting Common Issues
Common Issues in Welding Galvanized Steel Sheets
Welding galvanized steel sheets can be challenging because of the zinc coating. Understanding these issues and implementing effective troubleshooting strategies can significantly improve weld quality and safety.
Porosity and Inclusions
Zinc vaporizes during welding, causing porosity and inclusions that weaken the weld by forming bubbles in the weld pool.
- Troubleshooting: Remove the zinc coating from the welding area using grinding or chemical stripping methods to reduce porosity. Adjust the welding parameters, such as lowering heat input, to minimize zinc vaporization.
Lack of Fusion
Lack of fusion happens when the weld metal does not fully bond with the base metal. This issue often arises from an incorrect welding gun angle or not enough heat.
- Troubleshooting: Adjust the welding gun angle to ensure proper contact with the base metal. Increase the voltage or wire feed speed to provide adequate heat for full fusion.
Burn-Through
Burn-through, common with thin galvanized sheets, happens when too much heat causes the weld to penetrate through the base material.
- Troubleshooting: Reduce the voltage or wire feed speed and increase the travel speed to prevent excessive heat build-up. For thin materials, consider using a backing bar to support the weld and dissipate heat.
Excessive Spatter
Excessive spatter can be caused by improper shielding gas flow, dirty base materials, or incorrect weld parameter settings.
- Troubleshooting: Ensure the base materials are clean and free of contaminants. Adjust the shielding gas flow to the recommended settings and fine-tune the welding parameters to reduce spatter.
Health Risks
Welding galvanized steel releases harmful fumes like zinc oxide, which are dangerous if inhaled.
- Troubleshooting: Ensure proper ventilation in the welding area to reduce fume exposure. Use appropriate personal protective equipment (PPE), such as respirators, to protect against inhaling toxic fumes.
Best Practices for Troubleshooting
- Remove Zinc Coating: Where feasible, remove the zinc coating from the welding area to improve weld quality and reduce porosity. This may not always be practical for internal coatings but can significantly enhance weld integrity.
- Use Specialized Welding Techniques: Consider using self-shielded flux-cored wire or other techniques that can manage the zinc coating without removal. Ensure proper ventilation when using these methods.
- Adjust Welding Parameters: Fine-tune the welding gun angle, travel speed, and voltage/wire feed speed to achieve optimal weld quality and prevent defects like lack of fusion and burn-through.
- Ensure Proper Ventilation: Always weld in a well-ventilated area to minimize exposure to harmful fumes and ensure a safer working environment.

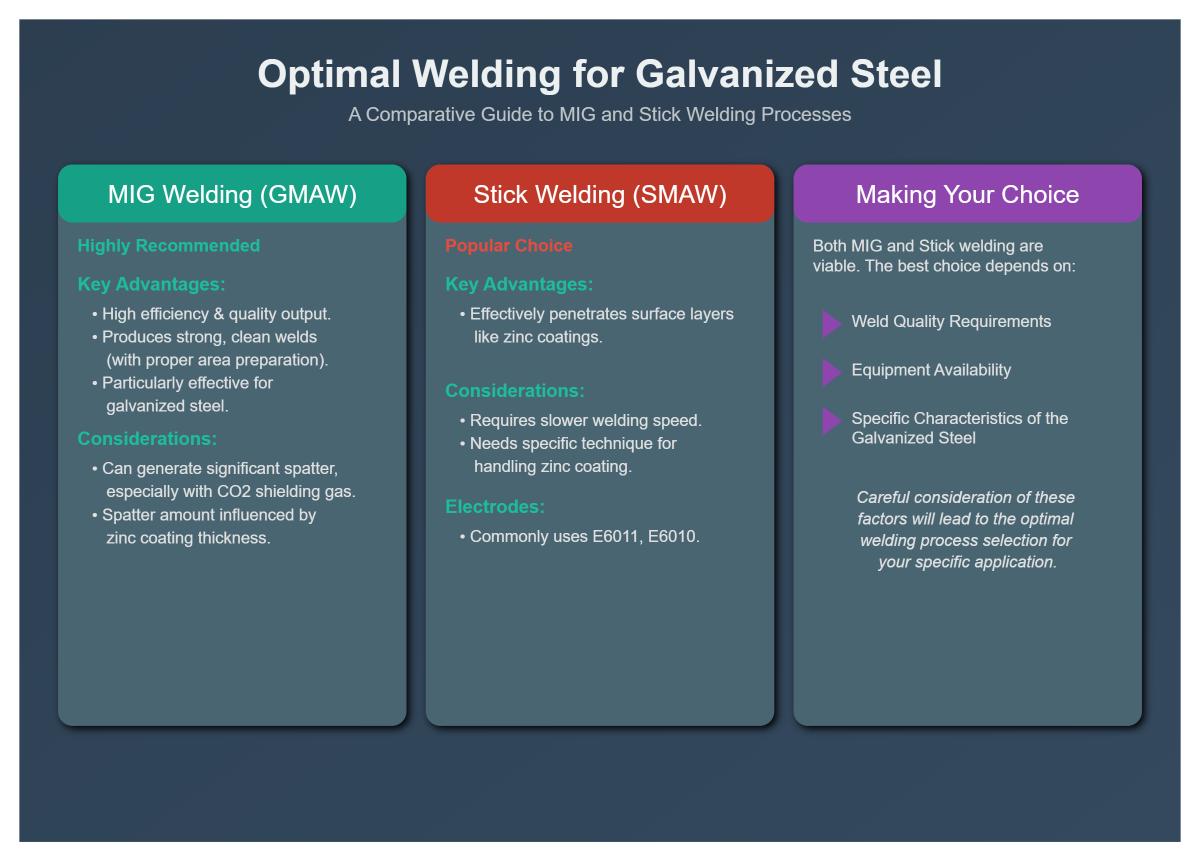

Comparing Welding Methods
MIG Welding
Pros:
- Speed and Efficiency: MIG welding is typically faster, making it ideal for large-scale projects where time is of the essence.
- Ease of Use: This method is relatively straightforward, allowing both professionals and hobbyists to achieve good results with less training.
- Cleaner Welds: When properly executed, MIG welding produces cleaner welds with minimal spatter, which is beneficial for galvanized steel.
Cons:
- Spatter and Contaminants: Improper settings can lead to excessive spatter, and the zinc coating on galvanized steel can interfere with weld quality, requiring thorough surface preparation.
FCAW Welding
Pros:
- Self-Shielding: FCAW uses a flux-cored wire that provides its own shielding, making it less susceptible to wind and outdoor conditions.
- Deep Penetration: This method offers strong penetration, useful for thicker materials.
- Reduced Spatter: Compared to MIG welding, FCAW typically generates less spatter, leading to cleaner welds.
Cons:
- More Smoke and Fumes: FCAW produces more smoke and fumes, requiring effective ventilation.
- Slag Removal: The process leaves a slag layer that must be cleaned after welding, adding an extra step.
Stick Welding
Pros:
- Versatility: Suitable for various thicknesses and field repairs where portability is essential.
- Cost-Effective: It has lower equipment and material costs, making it a budget-friendly option.
- Handling Contaminants: Electrodes like 6010, 6012, or 6013 are effective at dealing with surface contaminants.
Cons:
- Slower Process: Stick welding can be slower, which may be a drawback for larger projects.
- More Skill Required: Requires more expertise to produce high-quality welds consistently.
TIG Welding
Pros:
- Precision and Control: TIG welding, also known as Gas Tungsten Arc Welding (GTAW), is ideal for applications that require precision.
- Clean Welds: Produces high-quality, aesthetically pleasing welds with minimal spatter.
Cons:
- Slower Process: TIG welding is slower compared to MIG and FCAW, which may not be suitable for time-sensitive projects.
- Higher Skill Level: Requires more skill and experience, making it less accessible for beginners.
Application Scenarios
MIG Welding
Best suited for large-scale projects where speed and efficiency are paramount. Ideal for situations where clean welds are required, and the workspace is well-ventilated to handle zinc fumes.
FCAW Welding
Recommended for outdoor or drafty environments where shielding gas might be problematic. Suitable for thicker materials and scenarios where reduced spatter is desired.
Stick Welding
Preferred for field repairs, thicker sections, and budget-conscious projects. Effective in handling surface contaminants and versatile for various applications.
TIG Welding
Optimal for precision welding tasks requiring clean and detailed welds. It is suitable for projects where aesthetics and weld quality are critical, even though the process is slower.
Alternative Joining Methods
Mechanical Joining Methods
Mechanical joining methods are robust and reliable alternatives to welding for galvanized steel sheets, especially useful for heat-sensitive materials or when disassembly is needed.
Riveting
Riveting involves using rivets to join metal sheets by inserting them through pre-drilled holes and then deforming the tail to hold the materials together. This method is known for its strength and durability, making it suitable for structural applications where high load-bearing capacity is required. However, it requires precise hole alignment and may add extra weight.
Clinching
Clinching is a mechanical joining process that deforms the sheets to interlock them, creating a strong bond without additional fasteners. This method is efficient for high-volume production and cost-effective due to the simplicity of the process. Clinching is ideal for joining thin sheets and can maintain the integrity of the galvanized coating, thereby preserving corrosion resistance.
Bolting and Captive Nuts
Bolting and the use of captive nuts provide flexible joining solutions for galvanized steel. This method involves threading bolts through the sheets and securing them with nuts. It is particularly advantageous when frequent disassembly and reassembly are needed, such as in maintenance applications or adjustable structures. The use of captive nuts can simplify the assembly process and ensure secure joints without the need for welding.
Adhesive Joining Methods
Adhesive joining methods offer a non-mechanical alternative that can provide strong and durable bonds for galvanized steel sheets. These methods are particularly beneficial for applications requiring even stress distribution and where aesthetic considerations are important.
Epoxy and Other Adhesives
Epoxy adhesives and other similar bonding agents are effective for joining metal sheets. They offer several advantages, including the ability to distribute loads evenly across the joint, reducing stress concentrations that can lead to material failure. Adhesives do not cause heat-related issues such as distortion or discoloration, making them ideal for joining dissimilar materials and preserving the integrity of the galvanized coating. However, they require curing time and may not achieve the same strength as welded joints on a per-square-millimeter basis.
Advantages of Adhesives
Adhesives spread the load evenly, reducing stress points. They don’t involve heat, so there’s no risk of distorting the material. Adhesive joints look cleaner since they don’t need grinding or finishing. They are also suitable for joining different types of materials without compromising the joint’s integrity.
Thermal Joining Methods
Thermal joining methods, such as brazing and soldering, offer alternatives to welding that can be suitable for specific applications and material combinations.
Brazing
Brazing joins metals by heating them and using a filler metal that melts at a lower temperature than the base metals, making it suitable for precision components and dissimilar metals without inducing thermal stress or distortion. This method preserves the base metal properties and is less likely to induce thermal stress or distortion. However, it is less suitable for high-stress or high-temperature applications due to its lower joint strength compared to welding.
Soldering
Soldering is similar to brazing but uses a filler metal with an even lower melting point. It is ideal for joining smaller, thinner materials and is commonly used in electronics and delicate assemblies. Soldering provides flexible joints but is generally not suitable for structural applications due to its lower strength.
Comparison of Joining Methods
Joining Method | Advantages | Disadvantages |
---|---|---|
Riveting | Strong, durable joints; suitable for thick materials | Requires precise hole alignment; may add extra weight |
Clinching | No additional fasteners; cost-effective for high-volume | Limited to thinner materials; less flexible for disassembly |
Bolting | Easy disassembly; flexible and adjustable | May not provide as strong a bond as welding or brazing |
Adhesives | Even load distribution; no thermal distortion | Requires curing time; generally lower strength per square millimeter |
Brazing | Suitable for precision components; preserves base metal | Lower joint strength and heat resistance |
Soldering | Ideal for small, thin materials; flexible joints | Not suitable for high-stress applications due to lower strength |
Choosing the appropriate joining method depends on the specific requirements of the project, including material types, joint strength needs, environmental conditions, and production constraints. For galvanized steel sheets, mechanical fasteners like rivets and bolts may be preferred when heat sensitivity is a concern. Adhesives offer advantages in preserving material integrity and reducing production time. Brazing and soldering are suitable for precision components or specific material combinations where maintaining the base metal properties is crucial. Assessing the application’s needs thoroughly is essential to determine the most suitable joining technique.
Case Studies and Real-World Examples
Industrial Applications
Defense Industry Weldment
A notable case study involves S&B Metal Products, which was contracted to fabricate a large galvanized steel weldment for military use. The project required precision and durability, as the weldment was integral to defense applications. They utilized MIG welding techniques, leveraging the efficiency and control offered by this method. They meticulously cleaned the zinc coating before welding to prevent porosity and ensure strong welds. Post-weld treatments involved applying zinc-rich primers to maintain corrosion protection. This example underscores the importance of detailed planning and execution in high-stakes environments.
Automotive Industry Challenges
The automotive sector frequently encounters challenges when welding galvanized steel, primarily due to the need for high-strength welds and effective corrosion protection. One case study highlights a major automotive manufacturer that faced difficulties in maintaining vehicle safety standards while ensuring weld integrity. They used specialized welding techniques, like side-to-side motion, to ensure consistent penetration and reduce spatter. The project also emphasized the critical role of proper ventilation to prevent inhalation of zinc fumes, which are prevalent in automotive workshops.
Fabrication and Welding Services
Large-Scale Construction Projects
In the construction industry, welding galvanized steel is common for structural components. A case study from a large-scale construction project illustrates the complexities involved. The project required welding extensive galvanized steel frameworks, demanding high precision and strength, so the team used advanced equipment like CNC laser cutters and press brakes for accurate cuts and bends. MIG welding was chosen for its efficiency and ability to produce clean welds. Post-weld treatments included applying zinc-rich coatings to preserve corrosion resistance, showcasing the importance of post-weld care in maintaining structural integrity.
Custom Fabrication for Industrial Equipment
Custom fabrication projects for industrial equipment often involve welding galvanized steel. One example is a manufacturing company that needed custom-built machinery components. The team faced challenges with weld quality due to the zinc coating. They addressed this by using Flux Core Arc Welding (FCAW) with self-shielding flux-cored wire, which works well in outdoor conditions where shielding gas might be problematic. This approach reduced spatter and improved weld penetration. The project also highlighted the necessity of thorough surface preparation and post-weld treatments to ensure durable and corrosion-resistant equipment.
Real-World Examples
HVAC System Installation
Welding galvanized steel is crucial in HVAC system installation, where durability and corrosion resistance are paramount. A case study involving a large commercial building installation showcased the use of stick welding with 6012 rods. This method was chosen for its ability to handle surface contaminants and produce robust welds. The installation team ensured proper alignment and clamping of the steel sheets, and post-weld treatments included applying zinc-rich primers to maintain the protective coating. This example demonstrates the practical application of welding techniques in maintaining the longevity and efficiency of HVAC systems.
Agricultural Equipment Fabrication
The agricultural sector relies heavily on galvanized steel for equipment fabrication due to its resistance to harsh environmental conditions. A notable case involved the production of large galvanized steel frames for farming machinery. The team used MIG welding and focused on controlling heat input to prevent zinc vaporization and defects. Pre-weld preparation included grinding off the zinc coating in the weld zone, followed by thorough cleaning. Post-weld treatments involved applying cold galvanizing compounds to restore the protective barrier. This case study highlights the importance of meticulous preparation and post-weld care in ensuring the durability of agricultural equipment.
Frequently Asked Questions
Below are answers to some frequently asked questions:
What is the best welding process for galvanized steel sheet?
The best welding process for galvanized steel sheets depends on the specific application and desired outcomes. Gas Metal Arc Welding (GMAW or MIG welding) is highly recommended due to its efficiency and quality. It is particularly effective for galvanized steel because it can produce strong, clean welds when the area is properly prepared. However, it is important to note that MIG welding can generate significant spatter, especially with CO2 shielding gas, which can be influenced by the thickness of the zinc coating.
Shielded Metal Arc Welding (SMAW or Stick Welding) is also a popular choice, especially for its ability to penetrate surface layers like zinc coatings effectively. Electrodes such as E6011 and E6010 are commonly used in this method. Stick welding requires a slower welding speed and a specific technique to handle the zinc coating properly.
Both MIG and Stick welding are viable options, with the choice ultimately depending on factors such as weld quality requirements, equipment availability, and the specific characteristics of the galvanized steel being welded.
How do I remove zinc coating before welding?
Removing the zinc coating from galvanized steel before welding is crucial to avoid hazardous zinc fumes and ensure high-quality welds. There are three primary methods to remove the zinc coating: mechanical, chemical, and thermal.
Mechanical removal involves using abrasive tools such as Scotch-Brite wheels or angle grinders with flap discs. These tools effectively strip the zinc coating without excessively thinning the steel, making them suitable for spot removal and small areas.
Chemical removal can be achieved using acids. Muriatic acid (hydrochloric acid) dissolves the zinc coating quickly but requires strict safety precautions due to its corrosive nature. Vinegar (acetic acid) is a safer alternative but works slower, taking around 30 minutes or longer depending on the thickness of the zinc layer.
Thermal removal involves burning off the zinc coating with a torch. This method must be used cautiously to prevent warping the steel and requires adequate ventilation and protective equipment to handle the fumes safely.
Always perform zinc removal in well-ventilated areas and use appropriate personal protective equipment (PPE) to minimize health risks.
What are common problems when welding galvanized steel?
Common problems when welding galvanized steel primarily stem from the zinc coating, which introduces several challenges. One significant issue is the health hazard posed by inhaling zinc oxide fumes, which can cause metal fume fever, a flu-like illness. Proper ventilation and use of personal protective equipment (PPE) are essential to mitigate these risks.
Weld quality can also be compromised due to burn-through and porosity. The zinc coating vaporizes during welding, which can disrupt the weld pool and trap gases, leading to defects. Additionally, the zinc coating can reduce weld penetration, requiring welders to adjust their techniques, such as increasing the gap between sheets or using a side-to-side torch motion.
Spatter formation is another common problem, particularly with thicker zinc coatings, leading to increased cleanup and potential damage to surrounding areas. The heat from welding can also damage the zinc coating, leaving the steel exposed and prone to corrosion.
Proper preparation, including removing the zinc coating in the weld area, controlled heat input, and post-weld inspection and repair, can help mitigate these issues and ensure a high-quality weld.
How can I ensure safety when welding galvanized steel?
To ensure safety when welding galvanized steel, follow these key guidelines:
-
Remove Zinc Coating: Eliminate the zinc coating in the weld area to prevent the release of toxic zinc oxide fumes. This can be achieved by grinding or chemical stripping at least 1-4 inches from both sides of the weld zone.
-
Use Proper Ventilation: Work in well-ventilated areas to minimize inhalation of harmful fumes. If adequate ventilation is not available, use a respirator specifically rated for welding fumes.
-
Wear Protective Gear: Always use personal protective equipment (PPE), including gloves, safety glasses, and a welding helmet, to shield yourself from weld splatter and fumes.
-
Optimize Welding Techniques: Utilize high-performance fume extractors and select appropriate filler materials for zinc-coated steel. Adjust the welding technique to manage heat input and control the zinc removal process effectively.
-
Follow Safety Guidelines: Adhere to safety standards such as AWS/ANSI Z49:1 to minimize risks and ensure a safer working environment.
By implementing these practices, you can significantly reduce health hazards and maintain a safe welding process.
Can I use TIG or stick welding on galvanized steel?
Yes, you can use TIG (Tungsten Inert Gas) or stick welding on galvanized steel, but both methods present challenges due to the zinc coating.
For TIG welding, the zinc coating must be thoroughly removed from the weld area to avoid contamination and difficulties during welding. This is typically done by grinding. Any residual zinc can cause poor weld quality and health hazards due to zinc fume emissions, so proper ventilation and fume extraction are critical.
Stick welding (Shielded Metal Arc Welding – SMAW) can also be used, but it shares similar challenges with TIG welding. The zinc coating needs to be cleaned off before welding. Additionally, stick welding can produce significant spatter and requires appropriate protective gear to manage the fumes.
While both methods are possible, they are not generally preferred due to the additional preparation and safety concerns. Alternative methods like MIG (Gas Metal Arc Welding) or using silicon bronze filler can be more effective for welding galvanized steel.
What are the benefits of using alternative joining methods?
Alternative joining methods for galvanized steel sheets, such as brazing, soldering, and silicon bronze welding, offer several benefits over traditional welding techniques. These methods generally apply lower heat, preserving the zinc coating that provides corrosion resistance. For instance, brazing and soldering operate at temperatures below the melting point of steel, minimizing the risk of damaging the protective zinc layer and reducing the potential for warping or distortion of the steel sheets.
Furthermore, these alternative methods can provide cleaner and safer working conditions. They produce fewer fumes and spatter compared to welding, which is crucial for maintaining a safe environment and reducing the need for extensive ventilation and fume extraction systems.
In terms of versatility, alternative joining methods are often more adaptable to different materials and complex geometries. For example, silicon bronze welding can effectively join dissimilar metals, which can be challenging for conventional welding processes.
Lastly, these methods can also be more cost-effective and efficient, as they often require less extensive preparation and post-joining treatments. This can lead to quicker assembly times and lower overall production costs, making them suitable for various industrial applications where maintaining the integrity of the galvanized coating is essential.
