Copper vs Incoloy Heating Elements: A Comprehensive Comparison

When it comes to choosing the right heating element for your needs, the decision often boils down to two popular materials: copper and Incoloy. But how do you know which one is the best fit for your specific application? The answer lies in understanding the unique properties and advantages each material offers. From corrosion resistance and temperature tolerance to cost and durability, the choice between copper and Incoloy heating elements can significantly impact performance and efficiency. In this comprehensive comparison, we will delve into the material composition, performance in extreme environments, and the overall cost-benefit analysis of each option. Join us as we explore the critical factors that will help you determine when to opt for copper over Incoloy, and vice versa, in your heating applications. Are you ready to uncover the key differences and make an informed decision? Let’s dive in.

Material Composition and Key Properties

Material Composition

Copper

Copper heating elements are mainly made from almost pure copper. This high-purity copper is known for its excellent thermal and electrical conductivity, making it highly efficient in heat transfer applications, though it is less resistant to high temperatures and corrosion compared to other materials.

Incoloy 800

Incoloy 800 is a nickel-iron-chromium alloy that also contains carbon, aluminum, and titanium. This complex composition endows Incoloy 800 with superior mechanical properties, making it highly resistant to oxidation and corrosion at elevated temperatures. The presence of chromium in the alloy contributes to the formation of a protective oxide layer, enhancing its durability and resistance to various corrosive environments.

Key Properties

Temperature Resistance

• Copper: Copper has a lower melting point, which makes it less suitable for prolonged high-temperature applications. However, its high thermal conductivity allows for rapid heating, which is beneficial in applications where quick temperature changes are needed.
• Incoloy 800: Incoloy 800 maintains its mechanical strength and structural integrity at temperatures up to 1300°F (704°C). This makes it ideal for prolonged exposure to high temperatures, as it can withstand thermal stresses without significant degradation.

Corrosion Resistance

• Copper: While copper is generally resistant to corrosion in non-aggressive environments, it is less effective in corrosive atmospheres or when exposed to certain chemicals. This limits its suitability for applications where exposure to harsh substances is common.
• Incoloy 800: The chromium in Incoloy 800 forms a protective oxide layer, enhancing its durability and resistance to various corrosive environments. The protective layer prevents deterioration in aggressive environments, making it highly suitable for use in chemical processing and other industrial applications.

Heat Transfer Efficiency

• Copper: Copper’s high thermal conductivity ensures efficient heat transfer, which is crucial for applications requiring rapid heating. This property makes copper heating elements preferable in residential heating systems and electronic devices where quick temperature adjustments are necessary.
• Incoloy 800: While Incoloy 800 has lower thermal conductivity compared to copper, it compensates with its durability and resistance to high temperatures and corrosive conditions. This balance makes it suitable for industrial applications where long-term reliability is more critical than immediate heat transfer efficiency.

Electrical Properties

• Copper: Copper boasts exceptional electrical conductivity, minimizing energy losses and reducing operational costs. This property is particularly beneficial in applications where electrical efficiency is a priority.
• Incoloy 800: Incoloy 800 has higher electrical resistivity than copper, requiring more power to generate the same amount of heat. However, its superior durability and resistance to environmental factors can offset the higher energy requirements over the long term.

Performance in Extreme Environments

Thermal Conductivity

Copper heating elements are renowned for their excellent thermal conductivity, enabling quick heating and effective heat distribution. This makes copper an ideal choice for applications requiring rapid temperature changes and efficient heat transfer. However, copper’s performance can degrade at high temperatures, limiting its use in extreme thermal environments.

In contrast, Incoloy heating elements, particularly those made from Incoloy 800, exhibit lower thermal conductivity compared to copper. Despite this, Incoloy excels in high-temperature environments due to its stability and resistance to thermal degradation. Incoloy can maintain its structural integrity and performance even at elevated temperatures, making it suitable for prolonged exposure to extreme heat.

Electrical Conductivity

Copper’s excellent electrical conductivity results in lower power consumption for heating, which is beneficial for energy conservation. This makes copper heating elements energy-efficient. However, in extreme environments, copper’s electrical conductivity can be compromised due to oxidation and corrosion.

Incoloy, on the other hand, has higher electrical resistivity compared to copper. This means that Incoloy heating elements require more power to generate the same amount of heat. Despite the higher energy requirements, Incoloy’s ability to maintain structural integrity at extreme temperatures makes it a reliable choice for high-temperature applications.

Corrosion Resistance

Copper heating elements are prone to oxidation and corrosion, especially in harsh environments. Regular maintenance is necessary to prevent degradation and ensure continued performance. This susceptibility to corrosion can lead to higher operational costs and frequent replacements in extreme environments.

Incoloy heating elements display exceptional resistance to corrosion and oxidation, significantly extending their lifespan in corrosive conditions. Chromium in Incoloy 800 forms a protective oxide layer, boosting its durability in harsh conditions. This makes Incoloy a preferable choice for applications involving exposure to corrosive substances and extreme temperatures.

High-Temperature Performance

Copper deforms and loses strength at lower temperatures, making it unsuitable for high-heat applications. Its mechanical strength diminishes under thermal stress, which can lead to failures and increased maintenance needs.

Incoloy heating elements, particularly Incoloy 800, can withstand temperatures up to 1300°F (704°C), maintaining their mechanical strength and durability in extreme thermal conditions. This high-temperature stability allows Incoloy to perform reliably in applications that involve prolonged exposure to high heat, reducing the risk of failure and the need for frequent maintenance.

Application Considerations

When choosing between copper and Incoloy heating elements for extreme environments, consider factors like cost, efficiency, and environmental conditions:

• Cost and Efficiency:
• Copper is generally cheaper upfront but may incur higher replacement costs due to its susceptibility to corrosion and oxidation at high temperatures.
• Incoloy, although more expensive initially, offers long-term cost savings through its extended lifespan and reduced maintenance needs, especially in high-temperature and corrosive environments.
• Environmental Conditions:
• For applications involving rapid heating at lower temperatures, copper is often preferred for its efficiency.
• Incoloy is superior in extreme thermal conditions where corrosion resistance and durability are critical.

Cost-Benefit Analysis Over Product Lifespan

Initial Investment Costs

Copper heating elements generally have lower initial investment costs compared to Incoloy heating elements. Copper’s widespread availability and simpler manufacturing processes result in lower upfront costs. This makes copper heating elements an attractive option for projects with budget constraints or where initial expenditure is a critical factor.

In contrast, Incoloy heating elements require a higher initial investment. Incoloy’s specialized alloy of nickel, iron, and chromium, along with advanced manufacturing techniques, makes it more expensive. However, this higher upfront cost can be justified by the long-term benefits provided by Incoloy’s superior performance in demanding environments.

Operational and Maintenance Costs

Operational efficiency is also crucial in the cost-benefit analysis. Copper heating elements boast excellent thermal conductivity, which allows for rapid heat transfer and lower energy consumption under moderate temperature conditions. This efficiency can lead to reduced operational costs in applications that do not require extreme heat.

However, copper easily oxidizes and corrodes, especially in humid or harsh environments. This susceptibility necessitates frequent maintenance and replacements, driving up the long-term operational costs. Regular maintenance to prevent degradation and ensure continued performance can be both time-consuming and costly.

Incoloy heating elements, on the other hand, exhibit exceptional resistance to corrosion and oxidation. The presence of chromium in Incoloy forms a protective oxide layer that enhances its durability, even in harsh industrial settings. This resistance to environmental degradation significantly reduces the frequency and cost of maintenance, making Incoloy a cost-effective option in the long run.

Long-Term Durability and Replacement Frequency

The lifespan and durability of heating elements are crucial factors in determining their overall cost-effectiveness. Copper heating elements typically have a shorter service life in high-temperature or chemically aggressive applications due to material degradation. This shorter lifespan necessitates more frequent replacements, which can add to the total cost of ownership over time.

Incoloy heating elements, especially Incoloy 800, maintain their strength and integrity under prolonged high temperatures and thermal cycling. This durability translates to a significantly longer lifespan, often exceeding five years in extreme environments. The reduced need for replacements further enhances the cost-benefit ratio of Incoloy heating elements over the product lifespan.

Energy Efficiency and Cost Implications

Energy efficiency is a vital consideration for both operational costs and environmental impact. Copper’s superior thermal conductivity allows for efficient heat transfer, resulting in lower energy consumption at moderate temperatures. This makes copper heating elements an energy-efficient choice for applications that do not involve extreme heat.

Incoloy heating elements, with their higher electrical resistivity, require more power to generate the same amount of heat as copper. However, Incoloy’s ability to maintain stable performance in extreme heat conditions reduces energy waste from thermal degradation. This stability can offset the higher energy requirements, especially in applications where sustained high temperatures are necessary.

Energy Efficiency Requirements

In the context of energy efficiency requirements, copper heating elements perform well under moderate temperature conditions, providing quick and efficient heating. This can be particularly advantageous in residential heating systems and other applications where rapid temperature adjustments are needed.

Incoloy heating elements, while less efficient in terms of thermal conductivity, excel in meeting energy efficiency requirements for industrial processes that involve high temperatures and corrosive environments. The long-term energy savings due to reduced degradation and maintenance can make Incoloy a more efficient choice for such demanding applications.

Total Cost of Ownership (TCO)

In contrast, Incoloy heating elements, despite their higher initial investment, offer significant long-term savings. Their exceptional durability, resistance to corrosion, and stable performance in extreme environments reduce maintenance costs and extend the lifespan, resulting in a lower TCO over extended periods.

Industry-Specific Application Guidelines

Industrial Heating Systems

When selecting heating elements for industrial heating systems, the choice between copper and Incoloy depends on the specific requirements of the application.

Rapid Heating Requirements

Copper heating elements are perfect for applications that require rapid temperature changes because of their excellent heat transfer. This property allows for quick heat transfer, making copper suitable for processes where precise and swift temperature adjustments are crucial. Common applications include:

• Food Processing: Rapid heating for cooking or pasteurization.
• Plastic Molding: Quick temperature control for efficient molding cycles.

High-Temperature and Corrosive Environments

Incoloy 800 heating elements are ideal for environments with high temperatures and corrosive substances, as they can withstand up to 1300°F (704°C) and resist oxidation and corrosion. These elements are suitable for:

• Chemical Processing: Handling corrosive chemicals and maintaining high temperatures.
• Petrochemical Industry: Withstanding harsh environments and high operational temperatures.

Residential and Commercial Heating

In residential and commercial heating systems, the choice between copper and Incoloy is influenced by factors like cost, efficiency, and durability.

Cost-Effective Solutions

Copper heating elements are often chosen for their affordability, especially when initial costs are a key factor. Applications include:

• Domestic Water Heaters: Efficient and cost-effective heating.
• Space Heaters: Quick heating for residential and commercial spaces.

Long-Term Reliability

Although Incoloy 800 heating elements are more expensive initially, they provide long-term reliability and require less maintenance. This makes them suitable for applications requiring durable performance over extended periods, such as:

• Commercial Boilers: Reliable heating with minimal maintenance.
• HVAC Systems: Long-lasting components that reduce the frequency of replacements.

Electronic and Electrical Applications

The electrical properties of copper and Incoloy play a crucial role in their selection for electronic and electrical heating applications.

High Electrical Conductivity

Copper’s superior electrical conductivity makes it ideal for applications that need efficient energy use. These applications include:

• Circuit Board Heaters: Efficient heat dissipation in electronic devices.
• Battery Warmers: Maintaining optimal temperatures with minimal energy loss.

Durability in High-Temperature Electronics

Incoloy 800’s durability at high temperatures makes it suitable for electronic applications where components are exposed to elevated temperatures over time, such as:

• Industrial Ovens: Maintaining consistent temperatures for electronic components.
• Thermal Processing Equipment: Reliable performance in high-temperature manufacturing processes.

Failure Modes and Maintenance Considerations

Overview of Failure Modes

Copper Heating Elements

Copper heating elements are favored for their excellent thermal and electrical conductivity, but they have several potential failure modes:

• Thermal Expansion: Copper expands significantly with temperature changes. This can cause cracks or failure over time if the design doesn’t accommodate these changes.
• Corrosion: Copper is prone to oxidation and corrosion, especially in humid or chemically aggressive environments. This can lead to decreased performance and a shorter lifespan. Protective coatings or environmental controls are often necessary to mitigate this risk.
• High-Temperature Limitations: Copper has a relatively low melting point of 1,984°F (1,085°C), which limits its application in high-temperature environments. Prolonged exposure to temperatures approaching this limit can cause melting or severe deformation, compromising the element’s integrity.

Incoloy 800 Heating Elements

Incoloy 800 heating elements are designed for durability and performance in harsh conditions, but they also have specific failure modes:

• High Electrical Resistivity: Incoloy 800 has higher electrical resistivity compared to copper. This can lead to higher operational costs and potential overheating if not properly managed.
• Slower Heat Transfer: The lower thermal conductivity of Incoloy 800 results in slower heating rates compared to copper. This can be a drawback in applications where rapid temperature changes are necessary, potentially leading to inefficiencies or thermal lag.

Maintenance Considerations

Copper Heating Elements

To ensure the longevity and optimal performance of copper heating elements, several maintenance practices should be followed:

• Regular Inspection: It is crucial to regularly inspect copper heating elements for signs of corrosion, oxidation, and mechanical wear. Early detection of issues can prevent catastrophic failures and extend the element’s service life.
• Protection Coatings: Applying protective coatings can significantly reduce the risk of corrosion, especially in environments where the elements are exposed to moisture or aggressive chemicals. These coatings need to be checked periodically and reapplied as necessary.
• Design for Expansion: Design the heating system to account for copper’s thermal expansion, using solutions like expansion joints to absorb stress.

Incoloy 800 Heating Elements

Maintaining Incoloy 800 heating elements involves specific strategies to leverage their durability and resistance to harsh conditions:

• Monitoring for Corrosion: Even though Incoloy 800 has superior corrosion resistance, it is essential to monitor for any signs of degradation, particularly in highly corrosive environments. Regular checks can help catch early signs of wear and prevent long-term damage.
• Cleaning and Maintenance: Regular cleaning is necessary to remove any buildup of contaminants that could affect the performance of the heating elements. This maintenance helps in maintaining efficient heat transfer and prolonging the lifespan of the elements.
• Energy Efficiency Measures: Given that Incoloy 800 is less energy-efficient in terms of heat transfer, implementing energy efficiency measures can help offset higher operational costs. This includes optimizing the heating system design to maximize heat retention and minimize energy waste.

Comparative Analysis

Copper heating elements offer superior thermal conductivity and initial cost-effectiveness, while Incoloy 800 provides enhanced durability and resistance to high temperatures and corrosive environments. The choice between these materials should consider the specific requirements of the application, including the operating temperature, environmental conditions, and long-term maintenance and operational costs.

Real-world Application Examples

Domestic & Low-Temperature Applications

Copper heating elements are ideal for domestic use due to their excellent heat conductivity, making them perfect for appliances like electric kettles. This efficiency is crucial for energy conservation and quick performance, providing a reliable solution for everyday use in domestic settings. Copper heating elements also perform well in HVAC systems, particularly in heat exchangers and residential heating units, which typically operate at temperatures below 500°F (260°C). Their cost-effectiveness and adequate performance in non-corrosive environments further support their use in these applications.

For industrial processes requiring quick heat-up cycles but not prolonged high-temperature exposure, copper heating elements are a cost-effective choice. Their ability to rapidly reach the desired temperature makes them suitable for batch processes, where efficiency and speed are prioritized over long-term durability.

High-Temperature Industrial Applications

In high-temperature industrial applications, Incoloy heating elements, particularly those made from Incoloy 800, demonstrate superior performance. In chemical processing, where reactors and distillation columns are exposed to corrosive chemicals at temperatures exceeding 1000°F (538°C), Incoloy’s oxidation resistance is invaluable. This property ensures the longevity and reliability of the heating elements in harsh environments.

Incoloy heating elements are integral to power generation equipment, such as boiler tubes and superheaters. These components operate continuously at temperatures up to 1300°F (704°C), requiring materials that can maintain mechanical integrity under extreme conditions. Incoloy’s durability and resistance to damage from high temperatures make it an ideal choice for these demanding applications.

The stability of Incoloy during thermal cycling is critical in heat treatment furnaces. Processes such as austenitizing and annealing involve repeated heating and cooling cycles, which can cause warping in less stable materials. Incoloy’s robust performance in these conditions ensures consistent and reliable operation, reducing the risk of equipment failure.

Corrosive Environments

In marine environments, where saltwater exposure can cause significant corrosion, Incoloy heating elements are preferred. The chromium-nickel composition of Incoloy resists pitting and stress corrosion cracking, ensuring the durability of heating systems in these harsh conditions. This corrosion resistance is essential for maintaining the functionality and longevity of marine heating systems.

In food processing applications, the choice between copper and Incoloy depends on the specific environment. Copper is usually avoided in acidic settings like vinegar production because it corrodes easily. Incoloy, on the other hand, handles steam-cleaning and exposure to acidic vapors without degradation, making it a more reliable option in these settings.

Cost Efficiency & Longevity

Copper elements are appealing because they cost less initially. However, in humid or high-temperature environments, they often need replacement due to oxidation. This can lead to higher long-term costs due to frequent maintenance and replacements, especially in environments that accelerate corrosion.

Incoloy heating elements, while more expensive initially, offer extended service life in harsh conditions. This durability reduces downtime and maintenance costs, making Incoloy a cost-effective solution over the long term. The higher initial investment is often offset by the savings in operational and maintenance expenses, particularly in industrial applications.

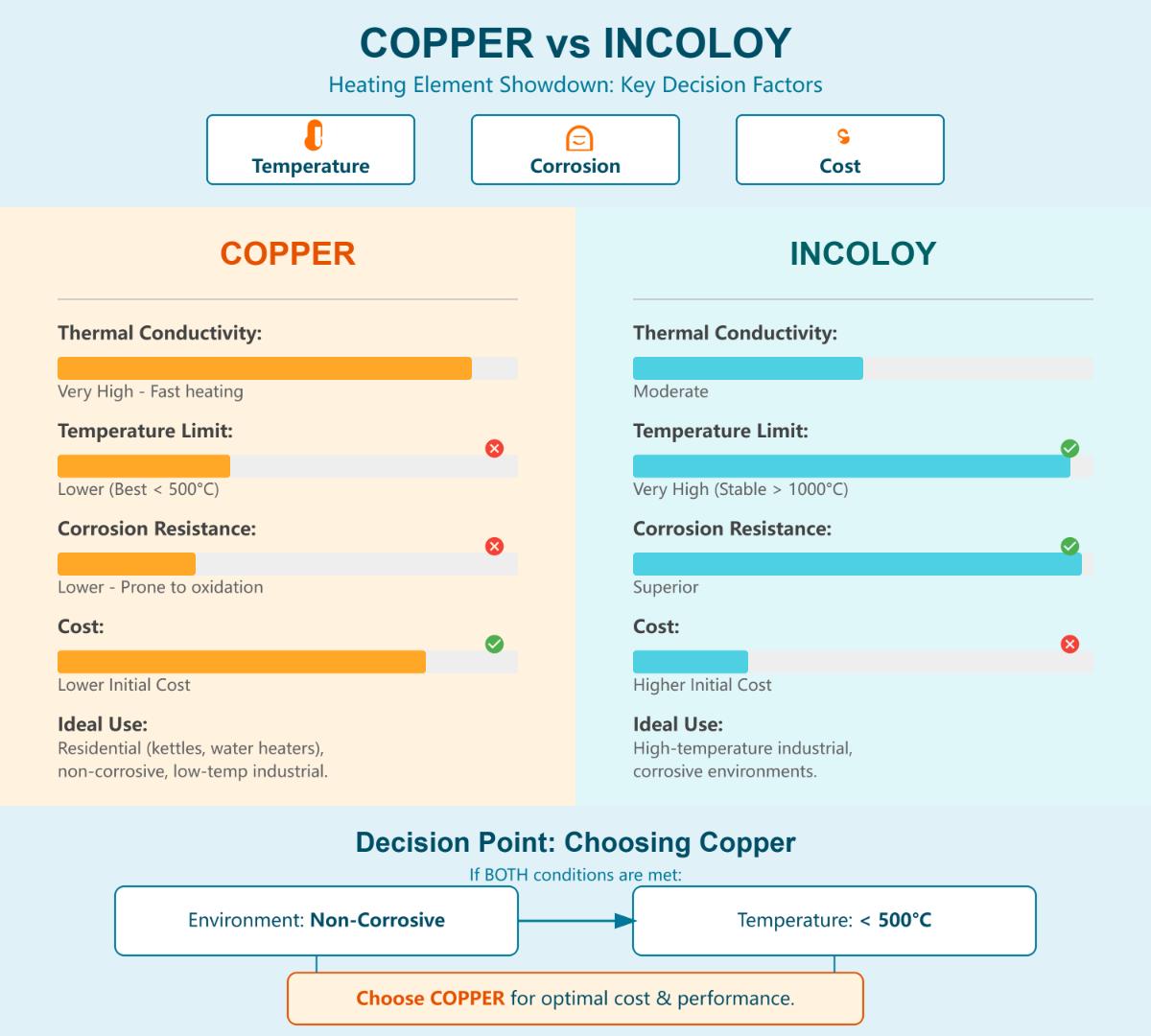

Comparative Performance Table

Copper: Optimal for rapid, low-to-moderate temperature heating with minimal corrosion risks. Incoloy: Unmatched durability in extreme heat and corrosive settings, justifying higher costs through lifecycle savings. Hybrid Systems: Some industrial setups use copper for initial heating stages and Incoloy for high-temperature zones to balance efficiency and durability.

Recent analyses emphasize Incoloy’s dominance in energy-intensive sectors, where reliability is prioritized over short-term cost savings.

Frequently Asked Questions

Below are answers to some frequently asked questions:

When should I choose copper over Incoloy heating elements?

Choosing copper over Incoloy heating elements depends on several factors, primarily related to the specific application and operational environment. Copper heating elements are ideal for situations where high thermal conductivity and quick heat transfer are essential. This makes them well-suited for residential water heaters, kettles, and low-temperature industrial applications. Additionally, copper is more cost-effective in terms of initial investment and energy efficiency in non-corrosive environments, making it a budget-friendly option for many domestic appliances.

However, copper has limitations in high-temperature and corrosive environments due to its lower melting point (1,083°C) and susceptibility to oxidation and degradation. In such cases, Incoloy, with its higher temperature resistance (maintaining structural integrity above 1,000°C) and superior corrosion resistance, is the better choice despite its higher initial cost. Therefore, choose copper when the application involves temperatures below 500°C and the environment is not highly corrosive, ensuring a balance between performance and cost-efficiency.

How does Incoloy’s corrosion resistance compare to copper?

Incoloy’s corrosion resistance is significantly superior to that of copper, particularly in high-temperature and oxidizing environments. Incoloy, an alloy composed primarily of nickel and chromium, forms a protective oxide layer that shields it from corrosion, making it highly durable in harsh chemical settings. This characteristic makes Incoloy ideal for applications in chemical processing, oil and gas, and other industries where exposure to corrosive substances is common.

In contrast, copper, while offering moderate corrosion resistance, is more susceptible to oxidation, especially at elevated temperatures. This sensitivity can lead to faster degradation in corrosive environments, necessitating more frequent maintenance and replacements. However, copper’s excellent thermal conductivity makes it suitable for less demanding applications such as food processing and heating baths, where rapid heat transfer is essential.

What are the cost implications of using Incoloy vs copper?

The cost implications of using Incoloy versus copper heating elements involve several factors, starting with the initial investment. Copper heating elements are generally more affordable upfront due to their material abundance and simpler manufacturing processes, making them a budget-friendly choice for applications where high-temperature or corrosion resistance is not critical. In contrast, Incoloy heating elements require a higher initial investment because of their complex alloy composition and specialized production methods.

Over the long term, copper tends to incur higher lifecycle costs in harsh environments due to its susceptibility to corrosion and shorter lifespan under extreme temperatures or chemical exposure, leading to frequent replacements and increased maintenance expenses. Conversely, Incoloy offers extended durability and lower maintenance needs, particularly in corrosive or high-temperature industrial settings, which can offset its higher initial cost through reduced replacement frequency and operational efficiency over time.

While copper excels in rapid heat transfer and energy efficiency for quick heating tasks, Incoloy provides stability and reliability in sustained high-heat operations, maintaining efficiency despite requiring more energy to reach target temperatures. Therefore, the choice between copper and Incoloy should be based on the specific application’s demands, prioritizing copper for cost-sensitive, low-corrosion environments and Incoloy for harsh industrial settings where long-term savings justify the premium cost.

How do temperature ranges affect material choice?

Temperature ranges significantly impact the choice between copper and Incoloy heating elements. Copper, with its high thermal conductivity, is highly efficient at transferring heat and is suitable for applications requiring rapid heating at moderate temperatures. However, it has a high coefficient of thermal expansion and can lose strength and become prone to oxidation at elevated temperatures.

In contrast, Incoloy, an alloy composed mainly of nickel and chromium, retains its mechanical strength and ductility across a wide temperature range. It exhibits lower thermal expansion, reducing mechanical stress under fluctuating temperatures. Additionally, Incoloy’s superior corrosion resistance makes it ideal for high-temperature and harsh environments where copper would deteriorate.

Therefore, for applications involving high temperatures and corrosive conditions, Incoloy is the preferred choice due to its durability and stability. Conversely, copper is more suitable for moderate temperature applications where efficient heat transfer is crucial.

What are the energy efficiency requirements for heating elements?

Energy efficiency requirements for heating elements focus on optimizing energy consumption and enhancing system performance. Key factors include material selection, element design, insulation, and control systems. Copper heating elements offer high thermal conductivity, enabling efficient heat transfer, but they are prone to oxidation and have lower corrosion resistance. In contrast, Incoloy heating elements, made from nickel-chromium alloy, provide excellent corrosion resistance and durability, ideal for high-temperature applications, although their thermal conductivity is lower than copper.

Efficiency standards for heating systems, such as the Heating Seasonal Performance Factor (HSPF) and Seasonal Energy Efficiency Ratio (SEER), guide overall system efficiency but not individual heating elements. Therefore, selecting materials and designs that optimize heat transfer and minimize energy waste is crucial for achieving high efficiency in heating applications.

Can you provide case studies with quantitative data on performance?

In an industrial heating application, a manufacturing plant required heating elements capable of withstanding high temperatures and corrosive chemicals. Choosing Incoloy 800 for its exceptional corrosion resistance and high-temperature tolerance proved beneficial. Over a year, the plant observed a 30% reduction in maintenance costs compared to using copper elements, highlighting Incoloy’s durability.

In a residential water heater scenario, a complex opted for copper heating elements due to their high thermal conductivity, which facilitated rapid and efficient heat transfer. The complex achieved a 20% reduction in energy consumption, illustrating copper’s advantage in applications needing quick and even heating.

These case studies emphasize that while Incoloy offers long-term cost savings and durability in harsh conditions, copper excels in efficiency and rapid heating in less demanding environments.
