Coupler vs Coupling: Understanding the Differences for Mechanical and Piping Systems

Have you ever wondered what sets a coupler apart from a coupling in the intricate world of mechanical and piping systems? While these terms are often used interchangeably, understanding their distinct roles can be crucial for ensuring the efficiency and reliability of your projects. In this article, we’ll dive into the key differences between couplers and couplings, exploring their unique functions, common materials, and specific applications. Whether you’re working on a plumbing system or a complex mechanical setup, knowing when to use each component can make all the difference. So, how do these seemingly similar parts differ, and why does it matter? Let’s find out.

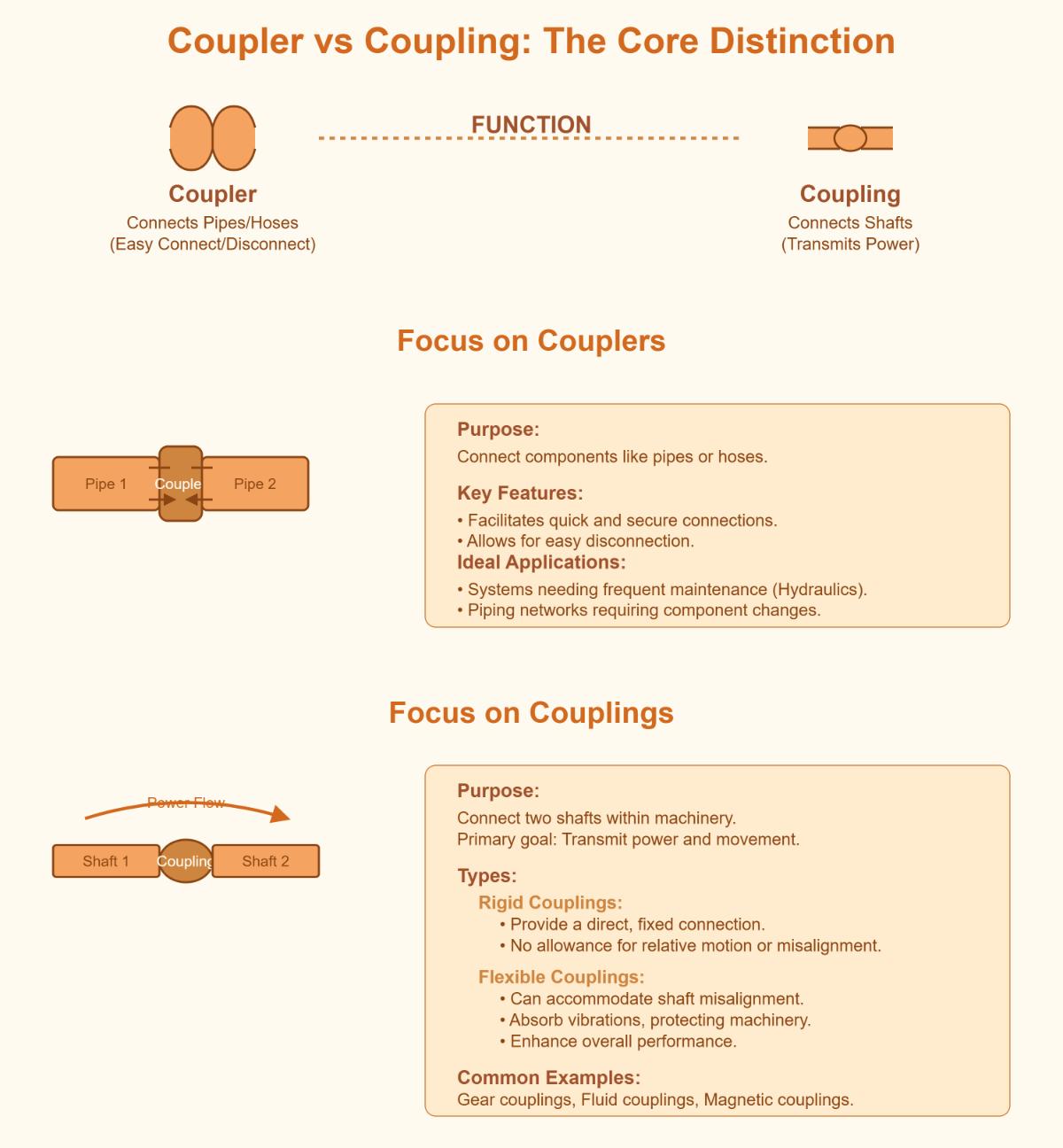

Comparative Overview of Couplers and Couplings

Couplers and couplings play essential roles in mechanical and piping systems, each with its distinct function.

Couplers connect components like pipes, hoses, or tubes, allowing easy assembly and disassembly. This makes them perfect for systems needing frequent maintenance or adjustments. They are commonly used in plumbing, hydraulic, and fiber optic systems, often featuring quick-release or push-pull mechanisms for rapid connections and disconnections.

Couplings connect two shafts in mechanical systems to transmit power. They align and secure rotating equipment, handle misalignments, and reduce operational stress. Couplings are typically more permanent than couplers and are designed to handle high-torque applications, ensuring smooth power transmission between motors, pumps, and other mechanical equipment.

Both components are made from materials like metals (stainless steel, brass, carbon steel) and plastics (PVC), selected for their durability, corrosion resistance, and ability to handle pressure.

In mechanical systems, couplings maintain the alignment of rotating components like motor and shaft connections. They reduce vibrations, handle minor misalignments, and minimize wear, ensuring machinery runs efficiently and lasts longer.

In piping systems, couplers connect pipes and hoses, facilitating repairs, extensions, and system modifications. Their ability to quickly connect and disconnect components makes them ideal for applications requiring frequent maintenance. Couplers help manage system pressures and prevent leaks, ensuring the integrity of the piping network.

Definition and Function of Couplers and Couplings

Couplers

Definition

A coupler is a device that connects two parts within a system, such as pipes or electrical components, to allow the transfer of fluids, signals, or power.

Function in Mechanical Systems

In mechanical systems, couplers connect components like hoses and tubes, allowing for quick and efficient connections and disconnections, which is ideal for systems requiring regular maintenance.

Function in Piping Systems

In piping systems, couplers connect pipes to ensure a secure and leak-free flow of fluids or gases, and are often used in plumbing for repairs, extensions, and modifications.

Couplings

Definition

A coupling is a device that connects two shafts to transmit power, essential in mechanical systems like motors and pumps.

Function in Mechanical Systems

Couplings transmit torque from one shaft to another, aligning and securing rotating components to reduce vibrations, handle minor misalignments, and absorb shocks, protecting both driving and driven equipment.

Function in Piping Systems

While couplings are less commonly used in piping systems compared to couplers, they can still be found in certain applications. For example, flexible couplings may be used in pipelines to accommodate slight misalignments or thermal expansions. These couplings help maintain the integrity of the piping system by reducing stress on the pipes and preventing potential leaks.

Comparative Analysis

Key Differences

• Purpose: Couplers are designed for connecting similar components in systems that require frequent assembly and disassembly, while couplings are used to connect shafts for power transmission in more permanent setups.
• Flexibility: Couplers allow for easy disconnection, making them ideal for applications needing regular maintenance. In contrast, couplings maintain their connection during operation and are designed to handle torque transmission.
• Application: Couplers are commonly found in plumbing and electronic systems, whereas couplings are integral to mechanical systems involving motors, pumps, and generators.

Key Similarities

• Connection Role: Both couplers and couplings serve the fundamental purpose of connecting two components within a system.
• Material Use: Both devices are made from a variety of materials, including metals and plastics, chosen based on their durability, corrosion resistance, and ability to handle specific pressures.

By understanding the distinct definitions and functions of couplers and couplings, as well as their key differences and similarities, engineers and technicians can make informed decisions when selecting the appropriate component for their specific applications.

Material Selection for Couplers and Couplings

Common Materials Used

Choosing the right materials for couplers and couplings is essential to meet the specific needs of mechanical and piping systems. Various materials are chosen based on their properties, such as durability, corrosion resistance, and cost-effectiveness.

Metal

Steel:
Steel is widely used for its strength and durability. It can withstand high pressures and is suitable for both couplers and couplings in demanding applications. Carbon steel is particularly popular for its cost-effectiveness and robustness.

Stainless Steel:
Known for its high corrosion resistance, stainless steel is ideal for applications where exposure to moisture or corrosive substances is a concern. It is often used in both mechanical and piping systems to ensure longevity and reliability.

Aluminum:
Aluminum is lightweight and has good corrosion resistance, making it suitable for applications where weight is a critical factor. It is commonly used in mechanical systems for couplers that need to be moved or adjusted frequently.

Bronze:
Bronze is highly resistant to corrosion and flexible. It is typically used in specialized applications where these properties are essential, such as in marine environments or where high levels of friction are present.

Advantages and Disadvantages of Metal:
Metals offer high strength and durability, excellent pressure and temperature resistance, and are suitable for high-stress applications. However, they can be more expensive compared to plastics and may require maintenance to prevent corrosion, except for stainless steel.

Plastic and Composite Materials

PVC (Polyvinyl Chloride):
PVC is a versatile and cost-effective material, commonly used in piping systems for couplers. It is resistant to corrosion and chemicals, making it suitable for non-corrosive fluid applications.

Polyethylene:
Similar to PVC, polyethylene is used for its chemical resistance and flexibility. It is ideal for applications where the piping system needs to accommodate slight movements or thermal expansions.

Fiberglass Reinforced Plastic (FRP):
FRP combines the strength of fiberglass with the corrosion resistance of plastic, making it suitable for both mechanical and piping systems. It is often used in environments where exposure to chemicals and high temperatures is frequent.

Carbon Fiber Composites:
These materials offer high strength-to-weight ratios and are used in advanced applications requiring lightweight yet strong components. They are particularly beneficial in mechanical systems where weight reduction without compromising strength is necessary.

Advantages and Disadvantages of Plastic and Composite Materials:
Plastics and composites are lightweight and easy to install, resistant to many chemicals and corrosive substances, and cost-effective for non-critical applications. However, they have lower strength and pressure tolerance compared to metals and may degrade under UV exposure or extreme temperatures. Composite materials, while offering high strength-to-weight ratios and excellent corrosion resistance, can be more expensive and involve complex manufacturing processes.

Factors Affecting Material Choice

When selecting materials for couplers and couplings, several factors must be considered to ensure optimal performance and longevity.

Durability:
The material must be durable enough to withstand the operating conditions of the system. This includes resistance to wear, pressure, and environmental factors such as temperature and corrosion.

Cost:
Cost is crucial, particularly for large-scale applications. Materials like PVC and carbon steel are chosen for their cost-effectiveness, while more expensive materials like stainless steel and composites are used in applications requiring high performance and reliability.

Compatibility with System Fluids:
Materials must be compatible with the fluids they will come into contact with. For example, stainless steel and certain plastics are chosen for their resistance to corrosive fluids, while other materials may be selected for their inert properties.

By carefully considering these factors, engineers and technicians can select the most appropriate materials for couplers and couplings in their specific applications, ensuring optimal performance and longevity of the system.

Component Compatibility

Ensuring components are compatible is essential for the reliable operation of mechanical and piping systems.

Material Compatibility

Choosing materials that match the system’s environment is crucial. For example, stainless steel couplers suit corrosive environments in piping systems, while PVC works for non-corrosive settings. In mechanical systems, high-strength steel couplings handle high torque, whereas aluminum is used to reduce weight.

Size and Fit

Proper sizing ensures couplers and couplings fit securely. In piping systems, this involves choosing the right diameter and thread type. For mechanical systems, the coupling must match shaft sizes and handle misalignment. Precise measurements and standard sizes ensure secure connections.

Flexibility and Misalignment

Mechanical couplings should handle misalignment without affecting performance. Flexible couplings, like gear or jaw types, absorb shocks and vibrations. In piping systems, flexible couplers allow for thermal expansion and slight misalignments, reducing pipe stress and leak risk.

Factors to Consider

Temperature

Both mechanical and piping systems must operate within specific temperature ranges. Materials used in couplers and couplings should withstand these temperatures without degrading. For example, metal couplers are suitable for high-temperature environments, while certain plastics may be used in lower-temperature applications.

Pressure

Couplers in piping systems must withstand system pressure to prevent leaks. High-pressure systems need robust materials like stainless steel or high-strength composites. Mechanical couplings must handle operational forces to ensure reliable torque transmission.

Chemical Resistance

Exposure to chemicals can degrade materials, leading to component failure. Selecting couplers and couplings with appropriate chemical resistance is essential, especially in environments where they are exposed to corrosive substances. For instance, stainless steel and specific plastics are chosen for their resistance to various chemicals, ensuring long-term durability.

Examples of Incompatible Components

Using incompatible components can lead to system failures and increased maintenance costs. For example, pairing a PVC coupler with a high-temperature piping system can result in the plastic melting or deforming, causing leaks. Similarly, using a mechanical coupling made of a material that cannot withstand the operational torque can lead to coupling failure and equipment damage.

By carefully considering these factors and ensuring compatibility, engineers and technicians can optimize the performance and reliability of their mechanical and piping systems.

Application Areas for Each Type

Couplers in Piping Systems

Plumbing Applications

Couplers are commonly used in plumbing to join pipes securely and prevent leaks. They are vital in residential and commercial plumbing for repairs, extensions, and modifications. Common types include compression couplers, which use compression rings to create a tight seal, and threaded couplers, which provide a secure joint through threaded connections. These are particularly useful in systems that require frequent maintenance or adjustments, such as water supply lines and drainage systems.

Industrial Piping Systems

In industrial settings, couplers connect pipes that carry chemicals, gases, and water. They are chosen based on their material compatibility and resistance to the transported substances. For example, stainless steel couplers are preferred in corrosive environments, while plastic couplers like PVC are used for less demanding applications. Industrial couplers must withstand high pressures and temperatures, making durability a critical factor in their selection.

Couplings in Mechanical Systems

Motor and Shaft Connections

Couplings are vital in mechanical systems for connecting motors to shafts, ensuring efficient power transfer. They accommodate misalignments and absorb shocks, reducing wear on machinery. Flexible couplings, such as jaw or gear couplings, are often used to handle slight misalignments and dampen vibrations. These features are essential in maintaining the longevity and performance of mechanical systems, including conveyor belts, pumps, and compressors.

Vibration Reduction in Machinery

Couplings play a significant role in minimizing vibrations in machinery, which can lead to operational inefficiencies and damage. By absorbing and isolating vibrations, couplings protect both the driving and driven parts. This is particularly important in high-speed applications, where even minor vibrations can have significant impacts. Types like fluid couplings, which use hydraulic fluid to transmit torque, are effective in damping vibrations and providing smooth power transmission.

Comparative Analysis

While both couplers and couplings serve as connectors, their application areas highlight their distinct roles:

• Couplers are primarily used in piping systems for connecting pipes, ensuring fluid flow, and facilitating maintenance.
• Couplings are essential in mechanical systems for connecting shafts, transmitting power, and reducing vibrations.

Understanding these applications helps in selecting the right components, ensuring optimal performance and durability in both mechanical and piping systems.

Installation and Maintenance Considerations

Installation Procedures

Step-by-Step Guide for Couplers

1. Preparation:
   • Make sure the pipes are clean and free of debris.
   • Verify that the coupler is the correct size and material for the application.
2. Alignment:
   • Align the pipes accurately and use a level to ensure they are straight for a secure connection.
3. Connection:
   • For mechanical couplers (e.g., compression fittings), slide the coupler onto one pipe end and then connect the second pipe.
   • For threaded couplers, apply thread sealant or tape to the male threads before screwing the coupler onto the pipe ends.
4. Securing the Coupler:
   • Tighten the coupler with the appropriate tools, but don’t over-tighten to avoid damage.
   • For clamp couplings, ensure the clamps are evenly tightened to prevent leaks.
5. Testing:
   • After installation, test the connection by running fluid through the pipes to check for leaks.
   • Adjust as needed to secure the connection.

Step-by-Step Guide for Couplings

1. Preparation:
   • Make sure the shafts are clean and free of debris.
   • Confirm that the coupling is the right type and size for the shafts.
2. Alignment:
   • Align the shafts precisely to minimize misalignment.
   • Use dial indicators or laser alignment tools to achieve accurate alignment.
3. Mounting the Coupling:
   • Slide the coupling halves onto the shaft ends.
   • For flexible couplings, ensure the elastomeric or flexible element is properly positioned.
4. Securing the Coupling:
   • Tighten the coupling set screws or bolts to secure the halves onto the shafts.
   • For keyed shafts, ensure the keys are correctly placed and secured.
5. Testing and Adjustment:
   • Rotate the shafts manually to check for smooth operation and alignment.
   • Make fine adjustments as needed to ensure minimal vibration and optimal performance.

Maintenance Tips

Regular Inspection Practices

• Visual Inspection:
• Inspect couplers and couplings regularly for wear, corrosion, or damage.
• Look for any leaks, cracks, or misalignment that could indicate a need for maintenance or replacement.
• Operational Checks:
• Monitor the system during operation to detect unusual noises or vibrations that might suggest an issue with the coupling.
• Ensure that all connections remain tight and secure.
• Lubrication:
• For mechanical couplings that require lubrication (e.g., gear couplings), follow the manufacturer’s guidelines for lubrication intervals and types.
• Check lubrication levels and apply grease or oil as needed to maintain smooth operation.

Common Issues and Solutions

• Leakage in Couplers:
• If a coupler is leaking, check the seals and gaskets for wear or damage and replace them if necessary.
• Ensure that the coupler is properly tightened and that the pipes are correctly aligned.
• Misalignment in Couplings:
• Misalignment can lead to excessive wear and vibration. Use alignment tools to correct any misalignment.
• Inspect flexible elements in couplings for wear and replace them if they are worn out.
• Corrosion and Wear:
• Regularly check for corrosion, especially in harsh environments. Replace any corroded components.
• For wear, particularly in high-torque applications, ensure that the coupling materials are suitable for the operating conditions and replace worn parts promptly.

Case Studies and Examples

Introduction

Couplers and couplings are vital in mechanical and piping systems, each serving unique purposes. This section explores case studies and examples to illustrate their distinct roles and applications, providing a comparative analysis of their use in different scenarios.

Couplings in Mechanical Systems

Power Transmission and Misalignment Accommodation

Gear couplings are essential in heavy machinery, such as large industrial pumps or compressors, due to their ability to handle high torque and accommodate slight misalignments. Precise alignment can be challenging, and gear couplings ensure efficient power transmission while reducing the risk of equipment damage and operational downtime. Similarly, jaw couplings are used in machinery requiring shock absorption and vibration dampening, such as in the food processing industry where they connect motors to conveyors, ensuring smooth operation and maintaining product quality.

Applications

Magnetic couplings are used where shafts need to avoid physical contact, such as in chemical processing or handling hazardous materials. They provide a leak-free connection, maintaining safety and preventing contamination. Flexible couplings are employed in robotics and machinery needing high flexibility, allowing for slight misalignments and absorbing vibrations to enhance accuracy and efficiency.

Couplers in Piping Systems

Pipe Connection and Flexibility

In residential plumbing, compression couplers are popular because they are easy to install and disassemble. They are ideal for connecting copper pipes, especially during home renovations or repairs, minimizing downtime and ensuring a secure, leak-free connection. Socket couplers are commonly used in PVC piping systems for their simplicity and reliability. They are often found in water supply lines and drainage systems, where they provide a secure connection that can withstand varying water pressures and environmental conditions.

Applications

Mechanical couplings, such as clamp and grooved couplings, are used in industrial settings for connecting pipes without welding. These couplings offer flexibility and ease of disassembly, making them suitable for HVAC systems where frequent maintenance or reconfiguration is required. Threaded couplings are used in gas and steam systems for their secure and reliable connections. In high-pressure applications, such as in industrial boilers, threaded couplings ensure a tight seal that can withstand the operational pressures, reducing the risk of leaks and ensuring system safety.

Comparative Analysis

Key Differences and Similarities

• Purpose: Couplings are designed for mechanical power transmission, while couplers focus on fluid flow and structural integrity in piping systems.
• Material Compatibility: Couplers often connect pipes of different materials and sizes, whereas couplings typically connect similar or dissimilar shafts.
• Flexibility and Misalignment: Both components offer flexibility, but couplings are more focused on accommodating shaft misalignments, while couplers handle pipe misalignments and thermal expansions.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the difference between a coupler and a coupling in mechanical systems?

In mechanical systems, the primary difference between a coupler and a coupling lies in their functions and applications. A coupler is typically used to connect components like pipes or hoses, facilitating quick and secure connections, often with the capability for easy disconnection. This makes them ideal for systems requiring frequent maintenance or component changes, such as hydraulic systems and various types of piping networks.

On the other hand, a coupling is designed to connect two shafts within machinery to transmit power and movement. Couplings can be either rigid or flexible. Rigid couplings provide a direct connection with no allowance for relative motion, while flexible couplings can accommodate misalignment and absorb vibrations, thereby protecting the machinery and enhancing performance. Common types of couplings include gear, fluid, and magnetic couplings, each suited to specific mechanical applications.

How are couplers used in plumbing and piping?

Couplers in plumbing and piping systems are essential components that connect two or more pipes securely, ensuring the structural integrity of the system. They prevent leaks, maintain pressure, and facilitate the flow of fluids or gases. Common types of couplers include socket couplers, compression couplers, and threaded couplers. Socket couplers use solvent cement or adhesive to join pipes, making them reliable for various materials such as PVC and ABS. Compression couplers utilize a compression ring and nut for a tight seal, ideal for copper and PEX pipes. Threaded couplers screw onto pipe ends, providing secure connections for materials like brass and stainless steel. Couplers are used extensively in residential, commercial, and industrial plumbing applications to connect water supply lines, drainage pipes, and gas systems, offering durability and adaptability for different plumbing needs.

What materials are commonly used for couplers and couplings?

Couplers and couplings are often made from a variety of materials, each chosen based on the specific requirements of mechanical and piping systems. Common materials include:

Metals:

1. Stainless Steel: Highly favored for its strength, durability, and excellent corrosion resistance, making it suitable for harsh environments and high-pressure applications.
2. Carbon Steel: Known for its strength and affordability, commonly used in industrial settings, though it may require coatings to prevent corrosion.
3. Brass: An alloy of copper and zinc, noted for its durability and resistance to corrosion, ideal for water and gas systems.
4. Aluminum: Lightweight and corrosion-resistant, used in applications where weight reduction is critical, such as aerospace and automotive industries.
5. Bronze: Offers high corrosion resistance and durability in high-temperature hydraulic systems, suitable for environments needing robust connections.
6. Copper: Preferred for its superior corrosion resistance and workability, often used in piping applications.

Non-Metals:

1. Polypropylene: A cost-effective, lightweight option used in agriculture, chemical, and water treatment applications, known for chemical resistance but less strength.
2. Nylon: Provides chemical resistance and affordability, though it may warp or melt at high temperatures.
3. PVC and PE: Various plastics are used for their chemical resistance and lightweight properties, suitable for less demanding environments.

Material selection for couplers and couplings depends on factors such as pressure, corrosion resistance, cost, and environmental conditions, ensuring optimal performance and durability in their respective applications.

What factors should be considered for component compatibility?

When considering component compatibility for couplers and couplings in mechanical and piping systems, several key factors must be evaluated to ensure optimal performance and longevity.

First, mechanical compatibility is crucial, encompassing clearance, tolerances, and torque capacity. Adequate clearance prevents friction and wear, while appropriate tolerances accommodate dimensional variations. Ensuring sufficient torque capacity is essential to handle loads without failure.

Second, material compatibility involves assessing chemical resistance and thermal compatibility. Materials must withstand the chemical composition of fluids in the system and have low coefficients of thermal expansion to maintain integrity under temperature changes.

Third, hydraulic and fluid dynamics compatibility includes matching flow rates and pressure limits to the system’s requirements. The materials should also be compatible with the hydraulic fluid’s chemical and temperature conditions.

Fourth, the operational environment must be considered, including factors like temperature, chemical concentration, and corrosion resistance. Components should be designed to perform reliably under these conditions.

What are the advantages and disadvantages of different materials for couplers and couplings?

When selecting materials for couplers and couplings, it’s essential to weigh their advantages and disadvantages to ensure optimal performance for specific applications.

Stainless steel is highly durable and resistant to corrosion, making it ideal for harsh environments and high-pressure applications. However, it is more expensive and requires specialized machining. Brass offers malleability and corrosion resistance, suitable for high-temperature and high-pressure applications like plumbing and HVAC systems, but it is not ideal for high-strength needs and can be costly compared to carbon steel.

Carbon steel is strong and affordable, commonly used in industrial piping, but it is prone to corrosion without proper coating. Aluminum is lightweight and corrosion-resistant, perfect for applications where weight is a concern, such as aerospace and automotive industries, but it lacks the strength for heavy-duty applications.

Ductile iron provides strength and durability for long-term water supply systems and high-pressure applications but is heavy and may need extra support structures. PVC and CPVC are lightweight and cost-effective, with CPVC offering higher temperature resistance, suitable for plumbing and industrial applications, though PVC has lower temperature and pressure limits.

Copper excels in heat and electrical conductivity and corrosion resistance, making it ideal for plumbing, but it is expensive and prone to theft due to its value.

Can you provide examples of coupler and coupling applications in real-world scenarios?

Couplers and couplings are integral components in mechanical and piping systems, each serving distinct purposes. In real-world scenarios, couplers are widely used in piping systems for connecting pipes of different materials or sizes. For example, in water supply systems, ductile iron couplers are used to join steel, cast iron, and PVC pipes, ensuring leak-free connections. HVAC systems also employ couplers to link copper pipes to steel valves, accommodating varying thread types and sizes.

On the other hand, couplings are primarily utilized in mechanical systems to connect rotating shafts for power transmission. In machinery, rigid couplings provide precise alignment, while flexible couplings absorb minor misalignments and vibrations. Hydraulic systems use fluid couplings to transmit power smoothly, offering soft starts and protecting equipment from shock loads. Gear couplings excel in high torque applications but may transmit more vibration, whereas grid and disc couplings are preferred for their flexibility and efficiency in various operational speeds and conditions.
