Die Cast Aluminium vs Regular Aluminium: What’s the Difference?

Aluminium is a versatile metal used across various industries, but did you know that the way it’s manufactured can significantly impact its properties and applications? In the world of aluminium, two primary techniques dominate: die casting and regular casting. If you’ve ever wondered what sets die cast aluminium apart from its regular counterpart, you’re in the right place. This article delves into the nuances of these manufacturing processes, comparing their material properties, practical applications, and cost-effectiveness. Whether you’re curious about which method yields stronger parts or how each process affects sustainability, we’ve got the answers. Ready to explore the fascinating differences between die cast and regular aluminium? Let’s dive in!

Understanding Die Casting and Aluminium Casting Processes

Die Casting Process

Die casting is a manufacturing technique that involves forcing molten metal, typically aluminum, into a steel mold under high pressure. This technique is renowned for producing precise, complex shapes with excellent surface finish and dimensional accuracy.

Steps in Die Casting

1. Pattern-making: A model or pattern of the desired part is created, serving as a template for the mold.
2. Molding: A steel mold is designed based on the pattern, which will hold the molten metal during the casting process.
3. Melting and Injection: Aluminum alloy is heated to a molten state and injected into the mold cavity under high pressure, ensuring the metal fills all the intricate details of the mold.
4. Extraction: Once the metal has solidified, the mold halves are separated to remove the finished part.
5. Trimming: Excess metal, known as flash, is trimmed off the final product to achieve the desired shape and finish.

Regular Aluminium Casting

Regular aluminum casting, also known as sand casting or gravity casting, involves pouring molten aluminum into a mold and allowing it to solidify naturally. This method is more flexible in terms of part size and design but generally less precise than die casting.

Steps in Regular Aluminium Casting

1. Pattern-making: Similar to die casting, a pattern of the desired part is created.
2. Molding: The pattern is used to create a mold, typically made from sand or other materials. This mold will hold the molten aluminum.
3. Melting and Pouring: Aluminum is melted and manually poured into the mold cavity.
4. Cooling: The molten aluminum is allowed to cool and solidify within the mold.
5. Extraction: The mold is broken away to reveal the solidified part.
6. Finishing: The part may require additional finishing processes to remove excess material and achieve the desired dimensions.

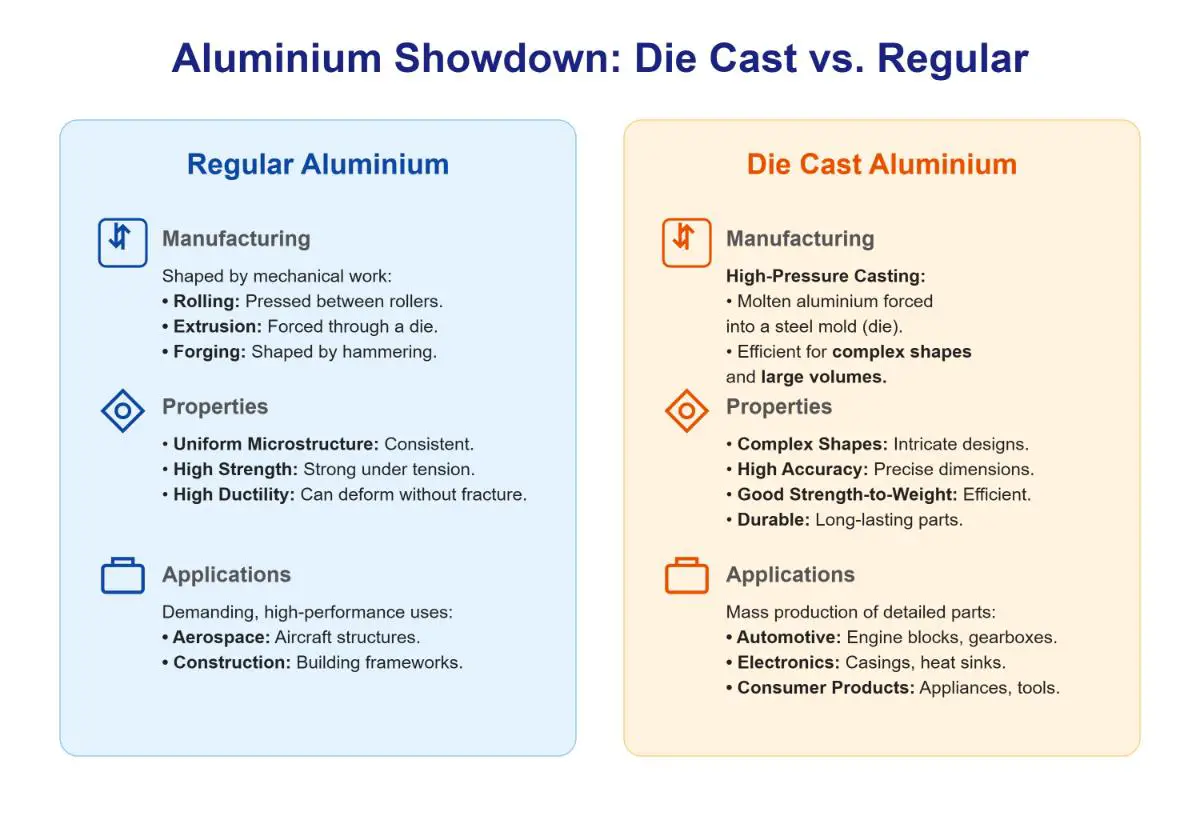

Comparison: Die-Cast Aluminum vs. Regular Aluminum

Key Differences and Applications

Die-cast aluminum is ideal for high-precision applications like automotive components and power tools because it can produce detailed parts quickly. Although die-cast aluminum is stronger and more durable, regular aluminum casting is often selected for non-critical parts to save costs. Die-cast aluminum is used in applications where lightweight, durable parts are necessary, such as in the automotive and electronics industries. Regular aluminum casting is suitable for larger, less complex parts where precision is not as critical.

Comparing Die Cast Aluminium and Regular Aluminium

Material Properties

Aluminium

Aluminium is a lightweight, corrosion-resistant metal with excellent thermal and electrical conductivity. Its versatility and ease of fabrication make it popular across various industries. Aluminium can be processed in different forms, including pure (wrought) aluminium and cast aluminium.

Die Cast Aluminium

Die cast aluminium, made using a high-pressure die-casting process, involves forcing molten aluminium into a mold to create precise shapes. Die cast aluminium is known for its precision, smooth finish, and ability to create complex shapes.

Key Differences

Manufacturing Process

• Regular Aluminium: Typically processed through methods such as rolling, extrusion, or forging. These processes involve mechanical deformation to achieve uniform microstructures and enhance mechanical properties. Cast aluminium is made by melting aluminium and pouring it into molds, suitable for creating complex shapes.
• Die Cast Aluminium: Uses high-pressure injection to force molten aluminium into a mold. This method is particularly effective for producing large volumes of components with intricate designs and thin walls, offering high precision and durability.

Strength and Ductility

• Regular Aluminium: Offers superior mechanical properties due to its uniform microstructure. It is ideal for applications requiring high strength and ductility, such as aerospace and high-performance machinery.
• Die Cast Aluminium: Provides strong, durable components with good dimensional stability, making it suitable for a wide range of industries.

Cost-Effectiveness

• Regular Aluminium: It is generally more cost-effective for simpler shapes and non-critical precision applications. Wrought aluminium’s strength and machinability can be advantageous for certain applications.
• Die Cast Aluminium: Higher initial costs due to specialized equipment and molds, but offers long-term savings through scalability and consistency in high-volume production.

Advantages

Regular Aluminium

• Versatility: Can be used in various forms and processed through multiple techniques.
• Strength: High strength and ductility make it suitable for demanding applications.
• Cost: Generally more cost-effective for simpler shapes and applications.

Die Cast Aluminium

• Precision: High dimensional accuracy and smooth surface finish.
• Complex Designs: Ideal for producing intricate components with thin walls.
• Scalability: Efficient for large-scale production with consistent quality.

Applications

Regular Aluminium

Commonly used in construction, packaging, and high-performance applications where strength and ductility are crucial. Examples include structural components, aerospace parts, and general machinery.

Die Cast Aluminium

Frequently used in automotive, electronics, and industrial machinery due to its ability to produce complex designs at scale. Examples include engine components, electronic housings, and precision tools.

Practical Applications

Automotive Industry

Die cast aluminium is widely used in the automotive industry because it can produce complex and precise components. It is commonly used for engine blocks, transmission housings, and structural components. The high strength-to-weight ratio of die cast aluminium makes it ideal for parts that need to be both lightweight and durable. Additionally, the excellent thermal conductivity of die cast aluminium helps in managing heat in automotive engines and electronic components.

Regular cast aluminium is also used in the automotive industry, particularly for parts that do not require high precision or complex shapes. Examples include brackets, mounting components, and larger, less intricate parts. The cost-effectiveness of regular aluminium casting makes it suitable for producing these types of components on a budget.

Construction Industry

In construction, die cast aluminium is valued for its ability to create strong, lightweight, and corrosion-resistant components. It is often used for window frames, door handles, and structural fixtures where precision and durability are essential. The high precision of die cast aluminium ensures perfect fit and is crucial for construction applications.

Regular cast aluminium is commonly used for larger construction components such as beams, panels, and decorative elements. Its ability to be cast into a variety of shapes and sizes makes it versatile for many construction applications. Although it may not offer the same level of precision as die cast aluminium, it is sufficient for many structural and aesthetic purposes.

Consumer Electronics

Die cast aluminium is widely used in the consumer electronics industry for manufacturing cases and housings for devices such as smartphones, laptops, and tablets. Die casting’s high precision enables the creation of intricate, thin-walled designs essential for modern electronics. Additionally, the excellent heat dissipation properties of die cast aluminium help in managing the thermal loads of electronic components.

Regular cast aluminium is less commonly used in consumer electronics due to its lower precision and higher likelihood of defects. However, it can still be found in larger electronic components and accessories where high precision is not as critical. Examples include heat sinks, mounting brackets, and protective covers.

In each of these industries, the choice between die cast aluminium and regular aluminium depends on the specific requirements of the application, such as the need for precision, strength, and cost-effectiveness.

Manufacturing Techniques in Depth

Die Casting Process with Examples

Overview of Die Casting

Die casting is a manufacturing process where molten metal, typically aluminum, is injected into a steel mold (die) under high pressure. This technique is highly efficient for producing precise, complex shapes with excellent surface finishes and dimensional accuracy.

Steps in Die Casting

1. Pattern-making: A model or pattern of the desired part is created, serving as a template for the mold.
2. Molding: A steel mold is designed based on the pattern, which will hold the molten metal during the casting process.
3. Melting, Injection, and Solidification: The aluminum alloy is heated to a molten state, injected into the mold cavity under high pressure, and then solidifies quickly within the mold.
4. Ejection: Once solidified, the mold halves are separated to remove the finished part.
5. Trimming: Excess metal, known as flash, is trimmed off the final product to achieve the desired shape and finish.

Examples of Die Cast Products

Common die-cast products include automotive parts like engine blocks, housings for consumer electronics such as smartphones, and industrial equipment components like gear housings.

Regular Casting Process with Examples

Overview of Regular Casting

Regular aluminum casting, also known as sand or gravity casting, involves pouring molten aluminum into a mold and allowing it to solidify naturally. This method is more flexible in terms of part size and design but generally less precise than die casting.

Steps in Regular Casting

1. Pattern-making: Similar to die casting, a pattern of the desired part is created.
2. Molding: The pattern is used to create a mold, typically made from sand or other materials. This mold will hold the molten aluminum.
3. Melting and Pouring: Aluminum is melted and manually poured into the mold cavity.
4. Cooling: The molten aluminum is allowed to cool and solidify within the mold.
5. Extraction: The mold is broken away to reveal the solidified part.
6. Finishing: The part may require additional finishing processes to remove excess material and achieve the desired dimensions.

Examples of Regular Cast Products

Common products include construction components such as beams and panels, machinery parts, and consumer goods like large brackets and protective covers.

Comparative Analysis of Manufacturing Techniques

Precision and Complexity

Die casting offers high precision and can produce complex shapes with intricate details, while regular casting is better suited for simpler shapes with less precision.

Production Speed and Efficiency

Die casting is faster due to high-pressure injection, making it ideal for large-scale manufacturing. Regular casting involves manual pouring and cooling, better suited for small to medium production runs.

Strength and Durability

Die casting produces stronger and more durable parts due to the high pressure used in the process. Regular casting generally results in less strong and durable products, but is adequate for many non-critical applications.

Cost Implications

Die casting involves higher initial costs due to specialized equipment and molds but offers cost savings in high-volume production. Regular casting has lower initial costs for molds and equipment, making it cost-effective for smaller production runs and less complex parts.

Sustainability and Cost-Effectiveness

Manufacturing Processes

Die-Cast Aluminum

Die-cast aluminum is made by injecting molten aluminum into steel molds (dies) under high pressure, creating components with complex designs and minimal waste. This process is highly efficient for producing intricate, thin-walled components with stable dimensions, making it ideal for high-volume production.

Regular Aluminum

Regular aluminum, also known as wrought aluminum, is processed through methods such as rolling, extrusion, or forging. These methods involve mechanical deformation, which requires more energy to shape solid aluminum into final products. Cast aluminum is created by pouring molten aluminum into sand or permanent molds without high pressure, allowing for intricate designs but with higher risks of porosity and defects.

Sustainability Comparison

Material Efficiency

Die-cast aluminum is highly efficient due to its ability to create thin walls and reduce material use, ensuring minimal waste. The precision of the process helps minimize scrap material.

Energy Use

Die-cast aluminum generally uses less energy per unit because of its optimized mass production techniques. In contrast, regular aluminum methods like rolling and extrusion are more energy-intensive.

Recyclability

Both die-cast and regular aluminum are highly recyclable. However, die casting generates less scrap material, making it a more sustainable option.

Waste Reduction

Die-cast aluminum results in minimal waste due to the precision of the process and reduced excess material. The high-quality molds and controlled environment contribute to lower defect rates. Regular aluminum, on the other hand, has a higher risk of defects and rework, leading to increased waste. The variability in manual pouring and cooling can result in imperfections that require correction.

Cost-Effectiveness

Die-Cast Aluminum

Die-cast aluminum involves high upfront costs due to the investment in steel dies and specialized equipment. However, this cost is offset by the lower per-unit cost in large-scale production. The process offers long-term savings through the durability of molds, precision in manufacturing, and reduced need for assembly. The consistency and speed of production also contribute to overall cost-efficiency.

Regular Aluminum

Regular aluminum has lower initial costs, making it suitable for small-scale production with simpler molds and less specialized equipment. This makes it more accessible for smaller operations. However, for complex designs, regular aluminum casting may incur higher machining costs to achieve the desired precision. The need for additional finishing processes can also add to the overall cost.

Key Advantages

Die-Cast Aluminum

Die-cast aluminum offers precise production with stable dimensions and tight tolerances, making it ideal for industries requiring high precision, such as automotive and medical fields. Its scalability is a significant advantage, making it perfect for mass production where large volumes of parts are needed.

Regular Aluminum

Regular aluminum is more suitable for custom, low-volume items where the design may need to change frequently. The versatility in casting methods allows for a wide range of shapes and sizes. It is also more economical for simple, non-critical components, providing a cost-effective solution where high precision is not essential.

Choosing the Right Manufacturing Technique

Factors to Consider When Choosing a Manufacturing Technique

Choosing the right manufacturing method for aluminum parts requires considering several important factors. Understanding these factors will help you make an informed decision that aligns with your specific needs and constraints.

Production Volume

The volume of production is crucial; die casting is ideal for high-volume production because it can quickly and efficiently produce large quantities of parts. The initial investment in molds and equipment is high, but the cost per unit decreases significantly with large-scale production. Regular casting is more cost-effective for low-to-medium volume production. The lower initial setup costs make it suitable for projects with smaller production runs.

Complexity and Precision of Parts

The complexity and precision required for the parts are crucial considerations. Die casting offers superior precision and can produce complex shapes with intricate details. It provides tight tolerances and smooth surface finishes, minimizing the need for post-processing. Regular casting is better suited for simpler shapes and designs. It generally requires additional machining to achieve the desired precision and finish.

Material Properties and Strength

It’s essential to assess the material properties and strength needs of the parts. Die casting produces parts with high density and dimensional stability, suitable for applications where strength and durability are critical. Regular casting offers a wider selection of aluminum alloys, which can be chosen based on specific property requirements such as heat resistance. The parts may have lower density but a more uniform internal structure.

Cost Implications

Understanding the cost implications of each method is crucial for managing your budget. Die casting involves higher initial costs due to the investment in custom steel molds and specialized equipment. However, it offers long-term savings through scalability and consistency in high-volume production. Regular casting has lower upfront costs for molds and equipment, making it more accessible for smaller operations. The overall cost may increase with complex designs requiring additional machining and finishing.

Application Requirements

The specific requirements of the application will guide the choice of manufacturing technique. Die casting is suitable for applications requiring high precision, repeatability, and minimal post-processing. It is commonly used in industries such as automotive, electronics, and industrial machinery. Regular casting is ideal for larger parts or components where precision is not as critical. It is often used in construction, general machinery, and custom, low-volume items.

Case Studies

Automotive Industry

In the automotive industry, die casting is frequently chosen for engine blocks and transmission housings due to its ability to produce complex, lightweight, and durable components. Regular casting is used for larger, less intricate parts like brackets and mounting components.

Consumer Electronics

Die casting is preferred for manufacturing cases and housings for smartphones and laptops because of the high precision and excellent surface finish it provides. Regular casting is utilized for larger electronic components like heat sinks and protective covers where precision is less critical.

Recent Trends

Both die casting and regular casting increasingly use recycled aluminum to meet eco-friendly standards. This trend supports sustainability by reducing the environmental impact of aluminum production.

Hybrid manufacturing approaches, such as combining CNC machining with die casting, are becoming more popular. This technique enhances critical tolerance zones, ensuring higher precision for mating surfaces and other key areas.

Considering these factors will help you choose the right manufacturing technique that best suits your needs, ensuring optimal performance, cost-efficiency, and sustainability for your aluminum parts.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the difference between die cast aluminium and regular aluminium?

The difference between die cast aluminium and regular aluminium primarily lies in their manufacturing processes and resulting properties. Regular aluminium, often called pure or wrought aluminium, is shaped through methods like rolling, extrusion, or forging. These techniques produce materials with uniform microstructures, high strength, and ductility, making regular aluminium suitable for high-performance applications such as aerospace and construction.

On the other hand, die cast aluminium is created using a high-pressure casting process where molten aluminium is injected into a mold. This method is ideal for producing complex shapes in large quantities with high accuracy and a good strength-to-weight ratio. Die cast aluminium is widely used in automotive components, electronics, and consumer products due to its efficiency in creating intricate and durable parts.

Which manufacturing process is better for making aluminium parts?

When deciding which manufacturing process is better for making aluminium parts, it depends on the specific requirements of the project.

Die cast aluminium is ideal for high-volume production due to its ability to produce parts quickly and with consistent dimensions. This method is particularly suitable for creating complex shapes with high precision and durability, making it a preferred choice in industries like automotive and consumer electronics. However, the process requires specialized high-pressure equipment and can sometimes result in trapped gases within the metal, affecting density.

Regular cast aluminium, on the other hand, is more versatile in terms of the types of molds used (e.g., permanent, sand, shell) and can be more cost-effective for smaller production runs or intricate designs that do not require the high precision of die casting. However, this process may introduce defects such as porosity and inclusions, which can impact the mechanical integrity of the parts.

What are the advantages of die cast aluminium over regular aluminium?

Die-cast aluminium offers several advantages over regular aluminium. Firstly, it allows for the production of highly precise components with tight tolerances, minimizing the need for post-processing. This precision also enables the creation of complex geometries, such as thin walls and intricate details, in a single step. Secondly, die-cast parts are known for their superior tensile strength and structural stability. The high-pressure injection process used in die casting results in low porosity, which enhances the parts’ resistance to wear, corrosion, and stress.

In terms of production efficiency, die casting is highly optimized for large-scale manufacturing, capable of producing thousands of identical parts rapidly. This makes it more suitable for high-volume runs compared to regular aluminium casting methods like sand casting, which are slower and less efficient for large-scale production.

Additionally, the material properties of die-cast aluminium alloys are engineered for lightweight durability and excellent thermal conductivity. The process also enhances pressure-tightness, making die-cast parts ideal for applications where leaks are critical, such as in the automotive and aerospace industries.

Lastly, while die casting has higher upfront tooling costs, it reduces long-term expenses through minimal material waste and faster cycle times, making it more cost-effective for large-scale production. Regular aluminium casting methods often incur higher machining and labor costs per unit, especially for complex parts. Overall, die-cast aluminium’s versatility, precision, and performance make it a preferable choice for modern manufacturing needs.

How does the cost of die casting compare to regular casting?

Die casting and regular casting differ significantly in cost, primarily due to their tooling requirements and production efficiencies. Die casting involves high initial tooling costs, which can range from $3,000 to over $100,000 for complex molds. However, once the tooling is set up, the per-part cost is relatively low, especially for high-volume production, making die casting economically viable for large runs due to economies of scale and rapid cycle times.

Regular casting, such as sand casting, has lower initial tooling costs since sand molds are inexpensive compared to permanent molds. However, the per-part cost tends to be higher for large volumes due to slower production rates and increased manual labor. Regular casting is more cost-effective for low-volume or custom parts, where the high upfront investment in die casting is not justified.

What industries benefit most from die cast aluminium?

Die cast aluminium benefits industries that require lightweight, precise, and high-volume production parts. The automotive industry uses it for engine brackets, transmission housings, and structural components due to its fuel efficiency and corrosion resistance. The aerospace sector relies on die cast aluminium for avionics housings and sensor mounts, valuing its strength-to-weight ratio and precision. In construction and industrial equipment, die cast aluminium is favored for building frames and machinery housings, offering durability and reduced maintenance needs. Electronics benefit from its thermal conductivity and EMI shielding in heat sinks and device housings. Lastly, renewable energy applications like solar panel brackets and wind turbine components leverage die cast aluminium for its weather resistance and structural stability. Overall, die cast aluminium excels in industries prioritizing mass production, complex geometries, and lightweight designs.
