Ductile Iron vs Cast Iron: A Comprehensive Comparison

In the world of metallurgy, choosing between ductile iron and cast iron can be a game-changer for many industries. Ductile iron offers remarkable flexibility and high tensile strength, making it ideal for applications requiring durability under stress, such as automotive parts. In contrast, cast iron is known for its excellent castability and wear resistance, commonly used in pipes and cookware. But what are the hidden differences that could sway your choice?

As we delve deeper, we’ll explore everything from graphite microstructure to cost considerations. So, are you ready to discover which type of iron is the best fit for your next project?

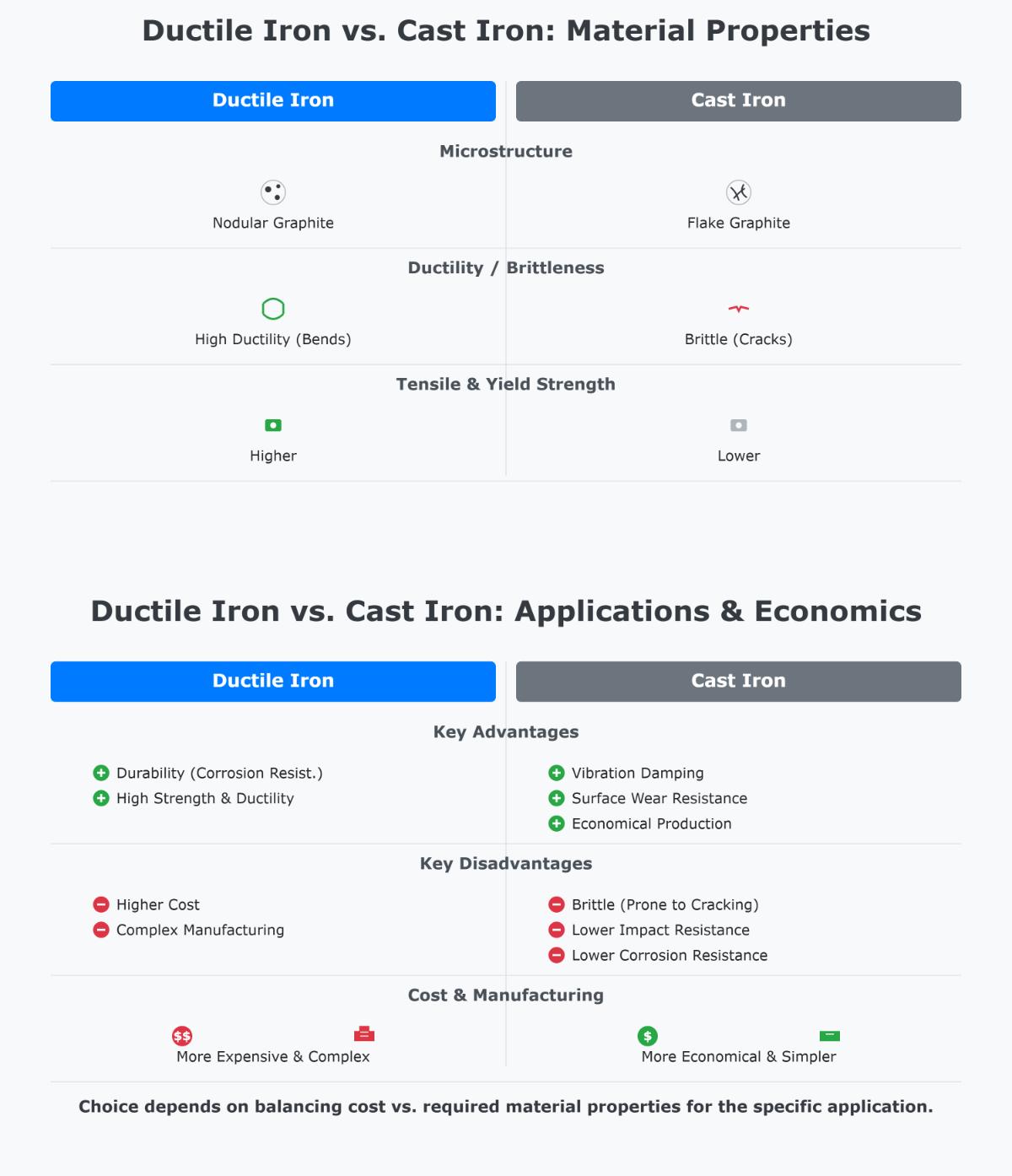

Overview of Key Differences and Similarities

Composition and Microstructure

Gray cast iron is primarily composed of 96 – 98% iron, 2 – 4% carbon, and a small amount of silicon. The graphite forms flakes, making the material brittle. In contrast, ductile iron, also known as nodular or spheroidal graphite iron, contains similar base elements but with the addition of magnesium (or sometimes cerium or tellurium). These elements cause the graphite to form nodules instead of flakes, enhancing ductility and strength.

Mechanical Properties

Cast iron has good compressive strength and surface wear resistance due to its hardness, but it suffers from poor tensile strength and ductility, making it prone to cracking under tension. On the other hand, ductile iron has high tensile strength and ductility, similar to steel. This makes it resistant to cracking and well – suited for applications requiring impact resistance. Additionally, ductile iron exhibits improved machinability and fatigue properties.

Durability and Corrosion Resistance

The flaky graphite structure of cast iron makes it prone to corrosion and lacking in the ductility to withstand sudden impacts. It is more brittle and thus susceptible to fractures. Ductile iron, with its nodular graphite structure, offers enhanced durability and corrosion resistance. It can withstand impacts without cracking, making it suitable for demanding applications.

Applications

Cast iron is often used in non – mechanical applications such as hardscape, counterweights, and machine bases, where vibration damping is beneficial. It is also cost – effective for smaller pipes and cookware. Ductile iron, however, is preferred in high – strength and ductility applications like pipes under pressure, automotive parts, and machinery. It is also used in utility poles and other infrastructure due to its reliability.

Cost and Weldability

Cast iron is less expensive to produce but may require more maintenance over time. It cannot be welded, which limits its repairability. Ductile iron is more expensive due to its complex chemical makeup, but it offers better long – term cost efficiency. Although welding ductile iron can be challenging, it allows for easier repairs and modifications.

Understanding the Basics

Basics of Ductile Iron and Cast Iron

Understanding the differences and similarities between ductile iron and cast iron is crucial for making informed decisions in material selection for various engineering applications.

Composition and Microstructure

The main difference between ductile iron and cast iron is in their composition and microstructure:

• Cast Iron (Gray Iron):

• Contains 2-4% carbon and a small amount of silicon.

• The graphite within forms flake-like structures, contributing to its brittleness.

• Ductile Iron:

• Similar base composition to cast iron but includes nodulizing elements like magnesium, tellurium, or cerium.

• These elements convert the graphite into spherical nodules, enhancing its ductility and strength.

Mechanical Properties

The mechanical properties of ductile iron and cast iron differ significantly due to their microstructures:

• Cast Iron:

• Brittleness: The flake-like graphite structure makes the material hard but brittle, so it is prone to cracking under tensile stress.

• Compressive Strength: High compressive strength makes it suitable for applications involving compression.

• Ductile Iron:

• Ductility: The nodular graphite structure gives it higher ductility, so it can deform without breaking.

• Tensile Strength: Exhibits higher tensile strength compared to cast iron, making it more resistant to cracking and suitable for dynamic loads.

Durability and Corrosion Resistance

Durability and corrosion resistance are key considerations in material selection:

• Cast Iron:

• More prone to corrosion, especially in environments exposed to moisture and chemicals. Its brittle nature can lead to fractures over time under stress or impact.

• Ductile Iron:

• The nodular graphite structure improves durability, allowing it to endure greater impacts and stresses. It also has better resistance to corrosion compared to cast iron, making it suitable for applications in harsh environments.

Applications

The distinct properties of ductile iron and cast iron influence their suitability for various applications:

• Cast Iron:

• Used in non-mechanical applications where brittleness is not a concern, such as manhole covers, engine blocks, and brake components.

• Preferred for applications requiring excellent vibration damping due to its graphite flake structure.

• Ductile Iron:

• Ideal for high-strength and high-ductility applications, including pipes under pressure, automotive parts, and machinery components.

• Utilized in utility poles and other infrastructure due to its flexibility and resilience.

Cost and Production Considerations

Cost and production complexity play a significant role in material selection:

• Cast Iron:

• Generally cheaper to produce due to simpler manufacturing processes and lower material costs.

• However, it may require more frequent maintenance and is less repairable due to its brittleness.

• Ductile Iron:

• More expensive to produce because of the addition of nodulizing elements and a more complex production process. Despite the higher initial cost, it offers long-term savings through reduced maintenance and increased lifespan.

Graphite Microstructure in Ductile and Cast Iron

Graphite Microstructure in Cast Iron

Cast iron, especially gray cast iron, has a distinct graphite microstructure. It features graphite flakes spread throughout the iron matrix. This is due to the high carbon content in cast iron, usually between 2 – 4%. As the molten iron cools and solidifies, carbon separates out and forms these graphite flakes.

Characteristics and Effects

• Brittleness: The flake – like graphite in cast iron acts as a stress concentrator. When the material is pulled (under tensile stress), cracks start at the tips of the graphite flakes. This leads to a brittle fracture, which means cast iron can break easily under pulling forces. This limits its use in applications that need high tensile strength.
• Compressive Strength: Cast iron is great at withstanding pushing forces (compressive loads). The graphite flakes don’t have much of an impact on its ability to handle these loads. That’s why it’s used in things like engine blocks and heavy machinery bases.
• Wear Resistance: The graphite flakes also act as a lubricant. This gives cast iron good wear resistance. It’s useful in applications such as brake rotors and wear plates.

Graphite Microstructure in Ductile Iron

Ductile iron, also called nodular or spheroidal graphite iron, has a very different graphite microstructure compared to cast iron. In ductile iron, the graphite forms into spherical nodules instead of flakes. This change happens when nodulizing elements like magnesium, cerium, or tellurium are added to the molten iron. These elements change the way carbon behaves as it solidifies, making it form nodules.

Characteristics and Effects

• Ductility: The spherical graphite nodules in ductile iron reduce stress concentrations. This makes the material much more ductile than cast iron. It can stretch and deform under pulling forces without breaking.
• Tensile Strength: The nodular graphite structure makes ductile iron stronger when pulled. This makes it suitable for applications that need materials to handle dynamic and impact loads, such as automotive parts and pipeline systems.
• Impact Resistance: The round shape of the graphite nodules in ductile iron stops cracks from starting and spreading. This improves its ability to handle impact and shock loads.

Comparative Analysis

When comparing the graphite microstructures of cast iron and ductile iron:

• Graphite Form: Cast iron has graphite in flake form, while ductile iron has graphite in nodule form.
• Stress Concentration: The flake – shaped graphite in cast iron causes stress concentrations, making it brittle. In ductile iron, the nodular graphite reduces stress concentrations, increasing its ductility and strength when pulled.
• Mechanical Properties: Cast iron is strong under pushing forces and has good wear resistance but is weak under pulling forces and has poor impact resistance. Ductile iron, on the other hand, is strong when pulled, very ductile, and has good impact resistance because of its nodular graphite structure.

Understanding these differences is key for choosing the right material for specific engineering applications. The choice between cast iron and ductile iron should be based on the mechanical property needs and the specific requirements of the application.

Role of Nodulizing Elements

Importance of Nodulizing Elements

Nodulizing elements are essential additives in making ductile iron, setting it apart from traditional cast iron. These elements, such as magnesium, cerium, and tellurium, change the graphite structure in iron, which improves its properties.

Transformation of Graphite Structure

Nodulizing elements change the shape of graphite as molten iron solidifies. In cast iron, graphite forms as flakes, which act as stress concentrators and weaken the material’s tensile strength and ductility. By adding nodulizing elements like magnesium, the graphite forms spherical nodules instead of flakes. This transformation is crucial because spherical graphite nodules reduce stress concentrations and enhance the mechanical properties of the iron.

Enhanced Ductility and Strength

The spherical nodules in ductile iron significantly improve its ability to stretch and withstand stress without breaking, compared to cast iron. This makes ductile iron more suitable for applications that require materials to endure dynamic and impact loads, such as automotive components and pipeline systems.

Improvement in Fatigue Properties

Nodulizing elements not only enhance the immediate mechanical properties of ductile iron but also improve its fatigue resistance. The nodular graphite structure distributes stress more evenly throughout the material, reducing the likelihood of crack initiation and propagation under cyclic loading conditions. This is particularly advantageous in applications where components are subjected to repetitive stress, such as in heavy machinery and structural supports.

Comparison with Cast Iron

Graphite Structure

• Cast Iron: Features flake-like graphite, leading to brittleness and lower tensile strength.
• Ductile Iron: Contains spherical graphite nodules, resulting in higher ductility and tensile strength.

Role of Nodulizing Elements

• Cast Iron: Does not require nodulizing elements; graphite naturally forms flakes.
• Ductile Iron: Requires the addition of nodulizing elements like magnesium to transform graphite into nodules.

Mechanical Properties

• Cast Iron: High compressive strength, good wear resistance, but low tensile strength and ductility.
• Ductile Iron: Balanced mechanical properties with high tensile strength, excellent ductility, and improved impact resistance.

Application-Specific Benefits

The use of nodulizing elements in ductile iron production provides distinct advantages in various applications:

• Piping Systems: Ductile iron’s strength and flexibility make it perfect for pipes that must handle pressure and impacts.
• Automotive Industry: Improved fatigue resistance and impact strength make ductile iron suitable for critical automotive components such as suspension systems and engine parts.
• Infrastructure: The durability and resilience of ductile iron make it a preferred material for utility poles, bridge components, and other structural applications.

By understanding the role of nodulizing elements, engineers and material scientists can make informed decisions when selecting materials for specific applications, ensuring optimal performance and longevity.

Material Properties Comparison

Mechanical Properties

Tensile Strength

Tensile strength measures how much pulling force a material can endure before breaking.

• Cast Iron: Exhibits relatively low tensile strength due to its flaky graphite structure, which acts as stress concentrators and leads to brittleness. This makes cast iron more likely to crack under tensile loads.
• Ductile Iron: Offers significantly higher tensile strength, comparable to that of low-carbon steel. The nodular graphite structure minimizes stress concentrations, enhancing its ability to withstand tensile forces without fracturing.

Compressive Strength

Compressive strength refers to the capacity of a material to withstand loads that tend to reduce size.

• Cast Iron: Possesses excellent compressive strength, making it suitable for applications that involve compressive loads, such as machine bases and structural components.
• Ductile Iron: While also strong in compression, ductile iron’s primary advantage lies in its balance of compressive and tensile strengths, making it versatile for various load conditions.

Ductility

Ductility measures a material’s ability to deform under tensile stress.

• Cast Iron: Has very low ductility due to its graphite flakes, which cause the material to fracture without significant deformation.
• Ductile Iron: As the name suggests, ductile iron has high ductility. The spherical graphite nodules allow it to deform significantly under tensile stress without breaking, making it suitable for dynamic and impact loads.

Fatigue Resistance

Cast iron has lower fatigue resistance due to its brittle nature, making it prone to failure under repeated loading and unloading cycles.

• Cast Iron: The presence of graphite flakes can initiate cracks under cyclic loading, leading to early failure.
• Ductile Iron: Exhibits superior fatigue resistance. The nodular graphite structure helps distribute stress more evenly, reducing the likelihood of crack initiation and propagation under cyclic loads.

Impact Resistance

Impact resistance measures how well a material can absorb energy without breaking.

• Cast Iron: Has low impact resistance due to its brittleness. The flake graphite structure makes it prone to sudden fractures under impact or shock loads.
• Ductile Iron: Offers high impact resistance. The spherical graphite nodules act as crack arresters, enhancing the material’s ability to absorb and dissipate energy without fracturing.

Wear Resistance

Wear resistance shows how well a material can withstand surface wear from mechanical action.

• Cast Iron: Possesses good wear resistance due to the lubricating effect of its graphite flakes. This makes it suitable for applications such as brake rotors and wear plates.
• Ductile Iron: Also has good wear resistance, though slightly less than cast iron. The nodular graphite provides a balance between wear resistance and other mechanical properties.

Corrosion Resistance

Corrosion resistance is the ability of a material to withstand damage caused by oxidation or other chemical reactions.

• Cast Iron: While generally resistant to corrosion, it is more prone to environmental degradation over time, especially in moist or chemically aggressive environments.
• Ductile Iron: Offers improved corrosion resistance compared to cast iron. The nodular graphite structure and the addition of alloying elements enhance its durability in harsh conditions.

Thermal Conductivity

Thermal conductivity is the property of a material to conduct heat.

• Cast Iron: Features relatively high thermal conductivity due to its graphite content. This makes it effective for applications requiring heat dissipation, such as engine blocks.

• Ductile Iron: Has slightly lower thermal conductivity than cast iron but still performs well in thermal management applications.

• Cast Iron: Low tensile strength, high compressive strength, low ductility, lower fatigue and impact resistance, good wear and thermal conductivity, moderate corrosion resistance.

• Ductile Iron: Offers high tensile strength, balanced compressive strength, excellent ductility, superior fatigue and impact resistance, good wear resistance, better corrosion resistance, and effective thermal management.

Industrial Applications

Pipes and Valves

Ductile iron is commonly used for making pipes and valves because it is strong and resists corrosion. These properties make it ideal for water and sewage systems where pipes must withstand high pressure and corrosive environments. The material’s flexibility also allows it to absorb shocks and vibrations, reducing the risk of fractures and leaks. Cast iron, although less ductile, is still used in certain piping applications where lower cost and vibration damping are prioritized.

Automotive Industry

Ductile iron is preferred in the automotive sector for critical engine components like crankshafts, camshafts, and connecting rods due to its high tensile strength and fatigue resistance, which ensure durability and performance under constant stress. Cast iron, on the other hand, is used in less critical components like engine blocks and brake drums, where its excellent wear resistance and thermal conductivity are advantageous.

Heavy Machinery

Ductile iron is the material of choice for heavy machinery parts that require high strength and impact resistance. This includes components in mining equipment, construction machinery, and agricultural tools. Ductile iron’s strength and durability make it essential for these industries. Cast iron is also used in heavy machinery but typically for parts like machine bases and housings where high compressive strength and vibration damping are essential.

Infrastructure

In infrastructure projects, ductile iron’s durability and flexibility make it suitable for manufacturing manhole covers, grates, and utility poles. These components must withstand heavy loads, impacts, and environmental exposure, which ductile iron handles effectively. Cast iron remains a popular choice for manhole covers and decorative elements in urban infrastructure due to its cost – effectiveness and aesthetic appeal.

Hardscape and Decorative Items

Cast iron is often used for hardscape and decorative items such as gates, railings, and garden furniture. Its ease of casting and ability to produce intricate designs make it ideal for these applications. Its natural wear resistance ensures it lasts long, even outdoors. Ductile iron, while less common in decorative applications, can be used where additional strength and impact resistance are required.

Machine Bases and Engine Parts

The high compressive strength of cast iron makes it suitable for machine bases and engine parts that do not require high tensile strength. Its ability to dampen vibrations helps in maintaining the stability and precision of machinery. Ductile iron, with its balanced mechanical properties, is also used in machine components that experience dynamic and impact loads, providing a combination of strength and flexibility.

Brake Components

In braking systems, cast iron is still favored for some components due to its excellent thermal conductivity, which helps in dissipating heat generated during braking. This property, combined with good wear resistance, makes cast iron suitable for brake rotors and drums. Ductile iron, with its superior impact resistance, is also used in certain high – performance brake components where additional durability is required.

Cost and Production Considerations

Cost and Production

When comparing ductile iron and cast iron, evaluating the cost and production complexity is crucial. These factors determine the material’s suitability for various applications, balancing budget constraints with performance requirements.

Cost Considerations

Cast Iron

Cast iron is typically more cost-effective to produce due to its simpler chemical composition and less complex manufacturing process. The basic elements used in cast iron, mainly iron and carbon, are relatively inexpensive, contributing to its lower

Ductile Iron

Producing ductile iron is more expensive because it requires adding nodulizing elements like magnesium, which enhance its ductility and strength. Despite the higher initial cost, ductile iron offers superior mechanical properties, which can justify the expense in applications requiring high strength, impact resistance, and durability.

Production Complexity

Cast Iron

The production process for cast iron is straightforward and well-established, involving fewer specialized steps. This simplicity makes it less complex and contributes to its lower cost. The ease of manufacturing allows for wide-scale production without requiring stringent control measures, making it suitable for non-critical applications.

Ductile Iron

The production of ductile iron involves adding nodulizers to create spherical graphite nodules. This requires precise control over the casting process, increasing production complexity. The added complexity results in improved mechanical properties, such as higher tensile strength and ductility, making ductile iron suitable for demanding applications where performance is paramount.

Physical Properties and Applications

Cast Iron

Cast iron’s excellent vibration damping and surface hardness make it suitable for applications like machine bases, engine components, and hardscape items such as manhole covers. However, its brittle nature limits its use in applications requiring flexibility or impact resistance.

Ductile Iron

Ductile iron offers high tensile strength, excellent corrosion resistance, and enhanced ductility, making it ideal for high-demand applications such as pipes, automotive parts, and machinery. While more expensive, it is less suitable for applications where surface hardness is the primary requirement.

Cost-Benefit Analysis

When selecting between ductile iron and cast iron, it is essential to consider the cost-benefit ratio:

• Cast Iron: More economical for projects with budget constraints, suitable for non-critical applications, and offers adequate performance where high ductility is not necessary.
• Ductile Iron: Higher initial cost but provides long-term savings through reduced maintenance and increased lifespan due to its superior mechanical properties. Ideal for applications requiring strength, impact resistance, and durability.

Real-world Case Studies

Utility Poles

When constructing utility poles, it’s essential to use materials that are durable and resistant to environmental conditions. Ductile iron, with its high tensile strength and ductility, has become a popular alternative to traditional materials like wood and steel, as it can withstand strong winds and impacts, reducing the risk of breakage. Wooden poles can rot and attract insects, while steel poles may corrode over time. The superior corrosion resistance of ductile iron makes it particularly suitable for utility poles in coastal areas or regions with high humidity, where other materials may degrade more rapidly.

Pipe Systems

Ductile iron pipes are now the standard for water and sewage systems. Their high tensile strength and ductility enable them to withstand high pressure and ground movement without cracking. This is a significant advantage over cast iron pipes, which, although historically common, are more brittle and prone to corrosion. In water and sewage applications, where pipes are exposed to harsh chemicals and varying water conditions, the corrosion resistance of ductile iron is a key factor. Cast iron pipes often require protective coatings to prevent corrosion, adding to the maintenance cost and complexity.

Automotive Components

In the automotive industry, the choice between ductile iron and cast iron depends on the specific needs of the component; ductile iron is preferred for parts like engine blocks and gearboxes that must withstand impact and stress. Its high tensile strength and ductility ensure durability and performance under constant stress. Cast iron, on the other hand, is used for components where hardness is more critical, such as brake rotors and drums. The excellent wear resistance and thermal conductivity of cast iron make it suitable for dissipating heat generated during braking, reducing the risk of brake failure.

Infrastructure

For infrastructure projects like manhole covers and trench gratings, the selection of material is based on the need for hardness and resistance to surface wear. Cast iron is often chosen for these applications due to its high compressive strength and ability to withstand heavy loads. However, for applications that require flexibility and impact resistance, such as in areas prone to seismic activity, ductile iron is the preferred choice. Its superior mechanical properties allow it to absorb shocks and vibrations, reducing the risk of damage and ensuring long-term reliability.

Advanced Material Analysis

Advanced Analytical Techniques for Material Properties

Understanding the advanced material properties of ductile iron and cast iron requires in-depth analytical techniques. These methods help reveal the intricate differences between the two materials, guiding engineers and material scientists in selecting the appropriate material for specific applications.

Microstructural Analysis

Microstructural analysis is essential for understanding the internal composition and characteristics of both ductile iron and cast iron. Techniques such as optical microscopy, scanning electron microscopy (SEM), and transmission electron microscopy (TEM) provide detailed images of the graphite structures within these materials.

• Optical Microscopy: Useful for examining the general morphology of graphite flakes in cast iron and nodules in ductile iron. It helps in identifying the distribution and size of graphite particles.
• SEM: Offers higher resolution images, allowing for detailed observation of the graphite morphology and matrix structure. SEM is particularly useful for studying the surface characteristics and the effects of nodulizing elements in ductile iron.
• TEM: Provides atomic-level images of the microstructure, essential for understanding the crystallographic orientation and defects in the iron matrix. TEM can reveal how nodulizing elements influence the formation of spheroidal graphite nodules.

Mechanical Testing

Mechanical testing evaluates the performance of ductile and cast iron under various loading conditions. These tests include tensile, compression, impact, and fatigue tests.

• Tensile Testing: Measures the tensile strength and ductility of the materials. Ductile iron typically shows higher tensile strength and elongation compared to cast iron, due to its nodular graphite structure.
• Compression Testing: Assesses the compressive strength, which is generally higher in cast iron due to its flake graphite structure. This test is important for applications involving compressive loads.
• Impact Testing: Determines the impact resistance of the materials. Ductile iron exhibits superior impact resistance, making it suitable for dynamic and shock-loading applications.
• Fatigue Testing: Evaluates the fatigue life and resistance to cyclic loading. Ductile iron’s nodular graphite structure provides better fatigue resistance compared to the brittle nature of cast iron.

Thermal Analysis

Thermal analysis techniques, such as differential scanning calorimetry (DSC), which measures heat flow associated with phase transitions, and thermogravimetric analysis (TGA), help in understanding the thermal properties and stability of ductile and cast iron.

• DSC: Measures the heat flow associated with phase transitions in the materials. It helps in determining the melting point, specific heat capacity, and thermal stability.
• TGA: Evaluates the material’s weight changes under controlled temperature conditions. It provides insights into the thermal degradation behavior and oxidation resistance of the iron materials.

Corrosion Testing

Corrosion testing assesses the resistance of ductile and cast iron to various corrosive environments. Techniques include salt spray testing, immersion testing, and electrochemical testing.

• Salt Spray Testing: Simulates a harsh environment to assess the material’s rust and corrosion resistance. Ductile iron generally shows better performance due to its nodular graphite structure.
• Immersion Testing: Involves submerging the materials in different chemical solutions to study their corrosion resistance. This test helps in identifying suitable applications for ductile and cast iron in chemical industries.
• Electrochemical Testing: Measures the electrochemical properties and corrosion rates of the materials. Techniques such as potentiodynamic polarization and electrochemical impedance spectroscopy (EIS) provide detailed information on the corrosion mechanisms.

Advanced Computational Methods

Advanced computational methods like finite element analysis (FEA) and computational fluid dynamics (CFD) simulate the behavior of ductile and cast iron under various conditions.

• FEA: Helps predict the mechanical performance of iron components under different loading scenarios. It helps optimize design and material selection for engineering applications.
• CFD: Simulates fluid flow interactions with iron components, important for applications such as piping systems and heat exchangers. CFD analysis can reveal how ductile and cast iron behave under fluid-induced stresses.

By employing these advanced analytical techniques, engineers and material scientists can gain a deeper understanding of the properties and performance of ductile and cast iron, enabling informed decisions in material selection and application design.

Comparative Analysis of Ductile Iron and Cast Iron

Mechanical Properties

• Tensile Strength: Ductile iron has higher tensile strength than cast iron, making it better for applications that need to withstand pulling forces. Cast iron, with its lower tensile strength, is more prone to cracking under tension.
• Compressive Strength: Cast iron excels in compressive strength, making it ideal for applications involving compressive loads. Ductile iron, while also strong in compression, offers a balanced strength profile.
• Ductility: Ductile iron’s nodular graphite structure grants it superior ductility, allowing it to deform under stress without breaking. Cast iron, with its flake graphite, is much less ductile and more brittle.

Corrosion and Wear Resistance

Both materials offer good wear resistance, with cast iron’s graphite flakes providing a slight edge. However, ductile iron generally exhibits better corrosion resistance, especially in harsh environments. This makes ductile iron more suitable for applications exposed to moisture and chemicals, while cast iron remains a good choice for high-wear applications like brake rotors.

Cost and Production Considerations

• Production Costs: Cast iron is less expensive to produce due to simpler manufacturing processes. Although ductile iron is more expensive to produce due to the need for nodulizing elements and precise control, it provides better long-term performance.
• Maintenance and Longevity: Because of its superior properties, ductile iron requires less maintenance and lasts longer, which justifies its higher initial cost. Cast iron, while cheaper upfront, may incur higher maintenance costs over time.

Industrial Applications

• Piping Systems: Ductile iron is favored for high-pressure pipes due to its strength and flexibility, ensuring reliable performance. Cast iron, while more cost-effective, is used in less critical piping applications where cost is a primary concern.
• Automotive Components: Ductile iron is preferred for critical engine parts and components subject to dynamic loads, offering reliability and durability. Cast iron remains useful for parts requiring high wear resistance and thermal conductivity.
• Infrastructure: Ductile iron’s durability and impact resistance make it ideal for utility poles and manhole covers in high-stress environments. Cast iron is chosen for decorative elements and less demanding structural components.

Real-world Case Studies

Examining real-world applications highlights the practical benefits of each material. Ductile iron’s use in utility poles and water pipes demonstrates its reliability under stress and corrosion, while cast iron’s application in engine blocks and brake components showcases its wear resistance and cost-effectiveness.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the advantages and disadvantages of using ductile iron versus cast iron?

Ductile iron and cast iron each have distinct advantages and disadvantages that suit different applications. Ductile iron, known for its nodular graphite microstructure, offers superior ductility, allowing it to bend without breaking. This characteristic, along with its higher tensile and yield strength, makes ductile iron ideal for high-stress applications such as automotive parts and pressure pipes. Additionally, ductile iron has excellent corrosion resistance, contributing to its durability and reduced maintenance needs over time. However, ductile iron is more expensive and requires more intricate manufacturing processes compared to cast iron.

Cast iron, which features a flake graphite microstructure, is more economical to produce and provides excellent vibration damping and surface wear resistance. These properties make it suitable for applications where brittleness is not a critical issue, such as in machine bases and counterweights. However, cast iron is brittle and prone to cracking under stress, with lower impact and corrosion resistance compared to ductile iron. The choice between the two materials depends on the specific requirements of the application, balancing cost considerations with the desired material properties.

In what industries and applications is ductile iron preferred over cast iron?

Ductile iron is preferred over cast iron in several industries due to its superior mechanical properties, such as higher strength, ductility, and impact resistance. In the transportation industry, ductile iron is extensively used for engine parts, suspension systems, and steering assemblies because it can withstand the stress and shocks of automotive and commercial transportation. The agriculture industry relies on ductile iron for equipment like tractors and harvesters, as it endures harsh conditions and provides reliability.

For piping and pressure applications, ductile iron pipes are favored for water and wastewater distribution, sewage systems, and industrial processes, thanks to their high strength, durability, and corrosion resistance. In mining and quarrying, ductile iron is used to transport abrasive materials like slurries, due to its exceptional durability and resistance to wear.

In industrial facilities, including manufacturing, chemical processing, and power generation, ductile iron’s ability to withstand harsh environments and handle various fluids makes it a preferred material.

How do nodulizing elements affect the properties of ductile iron?

Nodulizing elements, primarily magnesium (Mg), play a crucial role in enhancing the properties of ductile iron by transforming its graphite microstructure. In ductile iron, these elements convert the graphite flakes found in traditional cast iron into spherical nodules. This nodular graphite structure significantly improves mechanical properties such as ductility, strength, and toughness. Magnesium is the most commonly used nodulizer, with an optimal residual content typically between 0.03% and 0.05%. Other nodulizing elements like cerium (Ce) and calcium (Ca) are also used, although less frequently due to cost and availability considerations. The spheroidal graphite structure created by these elements reduces stress concentrations and inhibits crack propagation, making ductile iron suitable for applications requiring high fatigue resistance and structural integrity.

What are the key factors to consider when selecting between ductile iron and cast iron for a specific application?

When choosing between ductile iron and cast iron for a specific application, consider material properties, application requirements, cost implications, and environmental factors. Ductile iron is less brittle, more ductile, and offers higher tensile strength and better corrosion resistance. It’s suitable for high-stress, high-pressure, and corrosive environments. Cast iron, while strong in compression, is brittle with lower tensile strength and impact resistance but has superior vibration damping. Cast iron is generally cheaper to produce, but ductile iron’s durability may lead to lower long-term maintenance costs. For harsh environments, ductile iron is preferable due to its corrosion resistance. Consult a metallurgist or engineer for the best choice.

How do the costs of ductile iron and cast iron compare for different applications?

When comparing the costs of ductile iron and cast iron for different applications, several factors come into play. Generally, ductile iron is more expensive than cast iron due to its superior mechanical properties, such as higher tensile strength and ductility. The production of ductile iron involves the addition of magnesium, which increases its cost compared to traditional cast iron.

The cost also varies based on the grade of the material and the complexity of the casting process. Higher grades of both ductile and cast iron, which offer improved properties, are more expensive. The casting method used can significantly affect the cost, with shell molding being more expensive than green sand casting.

Application-specific costs also vary. For instance, ductile iron pipes used in water distribution systems can be more expensive due to their size and pressure class. Industrial components requiring high strength and impact resistance may also favor ductile iron despite its higher cost.

Regional market conditions and economies of scale also influence the cost. Prices for ductile iron products can vary significantly between regions due to differences in production costs and raw material availability.

What are some real-world examples of ductile iron and cast iron applications?

Ductile iron and cast iron have distinct applications based on their differing properties. Ductile iron, known for its superior strength, ductility, and wear resistance, is commonly used in plumbing and water infrastructure for pipes and fittings, automotive components like engine parts, construction and infrastructure for manhole covers and structural components, the oil and gas industry for drilling equipment and valves, and renewable energy for wind turbine components. On the other hand, cast iron, valued for its heat retention and cost-effectiveness, is widely used in cookware and stoveware, engine blocks and cylinder heads, machine parts requiring high thermal conductivity, and ornamental items like decorative railings and fences. The choice between these materials hinges on the specific requirements of the application, including mechanical properties, cost, and durability.
