Dyna Bolt vs Anchor Bolt: What’s the Difference?

Have you ever found yourself standing in the hardware aisle, staring at an array of bolts, and wondering which one to choose for your next project? If you’ve grappled with the decision between dyna bolts and anchor bolts, you’re not alone. These two types of bolts may seem similar at first glance, but they serve different purposes and come with distinct advantages and disadvantages. In this article, we’ll dive into the intricacies of dyna bolts and anchor bolts, exploring their definitions, designs, and mechanical working principles. We’ll also compare their load-bearing capacities, installation processes, and suitability for various applications. By the end, you’ll have a clear understanding of which bolt is best suited for your medium-duty or heavy-duty projects. So, which one will reign supreme for your needs? Let’s find out.

Definition and Design of Dyna Bolts and Anchor Bolts

A Dyna Bolt, commonly referred to as a sleeve anchor, is a mechanical fastener used to secure objects to concrete, brick, and other masonry materials. The core design of a Dyna Bolt includes a bolt, an expansion sleeve, and a tapered cone. When the bolt is tightened, it pulls the cone into the sleeve, causing the sleeve to expand radially and grip the walls of the drilled hole. This expansion mechanism provides a strong and secure anchor.

Design and Structure of Dyna Bolts

Dyna Bolts are preassembled and available in various head styles, including hex head, flat head, and round head. They are typically made from zinc-plated carbon steel for general applications or 304 stainless steel for enhanced corrosion resistance in harsh environments. The key components are:

• Bolt: The central threaded component that provides the tightening force.
• Expansion Sleeve: A split sleeve that expands radially when the bolt is tightened.
• Tapered Cone: A cone-shaped element that drives the expansion of the sleeve.

What is an Anchor Bolt?

An anchor bolt is a versatile fastener used for attaching objects to concrete, masonry, and other solid substrates. Anchor bolts come in two main types: mechanical anchors and chemical anchors. Mechanical anchor bolts use a wedge or sleeve that expands to create a frictional hold, while chemical anchor bolts rely on an adhesive resin that bonds the bolt to the substrate upon curing.

Design and Structure of Anchor Bolts

Anchor bolts are designed to provide high-strength connections and are available in various configurations to suit different applications. Common materials for anchor bolts include high-strength steel and corrosion-resistant alloys. The key types of anchor bolts are:

• Mechanical Anchors: These include wedge anchors and sleeve anchors. They expand through mechanical means, such as a wedge driven into the anchor body.
• Chemical Anchors: These use adhesive resins, such as epoxy or vinyl ester, injected into the drilled hole. The bolt is then inserted, and the resin cures to form a strong bond.

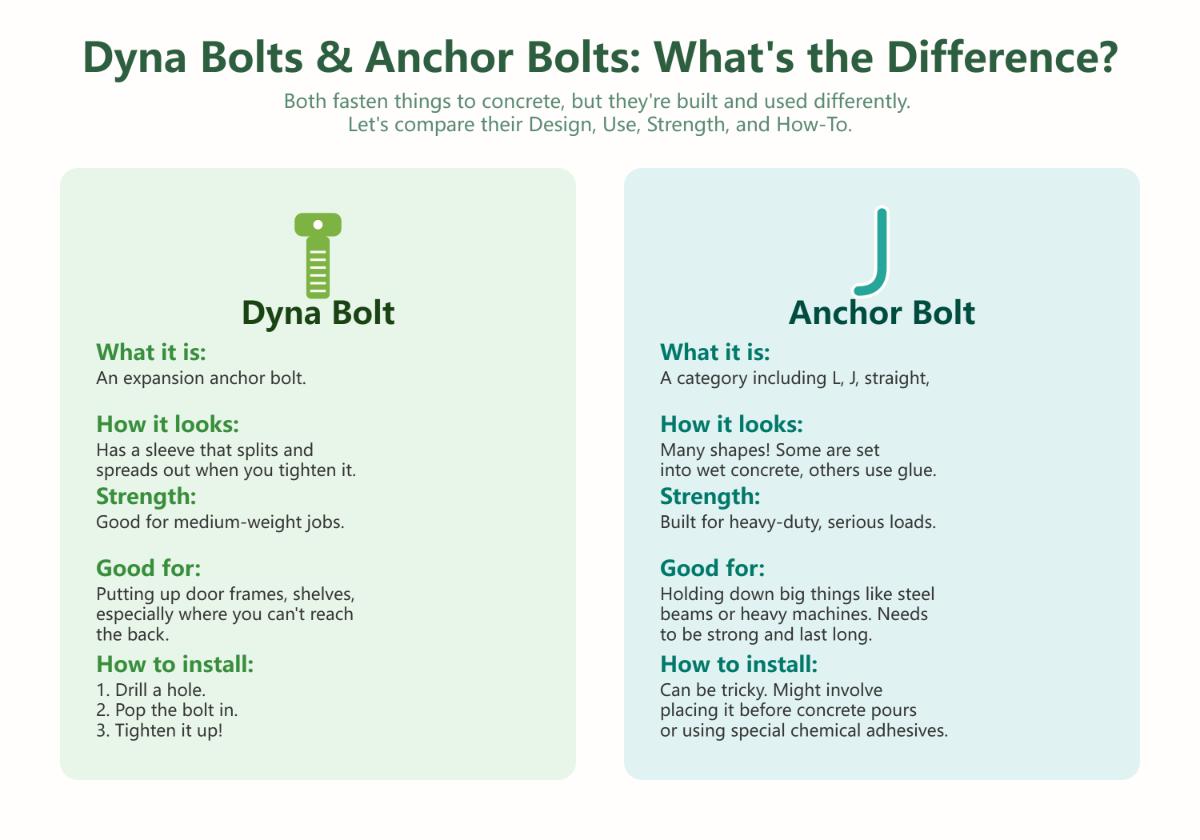

Comparative Analysis of Dyna Bolts and Anchor Bolts

Expansion Mechanism

• Dyna Bolts: Use an expansion sleeve and tapered cone. Tightening the bolt draws the cone into the sleeve, causing it to expand and grip the hole’s walls.
• Anchor Bolts: Mechanical anchors use a wedge or sleeve that expands through mechanical action. Chemical anchors use an adhesive resin that bonds the bolt to the substrate upon curing.

Load-Bearing Capacity

• Dyna Bolts: Suitable for medium-duty applications, such as securing shelving, door frames, and handrails, providing reliable holding power for dynamic loads.
• Anchor Bolts: Mechanical anchors can handle heavy-duty applications, including structural supports and machinery. Chemical anchors offer superior tensile strength and are ideal for critical applications requiring long-term durability.

Material Compatibility

• Dyna Bolts: Can be used in concrete, brick, block, and hollow materials. They are versatile and provide a secure hold in various substrates.
• Anchor Bolts: Mechanical anchors are compatible with concrete and steel, while chemical anchors can be used in specialized substrates and offer excellent performance in vibration-prone environments.

Installation and Ease of Use

• Dyna Bolts: Preassembled and easy to install without requiring curing time. They allow through-hole installation and adjustments.
• Anchor Bolts: Mechanical anchors have a similar installation process to Dyna Bolts. Chemical anchors require precise hole preparation and curing time for the adhesive resin.

Mechanical Working Principles

Dyna Bolts, commonly known as sleeve anchors, secure objects to masonry materials like concrete, brick, and stone through an expansion mechanism. The primary components of a Dyna Bolt include a threaded bolt, an expansion sleeve, and a tapered cone; when the bolt is tightened, it pulls the cone into the sleeve, causing it to expand radially. This radial expansion generates friction and pressure against the walls of the pre-drilled hole, anchoring the bolt securely in place. The expansion mechanism of Dyna Bolts is efficient for applications where moderate holding power and resistance to dynamic loads are required.

Anchor Bolts come in two main types: mechanical anchors, which use physical expansion, and chemical anchors, which use adhesive resin. Mechanical anchor bolts, such as wedge anchors and sleeve anchors, utilize a physical expansion mechanism. When the bolt is tightened, a wedge or sleeve expands within the hole, creating a frictional hold against the substrate. In contrast, chemical anchors rely on an adhesive resin, such as epoxy, which is injected into the drilled hole. The bolt is then inserted, and the resin cures to form a strong bond between the bolt and the substrate. This chemical bonding mechanism provides superior tensile strength and is ideal for applications requiring long-term durability and high load-bearing capacity.

Dyna Bolts are ideal for medium-duty applications, like securing shelves, door frames, and handrails. Their load capacity depends on factors such as bolt diameter, embedment depth, and substrate material. Typically, Dyna Bolts provide sufficient holding power for dynamic loads and moderate static loads, making them a versatile choice for various masonry anchoring needs.

Anchor Bolts, including mechanical and chemical types, are designed for heavy-duty applications. Mechanical anchors handle substantial loads due to their strong expansion mechanism, while chemical anchors provide even higher strength through adhesive bonding. The load capacity of anchor bolts is influenced by the type of anchor, the quality of the substrate, and the curing time of the adhesive in the case of chemical anchors. These bolts are commonly used in heavy machinery installations, building foundations, and other scenarios where high load capacity and stability are paramount.

Installation Procedures and Tool Requirements

Installation Process for Dyna Bolts

Dyna Bolts, or sleeve anchors, are easy to install and need only a few basic tools. Here are the steps involved:

1. Drill Hole and Insert Anchor: Use a hammer drill to create a hole in the substrate that matches the diameter and depth of the Dyna Bolt. Then, place the Dyna Bolt through the fixture and insert it into the pre-drilled hole.
2. Tighten Nut: Use a wrench to tighten the nut, which expands the sleeve and secures the bolt in place.

Installation Process for Anchor Bolts

Anchor Bolts come in different types, each with its specific installation procedure. Here are the primary types and their installation steps:

Wedge Anchors

1. Drill Hole: Drill a hole in the substrate using a hammer drill, matching the diameter and depth needed for the wedge anchor.
2. Insert and Set Anchor: Insert the wedge anchor, then use a hammer to set it in place.
3. Tighten Bolt: Finally, tighten the bolt to expand the wedge against the hole walls.

Chemical Anchors

1. Drill Hole: Drill the hole to the specified diameter and depth.
2. Clean Hole: Thoroughly clean the hole using a brush and compressed air to remove debris.
3. Inject Resin: Use an injection gun to fill the hole with adhesive resin.
4. Insert Bolt: Insert the bolt into the resin-filled hole.
5. Cure: Allow the resin to cure as per the manufacturer’s instructions before applying any load.

Tools Required for Installation

Different tools are needed for installing Dyna Bolts and Anchor Bolts.

Dyna Bolts

• Hammer Drill: For drilling holes in the substrate.
• Correct Drill Bit: Must match the diameter of the Dyna Bolt.
• Wrench or Spanner: For tightening the nut.

Anchor Bolts

• Hammer Drill: For drilling holes (used for wedge anchors).
• Rotary Drill: For chemical anchors, if specified.
• Injection Gun: For injecting resin in chemical anchors.
• Cleaning Brush and Compressed Air: For cleaning holes in chemical anchor installations.
• Hammer: For setting wedge anchors.
• Wrench: For tightening the bolts.

Ease of Installation: Dyna Bolts vs Anchor Bolts

Dyna Bolts

Dyna Bolts are generally easier to install and are DIY-friendly. They do not require specialized tools beyond standard mechanical tools and allow for quick, immediate load-bearing after installation.

Anchor Bolts

The ease of installation varies with the type of anchor bolt. Mechanical anchors like wedge anchors are relatively straightforward but require precise hole depth and positioning. Chemical anchors, while offering superior strength, require meticulous hole preparation, resin injection, and curing time, making them more complex to install.

Removal of Dyna Bolts and Anchor Bolts

Dyna Bolts

To remove Dyna Bolts, unscrew the bolt and pull out the sleeve. This can be difficult if the sleeve is tightly expanded.

Anchor Bolts

Mechanical anchor bolts like wedge anchors can be removed by unscrewing the bolt, but the wedge may remain lodged in the substrate. Chemical anchors are more difficult to remove due to the strong bond created by the cured resin, often requiring cutting or drilling out the bolt and adhesive.

Comparison of Load Capacities and Suitable Applications

Medium-Duty Applications

Medium-duty applications involve securing light fixtures and components that require moderate holding power. Examples include attaching door frames, shelving, and light fixtures to concrete, brick, or stone.

Suitable Bolts

• Dyna Bolts: These bolts are ideal for medium-duty tasks due to their reliable 360° expansion mechanism. This ensures even load distribution and reduces stress on the surrounding material. Their ease of installation and ability to provide secure anchoring in various substrates make them perfect for medium-duty applications.
• Mechanical Anchors: Wedge anchors, a type of mechanical anchor, expand inside the hole to provide strong holding power and support heavy loads. These anchors are suitable for both medium and heavy-duty applications, offering versatility and high load-bearing capacity.

Heavy-Duty Applications

Heavy-duty applications require bolts that can handle substantial loads and provide high-strength anchoring. These applications often include securing heavy machinery, structural supports, and building foundations.

Suitable Bolts

• Anchor Bolts: Anchor bolts, particularly mechanical anchors and chemical anchors, are preferred for heavy-duty applications. Mechanical anchors like wedge anchors provide robust expansion and high load-bearing capacity. Chemical anchors offer superior tensile strength and durability due to their adhesive bonding mechanism, making them ideal for critical structural applications.

Case Studies: Appropriate Use Scenarios

Medium-Duty Scenario

Imagine installing shelving units in a busy retail store. Dyna Bolts ensure these shelves are securely attached to the wall, providing safety and stability for displayed products. The 360° expansion mechanism guarantees that the shelving is firmly anchored to the concrete or brick wall, supporting the weight of the items without risk.

Heavy-Duty Scenario

For heavy-duty tasks, such as installing industrial machinery in a factory, anchor bolts are essential. Chemical anchors, in particular, offer exceptional strength and durability, ensuring the machinery stays firmly in place even under intense use. The high tensile strength and strong bond with the concrete substrate provided by chemical anchors ensure the machinery remains stable, even under heavy operational loads and vibrations.

Advantages and Disadvantages

Advantages of Dyna Bolts

Ease of Installation

Dyna Bolts are known for their user-friendly installation process. They come preassembled with a nut and washer, requiring only a pre-drilled hole and a wrench for tightening. This simplicity allows for quick and efficient installation, making them ideal for DIY projects and professional use alike.

Load Distribution

One of the significant advantages of Dyna Bolts is their 360° expansion mechanism, which evenly distributes the load around the anchor point, minimizing localized stress on the concrete and reducing the risk of cracking. This provides a more secure hold and enhances the overall stability of the installation.

Versatility

Dyna Bolts are versatile and suitable for a range of medium-duty applications, such as securing door frames, shelving, and fixtures in concrete, brick, or hollow masonry. Their ability to work with different materials makes them a reliable choice for various construction tasks.

Cost-Effectiveness

Due to their straightforward installation process, Dyna Bolts can reduce labor costs. The minimal tool requirement and shorter installation time contribute to overall cost savings, making them an economical option for many projects.

Disadvantages of Dyna Bolts

Load Limitations

Dyna Bolts are not suitable for heavy-duty applications. Their load-bearing capacity is limited, making them inadequate for high-stress environments such as seismic zones or installations involving heavy machinery.

Hole Precision

Installing Dyna Bolts requires drilling holes with precise diameters. An incorrect hole size can lead to slippage or reduced holding power, compromising the integrity of the anchor.

Reusability

Dyna Bolts are typically single-use. Removal of these anchors often damages the bolt and the substrate, making them less desirable for applications where frequent adjustments or relocations are necessary.

Advantages of Anchor Bolts

High Load Capacity

Anchor bolts, particularly wedge and chemical anchors, are designed to handle heavy structural loads. They are suitable for critical applications like securing steel columns and heavy machinery, providing robust and reliable anchoring.

Material Diversity

Anchor bolts are available in various materials, including carbon steel, stainless steel, and corrosion-resistant coatings. This diversity allows for selection based on environmental conditions and specific project requirements, ensuring longevity and performance.

Specialized Designs

Chemical anchors offer specialized advantages, such as dynamic load resistance and fireproofing. These features make them suitable for high-stress environments and applications requiring additional safety measures.

Disadvantages of Anchor Bolts

Complex Installation

Chemical anchors, in particular, require a more complex installation process. This includes strict adherence to curing times and precise hole preparation, which can be time-consuming and require specialized tools.

Cost

These anchors have higher material and labor costs compared to simpler alternatives like Dyna Bolts.

Environmental Sensitivity

Adhesive-based anchor bolts are sensitive to environmental conditions. Wet or dirty holes can compromise the adhesive bond, necessitating thorough surface preparation to ensure optimal performance.

Material Types and Their Impact

Material Composition and Performance Analysis

Understanding the materials used in the construction of Dyna Bolts and anchor bolts, and how they affect performance and durability, is crucial when choosing between them.

Core Material Types

Dyna Bolts:

• High-Strength Carbon Steel: Commonly used for general applications due to its robustness and cost-effectiveness. However, it requires protective coatings to prevent corrosion.
• Stainless Steel: Stainless steel Dyna Bolts are preferred for environments like outdoor or humid settings due to their superior longevity and corrosion resistance compared to carbon steel variants.

Anchor Bolts:

• Carbon Steel: Often used in mechanical anchor bolts. Plated or hot-dipped coatings can enhance corrosion resistance, making them suitable for various structural applications.
• Stainless Steel: Used in environments requiring high corrosion resistance. Stainless steel anchor bolts are ideal for long-term applications in harsh conditions.
• Specialized Compositions: Some anchor bolts, like Fischer anchors, incorporate injection mortar or other materials to enhance performance under dynamic loads.

Material Impact on Performance

Corrosion Resistance

Dyna Bolts:

• Stainless steel Dyna Bolts excel in moist or corrosive environments, minimizing the need for frequent replacements and reducing maintenance costs.

Anchor Bolts:

• While stainless steel options are available, carbon steel anchor bolts typically require additional coatings to achieve similar levels of corrosion resistance. This can impact their long-term durability, especially in aggressive environments.

Load Capacity

Dyna Bolts:

• Designed for medium-duty applications, Dyna Bolts leverage a 360° expansion mechanism that distributes stress evenly around the hole. This makes them suitable for securing items like door frames and shelving.

Anchor Bolts:

• Generally offer higher load capacities, particularly in designs such as wedge anchors or Highbond-Anchors. These are capable of handling heavy-duty applications and dynamic stresses, making them suitable for structural supports and machinery anchoring.

Environmental Adaptability

Dyna Bolts:

• Stainless steel variants enhance sustainability by reducing waste through increased longevity. They are well-suited for environments where durability against weather and corrosion is critical.

Anchor Bolts:

• Anchor bolts can adapt to extreme conditions due to their versatile materials. For example, chemical anchors can be used in cracked concrete or other challenging substrates, providing reliable performance in diverse settings.

Comparative Analysis

Durability

While both Dyna Bolts and anchor bolts use corrosion-resistant materials, their designs focus on different aspects:

• Dyna Bolts emphasize ease of installation with preassembled components, making them user-friendly and quick to deploy.
• Anchor Bolts prioritize structural versatility, with options like chemical anchors offering strong adhesion and dynamic load resistance, suitable for more demanding applications.

Cost vs. Longevity

• Dyna Bolts: The simpler design translates to lower labor costs and quicker installation times, making them cost-effective for medium-duty applications.
• Anchor Bolts: Although the initial costs might be higher due to more complex installation (e.g., resin systems for chemical anchors), they offer improved long-term reliability and load adaptability, especially in heavy-duty scenarios.

Specialized Use Cases

• Dyna Bolts: Best suited for general anchoring in masonry materials where moderate loads and rapid installation are essential.
• Anchor Bolts: Ideal for high-stress applications, such as securing steel structures or cladding, where precise torque control and fire resistance might be required.

Sustainability Considerations

• Stainless Steel Variants: Both Dyna Bolts and anchor bolts made from stainless steel reduce environmental impact by resisting degradation, which lowers the frequency of replacements and maintenance.
• Manufacturing Processes: Dyna Bolts’ simpler design may use fewer resources than the more complex anchor bolts. However, the specific materials and processes used can vary, affecting overall sustainability.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the difference between a dyna bolt and an anchor bolt?

Dyna bolts and anchor bolts are both used to secure materials to concrete or masonry, but they differ in design, application, load capacity, and installation methods.

A Dyna bolt is an expansion anchor bolt featuring a split expansion sleeve that expands radially when tightened, providing medium-duty holding power. This type of bolt is ideal for securing items like door frames and shelving in masonry where back access is limited. Installation is straightforward: drill a hole, insert the bolt, and tighten to expand the sleeve.

Anchor bolts, on the other hand, encompass various designs such as L-shaped, J-shaped, straight, and chemical anchors. They are primarily used for heavy-duty structural applications requiring high load-bearing capacity and long-term integrity, such as attaching steel beams or machinery to concrete foundations. Installation methods vary and can be more complex, including embedding in concrete during pouring or using chemical adhesives.

Which bolt is better for medium-duty applications?

For medium-duty applications, Dyna Bolts are generally preferred due to their ease of installation, reliable holding power, and cost-effectiveness. Dyna Bolts utilize an expansion sleeve mechanism, ensuring even load distribution and minimizing concrete stress. This makes them ideal for securing door frames, shelving, and light fixtures. They also require a simple installation process involving a pre-drilled hole and tightening a nut, reducing labor costs and installation time. On the other hand, while Anchor Bolts can offer higher load capacities and are suitable for a broader range of applications, their installation can be more complex and time-consuming. Therefore, for most medium-duty tasks, Dyna Bolts provide a more practical and efficient solution.

How do dyna bolts work compared to anchor bolts?

Dyna bolts and anchor bolts operate on different principles, tailored to specific applications. Dyna bolts utilize an expansion mechanism where tightening the nut compresses a sleeve, causing it to expand radially against the walls of a pre-drilled hole in concrete or masonry. This friction-based retention distributes loads evenly, making dyna bolts suitable for medium-duty applications like securing door frames and shelving.

In contrast, anchor bolts encompass a broader range of mechanisms, including expansion (wedge anchors), chemical adhesion (resin-based anchors), and direct embedment. Wedge anchors, similar to dyna bolts, expand upon tightening to grip the hole walls. However, chemical anchors involve injecting resin into the hole before inserting the bolt, creating a strong bond as the resin cures. Anchor bolts’ load capacities vary widely, from light-duty plastic anchors to heavy-duty epoxy anchors, making them versatile for different structural requirements.

What are the advantages and disadvantages of dyna bolts?

Dyna bolts offer several advantages, including easy installation, versatility, high load-bearing capacity, 360° hole contact, and reusability. They are easier to install than anchor bolts, requiring minimal insertion energy, which speeds up the process and reduces labor. Their versatility is evident in the variety of head styles, materials, and sizes available, making them suitable for different applications such as concrete, brick, and stone. The design allows full contact with the hole, reducing concrete stress and improving holding power. Additionally, they can be removed and reused more easily compared to some other fasteners.

However, dyna bolts also have some disadvantages. They can be difficult to remove without damaging the material, though they are generally easier to remove than other fasteners. They may not be suitable for all applications, particularly those requiring high adjustability or specific environmental conditions. Incorrect installation can potentially weaken the structure, and their adjustability is limited once installed, which can be a drawback for certain projects.

Are dyna bolts suitable for structural applications?

Dyna bolts can be suitable for some structural applications, particularly in scenarios where medium-duty load-bearing is required. They are versatile fasteners that offer ease of installation and reliable holding power, making them effective in masonry materials like brick, blockwork, and stone. The expandable sleeve design of dyna bolts ensures full contact with the hole, reducing concrete stress and enhancing holding power.

However, for heavy-duty structural projects requiring high load-bearing capacity and long-term structural integrity, anchor bolts are typically preferred. Anchor bolts offer greater load-bearing capacity, making them more suitable for large-scale commercial projects and robust structural connections. Therefore, while dyna bolts can be used in lighter structural applications, they are not the first choice for projects demanding high load-bearing capacity.
