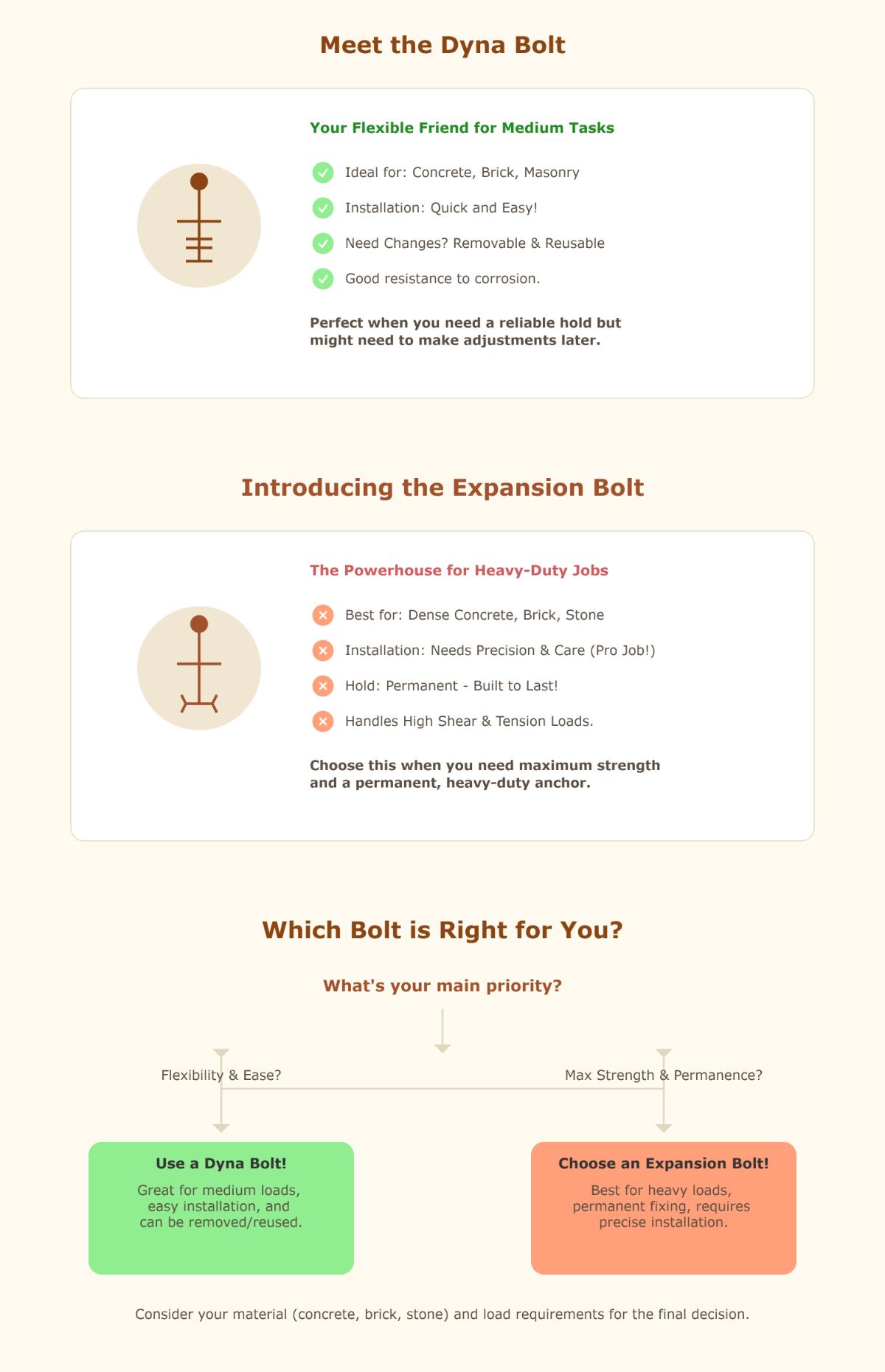

Expansion Bolt vs Dyna Bolt: What’s the Difference?

Ever wondered whether an expansion bolt or a Dyna bolt is the right choice for your next project? These two types of fasteners might look similar, but they serve different purposes and have unique characteristics that can make or break your construction efforts. In this article, we’ll delve into the nitty-gritty details that differentiate expansion bolts from Dyna bolts, helping you understand their mechanical expansion mechanisms, load capacities, and performance. We’ll also explore their installation processes, use cases, and compliance with industry standards. By the end, you’ll know exactly when to use each type and how their holding strengths compare. Ready to make an informed decision for your next anchoring task? Let’s dive in!

Introduction to Bolt Types

Understanding Different Bolt Types

Bolts are essential fasteners used to secure materials in construction and engineering. Among the various types of bolts available, Expansion Bolts and Dyna Bolts are notable for their unique mechanisms and applications. This section provides an introduction to these bolt types, highlighting their key characteristics, mechanisms, and uses.

Expansion Bolts

Expansion bolts are mechanical anchors designed to secure heavy loads in concrete, brick, or stone by using a friction-based expansion mechanism involving a wedge, sleeve, or hammer-drill type. When the bolt is tightened, the expansion component (wedge or sleeve) is driven into the anchor body, creating a tight friction grip against the substrate.

Key Features:

• Components: Includes a bolt, sleeve or anchor body, and a wedge.
• Activation: Tightening the bolt causes the wedge or sleeve to expand.
• Load Capacity: High shear and tension resistance, suitable for heavy-duty applications.
• Installation: Requires precise hole sizing and professional handling.

Dyna Bolts

Dyna Bolts are a type of sleeve anchor designed for medium-duty applications in masonry or concrete. They feature a split sleeve design that expands radially when the nut is tightened. This expansion mechanism provides a secure hold with minimal preparation required.

Key Features:

• Components: Comprises a bolt, cone, and split sleeve.
• Activation: Tightening the nut compresses the split sleeve, causing radial expansion.
• Load Capacity: Suitable for medium-duty applications, such as shelving and light fixtures.
• Installation: Easier and faster installation with minimal preparation.

Comparative Analysis

The table below compares the mechanism and design of Expansion Bolts and Dyna Bolts.

Performance Characteristics:

• Load Capacity:
• Expansion Bolt: High resistance to shear and tension, ideal for heavy loads.
• Dyna Bolt: Medium-duty performance, suitable for lighter applications.
• Durability:
• Expansion Bolt: Robust in dense materials but can loosen under vibration.
• Dyna Bolt: Susceptible to sleeve wear with repeated adjustments.
• Material Compatibility:
• Both types excel in concrete and brick applications but should be avoided in brittle substrates.

Application Scenarios

Here are some typical applications for Expansion Bolts and Dyna Bolts:

Expansion Bolts:

• Structural steelwork and bridge anchoring.
• High-load environments such as machinery bases.

Dyna Bolts:

• Temporary fixtures and removable installations.
• Lightweight frameworks like signage and handrails.

Installation and Cost Considerations

Installation Steps:

• Expansion Bolt: Drill hole → insert anchor → tighten to expand.
• Dyna Bolt: Insert into pre-drilled hole → tighten nut.

Cost:

• Expansion Bolt: Higher material and labor costs due to precision requirements.
• Dyna Bolt: Budget-friendly and suitable for DIY projects.

Recent Developments

Expansion Bolts: Innovations include hybrid designs that combine mechanical and chemical bonding to improve vibration resistance.
Dyna Bolts: Newer models aim to enhance sleeve durability but still face limitations in dynamic load applications.

Understanding the differences between Expansion Bolts and Dyna Bolts is crucial for selecting the appropriate fastener for specific applications. By considering factors like load requirements, installation environment, and budget, professionals can make informed decisions to ensure structural integrity and performance.

Mechanical Expansion Mechanism

Dyna Bolts and Expansion Bolts use different methods to secure fasteners within a substrate. Understanding these mechanisms is crucial for selecting the appropriate bolt for specific applications.

Dyna Bolts (Sleeve Anchors)

Dyna Bolts, also known as sleeve anchors, operate through a radial expansion mechanism.

• Design: They comprise a bolt, a cone-shaped nut, and an expandable sleeve.
• Expansion Action: Tightening the bolt pulls the cone into the sleeve, causing the sleeve to expand against the hole walls.
• Load Distribution: The expansion creates even pressure across the sleeve, making it suitable for medium-duty loads like shelving and door frames.
• Installation: Dyna Bolts require a pre-drilled hole and do not need backside access. However, removal can damage the sleeve, limiting reusability.

Expansion Bolts (Wedge-Type)

Expansion Bolts, often referred to as wedge anchors, utilize a wedge-driven expansion mechanism.

• Design and Expansion Action: These bolts include a tapered wedge and a slotted sleeve. Tightening the bolt drives the wedge into the sleeve, causing it to split outward and create high friction against the hole walls.
• Load Capacity: This mechanism provides higher shear and tension resistance, making Expansion Bolts ideal for heavy machinery and dense materials.
• Installation: Like Dyna Bolts, Expansion Bolts require a pre-drilled hole. While they can be removed, this may compromise the integrity of the substrate, affecting reusability.

Key Differences

Application Scenarios

• Dyna Bolts:
• Ideal for light fixtures
• Suitable for handrails
• Perfect for non-structural masonry projects
• Expansion Bolts:
• Suitable for structural anchoring
• Ideal for steel beams
• Best for machinery bases, particularly in environments with high vibration or thermal expansion

Recent Insights

• Material Innovations: New coatings, such as zinc-nickel, on Dyna Bolts improve corrosion resistance without significantly increasing costs.
• Hybrid Anchors: Some manufacturers are now combining wedge and sleeve mechanisms to offer adjustable load-bearing capacities in variable substrates.
• Installation Tools: The use of laser-guided drills is becoming more common to ensure precise hole sizing, which is critical for both bolt types.

Understanding the mechanical expansion mechanisms of Dyna Bolts and Expansion Bolts helps in selecting the right fastener based on load requirements, environmental conditions, and substrate material.

Load Capacity and Performance

Understanding Load Capacity

Load capacity is a key performance metric for expansion bolts and Dyna bolts, determining their effectiveness for various applications. It refers to the maximum load a bolt can handle before failing, including both tension and shear loads.

Tension Load Capacity

Dyna Bolts

Dyna bolts are designed to excel in tension load applications. Their expansion mechanism minimizes slippage, providing a secure hold; for instance, a 3/4″ Dyna bolt installed in 4,000 PSI concrete can withstand an ultimate tension load of approximately 10,200 lbs, with an allowable load of 2,550 lbs after applying a safety factor. This high tension capacity makes Dyna bolts ideal for securing items that will experience significant pulling forces.

General Expansion Bolts

The tension load capacity of general expansion bolts varies depending on their design. Sleeve anchors, a common type of expansion bolt, generally offer lower tension performance compared to Dyna bolts. For example, a 1/4″ sleeve anchor in similar conditions might achieve an ultimate tension load between 870 and 1,066 lbs. While still effective, these bolts are more suitable for applications with moderate tension requirements.

Shear Load Capacity

Dyna Bolts

Dyna bolts also offer excellent shear resistance due to their even load distribution. A 3/4″ Dyna bolt can handle an ultimate shear load of approximately 13,100 lbs in 6,000 PSI concrete. This high shear capacity makes them suitable for applications where lateral forces are significant, such as securing structural beams or heavy machinery.

General Expansion Bolts

The shear load capacity of general expansion bolts can be less consistent. While some models, like sleeve anchors, can achieve shear loads ranging from 730 to 8,900 lbs for 1/4″ sizes, the actual performance heavily depends on the concrete strength and bolt design. Despite this variability, expansion bolts are generally reliable for applications involving moderate shear loads.

Factors Affecting Load Capacity

Concrete Strength

The load capacity of both Dyna bolts and general expansion bolts increases with the strength of the concrete. For example, 6,000 PSI concrete can increase the shear capacity of a Dyna bolt by about 30% compared to 4,000 PSI concrete.

Embedment Depth

Proper embedment is crucial for maximizing the load-bearing capabilities of both bolt types. Dyna bolts typically require a minimum embedment depth of 1-1/8″ for 1/4″ models to achieve optimal performance. Ensuring proper embedment is crucial for maximizing the load-bearing capabilities of both bolt types.

Safety Factor

When calculating allowable loads, a safety factor is often applied to the ultimate load capacity. This factor, typically around 1/4, ensures a margin of safety in practical applications. For instance, if a Dyna bolt’s ultimate tension load is 10,200 lbs, the allowable load would be approximately 2,550 lbs after applying the safety factor.

Comparative Performance Summary

Understanding the load capacity and performance characteristics of Dyna bolts and general expansion bolts helps in selecting the right fastener for specific structural requirements, ensuring safety and reliability in various applications.

Installation Process

Installation Process

Understanding the installation process of both expansion bolts and Dyna Bolts is essential for ensuring secure and reliable anchoring in construction projects. Here’s a detailed comparative analysis of the installation processes for these two types of bolts.

Expansion Bolt Installation Process

1. Drilling the Hole
   • To install an expansion bolt, start by drilling a hole using a hammer drill with a carbide-tipped bit.
   • The diameter of the drill bit should match the anchor’s diameter to ensure a snug fit.
   • Drill to the required depth, typically deeper than the bolt length to accommodate the expansion.
2. Cleaning the Hole
   • Use a wire brush or compressed air to remove dust and debris from the hole.
3. Inserting the Bolt
   • Insert the expansion bolt into the hole, ensuring the threaded part is flush with the surface.
4. Expanding the Anchor
   • Begin tightening the bolt with a wrench.
   • As you tighten, the wedge or sleeve inside the bolt expands against the concrete walls, creating a secure grip.
5. Final Tightening
   • Use a torque wrench or a spanner to tighten the bolt until it is firmly in place, ensuring it can handle the intended load.

Dyna Bolt Installation Process

1. Drilling the Hole
   • Drill a hole in the concrete using a hammer drill with a carbide-tipped bit.
   • The bit diameter should match the anchor’s sleeve diameter.
   • Ensure the depth is sufficient to accommodate the entire length of the Dyna Bolt.
2. Cleaning the Hole
   • Use a wire brush or compressed air to remove dust and debris from the hole.
3. Assembling the Bolt
   • Insert the Dyna Bolt through the fixture (if applicable) and into the pre-drilled hole.
   • The washer should be flush with the surface of the fixture or concrete.
4. Expanding the Sleeve
   • Tap the anchor lightly into place if needed, then use a wrench to turn the nut 2-3 times to expand the sleeve.
5. Final Tightening
   • Use a torque wrench or a spanner to tighten the bolt until it is firmly in place, ensuring it can handle the intended load.

Key Differences in Installation

• Expansion Mechanism: Expansion bolts expand radially within the concrete, while Dyna Bolts use a sleeve that expands when the nut is tightened.
• Tightening Method: Expansion bolts require continuous tightening until secure, whereas Dyna Bolts typically need only a few turns to achieve the necessary expansion.
• Tooling Requirements: Both types of bolts require a hammer drill for drilling holes. However, Dyna Bolts might be easier to expand without specialized tools like a torque wrench, as a spanner can often be used for initial tightening.

Comparative Installation Summary

Both expansion bolts and Dyna Bolts are effective for concrete fastening, with Dyna Bolts offering a simpler installation process that requires fewer turns for expansion. Expansion bolts, however, provide a more traditional and widely understood mechanism, suitable for various applications.

Applications & Use Cases

Typical Applications for Expansion Bolts

Expansion bolts are used for heavy-duty tasks that need secure anchoring. They are essential in environments demanding high load-bearing capacity and robust installation.

Structural Steelwork

Expansion bolts are ideal for anchoring structural steelwork to concrete or masonry substrates. Their high shear and tension resistance make them suitable for securing steel beams, columns, and other structural elements in construction projects.

Heavy Machinery

In industries, expansion bolts secure heavy machinery, ensuring stability and reducing movement or vibration risks.

Bridge Construction

In bridge construction, expansion bolts anchor critical components such as bearings and support structures. Their reliability and strength are crucial for maintaining the integrity of bridge designs, especially in areas subject to dynamic loads and environmental stress.

Typical Applications for Dyna Bolts

Dyna bolts, also known as sleeve anchors, are designed for medium-duty applications where ease of installation and removability are important. They are versatile and suitable for various masonry projects.

Shelving and Light Fixtures

Dyna bolts often secure shelves and light fixtures to walls, providing a firm hold within masonry to keep items in place.

Handrails and Safety Barriers

For installing handrails and safety barriers, Dyna bolts offer an efficient solution. Their ease of installation allows for quick and reliable anchoring, making them suitable for both residential and commercial properties where safety is paramount.

Temporary Installations

Dyna bolts are great for temporary setups, allowing easy removal and reuse in applications like signage, exhibition stands, and fencing.

Comparative Use Cases

Heavy-Duty vs Medium-Duty Applications

Expansion Bolts: Best suited for permanent installations requiring high load capacity and durability, such as structural steelwork and heavy machinery anchoring. These bolts are preferred in professional settings where precision and strength are critical.

Dyna Bolts: Ideal for applications that require frequent adjustments or removability, such as shelving, handrails, and temporary installations. They are suitable for DIY projects and medium-duty masonry applications where ease of use is a priority.

Environmental Considerations

Expansion Bolts: Perform well in dense materials like concrete and stone, making them suitable for outdoor environments exposed to varying weather conditions. Their robust design ensures long-term reliability even under extreme conditions.

Dyna Bolts: While also effective in concrete and brick, Dyna bolts are better suited for indoor or sheltered environments where the load demands are moderate. Their design accommodates frequent adjustments without compromising the integrity of the anchor.

Cost Implications

Expansion Bolts: Generally more expensive due to their heavy-duty design and the need for precise installation. The higher upfront cost is justified by their superior performance in demanding applications.

Dyna Bolts: More budget-friendly and easier to install, making them an attractive option for DIY enthusiasts and smaller-scale projects. Their lower cost and versatility provide a good balance between performance and affordability.

Standards Compliance

Design and Operational Standards

Expansion Bolts

Expansion bolts generally follow ASTM F1554 standards, which outline the required strength of anchor materials. Their design adheres to mechanical expansion principles outlined in EN 1992-4, focusing on concrete anchoring. Expansion bolts also meet ISO 898-1 for tensile strength and ASME B18.2.1 for dimensional tolerances.

Dyna Bolts

Dyna bolts are classified as sleeve anchors and must meet ETAG 001 Annex C standards for mechanical anchors in concrete. In Australia and New Zealand, these bolts comply with AS 5216. The expansion sleeves of Dyna bolts, especially those with corrosion-resistant coatings, adhere to ISO 1461 standards.

Load Capacity and Safety Standards

Critical Standards

• Expansion Bolts: These bolts must comply with EN 15048-1 for preloading and ACI 318 for concrete embedment depth.
• Dyna Bolts: They must comply with ISO 3506 for stainless steel and EN ISO 12944 for durability in different environments.

Material and Corrosion Standards

Expansion Bolts

Typically made from carbon steel (ASTM A307) or stainless steel (ASTM F593), expansion bolts often feature zinc plating (ASTM B633) for corrosion protection.

Dyna Bolts

Dyna bolts commonly use 304/316 stainless steel (ISO 3506) for enhanced corrosion resistance in harsh environments. They may also have optional hot-dip galvanizing (ISO 1461) for additional protection.

Installation and Compliance

Expansion Bolts

These bolts need precise hole diameters and embedment depths, as specified in ACI 318-19, to avoid pull-out failures. They must also comply with ETAG 001, which mandates torque-controlled installation.

Dyna Bolts

Dyna bolts offer simplified installation without the need for backside access. However, they must follow ETAG 001 Annex C for sleeve expansion limits. Over-tightening can lead to sleeve cracking.

Regional and Application-Specific Standards

Europe

Both expansion bolts and Dyna bolts must bear the CE marking, harmonized to EN 1992-4, for structural applications.

North America

ICC-ES ESR reports, such as ESR-3187, validate compliance with the International Building Code (IBC) for seismic zones.

Australia

Dyna bolts follow AS 5216 standards, and expansion bolts must meet AS 4100 standards for steel structures.

Key Compliance Considerations

1. Preloading: Expansion bolts require strict adherence to torque specifications (ISO 16047), while Dyna bolts need controlled sleeve expansion to prevent substrate damage.
2. Substrate Compatibility:
   • Expansion Bolts: Ideal for high-density concrete, as per ASTM C39 compressive strength requirements.
   • Dyna Bolts: Suitable for masonry and hollow blocks, tested per ASTM E488 in friable materials.
3. Removability: Dyna bolts can be reused (AS 5216), whereas wedge-type expansion bolts often damage substrates upon extraction.

Recent Developments (2024–2025)

• Expansion Bolts: There is an increased adoption of seismic-certified designs (ACI 355.2-24) for high-risk zones.
• Dyna Bolts: Innovations include new composite sleeve materials, such as nylon-reinforced variants, which improve vibration resistance (tested per ISO 16130).

Frequently Asked Questions

Below are answers to some frequently asked questions:

When should I use a Dyna bolt vs an expansion bolt?

When deciding between a Dyna bolt and an expansion bolt, consider the specific needs of your project. Dyna bolts are ideal for medium-duty applications and are suitable for materials like concrete, brick, and masonry. They are relatively easy to install, can be removed and reused, and offer good corrosion resistance, making them suitable for environments where adjustments might be needed. On the other hand, expansion bolts are designed for heavy-duty applications, handling high shear and tension loads in dense materials such as concrete, brick, and stone. They require precise hole sizing and alignment, making them more appropriate for professional installations where a permanent hold is necessary. Therefore, choose Dyna bolts for projects requiring flexibility and ease of installation, and expansion bolts for scenarios demanding strong, permanent anchoring with high load capacities.

How does the holding strength compare between these bolt types?

The holding strength of expansion bolts and Dyna bolts differs primarily in their load capacity and application suitability. Expansion bolts are superior in handling high-load applications due to their robust wedging mechanism, making them ideal for anchoring heavy machinery and structural beams in dense materials like concrete. They offer excellent shear and tension resistance, ensuring a secure hold against both lateral and pull-out forces.

In contrast, Dyna bolts are designed for medium-duty tasks. While they provide a reliable grip and minimize slippage, their load capacity is more suited to applications such as shelving, door frames, and other light-to-medium fixtures. Dyna bolts are versatile in various substrates, including masonry and lighter materials, but do not match the heavy-duty performance of expansion bolts.

Can expansion bolts be reused like Dyna bolts?

Expansion bolts are generally not designed for reuse in the same way Dyna bolts might be. When an expansion bolt is installed, the tightening action causes a wedge to expand the sleeve against the substrate, creating a strong grip. Removing this bolt can stress and potentially damage the substrate, which compromises the integrity of the anchoring point for subsequent installations. Thus, reusing expansion bolts is not typically recommended.

Dyna bolts, on the other hand, can be removed and potentially reused more easily, as their design involves a mechanical expansion mechanism that is less likely to damage the substrate. However, even with Dyna bolts, reusing them is not ideal because the removal process can still cause wear and tear on the bolt, affecting its future performance.

What are the best practices for installing these bolts?

Best practices for installing expansion bolts and Dyna bolts involve several key steps to ensure effective and secure installation. For expansion bolts, precision drilling is critical, as the hole diameter must match the bolt size precisely to allow proper expansion. Thoroughly cleaning the holes is essential to remove debris that could compromise the friction and hold strength. When tightening expansion bolts, it’s important to activate the wedging mechanism by torquing the nut or bolt until firm resistance is felt, ensuring a strong hold, especially for heavy-load applications.

For Dyna bolts, the installation process is simpler and suitable for DIY projects. Pre-drilled holes should match the manufacturer-specified diameter and depth to optimize sleeve expansion. Dyna bolts can be inserted directly into pre-drilled holes without needing back-side access, making them user-friendly. They are also adaptable to various materials like masonry, brick, or concrete, but clean holes are still necessary for secure anchoring.

In both cases, adhering to proper torque is crucial to avoid material damage and ensure effective load distribution. Understanding the substrate compatibility—solid materials for expansion bolts and versatile hollow materials for Dyna bolts—will further enhance installation success.

What are the common applications for each bolt type?

Expansion bolts and Dyna Bolts are both used for anchoring in masonry, but they have distinct applications based on their design and load capacities. Expansion bolts are commonly employed in construction and industrial settings where heavy load-bearing is required. They are ideal for securing structural components like beams and columns to concrete and masonry surfaces, and for fastening machinery and heavy fixtures due to their strong hold and resistance to dynamic loads.

Dyna Bolts, while similar in function, are typically used in less demanding applications. They are favored in residential and commercial masonry projects for securing items to brick, block, or concrete. Their ease of installation also makes them popular for DIY projects. Dyna Bolts are generally suitable for standard masonry loads and do not require specialized tools for installation, making them more user-friendly for general purposes.

Are there any specific standards compliance for these bolts?

Yes, there are specific standards compliance requirements for both expansion bolts and Dyna bolts. These bolts must adhere to industry standards to ensure their safety and performance in various applications. For installation, precise hole diameters are necessary for expansion bolts, matching the bolt size to ensure a secure fit. This involves specific drilling techniques and materials, often using carbide-tipped hammer drill bits as per ANSI standards for concrete applications. Both types of bolts are also subject to testing and certification standards such as ACI 355.2 and ICC-ES AC193, which evaluate the anchors’ ability to withstand various loads and environmental conditions. Additionally, the materials used for manufacturing these bolts must meet relevant specifications for strength and durability, ensuring consistent quality and reliability.
