Girth Welds vs Seam Welds: What’s the Difference?

Imagine the intricate network of pipelines stretching across continents, carrying vital resources like oil, gas, and water. At the heart of these engineering marvels lie two crucial types of welds: girth welds and seam welds. While both serve the essential function of joining metal components, their applications, techniques, and benefits differ significantly. Understanding these distinctions is key to making informed decisions in pipeline construction and other industrial projects.

In this article, we will explore the fundamental differences between girth welds and seam welds, their unique characteristics, and the specific scenarios where each method shines. Whether you’re looking to optimize efficiency in pipeline construction or ensure the safety and compliance of your pressure vessels, we’ve got you covered. Join us as we delve into the comparative aspects of these welding techniques and discover which method best suits your project’s needs. Are you ready to uncover the nuances that could make or break your next welding endeavor? Let’s dive in.

Characteristics of Girth and Seam Welds

Girth welds are widely used in pipelines and pressure vessels because of their unique strengths. Here are some key characteristics:

• Strength and Durability: These welds encircle the pipe, enhancing structural integrity and making them ideal for high-pressure environments.
• Application in High-Pressure Systems: Their exceptional strength makes girth welds suitable for high-pressure systems like pipelines and pressure vessels.
• Multiple Passes Required: Girth welds often need multiple passes, unlike seam welds, to ensure integrity and strength, particularly in thicker materials.
• Complex Inspection: Inspecting girth welds is more complex because of their circular shape, requiring advanced non-destructive testing methods.

Key Characteristics of Seam Welds

Seam welds are utilized in applications where speed, efficiency, and cost savings are crucial. Their characteristics include:

• Speed and Efficiency: Seam welding is highly efficient, requiring just one continuous pass over the joint. This makes it faster and more cost-effective compared to girth welding.
• Ease of Setup: Setting up for seam welding is generally easier and less time-consuming, making it accessible for various applications.
• Leak-Proof Joints: Seam welds provide strong, leak-proof joints, ideal for applications such as tanks, pipes, and vessels that require continuous and reliable sealing.
• Simplified Inspection: The linear geometry and single-pass nature of seam welds make them simpler to inspect, reducing the time and effort needed for thorough inspection.

Comparative Analysis

Strength and Durability

Girth welds offer superior strength and durability due to their circumferential nature, making them suitable for high-pressure applications. In contrast, seam welds, while strong, are not as robust as girth welds and are better suited for applications where high pressure is not a primary concern.

Efficiency and Speed

Seam welds excel in efficiency and speed, with a single continuous pass providing a rapid and cost-effective solution. Girth welds, requiring multiple passes, take longer and are more labor-intensive, which can increase production costs and time.

Inspection Complexity

Inspecting girth welds is more complex because of their circular shape, requiring advanced non-destructive testing methods. Seam welds, with their linear geometry, are simpler to inspect, making quality control processes more straightforward and less time-consuming.

Application Suitability

Girth welds are the preferred choice for high-pressure environments like pipelines and pressure vessels, where strength and durability are critical. Seam welds, on the other hand, are ideal for mass production scenarios, such as automotive production and sheet metal fabrication, where efficiency and speed are paramount.

• Strength: Girth welds are stronger and more durable, suitable for high-pressure applications.
• Efficiency: Seam welds are faster and more cost-effective, ideal for mass production.
• Inspection: Seam welds are easier to inspect due to their linear geometry.
• Application: Girth welds are used in high-pressure systems, while seam welds are used in applications where efficiency is key.

Applications in Pipeline Construction

Role of Girth and Seam Welds in Pipeline Construction

Girth Welds in Pipeline Construction

Structural Integrity and Strength:
Girth welds play a crucial role in pipeline construction due to their ability to provide exceptional structural integrity and strength. These welds encircle the entire circumference of the pipe, creating a robust joint that can withstand high pressure and stress. This characteristic is essential for pipelines transporting oil, gas, and other critical fluids where failure is not an option.

High-Pressure Applications:
Pipelines operating under high pressure, such as those in the oil and gas industry, depend significantly on girth welds. Their strength and durability ensure that the pipelines can safely transport fluids over long distances without the risk of leaks or ruptures.

Pipeline Joining:
Girth welds are essential for joining individual pipe sections during the construction of long pipelines, ensuring a continuous and strong structure. This is particularly important in maintaining the pipeline’s integrity over its entire length.

Seam Welds in Pipeline Construction

Efficiency and Speed:
Seam welds are favored in scenarios where efficiency and speed are paramount. This welding technique is highly efficient, allowing for continuous seams to be created with a single pass. This rapid production capability is advantageous in projects where time and cost savings are critical.

Linear Applications:
Seam welding is ideal for joining pipes or tubes along their lengthwise edges. This method is particularly useful in applications where long, straight sections of pipe need to be joined quickly and reliably.

Mass Production:
In pipeline construction, seam welds are often used in the manufacturing of pipe segments in a factory setting before they are transported to the construction site. This approach takes advantage of seam welding’s speed and efficiency, reducing production time and costs compared to welding on-site.

Comparative Analysis in Pipeline Construction

Strength and Durability

Girth welds provide superior strength and durability, making them crucial for high-pressure pipeline applications. They offer a robust joint capable of withstanding significant internal and external stresses. Seam welds, while strong, do not offer the same level of robustness as girth welds and are better suited for less demanding applications.

Production Efficiency

Seam welds excel in production efficiency, with the ability to create continuous seams rapidly. This efficiency makes them the preferred choice for manufacturing pipe segments in large quantities. Girth welds, on the other hand, require multiple passes and more time, making them less efficient but necessary for high-pressure applications.

Inspection and Quality Control

The inspection of girth welds is more complex due to their circumferential nature, requiring advanced non-destructive testing methods to ensure their integrity. Seam welds are easier to inspect thanks to their linear geometry, simplifying the quality control process and reducing inspection time.

Application Suitability in Pipeline Construction

High-Pressure Pipelines:
For high-pressure pipelines, such as those used in the oil and gas industry, girth welds are the preferred choice due to their superior strength and ability to withstand high pressures and stresses.

Mass Production Pipelines:
In situations where speed and cost-efficiency are critical, such as in the mass production of pipeline segments, seam welds are the ideal solution. Their rapid production capability and ease of inspection make them suitable for large-scale manufacturing.

Understanding the specific requirements of a pipeline construction project is essential in selecting the appropriate welding method. Both girth and seam welds have their unique advantages and applications, and choosing the right technique can significantly impact the project’s success.

Welding Techniques Comparison

Girth welds and seam welds are two common welding techniques used in industrial applications, each with its own unique characteristics, advantages, and specific uses. Understanding these differences is crucial for selecting the right method for a given project.

Girth Welds

Definition and Process: Girth welds are used to join sections of pipes or tubes by welding around their circumference. This process involves multiple passes to ensure the weld penetrates fully and forms a robust joint. It requires specialized equipment and highly skilled labor to execute properly.

Inspection Methods: Given their critical applications, girth welds undergo rigorous inspection processes using techniques such as radiography and ultrasonic testing to detect any internal defects and ensure the welds’ integrity and safety.

Applications: Girth welds are essential in high-pressure environments such as pipeline construction, pressure vessels, and structural joints. Their strength and durability make them suitable for these demanding applications.

Advantages:

• Strength and Durability: Provides exceptional strength for high-pressure applications.
• Safety: Ensures the integrity of pipelines and pressure vessels, reducing the risk of leaks or failures.

Challenges:

• Complexity: Requires multiple passes and specialized equipment.
• Inspection: More complex and time-consuming due to the need for advanced techniques.

Seam Welds

Definition and Process: Seam welds join two metal pieces along their length, creating a continuous bond in a single pass, which increases production speed and reduces labor costs. Seam welding can be done using various techniques, including resistance seam welding, friction seam welding, and laser seam welding.

Inspection Methods: The linear nature of seam welds simplifies the inspection process. Non-destructive testing methods such as visual inspection and ultrasonic testing are commonly used to ensure the weld quality.

Applications: Seam welds are widely used in sheet metal fabrication, automotive manufacturing, and the production of containers. They are ideal for applications requiring airtight or watertight joints and high production efficiency.

Advantages:

• Efficiency: Seam welds are faster and more cost-effective due to the single-pass process. This efficiency is particularly beneficial in high-volume production environments.
• Ease of Setup: Does not require specialized equipment, making it easier to implement.

Challenges:

• Strength: While strong, seam welds are generally not as robust as girth welds for high-pressure applications.
• Inspection: Easier but requires careful attention to ensure continuous quality.

Comparative Analysis

The choice between girth welds and seam welds depends on the specific requirements of the project. Girth welds are indispensable for high-pressure applications requiring exceptional strength and durability, while seam welds are advantageous in scenarios prioritizing speed, efficiency, and cost savings.

Advanced Welding Techniques

Girth Welds

Girth welds are a specialized method used to join the circular edges of pipes or tubes. This technique ensures a robust and secure connection, essential for applications subjected to high pressures and stresses.

Techniques

Girth welding often requires several passes to fully penetrate and fuse the material. The process begins with a root pass, which is the initial weld that penetrates the joint’s root. Subsequent passes, known as fill and cap passes, build up the weld until it achieves the desired thickness and strength.

Different techniques can be employed based on the specific requirements of the project:

• Vertical Circumferential Seams: Used when the pipe is oriented vertically. This technique requires precise control to ensure uniform weld quality.
• Horizontal Girth Seams: Applied when the pipe is horizontal, often necessitating positioners to rotate the pipe and facilitate the welding process.

Inspection

Due to the critical nature of girth welds, rigorous inspection methods, such as non-destructive testing (NDT), are essential to ensure their integrity. Common NDT techniques include:

• Radiographic Testing (RT): Utilizes X-rays or gamma rays to detect internal defects such as cracks or voids within the weld.
• Ultrasonic Testing (UT): Employs high-frequency sound waves to identify flaws and measure weld thickness, providing detailed information about the weld’s internal structure.

Seam Welds

Seam welding creates a continuous bond along the lengthwise edges of two metal pieces. This technique is known for its efficiency and speed, making it suitable for high-volume production environments.

Techniques

Seam welding can be performed using various methods, each chosen based on the material properties and desired weld characteristics:

• Resistance Seam Welding: Uses electric current and pressure to create a continuous weld. Ideal for thin materials and applications requiring airtight or watertight seals.
• Laser Seam Welding: Employs a focused laser beam to create precise and high-quality welds. Suitable for applications requiring minimal heat distortion.
• Ultrasonic Seam Welding: Utilizes high-frequency vibrations to bond materials. Commonly used for plastics and thin metal sheets.
• Friction Seam Welding: Generates heat through friction to join materials. Effective for joining dissimilar metals.

Advantages

Seam welding has several advantages, such as:

• Continuous, Leak-Proof Joints: Provides strong, uniform welds that are ideal for applications needing airtight or watertight seals, such as fuel tanks and radiators.
• Single-Pass Efficiency: Requires only one pass to complete the weld, reducing production time and labor costs.
• Versatility: Applicable to a wide range of materials and thicknesses, making it a versatile choice for various industries.

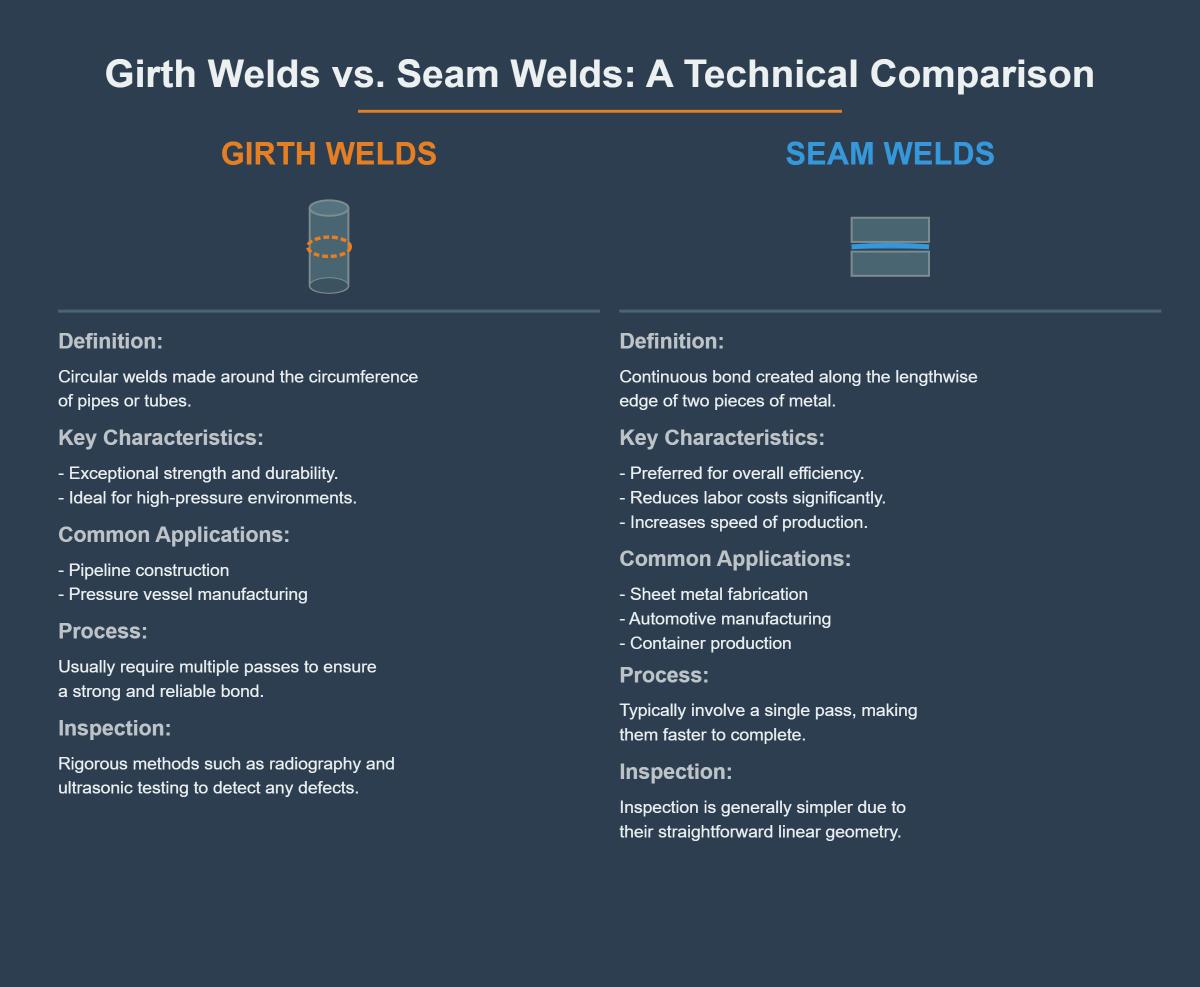

Comparison of Girth and Seam Welds

Recent Developments and Trends

Recent advancements in automation have significantly improved the efficiency and precision of both girth and seam welding. Automated welding systems can precisely control parameters such as speed, temperature, and pressure, ensuring consistent weld quality and reducing the likelihood of human error.

For girth welding, robotic systems equipped with sensors and cameras can perform welds with high accuracy, even in challenging environments. These systems can also integrate with advanced NDT techniques to provide real-time inspection and quality control.

In seam welding, innovations like laser and ultrasonic welding have expanded the range of materials that can be welded efficiently. These techniques offer higher precision and lower heat input, reducing the risk of thermal distortion and improving
Understanding these advanced welding techniques and their respective advantages allows for the optimal selection of methods based on the specific needs of a project, ensuring durability, reliability, and cost-effectiveness in various industrial applications.

Selecting the Appropriate Welding Method for Your Project

To choose the right welding method for your project, consider factors like strength, production efficiency, available equipment, and inspection complexity.

Strength and Durability

Girth Welds: These welds are known for their exceptional strength and durability, making them suitable for high-pressure applications such as pipelines and pressure vessels. The circumferential nature of girth welds ensures a robust joint that can withstand significant internal and external stresses.

Seam Welds: Seam welds provide strong joints, though they are not as robust as girth welds, making them ideal for applications where high pressure is less critical, such as sheet metal fabrication and automotive production.

Production Efficiency

Girth Welds: Making girth welds is labor-intensive and needs multiple passes, which can slow down production and raise costs. This method is less efficient for high-volume production but essential for applications where strength and durability are critical.

Seam Welds: Seam welding is highly efficient, requiring only a single pass to create a continuous bond. This method is faster and more cost-effective, making it ideal for mass production environments where speed and efficiency are paramount.

Equipment and Setup Complexity

Girth Welds: This welding method requires specialized equipment and highly skilled labor. The setup is more complex, involving custom tooling and precise control to ensure uniform weld quality.

Seam Welds: Seam welding is simpler to set up and doesn’t need custom tools. It is more accessible for various applications and can be performed with less specialized equipment, reducing setup time and costs.

Inspection and Quality Control

Girth Welds: Inspecting girth welds is more complex due to their circular shape. Advanced non-destructive testing (NDT) methods, such as radiographic and ultrasonic testing, are often required to ensure the weld’s integrity and detect any internal defects.

Seam Welds: The linear geometry of seam welds simplifies the inspection process. Visual inspection and ultrasonic testing are commonly used, making quality control more straightforward and less time-consuming.

Application Suitability

Girth Welds: Girth welds are ideal for high-pressure environments like pipelines and pressure vessels due to their strength and durability, and they are also used in structural joints and other critical applications.

Seam Welds: Seam welds are ideal for applications that prioritize speed and cost efficiency, such as sheet metal fabrication, automotive production, and the manufacturing of containers. They are suitable for creating leak-proof joints in applications requiring airtight or watertight seals.

Pressure Vessel Manufacturing

Girth Welds

Girth welds are essential in pressure vessel manufacturing, ensuring the structural integrity and safety of the containers.

Definition and Application

Girth welds are circular welds that join the circumference of pipes, tubes, or cylindrical vessels, creating robust and reliable joints for holding gases or liquids at high pressures.

Key Features

• Strength and Durability: Girth welds provide exceptional strength and durability. Their circumferential nature ensures that the joint can withstand significant internal and external pressures, making them ideal for high-pressure applications.
• Multiple Welding Passes: This process usually requires multiple passes to ensure complete fusion, resulting in a strong, uniform joint.
• Rigorous Inspection: Due to their critical applications, girth welds undergo rigorous inspection processes, including radiographic and ultrasonic testing, to detect any internal defects and ensure the weld’s integrity.

Seam Welds

Seam welds, although less common in pressure vessel manufacturing, are used in specific applications where their advantages are beneficial.

Definition and Application

Seam welding involves creating a continuous weld along the lengthwise edge of two metal pieces. This method is commonly used in sheet metal fabrication, automotive manufacturing, and container production.

Key Features

• Speed and Efficiency: Seam welding is faster and more cost-effective than girth welding, as it typically requires only one continuous pass. This makes it suitable for mass production environments where efficiency is critical.
• Simplified Inspection: Seam welds are easier to inspect due to their linear shape, simplifying quality control.
• Leakage Resistance: Seam welds are designed to create leak-proof joints, which is advantageous in applications where maintaining a sealed environment is essential.

Comparative Analysis

Strength and Durability

Girth welds offer superior strength and durability, making them indispensable for high-pressure applications in pressure vessel manufacturing. Seam welds, while strong, do not provide the same level of robustness and are better suited for lower pressure applications.

Production Efficiency

Seam welds excel in production efficiency due to their single-pass process, making them ideal for high-volume manufacturing. In contrast, girth welds require multiple passes and more time, which can increase production costs and time but ensures a stronger joint.

Inspection and Quality Control

Girth welds require advanced non-destructive testing methods to ensure their integrity, due to their critical applications in high-pressure environments. Seam welds, with their linear geometry, are easier to inspect, streamlining the quality control process.

Application Suitability

Girth welds are preferred in pressure vessel manufacturing where high-pressure resistance and structural integrity are paramount. Seam welds are more suitable for applications where rapid production and cost efficiency are prioritized, such as in the fabrication of less critical components.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the differences between girth welds and seam welds?

Girth welds and seam welds are two distinct types of welds used in various applications. Girth welds are circular welds made around the circumference of pipes or tubes, commonly found in pipeline construction and pressure vessel manufacturing. These welds provide exceptional strength and durability, making them ideal for high-pressure environments. They usually require multiple passes to ensure a strong bond and undergo rigorous inspection methods such as radiography and ultrasonic testing to detect defects.

On the other hand, seam welds create a continuous bond along the lengthwise edge of two metal pieces. They are prevalent in sheet metal fabrication, automotive manufacturing, and container production. Seam welds are preferred for their efficiency, as they typically involve a single pass, reducing labor costs and increasing production speed. Inspection of seam welds is generally simpler due to their linear geometry.

When should I use girth welds versus seam welds?

Girth welds should be used when maximum strength and durability are required, especially in high-pressure environments like pipelines and pressure vessels. These welds provide a robust bond by encircling the entire circumference of the pipe or tube, making them ideal for applications where the integrity of the weld is critical to safety and performance. However, they are labor-intensive and require rigorous inspection.

Seam welds, on the other hand, are best suited for applications where speed and efficiency are paramount, such as in mass production settings like automotive manufacturing and HVAC systems. They create a continuous bond along the lengthwise edges of metal pieces and are generally quicker and less costly to produce. While they offer sufficient strength for many applications, they are not as robust as girth welds and are less suitable for ultra-thick materials.

How do girth welds and seam welds impact pipeline construction efficiency?

Girth welds and seam welds significantly impact pipeline construction efficiency, each in distinct ways. Girth welds, which encircle the pipe’s circumference, are essential for ensuring pressure integrity and structural strength in pipelines. However, they require specialized equipment and skilled labor, making the process more complex and time-consuming. Rigorous inspections are necessary to ensure defect-free joints, which can further slow down construction but are crucial for safety and reliability.

Seam welds, on the other hand, create continuous seams along the length of the materials being joined. They are faster and easier to perform, especially in automated setups, making them ideal for mass production environments. However, seam welds are less suitable for pipeline construction, where circumferential strength and pressure resistance are paramount.

What are the safety considerations for using girth and seam welds?

Safety considerations for using girth and seam welds focus on the unique risks associated with each welding process. For seam welds, which involve continuous welds along the length of metal pieces, key safety measures include managing the heat and sparks generated during welding, ensuring proper grounding to prevent electrical shock, and maintaining ventilation to control fumes, especially when welding coated materials. Additionally, it is important to keep guards in place to prevent injuries from moving parts of the welding equipment.

Girth welds, which encircle the circumference of pipes, present specific challenges such as the risks associated with confined spaces. Welding in these environments requires adequate ventilation and monitoring of air quality to prevent asphyxiation or exposure to harmful gases. Inspection of girth welds can be complex, necessitating specialized techniques to ensure safety and integrity. Furthermore, the presence of flammable materials or vapors near girth welds can pose significant fire hazards, requiring thorough clearance and safety protocols.

Are there specific standards that girth and seam welds need to comply with in pipeline construction?

Yes, there are specific standards that girth and seam welds must comply with in pipeline construction to ensure safety and structural integrity. Girth welds, which join two sections of a pipe, must adhere to standards like API 1104. This standard outlines qualifications for welding procedures, welders, and inspection processes. Seam welds, which create a continuous seam along the length of materials, are less common in pipeline construction but are still subject to relevant industry standards such as ASME and API specifications when used in components like tanks or vessels. Compliance with these standards is crucial for maintaining the integrity and safety of the pipeline.

What role do advanced welding techniques play in modern welding applications?

Advanced welding techniques significantly enhance modern welding applications by improving precision, efficiency, and safety. In the context of girth welds and seam welds, these advanced methods are crucial for achieving high-quality welds that meet specific project requirements. Automation and robotics, for example, are increasingly used to perform girth welds, ensuring consistency and reducing human error, which is essential in high-pressure applications such as pipelines and pressure vessels. Similarly, techniques like laser seam welding and friction seam welding are valued for their precision and ability to create continuous, airtight joints, ideal for fuel tanks and radiators.

These advanced techniques also contribute to enhanced safety by minimizing manual handling and incorporating real-time monitoring for quality control, leading to fewer defects and improved
Overall, the integration of advanced welding techniques in modern applications ensures that both girth and seam welds meet the stringent demands of diverse industries, from automotive to aerospace, by providing reliable, high-quality connections tailored to specific needs.
