Grub Screw vs Set Screw: What’s the Difference?

Have you ever wondered whether grub screws and set screws are actually the same thing or if there’s more to these seemingly similar fasteners? In the world of mechanical assemblies, understanding the nuances between these two types of screws can be crucial for ensuring optimal performance and reliability. This article dives deep into the differences between grub screws and set screws, exploring their definitions, technical specifications, and application scenarios. We’ll also tackle common misconceptions and provide a comprehensive comparison of their holding power, head designs, and torque requirements. Whether you’re deciding between hex socket and external hex drives or trying to ensure compliance with DIN and ISO standards, this guide will equip you with the knowledge you need. So, are grub screws and set screws interchangeable, or does each serve a unique purpose? Read on to find out!

Understanding Grub Screws and Set Screws

Definition of Grub Screw

A grub screw, also known as a headless screw, is a fully – threaded fastener without a protruding head. The drive for the screw is recessed within its body, allowing it to sit flush with or below the surface of the material it secures. It is typically used in applications where a clean, unobtrusive finish is required or where space constraints demand a headless fastener, commonly in mechanical assemblies to secure components like gears, collars, and pulleys onto shafts.

Definition of Set Screw

A set screw is generally a headless, fully – threaded screw used to fasten one component against or within another. Its main function is to prevent relative motion between the two parts by exerting compressive force through its tip. Set screws are driven into a pre – tapped hole and are usually tightened with a hex key (Allen wrench), though other drive types can be used.

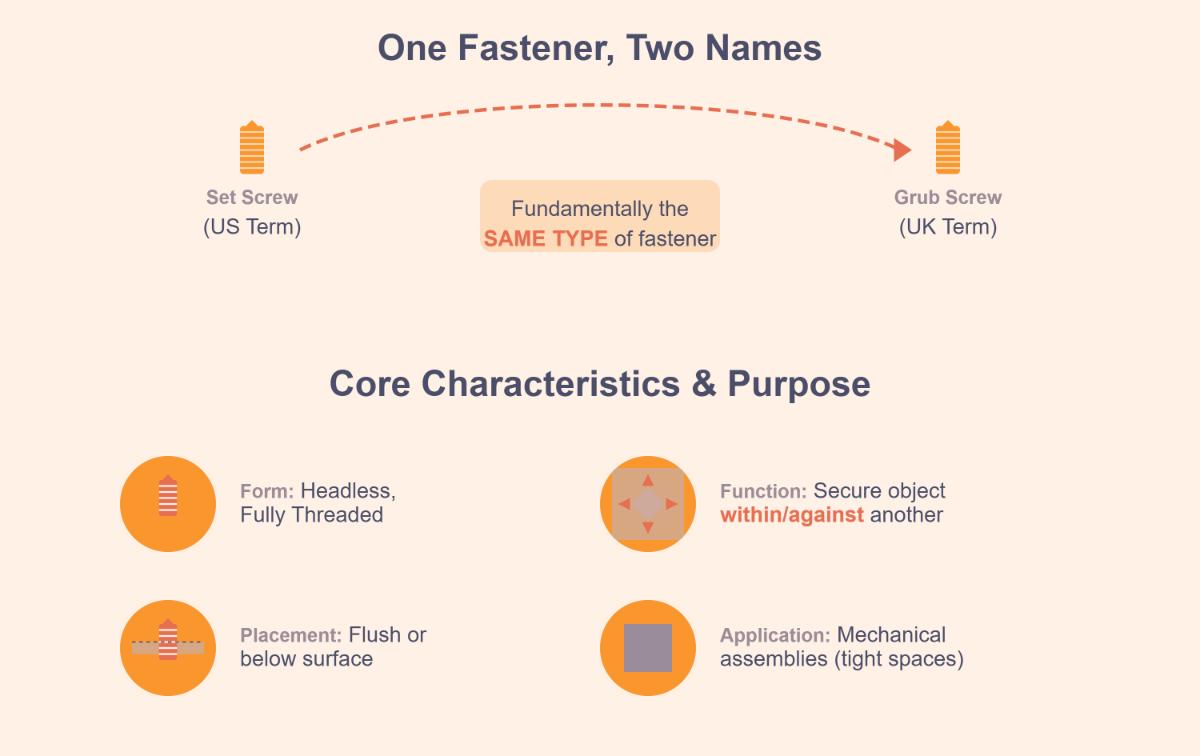

Terminology Differences and Common Misconceptions

In engineering and mechanical contexts, the terms “grub screw” and “set screw” are often used interchangeably. However, there are subtle differences.

The term “grub screw” is more prevalent in British English, while “set screw” is commonly used in American English. Despite this, both terms refer to the same type of headless fastener.

A common misconception is that grub screws are limited to slotted drives, whereas set screws typically have a hex socket (Allen) drive. In reality, both can have hex, slotted, or other drive styles.

Both types of screws have similar functions in mechanical assemblies. They are mainly used to secure parts without protruding heads that could interfere with the movement of adjacent components, which often leads to the interchangeable use of the terms.

Key Differences and Overlaps

Functional Characteristics

Grub screws and set screws are crucial for flush – mounting applications to avoid interference with moving parts. They are used in various mechanical assemblies, such as securing gears, collars, and pulleys on shafts. The holding power comes from the tip, which has different shapes for specific applications:

• Cup Point: Common, good grip, minimal surface damage, ideal for soft materials.
• Flat Point: Even force distribution, less penetration, suitable for thin or soft materials.
• Cone Point: Deep penetration, high holding power, requires more torque.
• Dog Point: Tubular tip fits machined grooves, allows rotation without displacement.
• Knurled Cup Point: Serrated edges for vibration resistance, generally non – reusable.

The choice of point type depends on the application, material hardness, and whether the assembly needs frequent adjustments or a permanent set.

Comparison with Regular Screws and Bolts

Understanding the distinctions and appropriate uses of grub screws and set screws ensures optimal selection and performance in mechanical fastening tasks.

Technical Specifications

DIN 916 and ISO 4029 Standards

DIN 916 and ISO 4029 are standards that specify the characteristics of grub screws and set screws. DIN 916 is the German standard, while ISO 4029 is recognized internationally. Both standards ensure that these screws meet specific requirements for size, shape, and material properties. They help maintain consistency and reliability in various applications.

Material Grades and Their Importance

Choosing the right material for screws is essential for their performance and durability. Common materials include:

• Carbon Steel: This material is strong and reliable, making it suitable for most general uses.
• Stainless Steel: Known for its ability to resist rust and corrosion, stainless steel is ideal for environments where moisture or chemicals are present.
• Alloy Steel: This type of steel is incredibly tough and can handle high stress, making it perfect for demanding applications.

Selecting the appropriate material ensures the screw will perform well in its intended environment.

Point Types: Cup Point vs Cone Point

Cup point screws have a concave tip that provides a secure grip with minimal damage to the surface. They offer good holding power and are perfect for applications that require frequent adjustments or involve softer materials.

Cone point screws have a pointed tip that penetrates deeply into the material, offering high holding power. They are ideal for permanent settings and high-stress applications where a strong grip is necessary.

Axial and Radial Resistance

Axial resistance refers to a screw’s ability to withstand forces along its length, while radial resistance is about handling forces perpendicular to its length. Both types of resistance are crucial for ensuring the screw performs well under different loads. Material hardness, thread engagement, and point type significantly affect these resistances.

Torque-to-Failure Analysis

Torque-to-failure measures the maximum torque a screw can endure before breaking. Several factors influence this:

• Material: Higher-grade materials can withstand greater torque.
• Thread Quality: Well-made threads distribute the load evenly, allowing the screw to handle more torque.
• Lubrication: Proper lubrication reduces friction, enabling higher torque application.

Understanding these factors is essential for selecting the right screw for specific applications, ensuring reliability and optimal performance.

Head Design Variations

Explanation of Headless Screws

Headless screws, also known as grub screws or set screws, are designed to sit flush or countersunk within a component. The absence of a protruding head allows these screws to be used in applications where space constraints or a clean, unobtrusive finish is required. This design is particularly advantageous in mechanical assemblies, where the screw must not interfere with the movement of adjacent parts.

Overview of Hex Socket Drive and Its Applications

Hex socket drives, also known as Allen drives, are one of the most prevalent drive types for headless screws. This drive design features a hexagonal recess that requires an Allen wrench for tightening and loosening. The hex socket drive offers several advantages:

• Non-slip engagement: The hexagonal recess offers a strong, non-slip grip, which helps prevent stripping during installation or removal.
• High torque application: Hex socket drives can handle more torque than slotted drives, making them ideal for secure fastening applications.
• Ease of use: Allen wrenches are widely available and easy to use, contributing to the popularity of hex socket drives in various industries.

Hex socket drives are commonly used in precision machinery, automotive assemblies, and other applications where reliable and secure fastening is critical.

Comparison with External Hex Drive

While hex socket drives are recessed within the screw body, external hex drives feature a protruding hexagonal head. This fundamental difference leads to distinct use cases and advantages for each drive type:

External hex drives are often preferred in applications where space constraints are less of a concern, and ease of access for standard wrenches is advantageous. Conversely, hex socket drives are ideal for applications requiring a flush finish and minimal space usage.

Functional Head Design Implications

The head design of a screw significantly impacts its functionality and suitability for various applications. Headless screws, such as grub screws and set screws, are designed to be fully recessed within the component, ensuring no interference with surrounding parts. This is crucial in dynamic assemblies, like gears on shafts, where protrusions could disrupt movement or cause damage.

The choice between different head designs, such as hex socket or external hex, also influences the ease of installation, torque application, and overall accessibility during maintenance. Hex socket heads typically allow for more precise torque application and are preferred in applications where space is limited, as the internal drive can be operated with an Allen wrench. External hex heads, on the other hand, are easier to grip with a variety of tools such as wrenches and pliers, making them suitable for situations where quick installation and removal are necessary.

Drive Recess Types and Their Impact

The type of drive recess, whether hex socket or slotted, affects the screw’s performance in terms of torque application and ease of installation or removal. Hex socket drives are preferred for their non-slip engagement and ability to handle higher torque without deforming the drive recess. Slotted drives, while simpler and more universally accessible, are more prone to cam-out and damage under high torque conditions.

Choosing the appropriate drive type involves considering the specific requirements of the application, including the available tools, required torque, and the need for precision in installation.

Application Scenarios

Use in Shaft Fastening

Grub screws and set screws are widely used for fastening shafts because they can secure parts without having protruding heads. This feature is critical for maintaining the smooth operation of rotating shafts and preventing interference with other moving parts. The screws are inserted into pre-tapped holes on collars, gears, or pulleys and tightened to create a compressive force that holds these components firmly on the shaft.

Comparison with Keyed Shafts

Keyed shafts prevent rotation using a key and keyway, but this method can be more time-consuming to produce and assemble. Grub screws and set screws offer a simpler and more flexible solution, allowing for easy adjustments and repositioning.

Role in Mechanical Assemblies

In mechanical assemblies, grub screws and set screws are crucial for holding parts together without adding bulk, and their headless design makes them ideal for tight spaces.

Adjustment and Reusability

Mechanical assemblies often need frequent adjustments. Grub screws with cup points offer a good balance of holding power and ease of adjustment, minimizing surface damage and making them ideal for applications requiring frequent repositioning or removal.

Performance in Vibration-Prone Environments

Vibration resistance is vital in many industrial settings. Grub screws with special point designs, like knurled cup points, provide better grip and resist loosening under vibration.

Comparison with Locking Mechanisms

Other vibration-resistant solutions include locking nuts and adhesives. While effective, these methods can complicate maintenance and adjustments. Grub screws and set screws provide a simpler and often more cost-effective alternative, especially when ease of access and adjustability are required.

Standards Compliance Guide

DIN 916 is a German standard detailing the dimensions and mechanical properties of grub screws with internal hex drives. These screws are designed for secure fastening in mechanical assemblies, ensuring reliability and consistency across various applications. Key aspects of DIN 916 include:

• Dimensions: Specifies the screw length, thread size, and hex socket dimensions to ensure compatibility and interchangeability.
• Material Properties: It defines the materials and their properties, like tensile strength and hardness, to ensure durability and performance.
• Manufacturing Tolerances: Outlines the permissible deviations in dimensions and shapes, ensuring precise manufacturing and fit.

ISO 4029 is an international standard that aligns closely with DIN 916 but is recognized globally. It provides a comprehensive framework for grub screws with cup points, covering:

• Dimensions: Similar to DIN 916, ISO 4029 specifies screw lengths, thread sizes, and hex socket dimensions, facilitating global compatibility.
• Material Grades: Lists acceptable materials and their mechanical properties, ensuring the screws meet international performance standards.
• Testing Methods: Details the methods for testing mechanical properties such as tensile strength, ensuring screws meet the required performance criteria.

Compliance with DIN 916 and ISO 4029 standards is crucial for ensuring the reliability and safety of mechanical assemblies. Here are steps to ensure compliance:

Material Selection

Choose materials that meet the standards’ specifications for mechanical properties, including tensile strength and hardness. Some commonly used materials are:

• Carbon Steel: Suitable for general applications, offering a good balance of strength and cost.
• Stainless Steel: Ideal for environments prone to corrosion, providing excellent durability and resistance to rust.
• Alloy Steel: Used in high-stress applications, offering superior strength and toughness.

Manufacturing Practices

Adhere to the specified manufacturing tolerances to ensure precise dimensions and shapes. This includes:

• Thread Precision: Ensure threads are cut or rolled to the exact specifications, avoiding deviations that could affect performance.
• Hex Socket Accuracy: Maintain tight tolerances on hex socket dimensions to ensure proper tool engagement and torque application.

Installation Guidelines

Follow the recommended installation practices to ensure the screws perform as intended:

• Torque Settings: Use the specified torque settings to avoid over-tightening or under-tightening, which can compromise the screw’s holding power and integrity.
• Thread Engagement: Ensure proper thread engagement by using the correct screw length and thread size for the application, maximizing holding strength and minimizing the risk of failure.

Following these guidelines and standards helps manufacturers and installers ensure the reliability, safety, and performance of grub screws and set screws in various applications.

Torque-to-Failure Analysis

Introduction to Torque-to-Failure Analysis

Torque-to-failure analysis is a crucial evaluation method in engineering used to determine the maximum torque a fastener, such as a grub screw or set screw, can withstand before it fails. This analysis is vital for ensuring the durability and reliability of mechanical assemblies in various industries, including aerospace, automotive, and construction.

Purpose and Key Factors of Analysis

The primary purpose of torque-to-failure analysis for both grub screws and set screws is to ensure they can endure the required loads without failing. This analysis helps engineers identify the yield point, which is critical for maintaining the integrity of the assembly under different conditions. Several key factors influence torque-to-failure:

1. Material Properties
   • The material composition of the screws significantly affects their strength and failure characteristics. Common materials include stainless steel, carbon steel, and high-strength alloys. The material’s hardness and tensile strength are crucial in determining the screw’s ability to withstand high torque.
2. Thread Pitch and Quality
   • The thread pitch (distance between threads) and quality influence the maximum insertion torque (MIT) and the stability of the screw in its application. A finer thread pitch may reduce the MIT but provides better resistance against vibration-induced loosening.
3. Clamping Force
   • Clamping force, which keeps the assembly tight, is directly related to the tightening torque. Typically, only a small percentage of the applied torque is converted into clamping force, with the rest consumed by friction. Proper torque application ensures the optimal clamping force without damaging the assembly.
4. Failure Modes
   • Common failure modes for grub and set screws include stripping, shearing, and breaking. Torque-to-failure analysis helps identify these failure modes, allowing for design optimization to prevent such occurrences.

Comparative Analysis of Grub Screws and Set Screws

Design and Functionality

• Grub Screws
• Primarily used for locking purposes.
• Headless design allows them to sit flush with the surface.
• Secure locking mechanism without additional components.
• Set Screws
• Designed to secure an object against rotation or axial movement.
• Can be headless or have a head.
• Widely used in machinery to prevent slippage or movement.

Torque Requirements

• Grub Screws
• Require precise torque control to avoid damage.
• Over-tightening can lead to failure, necessitating controlled torque application.
• Set Screws
• Can handle higher torques depending on the application.
• Proper torque application is crucial to ensure security without causing material damage.

Failure Analysis

• Grub Screws
• More prone to failure from improper installation or over-tightening.
• Torque-to-failure analysis is vital to identify potential weaknesses and improve design.
• Set Screws
• Generally have a higher tolerance for torque variation.
• Analyzing their failure modes helps optimize their design for specific applications.

Practical Considerations

1. Testing Methods
   • Torque-to-failure testing involves gradually increasing the torque on the screw until failure occurs. This process determines the maximum torque the screw can handle and provides insights into its performance under stress.
2. Interpreting Results
   • The results from torque-to-failure analysis set safe torque limits for the screws in practical applications. Understanding these limits helps ensure the reliability and safety of mechanical assemblies.
3. Application-Specific Adjustments
   • Depending on the specific application, adjustments may be necessary to optimize the torque settings and improve the


     Installation Methods

Overview of Installation Methods

Grub screws and set screws, though often used interchangeably, have distinct characteristics and installation methods that are crucial for effective application. Understanding these differences ensures proper installation and optimal performance in various mechanical assemblies.

Drive Types and Tools

Both set screws and grub screws typically feature an internal hex socket, requiring an Allen wrench or hex key for installation. This design allows for precise control and high torque application. While hex drives are the most common, other drive types like slotted or Torx can also be found, depending on the specific application requirements.

Hole Preparation

Both grub screws and set screws require a pre-tapped hole to ensure a secure fit and prevent material damage. Proper hole preparation involves drilling and tapping the hole to the correct size and thread specification, which is crucial for achieving the desired holding power and avoiding misalignment or thread stripping.

Point Types and Their Functions

Grub screws and set screws come in various point types, each suited to specific applications: Cup Point provides a secure grip with minimal surface damage; Knurled Cup Point offers additional vibration resistance; Flat Point applies even compression force with minimal penetration; Cone Point is used for deep penetration requiring high installation torque; Dog Point features a cylindrical tip for precise positioning in machined grooves.

Key Differences in Installation

One primary difference between grub screws and set screws is the presence of a head. Grub screws are headless, ensuring a flush finish, while set screws might have a hex head. Regional terminology varies, with “grub screw” more common in British English and “set screw” in American English. Both types are used for securing parts on shafts or making precise adjustments, with the choice depending on the specific application requirements.

Recommended Allen Wrench Sizes

For optimal performance, using the correct Allen wrench size is essential. The wrench size should match the internal hex socket of the screw to ensure proper torque application and prevent stripping. Common sizes include:

• M3 Screws: Typically require a 1.5 mm Allen wrench.
• M4 Screws: Usually need a 2.0 mm Allen wrench.
• M5 Screws: Generally use a 2.5 mm Allen wrench.

Torque Requirements for Optimal Performance

Applying the correct torque is critical for the effective installation of grub screws and set screws. Over-tightening can cause thread stripping or breakage, while under-tightening may result in insufficient holding power. Torque specifications vary based on the screw size, material, and application. It is essential to refer to manufacturer guidelines or industry standards to determine the appropriate torque values.

Tips for Removing Stuck Screws

Removing stuck grub screws or set screws can be challenging. Here are some tips to facilitate the process:

• Lubrication: Apply a penetrating lubricant to the screw and allow it to seep into the threads for easier removal.
• Proper Tools: Use the correct size and type of Allen wrench or screwdriver to avoid stripping the drive recess.
• Heat Application: Gently heating the surrounding area can expand the material, making it easier to loosen the screw.
• Impact Driver: For particularly stubborn screws, using an impact driver can provide the necessary force to break the screw free without damaging the surrounding material.

Frequently Asked Questions

Below are answers to some frequently asked questions:

Are grub screws and set screws the same thing?

Grub screws and set screws are essentially the same type of fastener, differing primarily in terminology. In American English, they are typically referred to as “set screws,” while in British English, the term “grub screws” is more common. Both terms describe headless screws that are fully threaded and used to secure objects within or against another object, such as fixing a gear or pulley to a shaft.

Both grub screws and set screws are designed to be flush with or below the surface of the material they are securing, preventing any protrusion that could interfere with the movement of machinery. They are commonly used in mechanical assemblies, where space constraints and the need for a smooth exterior are critical.

Which point type offers the best holding power?

When considering holding power, the cone point offers the best performance among grub and set screw point types. Its sharp tip penetrates deeply into the target surface, biting into the shaft material to create a strong mechanical lock. This can increase holding strength by up to 15% compared to other points. However, it may cause surface damage and requires higher installation torque. For less surface impact, the plain cup point is a good alternative, while the knurled cup point is ideal for soft materials and vibration-prone applications. Dog and flat points are better for positioning and delicate materials, respectively, but offer lower holding power.

How to choose between hex socket and external hex drive?

When choosing between a hex socket and an external hex drive for grub screws and set screws, consider the following factors:

Hex Socket:

• Utilizes an internal hexagonal recess, requiring an Allen wrench or hex key.
• Provides a flush finish, making it ideal for applications where a low profile is necessary.
• Offers aesthetic appeal and versatility, available in various head types like cylindrical and countersunk.
• However, it is prone to stripping if not properly aligned and can accumulate debris, affecting tool engagement.

External Hex Drive:

• Features an external hexagonal head, typically operated with a wrench.
• More robust and less likely to strip, allowing for higher torque application.
• Easier to handle in emergencies, as pliers can grip the external hex if stripped.
• Less visually appealing and requires more space for the wrench, which can be a limitation in tight areas.

For grub screws, hex sockets are often preferred due to their compactness and flush finish. For set screws, the choice depends on the need for high torque or aesthetic considerations. If reliability and torque are critical, external hex drives are advantageous. If a sleek appearance and low profile are essential, hex sockets are the better option.

What are the key differences between DIN 916 and ISO 4029 standards?

DIN 916 and ISO 4029 both specify hexagon socket set screws with a cup point. The key differences are: ISO 4029 omits nominal diameters 1.4, 1.8, 14, 18, and 22 mm, and some nominal lengths (14, 18, 22, 28 mm) found in DIN 916. ISO 4029 introduces stainless – steel grades A2 and A4, expanding material options compared to DIN 916’s primarily quenched and tempered alloy steel. Also, DIN 916 has been withdrawn as a national standard, while ISO 4029 is the current international standard. However, they’re generally interchangeable in application.

How do material grades impact screw performance?

Material grades significantly impact screw performance by determining key properties such as strength, hardness, and corrosion resistance. Higher-grade materials, such as SAE Grade 8 or ISO Class 10.9, offer superior tensile strength, making screws more capable of handling heavy loads without deforming or failing. This is particularly important for applications involving high stress or vibration, where the integrity of the screw is critical.

Hardness is another important factor, as harder materials (e.g., martensitic stainless steels) resist wear and maintain thread integrity, ensuring reliable performance over repeated use. This is especially relevant for grub screws, which need to sustain high localized stresses without deforming.

Corrosion resistance, offered by materials like stainless steel grades 304 and 316, is essential for maintaining screw performance in harsh environments. These grades prevent rust and degradation, extending the lifespan of screws used in outdoor or marine applications.

What is the recommended torque for different screw types?

The recommended torque for different screw types depends on factors such as screw size, material grade, friction, and application. For grub screws (headless set screws), the torque range is 1.6 – 57 inch – lbs for sizes from #4 – 40 to 1/4 – 20 in low carbon steel, Grade 5, and must be precise to avoid damage. Set screws with heads can handle 5 – 129 inch – lbs for the same size range in Grade 5 or 8, as the head allows for slightly higher torque. Machine screws (pan/flat head, low carbon steel) have a range of 1.6 – 320 inch – lbs depending on size and grade. Metric low – carbon steel screws also have specific torque ranges, like M2 x 0.4 at 1.1 – 1.5 Nm. Always refer to manufacturer torque tables for safety and performance.
