Horizontal vs. Vertical Milling Machines: Advantages and Disadvantages

When it comes to precision machining, the choice between horizontal and vertical milling machines can significantly impact your workflow and final product. While both types are staples in manufacturing and metalworking, each has its unique advantages and disadvantages that cater to different needs. Whether you’re looking to enhance large-scale production efficiency or seeking versatility for smaller projects, understanding the key differences can help you make an informed decision. Dive into our comparative analysis to discover the strengths and limitations of each milling machine type, and learn how to optimize your milling processes for the best results. Are you ready to find out which machine aligns best with your operational goals? Let’s explore!

Introduction to Milling Machines

Milling machines are crucial in manufacturing and metalworking, used to shape metals and other solid materials by removing excess material. Their precision and versatility make them indispensable for creating complex shapes and precise parts. These machines can perform various operations, including drilling, boring, cutting gears, and producing slots.

Milling machines are categorized based on the orientation of their main spindle, primarily into vertical and horizontal types. Vertical milling machines have a vertically oriented spindle and are commonly used for tasks like surface milling, drilling, and creating smaller parts. Their design allows for high precision and detailed work, making them suitable for smaller-scale operations. On the other hand, horizontal milling machines have a horizontal spindle and are typically used for larger parts or substantial material removal. Horizontal mills are ideal for heavy-duty tasks like slot cutting and gear cutting, offering stability and power for significant material removal.

Milling machines play a pivotal role in various industries, from crafting intricate electronic components to producing durable automotive and aerospace parts. They are essential in fields such as automotive and aerospace for producing complex components that require high precision and durability, and in electronics for manufacturing intricate parts.

Recent technological advancements, particularly the advent of CNC (Computer Numerical Control) technology, have significantly enhanced the capabilities of milling machines. CNC milling machines offer precise, repeatable operations, which are crucial for high-volume production and complex part geometries. This technology helps manufacturers achieve higher efficiency and accuracy. It meets the stringent demands of modern engineering and manufacturing processes.

By understanding the differences between vertical and horizontal milling machines, manufacturers can select the appropriate type for their specific needs, ensuring optimal performance and efficiency in their production processes.

Horizontal Milling Machine

A horizontal milling machine features a spindle oriented horizontally, allowing it to handle larger, heavier workpieces and perform multiple operations at once. Key features of horizontal milling machines include the horizontal spindle orientation, which is positioned parallel to the work surface, facilitating the machining of large, heavy parts. The spindle often supports multiple cutting tools mounted on an arbor, enabling simultaneous machining operations. The bed or table can rotate, allowing multi-angle milling and enhancing versatility in complex projects. Built to withstand substantial material removal and heavy-duty tasks, horizontal mills are ideal for industrial applications.

Horizontal milling machines excel in handling large and complex workpieces due to their robust design and spindle orientation. They can perform multiple operations such as grooving, slotting, and cutting gears simultaneously, often replacing several machining tools. Horizontal mills can remove material faster and make deeper cuts in one pass. The ability to use multiple cutters simultaneously and rotate the bed for multi-angle milling significantly reduces cycle times, enhancing overall productivity.

Gravity aids in chip removal in horizontal milling machines, leading to better surface finishes, prolonged tool life, and reduced post-processing requirements. This is particularly useful in heavy-duty machining operations. Tools mounted on an arbor in horizontal mills enable simultaneous machining, which is advantageous for high-volume industrial applications. This setup increases efficiency and productivity, making horizontal mills suitable for large-scale production.

Horizontal milling machines are particularly efficient in large-scale production environments. Their capability to perform multiple operations simultaneously and handle substantial material removal makes them indispensable for industries requiring high-volume production of complex parts.

The design of horizontal milling machines provides exceptional stability and rigidity, which is crucial for maintaining precision during heavy-duty machining tasks. The robust structure ensures minimal vibration, leading to accurate and consistent results.

Horizontal mills benefit from enhanced chip removal due to gravity’s assistance. This improves the machining process by preventing chip accumulation, which can affect surface finish and tool wear. Efficient chip removal also reduces the need for frequent cleaning and maintenance.

Despite their advantages, horizontal milling machines have certain drawbacks. Their complexity and higher cost can be barriers for smaller businesses or workshops with limited budgets. The robust structure and additional components of horizontal milling machines result in a larger footprint, requiring significant workshop space. This can be a constraint in smaller facilities or those with limited space availability.

Horizontal milling machines are widely used in various industries due to their capability to handle large and complex parts. They dominate sectors such as aerospace, automotive, and heavy machinery, where mass production of components like gears, housings, and engine blocks is essential. Their efficiency and ability to perform multiple operations simultaneously make them ideal for these applications. Horizontal milling machines are also employed in custom fabrication projects that require precision and the ability to handle heavy-duty tasks. Their versatility and robustness make them suitable for creating bespoke parts and components tailored to specific requirements.

Vertical Milling Machine

Definition and Key Features

A vertical milling machine has a spindle that moves vertically, enabling the cutting tool to move up and down while the workpiece stays in place on the table. With a vertically aligned spindle, these machines are ideal for operations like drilling, slotting, and surface milling, and their adjustable worktable allows the workpiece to be positioned closer to the cutting tool. These machines offer great visibility and control during machining. Key features include:

• Vertically Aligned Spindle: Suitable for various operations such as drilling, slotting, and surface milling.
• Adjustable Table: The worktable can be adjusted vertically to bring the workpiece closer to the cutting tool.
• Variable Spindle Speed: Provides precise control over cutting speed, enhancing versatility.
• Manual and CNC Options: Available in both manual and CNC configurations for different production needs.

Advantages

Thanks to their many advantages, vertical milling machines are a popular choice for a wide range of machining tasks.

Versatility and Ease of Use

• User-Friendly: The vertical orientation and adjustable table make it easier for operators to set up and manipulate the workpiece.
• Wide Range of Operations: Suitable for tasks like drilling, boring, and cutting gears.
• Precision Work: Ideal for detailed tasks requiring high precision and tight tolerances.

Smaller Footprint

• Space Efficiency: Vertical mills occupy less floor space compared to horizontal mills, making them suitable for smaller workshops.
• Compact Design: Beneficial for operations with limited space.

Cost-Effectiveness for Small-Scale Operations

• Lower Initial Investment: They usually cost less to buy and maintain compared to horizontal milling machines.
• Economical for Prototyping: Cost-effective for small-scale production runs and prototyping, where high precision and flexibility are required.

Disadvantages

Despite their many advantages, vertical milling machines also have some limitations.

Limited to Smaller Projects

• Size Constraints: Generally limited to smaller workpieces and projects due to their design and capacity.
• Single-Face Milling: More suitable for single-face milling operations, which can be a limitation for complex parts requiring multi-face machining.

Less Stability for Heavy-Duty Tasks

• Reduced Rigidity: Less stable than horizontal mills when handling heavy materials or large parts, which can affect precision and finish.
• Lower Power: Often equipped with motors that have lower horsepower, limiting their effectiveness for heavy-duty operations.

Applications

Vertical milling machines are widely used in various industries due to their versatility and efficiency.

Prototyping

• Custom Parts: Ideal for creating custom parts and prototypes, allowing for quick adjustments and fine-tuning.
• Research and Development: Frequently used in R&D departments for developing new products and testing machining processes.

Small to Medium-Sized Production Runs

• Batch Production: Suitable for small to medium-sized production runs where precision and flexibility are essential.
• Tool and Die Making: Commonly used in tool and die making for creating molds, dies, and other precision components.

Comparison of Milling Machines

Cutting Techniques

Horizontal and vertical milling machines utilize distinct cutting techniques due to their spindle orientations. In horizontal milling, the spindle is aligned horizontally, allowing cutters to move sideways and perform multiple cuts simultaneously. This setup is ideal for heavy material removal, slotting, and gear cutting. Vertical milling machines, with their vertically oriented spindles, move up and down, making them better suited for precise operations such as drilling, slotting, and surface milling, where detailed shaping is required.

Tool Orientation

The orientation of the tools significantly impacts the functionality of horizontal and vertical milling machines. Horizontal mills use short, thick tools on an arbor, which are excellent for removing large amounts of material quickly. These tools are ideal for deep cuts and heavy-duty machining tasks. Vertical mills, on the other hand, use long, thin tools that provide high precision but are less effective for deep cuts due to potential vibration issues. The vertical tool orientation allows for intricate work and detailed machining.

Spindle Movement

Spindle movement is another critical difference between these two types of milling machines. Horizontal milling machines have a spindle that moves along the horizontal axis, allowing for side-to-side movement of the cutting tools. This movement is advantageous for machining large and heavy workpieces, as it provides stability and reduces vibrations. Vertical milling machines feature a spindle that moves along the vertical axis, providing up-and-down movement. This vertical movement is perfect for tasks needing high precision and fine details, making vertical mills suitable for smaller, intricate projects.

Efficiency and Precision

Horizontal milling machines are efficient at material removal and handling large-scale production due to their robust design and ability to perform multiple cuts simultaneously. Their capability to remove large amounts of material quickly makes them highly efficient for heavy-duty tasks. However, they may lack the precision required for intricate work compared to vertical milling machines.

Vertical milling machines excel in precision, offering high accuracy and control for detailed operations. Their design allows for better visibility and ease of use, making them ideal for tasks requiring tight tolerances. However, they may struggle with removing large amounts of material quickly due to their tool orientation and potential vibration issues during deep cuts.

Cost Analysis

The initial investment for horizontal milling machines is typically higher compared to vertical milling machines. Horizontal mills are generally more complex, with robust structures and additional components that contribute to their higher price. In contrast, vertical mills are more straightforward in design and usually come at a lower initial cost, making them more accessible for smaller workshops and businesses.

Maintenance costs can vary between horizontal and vertical milling machines. Horizontal mills, with their complex design and multiple cutting tools, may require more frequent and costly maintenance. Their larger footprint and heavier use in industrial settings can also contribute to higher maintenance expenses. Vertical mills, being simpler in design and often used for smaller-scale operations, tend to have lower maintenance costs. Their ease of use and accessibility make them easier to maintain, further reducing overall expenses.

Operational costs also differ between horizontal and vertical milling machines. Horizontal mills, designed for high-volume production and heavy-duty tasks, may incur higher operational costs due to their power consumption and the need for skilled operators. Vertical mills, with their focus on precision and smaller-scale operations, generally have lower operational costs. They are often more energy-efficient and require less specialized training for operators, making them more cost-effective for certain applications.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the advantages and disadvantages of using a horizontal milling machine?

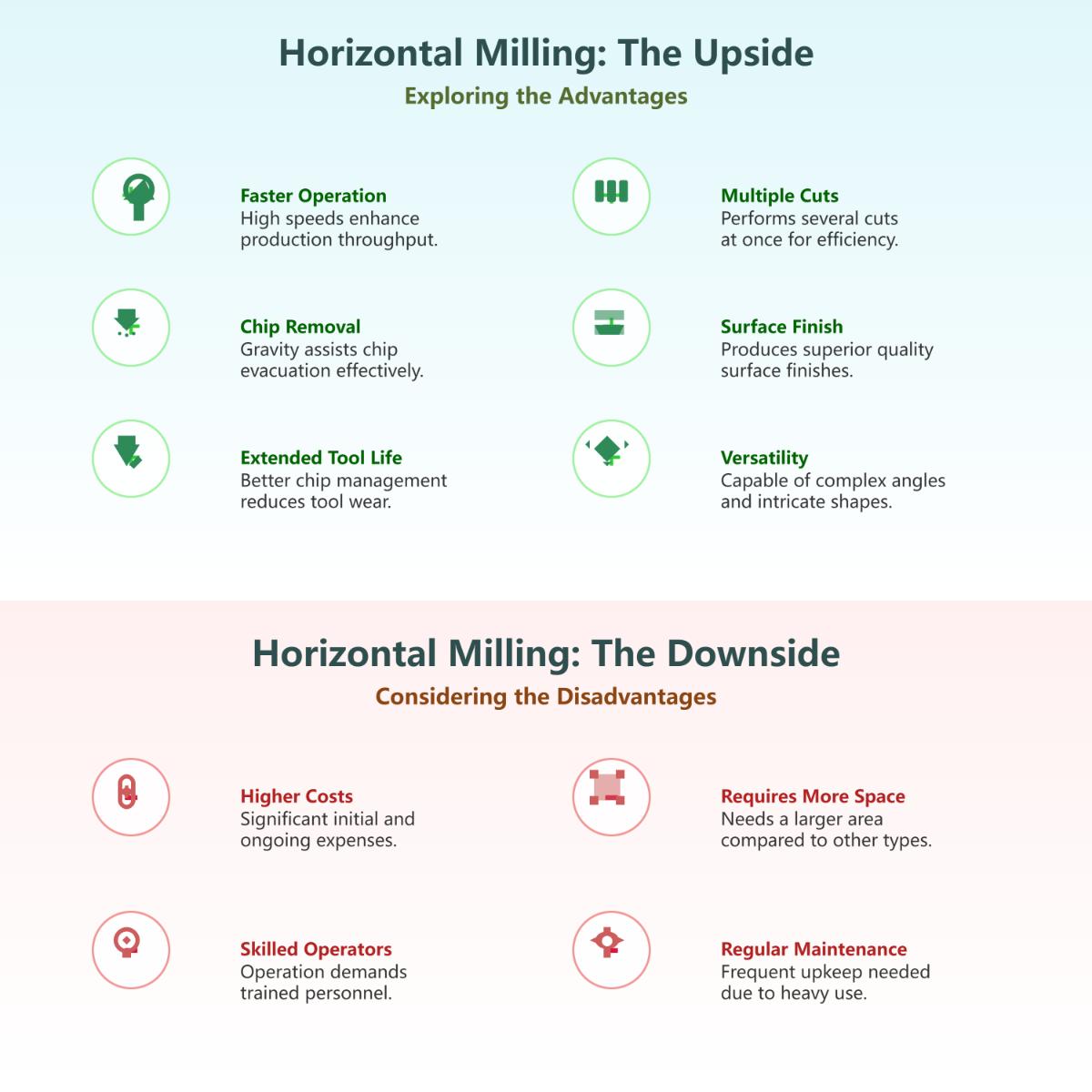

A horizontal milling machine has several notable advantages, including faster operation speeds and the ability to perform multiple cuts simultaneously, making it highly efficient for large-scale production. Its design allows for better chip removal through gravity, resulting in superior surface finishes and extended tool life. Additionally, horizontal mills can work at various angles and produce intricate shapes, providing versatility for complex projects. However, these machines come with higher costs, both in terms of purchase and maintenance, making them more suitable for industrial applications. They also require more space and skilled operators, which can be challenging for smaller workshops. Regular maintenance is essential due to the high-volume operations they typically handle.

How does a horizontal milling machine compare to a vertical one?

A horizontal milling machine differs from a vertical milling machine primarily in the orientation of the spindle. In a horizontal milling machine, the spindle is aligned horizontally, which allows the cutting tools to move from side to side. This configuration is advantageous for heavy-duty tasks, such as making deep cuts, slots, and grooves. Horizontal mills utilize shorter and thicker tools, providing greater stability and efficiency for large-scale production and deeper material removal. They are known for their stability, rigidity, and better chip removal, making them suitable for industrial production and custom fabrication.

In contrast, a vertical milling machine has a vertically oriented spindle that moves up and down. This setup is more versatile and user-friendly for smaller, detailed work and prototyping. Vertical mills are cost-effective for small-scale operations and have a smaller footprint, making them ideal for small to medium-sized production runs. However, they are less stable for heavy-duty tasks and are limited to smaller projects compared to horizontal mills.

When should I use a horizontal milling machine?

A horizontal milling machine is most suitable when your project requires heavy-duty material removal, high-volume production, or complex multi-sided machining. Its design, with a horizontal spindle orientation, allows for efficient cutting on multiple faces of a workpiece without repositioning. This is particularly advantageous for tasks involving deep cuts, slots, or grooves in thick materials such as steel or alloys, commonly found in automotive and aerospace industries. Horizontal mills offer speed and durability, with their robust construction providing stability for large workpieces and minimizing vibration during aggressive cuts. Additionally, they enhance chip management, as gravity assists in chip removal, reducing tool wear and improving surface finishes. For high-volume manufacturing, horizontal milling machines can perform simultaneous multi-tool operations, significantly increasing productivity. Therefore, if your project prioritizes material efficiency, batch throughput, and involves repetitive, heavy-cutting tasks, a horizontal milling machine is the optimal choice.

What are common applications for vertical milling machines?

Vertical milling machines are commonly used in various applications due to their versatility and ease of use. These machines are ideal for prototyping and custom manufacturing, where intricate geometries and detailed features are required. They excel in mold and die making, particularly for automotive, aerospace, and medical tooling, thanks to their ability to machine hardened materials and create complex contours. In the automotive and aerospace industries, vertical milling machines are utilized to fabricate transmission components, turbine blades, and structural parts that demand tight tolerances. Additionally, they are employed in tool and die production to craft cutting tools, jigs, and fixtures essential for manufacturing processes. Vertical mills are also proficient in 3D machining, producing detailed surfaces and precision-drilled features for various industrial components. These applications highlight the machine’s precision and adaptability, making it a valuable asset in small to medium-sized production runs.

How do maintenance requirements differ between horizontal and vertical milling machines?

When comparing maintenance requirements for horizontal and vertical milling machines, several differences emerge. Horizontal milling machines generally offer better chip removal and heat dissipation, which extends tool life and reduces the frequency of maintenance. Their design, while more complex initially, contributes to long-term efficiency gains through improved tool durability and less frequent maintenance needs. On the other hand, vertical milling machines are simpler to operate and maintain due to fewer fixtures and a more straightforward setup process. However, they struggle with chip removal and heat dissipation, leading to shorter tool life and more frequent maintenance requirements. Vertical mills are more cost-effective in terms of initial purchase price and operational costs, but horizontal mills, despite higher upfront costs, provide better long-term efficiency and reduced maintenance through superior chip handling and cooling.
