How to Silver Solder Titanium: A Step-by-Step Guide

Silver soldering titanium may seem daunting, but with the right techniques, it’s entirely achievable. Whether you’re an intermediate metalworker or a jewelry maker looking to expand your skill set, mastering this process can open new creative possibilities. In this guide, we’ll walk you through the essentials of silver soldering titanium, addressing the unique challenges posed by this remarkable metal, such as its stubborn oxide layer and the need for a controlled atmosphere. From preparing your materials to choosing the right solder and executing the soldering process, each step is crucial for a successful bond. Are you ready to transform your titanium projects with expert precision? Let’s dive in and explore the step-by-step journey to perfecting your silver soldering skills.

Introduction to Silver Soldering Titanium

Overview of Silver Soldering Titanium

Silver soldering titanium is a specialized technique that joins titanium components using a silver-based filler metal. This process is highly valued in metalworking and jewelry making because it creates strong joints without needing to reach titanium’s high melting point of over 2,200 degrees Fahrenheit. By leveraging silver soldering, you can take advantage of titanium’s unique properties without compromising its structural integrity.

Importance of Silver Soldering in Metalworking and Jewelry Making

Silver soldering is crucial in various applications, particularly in industries where titanium’s exceptional properties are required.

Benefits in Metalworking

In metalworking, silver soldering allows for the creation of durable and reliable joints, essential for components exposed to high stress and extreme environments. This technique is especially useful in aerospace engineering, where titanium’s lightweight and high strength are crucial. Additionally, silver soldering helps maintain the corrosion resistance of titanium, ensuring longevity and performance in harsh conditions.

Applications in Jewelry Making

In jewelry making, silver soldering allows for the creation of delicate and intricate designs with titanium. The process enables jewelers to join titanium pieces without compromising their appearance or structural integrity. Titanium’s hypoallergenic properties and resistance to tarnish make it a popular choice for high-quality jewelry, and silver soldering ensures these attributes are preserved in the final product.

Key Points About Titanium

• Material Properties: Titanium is renowned for its high strength-to-weight ratio, excellent corrosion resistance, and capability to withstand extreme temperatures.
• Challenges in Soldering: Titanium’s reactivity and high melting point necessitate the use of special fluxes and preheating techniques to achieve successful soldering results.
• Applications: Titanium is extensively used in aerospace, medical devices, and jewelry due to its strength, corrosion resistance, and biocompatibility.

Overview of Silver Soldering

Silver soldering, also known as brazing, joins two metals using a silver alloy with a lower melting point than the base metals. This method is widely used for metals such as titanium, copper, and steel. The key to successful silver soldering is ensuring that the filler metal flows into the joint and creates a strong bond between the base metals.

Benefits of Silver Soldering

• Lower Melting Point: Silver soldering operates at a lower temperature than the melting point of titanium, preventing damage to the base metal.
• Strong Joints: The process creates robust joints capable of withstanding significant stress and environmental factors.
• Versatility: Silver soldering is suitable for various metals and applications, making it a versatile technique in metalworking and jewelry making.

By understanding the importance and benefits of silver soldering titanium, you can effectively utilize this technique in your projects, ensuring strong and reliable joints that leverage the unique properties of titanium.

Understanding Titanium and Its Properties

What is Titanium?

Titanium is a strong and lightweight metal valued in various industries for its exceptional properties. Its unique characteristics, such as strength, durability, and resistance to corrosion, make it an ideal material for applications requiring these qualities, which are particularly relevant to soldering.

Material Properties

Titanium possesses several notable properties that are relevant to soldering:

• High Strength-to-Weight Ratio: Titanium is as strong as some steels but much lighter, making it ideal for applications where weight reduction is crucial, such as in aerospace engineering.
• Excellent Corrosion Resistance: Titanium is highly resistant to corrosion from most acids, chlorides, and saltwater, which is why it is used in marine environments and medical implants.
• High Melting Point: Titanium has a melting point of 1668°C, which is much higher than many other metals, necessitating specialized techniques for soldering.
• Non-Magnetic: Titanium’s non-magnetic nature makes it suitable for applications requiring materials that do not interfere with magnetic fields.

Properties of Titanium Relevant to Soldering

When soldering titanium, certain properties must be considered to ensure a successful bond:

Oxide Layer

Titanium naturally forms a thin oxide layer on its surface, which can interfere with soldering. This layer must be removed using methods like sandblasting and chemical treatments.

Intermetallic Phases

Titanium can form brittle intermetallic phases with many metals. However, silver-based alloys do not form these brittle phases, making them suitable for soldering titanium.

Thermal Conductivity

Titanium’s poor thermal conductivity affects heat distribution during soldering. This requires careful heat control to ensure even application and prevent overheating specific areas.

Challenges Associated with Soldering Titanium

Soldering titanium presents several challenges due to its unique properties:

Oxide Layer Issues

The oxide layer on titanium must be meticulously removed before soldering. If the oxide layer is not entirely eliminated, it can prevent the solder from adhering to the titanium surface, resulting in a weak joint.

Heat Control

Due to titanium’s poor thermal conductivity, controlling the heat during soldering is critical. Uneven heating can lead to inadequate bonding or damage to the titanium itself. Using precise heat sources like high-frequency induction coils or infrared heaters can help manage this challenge.

Choice of Flux

Selecting the appropriate flux is essential when soldering titanium. The flux must be capable of protecting the titanium surface from oxidation during heating and be compatible with the chosen solder. Silver-based fluxes are often used because they contain components that help maintain a clean surface.

Understanding the properties and challenges associated with titanium is crucial for successfully soldering this metal. By addressing these factors, metalworkers and jewelry makers can create strong, durable joints that leverage titanium’s unique advantages.

Preparation of Titanium for Soldering

Cleaning and Preparing the Titanium Surface

Thoroughly cleaning and preparing the titanium surface is crucial for successful soldering. These steps help remove contaminants and the naturally occurring oxide layer that can prevent solder adhesion.

Mechanical Cleaning

Mechanical cleaning involves physically removing the oxide layer and any surface contaminants. Here are the methods you can use:

• Sandpaper or Abrasives: Use fine-grit sandpaper or abrasive pads to gently sand the titanium surface. This method is effective for removing light oxide layers and surface contaminants.
• Sandblasting: For thicker oxide layers, sandblasting is recommended. This technique uses high-pressure air mixed with abrasive particles to clean the surface.
• Grinding or Brushing: Grinding with a rotary tool or using a wire brush can also help remove stubborn oxide layers. Ensure that the tools used are clean and free from contaminants.

Chemical Cleaning

Chemical cleaning involves using acid solutions to remove the oxide layer chemically. Pickling, which involves applying a mixture of hydrofluoric acid and nitric acid, is effective for achieving a clean surface.

• Rinsing: After pickling, thoroughly rinse the titanium parts with water to remove any residual acid. This step is crucial to prevent any acid residues from interfering with the soldering process.

Enhancing Wettability and Adhesion

Coating the titanium with a thin layer of a compatible metal can enhance solder adhesion. Silver is particularly effective for this purpose.

• Applying a Silver Layer: Coat the cleaned titanium surface with a thin layer of silver. This can be done using methods such as electroplating or sputtering. The silver layer helps in creating a strong bond with the silver solder and prevents the formation of brittle intermetallic phases.

Securing Parts and Maintaining Alignment

Properly align and secure the parts to ensure a strong joint.

• Fitting Parts Together: Ensure that the titanium pieces fit together closely and evenly. Use files or grinders to smooth the ends of the pieces, ensuring a snug fit.
• Clamping and Fixtures: Use clamps or fixtures to hold the parts in place during soldering. This helps maintain alignment and prevents movement that could weaken the joint.

Creating a Protective Atmosphere

To prevent oxidation and contamination during soldering, it is essential to work in a protective atmosphere.

• High-Purity Argon Shielding: Shield the titanium parts with high-purity argon gas (99.99%) to create an inert atmosphere. Argon prevents oxygen and moisture from coming into contact with the heated titanium, which can cause oxidation and weaken the joint.

Testing and Adjusting Techniques

Before soldering the actual workpieces, it is advisable to conduct preliminary tests on scrap titanium pieces. This helps identify potential issues and refine the soldering techniques.

• Preliminary Testing: Perform test soldering on scrap pieces to check for any problems with brittle intermetallic phases or inadequate adhesion.
• Adjusting Techniques: Based on the test results, adjust the cleaning, coating, and protective atmosphere techniques to optimize the soldering process for the actual workpieces.

Choosing the Right Silver Solder

Types of Silver Solder Available

When selecting silver solder for titanium, understanding the different types and their properties is essential. Silver solder is categorized based on its melting point and composition, which influences its suitability for various applications.

Easy Silver Solder

Easy silver solder has a lower melting point of approximately 618°C (1145°F), making it ideal for delicate and thin titanium components. Its high fluidity allows it to flow readily into joints, ensuring complete coverage and strong adhesion. This type is suitable for fine jewelry and small-scale repairs where minimal heat input is beneficial to avoid damaging the titanium.

Medium Silver Solder

Medium silver solder melts at around 704°C (1300°F) and offers a balance between ease of use and joint strength. It provides good fluidity while offering enhanced mechanical strength compared to easy silver solder. This makes it ideal for general-purpose soldering tasks, including medium-sized titanium components and assemblies that require moderate strength.

Hard Silver Solder

Hard silver solder, with a melting point of about 745°C (1373°F), forms the strongest joints, capable of withstanding significant mechanical stress and high temperatures. It is best suited for high-stress applications, such as aerospace components and heavy-duty industrial parts where maximum joint strength is critical.

Criteria for Selecting Silver Solder for Titanium

When choosing silver solder, consider the melting point, joint strength, component size, and compatibility with flux. Ensure the solder’s melting point is lower than the titanium’s to prevent damage. Evaluate the mechanical requirements of the joint to determine the appropriate solder type. For high-stress applications, opt for hard silver solder. For less demanding applications, medium or easy silver solder may be sufficient. Consider the size and complexity of the titanium components; easy silver solder is preferable for intricate and delicate parts due to its low melting point and fluidity. Ensure the chosen silver solder is compatible with the flux used in the soldering process to enhance the joint’s quality.

Benefits of Using Specific Silver Solders

Each type of silver solder offers distinct advantages that make it suitable for particular applications.

Easy Silver Solder

• Ease of Use: Lower melting point and high fluidity make it user-friendly, especially for beginners or intricate work.
• Reduced Heat Input: Minimizes the risk of heat damage to delicate titanium components.

Medium Silver Solder

• Versatility: Balances ease of use and strength, making it a versatile choice for a wide range of applications.
• Improved Strength: Offers better mechanical properties than easy silver solder, suitable for moderate stress applications.

Hard Silver Solder

• Maximum Strength: Provides the highest joint strength, essential for critical applications.
• High Temperature Resistance: Suitable for components exposed to elevated temperatures and demanding conditions.

By carefully selecting the appropriate type of silver solder based on these factors, you can achieve strong, durable, and reliable joints in titanium components, tailored to your specific application needs.

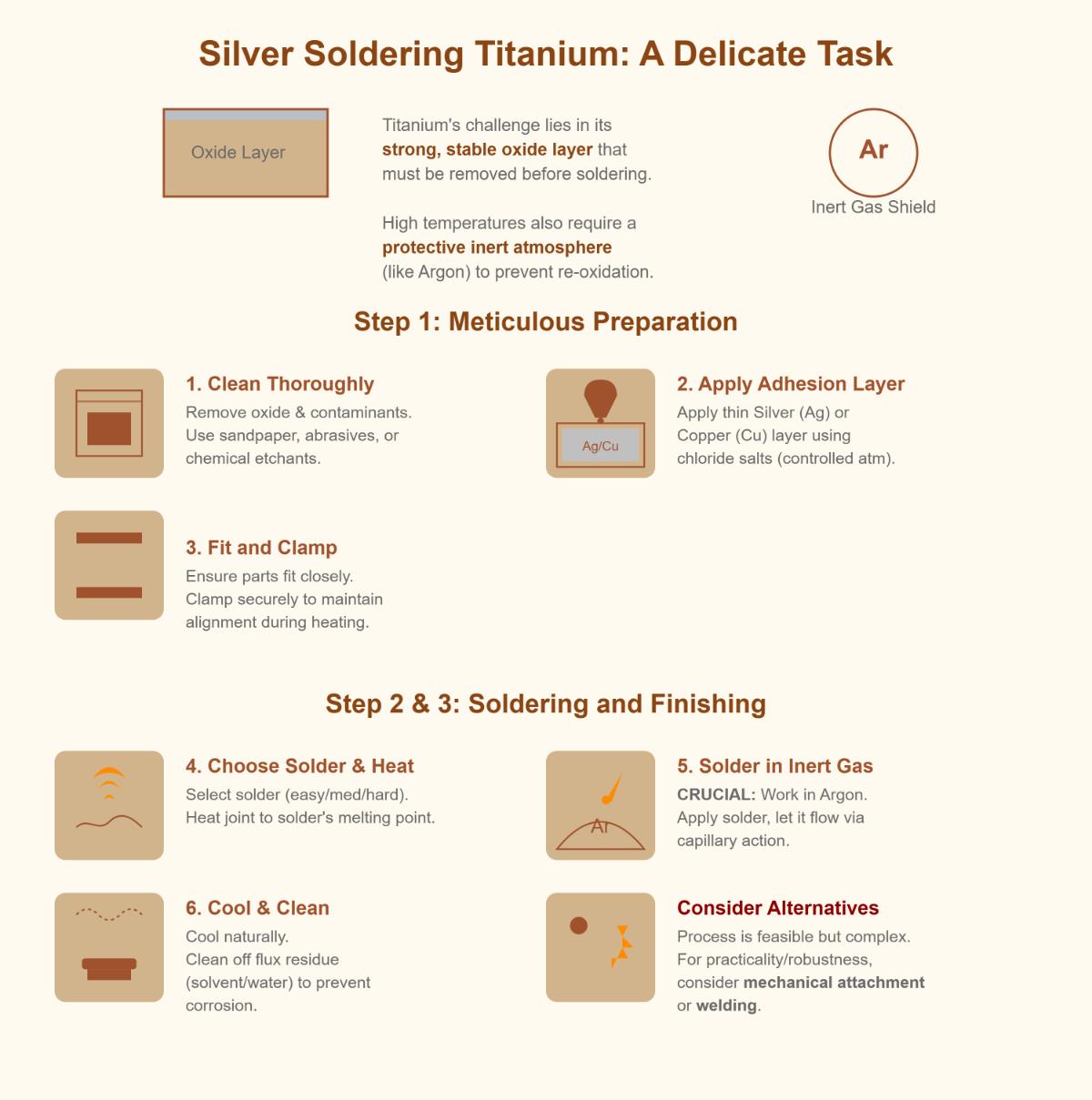

Step-by-Step Silver Soldering Process

Cleaning and Preparing the Titanium Surface

1. Mechanical Cleaning:
   • Sandpaper or Abrasives: Use fine-grit sandpaper or abrasive pads to eliminate surface contaminants and the oxide layer.
   • Sandblasting: For thicker oxide layers, sandblasting with high-pressure air and abrasive particles is effective.
   • Grinding or Brushing: Use a rotary tool or wire brush to clean stubborn areas, making sure tools are contaminant-free.
2. Chemical Cleaning:
   • Pickling: Apply a mixture of hydrofluoric acid and nitric acid to remove the oxide layer chemically.
   • Rinsing: Rinse thoroughly with water to eliminate any residual acid, preventing interference during soldering.

Applying Flux

1. Selecting Flux:
   • Use a specialized flux that protects titanium from oxidation at high temperatures.
   • Ensure the flux remains active within the solder’s melting range (720-815°C).
2. Applying Flux:
   • Apply flux to the joint area and coat the silver solder pieces to prevent oxidation and ensure smooth placement and flow.

Cutting and Positioning Silver Solder

1. Cutting Silver Solder:
   • Cut appropriately sized pieces of silver solder for the joint.
   • Ensure the pieces are small enough to melt evenly and flow into the joint.
2. Positioning Parts and Solder Pieces:
   • Use clamps or fixtures to hold the titanium pieces tightly together.
   • Place the flux-coated solder pieces on top of the joints precisely.

Applying Heat

1. Heating Equipment:
   • Use a torch, such as Mapp gas or propane, to apply heat evenly to the metal pieces.
2. Heating Process:
   • Direct the heat onto the titanium, not the solder, to ensure the solder melts and flows into the joint.
   • Maintain a dull red color to avoid overheating and damaging the titanium.

Cooling the Joint

1. Natural Cooling:
   • Allow the joint to cool naturally to room temperature.
   • Avoid quenching in water to prevent cracks or stress in the joint.

Cleaning Residue

1. Removing Flux Residue:
   • Clean any residual flux with a suitable solvent or by rinsing in water to prevent corrosion.
2. Inspecting the Joint:
   • Inspect the joint for defects or voids to ensure a strong bond.

Maintaining an Inert Atmosphere

1. Using Argon Gas:
   • Use high-purity argon gas to shield the titanium parts and create an inert atmosphere.
   • This prevents oxygen and moisture from contacting the heated titanium, avoiding oxidation.

Safety Precautions and Best Practices

Personal Protective Equipment (PPE)

1. Gloves: Use gloves made from heat-resistant materials that also offer a secure grip to protect your hands from burns and chemical exposure.
2. Eye Protection: Wear well-fitting goggles or a face shield to protect your eyes from sparks, hot debris, and intense light during soldering.
3. Respiratory Protection: Wear a NIOSH-approved respirator to avoid inhaling harmful fumes and dust.

Work Environment

1. Ventilation: Make sure your workspace has good ventilation to prevent harmful fumes from building up. Installing exhaust fans or using fume extractors can help maintain air quality.
2. Clear Workspace: Keep the area clear of flammable materials and clutter. This reduces the risk of fire and provides a safer working environment.
3. Fire Safety: Have fire extinguishers readily available and ensure they are appropriate for metal fires. Familiarize yourself with their usage.

Handling and Storage

1. Silver Solder Storage: Store silver solder in a well-ventilated area, away from heat sources and direct sunlight. Proper storage prevents degradation and contamination.
2. Disposal of Hazardous Materials: Follow local regulations for disposing of hazardous materials. This includes used flux and any other chemical residues to ensure environmental safety.

Health Hazards

1. Skin Sensitization: Be aware of potential skin sensitization from contact with flux and other chemicals. Use barrier creams or protective clothing to minimize exposure.
2. Respiratory Irritation: Fumes generated during soldering can cause respiratory irritation. If symptoms persist, seek medical attention immediately.

Best Practices for Silver Soldering Titanium

Preparation

1. Titanium Preparation
   • Clean the titanium thoroughly to remove any contaminants or oxidation. Mechanical cleaning methods like sanding or chemical etching are effective.
   • Ensure the surface is free from oils, grease, and dirt before applying flux and solder.
2. Flux Selection
   • Choose a flux that is compatible with both titanium and silver solder. The flux should facilitate the flow of solder and prevent oxidation during the heating process.
   • Apply the flux evenly to the joint area to ensure optimal coverage and protection.
3. Silver Solder Selection
   • Select a high-quality silver solder with a melting point appropriate for titanium. Ensure the solder is compatible with the chosen flux and suitable for the specific application.

Soldering Process

1. Heat Control
   • Use a controlled heat source, such as a torch or induction heater, to apply heat evenly to the titanium. Avoid overheating, which can weaken the metal and compromise the joint.
   • Maintain a temperature below titanium’s melting point (approximately 1,668°C or 3,034°F) to prevent damage.
2. Flux Application
   • Apply flux sparingly to avoid excess, which can weaken joints and cause residue buildup. Ensure the flux covers the entire joint area and the solder pieces.
3. Solder Application
   • Apply the silver solder when the titanium reaches the appropriate temperature. Use a suitable tool, such as a soldering iron or torch, to ensure even heating and smooth flow of the solder into the joint.

Post-Soldering

1. Cooling
   • Allow the soldered area to cool naturally to prevent thermal shock. Avoid rapid cooling methods like quenching in water, which can introduce stress and cracks.
2. Cleaning
   • Remove any excess flux and residue from the soldered area using a suitable solvent or by rinsing with water. This helps maintain the surface integrity and prevents corrosion.
3. Inspection
   • Inspect the joint for strength and integrity before use. Look for any defects or voids that could compromise the durability of the bond.

Common Mistakes to Avoid

1. Insufficient Cleaning: Failing to clean the titanium properly can lead to poor adhesion and weak joints. Ensure thorough cleaning before soldering.
2. Inadequate Ventilation: Not ensuring good airflow can result in inhaling harmful fumes, posing health risks. Always work in a well-ventilated area.
3. Incorrect Flux Usage: Using too much or too little flux can compromise the solder joint. Apply the flux evenly and according to the manufacturer’s recommendations.

Troubleshooting Common Issues

Inability to Solder Directly

Titanium’s oxide layer can prevent solder from adhering effectively, making direct soldering difficult. Instead of direct soldering, consider mechanical attachments like riveting. Alternatively, advanced welding techniques such as TIG or laser welding with argon shielding can be employed to achieve a strong bond.

Incorrect Flux Use

Standard fluxes often cannot penetrate titanium’s tough oxide layer, leading to poor adhesion. Use fluxes specifically designed for high-temperature or challenging metals, as they are more effective at penetrating the oxide layer and ensuring a strong bond.

Insufficient Temperature Control

Failure to reach and maintain the correct temperature for solder flow can result in adhesion issues. Utilize precise temperature control tools, like temperature-controlled torches or induction heaters, to ensure even and adequate heating of the joint.

Contamination and Oxide Layers

Contaminants or thick oxide layers can hinder bonding between the titanium and solder. Clean the titanium surface thoroughly using abrasives or chemical etchants to remove oxides and contaminants. Methods such as sandblasting or pickling can be highly effective.

Mechanical Attachment Issues

Mechanical attachment can sometimes be difficult, leading to weak joints. Solder a heavy wire or tube to the back of the silver component, then drill matching holes in the titanium. Insert the wire through the hole and flare the ends using a specialized tool or hammer to secure the component in place.

Heat Sink Issues

Tools or holders absorbing heat can prevent the joint from reaching the correct temperature, leading to ineffective soldering. Use heat-reflective materials like charcoal blocks to maintain heat around the joint, ensuring it reaches the necessary temperature for solder flow.

Steps for Mechanical Attachment (Riveting)

1. Prepare the Silver Component: Solder a heavy wire or tube to the back of the silver bezel cup.
2. Drill Titanium: Drill a matching hole in the titanium band, ensuring the wire fits snugly.
3. Rivet the Component: Insert the wire through the hole and flare the ends using a specialized tool or hammer to secure the component in place.

Alternative Methods

Laser welding or TIG welding can create strong bonds between silver and titanium but require specialized equipment and expertise. Mechanical attachments, such as riveting or using tubes, provide a practical solution for combining silver with titanium.

Environmental Considerations

Surface Preparation

Proper surface preparation is essential for effective silver soldering of titanium and reducing environmental impact.

Titanium naturally forms a tightly adherent oxide layer when exposed to oxygen. This oxide layer must be removed to ensure proper adhesion of the solder. Mechanical methods such as sandblasting, which uses high-pressure air mixed with abrasive particles, and grinding with abrasive tools can effectively clean the surface. Following mechanical cleaning, a pickling treatment using a mixture of hydrofluoric acid and nitric acid is recommended for further cleansing.

It is crucial to prevent contamination during preparation. Oils, grease, or grime can significantly impact the soldering process. Wear lint-free gloves and ensure the workspace is clean and dedicated to titanium work.

Environmental Control

Maintaining an inert atmosphere and precise temperature control is essential during soldering to prevent contamination and ensure joint quality. An inert atmosphere, such as argon gas with a dew point below -50°C, prevents re-oxidation during soldering and maintains surface integrity.

Solder Material Selection

Choosing the right solder material is vital for both environmental and technical reasons. Silver-based solders are more compatible with titanium than traditional lead-tin solders. However, they still require careful handling to avoid forming brittle intermetallic compounds. They are best suited for non-critical joints due to their poor corrosion resistance and strength.

Lead-free solders, including those with silver, pose environmental risks due to leaching and potential groundwater contamination. It is essential to handle and dispose of these materials properly to mitigate environmental effects.

Brazing as an Alternative

Brazing is often preferred over soldering for joining titanium components, especially in aerospace applications. Special braze alloys containing titanium, copper, and nickel provide strong, compatible joints when used under inert conditions.

Regulatory Considerations

When using lead-free solders, regulatory compliance is essential. Materials like silver and antimony in these solders are subject to environmental regulations, which affect disposal and workplace safety.

Waste Management

Proper disposal of solder waste is critical due to its potential environmental impact. Ensure compliance with local regulations regarding hazardous waste and implement appropriate management practices.

User Testimonials and Case Studies

Case Study: Aerospace Component Assembly

A user working in aerospace engineering shared their experience silver soldering titanium for a high-stress application. The project involved joining titanium parts for a critical component subjected to extreme conditions.

Preparation Phase

The user began by mechanically cleaning the titanium surface using fine-grit sandpaper, followed by sandblasting to remove the oxide layer. Chemical cleaning with a pickling solution of hydrofluoric acid and nitric acid ensured complete removal of the oxide.

Solder Selection and Application

Given the high-stress nature of the application, hard silver solder was chosen for its superior strength, and the titanium was coated with a thin layer of silver to enhance solder adhesion. Flux specifically designed for titanium was applied to the joint area.

Soldering Process

Using high-purity argon gas to prevent oxidation, the user heated the joint with a propane torch. They maintained precise temperature control to ensure the solder flowed evenly into the joint by capillary action.

Outcome and Insights

The joint was exceptionally strong and durable, successfully withstanding rigorous tests and extreme conditions. The user highlighted that thorough surface preparation and maintaining an inert atmosphere were critical to their success.

Case Study: Jewelry Making with Titanium and Silver

A jeweler shared their process of creating intricate designs by silver soldering titanium and silver components. The project involved making hypoallergenic earrings with delicate titanium and silver parts.

Surface Preparation

The jeweler cleaned the titanium pieces using fine sandpaper and abrasive pads to remove surface contaminants. They opted for mechanical cleaning methods to avoid chemical residues that could affect the appearance of the jewelry.

Solder Selection

Easy silver solder was selected due to its low melting point, which is ideal for delicate components. The jeweler applied flux to the joint area and coated the silver solder pieces to prevent oxidation.

Soldering Technique

Using a small butane torch, the jeweler carefully heated the titanium and silver pieces. The flux-coated silver solder was positioned on the joint, and the heat was applied until the solder flowed smoothly into the joint.

Results and Reflections

The earrings were completed successfully, with strong and visually appealing joints. The jeweler noted the importance of using easy silver solder for delicate work and maintaining precise heat control to avoid damaging the titanium.

User Testimonials: Common Challenges and Solutions

Several users provided testimonials highlighting common challenges and solutions when silver soldering titanium:

Oxide Layer Removal

Many users stressed the difficulty of removing titanium’s oxide layer. One user shared their success using a combination of sandblasting and chemical pickling, which ensured a clean surface for soldering.

Maintaining an Inert Atmosphere

Many users emphasized the need for an inert atmosphere to prevent oxidation. Using high-purity argon gas during soldering was a common solution to maintain joint integrity.

Heat Control and Solder Flow

Precise heat control was cited as critical by multiple users. They recommended using temperature-controlled torches and ensuring even heating to achieve a strong bond. Proper solder flow was facilitated by using flux designed for high-temperature applications.

Practical Insights from Experienced Users

Experienced users offered practical tips for successful silver soldering of titanium:

• Surface Preparation: Thorough cleaning using mechanical and chemical methods is essential.
• Solder and Flux Selection: Choose the appropriate silver solder type and flux to match the application requirements.
• Atmosphere Control: Utilize high-purity argon gas to prevent oxidation during soldering.
• Heat Management: Maintain precise heat control to ensure even solder flow and strong joints.

These insights and case studies illustrate the importance of preparation, material selection, and process control in achieving successful silver soldering of titanium. By learning from these experiences, users can improve their techniques and overcome common challenges in their projects.

Frequently Asked Questions

Below are answers to some frequently asked questions:

How do I silver solder titanium?

To silver solder titanium, start by thoroughly cleaning the titanium surface to remove any contaminants and the oxide layer. This can be done using sandpaper, abrasives, or chemical etchants. Next, apply a thin layer of silver or copper to the cleaned surface to enhance solder adhesion, typically using chloride salts in a controlled atmosphere. Ensure the parts fit closely and are securely clamped to maintain alignment during the soldering process.

Choose the appropriate silver solder type (easy, medium, or hard) based on the required melting point. Heat the joint to the solder’s melting point, ensuring the work is done in an inert atmosphere, like high-purity argon, to prevent oxidation. Apply the solder, allowing it to flow into the joint by capillary action. Once the joint is formed, let it cool naturally, then clean off any flux residue with a solvent or water to prevent corrosion.

This process requires careful preparation and precise control of the working environment due to titanium’s strong oxide layer and its need for a protective atmosphere during soldering. While feasible, consider alternatives like mechanical attachment or welding for more practical and robust solutions.

What are the challenges of soldering titanium?

Soldering titanium presents several challenges due to its unique properties. One of the primary difficulties is the formation of a robust oxide layer when titanium is exposed to air. This oxide layer is highly resistant to penetration by soldering fluxes, making it difficult for the solder to wet and flow properly, thereby hindering adhesion.

Another issue is the tendency of titanium to form brittle intermetallic phases with most metals, which compromises the strength and ductility of the joint. Additionally, titanium’s high melting point and reactivity with oxygen require precise temperature control to avoid structural damage during the soldering process.

Choosing the right flux is critical as it must protect titanium from oxidation at high temperatures. Moreover, thorough surface preparation, including removing the oxide layer and potentially coating with compatible metals like silver or copper, is essential for successful soldering.

Given these challenges, alternative methods such as mechanical attachments or advanced welding techniques are often more practical and reliable for joining titanium.

Why is it important to maintain an inert atmosphere during soldering?

Maintaining an inert atmosphere during silver soldering titanium is crucial to prevent the formation of an oxide layer on the metal. Titanium readily oxidizes when exposed to air at high temperatures, forming a tough oxide layer that can impede the solder from properly adhering to the surface. An inert atmosphere, typically created using gases like nitrogen, displaces oxygen and other reactive gases, thus preventing oxidation. This ensures better solder wetting and adhesion, leading to stronger and more reliable joints. Additionally, an inert environment reduces common soldering defects and minimizes flux residues, which can otherwise require extensive post-solder cleaning.

How can I effectively remove the oxide layer from Titanium?

To effectively remove the oxide layer from titanium, several methods can be utilized, each with its advantages and safety considerations. Chemical removal is one of the most common techniques, involving a mixture of nitric acid and hydrofluoric acid. This solution, typically composed of 40% nitric acid and 2-3% hydrofluoric acid by volume, should be used warm (120-140°F or 49-60°C) to dissolve the oxide layer. Extreme caution is required due to the corrosive nature of these acids, necessitating protective gear and proper ventilation.

Mechanical removal, such as grinding or abrasive methods, is another option, though it may leave scratches on the titanium surface and can be time-consuming. Laser cleaning is a more advanced and efficient method, particularly suitable for large-scale or industrial applications, as it removes oxide layers without excessive chemical use.

For anodized layers, household chemicals like Whink Rust Stain Remover containing hydrochloric acid can be used. Submerge the titanium in the acid solution until the anodizing is removed, followed by neutralization in a baking soda solution.

Regardless of the method chosen, it is crucial to thoroughly clean the titanium surface after oxide removal to ensure successful silver soldering, as the oxide layer can impede the formation of a strong bond between the titanium and the solder.

What types of silver solder work best for Titanium?

When selecting silver solder for titanium, it is crucial to choose one that minimizes the formation of brittle intermetallic phases. Silver solders with high silver content, typically above 50%, are preferred because they do not form such phases with titanium. These solders usually contain other elements like copper, zinc, or tin to lower the melting point and improve fluidity. For example, silver solder alloys like Ag-Cu-Zn (silver-copper-zinc) are often used due to their compatibility with titanium.

Additionally, using a specialized flux designed for titanium is essential to protect the metal from oxidation during the soldering process. Titanium brazing fluxes that contain inorganic fluorides are particularly effective. Maintaining an inert atmosphere, typically with high-purity argon gas, is also vital to prevent oxidation and ensure a strong bond.

While silver soldering titanium can be challenging, selecting the appropriate high-silver content solder and using proper flux and shielding techniques can help achieve successful results.

What are the environmental considerations when silver soldering titanium?

When silver soldering titanium, several environmental considerations need attention. First, ensure proper ventilation to avoid inhaling fumes from the process, but be cautious as excessive ventilation can cool the workpiece and hinder solder flow. Proper waste management is crucial since silver and other solder components can be hazardous; ensure that waste is disposed of correctly to prevent environmental contamination. Additionally, select environmentally friendly fluxes to minimize adverse chemical reactions and potential corrosion. By addressing these factors, you can mitigate the environmental impact of silver soldering titanium.
