In the dynamic world of metal fabrication, choosing the right cutting technique can make all the difference between precision and compromise. Laser cutting and plasma cutting are two titans in the field, each boasting unique strengths and weaknesses. But which one reigns supreme when it comes to slicing through metals of varying thicknesses with accuracy and cost-effectiveness? This article delves into the comparative nuances of laser and plasma cutting, offering insights into their technical specifications, efficiency based on metal thickness, and overall cost-effectiveness. Whether you’re a seasoned fabricator or an enthusiast exploring metal cutting techniques, understanding the advantages and disadvantages of each method is crucial. So, how do these cutting technologies stack up against each other, and which one should you choose for your next project? Let’s explore the details that will help you make an informed decision.
Introduction to Metal Cutting
Understanding Metal Cutting
Metal cutting is a key manufacturing process that shapes raw metal materials into specific forms and sizes. This process is pivotal in industries ranging from automotive to aerospace, ensuring precision and efficiency in producing components and structures.
Key Metal Cutting Techniques
Metal cutting involves various techniques, each with unique advantages and applications, such as laser cutting and plasma cutting, which are widely adopted for their effectiveness in different scenarios.
Laser Cutting
Laser cutting uses a concentrated beam of light to cut through materials, providing high precision and clean edges. This method is particularly effective for intricate designs and thin materials, offering minimal distortion and excellent finish quality. The precision of laser cutting makes it ideal for applications requiring tight tolerances and complex geometries, such as electronics and medical devices.
Plasma Cutting
Plasma cutting employs an ionized gas, or plasma, to conduct electricity and cut through metal. This technique is especially suitable for thick and conductive materials like steel and aluminum. Plasma cutting is renowned for its speed and ability to handle large-scale projects efficiently, making it a preferred choice for industrial fabrication and construction tasks.

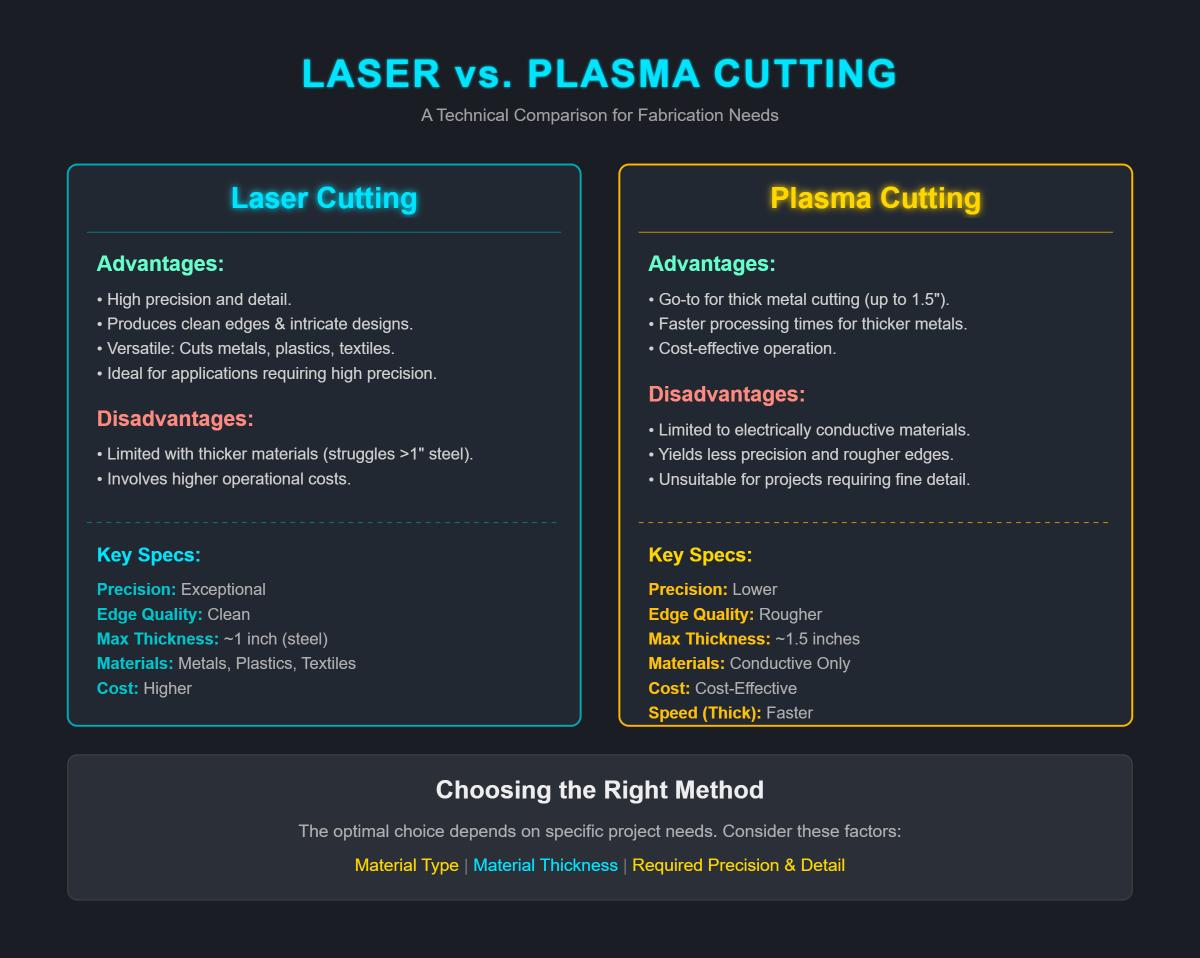

Comparative Overview
When comparing laser and plasma cutting, several factors come into play, including material compatibility, thickness capacity, speed, and cut quality. Each technique has distinct strengths that cater to specific needs within metal fabrication.
Material Compatibility
Laser cutting excels with non-reflective metals, plastics, and glass, while plasma cutting is confined to conductive metals. The choice between the two often hinges on the type of material and the desired finish quality.
Thickness Capacity
Laser cutting is optimal for thinner metals, typically up to 16 mm, whereas plasma cutting is superior for thicker materials, exceeding 16 mm. This distinction is crucial for selecting the right method based on project requirements.
Speed and Efficiency
Plasma cutting generally offers faster processing times for thicker metals, enhancing productivity in large-scale operations. Conversely, laser cutting provides higher precision and speed for thinner sheets, making it advantageous for detailed work.
Technological Developments
Recent advancements in both laser and plasma cutting technologies have expanded their capabilities and applications. Innovations in laser technology have led to faster cutting speeds and the ability to cut thicker materials, while plasma cutting has seen enhancements in torch designs, reducing waste and improving cut quality.
Understanding these differences and developments is essential for professionals in metal fabrication, guiding them in selecting the appropriate cutting method for specific projects and materials.
Overview of Metal Cutting Techniques
Laser Cutting and Its Applications
Laser cutting is a method that uses a concentrated beam of light to precisely cut materials by melting or vaporizing them. This technique involves directing a high-intensity laser beam onto the material’s surface, and the process is controlled by CNC systems. Laser cutting is widely employed in industries that demand high precision, such as medical device manufacturing and aerospace. Its ability to produce intricate and clean edges with minimal post-processing makes it ideal for creating detailed designs in metalwork and electronics.
Plasma Cutting Explained
Plasma cutting uses an electrically charged gas to cut through metals quickly and efficiently. This method is particularly suitable for thicker materials, as the plasma jet melts the metal and blows away the molten material, resulting in a clean cut. Plasma cutting is controlled by CNC systems to ensure accuracy and repeatability, and is commonly used in industries like shipbuilding and structural steel fabrication, where the speed of cutting thicker metals is crucial.
Cutting Speed and Precision
When comparing the two techniques, laser cutting excels in precision for thinner materials, offering superior accuracy and cleaner edges. In contrast, plasma cutting is faster for thicker metals, making it the preferred choice for high-volume projects requiring rapid processing.
Cost Considerations
Laser cutting systems generally have higher initial costs due to the advanced technology and equipment involved. However, plasma cutting systems are more affordable and have lower operational expenses. This makes plasma cutting a cost-effective option for industries focused on cutting thicker metals, where speed and efficiency are prioritized.
Advantages and Disadvantages
Advantages of Laser Cutting
Laser cutting offers numerous benefits, making it a preferred choice for precision metal fabrication. It provides exceptional precision with the ability to achieve tight tolerances and intricate designs. The focused laser beam delivers razor-thin kerfs, resulting in clean edges with minimal heat distortion. This precision is ideal for applications where detail and accuracy are crucial, such as electronics and aerospace components. Additionally, laser cutting excels in handling a variety of materials, including non-ferrous metals and reflective surfaces like copper and titanium. Its versatility extends to thin sheets and complex geometries, offering flexibility across different projects. For thin to medium thickness metals, laser cutting is unmatched in speed and efficiency, minimizing the need for secondary processing and reducing overall production time and costs in high-volume operations.
Disadvantages of Laser Cutting
Despite its advantages, laser cutting has certain limitations that may affect its suitability for specific applications. The advanced technology of laser cutting systems results in higher initial costs compared to other cutting methods. This includes the expense of specialized equipment and ongoing maintenance, which can be a barrier for small-scale operations. Furthermore, laser cutting’s efficiency diminishes as material thickness increases beyond 1/2 inch, requiring higher power lasers to maintain competitiveness in cutting thicker metals, which can increase operational complexity and costs.
Advantages of Plasma Cutting
Plasma cutting is favored for its speed and ability to handle thick metals efficiently, offering several advantages including superior speed and cost-effectiveness. It excels in processing thick conductive metals, achieving faster cuts than laser systems. This speed is particularly advantageous in heavy-duty applications like structural steel fabrication, where productivity is essential. With lower initial investment and consumable costs, plasma cutting is a cost-effective option for industries focused on cutting thicker materials, making it suitable for workshops prioritizing versatility and throughput over finish quality.
Disadvantages of Plasma Cutting
While plasma cutting is effective for certain applications, it also presents challenges. Plasma cutting typically results in wider cuts and rougher edges than laser cutting. The heat-affected zones can limit its use in industries where precision and high-quality finishes are critical, such as aerospace and electronics. Additionally, plasma cutting struggles with reflective metals and ultra-thin sheets, which can lead to warping or incomplete cuts. This limitation reduces its versatility compared to laser cutting, which can handle a broader range of materials.
Technical Specifications
Material Compatibility
Laser cutting is versatile, capable of cutting materials like metals, plastics, wood, and textiles. However, it struggles with highly reflective metals, such as copper, due to reflection issues that can impact the efficiency and quality of the cut. Plasma cutting is limited to conductive materials, such as metals, making it unsuitable for non-conductive materials and thus less versatile in comparison.
Thickness and Speed
Laser cutting is effective for materials up to three-quarters of an inch thick, with advancements extending this range. It is particularly fast with thinner materials, reaching speeds up to 6 m/min for 14 mm carbon steel. Plasma cutting is ideal for thicker materials, able to cut metal up to 1.5 inches thick. It offers better speeds for thicker metals, such as 1.5 m/min for 30 mm carbon steel, although it is slower for thinner materials.
Accuracy and Post-Processing
Laser cutting is known for its accuracy, delivering precise cuts with little need for post-processing. The narrow laser beam creates a small cutting gap, resulting in clean and smooth edges. This reduces the necessity for additional finishing processes, saving both time and costs. Plasma cutting, while effective for thicker materials, often results in rougher cuts and larger gaps, necessitating more post-processing, such as grinding, to achieve desired quality and finish.
Cost and Detailing
When choosing between laser and plasma cutting, cost-effectiveness and detailing capabilities are key factors. Laser cutting is generally more expensive due to the high operational costs associated with its technology and equipment. However, it excels in detailing and engraving, making it ideal for intricate designs or small shapes. Plasma cutting is less costly to operate and well-suited for simpler cuts and thicker materials, but lacks the detailing finesse of laser cutting.
Flexibility and Efficiency
Laser cutting is highly versatile, capable of cutting, marking, and engraving various materials efficiently, particularly for complex designs and thinner materials. Plasma cutting is primarily focused on cutting thicker metals quickly and efficiently, though it does not offer the same versatility as laser cutting. This specialization makes plasma cutting a preferred choice for rapid processing in heavy-duty industrial applications.
Efficiency Based on Metal Thickness
Overview of Laser and Plasma Cutting
Laser and plasma cutting are two prominent methods used to cut metals of varying thicknesses, each with distinct advantages and applications. Laser cutting is renowned for its precision, making it ideal for thin to medium metals, while plasma cutting is favored for its speed and effectiveness on thicker metals.
Laser Cutting on Thin Metals
Laser cutting is particularly effective for metals up to 20 mm thick. Its precision allows for detailed cuts with minimal width, which is crucial for applications demanding intricate designs, such as electronics and medical devices.
-
Advantages:
-
High Precision: Delivers accurate cuts with clean edges, reducing the need for additional finishing.
-
Minimal Heat Damage: The concentrated laser beam reduces heat damage, preserving the material’s integrity.
-
Speed: Offers relatively fast processing for thin metals, boosting productivity in high-volume production.
-
Combined Limitations:
-
Cost: High initial and operational costs may be a concern for smaller operations.
-
Reflective Metals: Metals like copper and aluminum can reflect the laser beam, impacting efficiency and cut quality.
Plasma Cutting on Thin Metals
Though plasma cutting is often associated with thicker metals, it can be applied to thin metals, albeit with less precision than laser cutting.
-
Advantages:
-
Speed: Can be faster for certain applications where precision is less critical.
-
Cost-Effectiveness: Generally less expensive to purchase and operate.
-
Versatility: Efficiently handles a range of conductive metals, including reflective ones.
-
Combined Limitations:
-
Lower Precision: Produces wider cuts with rougher edges.
-
More Heat Damage: Generates more heat, potentially requiring further finishing work.
Laser Cutting on Thick Metals
Advancements in laser technology have enabled cutting thicker metals, up to 50 mm. However, efficiency and precision decrease as thickness increases.
-
Advantages:
-
Precision: Maintains a high level of accuracy and smooth finish, though less fine than with thin metals.
-
Reduced Heat Damage: Focused beams minimize heat impact, preserving material properties.
-
Limitations:
-
Slower Speed: Becomes less efficient with thicker materials compared to plasma cutting.
-
Higher Power Needs: Requires high-power lasers, increasing operational costs.
Plasma Cutting on Thick Metals
Plasma cutting excels at cutting thick metals, often up to 80 mm, making it ideal for industries such as construction and shipbuilding.
-
Advantages:
-
Speed: Generally faster for thick metals, enhancing productivity.
-
Versatility: Handles metals with imperfections like rust or oxidation.
-
Limitations:
-
Surface Finish: Typically produces rougher edges, often needing additional finishing.
-
Lower Precision: Less suitable for applications requiring high accuracy.
Comparative Analysis
Feature | Laser Cutting | Plasma Cutting |
---|---|---|
Optimal Thickness | Best for up to 50 mm with high-power lasers | Best for up to 80 mm, ideal for thick metals |
Precision | Offers precise cuts with clean edges | Produces wider cuts with rough edges |
Speed | Slower for thicker metals | Faster for most thicknesses |
Surface Finish | Delivers smooth finish, minimizing heat impact | Often results in rough finish, may require machining |
Material Handling | Effective for delicate processing of thin to medium metals | Forgiving with metals having surface imperfections |
This comparison highlights the strengths and applications of each method, helping determine the most suitable choice based on metal thickness and project requirements.
Cost and Accuracy Analysis
Accuracy Analysis
Laser cutting and plasma cutting differ significantly in terms of accuracy. Laser cutting is renowned for its precision, achieving tolerances as tight as ±0.1 mm. This method uses a concentrated beam of light to produce razor-thin cuts, which are especially beneficial for intricate designs and applications requiring clean edges, such as in aerospace and electronics. The minimal heat distortion associated with laser cutting further ensures high-quality finishes, even on challenging materials like copper and titanium.
In contrast, plasma cutting offers moderate precision, typically within a ±0.5–1 mm tolerance range. The process involves using a high-velocity ionized gas, which can lead to wider cuts and rougher edges. Additionally, plasma cutting often results in heat-affected zones (HAZ), particularly when working with materials thinner than 16 mm, which can compromise the finish quality and necessitate post-processing.
Cost Considerations
Initial Investment
Laser cutting systems tend to be more expensive initially due to their advanced technology, such as fiber optics and precision components. These systems are often priced at the higher end of the industrial spectrum, making them suitable for applications where precision is paramount.
Plasma cutting systems, on the other hand, offer a more cost-effective entry point. They are often priced for mid-range industrial budgets, making them accessible for businesses looking to balance cost with functional capability.
Operational Costs
Operational costs vary significantly between laser and plasma cutting. Laser cutting tends to have higher energy consumption, particularly when cutting thick metals over 16 mm. However, it benefits from lower consumable costs, as items like lenses last longer compared to plasma electrodes.
Plasma cutting is more energy-efficient for thicker materials, but the frequent replacement of consumables such as nozzles and electrodes can lead to increased long-term expenses. This aspect should be considered when evaluating total operational costs over time.
Material Efficiency
Laser cutting excels in material efficiency due to its narrow cuts, which minimize waste—a crucial factor when working with high-value metals like titanium and copper. This efficiency is advantageous in operations where maximizing material use is important.
Due to its wider cuts, plasma cutting often generates more waste, especially during large-scale operations. This can impact overall material efficiency, making it less suitable for projects where minimizing scrap is essential.
Material and Thickness Suitability
Laser cutting is highly effective for thin to medium-thickness metals, typically less than 25 mm. It can handle reflective and non-ferrous materials like aluminum and copper, making it versatile for various applications. Recent advancements in laser technology have improved its speed and effectiveness even on thicker plates.
Plasma cutting is optimal for mid-thickness conductive metals, ranging from 6 to 50 mm. It excels with materials like carbon steel but struggles with reflective surfaces and thin sheets due to arc instability. This limitation should be considered when selecting the appropriate cutting method for specific material types.
Speed and Productivity
For thicker materials, plasma cutting is faster, ideal for industries where speed is crucial. Laser cutting shines with thin metals, offering precision and reducing additional processing. This advantage can significantly enhance productivity in applications where precise and clean cuts are required.
Selecting the Appropriate Technique
Critical Factors for Decision Making
Choosing the right metal cutting method depends on key factors affecting efficiency, cost, and quality. Understanding these factors can help professionals make informed decisions tailored to their specific project needs.
Material Type
Material type is crucial; laser cutting is ideal for non-conductive and reflective materials like plastics and titanium because it is a non-contact method. Plasma cutting, however, is restricted to conductive materials like steel and aluminum. This fundamental difference should guide the choice of technique based on the material’s properties.
Metal Thickness
Thickness plays a significant role in determining the most effective cutting method. Laser cutting excels at processing thin metals, typically up to 0.75 inches, with precision and minimal heat distortion. Plasma cutting is better for thicker metals, handling up to 1.5 inches efficiently. The choice between laser and plasma should therefore consider the thickness of the metal to ensure optimal performance and quality.
Project Specifications
The specific requirements of a project, including desired precision and edge quality, also influence the selection of cutting technique. Laser cutting offers precise, narrow cuts, perfect for detailed designs needing tight tolerances. Plasma cutting, although less precise, offers faster processing for projects prioritizing speed over finish quality. Evaluating the project’s specifications can help determine the most suitable method.
Practical Advice for Choosing the Right Cutting Method
Selecting between laser and plasma cutting requires a strategic approach that accounts for technical capabilities, cost implications, and operational goals.
Cost Implications
Consider the initial investment and operational costs associated with each technique. Laser systems cost more initially but are cheaper per cut for thin metals, ideal for high-volume precision work. Plasma systems cost less upfront and are better for thick plates, emphasizing speed.
Accuracy Requirements
Assess the accuracy needs of the project. Laser cutting offers superior precision, with tolerances as tight as ±0.005 inches, suitable for applications like aerospace and electronics. Plasma cutting, with tolerances around ±0.02 inches, may require additional finishing to achieve the desired quality, impacting overall project timelines.
Emerging Technologies
Stay informed about recent advancements in cutting technologies. High-power laser systems and hybrid plasma variants are expanding the capabilities of each method, offering improved precision and reduced heat effects. Leveraging these advancements can enhance productivity and quality, especially in challenging applications.
By carefully evaluating these factors, professionals can select the most appropriate metal cutting technique that aligns with their material type, thickness requirements, and project goals, ensuring efficient and cost-effective fabrication outcomes.
Frequently Asked Questions
Below are answers to some frequently asked questions:
What are the advantages and disadvantages of laser cutting vs plasma cutting?
Laser cutting and plasma cutting each have distinct advantages and disadvantages that cater to different fabrication needs. Laser cutting is renowned for its precision and versatility, capable of cutting a wide range of materials such as metals, plastics, and textiles with exceptional accuracy and detail. It excels in producing clean edges and intricate designs, making it ideal for applications requiring high precision. However, laser cutting faces limitations with thicker materials, generally struggling beyond 1-inch steel, and involves higher operational costs.
Conversely, plasma cutting is the go-to technique for thick metal cutting, efficiently handling materials up to 1.5 inches in thickness, and offers faster processing times for thicker metals. Plasma is limited to electrically conductive materials, restricting its versatility compared to lasers. While it is cost-effective, plasma cutting yields less precision and rougher edges, making it unsuitable for projects requiring fine detail. Ultimately, the choice between these methods depends on factors such as material type, thickness, and project requirements.
Which metal cutting method is best for thick metals?
For cutting thick metals, plasma cutting is generally the superior choice due to its capability to handle greater thicknesses efficiently. Plasma cutting can effectively manage metal plates up to 160 mm thick for materials like aluminum and stainless steel, and up to 100 mm for steel. This makes it ideal for high-volume production where speed and cost-effectiveness are crucial. Although laser cutting has improved with high-power lasers now able to cut metals up to 60 mm thick, plasma cutting remains faster for very thick materials, albeit with less precision and rougher edge quality. While laser cutting offers cleaner edges and higher precision, it is slower and more costly for thicker metals, making it less suitable when speed and cost are priority factors. Therefore, plasma cutting is often preferred for thick metals, while laser cutting is reserved for applications requiring intricate designs and superior edge quality.
How do laser and plasma cutters compare in terms of cost and accuracy?
Laser and plasma cutters differ significantly in terms of cost and accuracy, influencing their suitability for various applications. Plasma cutting generally offers lower operational and initial investment costs compared to laser cutting, making it a more economical choice for certain projects. A plasma cutter’s operational cost is around $15 per hour, while a laser cutter can cost about $20 per hour. The initial investment for a plasma cutter is also significantly less, with prices starting around $100,000, whereas laser cutters can be priced upwards of $550,000.
In terms of accuracy, laser cutting provides superior precision, making it ideal for intricate designs with minimal heat impact and clean, sharp edges. It achieves a narrow kerf width, enhancing the detail and quality of the cuts. Plasma cutting, while less precise, is more suitable for thicker materials and can handle reflective or imperfect surfaces more effectively. However, it typically results in rougher edges and larger heat-affected zones. Ultimately, the choice between these techniques should consider both cost constraints and the required accuracy for the specific application.
What are the technical specifications for laser cutting and plasma cutting?
Laser cutting and plasma cutting are two prominent metal cutting techniques, each with distinct technical specifications. Laser cutting utilizes a focused beam of light to cut materials with precision, typically featuring power levels from 1kW to over 22kW. It offers high cutting speeds, ranging from 100 to 1,000 inches per minute (IPM) for thin sheets and up to 275 IPM for thicker materials. Precision is a key advantage, with tolerances around ±0.1mm, and it can handle both metallic and non-metallic materials.
In contrast, plasma cutting employs an electrically conductive gas to generate a high-temperature plasma arc, suitable for cutting conductive metals like steel, aluminum, and copper. Plasma cutters operate with power outputs between 12A and 200A, achieving cutting speeds from 20 to 200 IPM for mild steel. Although plasma cutting is less precise, with tolerances of ±0.5 to 1mm, it excels in cutting thicker materials, ranging from 0.5mm to 50mm.
How does metal type influence the choice between laser and plasma cutting?
The choice between laser cutting and plasma cutting is significantly influenced by the type of metal being processed. Plasma cutting is optimal for electrically conductive materials, such as mild steel, stainless steel, aluminum, and copper. This technique cannot be used on non-conductive materials, like plastics or wood, due to its reliance on completing an electrical circuit.
In contrast, laser cutting offers broader material compatibility, effectively cutting both conductive and non-conductive materials. This versatility makes laser cutting suitable for intricate designs on various substrates, including metals, plastics, and composites.
Additionally, plasma cutting is advantageous for thicker metals, offering faster speeds and lower operational costs, particularly for materials over 12 mm thick. Laser cutting excels in precision and edge quality, especially on thin metals, providing smooth, burr-free edges with minimal post-processing.
Therefore, when selecting a cutting technique, the metal’s conductivity and thickness are crucial factors, alongside considerations for edge quality and material diversity.
What practical tips can help in selecting the right metal cutting technique?
When selecting the right metal cutting technique between laser cutting and plasma cutting, several practical tips can guide your decision:
-
Material Type and Thickness: Laser cutting is ideal for thinner metals (up to 1/4 inch) and non-metal materials like wood and glass, offering high precision. Plasma cutting is better suited for thicker metals (over 5/8 inch) and works well with electrically conductive materials such as steel, stainless steel, and aluminum.
-
Cutting Speed and Productivity: For high-volume production and thicker materials, plasma cutting is faster and more productive. Laser cutting excels in speed for thinner metals and is suitable for detailed work.
-
Precision and Kerf Width: Laser cutting provides finer cuts with narrower kerf widths, making it perfect for detailed cuts and small holes. Plasma cutting, while less precise, can achieve reasonable accuracy with advanced setups.
-
Cost and Operating Expenses: Plasma cutting generally has lower operating costs (around $15 per hour) compared to laser cutting (approximately $20 per hour). Laser cutting may require more maintenance but offers versatility in cutting a wide range of materials.
-
Heat-Affected Zone (HAZ): Plasma cutting often results in a smaller heat-affected zone, reducing material distortion. Laser cutting can cause more heat distortion, especially in thicker materials.
-
Applications: Laser cutting is preferred for applications requiring precision and versatility, such as in automotive and aerospace industries. Plasma cutting is ideal for projects involving thicker metals, high-speed cutting, and cost-effective production, making it suitable for construction and heavy machinery manufacturing.
By considering these factors—material type, thickness, cutting speed, precision, cost, and specific application needs—you can choose the most appropriate cutting method for your project.
