Imagine assembling a piece of machinery only to have it fall apart due to relentless vibrations. This is where the choice between lock nuts and regular nuts becomes crucial. But what exactly sets these two apart? In this article, we’ll dive into the world of nuts and bolts to uncover the fundamental differences between lock nuts and their regular counterparts. You’ll learn why lock nuts are often preferred in vibration-heavy environments, how they maintain a tighter grip, and when to opt for specific types like jam nuts or nylon insert lock nuts. We’ll also explore whether regular nuts can be modified for improved vibration resistance. Ready to master the nuts and bolts of fastener selection? Let’s get started!
Overview of Lock Nuts
Definition and Purpose
Lock nuts are specialized fasteners designed to stay secure even under vibrations, movement, or other external forces. They incorporate unique features that secure bolts or screws more effectively than regular nuts, making them ideal for applications where reliability is crucial.
Common Types of Lock Nuts
Lock nuts come in various types, each suited to specific applications and environments. Here are some of the most common types:
Nylon Insert Lock Nut
A nylon insert lock nut contains a nylon ring inside the nut. When tightened onto a bolt, the nylon ring deforms to fill the gaps between the nut and bolt threads, creating resistance to loosening. These lock nuts are widely used in applications where vibration is a concern.
Characteristics:
- Provides strong resistance to loosening.
- The nylon ring provides a tight grip.
- Suitable for environments with moderate to high vibrations.
Best Use Cases:
- Automotive components.
- Machinery assembly.
- Electrical equipment.
Prevailing-Torque Locknuts
Prevailing-torque locknuts use distorted threads or unique features that create significant frictional interference between the nut and the bolt threads. The increased friction means more torque is needed to tighten or loosen them, effectively preventing loosening due to vibrations.
Characteristics:
- High frictional interference.
- Requires higher torque for installation and removal.
- Can potentially damage bolt threads.
- Not always reusable.
Best Use Cases:
- Heavy machinery.
- Structural framing.
- High-vibration environments.
Jam Nut
A jam nut, also known as a half lock nut, is thinner than standard nuts and is used in conjunction with another nut. By tightening the jam nut against the other nut, both are prevented from loosening over time. This setup is useful when space is limited and regular tightening force is needed.
Characteristics:
- Thinner than standard nuts.
- Works alongside another nut to enhance security.
- Suitable for applications with limited space.
Best Use Cases:
- Light machinery.
- Adjustable assemblies.
- Situations where space constraints exist.
Slotted Nut
Slotted nuts feature slots cut into the top of the nut. These slots allow the use of a cotter pin or wire to lock the nut in place, providing positive locking. This type of lock nut is effective in preventing loosening due to both vibration and torque.
Characteristics:
- Slots for securing with a cotter pin or wire.
- Provides positive locking.
- Suitable for environments with high vibrations and torque.
Best Use Cases:
- Automotive steering mechanisms.
- Heavy machinery.
- Aerospace applications.
Comparison with Regular Nuts
Regular nuts, such as hex nuts, lack the additional locking features of lock nuts, making them less effective in environments with significant vibrations or movement. Here is a comparative analysis:
Feature | Regular Nuts (e.g., Hex Nuts) | Lock Nuts |
---|---|---|
Design | Hexagonal shape | Additional locking features |
Function | Secures bolts with tension | Resists loosening due to vibration or movement |
Loosening Resistance | Low | High |
Applications | Ideal for stable environments without vibrations | Critical for applications with vibrations or movement |
Reusability | Generally reusable | Some types may not be reusable due to thread damage |
Lock nuts offer enhanced security against loosening compared to regular nuts, making them ideal for applications requiring high reliability under challenging conditions.
Functional Differences
Friction-Based Locking Mechanisms
Friction-based locking mechanisms rely on increased friction between the nut and bolt threads to prevent loosening. This category includes various designs that deform or create interference with the bolt threads.
Nylon Insert Lock Nuts
Nylon insert lock nuts feature a nylon ring within the nut. When tightened, the nylon insert deforms and grips the bolt threads, creating friction that resists loosening. This type of lock nut is particularly effective in applications where vibration is moderate to high.
Nylon insert lock nuts provide a secure grip and are easy to install with standard tools, but the nylon can degrade over time and isn’t suitable for repeated use. Prevailing-torque locknuts are effective in high-vibration environments and durable, but require higher installation torque and can damage bolt threads.
Prevailing-Torque Locknuts
Prevailing-torque locknuts have specially shaped threads that create friction, making them harder to tighten and loosen.
Positive Locking Mechanisms
Positive locking mechanisms physically block the nut from loosening. These designs mechanically lock the nut, providing an alternative to friction-based systems.
Jam Nuts
Jam nuts, also known as half nuts, are thinner than regular nuts. When tightened against a primary nut, they lock together, preventing loosening.
- Advantages:
- Simple and cost-effective solution.
- Suitable for applications with limited space.
- Disadvantages:
- Requires careful installation to ensure proper locking.
- May not be suitable for high-vibration environments without additional locking features.
Slotted Nuts
Slotted nuts feature slots at the top and work with a cotter pin or wire. The pin or wire is threaded through these slots and a hole in the bolt, locking the nut securely.
- Advantages:
- Provides a secure, positive locking mechanism.
- Effective in preventing loosening due to both vibration and torque.
- Disadvantages:
- Requires additional components (cotter pin or wire) for installation.
- More complex installation process compared to other lock nuts.
Comparative Analysis
The primary functional differences between friction-based and positive locking mechanisms lie in their approach to preventing loosening and their suitability for different applications.
- Vibration Resistance:
- Friction-based lock nuts (e.g., nylon insert, prevailing-torque) rely on increased friction to resist vibration-induced loosening.
- Positive locking mechanisms (e.g., jam nuts, slotted nuts) use mechanical interference, providing robust resistance to loosening even in high-vibration environments.
- Installation Complexity:
- Friction-based lock nuts generally require higher torque for installation and can be installed with standard tools.
- Positive locking mechanisms may involve additional steps, such as securing a cotter pin, making the installation process more complex.
- Durability and Reusability:
- Friction-based lock nuts, particularly those with nylon inserts, may degrade over time and are less suitable for repeated use.
- Positive locking mechanisms, such as slotted nuts, are more durable and can be reused without significant degradation.
Understanding these functional differences helps in selecting the appropriate lock nut for specific applications, ensuring reliability and performance under varying conditions.
Hex Nuts: Standard Option
Hex nuts, with their six-sided shape, are widely used fasteners in engineering and construction to secure bolts and screws. Their hexagonal design allows for easy application of torque using standard tools like wrenches and sockets. Hex nuts are typically used in conjunction with bolts and washers to create a tight, secure fit.
Hex nuts are made from various materials like steel, stainless steel, brass, and nylon, and they come in both coarse and fine thread options to match different bolt or screw threads. They can have different surface finishes such as plain, zinc-plated, galvanized, or other protective coatings to improve durability and resistance to corrosion.
Hex nuts are versatile and suitable for a wide range of applications due to their simple design and ease of use. They are commonly used in machinery assembly, construction, and automotive industries, where they help secure parts and structures effectively.
However, hex nuts have limitations, particularly in high-vibration environments. They may loosen because they rely only on the tension from tightening. Without additional locking features, they are less reliable in maintaining a secure connection. Regular maintenance might be necessary to ensure they stay tight.
For better security in high-vibration conditions, lock nuts are preferred. Nylon insert lock nuts use a nylon ring to grip the threads. Prevailing-torque locknuts create friction with deformed threads. Jam nuts can be paired to lock against each other, providing a simple yet effective solution.

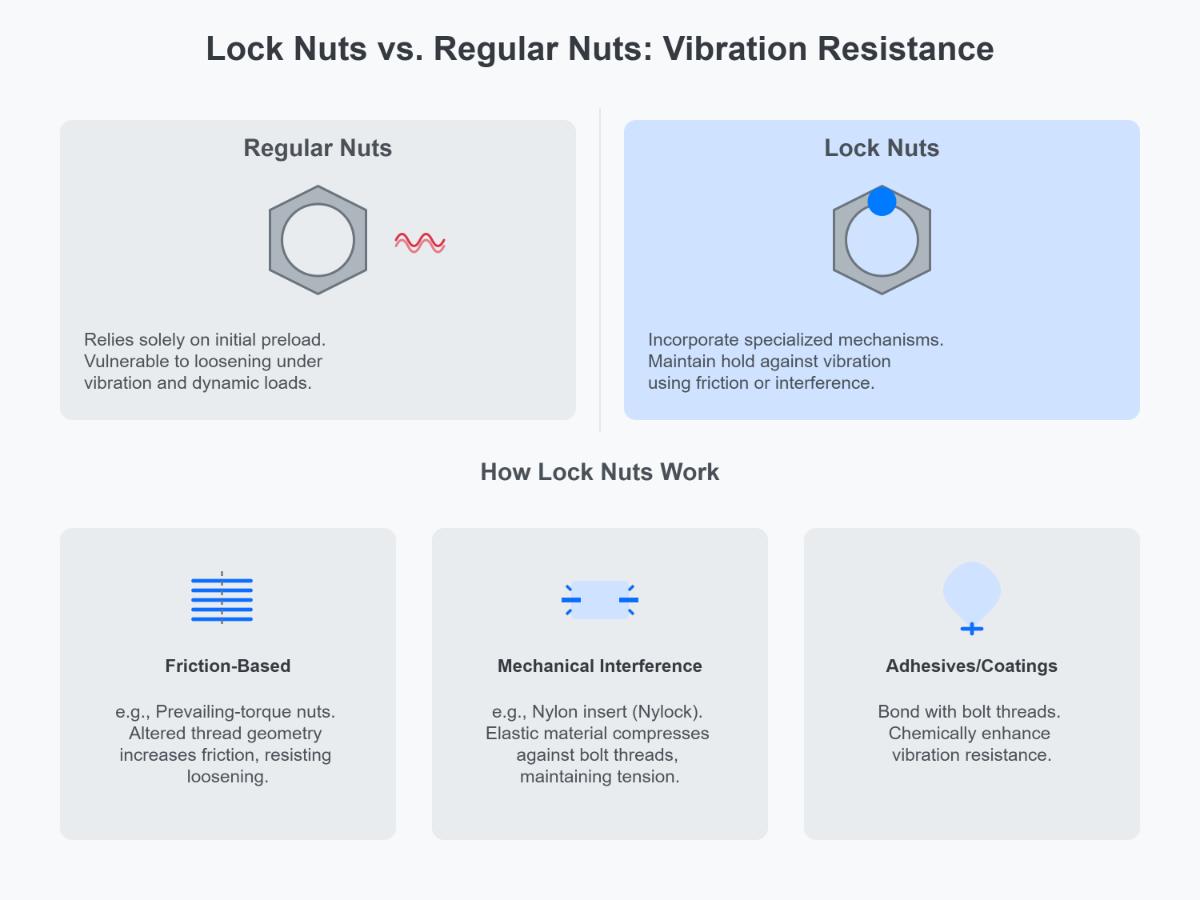

Vibration Resistance in Fasteners
Importance of Vibration Resistance
Fasteners are essential for keeping mechanical and structural assemblies stable and intact. Vibration resistance is crucial to ensure that fasteners do not loosen over time, which could lead to mechanical failures, safety hazards, and increased maintenance costs. Understanding the mechanisms that enhance vibration resistance in fasteners helps in selecting the right type for specific applications.
Mechanisms for Vibration Resistance
Friction-Based Locking Mechanisms
Friction-based locking mechanisms increase the friction between the nut and bolt threads, making it harder for the nut to loosen under vibration. Here are some common types:
- Nylon Insert Lock Nuts: These lock nuts have a nylon ring that deforms to grip the bolt threads, creating significant friction. This deformation provides resistance to loosening under moderate to high vibration conditions. However, they are not suitable for high-temperature environments as the nylon can degrade.
- Prevailing-Torque Locknuts: These nuts have specially shaped threads that create extra friction, making them harder to loosen. Examples include conical and Stover lock nuts.
Positive Locking Mechanisms
Positive locking mechanisms use mechanical interference to prevent loosening. These mechanisms physically block the nut from turning, providing a robust solution for high-vibration environments.
- Jam Nuts: These are thin nuts used in conjunction with a standard nut. By tightening the jam nut against the primary nut, both nuts lock together, preventing loosening. This method is simple and cost-effective, but installation must be precise to ensure proper locking.
- Slotted Nuts: These nuts have slots on the top that allow a cotter pin or wire to pass through, locking the nut in place. This method is highly effective in preventing loosening due to both vibration and torque, making it suitable for critical applications like automotive steering mechanisms and aerospace.
Comparative Analysis: Lock Nuts vs Regular Nuts
Regular nuts, like hex nuts, don’t have features to prevent loosening under vibration. They rely only on the tension from tightening. Lock nuts, however, are designed to tackle this problem with special mechanisms, making them more reliable in such conditions.
Lock nuts might cost more than regular nuts, but their ability to prevent loosening and lower maintenance costs makes them worth the investment. The choice between different types of lock nuts should consider the specific application requirements, including the level of vibration and environmental conditions.
Lock nuts, particularly those with friction-based mechanisms like nylon insert lock nuts, are easy to install using standard tools. Positive locking mechanisms, such as slotted nuts, may require additional steps, such as securing a cotter pin, which can increase installation time. However, the added security they provide often outweighs the extra effort.
Friction-based lock nuts, especially those with nylon inserts, may not be suitable for repeated use as the nylon can degrade over time. All-metal prevailing-torque locknuts are more durable and can be reused, although they may cause wear on the bolt threads. Positive locking mechanisms like slotted nuts are highly durable and can be reused without significant degradation, making them ideal for long-term applications.
Comparative Analysis: Lock Nuts vs Regular Nuts
Regular nuts, such as hex nuts, are basic fasteners that secure bolts or threaded rods. Their straightforward design makes them affordable and suitable for stable applications with minimal movement.
Lock nuts are designed to stay secure even when exposed to vibration, shock, or impact. This makes them ideal for important tasks where reliability is crucial.
Design and Mechanism
Regular nuts rely on the friction created when tightened, which can diminish over time, especially in dynamic settings.
Lock nuts feature various mechanisms to increase friction and prevent loosening. Some common designs include:
- Nylon Insert Lock Nuts: Nylon insert lock nuts use a nylon ring to increase friction, while prevailing torque lock nuts have distorted threads for added resistance. Both types are effective in high-vibration settings.
- All-Metal Lock Nuts: These may have serrated flanges or other features to enhance their grip.
Types of Lock Nuts
Jam Nuts
Jam nuts are thinner and used alongside another nut to prevent loosening. By tightening the jam nut against the primary nut, they lock together securely. This method is useful in compact spaces.
Slotted Nuts
Slotted nuts have slots at the top that allow the use of a cotter pin or wire to lock the nut in place. This positive locking mechanism makes slotted nuts suitable for high-vibration environments, such as automotive steering mechanisms and aerospace applications.
Application Suitability
Regular nuts are best suited for non-critical, static applications where minimal vibration and impact are expected. Examples include general construction and basic machinery where the primary concern is clamping force rather than vibration resistance.
Lock nuts are essential in dynamic environments, such as machinery, automotive, and aerospace industries, where vibration resistance is crucial. Their enhanced locking mechanisms ensure that they remain secure over time, making them indispensable for critical applications.
Cost and Maintenance
Regular nuts are generally cheaper and quicker to install. However, in dynamic conditions, they may require more frequent tightening and maintenance to ensure they remain secure. This can lead to increased maintenance costs and potential downtime.
Lock nuts are more expensive and may be more time-consuming to install due to their additional locking features. Despite the higher initial cost, they offer long-term benefits by reducing the need for maintenance and minimizing downtime. This makes them a cost-effective solution in the long run for applications where reliability is critical.
Installation and Assembly Time
Regular nuts are straightforward to install using standard tools. The installation process is quick, making them a convenient option for non-critical applications.
Lock nuts, depending on their type, may require additional steps during installation. For instance, slotted nuts require securing a cotter pin, and prevailing torque lock nuts need higher torque for installation. These additional steps can increase the installation time but provide enhanced security against loosening.
Reusability and Long-Term Durability
Regular nuts are generally reusable, as they do not undergo significant deformation during use. However, their effectiveness in dynamic environments is limited, and they may need frequent retightening.
The reusability of lock nuts varies by type. Nylon insert lock nuts may degrade over time and are less suitable for repeated use. In contrast, all-metal lock nuts, such as prevailing torque lock nuts, are more durable and can often be reused, although they may cause wear on the bolt threads. Positive locking mechanisms like slotted nuts are highly durable and can be reused without significant degradation, making them ideal for long-term applications.
Selection Criteria for Different Applications
Industrial Standards Compliance
Selecting the right fasteners for various applications involves adhering to industry standards to ensure safety, reliability, and performance. Standards such as ASTM A563 and ASME B18.16.3 provide guidelines for material properties, dimensions, and mechanical performance of nuts, including lock nuts. Adhering to these standards guarantees that the chosen nuts will function properly under defined conditions.
Environmental and Vibration Factors
Environmental Conditions and Vibration Levels
The environment in which the fasteners will be used plays a significant role in the selection process. Factors such as temperature, humidity, and exposure to chemicals can affect the performance and longevity of nuts. For instance, nylon insert lock nuts may degrade in high-temperature environments, making them unsuitable for applications involving heat. In such cases, all-metal lock nuts or those with corrosion-resistant coatings are preferred.
Vibration resistance is crucial in applications involving dynamic loads and movements. Lock nuts are specifically designed to prevent loosening under vibration. Prevailing torque and slotted nuts are best for high-vibration environments because they have strong locking mechanisms. Regular nuts, such as hex nuts, are less effective in such conditions and may require frequent retightening.
Specific Industry Recommendations
Manufacturing
In manufacturing, fasteners are crucial for machinery and assembly lines, requiring high reliability and vibration resistance. Lock nuts, particularly nylon insert and prevailing torque types, are favored due to their ability to maintain secure connections under continuous operation and vibration.
Construction
Construction applications often involve heavy loads and exposure to environmental elements. Lock nuts with corrosion-resistant properties, such as stainless steel slotted nuts, are recommended for structural components and heavy machinery to ensure long-term durability and safety.
Engineering
In engineering projects, the precision and reliability of fasteners are critical. Jam nuts are often used in adjustable assemblies where space constraints exist, providing a secure lock in compact areas. For high-stress and vibration-heavy applications, prevailing torque lock nuts offer the necessary stability and resistance.
Space and Design Constraints
Space Availability
The physical space available for fasteners can influence the choice between regular and lock nuts. In compact spaces, jam nuts are beneficial due to their thinner profile, allowing for secure fastening without taking up excessive room. For more spacious applications, other lock nut types can be considered based on their specific locking mechanisms and performance benefits.
Design Complexity
The complexity of the design can also affect nut selection. Simpler designs may benefit from the straightforward application of regular nuts, whereas more intricate assemblies may require the enhanced security provided by lock nuts. The feasibility of incorporating additional locking features must be evaluated during the design phase.
Cost Considerations
Initial Cost vs. Long-Term Benefits
Regular nuts are generally less expensive than lock nuts, making them an attractive option for projects with budget constraints. However, the long-term benefits of lock nuts, such as reduced maintenance and higher reliability, often outweigh the initial cost difference. In critical applications, investing in lock nuts can prevent costly failures and downtime.
Maintenance Costs
The need for frequent maintenance can significantly impact overall costs. Regular nuts may require periodic retightening, especially in high-vibration environments, leading to increased labor and downtime. Lock nuts, with their superior resistance to loosening, can reduce maintenance frequency and associated costs, making them a cost-effective choice in the long run.
Ease of Installation and Removal
Installation Time
The ease of installation varies among different types of nuts. Regular nuts, such as hex nuts, are straightforward to install and remove, making them suitable for quick assembly tasks. Lock nuts, depending on their type, may require additional steps. Nylon insert lock nuts and prevailing torque lock nuts need higher torque for installation, while slotted nuts require securing a cotter pin, potentially increasing installation time.
Removal Complexity
The removal of lock nuts can be more complex due to their enhanced locking mechanisms. Prevailing torque lock nuts require higher torque for removal, which can be challenging in confined spaces. Understanding the removal process is essential for maintenance planning and tool selection.
Reusability and Long-Term Durability
Reusability
Whether nuts can be reused depends on their design and material. Regular nuts are generally reusable, as they do not undergo significant deformation during use. However, their effectiveness in dynamic environments is limited. Lock nuts, particularly nylon insert types, may degrade over time and are less suitable for repeated use. All-metal lock nuts, such as prevailing torque lock nuts, are more durable and can often be reused, although they may cause wear on the bolt threads.
Durability
Long-term durability is a critical factor in selecting fasteners for demanding applications. Positive locking mechanisms, such as slotted nuts, are highly durable and can be reused without significant degradation. These nuts are ideal for long-term applications where maintaining a secure connection is crucial.
Installation Best Practices
Tool Requirements
Regular Nuts
Installing regular nuts is simple and only requires basic tools like standard wrenches or sockets. The process is straightforward, involving the application of torque to secure the nut onto the bolt. This simplicity results in lower upfront costs and faster assembly times.
Lock Nuts
In contrast, lock nuts often need specialized tools to properly engage their locking mechanisms. For example, torque wrenches are commonly required to apply the higher installation torque needed for certain types of lock nuts.
Installation Process
Regular Nuts
The installation of regular nuts involves:
- Positioning the nut onto the bolt threads.
- Using a wrench or socket to apply torque until the nut is secure.
This quick and cost-effective process makes regular nuts ideal for applications with minimal vibration and infrequent re-tightening.
Lock Nuts
The installation process for lock nuts varies based on the type:
- Nylon Insert Lock Nuts: These should be threaded carefully to avoid damaging the nylon insert. The nylon ring deforms to create friction, which prevents loosening.
- Prevailing-Torque Locknuts: These nuts, such as Stover-style locknuts, require higher installation torque due to their pre-deformed threads. This increased torque ensures the locking feature is activated.
- Pin-Locking Nuts: For these, it is crucial to align the stainless steel ratchet pin with the fastener threads. The pin mechanism provides a secure lock against vibration.
Performance Under Stress
Vibration Resistance
Regular nuts have limited vibration resistance and are prone to self-loosening over time. This makes them less suitable for high-vibration environments. Lock nuts, however, maintain tension through mechanical interference, significantly enhancing their vibration resistance.
Thermal Stability
The thermal stability of fasteners depends on their material. Regular nuts offer moderate thermal stability, which varies based on the material used. All-metal lock nuts exhibit superior thermal stability, making them suitable for applications involving thermal expansion cycles.
Reusability
Regular nuts are fully reusable, as they do not undergo significant deformation during use. In contrast, the reusability of lock nuts varies:
- Nylon Insert Lock Nuts: The nylon inserts wear out after multiple uses, which reduces their effectiveness.
- Metal Lock Nuts: These are often single-use due to the deformation of threads or locking features during installation and removal.
Critical Application Guidelines
- Pre-Installation Checks:
- Ensure thread compatibility and select the appropriate nut type based on environmental conditions.
- Check the integrity of locking mechanisms, like the ratchet pin in pin-locking nuts.
- Torque Specifications:
- Lock nuts typically require 20-30% higher installation torque than regular nuts. This higher torque activates the locking features, ensuring a secure fit.
- For nylon insert lock nuts, avoid over-tightening to prevent thread stripping and degradation of the nylon ring.
- Post-Installation Verification:
- Conduct vibration testing for assemblies that are critical to ensure the integrity of the locking mechanism.
- For non-locking nuts in high-vibration environments, re-torque after 24-48 hours to maintain security.
Cost-Benefit Considerations
Regular nuts are economical for static, low-risk applications such as furniture assembly. Their lower cost and faster installation process make them attractive for non-critical uses. However, in high-risk environments like automotive, aerospace, or heavy machinery, where failure could compromise safety, lock nuts are indispensable. Despite their higher initial cost, lock nuts provide long-term savings by reducing maintenance needs and preventing failure-related downtimes.
Emerging Best Practices
- Hybrid Systems: Combining medium-strength lock nuts with thread-locking adhesives can enhance security in corrosive environments.
- Digital Torque Management: Utilizing smart wrenches with angle measurement capabilities ensures consistent and accurate application of torque, crucial for activating locking mechanisms.
- Material Selection: For high-load applications, opt for structural nuts like A563DH-grade with pin-locking features to ensure durability and performance.
Implementing these installation best practices ensures that fasteners maintain their integrity and functionality under various operational conditions.
Failure Scenarios and Prevention
Failure Scenarios: Regular Nuts
Loosening Due to Vibration
Regular nuts, such as hex nuts, can loosen over time due to vibrations. They rely solely on the tension created during tightening to stay in place. Without additional locking mechanisms, repetitive motion can gradually reduce the tension, causing the nut to loosen and potentially leading to mechanical failure.
Insufficient Tension
If regular nuts are not tightened properly, they can cause movement in bolts or screws, leading to structural instability or complete assembly failure. In high-stress applications, this can be particularly dangerous.
Corrosion and Wear
Exposure to moisture and chemicals over time can weaken the material, causing the nut to lose its grip and loosen. Regular nuts are susceptible to corrosion and wear, especially in harsh environments. This degradation can compromise the nut’s effectiveness and increase the likelihood of loosening.
Failure Scenarios: Lock Nuts
Over-Tightening
Too much force can damage the threads or the locking mechanism, making the nut ineffective. This is particularly true for nylon insert lock nuts, where the nylon ring can be damaged.
Incorrect Installation
Improper installation can prevent lock nuts from functioning as intended. For instance, if a self-locking nut is not positioned correctly, the locking feature may not engage, leading to potential loosening under stress.
Material Fatigue
Repeatedly removing and reinstalling lock nuts can cause material fatigue. Over time, this can reduce the effectiveness of the locking mechanism, especially in high-vibration environments where the nut is subjected to constant movement.
Prevention Strategies: Lock Nuts vs Regular Nuts
Lock Nuts
- Proper Installation: Ensure that lock nuts are installed correctly, with the locking feature properly engaged. For example, the smooth end of a self-locking nut should face the correct direction.
- Avoid Over-Tightening: Use the appropriate torque to avoid damaging the locking mechanism. Torque specifications should be followed closely to ensure optimal performance.
- Maintenance Checks: Regularly inspect lock nuts for signs of wear or damage. This can help identify potential issues before they lead to failure.
Regular Nuts
- Regular Tightening Checks: Periodically check and tighten regular nuts to maintain sufficient tension. This is crucial in applications exposed to vibrations.
- Anti-Corrosion Measures: Apply anti-corrosion coatings or use materials resistant to corrosion if operating in harsh environments. This can extend the lifespan of the nuts and maintain their effectiveness.
- Vibration Dampening: Use vibration dampening materials or alternative fastening solutions if regular nuts are exposed to significant vibrations. This can help reduce the impact of vibrations and prevent loosening.
Comparative Analysis
Feature | Lock Nuts | Regular Nuts |
---|---|---|
Vibration Resistance | High resistance to loosening due to vibration | Susceptible to loosening under vibration |
Installation Complexity | May require specific installation techniques | Simple installation |
Cost | Generally more expensive due to specialized design | Less expensive |
Applications | Critical applications requiring security against loosening | General fastening where vibration is minimal |
Understanding the distinct differences between lock nuts and regular nuts is essential for selecting the appropriate type for specific applications. This ensures reliability and prevents failures in critical environments.
Frequently Asked Questions
Below are answers to some frequently asked questions:
What makes lock nuts more vibration-resistant than regular nuts?
Lock nuts are more vibration-resistant than regular nuts due to their specialized mechanisms that prevent loosening under dynamic loads. Regular nuts rely solely on the initial preload applied during installation, which can be compromised by vibrations leading to gradual loosening. In contrast, lock nuts incorporate friction-based or mechanical interference mechanisms to maintain their hold.
Friction-based lock nuts, such as prevailing-torque nuts, use altered thread geometries to increase friction and resist loosening. Mechanical interference lock nuts, like nylon insert lock nuts (Nylock), utilize elastic materials that compress against the bolt, maintaining tension even under vibration. Additionally, some lock nuts use adhesives or coatings to bond with bolt threads, further enhancing their vibration resistance.
When should I use a jam nut vs a nylon insert lock nut?
Choosing between a jam nut and a nylon insert lock nut depends on the specific requirements of your application.
Nylon Insert Lock Nuts are ideal for situations where vibration resistance is crucial and ease of installation is important. The nylon insert creates friction with the bolt threads, effectively locking the nut in place. They are particularly useful in environments with moderate to high vibration, provided the operating temperatures remain within the nylon’s tolerance range (up to 248°F or 120°C).
Jam Nuts, on the other hand, are used to create additional clamping force by tightening two nuts against each other. This method is useful in applications where extra locking strength is needed beyond what a single nut can provide. Jam nuts can be used in both low and high vibration environments and are less sensitive to temperature variations compared to nylon insert lock nuts.
Can regular nuts be modified for vibration resistance?
Regular nuts can be modified for improved vibration resistance through several methods, although these modifications often do not match the performance of purpose-built lock nuts. One common approach is the use of secondary fastening components, such as jam nuts, which involve tightening a thin nut against the joint before applying the standard nut. This can provide some level of resistance but requires precise application. Another method includes using thread-locking adhesives, which temporarily convert regular nuts into vibration-resistant versions by preventing loosening through chemical bonding.
Additionally, thread deformation techniques can be employed to create a prevailing torque effect, though this is not recommended due to potential thread damage and inconsistent performance. Hybrid systems, like Wellnut inserts, combine regular nuts with rubber-based inserts to dampen vibrations, offering an alternative solution.
However, these modifications generally involve more complex installation procedures and may not be as reliable as commercial lock nuts, which are specifically designed to maintain preload under dynamic loads. For critical applications, using lock nuts that meet industrial standards is recommended to ensure long-term durability and performance.
How do industrial standards affect nut selection?
Industrial standards play a crucial role in nut selection by ensuring compatibility, strength, and reliability for various applications. These standards, such as ASTM A563 and ASME B18.16.3, establish specific requirements that nuts must meet, including material composition, mechanical properties, and environmental resilience.
For regular nuts, standards ensure they meet basic strength and material criteria suitable for general use. However, in high-vibration environments or critical applications like automotive and aerospace, lock nuts are preferred due to their enhanced resistance to loosening. Standards for lock nuts often include additional specifications to ensure they can withstand such conditions without failure.
Additionally, standards guide the selection based on material compatibility to prevent galvanic corrosion, matching the grade of nuts and bolts to ensure optimal performance. By adhering to these standards, engineers can select the appropriate nut type that meets the demands of their specific application, enhancing safety and durability.
How do I choose the right lock nut for my application?
Choosing the right lock nut for your application involves considering several key factors. First, assess the environment where the lock nut will be used. For high-temperature applications, avoid nylon insert lock nuts and opt for all-metal designs like prevailing torque nuts. In corrosive environments, stainless steel or brass lock nuts are preferable due to their resistance to chemical exposure.
Second, evaluate the load requirements of your application. Heavy machinery benefits from lock nuts with superior grip, such as serrated flange or castellated nuts. For precision assemblies, smaller lock nuts like jet nuts (K-lock) are ideal.
Third, ensure thread compatibility with the bolts, checking both the direction (right-hand vs. left-hand) and size (metric/imperial). Additionally, consider whether secondary components, like cotter pins for castellated nuts, are necessary.
By carefully considering these factors, you can select the most appropriate lock nut for your specific needs, ensuring reliability and longevity in your application.
What are the common failure scenarios for lock nuts and how can they be prevented?
Lock nuts can fail under certain conditions, despite their design to prevent loosening. Common failure scenarios include:
- Vibration and Motion: Extreme vibrations can exceed the lock nut’s design specifications, causing mechanical failure. Proper securing of the nut and bolt is essential to mitigate this risk.
- Corrosion and Dirt: The presence of corrosion or dirt in fastener holes can compromise the lock nut’s grip, leading to potential loosening. Maintaining clean and corrosion-free fastener holes is crucial.
- Incorrect Installation: Using improper torque or incorrect installation methods reduces the effectiveness of lock nuts, leading to premature failure. Ensuring correct installation techniques and torque application is vital.
- Material Degradation: Environmental factors like heat and UV exposure can degrade materials used in lock nuts, such as nylon inserts, diminishing their effectiveness over time.
To prevent these failures, it is important to follow correct installation techniques, apply proper torque, maintain cleanliness of fastener holes, use high-quality materials suited for the environment, and conduct regular inspections to catch early signs of wear or loosening. These strategies help maximize the reliability and longevity of lock nuts in high-stress applications.
