Loose Flange vs Fixed Flange: What’s the Difference?

When it comes to ensuring the integrity and efficiency of piping systems, the choice between loose flanges and fixed flanges can be a pivotal decision. Both types serve critical roles in various applications, but understanding their differences can be the key to selecting the right one for your needs. Are you curious about which type of flange is best suited for high-pressure systems? Or perhaps you’re wondering about the advantages a loose flange might offer over a fixed flange? In this article, we’ll delve into the fundamental differences between these two flange types, exploring their structural distinctions, application scenarios, and the pros and cons of each. By the end, you’ll have a clearer picture of which flange type will best meet your specific requirements. Ready to dive in? Let’s get started.

Understanding Flange Types

Flanges are essential components in piping systems, used to connect pipes, valves, pumps, and other equipment to form a sealed joint. They provide a reliable and convenient method for assembling and disassembling pipe systems, facilitating maintenance and inspection.

Overview of Different Flange Types

Flanges come in various types, each designed for specific applications and conditions. Understanding these types is essential for selecting the appropriate flange for a given system.

Welding Neck Flange

A welding neck flange features a long tapered hub that is butt-welded to the pipe. This design provides high strength and resistance to dishing under pressure, making it suitable for high-pressure and high-temperature applications.

Slip-On Flange and Socket Weld Flange

The slip-on flange is a flat ring that slips over the pipe and is then fillet welded. It is easier to install than some other flange types and is suitable for low-pressure applications where strength is not a primary concern. Similarly, socket weld flanges have a socket where the pipe is inserted and then fillet welded. They are ideal for smaller pipe sizes and high-pressure systems, providing a strong and reliable connection.

Threaded Flange

Threaded flanges have internal threads that screw onto the pipe without the need for welding. They are suitable for small diameter pipes and high-pressure applications, offering a convenient method for assembly and disassembly.

Lap Joint Flange (Loose Flange)

The lap joint flange, also known as a loose flange, consists of a two-piece system: a stub end welded to the pipe and a loose flange that slips over the stub end. This design allows the flange to rotate around the stub end, facilitating easier alignment of bolt holes during installation and simplifying maintenance.

Blind Flange

Blind flanges are used to close the end of a pipe, effectively sealing the system. They are essential for systems where the flow needs to be stopped or redirected.

Loose Flange vs Fixed Flange: Definitions and Differences

Loose and fixed flanges serve different purposes and have distinct characteristics:

Detailed Explanation of Flange Types Related to Fixed and Loose Flanges

Loose Flange (Lap Joint Flange)

Loose flanges are not welded to the pipe but instead fit over a stub end that is welded to the pipe. This design allows the flange to rotate around the stub end, enabling easier alignment of bolt holes and simplifying installation and maintenance. Loose flanges are particularly useful in systems where frequent dismantling for inspection or cleaning is required. However, this design typically cannot handle as high pressure or stress as fixed flanges because the joint relies on the stub end weld and flange fit.

Fixed Flanges

Fixed flanges include welding neck, slip-on, socket weld, and threaded flanges. These are permanently attached to the pipe by welding or threading, becoming part of the pipe system. Welding neck flanges offer excellent strength and resistance to stress, making them suitable for high-pressure and high-temperature services. Slip-on flanges are easier to install but less robust, suited for low-pressure systems. Socket weld flanges accommodate small diameter pipes and high pressure, while threaded flanges avoid welding and are used in specialized small diameter pipe systems.

Comparative Analysis Summary

Understanding the distinction between loose and fixed flanges centers on their construction, attachment method, and application suitability. Loose flanges offer flexibility and ease of maintenance by allowing rotation and removal without cutting the pipe, making them ideal for low to moderate pressure applications requiring frequent access. Fixed flanges provide stronger, permanent joints for high-pressure and high-temperature environments but require more precise installation and complicated maintenance.

Technical Reference Guide

Flange Materials

Flanges are manufactured from various materials, each chosen based on specific requirements such as pressure, temperature, and environmental conditions. Commonly used materials are:

• Carbon Steel: Widely used for its strength and affordability, suitable for moderate pressure and temperature applications.
• Stainless Steel: Offers excellent corrosion resistance, ideal for harsh environments and high-temperature applications.
• Alloy Steel: Provides enhanced mechanical properties and resistance to high temperatures, used in power generation and chemical processing.
• Duplex Steel: Combines high strength with excellent corrosion resistance, suitable for aggressive environments.
• Nickel Alloys: Known for exceptional resistance to extreme temperatures and corrosive environments, used in aerospace and chemical industries.

Installation Methods

The installation of flanges involves several key steps to ensure a secure and leak-proof connection:

• Welding: Common for fixed flanges, where the flange is welded to the pipe. Types of welding include butt welding for welding neck flanges and fillet welding for slip-on and socket weld flanges.
• Threading: Used for threaded flanges, where the flange is screwed onto the pipe. This method is quick and requires no welding but is limited to low-pressure applications.
• Bolting: Flanges are connected using bolts and nuts, with gaskets placed between the flanges to ensure a tight seal. Proper torque application is crucial to prevent leaks.

Pressure and Temperature Limits

Flanges are designed to withstand specific pressure and temperature ranges, which depend on the material and construction type. Key considerations include:

• Pressure Classes: Flanges are classified into different pressure ratings, such as Class 150, 300, 600, etc., indicating the maximum pressure they can handle.
• Temperature Limits: Material selection impacts the flange’s ability to withstand high or low temperatures. For instance, stainless steel flanges perform well in high-temperature environments, while carbon steel may be limited.

Industry Standards

Industry standards ensure reliable and safe flange connections, with the most recognized being:

• ASME (American Society of Mechanical Engineers): ASME B16.5 covers pipe flanges and flanged fittings, specifying dimensions, pressure ratings, and materials.
• API (American Petroleum Institute): API standards, such as API 6A for wellhead and Christmas tree equipment, set guidelines for flanges used in the oil and gas industry.
• DIN (Deutsches Institut für Normung): DIN standards are widely used in Europe, covering various aspects of flange design and manufacturing.
• ISO (International Organization for Standardization): ISO standards ensure global compatibility and quality, with ISO 7005 focusing on steel flanges.

Key Differences Between Loose and Fixed Flanges

Knowing the differences between loose and fixed flanges helps in choosing the right type for specific applications:

• Structural Design: Loose flanges consist of a two-piece system, allowing rotation around the stub end for easier alignment. Fixed flanges are a single piece, providing a more rigid connection.
• Cost and Efficiency: Loose flanges typically have lower upfront costs and are more economical for frequent disassembly. Fixed flanges, while more expensive, offer greater durability in high-stress environments.
• Application Suitability: Loose flanges are ideal for low-pressure systems requiring frequent maintenance. Fixed flanges are better suited for high-pressure, high-temperature applications where a robust connection is essential.

Installation and Maintenance

Loose flanges are easier to install and maintain because they can be rotated for bolt alignment, with only the stub end requiring welding. Fixed flanges require precise alignment and welding, increasing labor time and complexity. Maintenance of loose flanges simplifies repairs and replacements, as the flange can be removed without cutting the pipe. In contrast, maintaining fixed flanges is more labor-intensive, often requiring the entire joint to be disassembled for repairs.

Industry Standards and Compliance

Adhering to industry standards is vital for ensuring the performance and safety of flange connections:

• Loose Flanges: Often designed to meet standards for modularity and ease of assembly, such as ASME B16.48.
• Fixed Flanges: Must comply with stringent welding and material standards, like ASME B16.5, to ensure high-integrity seals.

Comparative Analysis: Loose Flange vs Fixed Flange

Overview of Loose Flange and Fixed Flange

Loose and fixed flanges are integral components in piping systems, each serving unique roles and offering distinct advantages based on their construction and application. Understanding their differences is vital for selecting the appropriate flange for specific engineering requirements.

Definition and Construction

Loose Flange

A loose flange, also known as a lap joint flange, consists of two separate parts: the stub end, which is welded to the pipe, and the backing flange, which can rotate around the stub end. This design facilitates easier alignment and installation, particularly in systems where frequent adjustments are necessary. The separation between the stub end and the backing flange allows for the use of different materials, optimizing cost and performance, and reducing material usage and labor costs during installation.

Fixed Flange

A fixed flange, commonly referred to as a weld neck flange, is a single-piece construction where the flange body is directly welded to the pipe or fitting. This robust design ensures a strong and secure connection, making it suitable for demanding environments. Fixed flanges are made entirely from high-quality materials, which makes them more expensive. Their solid construction ensures they can withstand high-pressure and high-temperature conditions.

Cost and Material Considerations

Loose Flange

Loose flanges are generally more economical due to their two-piece construction. The backing flange can be made from a less expensive material, while the stub end can be made from a corrosion-resistant material. This design reduces material usage and labor costs during installation, making loose flanges a cost-effective choice for systems requiring frequent maintenance.

Fixed Flange

Fixed flanges are made entirely from high-quality materials, resulting in higher costs. However, their solid construction makes them ideal for applications where reliability and durability are critical. The one-piece design eliminates the need for additional components, simplifying installation and reducing potential points of failure.

Application Differences

Loose Flange

Loose flanges are ideal for low-pressure systems where maintenance ease and cost savings are important. Industries such as food processing, water treatment, and paper mills often utilize loose flanges due to their flexibility and ease of disassembly. The ability to rotate the flange around the stub end simplifies alignment and installation in tight spaces.

Fixed Flange

Fixed flanges are preferred in high-pressure and high-temperature environments, such as chemical plants, offshore oil rigs, and nuclear power plants. The secure and stable connection provided by fixed flanges is essential in these demanding applications. Their robust design ensures minimal movement and potential leakage, making them suitable for critical systems.

Maintenance Procedures

Loose Flange

The loose flange design offers significant advantages in terms of maintenance. The backing flange can be easily disassembled and reassembled without cutting the pipe, facilitating quick repairs and routine maintenance. This flexibility is particularly beneficial in systems requiring frequent alignment adjustments and inspections.

Fixed Flange

Fixed flanges require complete disassembly for any maintenance or repairs, which can be labor-intensive and time-consuming. The welded connection requires cutting or rewelding the pipe, which increases downtime and labor costs. However, their rigid design provides a stable connection, making them reliable for static applications where minimal maintenance is needed.

Flexibility and Rotation

Loose Flange

Loose flanges can rotate freely around the stub end, allowing for easier alignment and installation in confined spaces. This rotational capability is advantageous in systems where frequent realignments are necessary, reducing installation time and effort. The flexibility of loose flanges makes them ideal for dynamic systems requiring frequent adjustments.

Fixed Flange

Fixed flanges do not offer rotational freedom, as they are welded directly to the pipe. While this design is less adaptable, it provides a secure and stable connection, making it suitable for static applications where movement and realignment are not required. The rigidity of fixed flanges ensures consistent performance in high-stress environments.

Flange Applications

Best Flange Type for Different Pressure Applications

Choosing the right flange type for different pressure applications is essential for maintaining the integrity and efficiency of piping systems. Each flange type has distinct features that make it suitable for specific pressure conditions.

Low Pressure Systems

Loose Flanges (Slip-On Flanges):
Loose flanges are ideal for low-pressure applications because they are easy to install and maintain, and their design allows them to rotate around the pipe for easier alignment during assembly and disassembly. Commonly used in water treatment plants, HVAC systems, and general chemical processing, loose flanges provide a cost-effective solution where operating pressures are moderate.

Fixed Flanges (Slip-On and Threaded Flanges):
Fixed flanges like slip-on and threaded flanges can also be used in low-pressure systems. Slip-on flanges are easy to install and provide a reliable connection for lower stress applications, while threaded flanges offer a quick and convenient method for assembly without the need for welding.

High Pressure Systems

Fixed Flanges (Weld Neck Flanges):
For high-pressure systems, weld neck flanges are the preferred choice due to their robust construction and high strength. These flanges are butt-welded to the pipe, creating a strong and integral connection that can withstand high pressure and temperature conditions. They are used in petrochemical plants, power generation facilities, and other critical infrastructure where strong connections are essential.

Industry-Specific Applications

Chemical Plants

Fixed Flanges (Weld Neck Flanges):
In chemical plants, the handling of hazardous materials and high-pressure fluids necessitates the use of weld neck flanges. Their solid construction and resistance to bending stress ensure a secure and leak-proof connection, which is essential for safety and efficiency in these environments.

Oil Rigs

Fixed Flanges (Weld Neck Flanges):
Oil rigs require flanges that can endure extreme pressures and harsh environmental conditions. Weld neck flanges are ideal for these applications due to their strength and durability. They provide a reliable connection that can withstand the high stresses encountered in offshore drilling operations.

Water Treatment Plants

Loose Flanges (Slip-On Flanges):
Loose flanges are beneficial in water treatment plants because they allow for easy disassembly and reassembly for inspection and cleaning, making them ideal for systems with lower operational pressures and frequent maintenance needs.

Advantages and Disadvantages

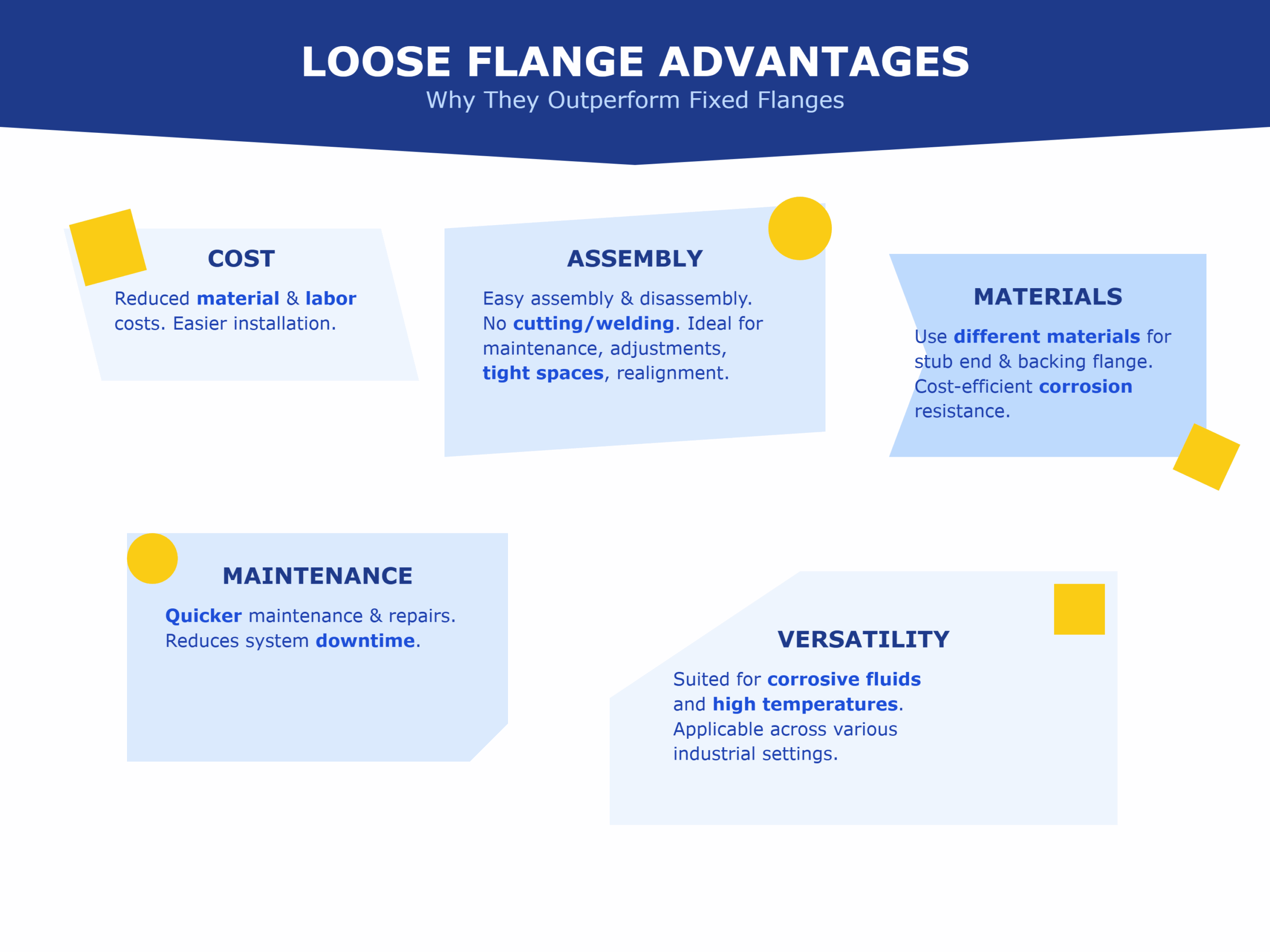

Advantages of Loose Flanges

• Ease of Installation and Alignment: Loose flanges can rotate around the pipe, allowing for easier alignment of bolt holes during installation.
• Simplified Maintenance: The ability to remove the backing flange without cutting the pipe makes maintenance quick and straightforward.
• Cost-Effective: Lower initial costs due to simpler installation procedures and reduced material usage.

Disadvantages of Loose Flanges

• Limited Pressure Handling: Generally not suitable for high-pressure applications due to potential movement and reliance on the stub end weld.
• Potential for Leaks: The design may be less leak-resistant under extreme conditions compared to fixed flanges.

Advantages of Fixed Flanges

• High Strength and Durability: Fixed flanges, especially weld neck types, provide superior mechanical strength and resistance to high pressures and temperatures.
• Secure Connection: The permanent attachment to the pipe ensures minimal movement and potential leakage, making them ideal for critical systems.

Disadvantages of Fixed Flanges

• Complex Installation: Requires skilled welding and precise alignment, which can increase installation time and labor costs.
• Challenging Maintenance: Maintenance often involves cutting or rewelding the pipe, making repairs more labor-intensive and time-consuming.

Key Considerations for Flange Selection

When choosing a flange type for a specific application, consider the following factors:

• Pressure and Temperature Requirements: Determine the operating pressures and temperatures to select a flange type that can withstand these conditions.
• Ease of Maintenance: Assess the need for frequent maintenance and choose a flange type that facilitates easy disassembly and reassembly.
• Cost Implications: Consider both initial costs and long-term cost efficiency, balancing material and installation expenses with the durability and reliability of the flange.
• Industry Standards: Ensure compliance with relevant industry standards (e.g., ASME, API) to guarantee the performance and safety of flange connections.

Maintenance

Maintenance Procedures

Knowing how to maintain loose and fixed flanges is crucial for keeping piping systems reliable and long-lasting. Each type of flange has distinct maintenance needs due to its design and application.

Loose Flange Maintenance

Loose flanges, also known as lap joint flanges, offer several advantages in terms of maintenance, such as ease of disassembly and reassembly, which simplifies inspection, cleaning, or replacement. The design of loose flanges allows for easy separation of the flange from the stub end without needing to cut the pipe. This simplifies the process of accessing the system for inspection, cleaning, or replacement of components.

• Rotational Flexibility: The ability to rotate the backing flange around the stub end facilitates quick alignment and realignment of bolt holes during maintenance. This flexibility significantly reduces the time and effort required for repairs.
• Reduced Downtime: Since the flange can be detached without cutting or welding the pipe, maintenance tasks can be completed more rapidly, minimizing system downtime. This is particularly beneficial in industries where frequent maintenance is necessary, such as food processing and water treatment plants.

However, it is important to note that while loose flanges are easier to maintain, they are generally suitable for low to moderate pressure applications due to potential movement and reliance on the stub end weld.

Fixed Flange Maintenance

Fixed flanges, which include types such as welding neck, slip-on, socket weld, and threaded flanges, have different maintenance considerations:

• More Difficult Repairs: Fixed flanges are permanently attached to the pipe through welding or threading, making disassembly more complex. Maintenance usually involves cutting or welding the pipe again, which takes more time and money.
• Stable and Secure Connection: The robust construction of fixed flanges provides a stable and secure connection, which is essential for high-pressure and high-temperature applications. However, this rigidity means that realignment or adjustments during maintenance are more challenging and time-consuming.
• Long-Term Durability: Although fixed flanges require more effort to maintain initially, they are durable and reliable over the long term. This makes them suitable for static applications where minimal maintenance is needed, such as chemical plants and offshore platforms.

Impact of Design and Application on Maintenance

The design and application of loose and fixed flanges directly impact their maintenance requirements:

• Design Differences: Loose flanges consist of a two-piece assembly (stub end and backing flange), allowing for easier disassembly and reassembly. Fixed flanges are a single-piece construction welded or threaded onto the pipe, requiring more effort for maintenance.
• Application Suitability: Loose flanges are ideal for systems requiring frequent maintenance and realignment, while fixed flanges are better suited for high-pressure, high-temperature environments where a secure connection is crucial.

Cost Considerations in Maintenance

Maintenance costs for loose and fixed flanges can vary significantly:

• Loose Flanges: Generally more economical due to simpler disassembly and reassembly processes. The use of different materials for the stub end and backing flange can also reduce material costs.
• Fixed Flanges: Higher maintenance costs due to the need for skilled labor for cutting, welding, and precise alignment. The use of high-quality materials throughout the flange increases both initial and long-term expenses.

Key Maintenance Differences

• Ease of Maintenance: Loose flanges are easier to maintain due to their design, which allows for quick disassembly and reassembly. Fixed flanges require more time and effort for maintenance tasks.
• Flexibility and Adjustments: Loose flanges offer greater flexibility for adjustments and realignments, making them suitable for dynamic systems. Fixed flanges provide a stable connection but are less adaptable.
• Cost and Materials: Loose flanges are more cost-effective in terms of maintenance due to their simpler design and material efficiency. Fixed flanges, while more expensive, offer superior durability and reliability.

Choosing between loose and fixed flanges for a specific application should consider these maintenance factors, balancing ease of maintenance, cost, and the required durability and reliability of the system.

Cost Comparison

Material Costs

Loose flanges and fixed flanges differ significantly in terms of material costs due to their construction and material composition.

Loose Flanges

Loose flanges often use a combination of materials. The backing flange is typically made from a less expensive material such as carbon steel, while the stub end is made from a corrosion-resistant material like stainless steel. This combination reduces overall material expenses, ensuring cost efficiency without compromising performance.

Fixed Flanges

Fixed flanges are made entirely from high-grade materials like alloy steel or stainless steel, which increases their material costs. The use of premium materials throughout the flange ensures durability and reliability but results in a higher initial cost.

Installation and Labor Costs

The complexity and labor intensity of installing loose and fixed flanges also contribute to their cost differences.

Loose Flanges

Loose flanges are designed to simplify installation. Their ability to rotate makes it easier to align bolt holes, thus reducing the labor required for assembly. This ease of installation lowers labor costs, making loose flanges a cost-effective choice for systems where frequent adjustments are necessary.

Fixed Flanges

Fixed flanges require skilled labor for installation due to the need for precise alignment and welding. Ensuring a secure and precise fit adds to the installation costs, making fixed flanges more expensive in terms of labor.

Maintenance Costs

Maintenance considerations are critical in the long-term cost analysis of loose and fixed flanges.

Loose Flanges

Loose flanges are easier to maintain because their design allows for quick disassembly, which facilitates repairs and minimizes downtime. This accessibility reduces labor costs associated with maintenance, making loose flanges a cost-effective option for systems requiring frequent maintenance and inspections.

Fixed Flanges

Fixed flanges require complete disassembly for any maintenance or repairs. This process is labor-intensive and increases operational downtime. The need for cutting or rewelding the pipe during maintenance elevates the associated costs, making fixed flanges more expensive to maintain over time.

Long-Term Cost Implications

Evaluating the long-term cost implications involves considering the specific application and operational environment of the flanges.

Loose Flanges

Loose flanges are ideal for low-pressure systems, such as those found in water treatment and food processing industries. Their ease of maintenance and lower initial costs provide lifecycle cost savings, making them suitable for applications where frequent disassembly and adjustments are needed.

Fixed Flanges

Fixed flanges justify their higher upfront costs in high-pressure and high-temperature environments, such as chemical plants and offshore rigs. Their durability and reduced failure risks offer long-term reliability, making the initial investment worthwhile in critical systems where consistent performance is essential.

Cost-Benefit Summary

This comparative analysis highlights the cost differences between loose and fixed flanges, emphasizing their suitability for different applications based on material, installation, maintenance, and long-term cost considerations.

Pipe Fittings

Understanding Pipe Fittings

Pipe fittings are essential components used to connect, manage, and redirect pipes in a piping system. They come in various types and materials to suit different industrial applications and requirements.

Types of Pipe Fittings

Pipe fittings can be broadly categorized based on their function and design. Common types include:

• Elbows: Used to change the direction of the pipe flow, typically available in 45° and 90° angles.
• Tees: T-shaped fittings that allow for branch connections, allowing the flow to split or merge.
• Reducers: Used to connect pipes of different diameters, ensuring smooth flow transition between varying sizes.
• Couplings: Short lengths of pipe used to connect two pipes together, often in repair or extension scenarios.
• Unions: Similar to couplings but designed for easy disconnection and reconnection of pipes.
• Caps and Plugs: Used to close the ends of pipes, preventing the flow of fluids.

Materials of Pipe Fittings

The material selection for pipe fittings depends on the specific application, pressure, and temperature requirements. Common materials include:

• Carbon Steel: Known for its strength and durability, suitable for high-pressure applications.
• Stainless Steel: Offers excellent corrosion resistance, ideal for harsh environments and high temperatures.
• Copper: Commonly used in plumbing for its ease of installation and corrosion resistance in water supply systems.
• PVC (Polyvinyl Chloride): Lightweight and resistant to chemicals, suitable for low-pressure and non-corrosive applications.
• Brass: Combines good corrosion resistance with ease of installation, often used in water and gas applications.

Relationship with Loose and Fixed Flanges

Pipe fittings are integral to the functionality and efficiency of both loose and fixed flanges in piping systems.

Integration with Loose Flanges

Loose flanges, due to their rotational flexibility, are often used in systems where pipe fittings need frequent adjustments or maintenance. The ability to easily align and realign fittings such as elbows or tees makes loose flanges particularly suitable for:

• Low-Pressure Systems: Where frequent disassembly is required for cleaning or inspection.
• Systems that Require Frequent Adjustments or Replacements: Such as in water treatment plants.

Integration with Fixed Flanges

Fixed flanges provide a robust and permanent connection, making them ideal for high-pressure systems where pipe fittings must withstand significant stress and ensure leak-proof connections. Fixed flanges are commonly used with pipe fittings in:

• High-Pressure Applications: Such as chemical plants and oil rigs, where secure and stable connections are critical.
• Permanent Installations: Where minimal maintenance and high reliability are required, ensuring long-term durability and safety.

Applications in Various Industries

Pipe fittings combined with loose and fixed flanges are utilized across numerous industries, each requiring specific attributes for optimal performance.

Chemical Processing

In chemical plants, the use of corrosion-resistant materials like stainless steel for pipe fittings ensures longevity and safety. Fixed flanges are preferred for their secure connections, which are essential for handling hazardous chemicals under high pressure.

Oil and Gas

The oil and gas industry demands robust and reliable connections due to the extreme conditions encountered. Weld neck flanges, a type of fixed flange, are commonly used with high-strength pipe fittings to ensure leak-proof joints capable of withstanding high pressures and temperatures.

Water Supply Systems

Water treatment and supply systems often use loose flanges with pipe fittings made from PVC or stainless steel. The ease of disassembly provided by loose flanges facilitates regular maintenance and inspection, maintaining the system’s efficiency and hygiene.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the advantages of using a loose flange over a fixed flange?

Using a loose flange offers several advantages over a fixed flange. Firstly, loose flanges are generally more cost-effective due to the reduced material and labor requirements for installation. They are easier to assemble and disassemble without the need for cutting or welding pipes, making them ideal for systems that require frequent maintenance or adjustments. This flexibility in assembly is particularly beneficial in tight spaces or when realignment is necessary.

Additionally, loose flanges allow for the use of different materials for the stub end and the backing flange, enabling a cost-efficient combination of corrosion-resistant and more affordable materials. This design also facilitates quicker maintenance and repairs, reducing downtime. Furthermore, loose flanges are well-suited for applications involving corrosive fluids and high temperatures, offering versatility across various industrial settings.

Which type of flange is best for high-pressure systems?

For high-pressure systems, fixed flanges, particularly weldneck and raised face flanges, are the best choices. Weldneck flanges offer a robust connection due to their butt-welded design, which provides superior strength and durability, making them suitable for handling high pressures and corrosive fluids. Raised face flanges, on the other hand, concentrate pressure on a smaller gasket area, enhancing their pressure containment capabilities. Loose flanges are generally not suitable for high-pressure applications because they do not provide the necessary stability and secure connection required to withstand high pressures. Therefore, fixed flanges are preferred for high-pressure systems to ensure safety and efficiency.

How do maintenance procedures differ between loose and fixed flanges?

Maintenance procedures for loose flanges and fixed flanges differ primarily due to their structural characteristics and operational requirements.

Fixed flanges are permanently attached to the pipe, requiring regular inspections to identify corrosion, wear, or damage. Cleaning the flange surfaces is essential to prevent dirt buildup and ensure a secure seal. After any repairs or replacements, pressure testing is mandatory to confirm the integrity of the seal. Bolt maintenance involves regular lubrication to prevent seizing and adhering to a specific tightening sequence for an even seal. Gaskets should be replaced when worn or after disassembly to maintain a leak-free connection.

Loose flanges, which are not permanently attached and can rotate around the pipe, necessitate more frequent inspections due to their susceptibility to misalignment and vibration. Adjustments may be required to maintain proper alignment and secure connections. Maintenance must also accommodate potential movement during operation, ensuring the seal remains uncompromised. Bolt and gasket maintenance is similar to fixed flanges, but with added emphasis on frequent inspections due to the increased risk of wear from movement.

What factors should be considered when selecting a flange type for a specific application?

When selecting a flange type for a specific application, several critical factors must be considered to ensure optimal performance, safety, and cost-efficiency. Firstly, evaluate the pressure and temperature requirements. Fixed flanges are generally better for high-pressure and high-temperature systems due to their robust, leak-proof connections. Loose flanges, which allow for easier alignment, are more suitable for lower pressure systems where frequent maintenance or realignment is needed.

Material compatibility and corrosion resistance are also crucial. Loose flanges can be more cost-effective when using corrosion-resistant materials only for the stub end, while fixed flanges may require the entire flange to be made from such materials, increasing costs.

Ease of installation and maintenance is another consideration. Loose flanges offer easier installation and alignment, especially in complex piping layouts, whereas fixed flanges require precise alignment during installation and can be more labor-intensive to maintain.

Are there industry standards for using loose and fixed flanges?

Yes, there are industry standards for using loose and fixed flanges to ensure the integrity and reliability of piping systems across various sectors such as oil and gas, chemical processing, and food industries. These standards help in selecting the appropriate type of flange based on the application requirements.

For example, the American Society for Testing and Materials (ASTM) provides comprehensive standards for various flange types, including those used in high-pressure applications. The Deutsches Institut für Normung (DIN) standards, commonly used in Europe, specify dimensions, materials, and pressure ratings for flanges, including loose flanges under EN1092-1, which are often used for low-pressure applications. The International Organization for Standardization (ISO) also offers guidelines used internationally to ensure consistency across different regions and industries.

These standards ensure that both loose and fixed flanges meet necessary performance and safety criteria, helping professionals select the appropriate flange type for their specific applications.

How do loose and fixed flanges relate to different types of pipe fittings?

Loose and fixed flanges have distinct relationships with different types of pipe fittings due to their construction and application characteristics.

Loose flanges, also known as lap joint flanges, consist of a two-piece construction with a stub end and a backing flange. They can rotate around the stub end, making them highly flexible for alignment purposes. This flexibility is particularly advantageous when connecting pipes that may not be perfectly aligned, allowing for easier installation and disassembly. Therefore, loose flanges are commonly used with pipe fittings in low-pressure systems that require frequent maintenance or disassembly, such as those in food processing or water supply industries.

Fixed flanges, including weld neck flanges, are single-piece constructions welded directly to the pipe. They provide a robust and secure connection capable of handling high-pressure environments. Fixed flanges are often used with pipe fittings in high-pressure applications such as offshore oil rigs, chemical plants, and nuclear power plants, where the strength and integrity of the connection are paramount. Their installation demands precise alignment and skilled labor, and maintenance is more labor-intensive compared to loose flanges.
