Monel 400 vs Super Duplex Stainless Steel: Comprehensive Comparison

When it comes to selecting the right alloy for demanding environments, the choice between Monel 400 and Super Duplex Stainless Steel often sparks debate among engineers and materials scientists. These two powerhouse materials are renowned for their exceptional properties, but how do they stack up against each other? In this comprehensive comparison, we’ll delve into the intricate details of their chemical compositions, mechanical properties, weldability, and corrosion resistance. By examining their performance in various industries—from marine applications to the oil and gas sector—we aim to provide a clear understanding of which alloy might be the superior choice for your specific needs. So, which one reigns supreme in strength, resilience, and cost-effectiveness? Let’s dive in and explore the key differences and benefits that set Monel 400 and Super Duplex Stainless Steel apart.

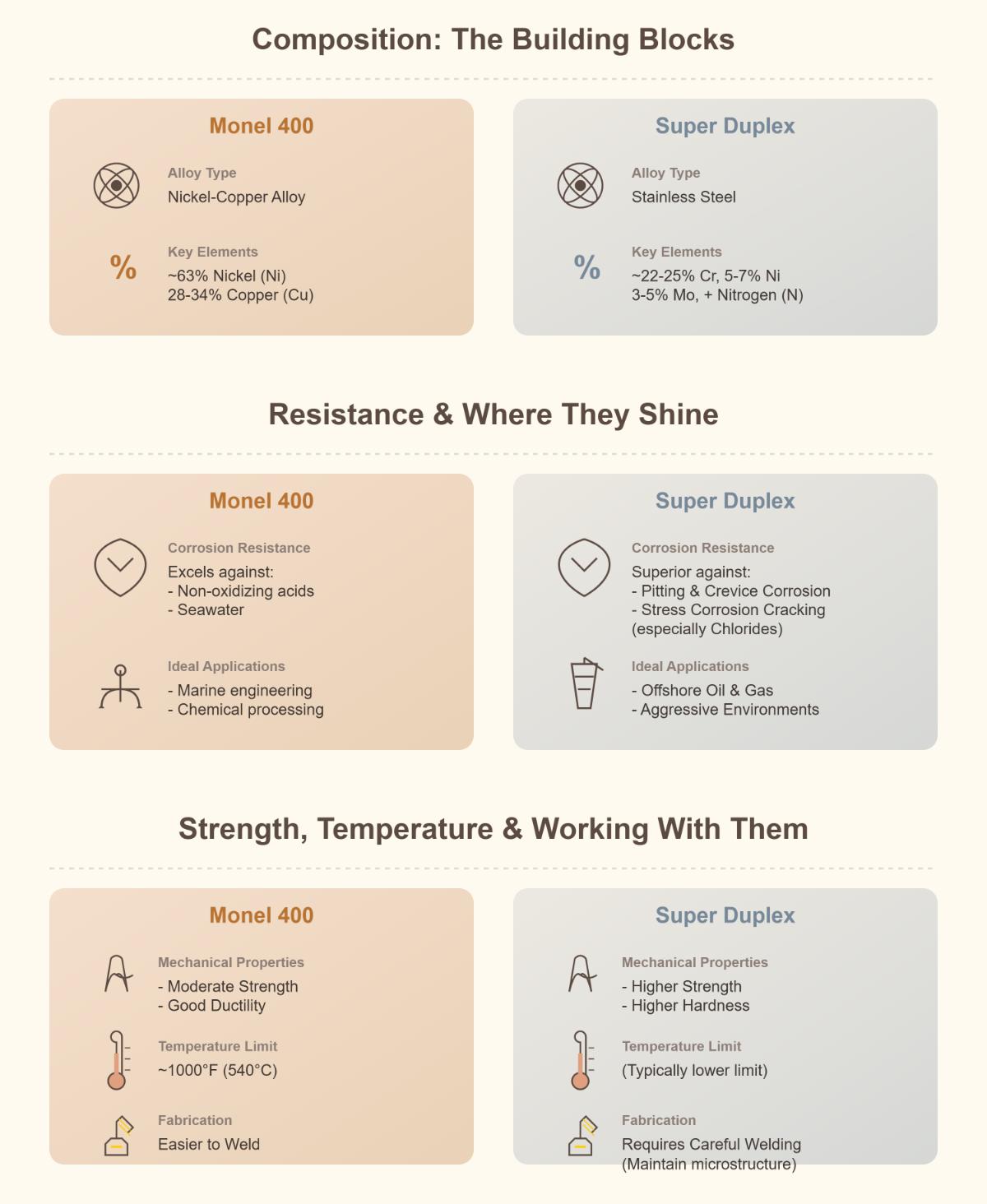

Introduction to Monel 400 and Super Duplex Stainless Steel

Monel 400 is a nickel-copper alloy known for its exceptional corrosion resistance and mechanical stability. Containing approximately 63% nickel and 28-34% copper, it forms a solid-solution alloy that gains strength through cold working.

Super Duplex Stainless Steel is a high-performance stainless steel featuring a unique dual-phase microstructure—a balanced mixture of austenitic and ferritic phases. It consists of around 22-25% chromium, 4-6% molybdenum, 5-7% nickel, and added nitrogen.

In marine engineering, Monel 400 is highly valued for its resistance to seawater and brackish water, making it ideal for constructing valves, pumps, and shafts where corrosion resistance and mechanical strength are crucial. In chemical processing, it is suitable for equipment like heat exchangers due to its ability to handle many reducing environments such as de-aerated hydrochloric and hydrofluoric acids.

Super Duplex Stainless Steel shines in highly corrosive environments. In the offshore oil and gas industry, it is used for equipment exposed to aggressive chloride and high-temperature conditions. In desalination plants, its resistance to pitting and crevice corrosion in chloride-rich environments is essential. Chemical and petrochemical processing also rely on Super Duplex Stainless Steel due to its excellent corrosion resistance and high strength.

Chemical Composition

Monel 400 is a nickel-copper alloy known for its high strength and excellent corrosion resistance. The typical chemical composition ranges are as follows: Nickel (63.0-70.0%), Copper (28.0-34.0%), Iron (up to 2.5%), Manganese (up to 2.0%), Carbon (up to 0.30%), Silicon (up to 0.50%), Sulfur (up to 0.024%), and Cobalt (up to 2.0%, often combined with Nickel). Silicon, up to 0.50%, helps with oxidation resistance and the deoxidation process.

Super Duplex Stainless Steel is primarily made of iron (60-65%), with significant amounts of chromium (24-26%), nickel (6-8%), and molybdenum (3-5%). It also contains nitrogen (0.15-0.30%), which strengthens the alloy and improves pitting resistance. Other elements include manganese (up to 2%), silicon (up to 1%), carbon (typically less than 0.03%), and trace amounts of other elements like niobium and titanium.

Monel 400 contains up to 0.3% carbon, while Super Duplex Stainless Steel has very low carbon content (typically less than 0.03%) to prevent corrosion.

Mechanical Properties

Room-Temperature Mechanical Properties

At room temperature, Monel 400 and Super Duplex Stainless Steel each have unique mechanical properties. Monel 400 has a tensile strength ranging from 450–620 MPa, while Super Duplex Stainless Steel has a significantly higher tensile strength of 750–880 MPa, indicating it can withstand greater pulling forces before breaking.

Monel 400’s yield strength ranges from 170–345 MPa, whereas Super Duplex Stainless Steel’s yield strength is 550–600 MPa, meaning it can endure more stress before permanent deformation.

Monel 400’s elongation of 35–50% is higher than Super Duplex Stainless Steel’s 25–35%, suggesting Monel 400 can stretch more before fracturing, indicating better ductility.

The modulus of elasticity of Monel 400 is 179 GPa, while Super Duplex Stainless Steel has a modulus of 200 GPa. A higher modulus of elasticity implies that Super Duplex Stainless Steel is stiffer and less likely to deform elastically under stress.

For hardness, Monel 400 has a hardness of 75 HRB (annealed), while Super Duplex Stainless Steel has a hardness of 28–32 HRC. The Rockwell C scale (HRC) is generally used for harder materials, indicating that Super Duplex Stainless Steel is harder than Monel 400.

Cryogenic and Elevated Temperature Performance

Under cryogenic conditions, Monel 400 retains its ductility down to liquid helium temperatures (-269°C), and its tensile strength increases to approximately 900 MPa at -196°C. In contrast, Super Duplex Stainless Steel has limited data for cryogenic performance and has an embrittlement risk below -50°C due to its ferrite phase.

At elevated temperatures, Monel 400’s tensile strength gradually declines; for example, it drops to about 370 MPa at 426°C. Super Duplex Stainless Steel can retain its strength up to around 300°C, but it is prone to σ-phase embrittlement above 600°C.

Toughness and Impact Resistance

In terms of toughness and impact resistance, Monel 400 shows excellent performance. It has a Charpy V-Notch value of over 100 J at -196°C and can withstand torsion impact without fracturing even at a 75% reduced cross-section. Super Duplex Stainless Steel has a Charpy V-Notch value of about 80–100 J at room temperature, but this value drops significantly at sub-zero temperatures.

Work Hardening and Fabrication

Monel 400 responds well to cold work and can harden efficiently. For example, its cold-rolled tensile strength can reach up to 900 MPa. Its weldability requires low heat input, and post-weld annealing is optional.

Super Duplex Stainless Steel has limited cold workability due to its high strength, and welding requires strict heat control to maintain phase balance, with post-weld heat treatment often needed.

Weldability

Material Composition and Impact on Weldability

Monel 400

Monel 400 is a nickel-copper alloy, made up of about 67% nickel and 23% copper. It’s well-known for its great corrosion resistance and strong structure. The simplicity of its metallurgical makeup contributes to its relatively straightforward weldability. The high nickel content in the alloy helps maintain its ductility and toughness during welding.

Super Duplex Stainless Steel

Super Duplex Stainless Steel features a dual-phase microstructure, with roughly equal parts austenite and ferrite. This alloy includes significant amounts of chromium, molybdenum, and nitrogen, which enhance its corrosion resistance and strength. These elements make the alloy more sensitive to changes caused by welding heat, so it’s important to carefully control the welding parameters.

Welding Processes and Filler Metal Requirements

Monel 400

Monel 400 can be welded using standard methods like GTAW/TIG, GMAW/MIG, SMAW, and SAW, and it’s recommended to use matching nickel-copper based filler metals such as ERNiCu-7. No post-weld heat treatment is needed, which simplifies the fabrication process. It is crucial to control the welding parameters, especially arc length, to avoid embrittlement and porosity. Thorough cleaning before and after welding is essential to maintain corrosion resistance and prevent contamination-induced defects.

Super Duplex Stainless Steel

Welding Super Duplex Stainless Steel requires specialized control due to its complex microstructure. Preferred methods include GTAW and GMAW, with low heat input to prevent excessive ferrite or sigma phase formation, which can lead to embrittlement. Filler metals specifically designed for duplex grades are necessary to maintain the balanced phase ratios and corrosion resistance. Post-weld heat treatment or controlled interpass temperatures may be required to restore microstructural balance and mechanical properties.

Weldability Challenges

Mechanical Properties and Impact on Weld Integrity

Monel 400

Monel 400 welds exhibit good ductility, toughness, and strength, with welds typically fracturing in the weld zone without anisotropy. The alloy’s simple metallurgical structure contributes to consistent mechanical properties post-weld, making it a reliable material for various applications.

Super Duplex Stainless Steel

Super Duplex Stainless Steel welds can suffer from reduced toughness and strength if the phase balance is not maintained. Stringent welding procedure controls are necessary to ensure that the mechanical properties of the weld match those of the base material. This makes welding Super Duplex Stainless Steel more challenging but essential for applications requiring high strength and corrosion resistance.

Corrosion Resistance

Corrosion Resistance in Reducing Acids

Monel 400 showcases excellent resistance to sulfuric and hydrochloric acids under reducing conditions. Monel 400 performs better than SDSS in highly reducing acid environments, making it a prime choice for handling hydrofluoric and sulfurous acids. In contrast, SDSS has moderate resistance to reducing acids, which is less than that of Monel 400 in concentrated acidic settings.

Marine/Seawater Resistance

Monel 400 demonstrates remarkable resistance in flowing seawater and rapidly flowing brackish water. It has low corrosion rates and good resistance to stress corrosion cracking in most fresh waters. However, it is susceptible to crevice and pitting corrosion in stagnant seawater. SDSS, on the other hand, offers excellent pitting and crevice corrosion resistance even in stagnant seawater, thanks to its high chromium and molybdenum content.

Chloride Stress Corrosion Cracking (SCC)

Monel 400 is highly resistant to SCC in fresh water and also shows resistance to chloride SCC. Monel 400 usually has better SCC resistance than SDSS in fresh waters. SDSS, however, has excellent SCC resistance in chloride environments, which is better than standard stainless steels, though slightly less effective than Monel 400 in fresh-water scenarios.

Oxidizing Media Resistance

Monel 400 resists oxidizing media well, but performs badly in strongly oxidizing salts and acids like ferric chloride and hypochlorites. SDSS has superior resistance to oxidizing media due to its higher chromium content, outperforming Monel 400 in such conditions.

Alkalis and Organic Acids

Monel 400 offers excellent resistance to a variety of organic acids and is efficient against caustic soda across all concentrations. SDSS has good resistance to these substances but is generally less resistant than Monel 400 for some organic acids.

Temperature Range

Monel 400 can be used up to approximately 538°C (1000°F) without significant loss of corrosion resistance or mechanical properties. Typically, SDSS can be used up to 600 – 650°C (1112 – 1202°F), but its corrosion resistance drops at high temperatures.

Applications

Monel 400 Applications

Marine Engineering

Monel 400 is highly valued in marine engineering because of its exceptional resistance to seawater corrosion. It is commonly used in the construction of valves, pumps, propeller shafts, and hull fittings. These components benefit from Monel 400’s ability to withstand the harsh marine environment, ensuring long-lasting performance and minimal maintenance requirements.

Chemical Processing

In the chemical processing industry, Monel 400 is favored for its ability to handle a wide range of corrosive environments. It is used in chemical reactors, heat exchangers, and piping systems, where it can resist the corrosive effects of various acids and alkalis, particularly hydrofluoric and sulfuric acids. This makes Monel 400 a reliable choice for critical chemical processing equipment.

Power Generation

Monel 400 finds applications in power generation, particularly in boilers and heat exchangers. Its high-temperature corrosion resistance allows it to perform well in the tough conditions of power plants. This alloy ensures reliable operation and longevity of components exposed to high temperatures and corrosive media.

Electronics

Monel 400 is used in the electronics industry for making electrical connectors and switches due to its excellent electrical conductivity and corrosion resistance. Its ability to maintain performance in harsh environments makes it suitable for critical electronic components that require both durability and reliability.

Super Duplex Stainless Steel Applications

Marine and Offshore

Super Duplex Stainless Steel is extensively used in marine and offshore applications due to its superior resistance to seawater corrosion and stress corrosion cracking. It is commonly employed in piping systems, flanges, and fittings. These components benefit from the alloy’s ability to withstand the aggressive conditions of marine environments, ensuring structural integrity and longevity.

Chemical Processing

In the chemical processing industry, Super Duplex Stainless Steel is used for process vessels, storage tanks, and piping systems. Its excellent resistance to chloride-induced stress corrosion cracking and pitting makes it ideal for handling corrosive substances. The alloy’s high strength and durability ensure reliable performance in demanding chemical processing applications.

Oil and Gas

The oil and gas industry relies on Super Duplex Stainless Steel for drilling and production equipment because of its high yield strength and resistance to corrosive environments. Its ability to maintain structural integrity under high pressures and corrosive media ensures the safe and efficient operation of oil and gas extraction and processing equipment.

Desalination Plants

Super Duplex Stainless Steel is utilized in desalination plants for seawater intake and treatment processes. Its resistance to pitting and crevice corrosion in chloride-rich environments makes it an ideal material for components exposed to seawater. This alloy ensures the longevity and reliability of desalination equipment, which is critical for producing fresh water from seawater.

Comparative Analysis of Applications

Both Monel 400 and Super Duplex Stainless Steel are used in applications where corrosion resistance is paramount. Monel 400 excels in environments with reducing acids and seawater, making it a preferred choice for marine engineering and chemical processing. On the other hand, Super Duplex Stainless Steel offers superior resistance to chloride-induced stress corrosion cracking, making it ideal for marine, offshore, and chemical processing applications. Additionally, its high strength and durability make it suitable for the demanding conditions of the oil and gas industry and desalination plants.

Cost Considerations

Material Costs

When evaluating the costs of Monel 400 and Super Duplex stainless steel, it’s essential to consider the material composition and market prices.

• Monel 400: This alloy is generally more expensive due to its high nickel and copper content. For instance, Monel 400 seamless pipes typically cost between $50,000 and $51,500 per ton. The high price of nickel and copper significantly contributes to its
• Super Duplex: In contrast, Super Duplex stainless steel is less expensive, with prices typically ranging from $10,500 to $17,500 per ton. This cost variance is due to its balanced composition of chromium, molybdenum, and nitrogen, which are generally less expensive than nickel.

Fabrication and Processing Costs

The fabrication and processing costs of these materials also differ due to their unique properties and requirements.

• Monel 400: This alloy is easier to weld thanks to its nickel – copper composition, which reduces the risk of hot cracking. However, specialized welding techniques may be needed to prevent cracking, adding to the
• Super Duplex: While Super Duplex can also be welded, it requires careful control of welding parameters to avoid harmful phases that could affect corrosion resistance. Super Duplex’s higher strength may require stronger fabrication equipment, which can raise costs for complex projects.

Maintenance and Lifespan Costs

Long – term maintenance and lifespan costs are crucial factors in determining the

• Corrosion Resistance: Monel 400 is renowned for its superior corrosion resistance, particularly in chloride – bearing environments like seawater. This can extend its lifespan and reduce maintenance costs in such applications. Super Duplex also offers excellent corrosion resistance, making it suitable for environments with high chloride concentrations, such as the oil and gas industry.

• Strength and Durability: Super Duplex boasts higher mechanical strength than Monel 400, leading to potentially longer lifespans in high – stress applications. This reduces the need for frequent replacements or repairs, helping balance the initial cost differences.

Application – Specific Considerations

Different applications may favor one material over the other, as cost – effectiveness depends on the specific requirements and conditions.

• Marine and Chemical Processing: Monel 400 is often preferred in marine environments due to its excellent corrosion resistance in seawater, despite its higher initial cost. In chemical processing, where corrosion resistance is critical, Monel 400’s superior properties might justify its cost.

• High – Pressure and High – Temperature Applications: Super Duplex is favored in applications requiring high mechanical strength and resistance to corrosion, such as subsea pipelines and offshore platforms. Here, its lower cost compared to Monel 400 can be advantageous.

Selecting between Monel 400 and Super Duplex stainless steel requires weighing initial costs against long – term benefits and maintenance needs.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the main differences between Monel 400 and Super Duplex stainless steel?

Monel 400 and Super Duplex stainless steel are both high-performance alloys, but they differ significantly in composition, mechanical properties, and application suitability. Monel 400 is a nickel-copper alloy, primarily composed of approximately 63% nickel and 28-34% copper. It excels in resistance to non-oxidizing acids and seawater, making it ideal for marine and chemical processing applications. It has moderate tensile strength, good ductility, and can be used up to temperatures around 1000°F (540°C).

In contrast, Super Duplex stainless steel contains approximately 22-25% chromium, 5-7% nickel, and 3-5% molybdenum, with added nitrogen to enhance corrosion resistance and strength. It offers superior resistance to pitting, crevice corrosion, and stress corrosion cracking, particularly in chloride-rich environments. Super Duplex stainless steel also has higher tensile strength and hardness compared to Monel 400 and can be used in more aggressive environments, such as offshore oil and gas infrastructure.

While Monel 400 is easier to weld and fabricate, Super Duplex requires careful welding procedures to maintain its duplex microstructure.

Which material has better corrosion resistance, Monel 400 or Super Duplex?

Monel 400 and Super Duplex stainless steel both offer excellent corrosion resistance, but they excel in different environments. Monel 400, a nickel-copper alloy, is particularly resistant to chloride-induced stress corrosion cracking (SCC) and performs well in reducing environments, such as de-aerated hydrochloric and hydrofluoric acids. However, it is less effective against oxidizing acids like nitric acid.

On the other hand, Super Duplex stainless steel, with its high chromium, molybdenum, and nitrogen content, provides superior resistance to pitting and crevice corrosion, especially in chloride-rich environments like seawater. Its balanced austenitic-ferritic structure also contributes to its robustness in oxidizing acids.

Which alloy is stronger, Monel 400 or Super Duplex?

Super Duplex Stainless Steel is generally stronger than Monel 400. In terms of tensile strength, Super Duplex Stainless Steel typically ranges between 100-130 ksi (690-896 MPa), whereas Monel 400 exhibits a tensile strength of approximately 75-90 ksi (517-620 MPa). Additionally, the yield strength of Super Duplex Stainless Steel is higher, typically around 70-90 ksi (483-620 MPa), compared to Monel 400’s yield strength of 25-50 ksi (172-345 MPa). This makes Super Duplex Stainless Steel the superior choice for applications requiring higher mechanical strength. However, the selection of an alloy should also consider other factors like corrosion resistance and specific application needs, as discussed earlier.

What are the typical applications for Monel 400 and Super Duplex alloys?

Monel 400 and Super Duplex Stainless Steel each have distinct applications due to their unique properties.

Monel 400, a nickel-copper alloy, is extensively used in marine engineering for components like pumps, valves, and propeller shafts due to its excellent resistance to seawater corrosion. It is also prevalent in chemical processing for reactors, heat exchangers, and piping systems, thanks to its resistance to acids and alkalis. In the petroleum industry, Monel 400 is used in crude oil distillation towers and other equipment exposed to corrosive environments. Additionally, its ability to withstand high temperatures makes it suitable for power generation applications, such as boilers and heat exchangers.

Super Duplex Stainless Steel, characterized by its high strength and resistance to chloride-induced corrosion, is commonly employed in marine and offshore applications for pipelines and fittings exposed to seawater. It is also used in chemical processing environments that require resistance to chloride-induced corrosion. In the oil and gas industry, Super Duplex is favored for processing equipment that must endure corrosive and high-pressure conditions. Its resistance to seawater also makes it ideal for components in desalination plants.

Both materials offer robust solutions for harsh environments, with Monel 400 excelling in marine and chemical contexts, while Super Duplex Stainless Steel is preferred for high-strength applications in marine, chemical, and oil and gas sectors.

How do the costs of Monel 400 and Super Duplex compare?

Monel 400 is generally more expensive than Super Duplex stainless steel. This is due to its high nickel content, a costly element, and a more complex production process requiring precise control over trace elements. Monel 400 seamless pipes can cost between $50,000 – $51,500 USD per ton. In contrast, Super Duplex stainless steel pipes, like UNS S32750, cost between $15,000 – $17,000 USD per ton for seamless pipes and $14,500 – $16,000 USD per ton for welded pipes. Although Monel 400 has a higher upfront cost, its superior corrosion resistance may lead to long – term savings.

How do Monel 400 and Super Duplex perform under high temperatures?

Monel 400 can maintain good mechanical properties from subzero temperatures up to about 538°C (1000°F), retaining strength and ductility at high temperatures. It’s highly corrosion – resistant in seawater, steam, and various acids. In contrast, Super Duplex stainless steel generally operates effectively up to around 250 – 300°C (482 – 572°F). It has higher thermal conductivity but is more susceptible to thermal shock. While it offers excellent corrosion resistance in chloride environments, it may not match Monel 400’s performance in certain acidic or seawater conditions at high temperatures. Overall, Monel 400 outperforms Super Duplex in high – temperature applications.
