S5 vs S7 Tool Steel: Comprehensive Comparison Guide

When it comes to tool steel, selecting the right grade can significantly impact the performance and durability of your tools. S5 and S7 tool steels are two popular choices, each with unique properties and advantages. But how do they stack up against each other? In this comprehensive comparison guide, we’ll delve into the nitty-gritty details that matter to you. We’ll explore their differences in composition, hardness, wear resistance, and typical applications, providing you with the insights needed to make an informed decision. Whether you’re looking for superior impact resistance or optimal wear characteristics, understanding the specifics of S5 and S7 tool steels will help you choose the best material for your needs. Ready to discover which tool steel reigns supreme? Let’s dive in!

Introduction to Tool Steel

Definition and General Properties of Tool Steel

Tool steel is a category of carbon and alloy steels that are specifically designed for making tools. Its unique properties make it suitable for cutting, shaping, and forming other materials. Tool steels are characterized by their hardness, resistance to abrasion, ability to hold a cutting edge, and their resistance to deformation at high temperatures. These properties are achieved through the addition of various alloying elements and specific heat treatment processes.

Key Characteristics of Tool Steel

• Hardness: Tool steels can be hardened to a significant degree, making them capable of withstanding high levels of mechanical wear.
• Toughness: They possess sufficient toughness to resist breaking or chipping under stress.
• Wear Resistance: The ability to resist wear is crucial for tools that undergo repetitive use.
• Heat Resistance: Tool steels maintain their properties at elevated temperatures, which is essential for high-speed cutting and machining operations.

Importance of Tool Steel in Manufacturing and Metalworking

Tool steel is essential in manufacturing and metalworking due to its unique properties. It is used to create tools and dies that cut, shape, and form materials into finished products. The reliability and performance of these tools directly affect the efficiency and quality of manufacturing processes.

Applications of Tool Steel

Tool steel is used for cutting tools, forming tools, molds and dies, and shear blades, all of which require high wear resistance and toughness. These applications include:

• Cutting Tools: Drills, saw blades, and milling cutters that require sharp edges and high wear resistance.
• Forming Tools: Tools used in stamping, punching, and forging operations where high impact resistance and toughness are essential.
• Molds and Dies: Employed in injection molding and die-casting processes, requiring high wear resistance and dimensional stability at high temperatures.
• Shear Blades: Utilized in cutting operations, demanding excellent hardness and edge retention.

Comparative Analysis: Tool Steel Types

Tool steels are categorized based on their alloying elements and intended applications. Common types include:

Water-Hardening (W-Series)

• Composition: High carbon content and low alloying elements.
• Properties: High hardness and wear resistance but relatively low toughness.
• Applications: Simple tools like chisels and cutters.

Cold-Work (O, A, D-Series)

• Composition: Medium to high carbon content with alloying elements such as chromium, tungsten, and molybdenum.
• Properties: Excellent wear resistance and moderate toughness.
• Applications: Dies, punches, and shear blades for room temperature operations.

Hot-Work (H-Series)

• Composition: High alloy content with elements like chromium, tungsten, and vanadium.
• Properties: High heat resistance and toughness.
• Applications: Tools used in high-temperature environments like forging and die-casting.

High-Speed (T, M-Series)

• Composition: High levels of tungsten, molybdenum, and vanadium.
• Properties: These steels retain their hardness at high temperatures, making them ideal for cutting tools like drills and saw blades.
• Applications: Drills, end mills, and saw blades.

Special Purpose (S-Series)

• Composition: Varied alloy content tailored for specific applications.
• Properties: Balances between toughness, hardness, and resistance to thermal fatigue.
• Applications: Shock-resistant tools like chisels and punches.

Overview of S5 and S7 Tool Steel

Among the special-purpose tool steels, S5 and S7 are notable for their unique properties and specific applications. They are both designed to withstand high impact and shock loads, making them ideal for demanding industrial uses. Their detailed comparative analysis will be explored in subsequent sections, focusing on composition, mechanical properties, heat treatment, and application areas.

Overview of S5 Tool Steel

S5 tool steel, known for its high toughness and wear resistance, is often referred to as silicon-manganese tool steel. S5 tool steel is composed of the following key elements:

• Carbon (0.60%): Contributes to hardness and strength.
• Manganese (0.90%): Enhances toughness and hardenability.
• Silicon (1.90%): Increases strength and wear resistance.
• Chromium (0.18%): Provides some corrosion resistance and hardenability.
• Molybdenum (0.35%): Adds to the steel’s toughness and resistance to wear.
• Vanadium (0.28%): Improves resistance to shock and wear.

This combination of elements ensures that S5 tool steel exhibits excellent toughness, making it ideal for applications requiring high impact resistance.

Mechanical Properties

S5 tool steel can be hardened to a maximum Rockwell C hardness of approximately 62, which makes it suitable for applications involving significant wear and the need for a sharp cutting edge. The presence of silicon and manganese in S5 tool steel greatly enhances its wear resistance, making it ideal for use in tools that undergo frequent contact and abrasion.

The high silicon and manganese content give S5 tool steel its exceptional ability to absorb and withstand high-impact forces without fracturing.

Heat Treatment Process

S5 tool steel is typically hardened using an oil quench process, which involves preheating the steel to 1150-1250°F (621-677°C) to reduce thermal shock, then heating it to 1600-1700°F (871-927°C) to form austenite, rapidly cooling it in oil to achieve desired hardness, and finally tempering it to relieve internal stresses and achieve the desired balance of hardness and toughness. The tempering process typically involves heating the steel to a temperature between 400-600°F (204-316°C) and holding it at that temperature for a specified period, depending on the required properties. This final step ensures that the S5 tool steel attains the optimal combination of strength, durability, and resistance to wear, making it suitable for applications such as chisels, punches, and other tools that require high impact resistance.

Typical Applications

S5 tool steel is utilized in a variety of applications where high impact resistance and wear resistance are critical. Common applications include:

• Pneumatic Tools: Used in construction and automotive repair for their durability and shock resistance.
• Shear Blades: Employed in cutting applications due to their sharpness and wear resistance.
• Heavy-Duty Punches: Ideal for stamping and forming operations requiring high impact resistance.
• Bearing Races: Utilized in mechanical systems for their precision and durability, ensuring long-lasting performance.

These applications leverage the unique properties of S5 tool steel, making it a preferred choice for tools that experience high levels of mechanical stress and impact.

Overview of S7 Tool Steel

S7 tool steel is known for its high strength, shock resistance, and ability to harden in air.

Composition and Key Elements

It is composed of several key elements that contribute to its unique properties: Carbon (0.45-0.55%) for hardness and strength, Chromium (3.0-3.5%) for hardenability and corrosion resistance, Molybdenum (1.3-1.8%) for toughness and wear resistance, Manganese (0.2-0.8%) for hardenability and wear resistance, and Silicon (0.2-0.5%) for added strength and hardness.

Mechanical Properties

S7 tool steel is known for its outstanding mechanical properties, which include:

• Hardness: It can achieve a Rockwell C hardness of 55-60 HRC when properly heat treated. This hardness makes it suitable for applications requiring a durable and wear-resistant material.
• Impact Resistance: S7’s superior impact resistance is crucial for tools that experience high shock loads.
• Wear Resistance: Although not as high as some other tool steels, S7 provides adequate wear resistance, making it suitable for moderate wear applications.
• Toughness: The combination of alloying elements gives S7 excellent toughness, allowing it to withstand significant stress and deformation without cracking.

Heat Treatment Process

The heat treatment process for S7 tool steel involves several steps to achieve optimal hardness and toughness:

• Preheating: The steel is preheated to 1200-1300°F (649-704°C) to reduce thermal shock.
• Heating to a High Temperature: It is then heated to 1725-1775°F (941-968°C) to transform its structure.
• Quenching: The steel is air-quenched to room temperature, which hardens it.
• Reheating at a Lower Temperature:


  Typical Applications

S7 tool steel is used in various high-performance applications where durability and resistance to shock and wear are essential. Common applications include:

• Cutting Tools: Keyway cutting tools, slitting saws, and broaches.
• Molds: Injection molds for plastic and extrusion dies.
• Die Casting: Die casting dies for aluminum and zinc.
• Press Tools: Blanking dies and forming tools.
• Mining Tools: Drill bits and drill rods.
• Automotive and Aerospace: Tools for manufacturing wheel hubs, punching dies, camshaft dies, and aerospace forging dies.

S7 tool steel’s unique combination of hardness, toughness, and impact resistance makes it a preferred choice for tools that must endure extreme conditions and maintain performance.

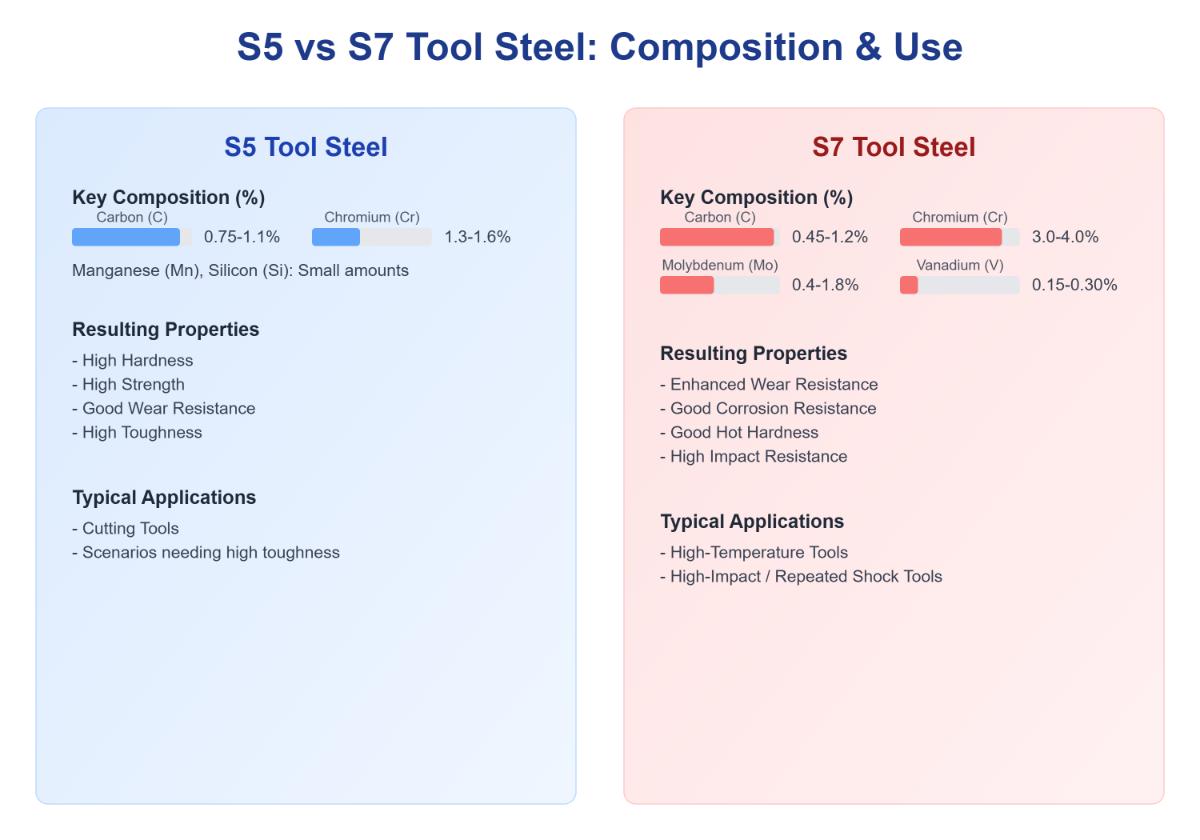

Comparative Analysis: S5 vs S7 Tool Steel

Composition Differences

S5 Tool Steel Composition

S5 tool steel, also known as silicon-manganese tool steel, is composed of the following elements:

• Carbon: 0.60-0.85%
• Manganese: 0.90%
• Silicon: 1.90%
• Chromium: 0.18%
• Molybdenum: 0.35%
• Vanadium: 0.28%

S7 Tool Steel Composition

S7 tool steel includes:

• Carbon: 0.45-0.55%
• Chromium: 3.0-3.5%
• Molybdenum: 1.3-1.8%
• Manganese: 0.2-0.8%
• Silicon: 0.2-0.5%

The composition of S5 provides high toughness and wear resistance for impact-heavy applications, while S7’s composition enhances shock resistance and maintains hardness at elevated temperatures for high-stress and high-temperature uses.

Mechanical Properties Comparison

Hardness

• S5 Tool Steel: Achieves a Rockwell C hardness of 55-62 HRC.
• S7 Tool Steel: Exhibits a Rockwell C hardness of 58-65 HRC.

S7’s higher hardness makes it ideal for applications needing superior wear resistance and a sharp cutting edge.

Wear Resistance

• S5 Tool Steel: Offers excellent wear resistance due to its silicon and manganese content.
• S7 Tool Steel: Provides good wear resistance, though not as high as some other tool steels, it is adequate for moderate wear applications.

Impact Resistance

• S5 Tool Steel: Known for its exceptional impact resistance, making it ideal for tools that experience sudden and intense impacts.
• S7 Tool Steel: Offers superior shock resistance, which is critical for high-impact applications such as chisels and punches.

Heat Treatment Comparison

S5 Tool Steel

• Quenching: Hardened using oil quenching.
• Tempering: Typically tempered to relieve internal stresses and enhance toughness.

S7 Tool Steel

• Air-Hardening: Can be air-hardened, simplifying the heat treatment process.
• Double Tempering: Often undergoes a double tempering process for optimal performance.

S7’s air-hardening capability simplifies the heat treatment process, making it more convenient for certain applications.

Application Areas

Specific Use Cases for S5

• Pneumatic Tools: Utilized in construction and automotive repair due to high impact resistance.
• Shear Blades: Ideal for cutting applications requiring sharpness and wear resistance.
• Heavy-Duty Punches: Suitable for stamping and forming operations.

Specific Use Cases for S7

• Cutting Tools: Used in keyway cutting tools, slitting saws, and broaches.
• Molds and Dies: Employed in injection molds and die-casting dies for aluminum and zinc.
• Press Tools: Suitable for blanking dies and forming tools in high-stress environments.

Guidance on Selecting the Right Tool Steel for Specific Tasks

Choose S5 tool steel for its exceptional toughness in high-impact situations, and opt for S7 tool steel for high hardness and shock resistance, particularly in high-temperature and high-stress environments. Selecting the appropriate tool steel ensures optimal performance and longevity of the tools in their respective applications.

Cost Analysis

Introduction to Cost Analysis

Evaluating the costs of S5 and S7 tool steels requires considering several factors that affect their pricing and cost-effectiveness. This analysis delves into these aspects, providing a comparative overview that includes raw material costs, heat treatment complexity, and application-specific requirements.

Raw Material Costs

The cost of raw materials significantly impacts the pricing of tool steels.

• S5 Tool Steel: S5 is made of silicon, manganese, and moderate amounts of chromium and molybdenum, resulting in lower material costs due to its simpler composition.
• S7 Tool Steel: Contains higher levels of chromium, molybdenum, and vanadium, which are more expensive and contribute to a higher


  Heat Treatment Complexity

Heat treatment processes are essential for achieving the desired properties in tool steels, and they also influence the cost.

• S5 Tool Steel: Typically quenched in oil or water followed by tempering, S5 has a straightforward heat treatment process which helps in keeping costs relatively low.
• S7 Tool Steel: Requires a more complex heat treatment involving oil quenching and double tempering, which increases the processing costs.

Application-Specific Requirements

The intended application of tool steel can justify its cost based on the performance benefits it offers.

• S5 Tool Steel: Known for high toughness and wear resistance, S5 is cost-effective for applications requiring durability and impact resistance, such as pneumatic tools and shear blades.
• S7 Tool Steel: Offers superior shock resistance and hot hardness, making it suitable for high-temperature applications like die casting and molds. Despite its higher upfront cost, S7’s performance in extreme conditions can lead to cost savings in the long run due to reduced tool wear and maintenance.

Market Demand and Supply

Market dynamics play a role in the pricing of tool steels.

• S5 Tool Steel: Generally has stable pricing due to consistent demand across various industries.
• S7 Tool Steel: High demand for high-performance tool steels in specialized industries can cause price fluctuations, affecting manufacturing costs and overall production budgets.

Cost Comparison

• General Pricing: S7 tool steel tends to be more expensive than S5 due to its complex composition and heat treatment requirements.
• Industry-Specific Costs: In industries needing high-temperature resistance and superior shock absorption, S7 may be more cost-effective over time despite its higher initial cost, helping manufacturers and engineers make informed decisions by balancing initial costs with long-term benefits.

Economic and Sustainability Considerations

Economic Considerations

Material Cost

Material cost is a significant factor when comparing the economic aspects of S5 and S7 tool steels. S5 tool steel is generally more cost-effective due to its simpler composition with fewer expensive alloying elements like chromium and molybdenum, whereas S7 tool steel contains higher amounts of these elements, making it more expensive. Despite this, the superior shock resistance and hot hardness of S7 may justify its higher price in applications where these properties are critical.

Manufacturing Complexity

The complexity of the manufacturing process also affects the overall cost and feasibility of using S5 and S7 tool steels. S5 tool steel, with its simpler alloy composition, is generally easier and less costly to manufacture. It requires fewer specialized processes and treatments, which can streamline production and reduce expenses.

Durability and Longevity

Durability and longevity are crucial economic considerations. S5 tool steel offers excellent wear resistance and impact toughness, making it durable for high-speed cutting applications. S7 tool steel, with its superior shock resistance and ability to maintain performance at high temperatures, can lead to longer tool life in demanding environments. This increased longevity can offset the higher initial cost of S7 by reducing the frequency of tool replacements and maintenance.

Sustainability Considerations

Resource Efficiency

Resource efficiency is an important aspect of sustainability. Both S5 and S7 tool steels are designed to maximize performance with minimal material usage. However, S7’s higher content of chromium and molybdenum may require more resources for production. Despite this, the high performance of S7 can lead to longer tool life, reducing the need for frequent replacements and thereby offsetting the initial resource investment. This extended tool life can contribute to overall resource efficiency by minimizing waste and reducing the environmental impact associated with manufacturing and disposing of tools.

Environmental Impact

The simpler composition and heat treatment process of S5 tool steel might require less energy, making it a more environmentally friendly option. In contrast, S7 tool steel’s more complex composition and heat treatment process may result in higher energy consumption. However, the durability of both steels reduces waste by extending tool lifespan, with S7 further minimizing waste through reduced tool replacements in high-temperature applications.

End-of-Life Disposal

Both S5 and S7 tool steels are recyclable, which helps reduce waste and conserve resources. Recycling is preferred over disposal to minimize environmental hazards. The energy required for recycling may vary based on the specific alloy composition, with S7 potentially requiring more energy due to its higher alloy content.

Practical Examples and Case Studies

High-Speed Cutting Tools

A manufacturing company adopted S5 tool steel for their high-speed cutting operations, specifically for drill bits and milling cutters. They observed a significant improvement in tool longevity and wear resistance compared to previous materials used. This change reduced the frequency of tool replacements and maintenance, resulting in lower operational costs and higher productivity. The high impact resistance and toughness of S5 tool steel allowed the tools to maintain sharp cutting edges even under intense operating conditions.

High-Temperature Machining

A tooling company faced challenges with their high-temperature machining applications, particularly in the production of hot work tools like forging and extrusion dies, and opted to use S7 tool steel for its superior hot hardness and shock resistance. The S7 tool steel maintained its mechanical properties at elevated temperatures, which was critical for the company’s needs. This decision led to improved dimensional stability and a reduction in tool deformation during high-temperature operations, enhancing the overall efficiency and lifespan of the tools.

Impact Tools

In producing impact tools like pneumatic tools and chisels, a tool manufacturing company compared S5 and S7 tool steels. S5 tool steel was chosen for its exceptional toughness and ability to withstand repeated high-impact forces, making it ideal for pneumatic tools used in construction and automotive repair. For chisels and punches, where both impact resistance and shock resistance are crucial, S7 tool steel was preferred. The S7 tools demonstrated superior performance in high-stress environments, maintaining their structural integrity and sharpness over extended use.

Die Casting Applications

An automotive parts manufacturer needed durable, heat-resistant dies for their die-casting processes and chose S7 tool steel for its excellent shock resistance. The use of S7 tool steel in the die-casting dies resulted in fewer die failures and longer tool life, significantly reducing downtime and maintenance costs. The enhanced performance of S7 tool steel in this demanding application underscored its suitability for high-temperature and high-impact environments.

Shear Blades and Punches

A metal fabrication company needed reliable shear blades and heavy-duty punches for their stamping operations. They experimented with both S5 and S7 tool steels to determine the best fit for their requirements. S5 tool steel was found to be highly effective for shear blades due to its sharpness and wear resistance, which are essential for clean and precise cutting. For heavy-duty punches, S7 tool steel provided the necessary shock resistance and hardness to withstand the repetitive high-impact forces during stamping. The combination of S5 for shear blades and S7 for punches optimized their tooling performance and durability.

Case Study: Aerospace Manufacturing

An aerospace manufacturing company faced difficulties in producing components that required high precision and resistance to extreme conditions, leading them to use S7 tool steel for their forging dies. The S7 tool steel’s ability to maintain hardness and resist thermal softening at high temperatures ensured the production of high-quality, dimensionally stable parts. This application demonstrated the critical role of S7 tool steel in industries where both high performance and reliability are paramount.

Case Study: Automotive Industry

In the automotive industry, a company producing wheel hubs and camshaft dies needed materials that could endure significant stress and impact. They chose S7 tool steel for its superior shock resistance and ability to withstand the harsh conditions of the manufacturing process. The use of S7 tool steel resulted in longer-lasting dies and reduced production interruptions, showcasing its effectiveness in automotive manufacturing applications.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the differences in composition between S5 and S7 tool steel?

S5 and S7 tool steels differ significantly in their chemical composition, impacting their mechanical properties and applications. S5 tool steel contains approximately 0.75-1.1% carbon, 1.3-1.6% chromium, and small amounts of manganese and silicon. This composition provides S5 with high hardness, strength, and wear resistance, making it suitable for cutting tools and applications requiring high toughness.

In contrast, S7 tool steel has a carbon content of 0.45-1.2%, a higher chromium content of 3.00-4.00%, and includes 0.4-1.8% molybdenum and 0.15-0.30% vanadium. These elements enhance S7’s wear resistance, corrosion resistance, and hot hardness, making it ideal for high-temperature and high-impact applications, such as tools subjected to repeated shocks.

How do S5 and S7 tool steels compare in terms of hardness and wear resistance?

S5 and S7 tool steels have distinct characteristics in terms of hardness and wear resistance, making them suitable for different applications. After heat treatment, S5 tool steel can achieve a maximum hardness of approximately Rockwell C 62-64, while S7 tool steel can reach a slightly higher hardness of Rockwell C 63-65. This slight difference makes S7 tool steel more favorable for applications requiring superior hardness and toughness.

In terms of wear resistance, S5 tool steel is known for its exceptional performance, making it ideal for high-speed cutting and other wear-resistant applications due to its high carbon and chromium content. S7 tool steel, while also offering good wear resistance, is slightly less effective in this regard compared to S5. However, S7’s ability to maintain hardness under high-temperature conditions and its enhanced hot hardness make it suitable for applications where thermal stability is crucial.

What are the typical applications of S5 and S7 tool steels?

S5 tool steel is typically used in applications requiring high impact toughness and wear resistance. It is ideal for high-speed cutting tools, pneumatic tools, shear blades, punches, chisels, and dies. These tools need to endure significant shock and wear, making S5’s toughness and wear resistance crucial.

S7 tool steel, on the other hand, excels in high-temperature and high-stress environments. It is commonly used for hot work tools, metal extrusion dies, and hot rolls due to its thermal stability. S7 is also favored for tools requiring exceptional toughness and shock resistance, such as chisels, hammers, and concrete breakers. Its excellent dimensional stability makes it suitable for precision tooling applications.

Understanding these distinctions helps in selecting the appropriate tool steel for specific industrial needs, ensuring optimal performance and longevity.

What are the cost differences between S5 and S7 tool steels?

The cost differences between S5 and S7 tool steels are influenced by their composition, manufacturing processes, and application demands. S7 tool steel, which contains higher levels of chromium, molybdenum, and vanadium, tends to be more expensive to produce compared to S5 due to these additional alloying elements. These elements enhance S7’s hot hardness and thermal stability, making it suitable for high-temperature and high-stress applications.

Furthermore, the heat treatment process for S7 is generally more straightforward, as it air-hardens without requiring additional tempering, potentially lowering some processing costs. However, the specialized performance characteristics of S7, such as superior shock resistance and ability to maintain hardness under heat, often result in higher market demand and consequently higher prices.

In contrast, S5 tool steel is known for its high impact resistance and wear resistance, making it ideal for moderate temperature applications. While S5 is effective for many applications, its simpler composition and lower cost of production typically make it less expensive than S7.

How do S5 and S7 tool steels impact the environment?

Both S5 and S7 tool steels have similar environmental impacts due to their production processes, material composition, and recycling potential. The production of these tool steels involves significant energy consumption and raw material extraction, contributing to greenhouse gas emissions and environmental degradation. S5 tool steel, with its high carbon and chromium content, and S7 tool steel, which includes chromium, molybdenum, and vanadium, both present challenges in terms of material extraction and processing.

Recycling of tool steels like S5 and S7 is crucial for minimizing their environmental footprint. Recycling conserves raw materials, reduces energy consumption, and lowers emissions compared to primary production. However, the presence of molybdenum and vanadium in S7 might require more complex recycling processes, potentially affecting environmental outcomes.

Can you provide examples of industries using S5 and S7 tool steels?

Industries using S5 and S7 tool steels leverage their unique properties for specific applications. S5 tool steel, known for its high impact resistance and wear resistance, is commonly utilized in industries requiring precision and durability. Examples include high-speed cutting tools and dies, bearing races, plastic injection molding, and mining equipment. These applications benefit from S5’s ability to maintain sharpness, dimensional stability, and toughness.

On the other hand, S7 tool steel is prized for its shock resistance and high-temperature hardness, making it ideal for hot work tools, forging dies, construction tools, and various machining and manufacturing processes. Industries such as metal extrusion, rolling mills, and construction rely on S7’s thermal stability and toughness, especially in tools like concrete breakers and riveting dies.

In summary, S5 tool steel is preferred for applications involving high-speed cutting and wear resistance, while S7 tool steel is favored for high-impact and high-temperature scenarios.
