Stainless Steel 1.4435 vs 316L: What’s the Difference?

When it comes to selecting the right stainless steel for your project, understanding the nuances between different grades is essential. Two commonly debated options are Stainless Steel 1.4435 and 316L. While both are renowned for their excellent corrosion resistance and versatility, they possess distinct characteristics that make them suitable for different applications. In this article, we’ll delve into the key differences between these two grades, exploring their chemical compositions, mechanical properties, and corrosion resistance. By the end, you’ll have a clearer understanding of which stainless steel is better suited for high-temperature environments and which one offers superior longevity in corrosive conditions. So, let’s dive in and uncover the specifics that set Stainless Steel 1.4435 apart from 316L.

Introduction

Overview of Stainless Steel 1.4435 and 316L

Stainless steel grades 1.4435 and 316L are highly regarded because of their great corrosion resistance and mechanical properties. Both belong to the austenitic family of stainless steels, which are known for their superior resistance to oxidation and scaling, making them suitable for a wide range of industrial applications.

Importance of Understanding the Differences

Selecting the appropriate stainless steel grade for a specific application requires a thorough understanding of each material’s properties. The main differences between stainless steel grades 1.4435 and 316L, such as their chemical composition, mechanical properties, and corrosion resistance, can significantly influence their performance in various environments. Understanding these differences is crucial. It ensures the chosen material meets the application’s specific requirements, whether it involves high-stress conditions, exposure to corrosive substances, or the need for enhanced durability.

By comparing the unique characteristics of 1.4435 and 316L, engineers and material scientists can make informed decisions that optimize performance and cost-efficiency in their projects.

Chemical Composition Comparison

Definition and Importance of Chemical Composition

Chemical composition is the mix of elements and their amounts that form a material. Understanding the chemical composition of stainless steel is crucial as it affects properties like corrosion resistance and mechanical strength, guiding the choice between Stainless Steel 1.4435 and 316L for specific industrial needs.

Detailed Comparison of Chemical Composition

Key Elements in Stainless Steel 1.4435

• Carbon (C): Up to 0.03%
• Silicon (Si): Up to 1.0%
• Manganese (Mn): Up to 2.0%
• Phosphorus (P): Up to 0.045%
• Sulfur (S): Up to 0.015%
• Chromium (Cr): 17.0% to 19.0%
• Molybdenum (Mo): 2.5% to 3.5%
• Nickel (Ni): 12.5% to 15.0%
• Nitrogen (N): Up to 0.11%
• Copper (Cu): Typically small amounts, often not specified

Key Elements in Stainless Steel 316L

• Carbon (C): Up to 0.03%
• Silicon (Si): Up to 1.0%
• Manganese (Mn): Up to 2.0%
• Phosphorus (P): Up to 0.045%
• Sulfur (S): Up to 0.015%
• Chromium (Cr): 16.5% to 18.5%
• Molybdenum (Mo): 2.0% to 2.5%
• Nickel (Ni): 10.0% to 13.0%
• Nitrogen (N): Up to 0.10%

Differences in Composition and Their Implications

1. Chromium and Molybdenum Content:
   • 1.4435 has a higher chromium content (17.0% to 19.0%) compared to 316L (16.5% to 18.5%). The higher chromium content enhances the material’s corrosion resistance, especially in oxidizing environments.
   • 1.4435 also has a higher molybdenum content (2.5% to 3.5%) than 316L (2.0% to 2.5%). Molybdenum enhances resistance to pitting and crevice corrosion, especially in chloride-rich settings.
2. Nickel Content:
   • 1.4435 contains more nickel (12.5% to 15.0%) than 316L (10.0% to 13.0%). Nickel boosts corrosion resistance and improves toughness and ductility.
3. Nitrogen Content:
   • 1.4435 has a slightly higher nitrogen content (up to 0.11%) compared to 316L (up to 0.10%). Nitrogen is added to improve the material’s mechanical properties, such as strength and hardness, and to enhance corrosion resistance.

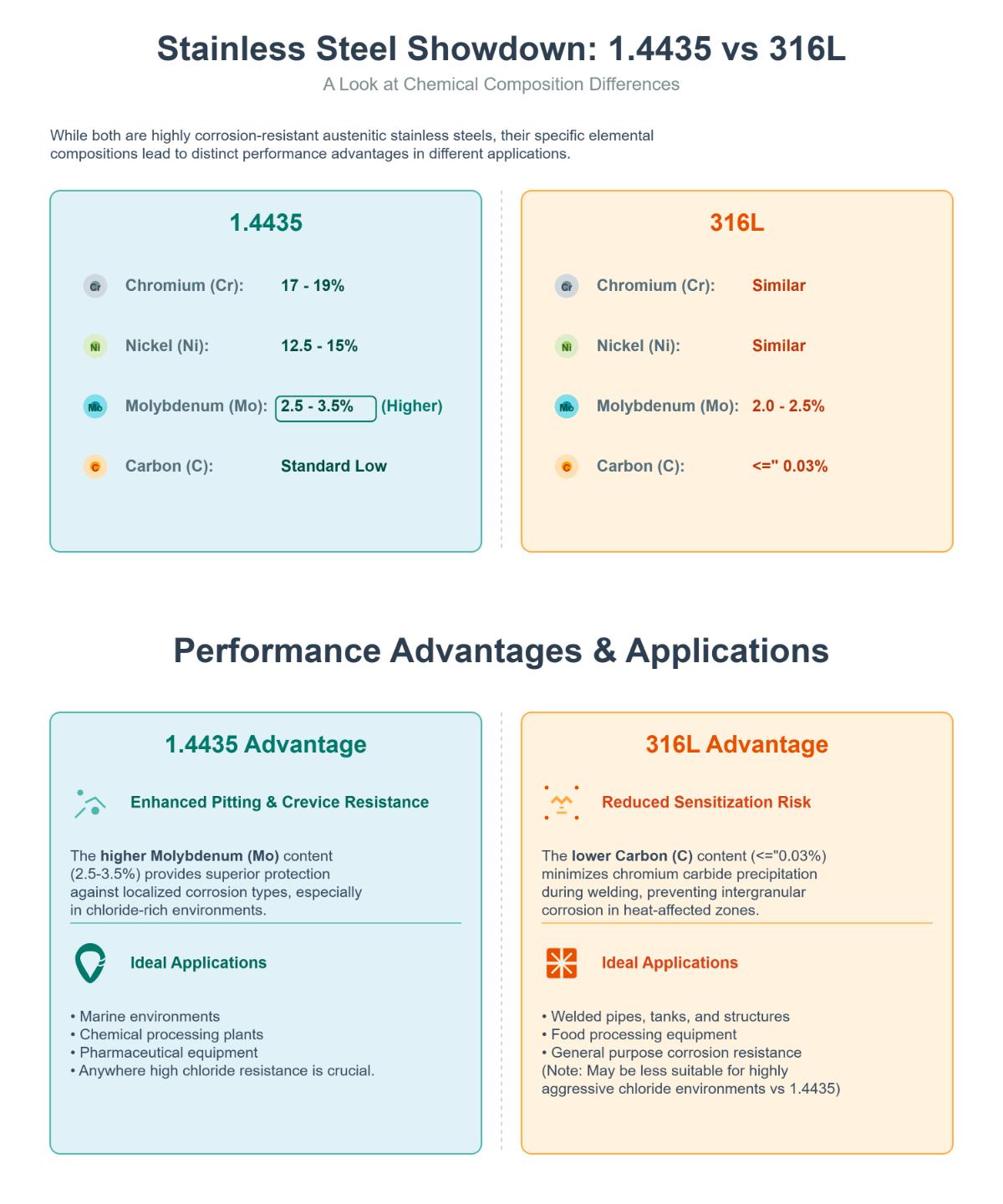

Visual Comparison

Chemical Composition Table

The higher levels of chromium, molybdenum, and nickel in Stainless Steel 1.4435 make it more resistant to corrosion and stronger than 316L. This makes 1.4435 particularly suitable for more aggressive environments where enhanced durability is required.

Mechanical Properties Comparison

Mechanical properties are essential characteristics of materials that describe their behavior under external forces. These properties are crucial for determining a material’s performance, durability, and reliability, making them essential for engineers and material scientists when selecting materials for specific projects.

Detailed Comparison of Mechanical Properties

Tensile Strength

Stainless Steel 1.4435 typically has an ultimate tensile strength between 610 MPa and 870 MPa, which is generally higher and more consistent than 316L’s range of 530 MPa to 1160 MPa. The higher and more stable tensile strength of 1.4435 indicates superior mechanical strength under tensile loads, making it a better choice for applications where high tensile stress is expected.

Yield Strength

1.4435 has a yield strength of about 240 MPa, higher than 316L’s range of 190 to 205 MPa. A higher yield strength means that 1.4435 can withstand greater stress without permanent deformation. This makes it more suitable for applications requiring higher stress resistance, such as structural components in high-stress environments. On the other hand, 316L’s lower yield strength contributes to its greater flexibility, making it useful in applications where some degree of deformation is acceptable.

Ductility (Elongation at Break)

1.4435 has an elongation at break around 43%, which is typical for austenitic stainless steels and allows it to deform significantly before fracturing. In contrast, 316L has a wider range of elongation at break, from 9.0% to 50%, typically around 40%. The broader range and relatively high ductility of 316L make it beneficial for applications requiring extensive forming, such as in the manufacturing of complex shapes.

Hardness

1.4435 has a Brinell hardness of about 190 HB, indicating that it is slightly softer than 316L. The Brinell hardness of 316L ranges from 170 HB to 350 HB, with typical values averaging around 200 HB. The broader range of hardness in 316L suggests more variability in its hardness properties, which can be an advantage or disadvantage depending on the specific application requirements.

Fatigue Strength

1.4435 offers a consistent fatigue strength of about 220 MPa, which is critical for components subject to cyclic loading. The fatigue strength of 316L is more variable, ranging from 170 MPa to 450 MPa. This variability makes 316L less predictable under cyclic stress conditions, while the consistent fatigue strength of 1.4435 makes it a more reliable choice for applications involving repeated loading.

Shear Properties

1.4435 has a shear strength of around 420 MPa, with a shear modulus of approximately 78 GPa. 316L exhibits a shear strength ranging from 370 MPa to 690 MPa, but with the same shear modulus as 1.4435. The similar shear modulus indicates that both materials respond similarly to shear stress in terms of elastic deformation, but the wider range of shear strength in 316L provides more flexibility in applications with varying shear-stress requirements.

Weldability and Formability

Both 1.4435 and 316L offer excellent weldability and formability, but 316L is preferred for welding due to its lower carbon content, which reduces the risk of carbide precipitation and enhances resistance to intergranular corrosion. This makes 316L highly suitable for creating complex shapes and structures that require extensive welding.

Corrosion Resistance Analysis

Importance of Corrosion Resistance

Corrosion resistance refers to a material’s ability to withstand damage caused by chemical reactions with its environment, such as oxidation and rusting. In industries where metals are exposed to harsh conditions, corrosion resistance is crucial as it directly impacts the material’s longevity, performance, and safety. For stainless steel, a high level of corrosion resistance ensures that the material maintains its structural integrity over time, reducing the need for frequent replacements and repairs.

Detailed Comparison of Corrosion Resistance

General Corrosion Resistance

Stainless Steel 1.4435 and 316L both excel in general corrosion resistance due to their chromium content, which forms a protective oxide layer. However, 1.4435’s higher chromium (17 – 19%) and molybdenum (2.5 – 3.5%) content compared to 316L (16.5 – 18.5% chromium and 2.0 – 2.5% molybdenum) offers superior resistance in a broader range of environments.

Chemical Resistance in Various Environments

• Chloride Environments: In chloride-rich settings, such as marine or coastal areas, pitting and crevice corrosion are common threats. 1.4435’s higher molybdenum content gives it an edge over 316L, making it more effective in resisting these forms of corrosion. 316L, while still offering good resistance, may be more susceptible to pitting and crevice corrosion in extreme chloride environments.
• Acidic Environments: 1.4435 performs better in acidic environments due to its enhanced composition, making it more resistant to corrosion from these acids than 316L. However, 316L provides sufficient resistance in moderate acid concentrations, making it suitable for many food processing and general industrial applications.
• Intergranular Corrosion: 316L’s low carbon content (max 0.03%) minimizes the risk of carbide precipitation during welding, improving its resistance to intergranular corrosion. This makes 316L a better choice for applications where welding is involved and intergranular corrosion is a concern.

Visual Comparison

A corrosion resistance comparison chart could be used to illustrate the differences between Stainless Steel 1.4435 and 316L in various environments. The chart could include columns for different types of environments (e.g., chloride, acidic, welding conditions) and rows for each stainless steel grade, with ratings indicating their relative performance.

Impact on Material Longevity

The superior corrosion resistance of 1.4435 in aggressive environments can significantly extend its service life compared to 316L. In industries where materials are exposed to harsh chemicals or extreme conditions, 1.4435 may be the preferred choice to ensure long-term reliability. In contrast, 316L is ideal for applications requiring cost-effectiveness and weldability without significantly compromising on material longevity.

Application Areas for Each Material

Applications of Stainless Steel 1.4435

Petrochemical and Pharmaceutical Industries

In the petrochemical and pharmaceutical sectors, 1.4435 is highly valued for its exceptional corrosion resistance. Petrochemical plants handle aggressive chemicals, including acids and salts. These substances can cause severe corrosion to ordinary materials. However, the high molybdenum content in 1.4435 makes it resistant to pitting and crevice corrosion. This property ensures the long – term integrity of equipment such as storage tanks and pipelines. In the pharmaceutical industry, strict hygiene and corrosion resistance standards are required. 1.4435 is used for equipment that comes into contact with various chemical compounds during the manufacturing process.

Chemical Production Plants

Moreover, in chemical production plants, a wide range of intense acids and chemicals are dealt with. Stainless Steel 1.4435’s enhanced corrosion resistance properties, due to its higher chromium and molybdenum content, make it an ideal choice for reactors, heat exchangers, and other equipment. These components need to withstand the corrosive nature of chemicals over extended periods, and 1.4435 can meet these requirements effectively.

Automotive Industry

Similarly, in the automotive industry, 1.4435 is used for parts exposed to road salts and other corrosive elements. For example, exhaust systems and underbody components are often made from 1.4435. Its ability to resist corrosion helps to increase the lifespan of these parts, reducing the need for frequent replacements and improving the overall durability and reliability of the vehicle.

Offshore and Marine Applications

Likewise, offshore platforms and ships are constantly exposed to a chloride – rich marine environment, which is highly corrosive. The high molybdenum content in 1.4435 enhances its resistance to chloride contamination. It is used in the construction of ship hulls, offshore pipelines, and other marine structures, ensuring their reliability and safety in harsh marine conditions.

Applications of Stainless Steel 316L

Medical Implants

316L is a popular choice for medical implants due to its high ductility and biocompatibility. Ductility means that the material can be stretched and shaped without breaking. The human body is a complex and sensitive environment, and materials used for implants must not cause adverse reactions. 316L’s biocompatibility allows it to be safely used in applications such as bone plates, screws, and dental implants. Its ductility also enables it to be formed into complex shapes to meet the specific requirements of medical procedures.

Food Processing

In the food processing industry, hygiene is of utmost importance. 316L’s non – toxic nature makes it suitable for equipment such as food storage tanks, conveyor belts, and processing machinery. It can be easily cleaned and sanitized, preventing the growth of bacteria and ensuring the safety of food products. Additionally, its general corrosion resistance helps to maintain the quality of the equipment over time.

Marine Applications

Although 316L is not as corrosion – resistant as 1.4435 in extreme chloride environments, it is still used for less critical marine components like handrails, fittings, and some types of small boats due to its relatively lower cost and general corrosion resistance.

General Industrial Use

316L is widely used in various general industrial applications due to its balanced properties and cost – effectiveness. It can be found in a range of equipment such as centrifugal pumps for fluid transfer, ball valves for controlling flow, and steel structural frames in factory buildings. Its good formability and weldability also make it easy to fabricate into different shapes and structures, meeting the diverse needs of different industries.

Standards Compliance (EN, ASTM)

EN Standards Compliance

Stainless Steel 1.4435 is classified as X2CrNiMo18-14-3 under EN standards. This classification clearly specifies its chemical composition and properties according to European standards for corrosion-resistant steels. The specific ratios of elements such as chromium, nickel, and molybdenum in 1.4435 meet EN’s strict requirements for high-level corrosion resistance.

On the other hand, Stainless Steel 316L is known as X2CrNiMo17-12-2 according to EN standards. Its chemical composition, with lower amounts of chromium, nickel, and molybdenum than 1.4435, also complies with the EN criteria. These standards ensure that 316L has suitable corrosion-resistant properties for various applications within the European market.

ASTM Standards Compliance

316L usually complies with ASTM A240 for plates, sheets, and strips, and ASTM A276 for bars. These standards define the quality, dimensions, and mechanical properties of the material, ensuring its suitability for different industrial uses. For instance, ASTM A240 specifies the requirements for flat-rolled stainless and heat-resisting steel plate, sheet, and strip, which are essential for construction and manufacturing applications.

In contrast, 1.4435, being a modified version of 316L, may be considered under modified 316L standards or similar specifications like UNS S31603 for certain applications. This indicates that while 1.4435 shares some similarities with 316L in terms of ASTM compliance, its unique chemical composition may require additional or adjusted standards to fully account for its enhanced properties.

Impact on Material Selection

Compliance with EN and ASTM standards is of great importance when selecting between Stainless Steel 1.4435 and 316L. For projects that are subject to European regulations, the EN classification provides a clear indication of the material’s suitability. In international projects where ASTM standards are more prevalent, understanding how each grade aligns with these standards helps in making informed decisions. For example, if a project requires high-quality bars, the ASTM A276 compliance of 316L can be a determining factor. However, for applications demanding enhanced properties similar to 1.4435, the relevant modified standards need to be carefully considered.

Real-World Case Studies

Chemical and Pharmaceutical Industries

In chemical processing plants, Stainless Steel 1.4435 is chosen for its superior resistance to aggressive chemicals. For example, in environments where organic and inorganic acids are prevalent, 1.4435’s higher chromium and molybdenum content offer significant protection against pitting and crevice corrosion, making it ideal for equipment such as reactors, storage tanks, and piping systems. The enhanced corrosion resistance ensures the longevity and reliability of the equipment, reducing downtime and maintenance costs.

Stainless Steel 316L is frequently used in the pharmaceutical industry due to its excellent biocompatibility and ease of welding. Equipment such as drug manufacturing vessels, sterilizers, and piping systems often utilize 316L because it can be easily cleaned and sterilized, maintaining the stringent hygiene standards required in pharmaceutical production. Its low carbon content minimizes the risk of intergranular corrosion, which is crucial in maintaining the integrity of welded joints in complex manufacturing setups.

Medical Devices

316L is a preferred material for medical implants, such as bone screws, plates, and cardiovascular stents, due to its high ductility and biocompatibility. The ability to form complex shapes without compromising structural integrity is essential for medical devices that must conform to the body’s intricate anatomy. Additionally, 316L’s resistance to body fluids and sterilization processes makes it a safe and durable choice for long-term implantation.

Marine and Coastal Applications

316L is commonly used in marine environments for handrails, deck fittings, and boat fittings due to its resistance to chloride-induced corrosion and cost-effectiveness. Its resistance to chloride-induced corrosion, coupled with its cost-effectiveness, makes it suitable for these less critical components that are still exposed to saltwater. Despite not being as corrosion-resistant as 1.4435 in extreme conditions, 316L provides adequate protection for general marine hardware.

For offshore platforms, where exposure to seawater is constant and the environment is highly corrosive, 1.4435 is often the material of choice. Its higher molybdenum content provides enhanced resistance to pitting and crevice corrosion, critical for ensuring the safety and durability of structures such as risers, subsea pipelines, and support structures. The reliability of 1.4435 in these demanding conditions helps prevent costly failures and ensures the longevity of offshore installations.

Food Processing Industry

316L is widely used in the food processing industry for equipment like conveyors, storage tanks, and processing lines because it is non-toxic and resistant to food acids and cleaning chemicals. Its non-toxic nature and resistance to food acids and cleaning chemicals make it ideal for maintaining hygiene and safety standards. The material’s ability to withstand frequent cleaning and sterilization processes without degrading ensures the long-term usability of food processing equipment.

Automotive Industry

In the automotive industry, 1.4435 is often used for components exposed to corrosive environments, such as exhaust systems. The higher resistance to corrosion from road salts and exhaust gases extends the lifespan of these components, reducing the need for frequent replacements and enhancing overall vehicle reliability. This makes 1.4435 a popular choice for manufacturers aiming to produce long-lasting, durable vehicles that require less maintenance.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the differences in corrosion resistance between Stainless Steel 1.4435 and 316L?

Stainless Steel 1.4435 and 316L both exhibit excellent corrosion resistance, but they differ in their chemical compositions and performance in various environments. Stainless Steel 1.4435 contains higher levels of chromium (17-19%), nickel (12.5-15%), and molybdenum (2.5-3.5%) compared to 316L. This increased molybdenum content significantly enhances its resistance to pitting and crevice corrosion, making 1.4435 particularly suitable for environments with high chloride exposure, such as marine settings and chemical processing plants.

In contrast, 316L has a slightly lower molybdenum content (2-2.5%) but features a lower carbon content (maximum 0.03%) compared to standard 316 stainless steel. The lower carbon content reduces the risk of sensitization during welding, which can lead to intergranular corrosion. Although 316L also offers good resistance to pitting and crevice corrosion, its performance in highly aggressive chloride environments might not be as robust as that of 1.4435.

Which stainless steel is better for high-temperature applications?

For high-temperature applications, Stainless Steel 1.4435 (316LMo) is generally the better choice over 316L. This preference is due to its higher maximum operating temperature of up to 980°C, compared to 316L’s 870°C. The increased chromium, nickel, and molybdenum content in 1.4435 enhances its mechanical strength and resistance to deformation at elevated temperatures. Additionally, 1.4435 offers superior corrosion resistance in aggressive environments, which is crucial for maintaining material integrity under thermal stress.

While 316L is known for its excellent weldability and formability due to its low carbon content, making it suitable for applications requiring high ductility and biocompatibility, it does not match the high-temperature performance of 1.4435. Therefore, for applications demanding both high-temperature endurance and robust mechanical properties, 1.4435 is the preferred material.

How do the mechanical properties of Stainless Steel 1.4435 and 316L compare?

Stainless Steel 1.4435 (X2CrNiMo18-14-3) and 316L are both highly valued for their corrosion resistance and mechanical properties, but they do exhibit some differences.

1.4435 generally has higher mechanical strength, with an ultimate tensile strength ranging from 610 to 870 MPa and a yield strength of about 240 MPa. This makes it more resistant to deformation under stress. It also has a consistent fatigue strength of around 220 MPa and can withstand higher temperatures, up to 980°C.

316L, on the other hand, typically has a lower tensile strength of 515-580 MPa and a yield strength ranging from 190 to 205 MPa. It is more ductile with an elongation at break averaging around 40%, making it more suitable for applications requiring flexibility. Its hardness is slightly higher, with typical values around 200 HB, and it can endure temperatures up to 870°C.

What industries commonly use Stainless Steel 1.4435 and 316L?

Stainless Steel 1.4435 and 316L are both widely used in various industries due to their excellent properties, but they serve slightly different applications based on their specific characteristics.

Stainless Steel 1.4435, known for its high corrosion resistance due to the higher molybdenum content, is extensively used in the petrochemical, pharmaceutical, chemical production, automotive, and marine industries. Its superior resistance to aggressive chemicals and high chloride environments makes it ideal for these applications.

On the other hand, Stainless Steel 316L, characterized by its lower carbon content which enhances weldability and resistance to intergranular corrosion, is commonly used in medical implants, food processing equipment, marine environments, and applications requiring high ductility and biocompatibility. While it offers good corrosion resistance, it is less expensive and slightly less resistant to aggressive chemicals compared to 1.4435.

Are there significant cost differences between Stainless Steel 1.4435 and 316L?

There are minimal cost differences between Stainless Steel 1.4435 and 316L. Both materials are priced similarly, typically ranging from approximately €7.00 to €8.00 per kilogram, influenced by factors such as supplier and product form. The slightly higher alloy content in 1.4435, which includes higher levels of chromium, nickel, and molybdenum, may result in a marginally higher cost. However, this difference is generally not significant.

How do standards compliance (EN, ASTM) affect the choice between Stainless Steel 1.4435 and 316L?

Standards compliance, such as EN (European Norm) and ASTM (American Society for Testing and Materials), significantly influences the selection between Stainless Steel 1.4435 and 316L. Compliance ensures that the material meets specific chemical, mechanical, and performance requirements critical for safety and functionality in various applications.

Stainless Steel 1.4435, designated as EN X2CrNiMo18-14-3, has higher molybdenum content compared to 316L, which enhances its corrosion resistance, particularly in chloride environments. This makes 1.4435 preferable for industries like pharmaceuticals and chemicals, where stringent EN standards (e.g., EN 10088) demand superior corrosion resistance and mechanical strength.

Conversely, 316L, recognized under ASTM standards such as A240 for sheets and plates, is valued for its lower carbon content, improving weldability and reducing the risk of intergranular corrosion. This makes 316L suitable for extensive welding applications and industries requiring good corrosion resistance and biocompatibility, such as marine and food processing.

Therefore, the choice between these materials depends on the specific regulatory and performance requirements dictated by EN and ASTM standards, ensuring the selected stainless steel meets the necessary criteria for the intended application.
